CompaRNA - on-line benchmarks of RNA structure prediction methods

FAQ

Metric	Cylofold		MCFold
MCC	0.613	>	0.460
Average MCC ± 95% Confidence Intervals	0.587 ± 0.099	>	0.432 ± 0.119
Sensitivity	0.517	>	0.476
Positive Predictive Value	0.732	>	0.452
Total TP	388	>	357
Total TN	94739	>	94480
Total FP	160	<	466
Total FP CONTRA	17	<	47
Total FP INCONS	125	<	385
Total FP COMP	18	<	34
Total FN	362	<	393
P-value	5.19332990918e-08

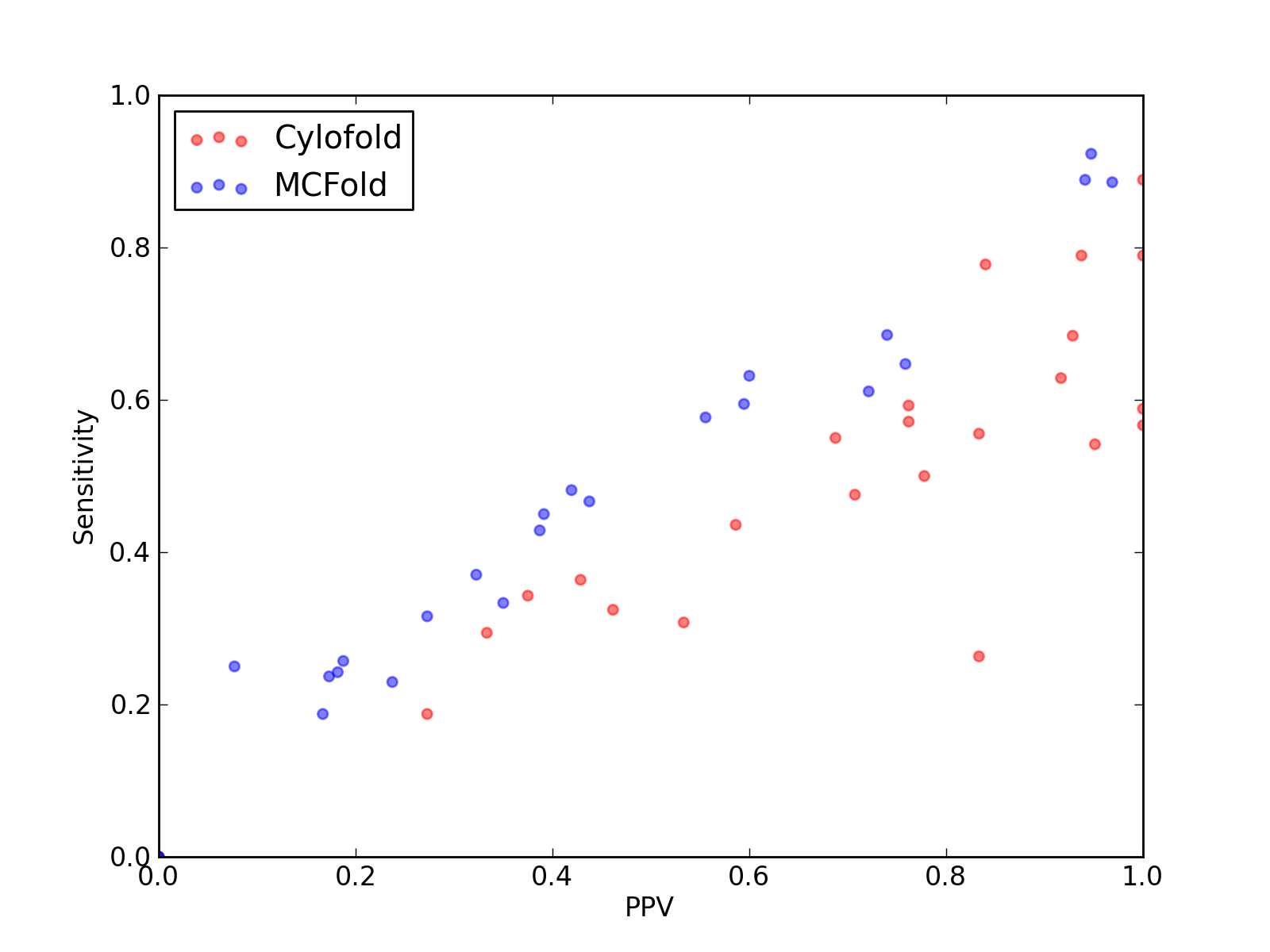

Comparison of performance of Cylofold and MCFold. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for Cylofold and MCFold).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for Cylofold and MCFold).
Comparison of average Matthews Correlation Coefficients (MCCs) for Cylofold and MCFold. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for Cylofold and MCFold).

Total Scores
MCC	0.613
Average MCC ± 95% Confidence Intervals	0.587 ± 0.099
Sensitivity	0.517
Positive Predictive Value	0.732
Nr of predictions	24

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KX8_A	7SK links to Rfam database...	0.94	0.89	1.00	16	845	0	0	0	0	2
2LA5_A	-	0.46	0.26	0.83	5	624	1	0	1	0	14
2LC8_A	GP_knot1 links to Rfam database...	0.61	0.55	0.69	11	1524	5	0	5	0	9
2LKR_A	-	0.50	0.44	0.59	17	6076	12	2	10	0	22
2XQD_Y	tRNA links to Rfam database...	0.81	0.78	0.84	21	2825	4	4	0	0	6
3AKZ_H	tRNA links to Rfam database...	0.66	0.57	0.76	16	2680	6	0	5	1	12
3AM1_B	-	0.76	0.63	0.92	22	3216	2	0	2	0	13
3AMU_B	tRNA links to Rfam database...	0.67	0.59	0.76	16	2982	7	0	5	2	11
3IZF_C	5S_rRNA links to Rfam database...	0.68	0.56	0.83	30	6867	6	0	6	0	24
3J0L_a	-	0.22	0.19	0.27	3	1117	8	1	7	0	13
3J0L_2	-	0.39	0.36	0.43	12	6188	18	2	14	2	21
3J0L_g	-	-0.01	0.00	0.00	0	461	4	1	3	0	4
3J0L_7	-	0.30	0.29	0.33	5	1210	10	0	10	0	12
3J16_L	tRNA links to Rfam database...	0.75	0.57	1.00	17	2758	0	0	0	0	13
3NDB_M	-	0.58	0.48	0.71	29	9139	13	1	11	1	32
3NKB_B	-	0.40	0.31	0.53	8	2001	7	0	7	0	18
3O58_3	5_8S_rRNA links to Rfam database...	0.36	0.34	0.38	12	12371	29	5	15	9	23
3O58_2	5S_rRNA links to Rfam database...	0.80	0.68	0.93	26	7232	3	0	2	1	12
3PDR_A	ykoK links to Rfam database...	0.72	0.54	0.95	39	12839	4	0	2	2	33
3RKF_A	Purine links to Rfam database...	0.76	0.59	1.00	20	2191	0	0	0	0	14
3SD1_A	THF links to Rfam database...	0.62	0.50	0.78	21	3889	6	0	6	0	21
3U4M_B	-	0.38	0.32	0.46	12	3134	14	0	14	0	25
4ENB_A	crcB links to Rfam database...	0.89	0.79	1.00	15	1260	0	0	0	0	4
4ENC_A	crcB links to Rfam database...	0.86	0.79	0.94	15	1310	1	1	0	0	4

Total Scores
MCC	0.460
Average MCC ± 95% Confidence Intervals	0.432 ± 0.119
Sensitivity	0.476
Positive Predictive Value	0.452
Nr of predictions	24

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KX8_A	7SK links to Rfam database...	0.91	0.89	0.94	16	844	2	0	1	1	2
2LA5_A	-	-0.03	0.00	0.00	0	615	15	0	15	0	19
2LC8_A	GP_knot1 links to Rfam database...	0.41	0.45	0.39	9	1517	16	0	14	2	11
2LKR_A	-	0.93	0.92	0.95	36	6067	14	0	2	12	3
2XQD_Y	tRNA links to Rfam database...	0.34	0.37	0.32	10	2819	22	1	20	1	17
3AKZ_H	tRNA links to Rfam database...	0.40	0.43	0.39	12	2670	19	3	16	0	16
3AM1_B	-	0.93	0.89	0.97	31	3208	2	0	1	1	4
3AMU_B	tRNA links to Rfam database...	0.44	0.48	0.42	13	2972	18	2	16	0	14
3IZF_C	5S_rRNA links to Rfam database...	0.71	0.69	0.74	37	6853	14	0	13	1	17
3J0L_a	-	0.16	0.19	0.17	3	1110	15	1	14	0	13
3J0L_2	-	0.21	0.24	0.18	8	6172	39	7	29	3	25
3J0L_g	-	0.13	0.25	0.08	1	452	12	8	4	0	3
3J0L_7	-	-0.01	0.00	0.00	0	1206	19	4	15	0	17
3J16_L	tRNA links to Rfam database...	0.45	0.47	0.44	14	2743	19	1	17	1	16
3NDB_M	-	0.23	0.23	0.24	14	9121	46	1	44	1	47
3NKB_B	-	0.56	0.58	0.56	15	1989	13	0	12	1	11
3O58_3	5_8S_rRNA links to Rfam database...	0.22	0.26	0.19	9	12355	45	9	30	6	26
3O58_2	5S_rRNA links to Rfam database...	0.20	0.24	0.17	9	7208	44	5	38	1	29
3PDR_A	ykoK links to Rfam database...	0.66	0.61	0.72	44	12819	19	0	17	2	28
3RKF_A	Purine links to Rfam database...	0.70	0.65	0.76	22	2182	7	1	6	0	12
3SD1_A	THF links to Rfam database...	0.33	0.33	0.35	14	3876	26	0	26	0	28
3U4M_B	-	0.59	0.59	0.59	22	3123	15	0	15	0	15
4ENB_A	crcB links to Rfam database...	0.61	0.63	0.60	12	1255	8	2	6	0	7
4ENC_A	crcB links to Rfam database...	0.28	0.32	0.27	6	1304	17	2	14	1	13

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
