Overview

Metric	HotKnots		Contrafold
MCC	0.569	>	0.568
Average MCC ± 95% Confidence Intervals	0.569 ± 0.069	>	0.556 ± 0.068
Sensitivity	0.506	>	0.498
Positive Predictive Value	0.644	<	0.653
Total TP	949	>	933
Total TN	338519	<	338564
Total FP	591	>	553
Total FP CONTRA	86	>	84
Total FP INCONS	439	>	412
Total FP COMP	66	>	57
Total FN	926	<	942
P-value	0.258868738329

^top

Performance plots

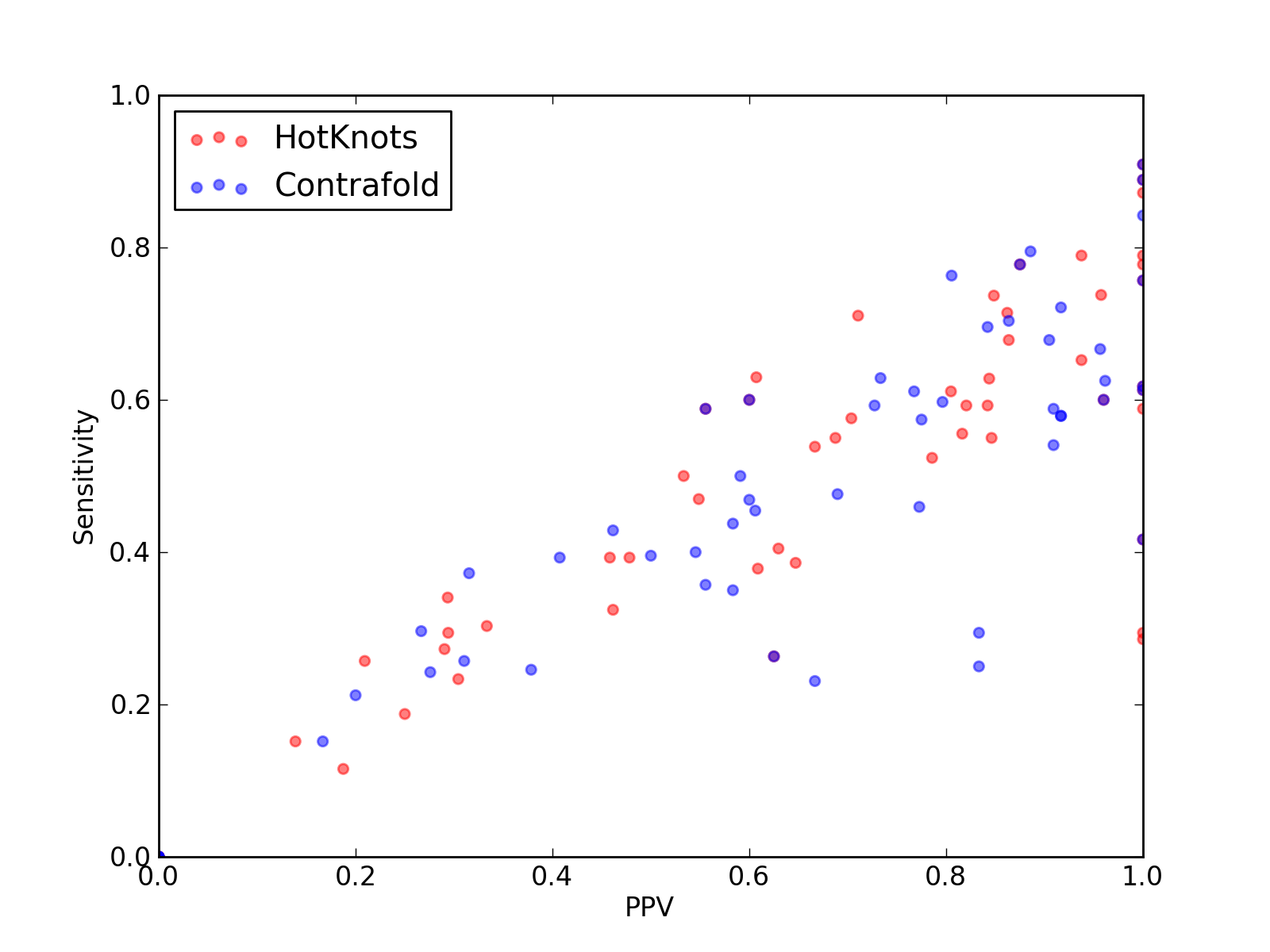

Comparison of performance of HotKnots and Contrafold. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for HotKnots and Contrafold).

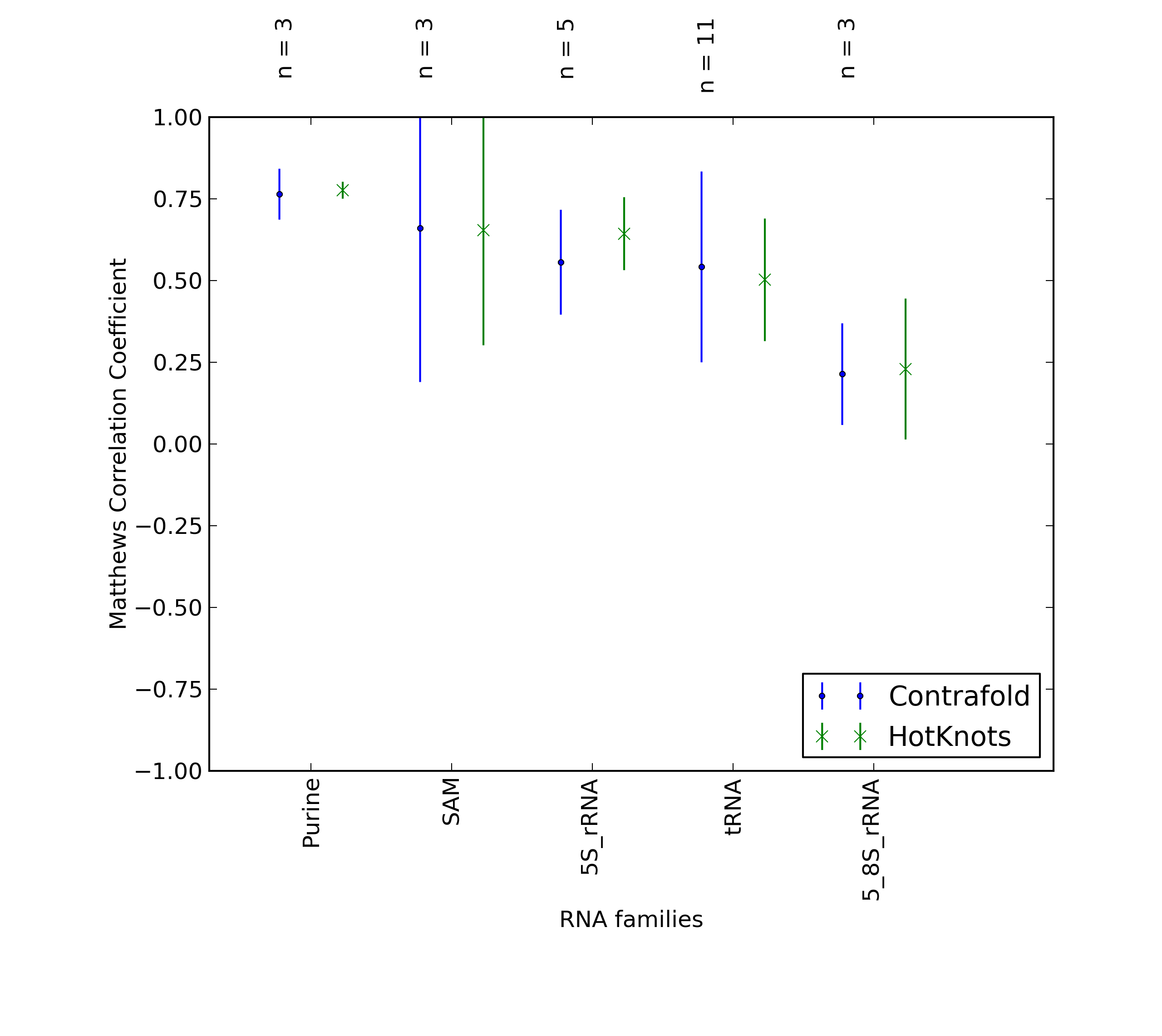

Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for HotKnots and Contrafold).

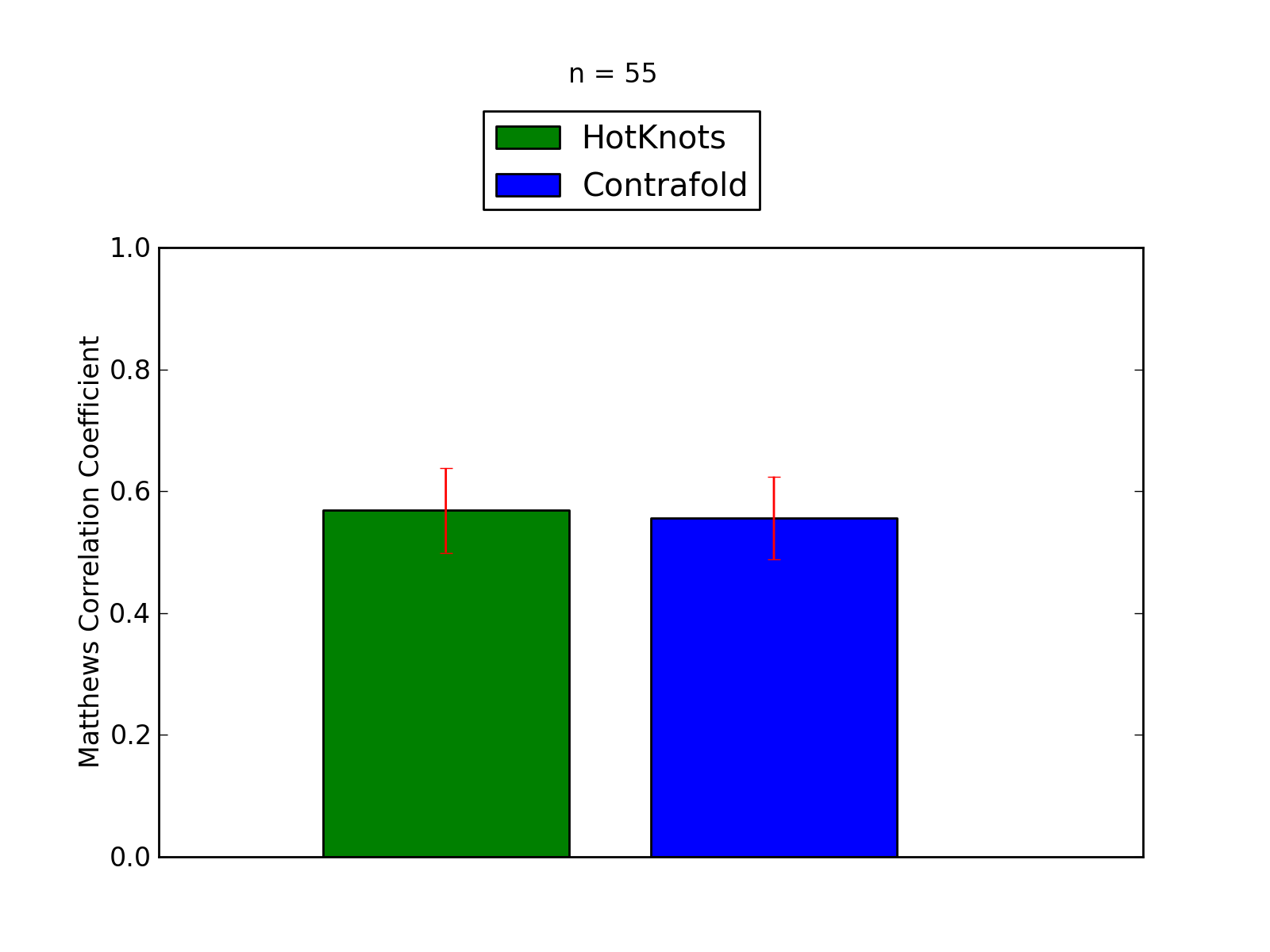

Comparison of average Matthews Correlation Coefficients (MCCs) for HotKnots and Contrafold. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for HotKnots and Contrafold).

^top

Performance of HotKnots - scored higher in this pairwise comparison

1. Total counts & total scores for HotKnots

Total Base Pair Counts
Total TP	949
Total TN	338519
Total FP	591
Total FP CONTRA	86
Total FP INCONS	439
Total FP COMP	66
Total FN	926

Total Scores
MCC	0.569
Average MCC ± 95% Confidence Intervals	0.569 ± 0.069
Sensitivity	0.506
Positive Predictive Value	0.644
Nr of predictions	55

^top

2. Individual counts for HotKnots [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	0.95	0.91	1.00	10	396	0	0	0	0	1
2KFC_A	-	-0.02	0.00	0.00	0	623	7	0	7	0	20
2KRL_A	-	0.76	0.60	0.96	24	5126	5	0	1	4	16
2KX8_A	7SK links to Rfam database...	0.94	0.89	1.00	16	845	0	0	0	0	2
2LA5_A	-	0.39	0.26	0.63	5	622	3	1	2	0	14
2LC8_A	GP_knot1 links to Rfam database...	0.61	0.55	0.69	11	1524	5	0	5	0	9
2LKR_A	-	0.93	0.87	1.00	34	6071	3	0	0	3	5
2RP0_A	-	0.64	0.42	1.00	5	346	0	0	0	0	7
2WRQ_Y	tRNA links to Rfam database...	0.57	0.59	0.56	10	2832	13	5	3	5	7
2WW9_F	-	0.59	0.60	0.60	6	290	4	0	4	0	4
2WW9_D	-	0.14	0.12	0.19	3	1937	13	0	13	0	23
2WW9_E	-	0.53	0.29	1.00	4	557	0	0	0	0	10
2WWQ_V	tRNA links to Rfam database...	0.76	0.68	0.86	19	2904	5	0	3	2	9
2XQD_Y	tRNA links to Rfam database...	0.88	0.78	1.00	21	2829	0	0	0	0	6
2ZZM_B	tRNA links to Rfam database...	0.21	0.19	0.25	6	3462	18	0	18	0	26
2ZZN_D	tRNA links to Rfam database...	0.82	0.78	0.88	21	2461	3	0	3	0	6
3A2K_C	tRNA links to Rfam database...	0.42	0.39	0.46	11	2902	13	2	11	0	17
3A3A_A	tRNA-Sec links to Rfam database...	0.87	0.76	1.00	28	3627	0	0	0	0	9
3ADB_C	-	0.79	0.74	0.85	28	4153	5	0	5	0	10
3AKZ_H	tRNA links to Rfam database...	0.43	0.39	0.48	11	2678	12	2	10	0	17
3AM1_B	-	0.78	0.71	0.86	25	3211	4	0	4	0	10
3AMU_B	tRNA links to Rfam database...	0.70	0.59	0.84	16	2984	5	0	3	2	11
3G4S_9	5S_rRNA links to Rfam database...	0.50	0.39	0.65	22	7347	12	1	11	0	35
3GCA_A	-	0.54	0.29	1.00	5	523	0	0	0	0	12
3GX2_A	SAM links to Rfam database...	0.68	0.55	0.85	22	4345	5	0	4	1	18
3IVN_B	Purine links to Rfam database...	0.78	0.61	1.00	19	2327	0	0	0	0	12
3IWN_A	c-di-GMP-I links to Rfam database...	0.63	0.58	0.70	19	4251	9	0	8	1	14
3IYQ_A	tmRNA links to Rfam database...	0.31	0.34	0.29	32	60617	81	22	55	4	62
3IZ4_A	tmRNA links to Rfam database...	0.51	0.47	0.55	62	70763	52	10	41	1	70
3IZF_C	5S_rRNA links to Rfam database...	0.70	0.61	0.80	33	6862	8	1	7	0	21
3J0L_2	-	0.28	0.27	0.29	9	6185	23	3	19	1	24
3J0L_g	-	-0.01	0.00	0.00	0	460	5	1	4	0	4
3J0L_7	-	0.28	0.29	0.29	5	1208	12	0	12	0	12
3J0L_a	-	0.51	0.50	0.53	8	1113	7	3	4	0	8
3J16_L	tRNA links to Rfam database...	0.26	0.23	0.30	7	2752	16	1	15	0	23
3JYV_7	tRNA links to Rfam database...	-0.01	0.00	0.00	0	2828	22	1	21	0	32
3JYX_4	5_8S_rRNA links to Rfam database...	0.32	0.30	0.33	10	12216	31	5	15	11	23
3JYX_3	5S_rRNA links to Rfam database...	0.62	0.63	0.61	17	6300	22	1	10	11	10
3KTW_C	-	0.73	0.63	0.84	27	4528	6	2	3	1	16
3LA5_A	Purine links to Rfam database...	0.78	0.62	1.00	21	2464	0	0	0	0	13
3NDB_M	-	0.84	0.74	0.96	45	9133	3	0	2	1	16
3NKB_B	-	0.59	0.54	0.67	14	1995	7	0	7	0	12
3NPB_A	SAM links to Rfam database...	0.78	0.65	0.94	30	6989	5	0	2	3	16
3O58_2	5S_rRNA links to Rfam database...	0.71	0.71	0.71	27	7222	12	4	7	1	11
3O58_3	5_8S_rRNA links to Rfam database...	0.23	0.26	0.21	9	12360	34	10	24	0	26
3PDR_A	ykoK links to Rfam database...	0.67	0.56	0.82	40	12831	11	0	9	2	32
3RKF_A	Purine links to Rfam database...	0.76	0.59	1.00	20	2191	0	0	0	0	14
3SD1_A	THF links to Rfam database...	0.64	0.52	0.79	22	3888	6	1	5	0	20
3U4M_B	-	0.38	0.32	0.46	12	3134	14	0	14	0	25
3UZL_B	tRNA links to Rfam database...	0.48	0.38	0.61	14	3547	9	0	9	0	23
4A1C_3	5S_rRNA links to Rfam database...	0.70	0.59	0.82	32	7101	7	1	6	0	22
4A1C_2	5_8S_rRNA links to Rfam database...	0.14	0.15	0.14	5	11745	42	6	25	11	28
4AOB_A	SAM links to Rfam database...	0.50	0.40	0.63	17	4344	11	2	8	1	25
4ENB_A	crcB links to Rfam database...	0.89	0.79	1.00	15	1260	0	0	0	0	4
4ENC_A	crcB links to Rfam database...	0.86	0.79	0.94	15	1310	1	1	0	0	4

^top

Performance of Contrafold - scored lower in this pairwise comparison

1. Total counts & total scores for Contrafold

Total Base Pair Counts
Total TP	933
Total TN	338564
Total FP	553
Total FP CONTRA	84
Total FP INCONS	412
Total FP COMP	57
Total FN	942

Total Scores
MCC	0.568
Average MCC ± 95% Confidence Intervals	0.556 ± 0.068
Sensitivity	0.498
Positive Predictive Value	0.653
Nr of predictions	55

^top

2. Individual counts for Contrafold [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	0.95	0.91	1.00	10	396	0	0	0	0	1
2KFC_A	-	0.45	0.25	0.83	5	624	1	0	1	0	15
2KRL_A	-	0.76	0.60	0.96	24	5126	5	0	1	4	16
2KX8_A	7SK links to Rfam database...	0.94	0.89	1.00	16	845	0	0	0	0	2
2LA5_A	-	0.39	0.26	0.63	5	622	3	1	2	0	14
2LC8_A	GP_knot1 links to Rfam database...	0.45	0.35	0.58	7	1528	5	2	3	0	13
2LKR_A	-	0.84	0.79	0.89	31	6070	6	0	4	2	8
2RP0_A	-	0.64	0.42	1.00	5	346	0	0	0	0	7
2WRQ_Y	tRNA links to Rfam database...	0.57	0.59	0.56	10	2832	13	5	3	5	7
2WW9_F	-	0.59	0.60	0.60	6	290	4	0	4	0	4
2WW9_D	-	0.39	0.23	0.67	6	1944	3	2	1	0	20
2WW9_E	-	0.00	0.00	0.00	0	561	0	0	0	0	14
2WWQ_V	tRNA links to Rfam database...	0.78	0.68	0.90	19	2905	4	0	2	2	9
2XQD_Y	tRNA links to Rfam database...	0.78	0.70	0.86	19	2828	3	0	3	0	8
2ZZM_B	tRNA links to Rfam database...	0.53	0.47	0.60	15	3461	10	2	8	0	17
2ZZN_D	tRNA links to Rfam database...	0.82	0.78	0.88	21	2461	3	0	3	0	6
3A2K_C	tRNA links to Rfam database...	0.44	0.43	0.46	12	2900	14	2	12	0	16
3A3A_A	tRNA-Sec links to Rfam database...	0.87	0.76	1.00	28	3627	0	0	0	0	9
3ADB_C	-	0.92	0.84	1.00	32	4154	0	0	0	0	6
3AKZ_H	tRNA links to Rfam database...	0.39	0.39	0.41	11	2674	17	4	12	1	17
3AM1_B	-	0.68	0.63	0.73	22	3210	8	1	7	0	13
3AMU_B	tRNA links to Rfam database...	0.65	0.59	0.73	16	2981	8	0	6	2	11
3G4S_9	5S_rRNA links to Rfam database...	0.30	0.25	0.38	14	7344	23	1	22	0	43
3GCA_A	-	0.49	0.29	0.83	5	522	1	0	1	0	12
3GX2_A	SAM links to Rfam database...	0.77	0.63	0.96	25	4345	2	0	1	1	15
3IVN_B	Purine links to Rfam database...	0.78	0.61	1.00	19	2327	0	0	0	0	12
3IWN_A	c-di-GMP-I links to Rfam database...	0.80	0.67	0.96	22	4255	1	0	1	0	11
3IYQ_A	tmRNA links to Rfam database...	0.34	0.37	0.32	35	60615	80	21	55	4	59
3IZ4_A	tmRNA links to Rfam database...	0.52	0.45	0.61	60	70777	44	4	35	5	72
3IZF_C	5S_rRNA links to Rfam database...	0.68	0.61	0.77	33	6860	10	1	9	0	21
3J0L_2	-	0.25	0.24	0.28	8	6187	26	0	21	5	25
3J0L_g	-	0.00	0.00	0.00	0	464	1	1	0	0	4
3J0L_7	-	-0.01	0.00	0.00	0	1218	7	0	7	0	17
3J0L_a	-	0.50	0.44	0.58	7	1116	5	2	3	0	9
3J16_L	tRNA links to Rfam database...	0.46	0.40	0.55	12	2753	10	1	9	0	18
3JYV_7	tRNA links to Rfam database...	-0.01	0.00	0.00	0	2830	20	0	20	0	32
3JYX_4	5_8S_rRNA links to Rfam database...	0.20	0.21	0.20	7	12211	35	6	22	7	26
3JYX_3	5S_rRNA links to Rfam database...	0.28	0.30	0.27	8	6298	23	8	14	1	19
3KTW_C	-	0.44	0.40	0.50	17	4526	18	2	15	1	26
3LA5_A	Purine links to Rfam database...	0.78	0.62	1.00	21	2464	0	0	0	0	13
3NDB_M	-	0.81	0.72	0.92	44	9132	5	0	4	1	17
3NKB_B	-	0.54	0.50	0.59	13	1994	9	0	9	0	13
3NPB_A	SAM links to Rfam database...	0.76	0.70	0.84	32	6983	8	1	5	2	14
3O58_2	5S_rRNA links to Rfam database...	0.78	0.76	0.81	29	7224	10	2	5	3	9
3O58_3	5_8S_rRNA links to Rfam database...	0.28	0.26	0.31	9	12374	20	3	17	0	26
3PDR_A	ykoK links to Rfam database...	0.69	0.60	0.80	43	12826	13	0	11	2	29
3RKF_A	Purine links to Rfam database...	0.73	0.59	0.91	20	2189	2	1	1	0	14
3SD1_A	THF links to Rfam database...	0.57	0.48	0.69	20	3887	9	2	7	0	22
3U4M_B	-	0.59	0.46	0.77	17	3138	5	0	5	0	20
3UZL_B	tRNA links to Rfam database...	0.70	0.54	0.91	20	3548	2	0	2	0	17
4A1C_3	5S_rRNA links to Rfam database...	0.66	0.57	0.78	31	7100	9	1	8	0	23
4A1C_2	5_8S_rRNA links to Rfam database...	0.16	0.15	0.17	5	11751	33	5	20	8	28
4AOB_A	SAM links to Rfam database...	0.44	0.36	0.56	15	4344	13	1	11	1	27
4ENB_A	crcB links to Rfam database...	0.73	0.58	0.92	11	1263	1	1	0	0	8
4ENC_A	crcB links to Rfam database...	0.73	0.58	0.92	11	1314	1	1	0	0	8

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
