Overview

Metric	MCFold		RSpredict(seed)
MCC	0.448	>	0.226
Average MCC ± 95% Confidence Intervals	0.457 ± 0.091	>	0.179 ± 0.108
Sensitivity	0.472	>	0.101
Positive Predictive Value	0.433	<	0.517
Total TP	422	>	90
Total TN	125725	<	126525
Total FP	603	>	86
Total FP CONTRA	82	>	5
Total FP INCONS	470	>	79
Total FP COMP	51	>	2
Total FN	473	<	805
P-value	5.19332990918e-08

^top

Performance plots

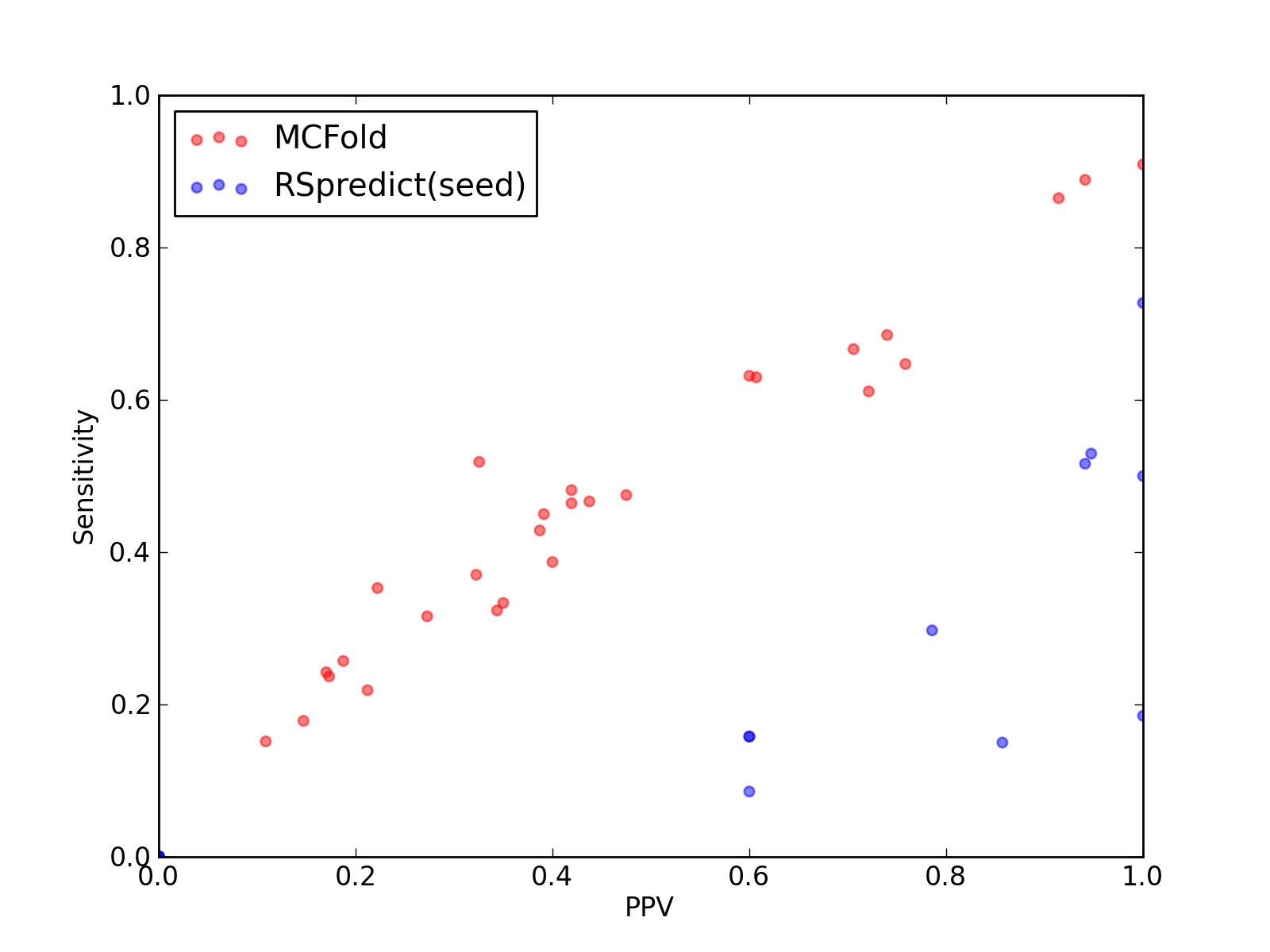

Comparison of performance of MCFold and RSpredict(seed). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for MCFold and RSpredict(seed)).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for MCFold and RSpredict(seed)).
Comparison of average Matthews Correlation Coefficients (MCCs) for MCFold and RSpredict(seed). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for MCFold and RSpredict(seed)).

^top

Performance of MCFold - scored higher in this pairwise comparison

1. Total counts & total scores for MCFold

Total Base Pair Counts
Total TP	422
Total TN	125725
Total FP	603
Total FP CONTRA	82
Total FP INCONS	470
Total FP COMP	51
Total FN	473

Total Scores
MCC	0.448
Average MCC ± 95% Confidence Intervals	0.457 ± 0.091
Sensitivity	0.472
Positive Predictive Value	0.433
Nr of predictions	28

^top

2. Individual counts for MCFold [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	0.95	0.91	1.00	10	396	1	0	0	1	1
2KX8_A	7SK links to Rfam database...	0.91	0.89	0.94	16	844	2	0	1	1	2
2LC8_A	GP_knot1 links to Rfam database...	0.41	0.45	0.39	9	1517	16	0	14	2	11
2WRQ_Y	tRNA links to Rfam database...	0.27	0.35	0.22	6	2823	25	8	13	4	11
2WWQ_V	tRNA links to Rfam database...	0.15	0.18	0.15	5	2892	30	4	25	1	23
2XQD_Y	tRNA links to Rfam database...	0.34	0.37	0.32	10	2819	22	1	20	1	17
2ZZN_D	tRNA links to Rfam database...	0.61	0.63	0.61	17	2457	13	1	10	2	10
3A2K_C	tRNA links to Rfam database...	0.44	0.46	0.42	13	2895	18	2	16	0	15
3A3A_A	tRNA-Sec links to Rfam database...	0.89	0.86	0.91	32	3620	3	1	2	0	5
3AKZ_H	tRNA links to Rfam database...	0.40	0.43	0.39	12	2670	19	3	16	0	16
3AMU_B	tRNA links to Rfam database...	0.44	0.48	0.42	13	2972	18	2	16	0	14
3GX2_A	SAM links to Rfam database...	0.47	0.48	0.48	19	4331	22	0	21	1	21
3IVN_B	Purine links to Rfam database...	0.39	0.39	0.40	12	2316	18	0	18	0	19
3IZF_C	5S_rRNA links to Rfam database...	0.71	0.69	0.74	37	6853	14	0	13	1	17
3J16_L	tRNA links to Rfam database...	0.45	0.47	0.44	14	2743	19	1	17	1	16
3JYV_7	tRNA links to Rfam database...	0.21	0.22	0.21	7	2817	26	0	26	0	25
3JYX_4	5_8S_rRNA links to Rfam database...	0.20	0.24	0.17	8	12199	43	16	23	4	25
3JYX_3	5S_rRNA links to Rfam database...	0.41	0.52	0.33	14	6285	34	12	17	5	13
3LA5_A	Purine links to Rfam database...	0.32	0.32	0.34	11	2453	21	1	20	0	23
3O58_3	5_8S_rRNA links to Rfam database...	0.22	0.26	0.19	9	12355	45	9	30	6	26
3O58_2	5S_rRNA links to Rfam database...	0.20	0.24	0.17	9	7208	44	5	38	1	29
3PDR_A	ykoK links to Rfam database...	0.66	0.61	0.72	44	12819	19	0	17	2	28
3RKF_A	Purine links to Rfam database...	0.70	0.65	0.76	22	2182	7	1	6	0	12
3SD1_A	THF links to Rfam database...	0.33	0.33	0.35	14	3876	26	0	26	0	28
4A1C_2	5_8S_rRNA links to Rfam database...	0.13	0.15	0.11	5	11735	56	10	31	15	28
4A1C_3	5S_rRNA links to Rfam database...	0.68	0.67	0.71	36	7089	17	1	14	2	18
4ENB_A	crcB links to Rfam database...	0.61	0.63	0.60	12	1255	8	2	6	0	7
4ENC_A	crcB links to Rfam database...	0.28	0.32	0.27	6	1304	17	2	14	1	13

^top

Performance of RSpredict(seed) - scored lower in this pairwise comparison

1. Total counts & total scores for RSpredict(seed)

Total Base Pair Counts
Total TP	90
Total TN	126525
Total FP	86
Total FP CONTRA	5
Total FP INCONS	79
Total FP COMP	2
Total FN	805

Total Scores
MCC	0.226
Average MCC ± 95% Confidence Intervals	0.179 ± 0.108
Sensitivity	0.101
Positive Predictive Value	0.517
Nr of predictions	28

^top

2. Individual counts for RSpredict(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	0.85	0.73	1.00	8	398	0	0	0	0	3
2KX8_A	7SK links to Rfam database...	0.00	0.00	0.00	0	860	1	0	1	0	18
2LC8_A	GP_knot1 links to Rfam database...	-0.01	0.00	0.00	0	1527	13	0	13	0	20
2WRQ_Y	tRNA links to Rfam database...	0.00	0.00	0.00	0	2848	3	1	1	1	17
2WWQ_V	tRNA links to Rfam database...	0.00	0.00	0.00	0	2920	6	1	5	0	28
2XQD_Y	tRNA links to Rfam database...	0.00	0.00	0.00	0	2845	5	0	5	0	27
2ZZN_D	tRNA links to Rfam database...	0.43	0.19	1.00	5	2480	0	0	0	0	22
3A2K_C	tRNA links to Rfam database...	0.00	0.00	0.00	0	2924	2	0	2	0	28
3A3A_A	tRNA-Sec links to Rfam database...	0.48	0.30	0.79	11	3641	3	0	3	0	26
3AKZ_H	tRNA links to Rfam database...	0.00	0.00	0.00	0	2699	2	0	2	0	28
3AMU_B	tRNA links to Rfam database...	0.00	0.00	0.00	0	3001	2	0	2	0	27
3GX2_A	SAM links to Rfam database...	0.36	0.15	0.86	6	4364	1	0	1	0	34
3IVN_B	Purine links to Rfam database...	0.69	0.52	0.94	16	2329	1	0	1	0	15
3IZF_C	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	6898	5	0	5	0	54
3J16_L	tRNA links to Rfam database...	0.00	0.00	0.00	0	2774	1	0	1	0	30
3JYV_7	tRNA links to Rfam database...	0.00	0.00	0.00	0	2846	4	0	4	0	32
3JYX_4	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	12241	5	0	5	0	33
3JYX_3	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	6323	5	1	4	0	27
3LA5_A	Purine links to Rfam database...	0.70	0.50	1.00	17	2468	0	0	0	0	17
3O58_3	5_8S_rRNA links to Rfam database...	0.23	0.09	0.60	3	12398	2	0	2	0	32
3O58_2	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7257	3	0	3	0	38
3PDR_A	ykoK links to Rfam database...	0.00	0.00	0.00	0	12872	8	0	8	0	72
3RKF_A	Purine links to Rfam database...	0.71	0.53	0.95	18	2192	1	0	1	0	16
3SD1_A	THF links to Rfam database...	0.00	0.00	0.00	0	3916	0	0	0	0	42
4A1C_2	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	11777	5	1	3	1	33
4A1C_3	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7136	4	1	3	0	54
4ENB_A	crcB links to Rfam database...	0.30	0.16	0.60	3	1270	2	0	2	0	16
4ENC_A	crcB links to Rfam database...	0.30	0.16	0.60	3	1321	2	0	2	0	16

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
