Metric	MXScarna(20)		ProbKnot
MCC	0.618	>	0.597
Average MCC ± 95% Confidence Intervals	0.616 ± 0.106	>	0.609 ± 0.110
Sensitivity	0.512	<	0.536
Positive Predictive Value	0.748	>	0.669
Total TP	345	<	361
Total TN	154755	>	154676
Total FP	159	<	218
Total FP CONTRA	21	<	30
Total FP INCONS	95	<	149
Total FP COMP	43	>	39
Total FN	329	>	313
P-value	1.64481516727e-08

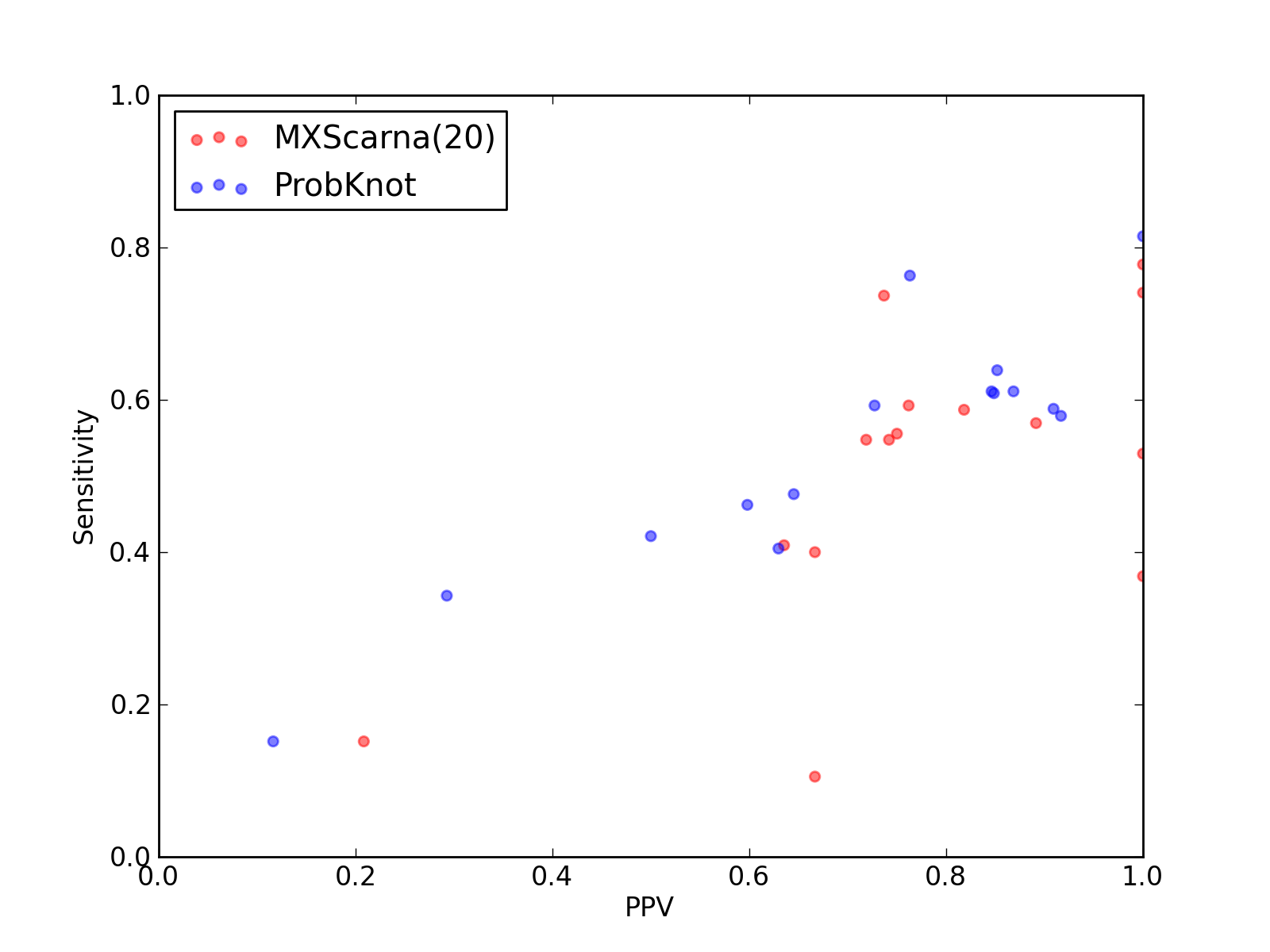

Comparison of performance of MXScarna(20) and ProbKnot. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for MXScarna(20) and ProbKnot).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for MXScarna(20) and ProbKnot).
Comparison of average Matthews Correlation Coefficients (MCCs) for MXScarna(20) and ProbKnot. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for MXScarna(20) and ProbKnot).

Total Scores
MCC	0.618
Average MCC ± 95% Confidence Intervals	0.616 ± 0.106
Sensitivity	0.512
Positive Predictive Value	0.748
Nr of predictions	15

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2XQD_Y	tRNA links to Rfam database...	0.88	0.78	1.00	21	2829	0	0	0	0	6
3AMU_B	tRNA links to Rfam database...	0.86	0.74	1.00	20	2983	2	0	0	2	7
3IZ4_A	tmRNA links to Rfam database...	0.51	0.41	0.64	54	70791	32	7	24	1	78
3IZF_C	5S_rRNA links to Rfam database...	0.67	0.59	0.76	32	6861	11	1	9	1	22
3NPB_A	SAM links to Rfam database...	0.69	0.59	0.82	27	6988	9	1	5	3	19
3O58_3	5_8S_rRNA links to Rfam database...	0.52	0.40	0.67	14	12382	17	2	5	10	21
3O58_2	5S_rRNA links to Rfam database...	0.74	0.74	0.74	28	7222	13	4	6	3	10
3PDR_A	ykoK links to Rfam database...	0.71	0.57	0.89	41	12834	9	0	5	4	31
3RKF_A	Purine links to Rfam database...	0.72	0.53	1.00	18	2193	0	0	0	0	16
3SD1_A	THF links to Rfam database...	0.63	0.55	0.74	23	3885	8	2	6	0	19
4A1C_2	5_8S_rRNA links to Rfam database...	0.18	0.15	0.21	5	11757	36	2	17	17	28
4A1C_3	5S_rRNA links to Rfam database...	0.64	0.56	0.75	30	7100	11	2	8	1	24
4AOB_A	SAM links to Rfam database...	0.62	0.55	0.72	23	4339	10	0	9	1	19
4ENB_A	crcB links to Rfam database...	0.26	0.11	0.67	2	1272	1	0	1	0	17
4ENC_A	crcB links to Rfam database...	0.60	0.37	1.00	7	1319	0	0	0	0	12

Total Scores
MCC	0.597
Average MCC ± 95% Confidence Intervals	0.609 ± 0.110
Sensitivity	0.536
Positive Predictive Value	0.669
Nr of predictions	15

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2XQD_Y	tRNA links to Rfam database...	0.90	0.81	1.00	22	2828	1	0	0	1	5
3AMU_B	tRNA links to Rfam database...	0.65	0.59	0.73	16	2981	8	0	6	2	11
3IZ4_A	tmRNA links to Rfam database...	0.52	0.46	0.60	61	70774	46	6	35	5	71
3IZF_C	5S_rRNA links to Rfam database...	0.72	0.61	0.85	33	6864	6	0	6	0	21
3NPB_A	SAM links to Rfam database...	0.72	0.61	0.85	28	6988	8	1	4	3	18
3O58_3	5_8S_rRNA links to Rfam database...	0.31	0.34	0.29	12	12362	41	4	25	12	23
3O58_2	5S_rRNA links to Rfam database...	0.76	0.76	0.76	29	7222	10	3	6	1	9
3PDR_A	ykoK links to Rfam database...	0.74	0.64	0.85	46	12826	10	1	7	2	26
3RKF_A	Purine links to Rfam database...	0.73	0.59	0.91	20	2189	2	1	1	0	14
3SD1_A	THF links to Rfam database...	0.55	0.48	0.65	20	3885	11	2	9	0	22
4A1C_2	5_8S_rRNA links to Rfam database...	0.13	0.15	0.12	5	11738	49	7	31	11	28
4A1C_3	5S_rRNA links to Rfam database...	0.73	0.61	0.87	33	7102	6	1	4	1	21
4AOB_A	SAM links to Rfam database...	0.50	0.40	0.63	17	4344	11	2	8	1	25
4ENB_A	crcB links to Rfam database...	0.73	0.58	0.92	11	1263	1	1	0	0	8
4ENC_A	crcB links to Rfam database...	0.45	0.42	0.50	8	1310	8	1	7	0	11

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
