CompaRNA - on-line benchmarks of RNA structure prediction methods

FAQ

Metric	MXScarna(seed)		Murlet(seed)
MCC	0.615	>	0.475
Average MCC ± 95% Confidence Intervals	0.584 ± 0.121	>	0.471 ± 0.083
Sensitivity	0.491	>	0.270
Positive Predictive Value	0.775	<	0.841
Total TP	269	>	148
Total TN	83886	<	84057
Total FP	121	>	32
Total FP CONTRA	13	>	5
Total FP INCONS	65	>	23
Total FP COMP	43	>	4
Total FN	279	<	400
P-value	3.16042554876e-08

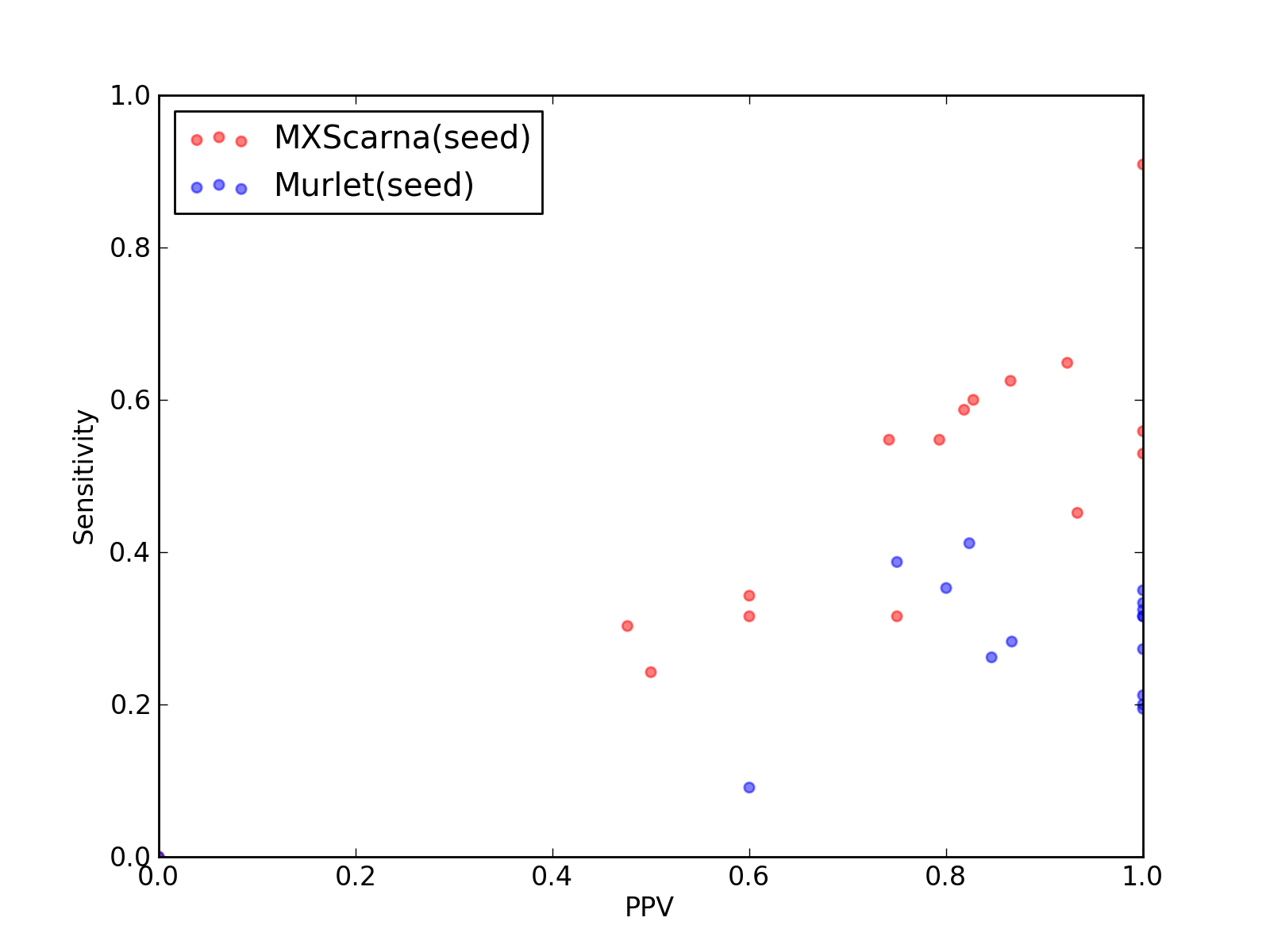

Comparison of performance of MXScarna(seed) and Murlet(seed). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for MXScarna(seed) and Murlet(seed)).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for MXScarna(seed) and Murlet(seed)).
Comparison of average Matthews Correlation Coefficients (MCCs) for MXScarna(seed) and Murlet(seed). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for MXScarna(seed) and Murlet(seed)).

Total Scores
MCC	0.615
Average MCC ± 95% Confidence Intervals	0.584 ± 0.121
Sensitivity	0.491
Positive Predictive Value	0.775
Nr of predictions	16

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	0.95	0.91	1.00	10	396	0	0	0	0	1
2LC8_A	GP_knot1 links to Rfam database...	-0.01	0.00	0.00	0	1530	12	0	10	2	20
3A3A_A	tRNA-Sec links to Rfam database...	0.77	0.65	0.92	24	3629	3	0	2	1	13
3GX2_A	SAM links to Rfam database...	0.70	0.60	0.83	24	4342	6	0	5	1	16
3IVN_B	Purine links to Rfam database...	0.65	0.45	0.93	14	2331	1	1	0	0	17
3JYX_4	5_8S_rRNA links to Rfam database...	0.38	0.30	0.48	10	12225	21	3	8	10	23
3LA5_A	Purine links to Rfam database...	0.75	0.56	1.00	19	2466	0	0	0	0	15
3NPB_A	SAM links to Rfam database...	0.69	0.59	0.82	27	6988	9	2	4	3	19
3O58_3	5_8S_rRNA links to Rfam database...	0.45	0.34	0.60	12	12383	19	2	6	11	23
3PDR_A	ykoK links to Rfam database...	0.73	0.63	0.87	45	12828	9	2	5	2	27
3RKF_A	Purine links to Rfam database...	0.72	0.53	1.00	18	2193	0	0	0	0	16
3SD1_A	THF links to Rfam database...	0.63	0.55	0.74	23	3885	8	1	7	0	19
4A1C_2	5_8S_rRNA links to Rfam database...	0.35	0.24	0.50	8	11765	20	1	7	12	25
4AOB_A	SAM links to Rfam database...	0.66	0.55	0.79	23	4342	7	0	6	1	19
4ENB_A	crcB links to Rfam database...	0.48	0.32	0.75	6	1267	2	0	2	0	13
4ENC_A	crcB links to Rfam database...	0.43	0.32	0.60	6	1316	4	1	3	0	13

Total Scores
MCC	0.475
Average MCC ± 95% Confidence Intervals	0.471 ± 0.083
Sensitivity	0.270
Positive Predictive Value	0.841
Nr of predictions	16

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	0.52	0.27	1.00	3	403	0	0	0	0	8
2LC8_A	GP_knot1 links to Rfam database...	-0.01	0.00	0.00	0	1528	12	0	12	0	20
3A3A_A	tRNA-Sec links to Rfam database...	0.57	0.32	1.00	12	3643	0	0	0	0	25
3GX2_A	SAM links to Rfam database...	0.59	0.35	1.00	14	4357	1	0	0	1	26
3IVN_B	Purine links to Rfam database...	0.53	0.39	0.75	12	2330	4	2	2	0	19
3JYX_4	5_8S_rRNA links to Rfam database...	0.23	0.09	0.60	3	12241	4	0	2	2	30
3LA5_A	Purine links to Rfam database...	0.58	0.41	0.82	14	2468	3	1	2	0	20
3NPB_A	SAM links to Rfam database...	0.49	0.28	0.87	13	7006	2	1	1	0	33
3O58_3	5_8S_rRNA links to Rfam database...	0.45	0.20	1.00	7	12396	0	0	0	0	28
3PDR_A	ykoK links to Rfam database...	0.44	0.19	1.00	14	12866	0	0	0	0	58
3RKF_A	Purine links to Rfam database...	0.53	0.35	0.80	12	2196	3	1	2	0	22
3SD1_A	THF links to Rfam database...	0.47	0.26	0.85	11	3903	2	0	2	0	31
4A1C_2	5_8S_rRNA links to Rfam database...	0.46	0.21	1.00	7	11774	0	0	0	0	26
4AOB_A	SAM links to Rfam database...	0.58	0.33	1.00	14	4357	1	0	0	1	28
4ENB_A	crcB links to Rfam database...	0.56	0.32	1.00	6	1269	0	0	0	0	13
4ENC_A	crcB links to Rfam database...	0.56	0.32	1.00	6	1320	0	0	0	0	13

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
