Overview

Metric	Murlet(20)		RSpredict(seed)
MCC	0.593	>	0.232
Average MCC ± 95% Confidence Intervals	0.601 ± 0.073	>	0.195 ± 0.119
Sensitivity	0.440	>	0.097
Positive Predictive Value	0.803	>	0.563
Total TP	408	>	90
Total TN	191516	<	191864
Total FP	128	>	72
Total FP CONTRA	13	>	4
Total FP INCONS	87	>	66
Total FP COMP	28	>	2
Total FN	519	<	837
P-value	5.19332990918e-08

^top

Performance plots

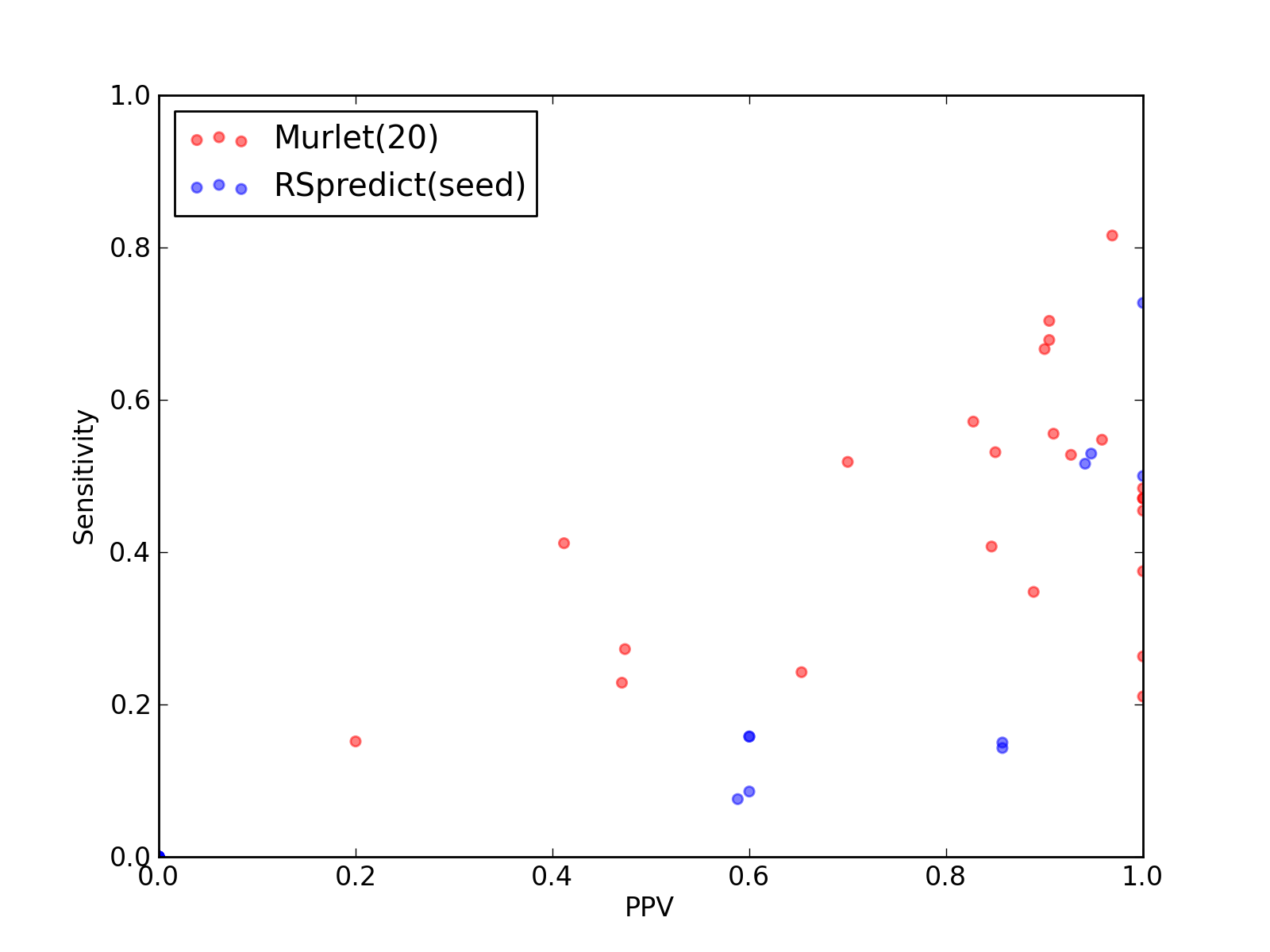

Comparison of performance of Murlet(20) and RSpredict(seed). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for Murlet(20) and RSpredict(seed)).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for Murlet(20) and RSpredict(seed)).

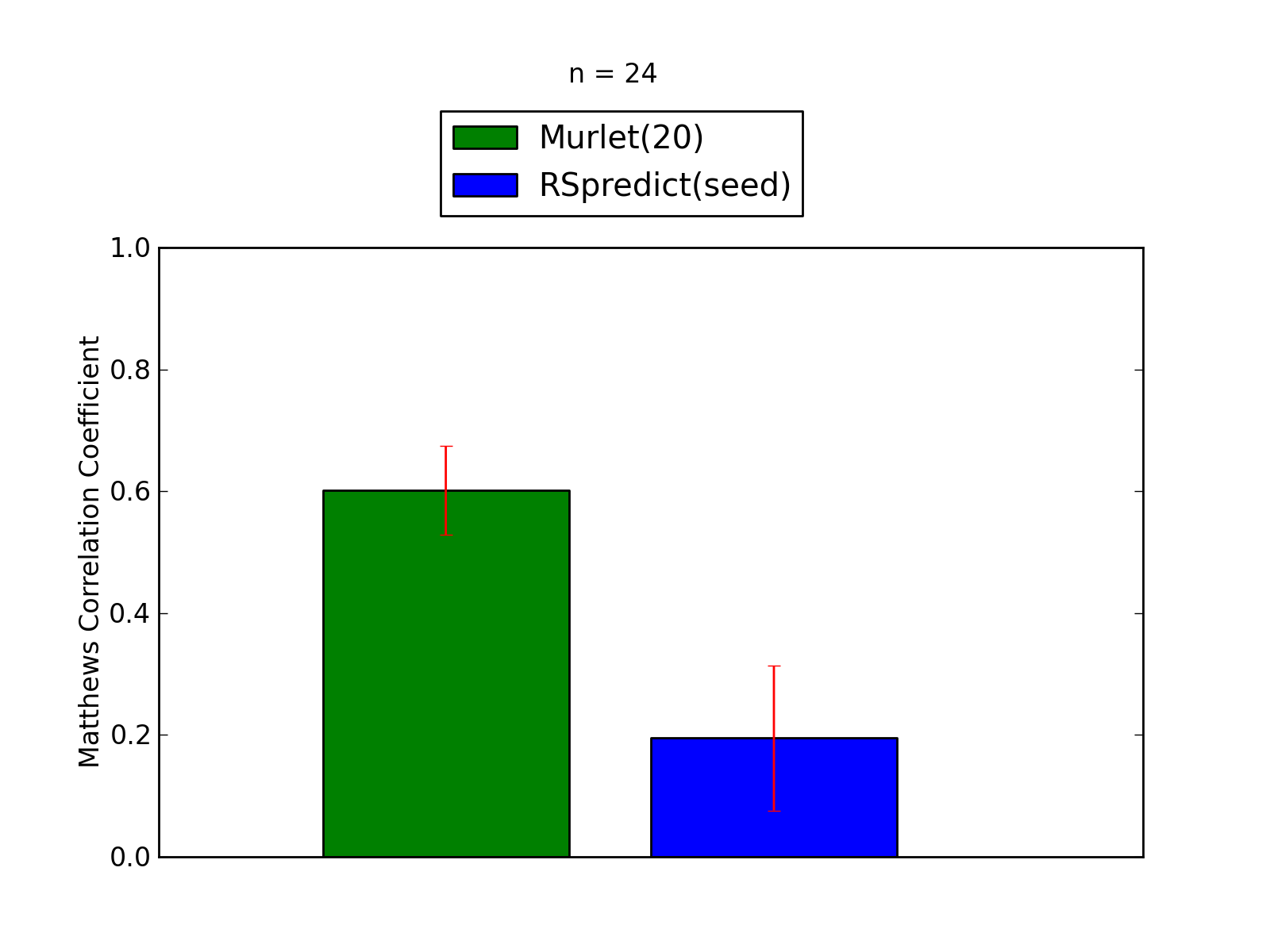

Comparison of average Matthews Correlation Coefficients (MCCs) for Murlet(20) and RSpredict(seed). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for Murlet(20) and RSpredict(seed)).

^top

Performance of Murlet(20) - scored higher in this pairwise comparison

1. Total counts & total scores for Murlet(20)

Total Base Pair Counts
Total TP	408
Total TN	191516
Total FP	128
Total FP CONTRA	13
Total FP INCONS	87
Total FP COMP	28
Total FN	519

Total Scores
MCC	0.593
Average MCC ± 95% Confidence Intervals	0.601 ± 0.073
Sensitivity	0.440
Positive Predictive Value	0.803
Nr of predictions	24

^top

2. Individual counts for Murlet(20) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	0.67	0.45	1.00	5	401	0	0	0	0	6
2WRQ_Y	tRNA links to Rfam database...	0.41	0.41	0.41	7	2833	12	6	4	2	10
2XQD_Y	tRNA links to Rfam database...	0.80	0.70	0.90	19	2829	2	0	2	0	8
3A2K_C	tRNA links to Rfam database...	0.78	0.68	0.90	19	2905	2	0	2	0	9
3AMU_B	tRNA links to Rfam database...	0.77	0.67	0.90	18	2983	3	0	2	1	9
3GX2_A	SAM links to Rfam database...	0.61	0.38	1.00	15	4356	1	0	0	1	25
3IVN_B	Purine links to Rfam database...	0.69	0.48	1.00	15	2331	0	0	0	0	16
3IZ4_A	tmRNA links to Rfam database...	0.40	0.24	0.65	32	70827	21	1	16	4	100
3IZF_C	5S_rRNA links to Rfam database...	0.71	0.56	0.91	30	6870	4	0	3	1	24
3JYV_7	tRNA links to Rfam database...	0.67	0.53	0.85	17	2830	3	0	3	0	15
3JYX_4	5_8S_rRNA links to Rfam database...	0.36	0.27	0.47	9	12227	15	0	10	5	24
3JYX_3	5S_rRNA links to Rfam database...	0.60	0.52	0.70	14	6308	11	0	6	5	13
3LA5_A	Purine links to Rfam database...	0.68	0.47	1.00	16	2469	0	0	0	0	18
3NPB_A	SAM links to Rfam database...	0.55	0.35	0.89	16	7003	2	1	1	0	30
3O58_2	5S_rRNA links to Rfam database...	0.89	0.82	0.97	31	7228	2	0	1	1	7
3O58_3	5_8S_rRNA links to Rfam database...	0.33	0.23	0.47	8	12386	12	2	7	3	27
3PDR_A	ykoK links to Rfam database...	0.70	0.53	0.93	38	12839	3	0	3	0	34
3RKF_A	Purine links to Rfam database...	0.68	0.47	1.00	16	2195	0	0	0	0	18
3SD1_A	THF links to Rfam database...	0.68	0.57	0.83	24	3887	5	1	4	0	18
4A1C_3	5S_rRNA links to Rfam database...	0.59	0.41	0.85	22	7114	4	0	4	0	32
4A1C_2	5_8S_rRNA links to Rfam database...	0.17	0.15	0.20	5	11756	24	2	18	4	28
4AOB_A	SAM links to Rfam database...	0.72	0.55	0.96	23	4347	2	0	1	1	19
4ENB_A	crcB links to Rfam database...	0.46	0.21	1.00	4	1271	0	0	0	0	15
4ENC_A	crcB links to Rfam database...	0.51	0.26	1.00	5	1321	0	0	0	0	14

^top

Performance of RSpredict(seed) - scored lower in this pairwise comparison

1. Total counts & total scores for RSpredict(seed)

Total Base Pair Counts
Total TP	90
Total TN	191864
Total FP	72
Total FP CONTRA	4
Total FP INCONS	66
Total FP COMP	2
Total FN	837

Total Scores
MCC	0.232
Average MCC ± 95% Confidence Intervals	0.195 ± 0.119
Sensitivity	0.097
Positive Predictive Value	0.563
Nr of predictions	24

^top

2. Individual counts for RSpredict(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	0.85	0.73	1.00	8	398	0	0	0	0	3
2WRQ_Y	tRNA links to Rfam database...	0.00	0.00	0.00	0	2848	3	1	1	1	17
2XQD_Y	tRNA links to Rfam database...	0.00	0.00	0.00	0	2845	5	0	5	0	27
3A2K_C	tRNA links to Rfam database...	0.00	0.00	0.00	0	2924	2	0	2	0	28
3AMU_B	tRNA links to Rfam database...	0.00	0.00	0.00	0	3001	2	0	2	0	27
3GX2_A	SAM links to Rfam database...	0.36	0.15	0.86	6	4364	1	0	1	0	34
3IVN_B	Purine links to Rfam database...	0.69	0.52	0.94	16	2329	1	0	1	0	15
3IZ4_A	tmRNA links to Rfam database...	0.21	0.08	0.59	10	70859	7	0	7	0	122
3IZF_C	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	6898	5	0	5	0	54
3JYV_7	tRNA links to Rfam database...	0.00	0.00	0.00	0	2846	4	0	4	0	32
3JYX_4	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	12241	5	0	5	0	33
3JYX_3	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	6323	5	1	4	0	27
3LA5_A	Purine links to Rfam database...	0.70	0.50	1.00	17	2468	0	0	0	0	17
3NPB_A	SAM links to Rfam database...	0.00	0.00	0.00	0	7017	4	0	4	0	46
3O58_2	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7257	3	0	3	0	38
3O58_3	5_8S_rRNA links to Rfam database...	0.23	0.09	0.60	3	12398	2	0	2	0	32
3PDR_A	ykoK links to Rfam database...	0.00	0.00	0.00	0	12872	8	0	8	0	72
3RKF_A	Purine links to Rfam database...	0.71	0.53	0.95	18	2192	1	0	1	0	16
3SD1_A	THF links to Rfam database...	0.00	0.00	0.00	0	3916	0	0	0	0	42
4A1C_3	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7136	4	1	3	0	54
4A1C_2	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	11777	5	1	3	1	33
4AOB_A	SAM links to Rfam database...	0.35	0.14	0.86	6	4364	1	0	1	0	36
4ENB_A	crcB links to Rfam database...	0.30	0.16	0.60	3	1270	2	0	2	0	16
4ENC_A	crcB links to Rfam database...	0.30	0.16	0.60	3	1321	2	0	2	0	16

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
