Metric	Pknots		Carnac(seed)
MCC	0.553	>	0.139
Average MCC ± 95% Confidence Intervals	0.602 ± 0.125	>	0.070 ± 0.108
Sensitivity	0.502	>	0.019
Positive Predictive Value	0.616	<	1.000
Total TP	362	>	14
Total TN	111276	<	111850
Total FP	256	>	0
Total FP CONTRA	44	>	0
Total FP INCONS	182	>	0
Total FP COMP	30	>	0
Total FN	359	<	707
P-value	5.19332990918e-08

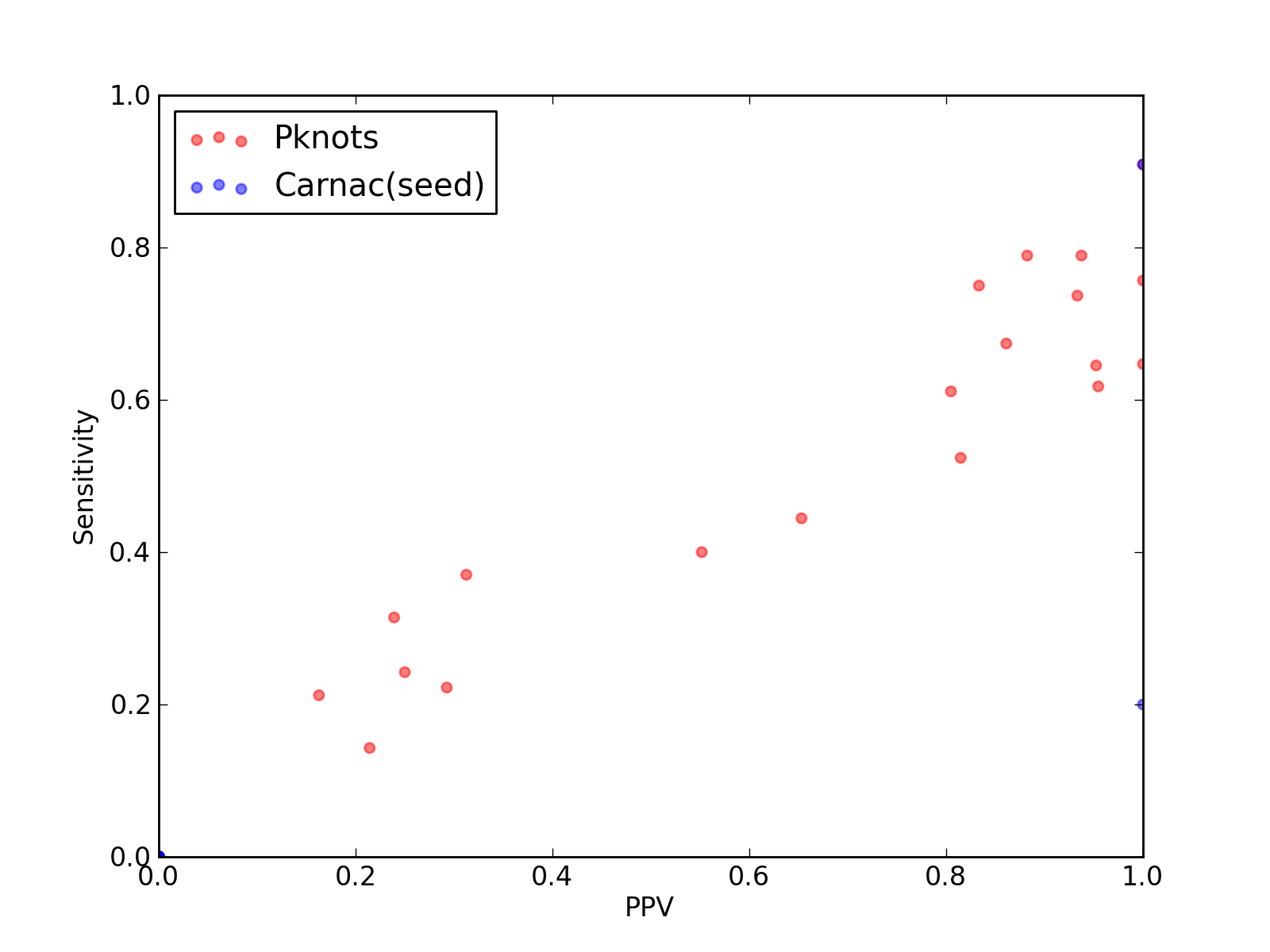

Comparison of performance of Pknots and Carnac(seed). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for Pknots and Carnac(seed)).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for Pknots and Carnac(seed)).
Comparison of average Matthews Correlation Coefficients (MCCs) for Pknots and Carnac(seed). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for Pknots and Carnac(seed)).

Total Scores
MCC	0.553
Average MCC ± 95% Confidence Intervals	0.602 ± 0.125
Sensitivity	0.502
Positive Predictive Value	0.616
Nr of predictions	20

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	0.95	0.91	1.00	10	396	0	0	0	0	1
2LC8_A	GP_knot1 links to Rfam database...	0.79	0.75	0.83	15	1522	3	1	2	0	5
3A3A_A	tRNA-Sec links to Rfam database...	0.87	0.76	1.00	28	3627	0	0	0	0	9
3GX2_A	SAM links to Rfam database...	0.47	0.40	0.55	16	4342	14	1	12	1	24
3IVN_B	Purine links to Rfam database...	0.78	0.65	0.95	20	2325	1	0	1	0	11
3IZF_C	5S_rRNA links to Rfam database...	0.70	0.61	0.80	33	6862	8	1	7	0	21
3JYX_3	5S_rRNA links to Rfam database...	0.34	0.37	0.31	10	6296	24	9	13	2	17
3JYX_4	5_8S_rRNA links to Rfam database...	0.18	0.21	0.16	7	12203	41	13	23	5	26
3LA5_A	Purine links to Rfam database...	0.80	0.65	1.00	22	2463	0	0	0	0	12
3NPB_A	SAM links to Rfam database...	0.76	0.67	0.86	31	6985	8	1	4	3	15
3O58_2	5S_rRNA links to Rfam database...	0.83	0.74	0.93	28	7230	3	0	2	1	10
3O58_3	5_8S_rRNA links to Rfam database...	0.27	0.31	0.24	11	12357	38	11	24	3	24
3PDR_A	ykoK links to Rfam database...	0.54	0.44	0.65	32	12831	19	0	17	2	40
3RKF_A	Purine links to Rfam database...	0.77	0.62	0.95	21	2189	1	0	1	0	13
3SD1_A	THF links to Rfam database...	0.65	0.52	0.81	22	3889	5	0	5	0	20
4A1C_2	5_8S_rRNA links to Rfam database...	0.24	0.24	0.25	8	11749	36	3	21	12	25
4A1C_3	5S_rRNA links to Rfam database...	0.25	0.22	0.29	12	7099	29	1	28	0	42
4AOB_A	SAM links to Rfam database...	0.17	0.14	0.21	6	4343	23	1	21	1	36
4ENB_A	crcB links to Rfam database...	0.83	0.79	0.88	15	1258	2	1	1	0	4
4ENC_A	crcB links to Rfam database...	0.86	0.79	0.94	15	1310	1	1	0	0	4

Total Scores
MCC	0.139
Average MCC ± 95% Confidence Intervals	0.070 ± 0.108
Sensitivity	0.019
Positive Predictive Value	1.000
Nr of predictions	20

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	0.95	0.91	1.00	10	396	0	0	0	0	1
2LC8_A	GP_knot1 links to Rfam database...	0.44	0.20	1.00	4	1536	0	0	0	0	16
3A3A_A	tRNA-Sec links to Rfam database...	0.00	0.00	0.00	0	3655	0	0	0	0	37
3GX2_A	SAM links to Rfam database...	0.00	0.00	0.00	0	4371	0	0	0	0	40
3IVN_B	Purine links to Rfam database...	0.00	0.00	0.00	0	2346	0	0	0	0	31
3IZF_C	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	6903	0	0	0	0	54
3JYX_3	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	6328	0	0	0	0	27
3JYX_4	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	12246	0	0	0	0	33
3LA5_A	Purine links to Rfam database...	0.00	0.00	0.00	0	2485	0	0	0	0	34
3NPB_A	SAM links to Rfam database...	0.00	0.00	0.00	0	7021	0	0	0	0	46
3O58_2	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7260	0	0	0	0	38
3O58_3	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	12403	0	0	0	0	35
3PDR_A	ykoK links to Rfam database...	0.00	0.00	0.00	0	12880	0	0	0	0	72
3RKF_A	Purine links to Rfam database...	0.00	0.00	0.00	0	2211	0	0	0	0	34
3SD1_A	THF links to Rfam database...	0.00	0.00	0.00	0	3916	0	0	0	0	42
4A1C_2	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	11781	0	0	0	0	33
4A1C_3	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7140	0	0	0	0	54
4AOB_A	SAM links to Rfam database...	0.00	0.00	0.00	0	4371	0	0	0	0	42
4ENB_A	crcB links to Rfam database...	0.00	0.00	0.00	0	1275	0	0	0	0	19
4ENC_A	crcB links to Rfam database...	0.00	0.00	0.00	0	1326	0	0	0	0	19

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
