Overview

Metric	RNAshapes		Mastr(20)
MCC	0.554	>	0.523
Average MCC ± 95% Confidence Intervals	0.567 ± 0.091	>	0.511 ± 0.127
Sensitivity	0.482	>	0.348
Positive Predictive Value	0.642	<	0.790
Total TP	474	>	342
Total TN	198667	<	198972
Total FP	333	>	118
Total FP CONTRA	38	>	14
Total FP INCONS	226	>	77
Total FP COMP	69	>	27
Total FN	510	<	642
P-value	4.11890491782e-07

^top

Performance plots

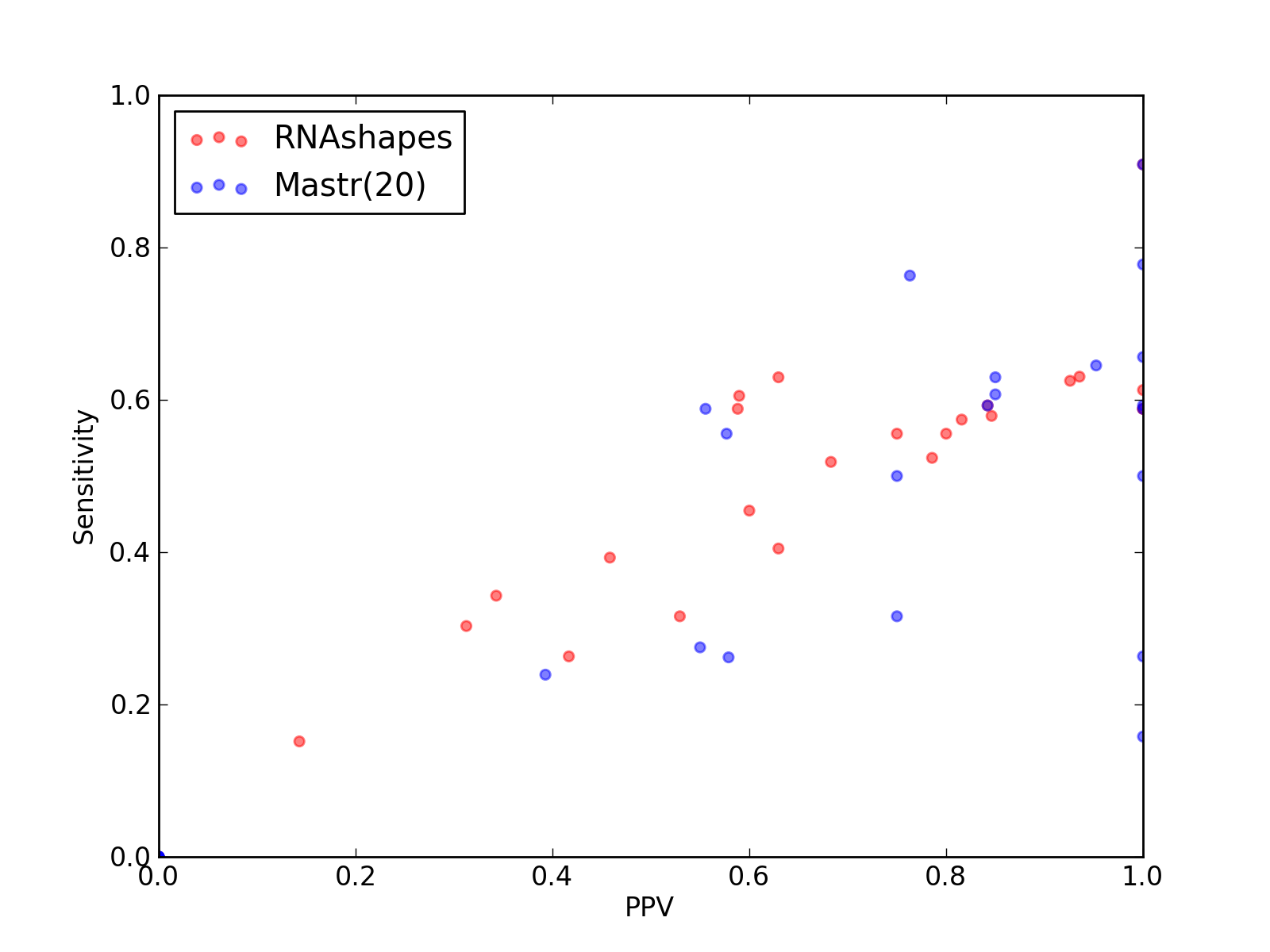

Comparison of performance of RNAshapes and Mastr(20). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for RNAshapes and Mastr(20)).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for RNAshapes and Mastr(20)).
Comparison of average Matthews Correlation Coefficients (MCCs) for RNAshapes and Mastr(20). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for RNAshapes and Mastr(20)).

^top

Performance of RNAshapes - scored higher in this pairwise comparison

1. Total counts & total scores for RNAshapes

Total Base Pair Counts
Total TP	474
Total TN	198667
Total FP	333
Total FP CONTRA	38
Total FP INCONS	226
Total FP COMP	69
Total FN	510

Total Scores
MCC	0.554
Average MCC ± 95% Confidence Intervals	0.567 ± 0.091
Sensitivity	0.482
Positive Predictive Value	0.642
Nr of predictions	25

^top

2. Individual counts for RNAshapes [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	0.95	0.91	1.00	10	396	0	0	0	0	1
2WRQ_Y	tRNA links to Rfam database...	0.59	0.59	0.59	10	2833	12	4	3	5	7
2XQD_Y	tRNA links to Rfam database...	0.64	0.56	0.75	15	2830	5	0	5	0	12
3A2K_C	tRNA links to Rfam database...	0.42	0.39	0.46	11	2902	13	2	11	0	17
3AMU_B	tRNA links to Rfam database...	0.70	0.59	0.84	16	2984	5	0	3	2	11
3G4S_9	5S_rRNA links to Rfam database...	0.41	0.32	0.53	18	7347	16	1	15	0	39
3GX2_A	SAM links to Rfam database...	0.76	0.63	0.93	25	4344	3	0	2	1	15
3IVN_B	Purine links to Rfam database...	0.78	0.61	1.00	19	2327	0	0	0	0	12
3IZ4_A	tmRNA links to Rfam database...	0.52	0.45	0.60	60	70776	45	6	34	5	72
3IZF_C	5S_rRNA links to Rfam database...	0.59	0.52	0.68	28	6862	13	1	12	0	26
3JYV_7	tRNA links to Rfam database...	-0.01	0.00	0.00	0	2830	20	0	20	0	32
3JYX_3	5S_rRNA links to Rfam database...	0.63	0.63	0.63	17	6301	21	1	9	11	10
3JYX_4	5_8S_rRNA links to Rfam database...	0.31	0.30	0.31	10	12214	35	5	17	13	23
3LA5_A	Purine links to Rfam database...	0.76	0.59	1.00	20	2465	0	0	0	0	14
3NPB_A	SAM links to Rfam database...	0.77	0.63	0.94	29	6990	4	1	1	2	17
3O58_2	5S_rRNA links to Rfam database...	0.60	0.61	0.59	23	7221	18	4	12	2	15
3O58_3	5_8S_rRNA links to Rfam database...	0.34	0.34	0.34	12	12368	37	2	21	14	23
3PDR_A	ykoK links to Rfam database...	0.67	0.56	0.80	40	12830	12	0	10	2	32
3RKF_A	Purine links to Rfam database...	0.76	0.59	1.00	20	2191	0	0	0	0	14
3SD1_A	THF links to Rfam database...	0.64	0.52	0.79	22	3888	6	1	5	0	20
4A1C_3	5S_rRNA links to Rfam database...	0.68	0.57	0.82	31	7102	7	1	6	0	23
4A1C_2	5_8S_rRNA links to Rfam database...	0.14	0.15	0.14	5	11746	41	5	25	11	28
4AOB_A	SAM links to Rfam database...	0.50	0.40	0.63	17	4344	11	2	8	1	25
4ENB_A	crcB links to Rfam database...	0.70	0.58	0.85	11	1262	2	1	1	0	8
4ENC_A	crcB links to Rfam database...	0.32	0.26	0.42	5	1314	7	1	6	0	14

^top

Performance of Mastr(20) - scored lower in this pairwise comparison

1. Total counts & total scores for Mastr(20)

Total Base Pair Counts
Total TP	342
Total TN	198972
Total FP	118
Total FP CONTRA	14
Total FP INCONS	77
Total FP COMP	27
Total FN	642

Total Scores
MCC	0.523
Average MCC ± 95% Confidence Intervals	0.511 ± 0.127
Sensitivity	0.348
Positive Predictive Value	0.790
Nr of predictions	25

^top

2. Individual counts for Mastr(20) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	0.95	0.91	1.00	10	396	0	0	0	0	1
2WRQ_Y	tRNA links to Rfam database...	0.57	0.59	0.56	10	2832	12	5	3	4	7
2XQD_Y	tRNA links to Rfam database...	0.88	0.78	1.00	21	2829	0	0	0	0	6
3A2K_C	tRNA links to Rfam database...	0.72	0.61	0.85	17	2906	3	0	3	0	11
3AMU_B	tRNA links to Rfam database...	0.77	0.59	1.00	16	2987	1	0	0	1	11
3G4S_9	5S_rRNA links to Rfam database...	0.48	0.32	0.75	18	7357	8	1	5	2	39
3GX2_A	SAM links to Rfam database...	0.39	0.28	0.55	11	4351	10	0	9	1	29
3IVN_B	Purine links to Rfam database...	0.78	0.65	0.95	20	2325	1	1	0	0	11
3IZ4_A	tmRNA links to Rfam database...	0.00	0.00	0.00	0	70876	0	0	0	0	132
3IZF_C	5S_rRNA links to Rfam database...	0.73	0.63	0.85	34	6863	7	1	5	1	20
3JYV_7	tRNA links to Rfam database...	0.81	0.66	1.00	21	2829	0	0	0	0	11
3JYX_3	5S_rRNA links to Rfam database...	0.56	0.56	0.58	15	6302	23	1	10	12	12
3JYX_4	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	12246	0	0	0	0	33
3LA5_A	Purine links to Rfam database...	0.76	0.59	1.00	20	2465	0	0	0	0	14
3NPB_A	SAM links to Rfam database...	0.30	0.24	0.39	11	6993	18	1	16	1	35
3O58_2	5S_rRNA links to Rfam database...	0.76	0.76	0.76	29	7222	12	3	6	3	9
3O58_3	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	12403	0	0	0	0	35
3PDR_A	ykoK links to Rfam database...	0.00	0.00	0.00	0	12880	0	0	0	0	72
3RKF_A	Purine links to Rfam database...	0.70	0.50	1.00	17	2194	0	0	0	0	17
3SD1_A	THF links to Rfam database...	0.61	0.50	0.75	21	3888	7	1	6	0	21
4A1C_3	5S_rRNA links to Rfam database...	0.70	0.59	0.84	32	7102	7	0	6	1	22
4A1C_2	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	11781	0	0	0	0	33
4AOB_A	SAM links to Rfam database...	0.39	0.26	0.58	11	4352	9	0	8	1	31
4ENB_A	crcB links to Rfam database...	0.39	0.16	1.00	3	1272	0	0	0	0	16
4ENC_A	crcB links to Rfam database...	0.51	0.26	1.00	5	1321	0	0	0	0	14

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
