Overview

Metric	Sfold		UNAFold
MCC	0.464	>	0.445
Average MCC ± 95% Confidence Intervals	0.549 ± 0.064	>	0.548 ± 0.066
Sensitivity	0.387	<	0.395
Positive Predictive Value	0.557	>	0.502
Total TP	2020	<	2059
Total TN	13351579	>	13351108
Total FP	1754	<	2212
Total FP CONTRA	245	<	292
Total FP INCONS	1363	<	1748
Total FP COMP	146	<	172
Total FN	3193	>	3154
P-value	3.56938820447e-08

^top

Performance plots

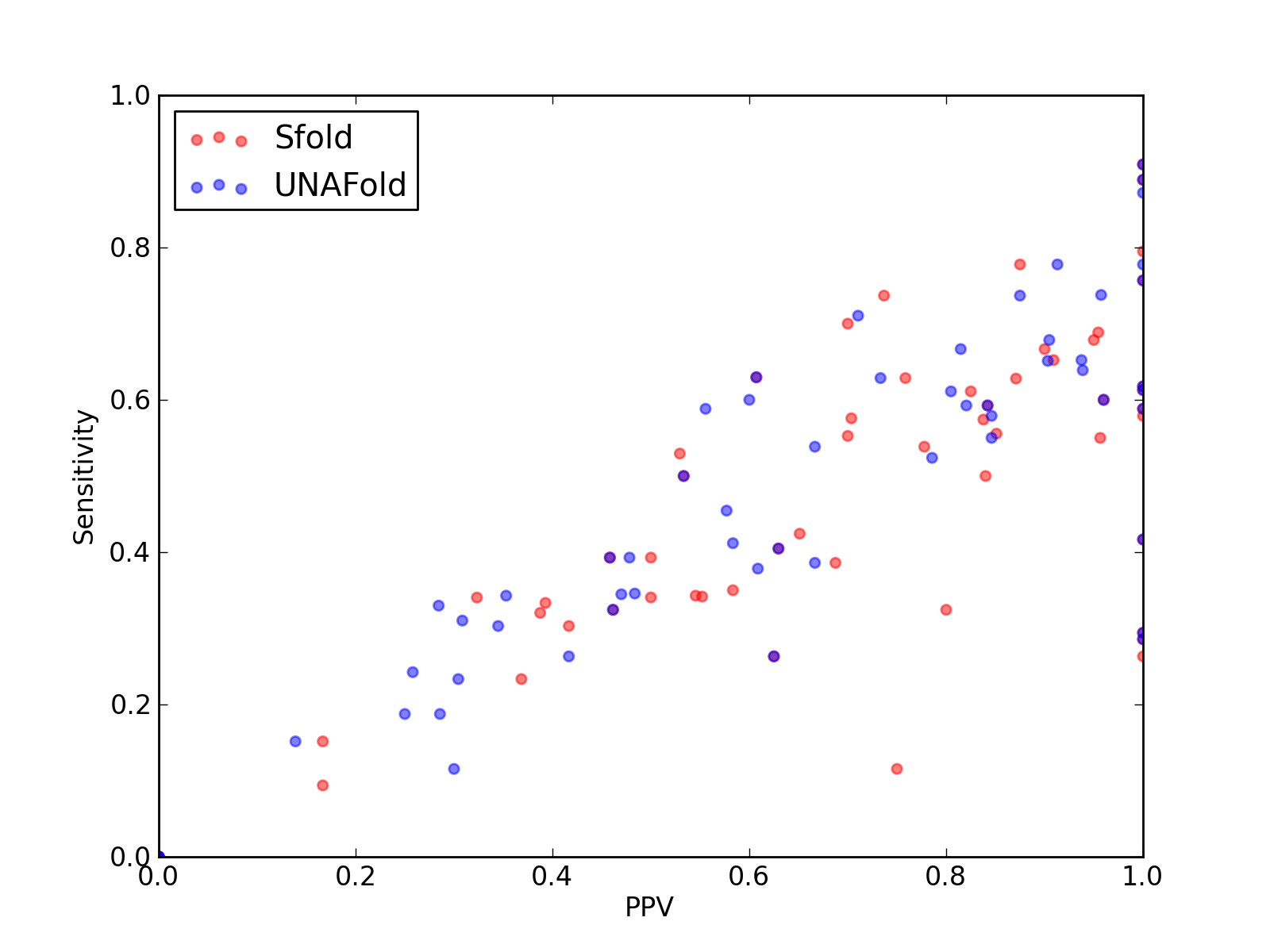

Comparison of performance of Sfold and UNAFold. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for Sfold and UNAFold).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for Sfold and UNAFold).
Comparison of average Matthews Correlation Coefficients (MCCs) for Sfold and UNAFold. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for Sfold and UNAFold).

^top

Performance of Sfold - scored higher in this pairwise comparison

1. Total counts & total scores for Sfold

Total Base Pair Counts
Total TP	2020
Total TN	13351579
Total FP	1754
Total FP CONTRA	245
Total FP INCONS	1363
Total FP COMP	146
Total FN	3193

Total Scores
MCC	0.464
Average MCC ± 95% Confidence Intervals	0.549 ± 0.064
Sensitivity	0.387
Positive Predictive Value	0.557
Nr of predictions	58

^top

2. Individual counts for Sfold [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	0.95	0.91	1.00	10	396	0	0	0	0	1
2KFC_A	-	-0.02	0.00	0.00	0	623	7	0	7	0	20
2KRL_A	-	0.76	0.60	0.96	24	5126	5	0	1	4	16
2KX8_A	7SK links to Rfam database...	0.94	0.89	1.00	16	845	0	0	0	0	2
2LA5_A	-	0.39	0.26	0.63	5	622	3	1	2	0	14
2LC8_A	GP_knot1 links to Rfam database...	0.45	0.35	0.58	7	1528	5	0	5	0	13
2LKR_A	-	0.89	0.79	1.00	31	6074	1	0	0	1	8
2RP0_A	-	0.64	0.42	1.00	5	346	0	0	0	0	7
2WDL_A	-	0.41	0.34	0.50	410	3937401	411	25	385	1	794
2WRQ_Y	tRNA links to Rfam database...	0.53	0.53	0.53	9	2833	13	5	3	5	8
2WW9_F	-	0.69	0.70	0.70	7	290	3	0	3	0	3
2WW9_E	-	0.53	0.29	1.00	4	557	0	0	0	0	10
2WW9_D	-	0.29	0.12	0.75	3	1949	1	0	1	0	23
2WWQ_V	tRNA links to Rfam database...	0.80	0.68	0.95	19	2906	2	0	1	1	9
2XQD_Y	tRNA links to Rfam database...	0.77	0.67	0.90	18	2830	2	0	2	0	9
2ZZM_B	tRNA links to Rfam database...	0.12	0.09	0.17	3	3468	15	0	15	0	29
2ZZN_D	tRNA links to Rfam database...	0.82	0.78	0.88	21	2461	3	0	3	0	6
3A2K_C	tRNA links to Rfam database...	0.42	0.39	0.46	11	2902	13	2	11	0	17
3A3A_A	tRNA-Sec links to Rfam database...	0.87	0.76	1.00	28	3627	0	0	0	0	9
3ADB_C	-	0.62	0.55	0.70	21	4156	9	0	9	0	17
3AKZ_H	tRNA links to Rfam database...	0.44	0.39	0.50	11	2679	11	2	9	0	17
3AM1_B	-	0.69	0.63	0.76	22	3211	7	1	6	0	13
3AMU_B	tRNA links to Rfam database...	0.70	0.59	0.84	16	2984	5	0	3	2	11
3G4S_9	5S_rRNA links to Rfam database...	0.51	0.39	0.69	22	7349	10	1	9	0	35
3GCA_A	-	0.54	0.29	1.00	5	523	0	0	0	0	12
3GX2_A	SAM links to Rfam database...	0.72	0.55	0.96	22	4348	2	0	1	1	18
3IVN_B	Purine links to Rfam database...	0.78	0.61	1.00	19	2327	0	0	0	0	12
3IWN_A	c-di-GMP-I links to Rfam database...	0.63	0.58	0.70	19	4251	9	0	8	1	14
3IYQ_A	tmRNA links to Rfam database...	0.33	0.34	0.32	32	60627	71	19	48	4	62
3IZ4_A	tmRNA links to Rfam database...	0.52	0.42	0.65	56	70790	31	3	27	1	76
3IZF_C	5S_rRNA links to Rfam database...	0.71	0.61	0.83	33	6863	7	0	7	0	21
3J0L_g	-	-0.01	0.00	0.00	0	460	5	1	4	0	4
3J0L_2	-	0.36	0.33	0.39	11	6188	19	2	15	2	22
3J0L_7	-	-0.01	0.00	0.00	0	1222	3	0	3	0	17
3J0L_a	-	0.51	0.50	0.53	8	1113	7	3	4	0	8
3J16_L	tRNA links to Rfam database...	0.29	0.23	0.37	7	2756	12	0	12	0	23
3JYV_7	tRNA links to Rfam database...	-0.01	0.00	0.00	0	2834	16	0	16	0	32
3JYX_3	5S_rRNA links to Rfam database...	0.62	0.63	0.61	17	6300	19	1	10	8	10
3JYX_4	5_8S_rRNA links to Rfam database...	0.35	0.30	0.42	10	12222	23	3	11	9	23
3JYX_5	-	0.35	0.32	0.39	286	5022127	525	142	310	73	607
3KIY_A	-	0.43	0.34	0.55	424	4053360	352	20	324	8	817
3KTW_C	-	0.74	0.63	0.87	27	4529	5	2	2	1	16
3LA5_A	Purine links to Rfam database...	0.78	0.62	1.00	21	2464	0	0	0	0	13
3NDB_M	-	0.81	0.69	0.95	42	9136	3	0	2	1	19
3NKB_B	-	0.64	0.54	0.78	14	1998	4	0	4	0	12
3NPB_A	SAM links to Rfam database...	0.77	0.65	0.91	30	6988	6	1	2	3	16
3O58_3	5_8S_rRNA links to Rfam database...	0.43	0.34	0.55	12	12381	17	0	10	7	23
3O58_2	5S_rRNA links to Rfam database...	0.74	0.74	0.74	28	7222	11	3	7	1	10
3PDR_A	ykoK links to Rfam database...	0.69	0.56	0.85	40	12833	9	0	7	2	32
3RKF_A	Purine links to Rfam database...	0.76	0.59	1.00	20	2191	0	0	0	0	14
3SD1_A	THF links to Rfam database...	0.65	0.50	0.84	21	3891	4	1	3	0	21
3U4M_B	-	0.38	0.32	0.46	12	3134	14	0	14	0	25
3UZL_B	tRNA links to Rfam database...	0.51	0.32	0.80	12	3555	3	2	1	0	25
4A1C_3	5S_rRNA links to Rfam database...	0.69	0.57	0.84	31	7103	6	1	5	0	23
4A1C_2	5_8S_rRNA links to Rfam database...	0.16	0.15	0.17	5	11751	34	2	23	9	28
4AOB_A	SAM links to Rfam database...	0.50	0.40	0.63	17	4344	11	2	8	1	25
4ENB_A	crcB links to Rfam database...	0.76	0.58	1.00	11	1264	0	0	0	0	8
4ENC_A	crcB links to Rfam database...	0.51	0.26	1.00	5	1321	0	0	0	0	14

^top

Performance of UNAFold - scored lower in this pairwise comparison

1. Total counts & total scores for UNAFold

Total Base Pair Counts
Total TP	2059
Total TN	13351108
Total FP	2212
Total FP CONTRA	292
Total FP INCONS	1748
Total FP COMP	172
Total FN	3154

Total Scores
MCC	0.445
Average MCC ± 95% Confidence Intervals	0.548 ± 0.066
Sensitivity	0.395
Positive Predictive Value	0.502
Nr of predictions	58

^top

2. Individual counts for UNAFold [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	0.95	0.91	1.00	10	396	0	0	0	0	1
2KFC_A	-	-0.02	0.00	0.00	0	623	7	0	7	0	20
2KRL_A	-	0.76	0.60	0.96	24	5126	5	0	1	4	16
2KX8_A	7SK links to Rfam database...	0.94	0.89	1.00	16	845	0	0	0	0	2
2LA5_A	-	0.39	0.26	0.63	5	622	3	1	2	0	14
2LC8_A	GP_knot1 links to Rfam database...	-0.01	0.00	0.00	0	1525	15	2	13	0	20
2LKR_A	-	0.93	0.87	1.00	34	6071	1	0	0	1	5
2RP0_A	-	0.64	0.42	1.00	5	346	0	0	0	0	7
2WDL_A	-	0.40	0.34	0.47	415	3937338	469	30	438	1	789
2WRQ_Y	tRNA links to Rfam database...	0.57	0.59	0.56	10	2832	13	5	3	5	7
2WW9_F	-	0.59	0.60	0.60	6	290	4	0	4	0	4
2WW9_E	-	0.53	0.29	1.00	4	557	0	0	0	0	10
2WW9_D	-	0.18	0.12	0.30	3	1943	7	3	4	0	23
2WWQ_V	tRNA links to Rfam database...	0.78	0.68	0.90	19	2905	3	0	2	1	9
2XQD_Y	tRNA links to Rfam database...	0.88	0.78	1.00	21	2829	0	0	0	0	6
2ZZM_B	tRNA links to Rfam database...	0.21	0.19	0.25	6	3462	18	0	18	0	26
2ZZN_D	tRNA links to Rfam database...	0.84	0.78	0.91	21	2462	2	0	2	0	6
3A2K_C	tRNA links to Rfam database...	0.42	0.39	0.46	11	2902	13	2	11	0	17
3A3A_A	tRNA-Sec links to Rfam database...	0.87	0.76	1.00	28	3627	0	0	0	0	9
3ADB_C	-	0.80	0.74	0.88	28	4154	4	0	4	0	10
3AKZ_H	tRNA links to Rfam database...	0.43	0.39	0.48	11	2678	12	2	10	0	17
3AM1_B	-	0.68	0.63	0.73	22	3210	8	1	7	0	13
3AMU_B	tRNA links to Rfam database...	0.70	0.59	0.84	16	2984	5	0	3	2	11
3G4S_9	5S_rRNA links to Rfam database...	0.50	0.39	0.67	22	7348	11	1	10	0	35
3GCA_A	-	0.54	0.29	1.00	5	523	0	0	0	0	12
3GX2_A	SAM links to Rfam database...	0.68	0.55	0.85	22	4345	5	0	4	1	18
3IVN_B	Purine links to Rfam database...	0.78	0.61	1.00	19	2327	0	0	0	0	12
3IWN_A	c-di-GMP-I links to Rfam database...	0.74	0.67	0.81	22	4251	6	0	5	1	11
3IYQ_A	tmRNA links to Rfam database...	0.31	0.33	0.28	31	60617	82	22	56	4	63
3IZ4_A	tmRNA links to Rfam database...	0.51	0.45	0.58	60	70772	50	4	40	6	72
3IZF_C	5S_rRNA links to Rfam database...	0.70	0.61	0.80	33	6862	8	1	7	0	21
3J0L_g	-	-0.01	0.00	0.00	0	461	4	1	3	0	4
3J0L_2	-	0.25	0.24	0.26	8	6185	25	2	21	2	25
3J0L_7	-	0.48	0.41	0.58	7	1213	5	0	5	0	10
3J0L_a	-	0.51	0.50	0.53	8	1113	7	3	4	0	8
3J16_L	tRNA links to Rfam database...	0.26	0.23	0.30	7	2752	16	1	15	0	23
3JYV_7	tRNA links to Rfam database...	0.22	0.19	0.29	6	2829	15	0	15	0	26
3JYX_3	5S_rRNA links to Rfam database...	0.62	0.63	0.61	17	6300	22	1	10	11	10
3JYX_4	5_8S_rRNA links to Rfam database...	0.32	0.30	0.34	10	12217	31	3	16	12	23
3JYX_5	-	0.31	0.31	0.31	277	5021967	702	167	454	81	616
3KIY_A	-	0.41	0.35	0.48	429	4053241	467	22	436	9	812
3KTW_C	-	0.77	0.65	0.90	28	4529	4	2	1	1	15
3LA5_A	Purine links to Rfam database...	0.78	0.62	1.00	21	2464	0	0	0	0	13
3NDB_M	-	0.84	0.74	0.96	45	9133	3	0	2	1	16
3NKB_B	-	0.59	0.54	0.67	14	1995	7	0	7	0	12
3NPB_A	SAM links to Rfam database...	0.78	0.65	0.94	30	6989	5	0	2	3	16
3O58_3	5_8S_rRNA links to Rfam database...	0.35	0.34	0.35	12	12369	33	1	21	11	23
3O58_2	5S_rRNA links to Rfam database...	0.71	0.71	0.71	27	7222	12	4	7	1	11
3PDR_A	ykoK links to Rfam database...	0.77	0.64	0.94	46	12831	5	0	3	2	26
3RKF_A	Purine links to Rfam database...	0.76	0.59	1.00	20	2191	0	0	0	0	14
3SD1_A	THF links to Rfam database...	0.64	0.52	0.79	22	3888	6	1	5	0	20
3U4M_B	-	0.38	0.32	0.46	12	3134	14	0	14	0	25
3UZL_B	tRNA links to Rfam database...	0.48	0.38	0.61	14	3547	9	0	9	0	23
4A1C_3	5S_rRNA links to Rfam database...	0.70	0.59	0.82	32	7101	7	1	6	0	22
4A1C_2	5_8S_rRNA links to Rfam database...	0.14	0.15	0.14	5	11745	42	5	26	11	28
4AOB_A	SAM links to Rfam database...	0.50	0.40	0.63	17	4344	11	2	8	1	25
4ENB_A	crcB links to Rfam database...	0.70	0.58	0.85	11	1262	2	1	1	0	8
4ENC_A	crcB links to Rfam database...	0.32	0.26	0.42	5	1314	7	1	6	0	14

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
