CompaRNA - on-line benchmarks of RNA structure prediction methods

FAQ

Metric	UNAFold		Carnac(seed)
MCC	0.615	>	0.139
Average MCC ± 95% Confidence Intervals	0.603 ± 0.118	>	0.070 ± 0.108
Sensitivity	0.537	>	0.019
Positive Predictive Value	0.710	<	1.000
Total TP	387	>	14
Total TN	111319	<	111850
Total FP	211	>	0
Total FP CONTRA	23	>	0
Total FP INCONS	135	>	0
Total FP COMP	53	>	0
Total FN	334	<	707
P-value	5.19332990918e-08

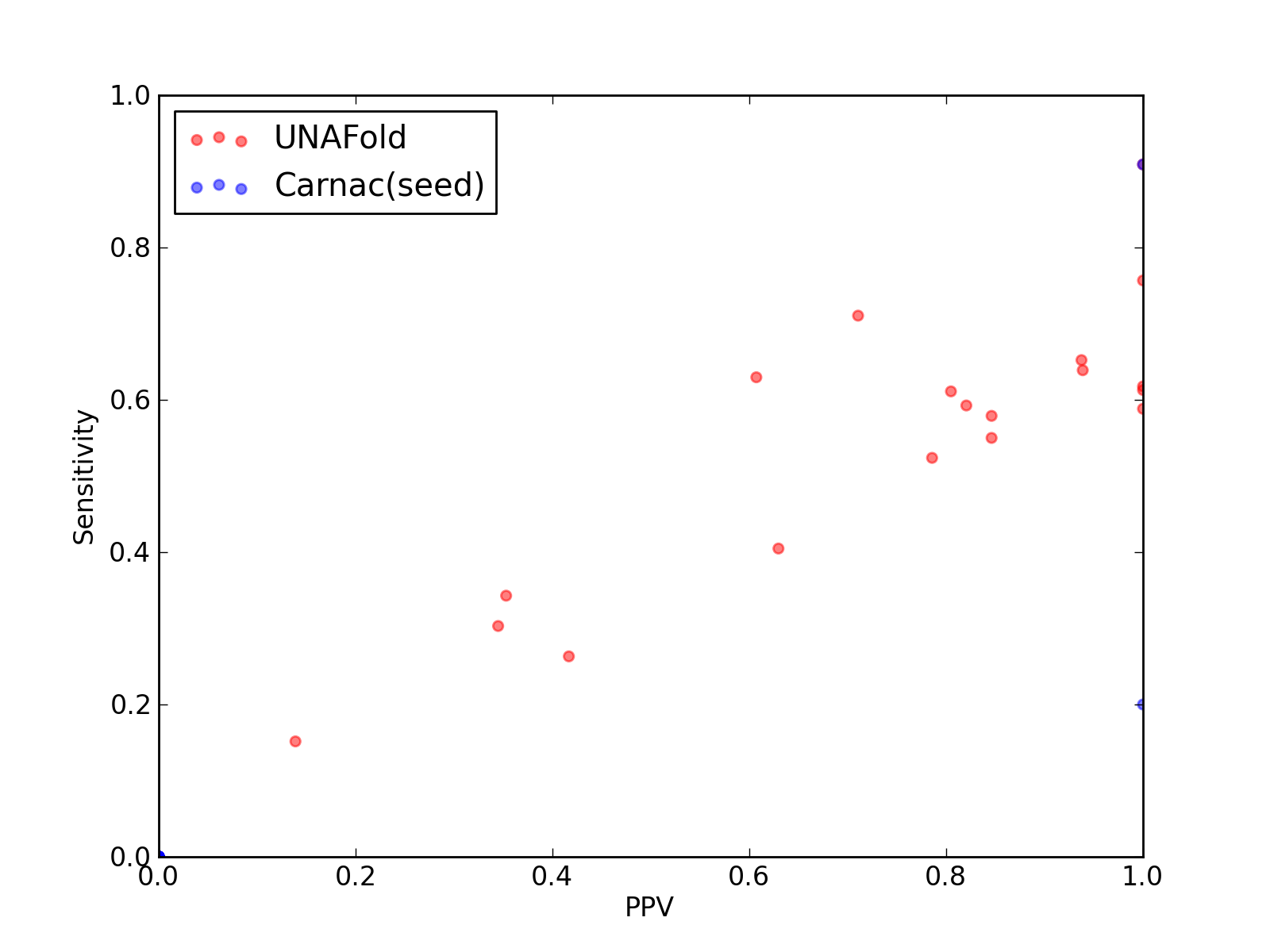

Comparison of performance of UNAFold and Carnac(seed). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for UNAFold and Carnac(seed)).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for UNAFold and Carnac(seed)).
Comparison of average Matthews Correlation Coefficients (MCCs) for UNAFold and Carnac(seed). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for UNAFold and Carnac(seed)).

Total Scores
MCC	0.615
Average MCC ± 95% Confidence Intervals	0.603 ± 0.118
Sensitivity	0.537
Positive Predictive Value	0.710
Nr of predictions	20

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	0.95	0.91	1.00	10	396	0	0	0	0	1
2LC8_A	GP_knot1 links to Rfam database...	-0.01	0.00	0.00	0	1525	15	2	13	0	20
3A3A_A	tRNA-Sec links to Rfam database...	0.87	0.76	1.00	28	3627	0	0	0	0	9
3GX2_A	SAM links to Rfam database...	0.68	0.55	0.85	22	4345	5	0	4	1	18
3IVN_B	Purine links to Rfam database...	0.78	0.61	1.00	19	2327	0	0	0	0	12
3IZF_C	5S_rRNA links to Rfam database...	0.70	0.61	0.80	33	6862	8	1	7	0	21
3JYX_3	5S_rRNA links to Rfam database...	0.62	0.63	0.61	17	6300	22	1	10	11	10
3JYX_4	5_8S_rRNA links to Rfam database...	0.32	0.30	0.34	10	12217	31	3	16	12	23
3LA5_A	Purine links to Rfam database...	0.78	0.62	1.00	21	2464	0	0	0	0	13
3NPB_A	SAM links to Rfam database...	0.78	0.65	0.94	30	6989	5	0	2	3	16
3O58_2	5S_rRNA links to Rfam database...	0.71	0.71	0.71	27	7222	12	4	7	1	11
3O58_3	5_8S_rRNA links to Rfam database...	0.35	0.34	0.35	12	12369	33	1	21	11	23
3PDR_A	ykoK links to Rfam database...	0.77	0.64	0.94	46	12831	5	0	3	2	26
3RKF_A	Purine links to Rfam database...	0.76	0.59	1.00	20	2191	0	0	0	0	14
3SD1_A	THF links to Rfam database...	0.64	0.52	0.79	22	3888	6	1	5	0	20
4A1C_2	5_8S_rRNA links to Rfam database...	0.14	0.15	0.14	5	11745	42	5	26	11	28
4A1C_3	5S_rRNA links to Rfam database...	0.70	0.59	0.82	32	7101	7	1	6	0	22
4AOB_A	SAM links to Rfam database...	0.50	0.40	0.63	17	4344	11	2	8	1	25
4ENB_A	crcB links to Rfam database...	0.70	0.58	0.85	11	1262	2	1	1	0	8
4ENC_A	crcB links to Rfam database...	0.32	0.26	0.42	5	1314	7	1	6	0	14

Total Scores
MCC	0.139
Average MCC ± 95% Confidence Intervals	0.070 ± 0.108
Sensitivity	0.019
Positive Predictive Value	1.000
Nr of predictions	20

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	0.95	0.91	1.00	10	396	0	0	0	0	1
2LC8_A	GP_knot1 links to Rfam database...	0.44	0.20	1.00	4	1536	0	0	0	0	16
3A3A_A	tRNA-Sec links to Rfam database...	0.00	0.00	0.00	0	3655	0	0	0	0	37
3GX2_A	SAM links to Rfam database...	0.00	0.00	0.00	0	4371	0	0	0	0	40
3IVN_B	Purine links to Rfam database...	0.00	0.00	0.00	0	2346	0	0	0	0	31
3IZF_C	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	6903	0	0	0	0	54
3JYX_3	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	6328	0	0	0	0	27
3JYX_4	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	12246	0	0	0	0	33
3LA5_A	Purine links to Rfam database...	0.00	0.00	0.00	0	2485	0	0	0	0	34
3NPB_A	SAM links to Rfam database...	0.00	0.00	0.00	0	7021	0	0	0	0	46
3O58_2	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7260	0	0	0	0	38
3O58_3	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	12403	0	0	0	0	35
3PDR_A	ykoK links to Rfam database...	0.00	0.00	0.00	0	12880	0	0	0	0	72
3RKF_A	Purine links to Rfam database...	0.00	0.00	0.00	0	2211	0	0	0	0	34
3SD1_A	THF links to Rfam database...	0.00	0.00	0.00	0	3916	0	0	0	0	42
4A1C_2	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	11781	0	0	0	0	33
4A1C_3	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7140	0	0	0	0	54
4AOB_A	SAM links to Rfam database...	0.00	0.00	0.00	0	4371	0	0	0	0	42
4ENB_A	crcB links to Rfam database...	0.00	0.00	0.00	0	1275	0	0	0	0	19
4ENC_A	crcB links to Rfam database...	0.00	0.00	0.00	0	1326	0	0	0	0	19

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
