Overview

Metric	CMfinder(20)		Carnac(seed)
MCC	0.599	>	0.310
Average MCC ± 95% Confidence Intervals	0.646 ± 0.066	>	0.313 ± 0.085
Sensitivity	0.453	>	0.106
Positive Predictive Value	0.794	<	0.907
Total TP	1238	>	291
Total TN	922763	<	924002
Total FP	369	>	70
Total FP CONTRA	24	>	4
Total FP INCONS	298	>	26
Total FP COMP	47	>	40
Total FN	1497	<	2444
P-value	3.56938820447e-08

^top

Performance plots

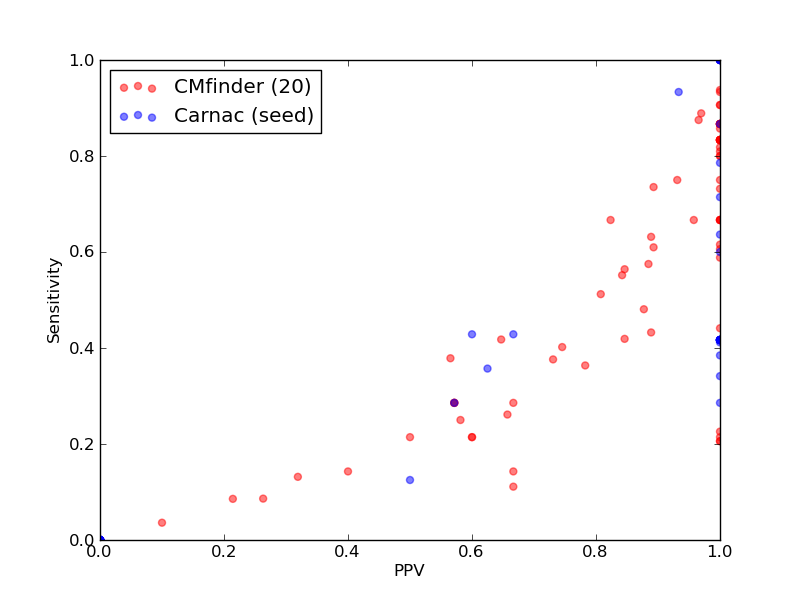

Comparison of performance of CMfinder(20) and Carnac(seed). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for CMfinder(20) and Carnac(seed)).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for CMfinder(20) and Carnac(seed)).
Comparison of average Matthews Correlation Coefficients (MCCs) for CMfinder(20) and Carnac(seed). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for CMfinder(20) and Carnac(seed)).

^top

Performance of CMfinder(20) - scored higher in this pairwise comparison

1. Total counts & total scores for CMfinder(20)

Total Base Pair Counts
Total TP	1238
Total TN	922763
Total FP	369
Total FP CONTRA	24
Total FP INCONS	298
Total FP COMP	47
Total FN	1497

Total Scores
MCC	0.599
Average MCC ± 95% Confidence Intervals	0.646 ± 0.066
Sensitivity	0.453
Positive Predictive Value	0.794
Nr of predictions	81

^top

2. Individual counts for CMfinder(20) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
CRW_01484	5S_rRNA links to Rfam database...	0.69	0.56	0.85	22	7477	5	0	4	1	17
CRW_01499	5S_rRNA links to Rfam database...	0.64	0.51	0.81	21	7975	5	0	5	0	20
CRW_01603	5S_rRNA links to Rfam database...	0.62	0.43	0.89	16	7122	2	0	2	0	21
PDB_00012	mir-TAR links to Rfam database...	1.00	1.00	1.00	7	399	2	0	0	2	0
PDB_00213	Gammaretro_CES links to Rfam database...	0.85	0.73	1.00	30	5020	0	0	0	0	11
PDB_00553	mir-TAR links to Rfam database...	0.90	0.82	1.00	9	456	0	0	0	0	2
PDB_00810	s2m links to Rfam database...	0.76	0.59	1.00	10	1071	0	0	0	0	7
PDB_01050	UnaL2 links to Rfam database...	0.78	0.62	1.00	8	622	1	0	0	1	5
PDB_01152	HIV_FS2 links to Rfam database...	0.92	0.86	1.00	12	549	0	0	0	0	2
RFA_00389	Hammerhead_3 links to Rfam database...	0.93	0.87	1.00	13	1418	1	0	0	1	2
RFA_00390	Hammerhead_3 links to Rfam database...	0.93	0.87	1.00	13	1418	1	0	0	1	2
RFA_00391	Hammerhead_3 links to Rfam database...	0.89	0.80	1.00	12	1419	1	0	0	1	3
RFA_00409	Hammerhead_3 links to Rfam database...	0.89	0.80	1.00	12	1419	1	0	0	1	3
RFA_00416	Hammerhead_3 links to Rfam database...	0.93	0.87	1.00	13	1472	1	0	0	1	2
RFA_00433	Hammerhead_3 links to Rfam database...	0.93	0.87	1.00	13	1418	1	0	0	1	2
RFA_00434	Hammerhead_3 links to Rfam database...	0.93	0.87	1.00	13	1418	1	0	0	1	2
RFA_00436	Hammerhead_3 links to Rfam database...	0.93	0.87	1.00	13	1418	1	0	0	1	2
RFA_00440	Hammerhead_3 links to Rfam database...	0.93	0.87	1.00	13	1472	1	0	0	1	2
RFA_00442	Hammerhead_3 links to Rfam database...	0.93	0.87	1.00	13	1418	1	0	0	1	2
RFA_00587	Y_RNA links to Rfam database...	0.97	0.93	1.00	14	4837	10	0	0	10	1
RFA_00599	Telomerase-vert links to Rfam database...	0.06	0.04	0.10	4	101435	37	2	34	1	107
RFA_00601	Telomerase-vert links to Rfam database...	0.20	0.13	0.32	15	99188	37	2	30	5	99
RFA_00602	Telomerase-vert links to Rfam database...	0.15	0.09	0.26	10	101437	34	0	28	6	106
RFA_00658	Hammerhead_1 links to Rfam database...	0.40	0.29	0.57	4	1121	4	0	3	1	10
RFA_00664	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	985	5	0	5	0	14
RFA_00667	Hammerhead_1 links to Rfam database...	0.40	0.29	0.57	4	983	4	0	3	1	10
RFA_00668	Hammerhead_1 links to Rfam database...	0.35	0.21	0.60	3	985	3	0	2	1	11
RFA_00672	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	898	5	0	5	0	13
RFA_00673	Hammerhead_1 links to Rfam database...	0.23	0.14	0.40	2	1123	4	0	3	1	12
RFA_00674	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	1123	5	0	5	0	14
RFA_00675	Hammerhead_1 links to Rfam database...	0.35	0.21	0.60	3	985	3	0	2	1	11
RFA_00677	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	985	5	0	5	0	14
RFA_00678	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	942	4	0	4	0	14
RFA_00680	Hammerhead_1 links to Rfam database...	0.40	0.29	0.57	4	1121	4	0	3	1	10
RFA_00704	Hammerhead_1 links to Rfam database...	0.32	0.21	0.50	3	984	4	0	3	1	11
RFA_00707	Hammerhead_1 links to Rfam database...	0.43	0.29	0.67	4	1029	3	0	2	1	10
RFA_00715	Hammerhead_1 links to Rfam database...	0.30	0.14	0.67	2	943	2	0	1	1	12
RFA_00717	Hammerhead_1 links to Rfam database...	0.46	0.21	1.00	3	900	0	0	0	0	11
RFA_00730	s2m links to Rfam database...	0.91	0.83	1.00	10	893	0	0	0	0	2
RFA_00731	s2m links to Rfam database...	0.91	0.83	1.00	10	893	0	0	0	0	2
RFA_00733	s2m links to Rfam database...	0.81	0.67	1.00	8	895	0	0	0	0	4
RFA_00734	s2m links to Rfam database...	0.81	0.67	1.00	8	895	0	0	0	0	4
RFA_00736	s2m links to Rfam database...	0.91	0.83	1.00	10	893	0	0	0	0	2
RFA_00737	s2m links to Rfam database...	0.81	0.67	1.00	8	895	0	0	0	0	4
RFA_00745	s2m links to Rfam database...	0.91	0.83	1.00	10	936	0	0	0	0	2
RFA_00749	s2m links to Rfam database...	0.91	0.83	1.00	10	893	0	0	0	0	2
RFA_00758	s2m links to Rfam database...	0.86	0.75	1.00	9	894	0	0	0	0	3
RFA_00762	s2m links to Rfam database...	0.91	0.83	1.00	10	893	0	0	0	0	2
RFA_00763	s2m links to Rfam database...	0.91	0.83	1.00	10	893	0	0	0	0	2
RFA_00764	s2m links to Rfam database...	0.81	0.67	1.00	8	895	0	0	0	0	4
RFA_00765	s2m links to Rfam database...	0.91	0.83	1.00	10	893	0	0	0	0	2
RFA_00786	Gammaretro_CES links to Rfam database...	0.95	0.91	1.00	29	5021	0	0	0	0	3
RFA_00791	Gammaretro_CES links to Rfam database...	0.92	0.88	0.97	28	5122	1	0	1	0	4
RFA_00792	Gammaretro_CES links to Rfam database...	0.97	0.94	1.00	30	5020	0	0	0	0	2
RFA_00801	Gammaretro_CES links to Rfam database...	0.95	0.91	1.00	29	5021	0	0	0	0	3
SPR_00273	tRNA links to Rfam database...	0.74	0.67	0.82	14	2833	3	0	3	0	7
SPR_00721	tRNA links to Rfam database...	0.90	0.81	1.00	17	2909	0	0	0	0	4
SRP_00011	Plant_SRP links to Rfam database...	0.65	0.48	0.88	50	46303	7	0	7	0	54
SRP_00015	Plant_SRP links to Rfam database...	0.53	0.36	0.78	36	46314	10	0	10	0	63
SRP_00020	Bacteria_small_SRP links to Rfam database...	0.78	0.61	1.00	20	5545	0	0	0	0	13
SRP_00058	Bacteria_small_SRP links to Rfam database...	0.66	0.44	1.00	15	5763	0	0	0	0	19
SRP_00084	Bacteria_small_SRP links to Rfam database...	0.81	0.74	0.89	25	5432	3	1	2	0	9
SRP_00105	Bacteria_small_SRP links to Rfam database...	0.45	0.21	1.00	7	5558	0	0	0	0	27
SRP_00134	Bacteria_large_SRP links to Rfam database...	0.68	0.55	0.84	16	5976	3	0	3	0	13
SRP_00141	Bacteria_small_SRP links to Rfam database...	0.74	0.61	0.89	25	6300	3	1	2	0	16
SRP_00152	Plant_SRP links to Rfam database...	0.46	0.38	0.57	39	45684	30	6	24	0	64
SRP_00178	Plant_SRP links to Rfam database...	0.55	0.40	0.75	41	45698	14	4	10	0	61
SRP_00179	Plant_SRP links to Rfam database...	0.59	0.42	0.85	44	46004	8	1	7	0	61
SRP_00181	Plant_SRP links to Rfam database...	0.80	0.67	0.96	68	45985	5	0	3	2	34
SRP_00182	Plant_SRP links to Rfam database...	0.52	0.38	0.73	38	46004	14	0	14	0	63
SRP_00184	Plant_SRP links to Rfam database...	0.38	0.25	0.58	25	46013	18	0	18	0	75
SRP_00188	Plant_SRP links to Rfam database...	0.52	0.42	0.65	33	31074	18	3	15	0	46
SRP_00200	Bacteria_small_SRP links to Rfam database...	0.27	0.11	0.67	4	6897	2	0	2	0	32
SRP_00231	Bacteria_small_SRP links to Rfam database...	0.45	0.21	1.00	7	5453	0	0	0	0	27
SRP_00273	Bacteria_small_SRP links to Rfam database...	0.71	0.58	0.88	23	6760	3	1	2	0	17
SRP_00274	Bacteria_small_SRP links to Rfam database...	0.75	0.63	0.89	24	6876	3	1	2	0	14
SRP_00308	Bacteria_large_SRP links to Rfam database...	0.41	0.26	0.66	23	36280	12	1	11	0	65
SRP_00338	Bacteria_small_SRP links to Rfam database...	0.93	0.89	0.97	32	5427	1	0	1	0	4
SRP_00341	Bacteria_small_SRP links to Rfam database...	0.47	0.23	1.00	7	4746	0	0	0	0	24
SRP_00357	Bacteria_small_SRP links to Rfam database...	0.83	0.75	0.93	27	5327	2	1	1	0	9
SRP_00367	Bacteria_small_SRP links to Rfam database...	0.13	0.09	0.21	3	6772	11	0	11	0	32

^top

Performance of Carnac(seed) - scored lower in this pairwise comparison

1. Total counts & total scores for Carnac(seed)

Total Base Pair Counts
Total TP	291
Total TN	924002
Total FP	70
Total FP CONTRA	4
Total FP INCONS	26
Total FP COMP	40
Total FN	2444

Total Scores
MCC	0.310
Average MCC ± 95% Confidence Intervals	0.313 ± 0.085
Sensitivity	0.106
Positive Predictive Value	0.907
Nr of predictions	81

^top

2. Individual counts for Carnac(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
CRW_01484	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7503	0	0	0	0	39
CRW_01499	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	8001	0	0	0	0	41
CRW_01603	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7140	0	0	0	0	37
PDB_00012	mir-TAR links to Rfam database...	1.00	1.00	1.00	7	399	3	0	0	3	0
PDB_00213	Gammaretro_CES links to Rfam database...	0.58	0.34	1.00	14	5036	0	0	0	0	27
PDB_00553	mir-TAR links to Rfam database...	0.79	0.64	1.00	7	458	0	0	0	0	4
PDB_00810	s2m links to Rfam database...	0.64	0.41	1.00	7	1074	0	0	0	0	10
PDB_01050	UnaL2 links to Rfam database...	0.62	0.38	1.00	5	625	1	0	0	1	8
PDB_01152	HIV_FS2 links to Rfam database...	0.88	0.79	1.00	11	550	0	0	0	0	3
RFA_00389	Hammerhead_3 links to Rfam database...	1.00	1.00	1.00	15	1416	2	0	0	2	0
RFA_00390	Hammerhead_3 links to Rfam database...	1.00	1.00	1.00	15	1416	2	0	0	2	0
RFA_00391	Hammerhead_3 links to Rfam database...	0.93	0.87	1.00	13	1418	2	0	0	2	2
RFA_00409	Hammerhead_3 links to Rfam database...	0.77	0.60	1.00	9	1422	1	0	0	1	6
RFA_00416	Hammerhead_3 links to Rfam database...	0.93	0.93	0.93	14	1470	4	0	1	3	1
RFA_00433	Hammerhead_3 links to Rfam database...	1.00	1.00	1.00	15	1416	2	0	0	2	0
RFA_00434	Hammerhead_3 links to Rfam database...	1.00	1.00	1.00	15	1416	2	0	0	2	0
RFA_00436	Hammerhead_3 links to Rfam database...	1.00	1.00	1.00	15	1416	2	0	0	2	0
RFA_00440	Hammerhead_3 links to Rfam database...	1.00	1.00	1.00	15	1470	2	0	0	2	0
RFA_00442	Hammerhead_3 links to Rfam database...	1.00	1.00	1.00	15	1416	2	0	0	2	0
RFA_00587	Y_RNA links to Rfam database...	0.00	0.00	0.00	0	4851	0	0	0	0	15
RFA_00599	Telomerase-vert links to Rfam database...	0.00	0.00	0.00	0	101475	0	0	0	0	111
RFA_00601	Telomerase-vert links to Rfam database...	0.00	0.00	0.00	0	99235	0	0	0	0	114
RFA_00602	Telomerase-vert links to Rfam database...	0.00	0.00	0.00	0	101475	0	0	0	0	116
RFA_00658	Hammerhead_1 links to Rfam database...	0.40	0.29	0.57	4	1121	5	0	3	2	10
RFA_00664	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	990	0	0	0	0	14
RFA_00667	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	985	5	1	4	0	14
RFA_00668	Hammerhead_1 links to Rfam database...	0.50	0.43	0.60	6	980	4	0	4	0	8
RFA_00672	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	903	0	0	0	0	13
RFA_00673	Hammerhead_1 links to Rfam database...	0.47	0.36	0.63	5	1120	4	0	3	1	9
RFA_00674	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	1128	0	0	0	0	14
RFA_00675	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	990	0	0	0	0	14
RFA_00677	Hammerhead_1 links to Rfam database...	0.53	0.43	0.67	6	981	4	0	3	1	8
RFA_00678	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	946	0	0	0	0	14
RFA_00680	Hammerhead_1 links to Rfam database...	0.84	0.71	1.00	10	1118	2	0	0	2	4
RFA_00704	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	990	0	0	0	0	14
RFA_00707	Hammerhead_1 links to Rfam database...	0.53	0.29	1.00	4	1031	0	0	0	0	10
RFA_00715	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	943	3	1	2	0	14
RFA_00717	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	903	0	0	0	0	14
RFA_00730	s2m links to Rfam database...	0.64	0.42	1.00	5	898	1	0	0	1	7
RFA_00731	s2m links to Rfam database...	0.64	0.42	1.00	5	898	1	0	0	1	7
RFA_00733	s2m links to Rfam database...	0.64	0.42	1.00	5	898	1	0	0	1	7
RFA_00734	s2m links to Rfam database...	0.64	0.42	1.00	5	898	0	0	0	0	7
RFA_00736	s2m links to Rfam database...	0.64	0.42	1.00	5	898	1	0	0	1	7
RFA_00737	s2m links to Rfam database...	0.64	0.42	1.00	5	898	1	0	0	1	7
RFA_00745	s2m links to Rfam database...	0.64	0.42	1.00	5	941	1	0	0	1	7
RFA_00749	s2m links to Rfam database...	0.64	0.42	1.00	5	898	1	0	0	1	7
RFA_00758	s2m links to Rfam database...	0.00	0.00	0.00	0	903	0	0	0	0	12
RFA_00762	s2m links to Rfam database...	0.64	0.42	1.00	5	898	0	0	0	0	7
RFA_00763	s2m links to Rfam database...	0.64	0.42	1.00	5	898	1	0	0	1	7
RFA_00764	s2m links to Rfam database...	0.64	0.42	1.00	5	898	1	0	0	1	7
RFA_00765	s2m links to Rfam database...	0.64	0.42	1.00	5	898	1	0	0	1	7
RFA_00786	Gammaretro_CES links to Rfam database...	0.25	0.13	0.50	4	5042	4	1	3	0	28
RFA_00791	Gammaretro_CES links to Rfam database...	0.00	0.00	0.00	0	5151	0	0	0	0	32
RFA_00792	Gammaretro_CES links to Rfam database...	0.00	0.00	0.00	0	5046	4	1	3	0	32
RFA_00801	Gammaretro_CES links to Rfam database...	0.00	0.00	0.00	0	5050	0	0	0	0	32
SPR_00273	tRNA links to Rfam database...	0.00	0.00	0.00	0	2850	0	0	0	0	21
SPR_00721	tRNA links to Rfam database...	0.00	0.00	0.00	0	2926	0	0	0	0	21
SRP_00011	Plant_SRP links to Rfam database...	0.00	0.00	0.00	0	46360	0	0	0	0	104
SRP_00015	Plant_SRP links to Rfam database...	0.00	0.00	0.00	0	46360	0	0	0	0	99
SRP_00020	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	5565	0	0	0	0	33
SRP_00058	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	5778	0	0	0	0	34
SRP_00084	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	5460	0	0	0	0	34
SRP_00105	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	5565	0	0	0	0	34
SRP_00134	Bacteria_large_SRP links to Rfam database...	0.00	0.00	0.00	0	5995	0	0	0	0	29
SRP_00141	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	6328	0	0	0	0	41
SRP_00152	Plant_SRP links to Rfam database...	0.00	0.00	0.00	0	45753	0	0	0	0	103
SRP_00178	Plant_SRP links to Rfam database...	0.00	0.00	0.00	0	45753	0	0	0	0	102
SRP_00179	Plant_SRP links to Rfam database...	0.00	0.00	0.00	0	46056	0	0	0	0	105
SRP_00181	Plant_SRP links to Rfam database...	0.00	0.00	0.00	0	46056	0	0	0	0	102
SRP_00182	Plant_SRP links to Rfam database...	0.00	0.00	0.00	0	46056	0	0	0	0	101
SRP_00184	Plant_SRP links to Rfam database...	0.00	0.00	0.00	0	46056	0	0	0	0	100
SRP_00188	Plant_SRP links to Rfam database...	0.00	0.00	0.00	0	31125	0	0	0	0	79
SRP_00200	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	6903	0	0	0	0	36
SRP_00231	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	5460	0	0	0	0	34
SRP_00273	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	6786	0	0	0	0	40
SRP_00274	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	6903	0	0	0	0	38
SRP_00308	Bacteria_large_SRP links to Rfam database...	0.00	0.00	0.00	0	36315	0	0	0	0	88
SRP_00338	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	5460	0	0	0	0	36
SRP_00341	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	4753	0	0	0	0	31
SRP_00357	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	5356	0	0	0	0	36
SRP_00367	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	6786	0	0	0	0	35

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.

Table of contents:

Overview

Performance plots

Performance of CMfinder(20) - scored higher in this pairwise comparison

1. Total counts & total scores for CMfinder(20)

2. Individual counts for CMfinder(20) [ download as .csv ]

Performance of Carnac(seed) - scored lower in this pairwise comparison

1. Total counts & total scores for Carnac(seed)

2. Individual counts for Carnac(seed) [ download as .csv ]
