Overview

Metric	CentroidAlifold(seed)		Pknots
MCC	0.780	>	0.509
Average MCC ± 95% Confidence Intervals	0.763 ± 0.038	>	0.508 ± 0.054
Sensitivity	0.673	>	0.504
Positive Predictive Value	0.906	>	0.523
Total TP	1837	>	1375
Total TN	342435	>	341832
Total FP	400	<	1493
Total FP CONTRA	24	<	202
Total FP INCONS	166	<	1053
Total FP COMP	210	<	238
Total FN	892	<	1354
P-value	3.56938820447e-08

^top

Performance plots

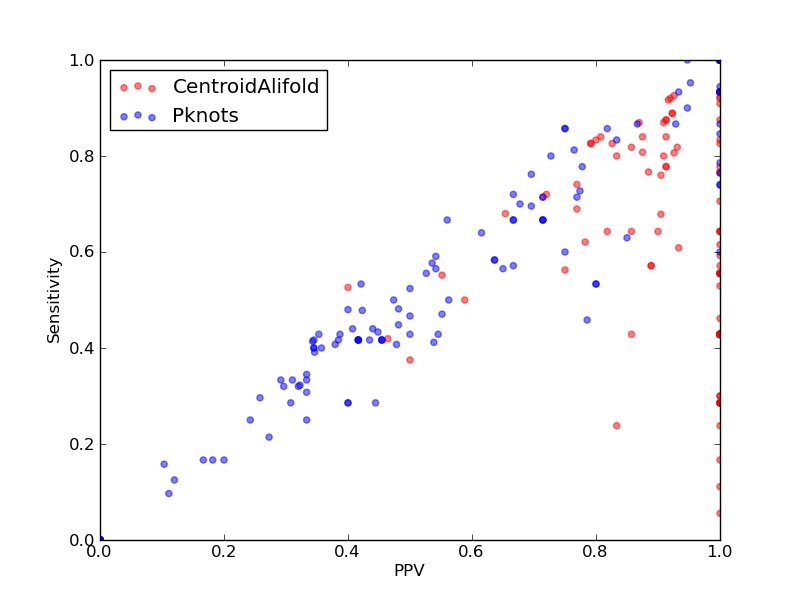

Comparison of performance of CentroidAlifold(seed) and Pknots. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for CentroidAlifold(seed) and Pknots).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for CentroidAlifold(seed) and Pknots).
Comparison of average Matthews Correlation Coefficients (MCCs) for CentroidAlifold(seed) and Pknots. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for CentroidAlifold(seed) and Pknots).

^top

Performance of CentroidAlifold(seed) - scored higher in this pairwise comparison

1. Total counts & total scores for CentroidAlifold(seed)

Total Base Pair Counts
Total TP	1837
Total TN	342435
Total FP	400
Total FP CONTRA	24
Total FP INCONS	166
Total FP COMP	210
Total FN	892

Total Scores
MCC	0.780
Average MCC ± 95% Confidence Intervals	0.763 ± 0.038
Sensitivity	0.673
Positive Predictive Value	0.906
Nr of predictions	146

^top

2. Individual counts for CentroidAlifold(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
PDB_00005	Tymo_tRNA-like links to Rfam database...	0.80	0.64	1.00	9	937	0	0	0	0	5
PDB_00012	mir-TAR links to Rfam database...	1.00	1.00	1.00	7	399	2	0	0	2	0
PDB_00553	mir-TAR links to Rfam database...	0.95	0.91	1.00	10	455	0	0	0	0	1
PDB_00716	HDV_ribozyme links to Rfam database...	0.75	0.61	0.93	14	2686	1	0	1	0	9
PDB_00741	Entero_5_CRE links to Rfam database...	0.72	0.53	1.00	9	694	0	0	0	0	8
PDB_00810	s2m links to Rfam database...	0.87	0.76	1.00	13	1068	1	0	0	1	4
PDB_00828	Purine links to Rfam database...	0.88	0.78	1.00	21	2464	0	0	0	0	6
PDB_00829	Purine links to Rfam database...	0.91	0.83	1.00	20	2258	0	0	0	0	4
PDB_00876	HIV_FE links to Rfam database...	0.53	0.50	0.59	10	973	7	0	7	0	10
PDB_01001	tRNA links to Rfam database...	0.00	0.00	0.00	0	2139	6	0	6	0	18
PDB_01020	Purine links to Rfam database...	0.91	0.83	1.00	19	2259	1	0	0	1	4
PDB_01050	UnaL2 links to Rfam database...	0.68	0.46	1.00	6	624	2	0	0	2	7
PDB_01051	Telomerase-cil links to Rfam database...	0.96	0.92	1.00	12	891	4	0	0	4	1
PDB_01073	SAM links to Rfam database...	0.84	0.71	1.00	24	4347	1	0	0	1	10
PDB_01114	TPP links to Rfam database...	0.77	0.59	1.00	16	2834	1	0	0	1	11
PDB_01152	HIV_FS2 links to Rfam database...	0.80	0.64	1.00	9	552	0	0	0	0	5
RFA_00389	Hammerhead_3 links to Rfam database...	0.97	0.93	1.00	14	1417	3	0	0	3	1
RFA_00390	Hammerhead_3 links to Rfam database...	0.97	0.93	1.00	14	1417	2	0	0	2	1
RFA_00391	Hammerhead_3 links to Rfam database...	0.97	0.93	1.00	14	1417	3	0	0	3	1
RFA_00396	Hammerhead_3 links to Rfam database...	0.97	0.93	1.00	14	1417	3	0	0	3	1
RFA_00402	Hammerhead_3 links to Rfam database...	0.97	0.93	1.00	14	1417	3	0	0	3	1
RFA_00409	Hammerhead_3 links to Rfam database...	0.97	0.93	1.00	14	1417	3	0	0	3	1
RFA_00416	Hammerhead_3 links to Rfam database...	0.97	0.93	1.00	14	1471	2	0	0	2	1
RFA_00425	Hammerhead_3 links to Rfam database...	0.97	0.93	1.00	14	1639	3	0	0	3	1
RFA_00427	Hammerhead_3 links to Rfam database...	0.97	0.93	1.00	14	1471	3	0	0	3	1
RFA_00433	Hammerhead_3 links to Rfam database...	0.97	0.93	1.00	14	1417	2	0	0	2	1
RFA_00434	Hammerhead_3 links to Rfam database...	0.97	0.93	1.00	14	1417	3	0	0	3	1
RFA_00436	Hammerhead_3 links to Rfam database...	0.97	0.93	1.00	14	1417	3	0	0	3	1
RFA_00440	Hammerhead_3 links to Rfam database...	0.97	0.93	1.00	14	1471	3	0	0	3	1
RFA_00442	Hammerhead_3 links to Rfam database...	0.97	0.93	1.00	14	1417	3	0	0	3	1
RFA_00444	Hammerhead_3 links to Rfam database...	0.97	0.93	1.00	14	1526	3	0	0	3	1
RFA_00446	Hammerhead_3 links to Rfam database...	0.97	0.93	1.00	14	1471	3	0	0	3	1
RFA_00449	Hammerhead_3 links to Rfam database...	0.97	0.93	1.00	14	1471	3	0	0	3	1
RFA_00583	Y_RNA links to Rfam database...	1.00	1.00	1.00	15	4935	3	0	0	3	0
RFA_00584	Y_RNA links to Rfam database...	1.00	1.00	1.00	15	2911	3	0	0	3	0
RFA_00585	Y_RNA links to Rfam database...	1.00	1.00	1.00	15	4836	3	0	0	3	0
RFA_00586	Y_RNA links to Rfam database...	1.00	1.00	1.00	15	3901	3	0	0	3	0
RFA_00587	Y_RNA links to Rfam database...	1.00	1.00	1.00	15	4836	3	0	0	3	0
RFA_00588	Y_RNA links to Rfam database...	1.00	1.00	1.00	15	4545	3	0	0	3	0
RFA_00589	Y_RNA links to Rfam database...	0.97	0.93	1.00	14	4357	3	0	0	3	1
RFA_00594	Y_RNA links to Rfam database...	1.00	1.00	1.00	15	2760	3	0	0	3	0
RFA_00632	HDV_ribozyme links to Rfam database...	0.74	0.64	0.86	18	4074	3	2	1	0	10
RFA_00636	HDV_ribozyme links to Rfam database...	0.78	0.68	0.90	19	3984	2	2	0	0	9
RFA_00642	Vimentin3 links to Rfam database...	0.41	0.17	1.00	3	2923	0	0	0	0	15
RFA_00643	Vimentin3 links to Rfam database...	0.00	0.00	0.00	0	2211	0	0	0	0	18
RFA_00644	Vimentin3 links to Rfam database...	0.00	0.00	0.00	0	2701	0	0	0	0	18
RFA_00645	Vimentin3 links to Rfam database...	0.23	0.06	1.00	1	2414	0	0	0	0	17
RFA_00649	Vimentin3 links to Rfam database...	0.00	0.00	0.00	0	2145	0	0	0	0	18
RFA_00651	Vimentin3 links to Rfam database...	0.00	0.00	0.00	0	2080	0	0	0	0	18
RFA_00653	Vimentin3 links to Rfam database...	0.33	0.11	1.00	2	2143	0	0	0	0	16
RFA_00654	Vimentin3 links to Rfam database...	0.00	0.00	0.00	0	2415	0	0	0	0	18
RFA_00658	Hammerhead_1 links to Rfam database...	0.71	0.57	0.89	8	1119	2	0	1	1	6
RFA_00659	Hammerhead_1 links to Rfam database...	0.65	0.43	1.00	6	1122	0	0	0	0	8
RFA_00664	Hammerhead_1 links to Rfam database...	0.65	0.43	1.00	6	984	0	0	0	0	8
RFA_00667	Hammerhead_1 links to Rfam database...	0.65	0.43	1.00	6	984	0	0	0	0	8
RFA_00668	Hammerhead_1 links to Rfam database...	0.65	0.43	1.00	6	984	0	0	0	0	8
RFA_00672	Hammerhead_1 links to Rfam database...	0.78	0.62	1.00	8	895	0	0	0	0	5
RFA_00673	Hammerhead_1 links to Rfam database...	0.65	0.43	1.00	6	1122	0	0	0	0	8
RFA_00674	Hammerhead_1 links to Rfam database...	0.60	0.43	0.86	6	1121	1	0	1	0	8
RFA_00675	Hammerhead_1 links to Rfam database...	0.65	0.43	1.00	6	984	0	0	0	0	8
RFA_00677	Hammerhead_1 links to Rfam database...	0.65	0.43	1.00	6	984	0	0	0	0	8
RFA_00678	Hammerhead_1 links to Rfam database...	0.65	0.43	1.00	6	940	0	0	0	0	8
RFA_00680	Hammerhead_1 links to Rfam database...	0.65	0.43	1.00	6	1122	0	0	0	0	8
RFA_00684	Hammerhead_1 links to Rfam database...	0.65	0.43	1.00	6	984	0	0	0	0	8
RFA_00685	Hammerhead_1 links to Rfam database...	0.65	0.43	1.00	6	984	0	0	0	0	8
RFA_00703	Hammerhead_1 links to Rfam database...	0.80	0.64	1.00	9	4269	0	0	0	0	5
RFA_00704	Hammerhead_1 links to Rfam database...	0.65	0.43	1.00	6	984	0	0	0	0	8
RFA_00705	Hammerhead_1 links to Rfam database...	0.76	0.64	0.90	9	1025	2	0	1	1	5
RFA_00706	Hammerhead_1 links to Rfam database...	0.65	0.43	1.00	6	1029	0	0	0	0	8
RFA_00707	Hammerhead_1 links to Rfam database...	0.65	0.43	1.00	6	1029	0	0	0	0	8
RFA_00708	Hammerhead_1 links to Rfam database...	0.71	0.57	0.89	8	1026	2	0	1	1	6
RFA_00709	Hammerhead_1 links to Rfam database...	0.65	0.43	1.00	6	984	0	0	0	0	8
RFA_00710	Hammerhead_1 links to Rfam database...	0.72	0.64	0.82	9	979	3	0	2	1	5
RFA_00711	Hammerhead_1 links to Rfam database...	0.65	0.43	1.00	6	1029	0	0	0	0	8
RFA_00715	Hammerhead_1 links to Rfam database...	0.65	0.43	1.00	6	940	0	0	0	0	8
RFA_00716	Hammerhead_1 links to Rfam database...	0.65	0.43	1.00	6	940	0	0	0	0	8
RFA_00717	Hammerhead_1 links to Rfam database...	0.75	0.57	1.00	8	895	0	0	0	0	6
RFA_00730	s2m links to Rfam database...	1.00	1.00	1.00	12	891	2	0	0	2	0
RFA_00731	s2m links to Rfam database...	1.00	1.00	1.00	12	891	2	0	0	2	0
RFA_00733	s2m links to Rfam database...	1.00	1.00	1.00	12	891	2	0	0	2	0
RFA_00734	s2m links to Rfam database...	1.00	1.00	1.00	12	891	2	0	0	2	0
RFA_00736	s2m links to Rfam database...	1.00	1.00	1.00	12	891	2	0	0	2	0
RFA_00737	s2m links to Rfam database...	1.00	1.00	1.00	12	891	2	0	0	2	0
RFA_00745	s2m links to Rfam database...	1.00	1.00	1.00	12	934	2	0	0	2	0
RFA_00749	s2m links to Rfam database...	1.00	1.00	1.00	12	891	2	0	0	2	0
RFA_00758	s2m links to Rfam database...	1.00	1.00	1.00	12	891	2	0	0	2	0
RFA_00762	s2m links to Rfam database...	1.00	1.00	1.00	12	891	2	0	0	2	0
RFA_00763	s2m links to Rfam database...	1.00	1.00	1.00	12	891	2	0	0	2	0
RFA_00764	s2m links to Rfam database...	1.00	1.00	1.00	12	891	2	0	0	2	0
RFA_00765	s2m links to Rfam database...	1.00	1.00	1.00	12	891	2	0	0	2	0
RFA_00767	Corona_pk3 links to Rfam database...	0.74	0.56	1.00	10	1881	0	0	0	0	8
RFA_00768	Corona_pk3 links to Rfam database...	0.74	0.56	1.00	10	1881	0	0	0	0	8
RFA_00769	Corona_pk3 links to Rfam database...	0.74	0.56	1.00	10	1943	0	0	0	0	8
RFA_00770	Corona_pk3 links to Rfam database...	0.74	0.56	1.00	10	2006	0	0	0	0	8
RFA_00773	Corona_pk3 links to Rfam database...	0.74	0.56	1.00	10	1943	0	0	0	0	8
RFA_00779	Corona_pk3 links to Rfam database...	0.74	0.56	1.00	10	1943	0	0	0	0	8
RFA_00808	RydC links to Rfam database...	0.65	0.56	0.75	9	2004	3	1	2	0	7
RFA_00809	RydC links to Rfam database...	0.43	0.38	0.50	6	2133	6	0	6	0	10
SPR_00020	tRNA links to Rfam database...	0.55	0.30	1.00	6	2695	0	0	0	0	14
SPR_00023	tRNA links to Rfam database...	0.53	0.29	1.00	6	2844	0	0	0	0	15
SPR_00137	tRNA links to Rfam database...	0.49	0.24	1.00	5	2921	1	0	0	1	16
SPR_00273	tRNA links to Rfam database...	0.44	0.24	0.83	5	2844	1	0	1	0	16
SPR_00277	tRNA links to Rfam database...	0.53	0.29	1.00	6	2920	0	0	0	0	15
SPR_00394	tRNA links to Rfam database...	0.53	0.29	1.00	6	3649	0	0	0	0	15
SPR_00402	tRNA links to Rfam database...	0.53	0.29	1.00	6	2550	0	0	0	0	15
SPR_00721	tRNA links to Rfam database...	0.53	0.29	1.00	6	2920	0	0	0	0	15
SPR_00816	tRNA links to Rfam database...	0.55	0.30	1.00	6	3480	0	0	0	0	14
SPR_01157	tRNA links to Rfam database...	0.53	0.29	1.00	6	2769	0	0	0	0	15
SRP_00008	Bacteria_small_SRP links to Rfam database...	0.96	0.92	1.00	23	2903	2	0	0	2	2
SRP_00042	Bacteria_small_SRP links to Rfam database...	0.85	0.80	0.91	20	3983	6	1	1	4	5
SRP_00046	Bacteria_small_SRP links to Rfam database...	0.94	0.88	1.00	28	4725	2	0	0	2	4
SRP_00094	Bacteria_small_SRP links to Rfam database...	0.82	0.83	0.80	20	4070	9	1	4	4	4
SRP_00095	Bacteria_small_SRP links to Rfam database...	0.82	0.84	0.81	21	3979	8	1	4	3	4
SRP_00107	Bacteria_small_SRP links to Rfam database...	0.46	0.53	0.40	10	3630	19	3	12	4	9
SRP_00121	Bacteria_small_SRP links to Rfam database...	0.82	0.80	0.83	20	4254	6	0	4	2	5
SRP_00132	Bacteria_small_SRP links to Rfam database...	0.73	0.69	0.77	20	4825	9	0	6	3	9
SRP_00134	Bacteria_large_SRP links to Rfam database...	0.70	0.62	0.78	18	5972	13	0	5	8	11
SRP_00137	Bacteria_small_SRP links to Rfam database...	0.66	0.68	0.65	17	4160	10	3	6	1	8
SRP_00161	Bacteria_small_SRP links to Rfam database...	0.84	0.82	0.86	18	2829	5	0	3	2	4
SRP_00162	Bacteria_small_SRP links to Rfam database...	0.87	0.87	0.87	20	2903	4	0	3	1	3
SRP_00163	Bacteria_small_SRP links to Rfam database...	0.84	0.81	0.88	21	3462	5	0	3	2	5
SRP_00170	Bacteria_small_SRP links to Rfam database...	0.83	0.76	0.90	19	4074	6	1	1	4	6
SRP_00194	Bacteria_small_SRP links to Rfam database...	0.71	0.71	0.71	15	3219	9	0	6	3	6
SRP_00209	Bacteria_small_SRP links to Rfam database...	0.75	0.74	0.77	20	4630	9	1	5	3	7
SRP_00213	Bacteria_small_SRP links to Rfam database...	0.92	0.92	0.92	23	4161	6	1	1	4	2
SRP_00215	Bacteria_small_SRP links to Rfam database...	0.86	0.84	0.88	21	3216	4	0	3	1	4
SRP_00216	Bacteria_small_SRP links to Rfam database...	0.93	0.93	0.93	25	3376	4	1	1	2	2
SRP_00217	Bacteria_small_SRP links to Rfam database...	0.89	0.88	0.91	21	3298	4	0	2	2	3
SRP_00219	Bacteria_small_SRP links to Rfam database...	0.89	0.87	0.91	20	3299	5	0	2	3	3
SRP_00222	Bacteria_small_SRP links to Rfam database...	0.87	0.84	0.91	21	3058	3	1	1	1	4
SRP_00266	Bacteria_small_SRP links to Rfam database...	0.55	0.55	0.55	16	4627	14	2	11	1	13
SRP_00268	Bacteria_small_SRP links to Rfam database...	0.91	0.89	0.92	24	4160	5	1	1	3	3
SRP_00270	Bacteria_small_SRP links to Rfam database...	0.86	0.81	0.93	25	4629	5	0	2	3	6
SRP_00271	Bacteria_small_SRP links to Rfam database...	0.89	0.88	0.91	21	3217	3	0	2	1	3
SRP_00285	Bacteria_small_SRP links to Rfam database...	0.87	0.77	1.00	23	3718	2	0	0	2	7
SRP_00310	Bacteria_small_SRP links to Rfam database...	0.82	0.83	0.83	19	2903	5	0	4	1	4
SRP_00312	Bacteria_small_SRP links to Rfam database...	0.91	0.89	0.92	24	4160	5	1	1	3	3
SRP_00315	Bacteria_small_SRP links to Rfam database...	0.81	0.83	0.79	19	2902	5	0	5	0	4
SRP_00318	Bacteria_small_SRP links to Rfam database...	0.81	0.83	0.79	19	2979	5	0	5	0	4
SRP_00325	Bacteria_small_SRP links to Rfam database...	0.87	0.82	0.93	27	4342	3	0	2	1	6
SRP_00341	Bacteria_small_SRP links to Rfam database...	0.44	0.42	0.46	13	4725	17	0	15	2	18
SRP_00342	Bacteria_small_SRP links to Rfam database...	0.72	0.72	0.72	18	3980	12	0	7	5	7
SRP_00350	Bacteria_small_SRP links to Rfam database...	0.84	0.78	0.91	21	3893	4	1	1	2	6
SRP_00363	Bacteria_small_SRP links to Rfam database...	0.82	0.77	0.88	23	4727	7	0	3	4	7
SRP_00365	Bacteria_small_SRP links to Rfam database...	0.84	0.78	0.91	21	3380	4	0	2	2	6
SRP_00383	Bacteria_small_SRP links to Rfam database...	0.92	0.92	0.92	22	3216	6	0	2	4	2

^top

Performance of Pknots - scored lower in this pairwise comparison

1. Total counts & total scores for Pknots

Total Base Pair Counts
Total TP	1375
Total TN	341832
Total FP	1493
Total FP CONTRA	202
Total FP INCONS	1053
Total FP COMP	238
Total FN	1354

Total Scores
MCC	0.509
Average MCC ± 95% Confidence Intervals	0.508 ± 0.054
Sensitivity	0.504
Positive Predictive Value	0.523
Nr of predictions	146

^top

2. Individual counts for Pknots [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
PDB_00005	Tymo_tRNA-like links to Rfam database...	1.00	1.00	1.00	14	932	0	0	0	0	0
PDB_00012	mir-TAR links to Rfam database...	1.00	1.00	1.00	7	399	3	0	0	3	0
PDB_00553	mir-TAR links to Rfam database...	1.00	1.00	1.00	11	454	0	0	0	0	0
PDB_00716	HDV_ribozyme links to Rfam database...	0.69	0.70	0.70	16	2678	8	0	7	1	7
PDB_00741	Entero_5_CRE links to Rfam database...	0.87	0.76	1.00	13	690	0	0	0	0	4
PDB_00810	s2m links to Rfam database...	0.46	0.41	0.54	7	1068	6	2	4	0	10
PDB_00828	Purine links to Rfam database...	0.86	0.74	1.00	20	2465	2	0	0	2	7
PDB_00829	Purine links to Rfam database...	0.60	0.46	0.79	11	2264	5	0	3	2	13
PDB_00876	HIV_FE links to Rfam database...	0.92	0.90	0.95	18	971	1	0	1	0	2
PDB_01001	tRNA links to Rfam database...	0.16	0.17	0.17	3	2127	15	3	12	0	15
PDB_01020	Purine links to Rfam database...	0.86	0.74	1.00	17	2261	3	0	0	3	6
PDB_01050	UnaL2 links to Rfam database...	0.92	0.85	1.00	11	619	2	0	0	2	2
PDB_01051	Telomerase-cil links to Rfam database...	0.31	0.31	0.33	4	891	9	1	7	1	9
PDB_01073	SAM links to Rfam database...	0.51	0.47	0.55	16	4342	14	2	11	1	18
PDB_01114	TPP links to Rfam database...	0.73	0.63	0.85	17	2830	3	0	3	0	10
PDB_01152	HIV_FS2 links to Rfam database...	0.88	0.79	1.00	11	550	0	0	0	0	3
RFA_00389	Hammerhead_3 links to Rfam database...	0.69	0.67	0.71	10	1417	6	0	4	2	5
RFA_00390	Hammerhead_3 links to Rfam database...	0.69	0.67	0.71	10	1417	6	0	4	2	5
RFA_00391	Hammerhead_3 links to Rfam database...	0.66	0.67	0.67	10	1416	7	0	5	2	5
RFA_00396	Hammerhead_3 links to Rfam database...	0.48	0.47	0.50	7	1417	9	0	7	2	8
RFA_00402	Hammerhead_3 links to Rfam database...	0.69	0.67	0.71	10	1417	4	0	4	0	5
RFA_00409	Hammerhead_3 links to Rfam database...	0.65	0.53	0.80	8	1421	4	0	2	2	7
RFA_00416	Hammerhead_3 links to Rfam database...	0.93	0.93	0.93	14	1470	5	0	1	4	1
RFA_00425	Hammerhead_3 links to Rfam database...	0.93	0.87	1.00	13	1640	5	0	0	5	2
RFA_00427	Hammerhead_3 links to Rfam database...	0.67	0.60	0.75	9	1473	6	0	3	3	6
RFA_00433	Hammerhead_3 links to Rfam database...	0.66	0.67	0.67	10	1416	7	0	5	2	5
RFA_00434	Hammerhead_3 links to Rfam database...	-0.01	0.00	0.00	0	1417	14	3	11	0	15
RFA_00436	Hammerhead_3 links to Rfam database...	0.97	0.93	1.00	14	1417	3	0	0	3	1
RFA_00440	Hammerhead_3 links to Rfam database...	0.97	0.93	1.00	14	1471	3	0	0	3	1
RFA_00442	Hammerhead_3 links to Rfam database...	0.65	0.53	0.80	8	1421	4	0	2	2	7
RFA_00444	Hammerhead_3 links to Rfam database...	1.00	1.00	1.00	15	1525	2	0	0	2	0
RFA_00446	Hammerhead_3 links to Rfam database...	0.97	0.93	1.00	14	1471	3	0	0	3	1
RFA_00449	Hammerhead_3 links to Rfam database...	0.77	0.60	1.00	9	1476	2	0	0	2	6
RFA_00583	Y_RNA links to Rfam database...	1.00	1.00	1.00	15	4935	14	0	0	14	0
RFA_00584	Y_RNA links to Rfam database...	0.87	0.87	0.87	13	2911	14	0	2	12	2
RFA_00585	Y_RNA links to Rfam database...	1.00	1.00	1.00	15	4836	14	0	0	14	0
RFA_00586	Y_RNA links to Rfam database...	0.47	0.53	0.42	8	3897	13	4	7	2	7
RFA_00587	Y_RNA links to Rfam database...	1.00	1.00	1.00	15	4836	13	0	0	13	0
RFA_00588	Y_RNA links to Rfam database...	1.00	1.00	1.00	15	4545	15	0	0	15	0
RFA_00589	Y_RNA links to Rfam database...	1.00	1.00	1.00	15	4356	16	0	0	16	0
RFA_00594	Y_RNA links to Rfam database...	0.90	0.87	0.93	13	2761	5	0	1	4	2
RFA_00632	HDV_ribozyme links to Rfam database...	0.40	0.43	0.39	12	4064	19	4	15	0	16
RFA_00636	HDV_ribozyme links to Rfam database...	0.80	0.86	0.75	24	3973	8	6	2	0	4
RFA_00642	Vimentin3 links to Rfam database...	-0.01	0.00	0.00	0	2911	15	2	13	0	18
RFA_00643	Vimentin3 links to Rfam database...	-0.01	0.00	0.00	0	2196	15	1	14	0	18
RFA_00644	Vimentin3 links to Rfam database...	-0.01	0.00	0.00	0	2682	19	4	15	0	18
RFA_00645	Vimentin3 links to Rfam database...	0.18	0.17	0.20	3	2400	13	1	11	1	15
RFA_00649	Vimentin3 links to Rfam database...	0.48	0.50	0.47	9	2126	11	0	10	1	9
RFA_00651	Vimentin3 links to Rfam database...	0.53	0.50	0.56	9	2064	8	0	7	1	9
RFA_00653	Vimentin3 links to Rfam database...	0.33	0.33	0.33	6	2127	12	3	9	0	12
RFA_00654	Vimentin3 links to Rfam database...	-0.01	0.00	0.00	0	2397	18	7	11	0	18
RFA_00658	Hammerhead_1 links to Rfam database...	0.33	0.29	0.40	4	1118	8	0	6	2	10
RFA_00659	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	1119	11	0	9	2	14
RFA_00664	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	980	11	0	10	1	14
RFA_00667	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	978	13	1	11	1	14
RFA_00668	Hammerhead_1 links to Rfam database...	0.46	0.43	0.50	6	978	7	0	6	1	8
RFA_00672	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	897	6	0	6	0	13
RFA_00673	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	1120	9	0	8	1	14
RFA_00674	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	1116	12	0	12	0	14
RFA_00675	Hammerhead_1 links to Rfam database...	0.29	0.29	0.31	4	977	9	1	8	0	10
RFA_00677	Hammerhead_1 links to Rfam database...	0.61	0.57	0.67	8	978	6	0	4	2	6
RFA_00678	Hammerhead_1 links to Rfam database...	0.33	0.29	0.40	4	936	7	0	6	1	10
RFA_00680	Hammerhead_1 links to Rfam database...	0.71	0.71	0.71	10	1114	7	0	4	3	4
RFA_00684	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	978	12	0	12	0	14
RFA_00685	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	979	11	0	11	0	14
RFA_00703	Hammerhead_1 links to Rfam database...	0.39	0.43	0.35	6	4261	24	3	8	13	8
RFA_00704	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	980	10	0	10	0	14
RFA_00705	Hammerhead_1 links to Rfam database...	0.74	0.71	0.77	10	1022	4	0	3	1	4
RFA_00706	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	1026	9	1	8	0	14
RFA_00707	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	1026	9	1	8	0	14
RFA_00708	Hammerhead_1 links to Rfam database...	0.35	0.29	0.44	4	1026	7	0	5	2	10
RFA_00709	Hammerhead_1 links to Rfam database...	0.23	0.21	0.27	3	979	9	0	8	1	11
RFA_00710	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	979	11	0	11	0	14
RFA_00711	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	1026	9	0	9	0	14
RFA_00715	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	933	13	0	13	0	14
RFA_00716	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	936	10	2	8	0	14
RFA_00717	Hammerhead_1 links to Rfam database...	0.48	0.43	0.55	6	892	5	0	5	0	8
RFA_00730	s2m links to Rfam database...	0.28	0.25	0.33	3	894	6	1	5	0	9
RFA_00731	s2m links to Rfam database...	0.41	0.42	0.42	5	891	8	2	5	1	7
RFA_00733	s2m links to Rfam database...	0.43	0.42	0.45	5	892	7	2	4	1	7
RFA_00734	s2m links to Rfam database...	0.16	0.17	0.18	2	892	10	0	9	1	10
RFA_00736	s2m links to Rfam database...	0.41	0.42	0.42	5	891	8	2	5	1	7
RFA_00737	s2m links to Rfam database...	0.60	0.58	0.64	7	892	5	0	4	1	5
RFA_00745	s2m links to Rfam database...	0.43	0.42	0.45	5	935	7	2	4	1	7
RFA_00749	s2m links to Rfam database...	0.41	0.42	0.42	5	891	8	2	5	1	7
RFA_00758	s2m links to Rfam database...	-0.01	0.00	0.00	0	893	10	0	10	0	12
RFA_00762	s2m links to Rfam database...	0.39	0.42	0.38	5	890	8	2	6	0	7
RFA_00763	s2m links to Rfam database...	0.41	0.42	0.42	5	891	7	2	5	0	7
RFA_00764	s2m links to Rfam database...	0.43	0.42	0.45	5	892	7	2	4	1	7
RFA_00765	s2m links to Rfam database...	0.60	0.58	0.64	7	892	5	0	4	1	5
RFA_00767	Corona_pk3 links to Rfam database...	1.00	1.00	1.00	18	1873	4	0	0	4	0
RFA_00768	Corona_pk3 links to Rfam database...	1.00	1.00	1.00	18	1873	3	0	0	3	0
RFA_00769	Corona_pk3 links to Rfam database...	0.54	0.56	0.53	10	1934	9	4	5	0	8
RFA_00770	Corona_pk3 links to Rfam database...	0.97	0.94	1.00	17	1999	3	0	0	3	1
RFA_00773	Corona_pk3 links to Rfam database...	0.97	1.00	0.95	18	1934	4	1	0	3	0
RFA_00779	Corona_pk3 links to Rfam database...	0.83	0.83	0.83	15	1935	4	1	2	1	3
RFA_00808	RydC links to Rfam database...	1.00	1.00	1.00	16	2000	0	0	0	0	0
RFA_00809	RydC links to Rfam database...	0.79	0.81	0.76	13	2128	4	0	4	0	3
SPR_00020	tRNA links to Rfam database...	0.76	0.80	0.73	16	2679	8	2	4	2	4
SPR_00023	tRNA links to Rfam database...	0.80	0.86	0.75	18	2826	6	0	6	0	3
SPR_00137	tRNA links to Rfam database...	0.84	0.86	0.82	18	2904	9	0	4	5	3
SPR_00273	tRNA links to Rfam database...	0.31	0.33	0.29	7	2826	17	4	13	0	14
SPR_00277	tRNA links to Rfam database...	1.00	1.00	1.00	21	2905	0	0	0	0	0
SPR_00394	tRNA links to Rfam database...	0.51	0.52	0.50	11	3633	15	3	8	4	10
SPR_00402	tRNA links to Rfam database...	0.73	0.76	0.70	16	2533	8	0	7	1	5
SPR_00721	tRNA links to Rfam database...	1.00	1.00	1.00	21	2905	1	0	0	1	0
SPR_00816	tRNA links to Rfam database...	1.00	1.00	1.00	20	3466	4	0	0	4	0
SPR_01157	tRNA links to Rfam database...	0.95	0.95	0.95	20	2754	2	0	1	1	1
SRP_00008	Bacteria_small_SRP links to Rfam database...	0.69	0.72	0.67	18	2899	9	2	7	0	7
SRP_00042	Bacteria_small_SRP links to Rfam database...	0.30	0.32	0.30	8	3978	20	4	15	1	17
SRP_00046	Bacteria_small_SRP links to Rfam database...	0.24	0.25	0.24	8	4720	25	1	24	0	24
SRP_00094	Bacteria_small_SRP links to Rfam database...	0.38	0.42	0.34	10	4066	19	4	15	0	14
SRP_00095	Bacteria_small_SRP links to Rfam database...	0.37	0.40	0.34	10	3976	19	4	15	0	15
SRP_00107	Bacteria_small_SRP links to Rfam database...	0.12	0.16	0.10	3	3626	28	7	19	2	16
SRP_00121	Bacteria_small_SRP links to Rfam database...	0.42	0.44	0.41	11	4251	16	2	14	0	14
SRP_00132	Bacteria_small_SRP links to Rfam database...	0.34	0.34	0.33	10	4821	23	3	17	3	19
SRP_00134	Bacteria_large_SRP links to Rfam database...	0.37	0.41	0.34	12	5960	26	9	14	3	17
SRP_00137	Bacteria_small_SRP links to Rfam database...	0.37	0.40	0.36	10	4158	18	8	10	0	15
SRP_00161	Bacteria_small_SRP links to Rfam database...	0.56	0.59	0.54	13	2826	11	4	7	0	9
SRP_00162	Bacteria_small_SRP links to Rfam database...	-0.01	0.00	0.00	0	2903	23	4	19	0	23
SRP_00163	Bacteria_small_SRP links to Rfam database...	0.55	0.58	0.54	15	3458	13	2	11	0	11
SRP_00170	Bacteria_small_SRP links to Rfam database...	0.43	0.48	0.40	12	4065	19	5	13	1	13
SRP_00194	Bacteria_small_SRP links to Rfam database...	0.61	0.67	0.56	14	3215	13	3	8	2	7
SRP_00209	Bacteria_small_SRP links to Rfam database...	0.27	0.30	0.26	8	4625	23	2	21	0	19
SRP_00213	Bacteria_small_SRP links to Rfam database...	0.37	0.40	0.34	10	4157	19	2	17	0	15
SRP_00215	Bacteria_small_SRP links to Rfam database...	0.62	0.64	0.62	16	3214	10	3	7	0	9
SRP_00216	Bacteria_small_SRP links to Rfam database...	0.78	0.78	0.78	21	3376	7	3	3	1	6
SRP_00217	Bacteria_small_SRP links to Rfam database...	0.42	0.42	0.43	10	3298	14	3	10	1	14
SRP_00219	Bacteria_small_SRP links to Rfam database...	0.60	0.57	0.65	13	3301	8	2	5	1	10
SRP_00222	Bacteria_small_SRP links to Rfam database...	0.44	0.44	0.44	11	3056	15	4	10	1	14
SRP_00266	Bacteria_small_SRP links to Rfam database...	0.46	0.45	0.48	13	4629	14	2	12	0	16
SRP_00268	Bacteria_small_SRP links to Rfam database...	0.48	0.48	0.48	13	4159	14	4	10	0	14
SRP_00270	Bacteria_small_SRP links to Rfam database...	0.32	0.32	0.32	10	4625	21	3	18	0	21
SRP_00271	Bacteria_small_SRP links to Rfam database...	-0.01	0.00	0.00	0	3215	25	1	24	0	24
SRP_00285	Bacteria_small_SRP links to Rfam database...	0.44	0.43	0.45	13	3712	16	2	14	0	17
SRP_00310	Bacteria_small_SRP links to Rfam database...	0.36	0.39	0.35	9	2900	17	2	15	0	14
SRP_00312	Bacteria_small_SRP links to Rfam database...	0.39	0.41	0.38	11	4157	18	4	14	0	16
SRP_00315	Bacteria_small_SRP links to Rfam database...	0.45	0.48	0.42	11	2900	15	2	13	0	12
SRP_00318	Bacteria_small_SRP links to Rfam database...	0.55	0.57	0.54	13	2979	11	2	9	0	10
SRP_00325	Bacteria_small_SRP links to Rfam database...	0.75	0.73	0.77	24	4340	7	0	7	0	9
SRP_00341	Bacteria_small_SRP links to Rfam database...	0.10	0.10	0.11	3	4726	24	2	22	0	28
SRP_00342	Bacteria_small_SRP links to Rfam database...	0.32	0.32	0.32	8	3980	17	5	12	0	17
SRP_00350	Bacteria_small_SRP links to Rfam database...	0.32	0.33	0.31	9	3887	21	1	19	1	18
SRP_00363	Bacteria_small_SRP links to Rfam database...	0.69	0.70	0.68	21	4722	12	3	7	2	9
SRP_00365	Bacteria_small_SRP links to Rfam database...	0.44	0.41	0.48	11	3380	12	1	11	0	16
SRP_00383	Bacteria_small_SRP links to Rfam database...	0.12	0.13	0.12	3	3215	22	3	19	0	21

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.

Table of contents:

Overview

Performance plots

Performance of CentroidAlifold(seed) - scored higher in this pairwise comparison

1. Total counts & total scores for CentroidAlifold(seed)

2. Individual counts for CentroidAlifold(seed) [ download as .csv ]

Performance of Pknots - scored lower in this pairwise comparison

1. Total counts & total scores for Pknots

2. Individual counts for Pknots [ download as .csv ]
