Overview

Metric	CentroidHomfold‑LAST		CMfinder(seed)
MCC	0.725	>	0.486
Average MCC ± 95% Confidence Intervals	0.698 ± 0.042	>	0.505 ± 0.044
Sensitivity	0.598	>	0.312
Positive Predictive Value	0.880	>	0.757
Total TP	3645	>	1905
Total TN	2879607	<	2881233
Total FP	745	>	688
Total FP CONTRA	79	>	40
Total FP INCONS	419	<	572
Total FP COMP	247	>	76
Total FN	2452	<	4192
P-value	3.56938820447e-08

^top

Performance plots

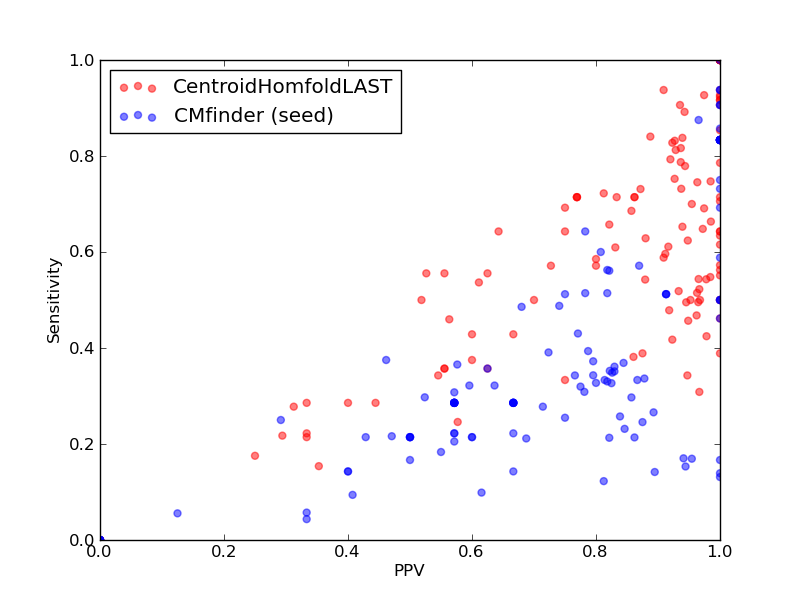

Comparison of performance of CentroidHomfold-LAST and CMfinder(seed). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for CentroidHomfold‑LAST and CMfinder(seed)).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for CentroidHomfold‑LAST and CMfinder(seed)).
Comparison of average Matthews Correlation Coefficients (MCCs) for CentroidHomfold-LAST and CMfinder(seed). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for CentroidHomfold‑LAST and CMfinder(seed)).

^top

Performance of CentroidHomfold‑LAST - scored higher in this pairwise comparison

1. Total counts & total scores for CentroidHomfold‑LAST

Total Base Pair Counts
Total TP	3645
Total TN	2879607
Total FP	745
Total FP CONTRA	79
Total FP INCONS	419
Total FP COMP	247
Total FN	2452

Total Scores
MCC	0.725
Average MCC ± 95% Confidence Intervals	0.698 ± 0.042
Sensitivity	0.598
Positive Predictive Value	0.880
Nr of predictions	129

^top

2. Individual counts for CentroidHomfold‑LAST [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
CRW_00013	Intron_gpI links to Rfam database...	0.62	0.42	0.92	48	103688	4	0	4	0	67
CRW_00016	Intron_gpI links to Rfam database...	0.70	0.50	0.97	60	77359	2	0	2	0	60
CRW_00610	Intron_gpI links to Rfam database...	0.66	0.46	0.95	37	36276	2	0	2	0	44
CRW_00613	Intron_gpI links to Rfam database...	0.74	0.55	1.00	43	34937	0	0	0	0	35
CRW_00614	Intron_gpI links to Rfam database...	0.21	0.18	0.25	10	121731	73	7	23	43	47
CRW_00618	Intron_gpI links to Rfam database...	0.38	0.25	0.58	15	56254	20	1	10	9	46
CRW_00633	Intron_gpI links to Rfam database...	0.64	0.42	0.98	45	63500	2	1	0	1	61
CRW_00634	Intron_gpI links to Rfam database...	0.69	0.54	0.88	51	64562	7	1	6	0	43
CRW_00670	Intron_gpI links to Rfam database...	0.69	0.50	0.95	60	70062	3	0	3	0	60
CRW_00671	Intron_gpI links to Rfam database...	0.66	0.48	0.92	56	62774	5	1	4	0	61
CRW_00672	Intron_gpI links to Rfam database...	0.69	0.50	0.96	55	72333	3	0	2	1	56
CRW_00674	Intron_gpI links to Rfam database...	0.76	0.57	1.00	71	83365	1	0	0	1	53
CRW_00676	Intron_gpI links to Rfam database...	0.73	0.55	0.98	63	93464	3	0	1	2	52
CRW_00692	Intron_gpI links to Rfam database...	0.82	0.70	0.95	63	68569	3	0	3	0	27
PDB_00005	Tymo_tRNA-like links to Rfam database...	0.70	0.50	1.00	7	939	0	0	0	0	7
PDB_00012	mir-TAR links to Rfam database...	1.00	1.00	1.00	7	399	1	0	0	1	0
PDB_00213	Gammaretro_CES links to Rfam database...	0.83	0.73	0.94	30	5018	2	0	2	0	11
PDB_00553	mir-TAR links to Rfam database...	1.00	1.00	1.00	11	454	0	0	0	0	0
PDB_00716	HDV_ribozyme links to Rfam database...	0.25	0.22	0.29	5	2684	12	0	12	0	18
PDB_00810	s2m links to Rfam database...	0.84	0.71	1.00	12	1069	0	0	0	0	5
PDB_00827	Intron_gpI links to Rfam database...	0.73	0.54	0.98	44	26983	2	0	1	1	37
PDB_01050	UnaL2 links to Rfam database...	0.78	0.62	1.00	8	622	1	0	0	1	5
PDB_01051	Telomerase-cil links to Rfam database...	0.96	0.92	1.00	12	891	4	0	0	4	1
PDB_01092	glmS links to Rfam database...	0.74	0.60	0.91	31	10119	5	0	3	2	21
PDB_01152	HIV_FS2 links to Rfam database...	0.88	0.79	1.00	11	550	0	0	0	0	3
RFA_00603	Telomerase-cil links to Rfam database...	0.78	0.71	0.86	25	13501	4	3	1	0	10
RFA_00604	Telomerase-cil links to Rfam database...	0.74	0.63	0.88	22	13505	8	3	0	5	13
RFA_00605	Telomerase-cil links to Rfam database...	0.43	0.34	0.55	12	15203	18	0	10	8	23
RFA_00606	Telomerase-cil links to Rfam database...	0.72	0.69	0.75	27	21285	17	7	2	8	12
RFA_00607	Telomerase-cil links to Rfam database...	0.91	0.83	1.00	30	17736	7	0	0	7	6
RFA_00609	Telomerase-cil links to Rfam database...	0.92	0.89	0.94	33	17920	11	0	2	9	4
RFA_00610	Telomerase-cil links to Rfam database...	0.89	0.84	0.94	31	17172	13	0	2	11	6
RFA_00611	Telomerase-cil links to Rfam database...	0.77	0.69	0.86	24	13013	4	3	1	0	11
RFA_00613	Telomerase-cil links to Rfam database...	0.73	0.66	0.82	23	12852	5	4	1	0	12
RFA_00615	Telomerase-cil links to Rfam database...	0.78	0.71	0.86	25	13337	4	3	1	0	10
RFA_00620	Telomerase-cil links to Rfam database...	0.23	0.15	0.35	6	21928	16	1	10	5	33
RFA_00626	rne5 links to Rfam database...	0.85	0.79	0.92	69	56541	13	1	5	7	18
RFA_00627	rne5 links to Rfam database...	0.86	0.75	0.98	65	56887	13	0	1	12	22
RFA_00628	rne5 links to Rfam database...	0.86	0.78	0.94	67	57220	7	1	3	3	19
RFA_00630	rne5 links to Rfam database...	0.87	0.83	0.92	72	56875	10	1	5	4	15
RFA_00632	HDV_ribozyme links to Rfam database...	0.51	0.50	0.52	14	4068	13	3	10	0	14
RFA_00636	HDV_ribozyme links to Rfam database...	0.64	0.64	0.64	18	3977	10	3	7	0	10
RFA_00639	7SK links to Rfam database...	0.51	0.46	0.56	40	54544	38	3	28	7	47
RFA_00642	Vimentin3 links to Rfam database...	0.00	0.00	0.00	0	2923	3	0	3	0	18
RFA_00643	Vimentin3 links to Rfam database...	0.50	0.33	0.75	6	2203	2	0	2	0	12
RFA_00644	Vimentin3 links to Rfam database...	0.27	0.22	0.33	4	2689	9	3	5	1	14
RFA_00645	Vimentin3 links to Rfam database...	-0.01	0.00	0.00	0	2405	10	2	8	0	18
RFA_00649	Vimentin3 links to Rfam database...	0.75	0.61	0.92	11	2133	1	0	1	0	7
RFA_00651	Vimentin3 links to Rfam database...	0.76	0.72	0.81	13	2064	4	0	3	1	5
RFA_00653	Vimentin3 links to Rfam database...	0.29	0.28	0.31	5	2129	11	3	8	0	13
RFA_00654	Vimentin3 links to Rfam database...	0.62	0.39	1.00	7	2408	0	0	0	0	11
RFA_00658	Hammerhead_1 links to Rfam database...	0.69	0.64	0.75	9	1116	5	0	3	2	5
RFA_00659	Hammerhead_1 links to Rfam database...	0.47	0.36	0.63	5	1120	5	0	3	2	9
RFA_00664	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	983	7	0	7	0	14
RFA_00667	Hammerhead_1 links to Rfam database...	0.30	0.29	0.33	4	978	9	1	7	1	10
RFA_00668	Hammerhead_1 links to Rfam database...	0.44	0.36	0.56	5	981	4	0	4	0	9
RFA_00672	Hammerhead_1 links to Rfam database...	0.68	0.46	1.00	6	897	0	0	0	0	7
RFA_00673	Hammerhead_1 links to Rfam database...	0.44	0.36	0.56	5	1119	5	0	4	1	9
RFA_00674	Hammerhead_1 links to Rfam database...	0.74	0.71	0.77	10	1115	4	0	3	1	4
RFA_00675	Hammerhead_1 links to Rfam database...	0.35	0.29	0.44	4	981	5	0	5	0	10
RFA_00677	Hammerhead_1 links to Rfam database...	0.74	0.71	0.77	10	977	5	0	3	2	4
RFA_00678	Hammerhead_1 links to Rfam database...	0.80	0.64	1.00	9	937	0	0	0	0	5
RFA_00680	Hammerhead_1 links to Rfam database...	0.74	0.71	0.77	10	1115	5	0	3	2	4
RFA_00684	Hammerhead_1 links to Rfam database...	0.84	0.71	1.00	10	980	1	0	0	1	4
RFA_00685	Hammerhead_1 links to Rfam database...	0.53	0.43	0.67	6	981	4	0	3	1	8
RFA_00704	Hammerhead_1 links to Rfam database...	0.67	0.57	0.80	8	980	3	0	2	1	6
RFA_00705	Hammerhead_1 links to Rfam database...	0.77	0.71	0.83	10	1023	2	0	2	0	4
RFA_00706	Hammerhead_1 links to Rfam database...	0.33	0.29	0.40	4	1025	6	0	6	0	10
RFA_00707	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	1027	8	0	8	0	14
RFA_00708	Hammerhead_1 links to Rfam database...	0.64	0.57	0.73	8	1024	3	0	3	0	6
RFA_00709	Hammerhead_1 links to Rfam database...	0.50	0.43	0.60	6	980	5	0	4	1	8
RFA_00710	Hammerhead_1 links to Rfam database...	0.70	0.50	1.00	7	983	0	0	0	0	7
RFA_00711	Hammerhead_1 links to Rfam database...	0.59	0.50	0.70	7	1025	3	0	3	0	7
RFA_00715	Hammerhead_1 links to Rfam database...	0.26	0.21	0.33	3	937	6	0	6	0	11
RFA_00716	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	939	7	0	7	0	14
RFA_00717	Hammerhead_1 links to Rfam database...	0.80	0.64	1.00	9	894	0	0	0	0	5
RFA_00730	s2m links to Rfam database...	1.00	1.00	1.00	12	891	1	0	0	1	0
RFA_00731	s2m links to Rfam database...	1.00	1.00	1.00	12	891	1	0	0	1	0
RFA_00733	s2m links to Rfam database...	1.00	1.00	1.00	12	891	1	0	0	1	0
RFA_00734	s2m links to Rfam database...	1.00	1.00	1.00	12	891	0	0	0	0	0
RFA_00736	s2m links to Rfam database...	1.00	1.00	1.00	12	891	1	0	0	1	0
RFA_00737	s2m links to Rfam database...	1.00	1.00	1.00	12	891	1	0	0	1	0
RFA_00745	s2m links to Rfam database...	1.00	1.00	1.00	12	934	1	0	0	1	0
RFA_00749	s2m links to Rfam database...	1.00	1.00	1.00	12	891	1	0	0	1	0
RFA_00758	s2m links to Rfam database...	0.96	0.92	1.00	11	892	0	0	0	0	1
RFA_00762	s2m links to Rfam database...	0.96	0.92	1.00	11	892	0	0	0	0	1
RFA_00763	s2m links to Rfam database...	1.00	1.00	1.00	12	891	1	0	0	1	0
RFA_00764	s2m links to Rfam database...	1.00	1.00	1.00	12	891	1	0	0	1	0
RFA_00765	s2m links to Rfam database...	1.00	1.00	1.00	12	891	1	0	0	1	0
RFA_00769	Corona_pk3 links to Rfam database...	0.54	0.56	0.53	10	1934	9	4	5	0	8
RFA_00770	Corona_pk3 links to Rfam database...	0.58	0.39	0.88	7	2008	1	0	1	0	11
RFA_00773	Corona_pk3 links to Rfam database...	0.55	0.56	0.56	10	1935	8	3	5	0	8
RFA_00779	Corona_pk3 links to Rfam database...	0.59	0.56	0.63	10	1937	6	2	4	0	8
RFA_00781	Gammaretro_CES links to Rfam database...	0.92	0.94	0.91	30	5017	3	2	1	0	2
RFA_00786	Gammaretro_CES links to Rfam database...	0.92	0.91	0.94	29	5019	2	2	0	0	3
RFA_00791	Gammaretro_CES links to Rfam database...	0.95	0.91	1.00	29	5122	1	0	0	1	3
RFA_00792	Gammaretro_CES links to Rfam database...	0.97	0.94	1.00	30	5020	0	0	0	0	2
RFA_00801	Gammaretro_CES links to Rfam database...	0.87	0.81	0.93	26	5022	3	0	2	1	6
RFA_00808	RydC links to Rfam database...	0.75	0.56	1.00	9	2007	0	0	0	0	7
RFA_00809	RydC links to Rfam database...	0.47	0.38	0.60	6	2135	4	0	4	0	10
RFA_00814	R2_retro_el links to Rfam database...	0.96	0.93	1.00	38	25162	6	0	0	6	3
RFA_00815	R2_retro_el links to Rfam database...	0.92	0.85	1.00	35	24496	1	0	0	1	6
RFA_00816	R2_retro_el links to Rfam database...	0.80	0.63	1.00	26	23194	1	0	0	1	15
RFA_00817	R2_retro_el links to Rfam database...	0.68	0.59	0.80	24	21915	9	2	4	3	17
RFA_00818	R2_retro_el links to Rfam database...	0.57	0.54	0.61	22	20265	18	8	6	4	19
RFA_00819	R2_retro_el links to Rfam database...	0.95	0.93	0.97	38	27927	15	0	1	14	3
SRP_00016	Archaea_SRP links to Rfam database...	0.67	0.47	0.96	51	47842	3	0	2	1	58
SRP_00130	Archaea_SRP links to Rfam database...	0.57	0.38	0.86	37	49727	7	0	6	1	60
SRP_00142	Archaea_SRP links to Rfam database...	0.80	0.73	0.87	68	45978	12	0	10	2	25
SRP_00143	Archaea_SRP links to Rfam database...	0.83	0.75	0.93	76	49688	10	0	6	4	25
SRP_00144	Archaea_SRP links to Rfam database...	0.86	0.79	0.94	74	46586	8	0	5	3	20
SRP_00197	Archaea_SRP links to Rfam database...	0.70	0.51	0.96	52	49401	2	0	2	0	49
SRP_00198	Archaea_SRP links to Rfam database...	0.72	0.54	0.97	56	50982	2	0	2	0	47
SRP_00199	Archaea_SRP links to Rfam database...	0.68	0.50	0.95	52	50985	3	0	3	0	53
SRP_00201	Archaea_SRP links to Rfam database...	0.71	0.52	0.97	58	47835	3	0	2	1	53
SRP_00202	Archaea_SRP links to Rfam database...	0.77	0.62	0.95	73	54208	6	0	4	2	44
SRP_00203	Archaea_SRP links to Rfam database...	0.71	0.61	0.83	64	48751	18	0	13	5	41
SRP_00204	Archaea_SRP links to Rfam database...	0.73	0.59	0.91	60	49075	7	0	6	1	42
SRP_00206	Archaea_SRP links to Rfam database...	0.79	0.65	0.97	70	47823	3	0	2	1	38
SRP_00208	Archaea_SRP links to Rfam database...	0.81	0.66	0.99	67	46597	2	0	1	1	34
SRP_00255	Archaea_SRP links to Rfam database...	0.55	0.31	0.97	29	47556	3	0	1	2	65
SRP_00276	Archaea_SRP links to Rfam database...	0.82	0.69	0.97	76	50643	3	0	2	1	34
SRP_00278	Archaea_SRP links to Rfam database...	0.57	0.34	0.95	36	46018	3	0	2	1	69
SRP_00321	Archaea_SRP links to Rfam database...	0.70	0.52	0.93	56	47526	5	0	4	1	52
SRP_00322	Archaea_SRP links to Rfam database...	0.87	0.82	0.94	89	48421	7	0	6	1	20
SRP_00323	Archaea_SRP links to Rfam database...	0.88	0.83	0.93	89	47182	10	0	7	3	18
SRP_00330	Archaea_SRP links to Rfam database...	0.78	0.65	0.94	62	50020	6	0	4	2	33
SRP_00332	Archaea_SRP links to Rfam database...	0.85	0.75	0.96	79	50321	4	0	3	1	27
SRP_00339	Archaea_SRP links to Rfam database...	0.86	0.84	0.89	79	44462	13	0	10	3	15

^top

Performance of CMfinder(seed) - scored lower in this pairwise comparison

1. Total counts & total scores for CMfinder(seed)

Total Base Pair Counts
Total TP	1905
Total TN	2881233
Total FP	688
Total FP CONTRA	40
Total FP INCONS	572
Total FP COMP	76
Total FN	4192

Total Scores
MCC	0.486
Average MCC ± 95% Confidence Intervals	0.505 ± 0.044
Sensitivity	0.312
Positive Predictive Value	0.757
Nr of predictions	129

^top

2. Individual counts for CMfinder(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
CRW_00013	Intron_gpI links to Rfam database...	0.37	0.14	1.00	16	103724	0	0	0	0	99
CRW_00016	Intron_gpI links to Rfam database...	0.36	0.14	0.89	17	77402	2	0	2	0	103
CRW_00610	Intron_gpI links to Rfam database...	0.49	0.31	0.78	25	36283	7	1	6	0	56
CRW_00613	Intron_gpI links to Rfam database...	0.54	0.33	0.87	26	34950	4	0	4	0	52
CRW_00614	Intron_gpI links to Rfam database...	0.46	0.25	0.88	14	121755	9	0	2	7	43
CRW_00618	Intron_gpI links to Rfam database...	0.36	0.13	1.00	8	56272	0	0	0	0	53
CRW_00633	Intron_gpI links to Rfam database...	0.32	0.12	0.81	13	63530	3	1	2	0	93
CRW_00634	Intron_gpI links to Rfam database...	0.40	0.17	0.94	16	64603	1	0	1	0	78
CRW_00670	Intron_gpI links to Rfam database...	0.32	0.18	0.55	22	70085	18	0	18	0	98
CRW_00671	Intron_gpI links to Rfam database...	0.20	0.09	0.41	11	62808	16	0	16	0	106
CRW_00672	Intron_gpI links to Rfam database...	0.38	0.15	0.94	17	72372	1	0	1	0	94
CRW_00674	Intron_gpI links to Rfam database...	0.40	0.17	0.95	21	83414	1	0	1	0	103
CRW_00676	Intron_gpI links to Rfam database...	0.12	0.04	0.33	5	93513	10	1	9	0	110
CRW_00692	Intron_gpI links to Rfam database...	0.41	0.17	1.00	15	68620	0	0	0	0	75
PDB_00005	Tymo_tRNA-like links to Rfam database...	0.47	0.36	0.63	5	938	3	0	3	0	9
PDB_00012	mir-TAR links to Rfam database...	1.00	1.00	1.00	7	399	2	0	0	2	0
PDB_00213	Gammaretro_CES links to Rfam database...	0.85	0.73	1.00	30	5020	0	0	0	0	11
PDB_00553	mir-TAR links to Rfam database...	0.00	0.00	0.00	0	465	0	0	0	0	11
PDB_00716	HDV_ribozyme links to Rfam database...	-0.01	0.00	0.00	0	2688	13	0	13	0	23
PDB_00810	s2m links to Rfam database...	0.76	0.59	1.00	10	1071	0	0	0	0	7
PDB_00827	Intron_gpI links to Rfam database...	0.25	0.10	0.62	8	27015	5	0	5	0	73
PDB_01050	UnaL2 links to Rfam database...	0.68	0.46	1.00	6	624	1	0	0	1	7
PDB_01051	Telomerase-cil links to Rfam database...	0.83	0.69	1.00	9	894	4	0	0	4	4
PDB_01092	glmS links to Rfam database...	0.38	0.21	0.69	11	10137	6	0	5	1	41
PDB_01152	HIV_FS2 links to Rfam database...	0.92	0.86	1.00	12	549	0	0	0	0	2
RFA_00603	Telomerase-cil links to Rfam database...	0.70	0.60	0.81	21	13504	7	0	5	2	14
RFA_00604	Telomerase-cil links to Rfam database...	0.63	0.51	0.78	18	13507	8	0	5	3	17
RFA_00605	Telomerase-cil links to Rfam database...	0.14	0.06	0.33	2	15219	5	0	4	1	33
RFA_00606	Telomerase-cil links to Rfam database...	0.34	0.21	0.57	8	21307	8	2	4	2	31
RFA_00607	Telomerase-cil links to Rfam database...	0.08	0.06	0.13	2	17750	15	3	11	1	34
RFA_00609	Telomerase-cil links to Rfam database...	0.32	0.22	0.47	8	17938	12	2	7	3	29
RFA_00610	Telomerase-cil links to Rfam database...	0.39	0.30	0.52	11	17184	13	2	8	3	26
RFA_00611	Telomerase-cil links to Rfam database...	0.65	0.51	0.82	18	13019	5	0	4	1	17
RFA_00613	Telomerase-cil links to Rfam database...	0.70	0.57	0.87	20	12857	4	0	3	1	15
RFA_00615	Telomerase-cil links to Rfam database...	0.57	0.49	0.68	17	13341	10	0	8	2	18
RFA_00620	Telomerase-cil links to Rfam database...	0.00	0.00	0.00	0	21939	6	0	6	0	39
RFA_00626	rne5 links to Rfam database...	0.44	0.32	0.60	28	56569	22	2	17	3	59
RFA_00627	rne5 links to Rfam database...	0.53	0.39	0.72	34	56906	15	3	10	2	53
RFA_00628	rne5 links to Rfam database...	0.58	0.43	0.77	37	57243	14	3	8	3	49
RFA_00630	rne5 links to Rfam database...	0.45	0.32	0.64	28	56909	17	3	13	1	59
RFA_00632	HDV_ribozyme links to Rfam database...	0.27	0.25	0.29	7	4071	17	0	17	0	21
RFA_00636	HDV_ribozyme links to Rfam database...	0.71	0.64	0.78	18	3982	5	2	3	0	10
RFA_00639	7SK links to Rfam database...	0.00	0.00	0.00	0	54575	44	6	34	4	87
RFA_00642	Vimentin3 links to Rfam database...	0.44	0.28	0.71	5	2919	2	0	2	0	13
RFA_00643	Vimentin3 links to Rfam database...	-0.01	0.00	0.00	0	2203	8	0	8	0	18
RFA_00644	Vimentin3 links to Rfam database...	0.00	0.00	0.00	0	2693	8	0	8	0	18
RFA_00645	Vimentin3 links to Rfam database...	0.29	0.17	0.50	3	2409	3	0	3	0	15
RFA_00649	Vimentin3 links to Rfam database...	0.35	0.22	0.57	4	2138	3	0	3	0	14
RFA_00651	Vimentin3 links to Rfam database...	0.35	0.22	0.57	4	2073	3	0	3	0	14
RFA_00653	Vimentin3 links to Rfam database...	-0.01	0.00	0.00	0	2137	8	0	8	0	18
RFA_00654	Vimentin3 links to Rfam database...	0.38	0.22	0.67	4	2409	2	0	2	0	14
RFA_00658	Hammerhead_1 links to Rfam database...	0.40	0.29	0.57	4	1121	4	0	3	1	10
RFA_00659	Hammerhead_1 links to Rfam database...	0.23	0.14	0.40	2	1123	4	0	3	1	12
RFA_00664	Hammerhead_1 links to Rfam database...	0.40	0.29	0.57	4	983	4	0	3	1	10
RFA_00667	Hammerhead_1 links to Rfam database...	0.40	0.29	0.57	4	983	4	0	3	1	10
RFA_00668	Hammerhead_1 links to Rfam database...	0.35	0.21	0.60	3	985	3	0	2	1	11
RFA_00672	Hammerhead_1 links to Rfam database...	0.41	0.31	0.57	4	896	3	0	3	0	9
RFA_00673	Hammerhead_1 links to Rfam database...	0.23	0.14	0.40	2	1123	4	0	3	1	12
RFA_00674	Hammerhead_1 links to Rfam database...	0.40	0.29	0.57	4	1121	4	0	3	1	10
RFA_00675	Hammerhead_1 links to Rfam database...	0.35	0.21	0.60	3	985	3	0	2	1	11
RFA_00677	Hammerhead_1 links to Rfam database...	0.40	0.29	0.57	4	983	4	0	3	1	10
RFA_00678	Hammerhead_1 links to Rfam database...	0.43	0.29	0.67	4	940	3	0	2	1	10
RFA_00680	Hammerhead_1 links to Rfam database...	0.40	0.29	0.57	4	1121	4	0	3	1	10
RFA_00684	Hammerhead_1 links to Rfam database...	0.43	0.29	0.67	4	984	3	0	2	1	10
RFA_00685	Hammerhead_1 links to Rfam database...	0.32	0.21	0.50	3	984	4	0	3	1	11
RFA_00704	Hammerhead_1 links to Rfam database...	0.32	0.21	0.50	3	984	4	0	3	1	11
RFA_00705	Hammerhead_1 links to Rfam database...	0.40	0.29	0.57	4	1028	4	0	3	1	10
RFA_00706	Hammerhead_1 links to Rfam database...	0.43	0.29	0.67	4	1029	3	0	2	1	10
RFA_00707	Hammerhead_1 links to Rfam database...	0.43	0.29	0.67	4	1029	3	0	2	1	10
RFA_00708	Hammerhead_1 links to Rfam database...	0.40	0.29	0.57	4	1028	4	0	3	1	10
RFA_00709	Hammerhead_1 links to Rfam database...	0.32	0.21	0.50	3	984	4	0	3	1	11
RFA_00710	Hammerhead_1 links to Rfam database...	0.32	0.21	0.50	3	984	3	0	3	0	11
RFA_00711	Hammerhead_1 links to Rfam database...	0.43	0.29	0.67	4	1029	3	0	2	1	10
RFA_00715	Hammerhead_1 links to Rfam database...	0.30	0.14	0.67	2	943	2	0	1	1	12
RFA_00716	Hammerhead_1 links to Rfam database...	0.43	0.29	0.67	4	940	3	0	2	1	10
RFA_00717	Hammerhead_1 links to Rfam database...	0.30	0.21	0.43	3	896	4	0	4	0	11
RFA_00730	s2m links to Rfam database...	0.91	0.83	1.00	10	893	0	0	0	0	2
RFA_00731	s2m links to Rfam database...	0.91	0.83	1.00	10	893	0	0	0	0	2
RFA_00733	s2m links to Rfam database...	0.91	0.83	1.00	10	893	0	0	0	0	2
RFA_00734	s2m links to Rfam database...	0.91	0.83	1.00	10	893	0	0	0	0	2
RFA_00736	s2m links to Rfam database...	0.91	0.83	1.00	10	893	0	0	0	0	2
RFA_00737	s2m links to Rfam database...	0.91	0.83	1.00	10	893	0	0	0	0	2
RFA_00745	s2m links to Rfam database...	0.91	0.83	1.00	10	936	0	0	0	0	2
RFA_00749	s2m links to Rfam database...	0.91	0.83	1.00	10	893	0	0	0	0	2
RFA_00758	s2m links to Rfam database...	0.86	0.75	1.00	9	894	0	0	0	0	3
RFA_00762	s2m links to Rfam database...	0.91	0.83	1.00	10	893	0	0	0	0	2
RFA_00763	s2m links to Rfam database...	0.91	0.83	1.00	10	893	0	0	0	0	2
RFA_00764	s2m links to Rfam database...	0.91	0.83	1.00	10	893	0	0	0	0	2
RFA_00765	s2m links to Rfam database...	0.91	0.83	1.00	10	893	0	0	0	0	2
RFA_00769	Corona_pk3 links to Rfam database...	0.71	0.50	1.00	9	1944	0	0	0	0	9
RFA_00770	Corona_pk3 links to Rfam database...	0.71	0.50	1.00	9	2007	0	0	0	0	9
RFA_00773	Corona_pk3 links to Rfam database...	0.00	0.00	0.00	0	1949	4	0	4	0	18
RFA_00779	Corona_pk3 links to Rfam database...	0.71	0.50	1.00	9	1944	0	0	0	0	9
RFA_00781	Gammaretro_CES links to Rfam database...	0.97	0.94	1.00	30	5020	0	0	0	0	2
RFA_00786	Gammaretro_CES links to Rfam database...	0.95	0.91	1.00	29	5021	0	0	0	0	3
RFA_00791	Gammaretro_CES links to Rfam database...	0.92	0.88	0.97	28	5122	1	0	1	0	4
RFA_00792	Gammaretro_CES links to Rfam database...	0.97	0.94	1.00	30	5020	0	0	0	0	2
RFA_00801	Gammaretro_CES links to Rfam database...	0.95	0.91	1.00	29	5021	0	0	0	0	3
RFA_00808	RydC links to Rfam database...	0.68	0.56	0.82	9	2005	2	0	2	0	7
RFA_00809	RydC links to Rfam database...	0.41	0.38	0.46	6	2132	7	1	6	0	10
RFA_00814	R2_retro_el links to Rfam database...	0.68	0.51	0.91	21	25177	2	0	2	0	20
RFA_00815	R2_retro_el links to Rfam database...	0.68	0.51	0.91	21	24508	2	0	2	0	20
RFA_00816	R2_retro_el links to Rfam database...	0.68	0.51	0.91	21	23197	2	0	2	0	20
RFA_00817	R2_retro_el links to Rfam database...	0.68	0.56	0.82	23	21917	5	0	5	0	18
RFA_00818	R2_retro_el links to Rfam database...	0.60	0.49	0.74	20	20274	8	1	6	1	21
RFA_00819	R2_retro_el links to Rfam database...	0.62	0.51	0.75	21	27938	7	0	7	0	20
SRP_00016	Archaea_SRP links to Rfam database...	0.54	0.35	0.83	38	47849	8	0	8	0	71
SRP_00130	Archaea_SRP links to Rfam database...	0.50	0.32	0.78	31	49730	10	1	8	1	66
SRP_00142	Archaea_SRP links to Rfam database...	0.46	0.37	0.58	34	45997	26	1	24	1	59
SRP_00143	Archaea_SRP links to Rfam database...	0.50	0.30	0.86	30	49735	5	0	5	0	71
SRP_00144	Archaea_SRP links to Rfam database...	0.54	0.37	0.80	35	46621	11	0	9	2	59
SRP_00197	Archaea_SRP links to Rfam database...	0.46	0.26	0.84	26	49424	5	0	5	0	75
SRP_00198	Archaea_SRP links to Rfam database...	0.56	0.37	0.84	38	50995	7	0	7	0	65
SRP_00199	Archaea_SRP links to Rfam database...	0.54	0.35	0.82	37	50995	8	0	8	0	68
SRP_00201	Archaea_SRP links to Rfam database...	0.54	0.35	0.83	39	47848	8	0	8	0	72
SRP_00202	Archaea_SRP links to Rfam database...	0.43	0.21	0.86	25	54256	4	0	4	0	92
SRP_00203	Archaea_SRP links to Rfam database...	0.51	0.34	0.77	36	48781	12	0	11	1	69
SRP_00204	Archaea_SRP links to Rfam database...	0.52	0.34	0.80	35	49097	9	1	8	0	67
SRP_00206	Archaea_SRP links to Rfam database...	0.55	0.36	0.83	39	47848	8	0	8	0	69
SRP_00208	Archaea_SRP links to Rfam database...	0.52	0.33	0.83	33	46625	7	1	6	0	68
SRP_00255	Archaea_SRP links to Rfam database...	0.49	0.27	0.89	25	47558	3	0	3	0	69
SRP_00276	Archaea_SRP links to Rfam database...	0.51	0.33	0.80	36	50676	9	0	9	0	74
SRP_00278	Archaea_SRP links to Rfam database...	0.52	0.33	0.81	35	46013	8	0	8	0	70
SRP_00321	Archaea_SRP links to Rfam database...	0.42	0.21	0.82	23	47558	5	1	4	0	85
SRP_00322	Archaea_SRP links to Rfam database...	0.52	0.33	0.82	36	48472	8	0	8	0	73
SRP_00323	Archaea_SRP links to Rfam database...	0.54	0.34	0.88	36	47237	5	0	5	0	71
SRP_00330	Archaea_SRP links to Rfam database...	0.44	0.23	0.85	22	50060	5	0	4	1	73
SRP_00332	Archaea_SRP links to Rfam database...	0.44	0.25	0.75	27	50367	9	0	9	0	79
SRP_00339	Archaea_SRP links to Rfam database...	0.56	0.39	0.79	37	44504	10	2	8	0	57

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.

Table of contents:

Overview

Performance plots

Performance of CentroidHomfold‑LAST - scored higher in this pairwise comparison

1. Total counts & total scores for CentroidHomfold‑LAST

2. Individual counts for CentroidHomfold‑LAST [ download as .csv ]

Performance of CMfinder(seed) - scored lower in this pairwise comparison

1. Total counts & total scores for CMfinder(seed)

2. Individual counts for CMfinder(seed) [ download as .csv ]
