Overview

Metric	Contrafold		PPfold(seed)
MCC	0.676	>	0.626
Average MCC ± 95% Confidence Intervals	0.676 ± 0.061	>	0.464 ± 0.095
Sensitivity	0.676	>	0.495
Positive Predictive Value	0.677	<	0.794
Total TP	1888	>	1382
Total TN	1176784	<	1177832
Total FP	1166	>	501
Total FP CONTRA	173	>	54
Total FP INCONS	727	>	304
Total FP COMP	266	>	143
Total FN	906	<	1412
P-value	3.56938820447e-08

^top

Performance plots

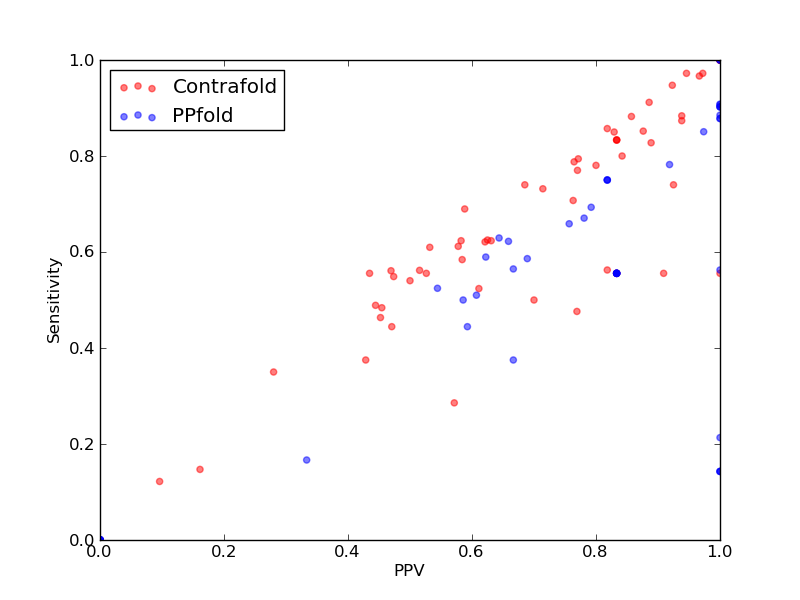

Comparison of performance of Contrafold and PPfold(seed). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for Contrafold and PPfold(seed)).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for Contrafold and PPfold(seed)).
Comparison of average Matthews Correlation Coefficients (MCCs) for Contrafold and PPfold(seed). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for Contrafold and PPfold(seed)).

^top

Performance of Contrafold - scored higher in this pairwise comparison

1. Total counts & total scores for Contrafold

Total Base Pair Counts
Total TP	1888
Total TN	1176784
Total FP	1166
Total FP CONTRA	173
Total FP INCONS	727
Total FP COMP	266
Total FN	906

Total Scores
MCC	0.676
Average MCC ± 95% Confidence Intervals	0.676 ± 0.061
Sensitivity	0.676
Positive Predictive Value	0.677
Nr of predictions	63

^top

2. Individual counts for Contrafold [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
PDB_01001	tRNA links to Rfam database...	0.49	0.56	0.43	10	2122	13	3	10	0	8
RFA_00390	Hammerhead_3 links to Rfam database...	1.00	1.00	1.00	15	1416	3	0	0	3	0
RFA_00416	Hammerhead_3 links to Rfam database...	1.00	1.00	1.00	15	1470	3	0	0	3	0
RFA_00433	Hammerhead_3 links to Rfam database...	1.00	1.00	1.00	15	1416	2	0	0	2	0
RFA_00626	rne5 links to Rfam database...	0.91	0.87	0.94	76	56535	26	1	4	21	11
RFA_00627	rne5 links to Rfam database...	0.86	0.83	0.89	72	56872	28	0	9	19	15
RFA_00628	rne5 links to Rfam database...	0.91	0.88	0.94	76	57210	25	0	5	20	10
RFA_00630	rne5 links to Rfam database...	0.77	0.77	0.77	67	56866	34	6	14	14	20
RFA_00654	Vimentin3 links to Rfam database...	-0.01	0.00	0.00	0	2400	15	2	13	0	18
RFA_00658	Hammerhead_1 links to Rfam database...	0.59	0.50	0.70	7	1118	5	0	3	2	7
RFA_00664	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	980	11	0	10	1	14
RFA_00708	Hammerhead_1 links to Rfam database...	0.40	0.29	0.57	4	1028	3	0	3	0	10
RFA_00749	s2m links to Rfam database...	0.83	0.83	0.83	10	891	4	0	2	2	2
RFA_00764	s2m links to Rfam database...	0.83	0.83	0.83	10	891	4	0	2	2	2
RFA_00765	s2m links to Rfam database...	0.83	0.83	0.83	10	891	4	0	2	2	2
RFA_00767	Corona_pk3 links to Rfam database...	0.74	0.56	1.00	10	1881	2	0	0	2	8
RFA_00768	Corona_pk3 links to Rfam database...	0.45	0.44	0.47	8	1874	9	1	8	0	10
RFA_00769	Corona_pk3 links to Rfam database...	0.54	0.56	0.53	10	1934	9	4	5	0	8
RFA_00770	Corona_pk3 links to Rfam database...	0.68	0.56	0.83	10	2004	5	0	2	3	8
RFA_00773	Corona_pk3 links to Rfam database...	0.71	0.56	0.91	10	1942	4	1	0	3	8
RFA_00779	Corona_pk3 links to Rfam database...	0.68	0.56	0.83	10	1941	2	0	2	0	8
RFA_00805	RNAIII links to Rfam database...	0.83	0.74	0.93	111	133266	19	1	8	10	39
RFA_00808	RydC links to Rfam database...	0.68	0.56	0.82	9	2005	2	0	2	0	7
RFA_00809	RydC links to Rfam database...	0.40	0.38	0.43	6	2131	8	0	8	0	10
RFA_00814	R2_retro_el links to Rfam database...	0.79	0.78	0.80	32	25160	19	1	7	11	9
RFA_00816	R2_retro_el links to Rfam database...	0.72	0.73	0.71	30	23178	20	8	4	8	11
RFA_00817	R2_retro_el links to Rfam database...	0.11	0.12	0.10	5	21893	47	12	35	0	36
RFA_00818	R2_retro_el links to Rfam database...	0.57	0.61	0.53	25	20254	32	11	11	10	16
RFA_00819	R2_retro_el links to Rfam database...	0.46	0.46	0.45	19	27924	47	3	20	24	22
SPR_00020	tRNA links to Rfam database...	0.82	0.80	0.84	16	2682	6	0	3	3	4
SPR_00137	tRNA links to Rfam database...	0.84	0.86	0.82	18	2904	10	0	4	6	3
SPR_00277	tRNA links to Rfam database...	1.00	1.00	1.00	21	2905	1	0	0	1	0
SPR_00394	tRNA links to Rfam database...	0.56	0.52	0.61	11	3637	11	5	2	4	10
SPR_00402	tRNA links to Rfam database...	0.60	0.48	0.77	10	2543	3	0	3	0	11
SPR_00721	tRNA links to Rfam database...	1.00	1.00	1.00	21	2905	2	0	0	2	0
SPR_00816	tRNA links to Rfam database...	0.31	0.35	0.28	7	3461	21	5	13	3	13
SPR_01157	tRNA links to Rfam database...	1.00	1.00	1.00	21	2754	4	0	0	4	0
SRP_00020	Bacteria_small_SRP links to Rfam database...	0.77	0.79	0.76	26	5531	8	1	7	0	7
SRP_00058	Bacteria_small_SRP links to Rfam database...	0.87	0.88	0.86	30	5743	9	1	4	4	4
SRP_00079	Plant_SRP links to Rfam database...	0.62	0.63	0.63	55	41817	43	3	30	10	33
SRP_00084	Bacteria_small_SRP links to Rfam database...	0.78	0.79	0.77	27	5425	8	1	7	0	7
SRP_00099	Plant_SRP links to Rfam database...	0.62	0.62	0.62	59	44755	37	7	29	1	36
SRP_00105	Bacteria_small_SRP links to Rfam database...	0.15	0.15	0.16	5	5534	26	2	24	0	29
SRP_00124	Metazoa_SRP links to Rfam database...	0.63	0.62	0.63	53	37044	38	3	28	7	32
SRP_00134	Bacteria_large_SRP links to Rfam database...	0.64	0.69	0.59	20	5961	19	3	11	5	9
SRP_00141	Bacteria_small_SRP links to Rfam database...	0.73	0.71	0.76	29	6290	10	1	8	1	12
SRP_00182	Plant_SRP links to Rfam database...	0.58	0.58	0.58	59	45955	45	10	32	3	42
SRP_00231	Bacteria_small_SRP links to Rfam database...	0.90	0.91	0.89	31	5425	4	1	3	0	3
SRP_00241	Plant_SRP links to Rfam database...	0.51	0.55	0.47	45	45961	53	14	36	3	37
SRP_00252	Metazoa_SRP links to Rfam database...	0.54	0.56	0.52	50	49044	53	7	40	6	39
SRP_00253	Metazoa_SRP links to Rfam database...	0.47	0.49	0.44	44	49356	61	9	46	6	46
SRP_00257	Metazoa_SRP links to Rfam database...	0.86	0.85	0.88	92	50935	22	0	13	9	16
SRP_00260	Metazoa_SRP links to Rfam database...	0.71	0.74	0.69	74	47787	37	6	28	3	26
SRP_00273	Bacteria_small_SRP links to Rfam database...	0.84	0.85	0.83	34	6745	10	1	6	3	6
SRP_00274	Bacteria_small_SRP links to Rfam database...	0.93	0.95	0.92	36	6864	5	1	2	2	2
SRP_00285	Bacteria_small_SRP links to Rfam database...	0.97	0.97	0.97	29	3711	1	0	1	0	1
SRP_00328	Metazoa_SRP links to Rfam database...	0.60	0.62	0.58	53	39530	41	10	28	3	32
SRP_00329	Metazoa_SRP links to Rfam database...	0.59	0.61	0.58	52	39813	43	6	32	5	33
SRP_00331	Metazoa_SRP links to Rfam database...	0.52	0.54	0.50	47	37581	50	10	37	3	40
SRP_00338	Bacteria_small_SRP links to Rfam database...	0.97	0.97	0.97	35	5424	2	0	1	1	1
SRP_00340	Metazoa_SRP links to Rfam database...	0.51	0.56	0.47	46	41230	56	11	41	4	36
SRP_00341	Bacteria_small_SRP links to Rfam database...	0.47	0.48	0.45	15	4720	19	0	18	1	16
SRP_00357	Bacteria_small_SRP links to Rfam database...	0.96	0.97	0.95	35	5319	3	1	1	1	1

^top

Performance of PPfold(seed) - scored lower in this pairwise comparison

1. Total counts & total scores for PPfold(seed)

Total Base Pair Counts
Total TP	1382
Total TN	1177832
Total FP	501
Total FP CONTRA	54
Total FP INCONS	304
Total FP COMP	143
Total FN	1412

Total Scores
MCC	0.626
Average MCC ± 95% Confidence Intervals	0.464 ± 0.095
Sensitivity	0.495
Positive Predictive Value	0.794
Nr of predictions	63

^top

2. Individual counts for PPfold(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
PDB_01001	tRNA links to Rfam database...	0.00	0.00	0.00	0	2145	0	0	0	0	18
RFA_00390	Hammerhead_3 links to Rfam database...	1.00	1.00	1.00	15	1416	1	0	0	1	0
RFA_00416	Hammerhead_3 links to Rfam database...	1.00	1.00	1.00	15	1470	1	0	0	1	0
RFA_00433	Hammerhead_3 links to Rfam database...	1.00	1.00	1.00	15	1416	2	0	0	2	0
RFA_00626	rne5 links to Rfam database...	0.94	0.89	1.00	77	56539	1	0	0	1	10
RFA_00627	rne5 links to Rfam database...	0.95	0.91	1.00	79	56874	4	0	0	4	8
RFA_00628	rne5 links to Rfam database...	0.95	0.91	1.00	78	57213	2	0	0	2	8
RFA_00630	rne5 links to Rfam database...	0.91	0.85	0.97	74	56877	5	0	2	3	13
RFA_00654	Vimentin3 links to Rfam database...	0.23	0.17	0.33	3	2406	6	0	6	0	15
RFA_00658	Hammerhead_1 links to Rfam database...	0.38	0.14	1.00	2	1126	1	0	0	1	12
RFA_00664	Hammerhead_1 links to Rfam database...	0.38	0.14	1.00	2	988	1	0	0	1	12
RFA_00708	Hammerhead_1 links to Rfam database...	0.38	0.14	1.00	2	1033	1	0	0	1	12
RFA_00749	s2m links to Rfam database...	0.78	0.75	0.82	9	892	2	0	2	0	3
RFA_00764	s2m links to Rfam database...	0.78	0.75	0.82	9	892	2	0	2	0	3
RFA_00765	s2m links to Rfam database...	0.78	0.75	0.82	9	892	2	0	2	0	3
RFA_00767	Corona_pk3 links to Rfam database...	0.68	0.56	0.83	10	1879	2	1	1	0	8
RFA_00768	Corona_pk3 links to Rfam database...	0.68	0.56	0.83	10	1879	2	1	1	0	8
RFA_00769	Corona_pk3 links to Rfam database...	0.68	0.56	0.83	10	1941	2	1	1	0	8
RFA_00770	Corona_pk3 links to Rfam database...	0.68	0.56	0.83	10	2004	2	1	1	0	8
RFA_00773	Corona_pk3 links to Rfam database...	0.68	0.56	0.83	10	1941	2	1	1	0	8
RFA_00779	Corona_pk3 links to Rfam database...	0.68	0.56	0.83	10	1941	2	1	1	0	8
RFA_00805	RNAIII links to Rfam database...	0.46	0.21	1.00	32	133354	0	0	0	0	118
RFA_00808	RydC links to Rfam database...	0.75	0.56	1.00	9	2007	0	0	0	0	7
RFA_00809	RydC links to Rfam database...	0.50	0.38	0.67	6	2136	3	0	3	0	10
RFA_00814	R2_retro_el links to Rfam database...	0.94	0.88	1.00	36	25164	2	0	0	2	5
RFA_00816	R2_retro_el links to Rfam database...	0.95	0.90	1.00	37	23183	2	0	0	2	4
RFA_00817	R2_retro_el links to Rfam database...	0.95	0.90	1.00	37	21908	1	0	0	1	4
RFA_00818	R2_retro_el links to Rfam database...	0.94	0.88	1.00	36	20265	2	0	0	2	5
RFA_00819	R2_retro_el links to Rfam database...	0.95	0.90	1.00	37	27929	2	0	0	2	4
SPR_00020	tRNA links to Rfam database...	0.00	0.00	0.00	0	2701	0	0	0	0	20
SPR_00137	tRNA links to Rfam database...	0.00	0.00	0.00	0	2926	0	0	0	0	21
SPR_00277	tRNA links to Rfam database...	0.00	0.00	0.00	0	2926	0	0	0	0	21
SPR_00394	tRNA links to Rfam database...	0.00	0.00	0.00	0	3655	0	0	0	0	21
SPR_00402	tRNA links to Rfam database...	0.00	0.00	0.00	0	2556	0	0	0	0	21
SPR_00721	tRNA links to Rfam database...	0.00	0.00	0.00	0	2926	0	0	0	0	21
SPR_00816	tRNA links to Rfam database...	0.00	0.00	0.00	0	3486	0	0	0	0	20
SPR_01157	tRNA links to Rfam database...	0.00	0.00	0.00	0	2775	0	0	0	0	21
SRP_00020	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	5565	0	0	0	0	33
SRP_00058	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	5778	0	0	0	0	34
SRP_00079	Plant_SRP links to Rfam database...	0.74	0.69	0.79	61	41828	28	0	16	12	27
SRP_00084	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	5460	0	0	0	0	34
SRP_00099	Plant_SRP links to Rfam database...	0.60	0.59	0.62	56	44760	40	2	32	6	39
SRP_00105	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	5565	0	0	0	0	34
SRP_00124	Metazoa_SRP links to Rfam database...	0.71	0.66	0.76	56	37054	27	3	15	9	29
SRP_00134	Bacteria_large_SRP links to Rfam database...	0.00	0.00	0.00	0	5995	0	0	0	0	29
SRP_00141	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	6328	0	0	0	0	41
SRP_00182	Plant_SRP links to Rfam database...	0.85	0.78	0.92	79	45970	17	0	7	10	22
SRP_00231	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	5460	0	0	0	0	34
SRP_00241	Plant_SRP links to Rfam database...	0.53	0.52	0.54	43	45977	49	9	27	13	39
SRP_00252	Metazoa_SRP links to Rfam database...	0.64	0.63	0.64	56	49054	42	5	26	11	33
SRP_00253	Metazoa_SRP links to Rfam database...	0.64	0.62	0.66	56	49370	40	5	24	11	34
SRP_00257	Metazoa_SRP links to Rfam database...	0.51	0.44	0.59	48	50959	36	5	28	3	60
SRP_00260	Metazoa_SRP links to Rfam database...	0.56	0.51	0.61	51	47811	39	5	28	6	49
SRP_00273	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	6786	0	0	0	0	40
SRP_00274	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	6903	0	0	0	0	38
SRP_00285	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	3741	0	0	0	0	30
SRP_00328	Metazoa_SRP links to Rfam database...	0.61	0.56	0.67	48	39549	29	5	19	5	37
SRP_00329	Metazoa_SRP links to Rfam database...	0.72	0.67	0.78	57	39830	26	2	14	10	28
SRP_00331	Metazoa_SRP links to Rfam database...	0.63	0.59	0.69	51	37601	31	2	21	8	36
SRP_00338	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	5460	0	0	0	0	36
SRP_00340	Metazoa_SRP links to Rfam database...	0.54	0.50	0.59	41	41258	42	5	24	13	41
SRP_00341	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	4753	0	0	0	0	31
SRP_00357	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	5356	0	0	0	0	36

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.

Table of contents:

Overview

Performance plots

Performance of Contrafold - scored higher in this pairwise comparison

1. Total counts & total scores for Contrafold

2. Individual counts for Contrafold [ download as .csv ]

Performance of PPfold(seed) - scored lower in this pairwise comparison

1. Total counts & total scores for PPfold(seed)

2. Individual counts for PPfold(seed) [ download as .csv ]
