Overview

Metric	MXScarna(seed)		Murlet(seed)
MCC	0.731	>	0.540
Average MCC ± 95% Confidence Intervals	0.725 ± 0.037	>	0.396 ± 0.065
Sensitivity	0.700	>	0.360
Positive Predictive Value	0.763	<	0.811
Total TP	3382	>	1738
Total TN	2787206	<	2789495
Total FP	1740	>	489
Total FP CONTRA	155	>	21
Total FP INCONS	896	>	385
Total FP COMP	689	>	83
Total FN	1446	<	3090
P-value	3.56938820447e-08

^top

Performance plots

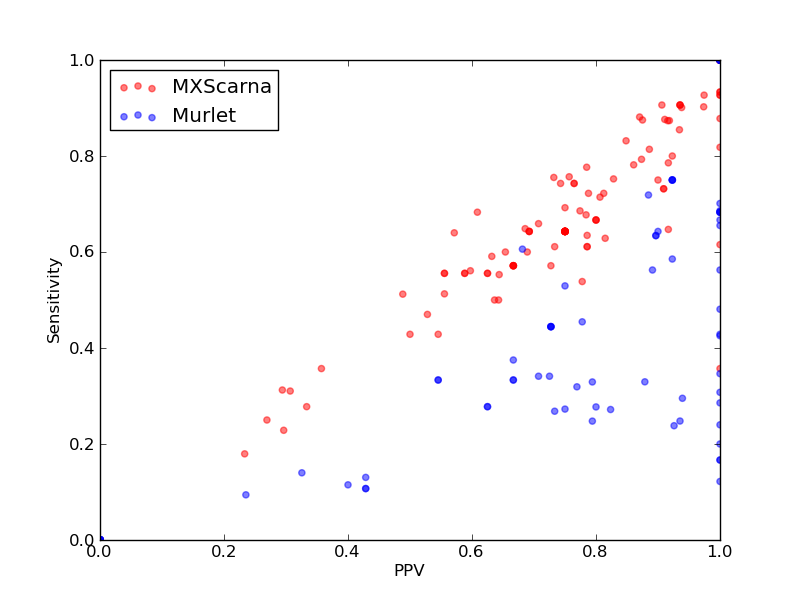

Comparison of performance of MXScarna(seed) and Murlet(seed). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for MXScarna(seed) and Murlet(seed)).

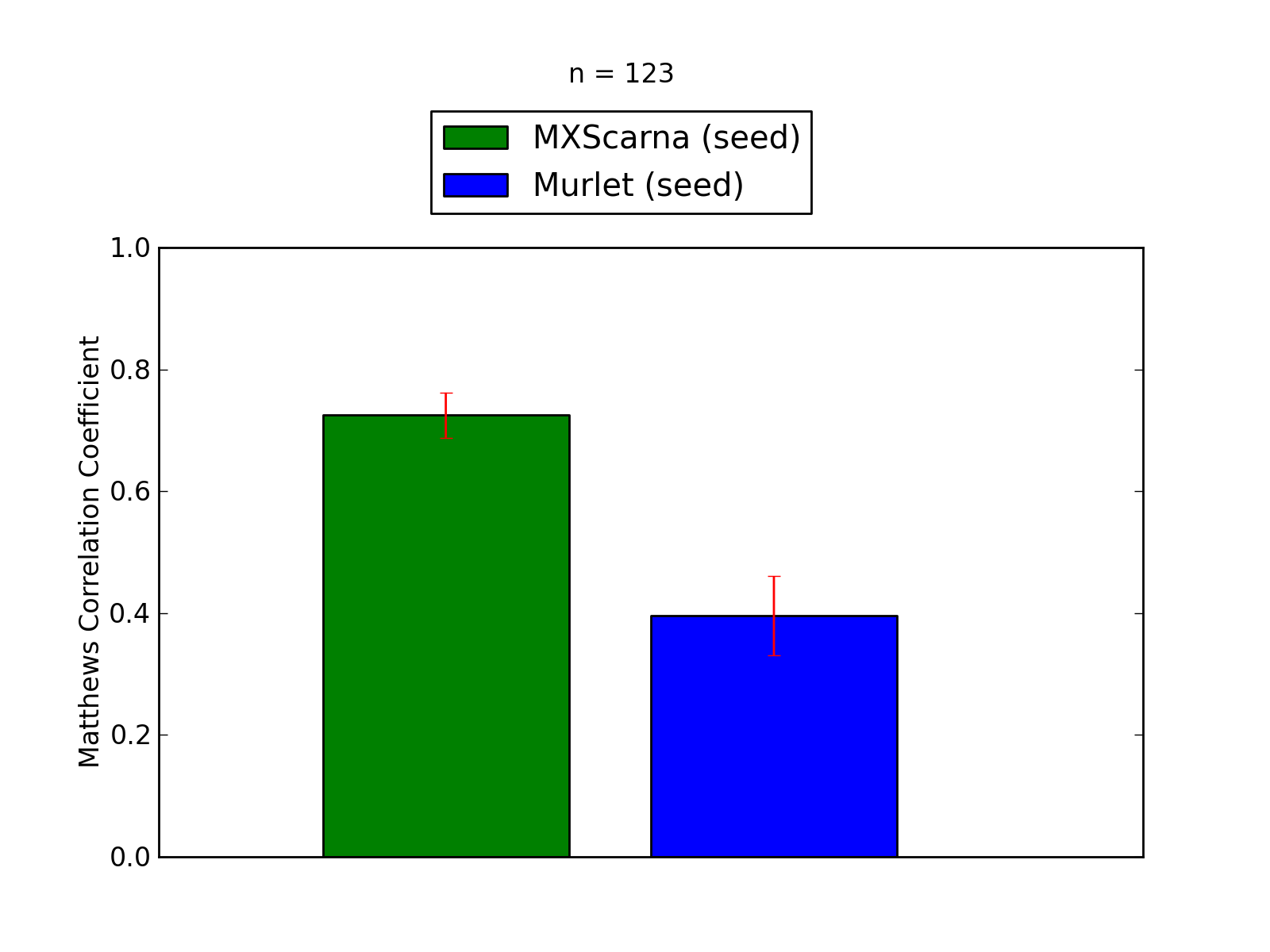

Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for MXScarna(seed) and Murlet(seed)).
Comparison of average Matthews Correlation Coefficients (MCCs) for MXScarna(seed) and Murlet(seed). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for MXScarna(seed) and Murlet(seed)).

^top

Performance of MXScarna(seed) - scored higher in this pairwise comparison

1. Total counts & total scores for MXScarna(seed)

Total Base Pair Counts
Total TP	3382
Total TN	2787206
Total FP	1740
Total FP CONTRA	155
Total FP INCONS	896
Total FP COMP	689
Total FN	1446

Total Scores
MCC	0.731
Average MCC ± 95% Confidence Intervals	0.725 ± 0.037
Sensitivity	0.700
Positive Predictive Value	0.763
Nr of predictions	123

^top

2. Individual counts for MXScarna(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
CRW_01343	SSU_rRNA_archaea links to Rfam database...	0.73	0.68	0.78	294	977526	128	10	71	47	140
PDB_00005	Tymo_tRNA-like links to Rfam database...	0.59	0.36	1.00	5	941	0	0	0	0	9
PDB_00012	mir-TAR links to Rfam database...	1.00	1.00	1.00	7	399	3	0	0	3	0
PDB_00213	Gammaretro_CES links to Rfam database...	0.81	0.73	0.91	30	5017	3	0	3	0	11
PDB_00553	mir-TAR links to Rfam database...	0.90	0.82	1.00	9	456	0	0	0	0	2
PDB_00716	HDV_ribozyme links to Rfam database...	-0.01	0.00	0.00	0	2681	21	1	19	1	23
PDB_00810	s2m links to Rfam database...	0.77	0.65	0.92	11	1069	2	0	1	1	6
PDB_01050	UnaL2 links to Rfam database...	0.78	0.62	1.00	8	622	2	0	0	2	5
PDB_01051	Telomerase-cil links to Rfam database...	0.64	0.54	0.78	7	894	5	0	2	3	6
PDB_01092	glmS links to Rfam database...	0.70	0.63	0.79	33	10111	12	2	7	3	19
PDB_01152	HIV_FS2 links to Rfam database...	0.85	0.79	0.92	11	549	1	0	1	0	3
RFA_00390	Hammerhead_3 links to Rfam database...	0.97	0.93	1.00	14	1417	1	0	0	1	1
RFA_00416	Hammerhead_3 links to Rfam database...	0.97	0.93	1.00	14	1471	1	0	0	1	1
RFA_00433	Hammerhead_3 links to Rfam database...	1.00	1.00	1.00	15	1416	1	0	0	1	0
RFA_00587	Y_RNA links to Rfam database...	1.00	1.00	1.00	15	4836	19	0	0	19	0
RFA_00603	Telomerase-cil links to Rfam database...	0.74	0.74	0.74	26	13495	17	3	6	8	9
RFA_00604	Telomerase-cil links to Rfam database...	0.72	0.63	0.81	22	13503	13	3	2	8	13
RFA_00605	Telomerase-cil links to Rfam database...	0.26	0.23	0.30	8	15198	22	5	14	3	27
RFA_00606	Telomerase-cil links to Rfam database...	0.53	0.51	0.56	20	21285	25	4	12	9	19
RFA_00607	Telomerase-cil links to Rfam database...	0.77	0.72	0.81	26	17734	16	1	5	10	10
RFA_00609	Telomerase-cil links to Rfam database...	0.67	0.65	0.69	24	17920	19	2	9	8	13
RFA_00610	Telomerase-cil links to Rfam database...	0.76	0.76	0.76	28	17168	19	1	8	10	9
RFA_00611	Telomerase-cil links to Rfam database...	0.75	0.74	0.76	26	13007	13	4	4	5	9
RFA_00613	Telomerase-cil links to Rfam database...	0.76	0.71	0.81	25	12849	11	4	2	5	10
RFA_00615	Telomerase-cil links to Rfam database...	0.75	0.74	0.76	26	13332	15	4	4	7	9
RFA_00620	Telomerase-cil links to Rfam database...	0.20	0.18	0.23	7	21915	33	7	16	10	32
RFA_00626	rne5 links to Rfam database...	0.89	0.87	0.92	76	56533	29	2	5	22	11
RFA_00627	rne5 links to Rfam database...	0.83	0.79	0.87	69	56874	36	1	9	26	18
RFA_00628	rne5 links to Rfam database...	0.85	0.81	0.89	70	57212	38	2	7	29	16
RFA_00630	rne5 links to Rfam database...	0.82	0.78	0.86	68	56874	33	2	9	22	19
RFA_00632	HDV_ribozyme links to Rfam database...	0.25	0.25	0.27	7	4069	19	1	18	0	21
RFA_00636	HDV_ribozyme links to Rfam database...	0.35	0.36	0.36	10	3977	18	2	16	0	18
RFA_00639	7SK links to Rfam database...	0.31	0.31	0.31	27	54527	69	10	51	8	60
RFA_00642	Vimentin3 links to Rfam database...	0.56	0.50	0.64	9	2912	7	0	5	2	9
RFA_00643	Vimentin3 links to Rfam database...	0.69	0.61	0.79	11	2197	5	0	3	2	7
RFA_00644	Vimentin3 links to Rfam database...	0.69	0.61	0.79	11	2687	5	0	3	2	7
RFA_00645	Vimentin3 links to Rfam database...	0.30	0.28	0.33	5	2400	11	0	10	1	13
RFA_00649	Vimentin3 links to Rfam database...	0.73	0.67	0.80	12	2130	5	0	3	2	6
RFA_00651	Vimentin3 links to Rfam database...	0.73	0.67	0.80	12	2065	5	0	3	2	6
RFA_00653	Vimentin3 links to Rfam database...	0.67	0.61	0.73	11	2130	6	0	4	2	7
RFA_00654	Vimentin3 links to Rfam database...	0.73	0.67	0.80	12	2400	5	0	3	2	6
RFA_00658	Hammerhead_1 links to Rfam database...	0.61	0.57	0.67	8	1116	5	0	4	1	6
RFA_00659	Hammerhead_1 links to Rfam database...	0.46	0.43	0.50	6	1116	7	0	6	1	8
RFA_00664	Hammerhead_1 links to Rfam database...	0.69	0.64	0.75	9	978	4	0	3	1	5
RFA_00667	Hammerhead_1 links to Rfam database...	0.69	0.64	0.75	9	978	4	0	3	1	5
RFA_00668	Hammerhead_1 links to Rfam database...	0.69	0.64	0.75	9	978	4	0	3	1	5
RFA_00672	Hammerhead_1 links to Rfam database...	0.72	0.69	0.75	9	891	4	0	3	1	4
RFA_00673	Hammerhead_1 links to Rfam database...	0.61	0.57	0.67	8	1116	5	0	4	1	6
RFA_00674	Hammerhead_1 links to Rfam database...	0.69	0.64	0.75	9	1116	4	0	3	1	5
RFA_00675	Hammerhead_1 links to Rfam database...	0.69	0.64	0.75	9	978	4	0	3	1	5
RFA_00677	Hammerhead_1 links to Rfam database...	0.69	0.64	0.75	9	978	4	0	3	1	5
RFA_00678	Hammerhead_1 links to Rfam database...	0.66	0.64	0.69	9	933	5	0	4	1	5
RFA_00680	Hammerhead_1 links to Rfam database...	0.61	0.57	0.67	8	1116	5	0	4	1	6
RFA_00684	Hammerhead_1 links to Rfam database...	0.66	0.64	0.69	9	977	5	0	4	1	5
RFA_00685	Hammerhead_1 links to Rfam database...	0.69	0.64	0.75	9	978	4	0	3	1	5
RFA_00695	Hammerhead_1 links to Rfam database...	0.62	0.57	0.67	8	7009	22	1	3	18	6
RFA_00703	Hammerhead_1 links to Rfam database...	0.62	0.57	0.67	8	4266	8	1	3	4	6
RFA_00704	Hammerhead_1 links to Rfam database...	0.69	0.64	0.75	9	978	4	0	3	1	5
RFA_00705	Hammerhead_1 links to Rfam database...	0.66	0.64	0.69	9	1022	5	0	4	1	5
RFA_00706	Hammerhead_1 links to Rfam database...	0.69	0.64	0.75	9	1023	4	0	3	1	5
RFA_00707	Hammerhead_1 links to Rfam database...	0.69	0.64	0.75	9	1023	4	0	3	1	5
RFA_00708	Hammerhead_1 links to Rfam database...	0.64	0.57	0.73	8	1024	4	0	3	1	6
RFA_00709	Hammerhead_1 links to Rfam database...	0.69	0.64	0.75	9	978	4	0	3	1	5
RFA_00710	Hammerhead_1 links to Rfam database...	0.69	0.64	0.75	9	978	4	0	3	1	5
RFA_00711	Hammerhead_1 links to Rfam database...	0.69	0.64	0.75	9	1023	4	0	3	1	5
RFA_00715	Hammerhead_1 links to Rfam database...	0.56	0.50	0.64	7	935	5	0	4	1	7
RFA_00716	Hammerhead_1 links to Rfam database...	0.48	0.43	0.55	6	935	6	0	5	1	8
RFA_00717	Hammerhead_1 links to Rfam database...	0.69	0.64	0.75	9	891	3	0	3	0	5
RFA_00730	s2m links to Rfam database...	1.00	1.00	1.00	12	891	1	0	0	1	0
RFA_00731	s2m links to Rfam database...	1.00	1.00	1.00	12	891	1	0	0	1	0
RFA_00733	s2m links to Rfam database...	1.00	1.00	1.00	12	891	1	0	0	1	0
RFA_00734	s2m links to Rfam database...	1.00	1.00	1.00	12	891	1	0	0	1	0
RFA_00736	s2m links to Rfam database...	1.00	1.00	1.00	12	891	1	0	0	1	0
RFA_00737	s2m links to Rfam database...	1.00	1.00	1.00	12	891	1	0	0	1	0
RFA_00745	s2m links to Rfam database...	1.00	1.00	1.00	12	934	1	0	0	1	0
RFA_00749	s2m links to Rfam database...	1.00	1.00	1.00	12	891	1	0	0	1	0
RFA_00758	s2m links to Rfam database...	1.00	1.00	1.00	12	891	1	0	0	1	0
RFA_00762	s2m links to Rfam database...	1.00	1.00	1.00	12	891	1	0	0	1	0
RFA_00763	s2m links to Rfam database...	1.00	1.00	1.00	12	891	1	0	0	1	0
RFA_00764	s2m links to Rfam database...	1.00	1.00	1.00	12	891	1	0	0	1	0
RFA_00765	s2m links to Rfam database...	1.00	1.00	1.00	12	891	1	0	0	1	0
RFA_00767	Corona_pk3 links to Rfam database...	0.59	0.56	0.63	10	1875	6	2	4	0	8
RFA_00768	Corona_pk3 links to Rfam database...	0.59	0.56	0.63	10	1875	6	2	4	0	8
RFA_00769	Corona_pk3 links to Rfam database...	0.55	0.56	0.56	10	1935	8	3	5	0	8
RFA_00770	Corona_pk3 links to Rfam database...	0.57	0.56	0.59	10	1999	7	2	5	0	8
RFA_00773	Corona_pk3 links to Rfam database...	0.55	0.56	0.56	10	1935	8	3	5	0	8
RFA_00779	Corona_pk3 links to Rfam database...	0.57	0.56	0.59	10	1936	7	2	5	0	8
RFA_00781	Gammaretro_CES links to Rfam database...	0.92	0.91	0.94	29	5019	3	2	0	1	3
RFA_00786	Gammaretro_CES links to Rfam database...	0.92	0.91	0.94	29	5019	3	2	0	1	3
RFA_00791	Gammaretro_CES links to Rfam database...	0.87	0.88	0.88	28	5119	5	2	2	1	4
RFA_00792	Gammaretro_CES links to Rfam database...	0.92	0.91	0.94	29	5019	3	2	0	1	3
RFA_00801	Gammaretro_CES links to Rfam database...	0.91	0.91	0.91	29	5018	4	2	1	1	3
RFA_00808	RydC links to Rfam database...	-0.01	0.00	0.00	0	2000	19	2	14	3	16
RFA_00809	RydC links to Rfam database...	0.30	0.31	0.29	5	2128	12	1	11	0	11
RFA_00814	R2_retro_el links to Rfam database...	0.95	0.93	0.97	38	25161	22	0	1	21	3
RFA_00815	R2_retro_el links to Rfam database...	0.96	0.93	1.00	38	24493	15	0	0	15	3
RFA_00816	R2_retro_el links to Rfam database...	0.96	0.93	1.00	38	23182	15	0	0	15	3
RFA_00817	R2_retro_el links to Rfam database...	0.94	0.88	1.00	36	21909	12	0	0	12	5
RFA_00818	R2_retro_el links to Rfam database...	0.64	0.68	0.61	28	20255	30	11	7	12	13
RFA_00819	R2_retro_el links to Rfam database...	0.94	0.90	0.97	37	27928	26	0	1	25	4
RFA_00820	bicoid_3 links to Rfam database...	0.88	0.88	0.87	141	151363	51	0	21	30	19
RFA_00830	bicoid_3 links to Rfam database...	0.61	0.59	0.63	91	152484	92	2	51	39	63
SRP_00079	Plant_SRP links to Rfam database...	0.68	0.66	0.71	58	41823	39	0	24	15	30
SRP_00124	Metazoa_SRP links to Rfam database...	0.60	0.55	0.64	47	37055	30	6	20	4	38
SRP_00137	Bacteria_small_SRP links to Rfam database...	0.60	0.64	0.57	16	4158	13	3	9	1	9
SRP_00141	Bacteria_small_SRP links to Rfam database...	0.81	0.73	0.91	30	6295	5	1	2	2	11
SRP_00146	Bacteria_small_SRP links to Rfam database...	0.82	0.75	0.90	27	5223	5	1	2	2	9
SRP_00182	Plant_SRP links to Rfam database...	0.84	0.83	0.85	84	45957	25	0	15	10	17
SRP_00197	Archaea_SRP links to Rfam database...	0.92	0.90	0.94	91	49358	24	0	6	18	10
SRP_00198	Archaea_SRP links to Rfam database...	0.90	0.87	0.92	90	50942	24	0	8	16	13
SRP_00199	Archaea_SRP links to Rfam database...	0.89	0.88	0.91	92	50939	21	0	9	12	13
SRP_00202	Archaea_SRP links to Rfam database...	0.89	0.85	0.93	100	54178	16	0	7	9	17
SRP_00241	Plant_SRP links to Rfam database...	0.50	0.51	0.49	42	45970	54	8	36	10	40
SRP_00255	Archaea_SRP links to Rfam database...	0.74	0.76	0.73	71	47489	40	1	25	14	23
SRP_00260	Metazoa_SRP links to Rfam database...	0.50	0.47	0.53	47	47806	44	6	36	2	53
SRP_00278	Archaea_SRP links to Rfam database...	0.73	0.69	0.77	72	45963	26	0	21	5	33
SRP_00285	Bacteria_small_SRP links to Rfam database...	0.86	0.80	0.92	24	3715	3	0	2	1	6
SRP_00322	Archaea_SRP links to Rfam database...	0.79	0.75	0.83	82	48417	26	0	17	9	27
SRP_00328	Metazoa_SRP links to Rfam database...	0.64	0.60	0.69	51	39547	31	4	19	8	34
SRP_00329	Metazoa_SRP links to Rfam database...	0.63	0.60	0.65	51	39825	35	4	23	8	34
SRP_00338	Bacteria_small_SRP links to Rfam database...	0.75	0.72	0.79	26	5427	8	0	7	1	10
SRP_00339	Archaea_SRP links to Rfam database...	0.78	0.78	0.78	73	44458	27	4	16	7	21
SRP_00340	Metazoa_SRP links to Rfam database...	0.58	0.56	0.60	46	41251	43	4	27	12	36

^top

Performance of Murlet(seed) - scored lower in this pairwise comparison

1. Total counts & total scores for Murlet(seed)

Total Base Pair Counts
Total TP	1738
Total TN	2789495
Total FP	489
Total FP CONTRA	21
Total FP INCONS	385
Total FP COMP	83
Total FN	3090

Total Scores
MCC	0.540
Average MCC ± 95% Confidence Intervals	0.396 ± 0.065
Sensitivity	0.360
Positive Predictive Value	0.811
Nr of predictions	123

^top

2. Individual counts for Murlet(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
CRW_01343	SSU_rRNA_archaea links to Rfam database...	0.64	0.61	0.68	263	977515	145	6	117	22	171
PDB_00005	Tymo_tRNA-like links to Rfam database...	0.53	0.29	1.00	4	942	2	0	0	2	10
PDB_00012	mir-TAR links to Rfam database...	0.65	0.43	1.00	3	403	0	0	0	0	4
PDB_00213	Gammaretro_CES links to Rfam database...	0.73	0.59	0.92	24	5024	2	0	2	0	17
PDB_00553	mir-TAR links to Rfam database...	0.45	0.27	0.75	3	461	1	0	1	0	8
PDB_00716	HDV_ribozyme links to Rfam database...	0.23	0.13	0.43	3	2694	4	0	4	0	20
PDB_00810	s2m links to Rfam database...	0.63	0.53	0.75	9	1069	3	0	3	0	8
PDB_01050	UnaL2 links to Rfam database...	0.55	0.31	1.00	4	626	1	0	0	1	9
PDB_01051	Telomerase-cil links to Rfam database...	0.00	0.00	0.00	0	903	0	0	0	0	13
PDB_01092	glmS links to Rfam database...	0.69	0.48	1.00	25	10128	0	0	0	0	27
PDB_01152	HIV_FS2 links to Rfam database...	0.76	0.64	0.90	9	551	1	0	1	0	5
RFA_00390	Hammerhead_3 links to Rfam database...	0.00	0.00	0.00	0	1431	0	0	0	0	15
RFA_00416	Hammerhead_3 links to Rfam database...	0.00	0.00	0.00	0	1485	0	0	0	0	15
RFA_00433	Hammerhead_3 links to Rfam database...	0.00	0.00	0.00	0	1431	0	0	0	0	15
RFA_00587	Y_RNA links to Rfam database...	0.00	0.00	0.00	0	4851	0	0	0	0	15
RFA_00603	Telomerase-cil links to Rfam database...	0.00	0.00	0.00	0	13530	0	0	0	0	35
RFA_00604	Telomerase-cil links to Rfam database...	0.00	0.00	0.00	0	13530	0	0	0	0	35
RFA_00605	Telomerase-cil links to Rfam database...	0.00	0.00	0.00	0	15225	0	0	0	0	35
RFA_00606	Telomerase-cil links to Rfam database...	0.00	0.00	0.00	0	21321	0	0	0	0	39
RFA_00607	Telomerase-cil links to Rfam database...	0.00	0.00	0.00	0	17766	0	0	0	0	36
RFA_00609	Telomerase-cil links to Rfam database...	0.00	0.00	0.00	0	17955	0	0	0	0	37
RFA_00610	Telomerase-cil links to Rfam database...	0.00	0.00	0.00	0	17205	0	0	0	0	37
RFA_00611	Telomerase-cil links to Rfam database...	0.00	0.00	0.00	0	13041	0	0	0	0	35
RFA_00613	Telomerase-cil links to Rfam database...	0.00	0.00	0.00	0	12880	0	0	0	0	35
RFA_00615	Telomerase-cil links to Rfam database...	0.00	0.00	0.00	0	13366	0	0	0	0	35
RFA_00620	Telomerase-cil links to Rfam database...	0.00	0.00	0.00	0	21945	0	0	0	0	39
RFA_00626	rne5 links to Rfam database...	0.81	0.66	1.00	57	56559	4	0	0	4	30
RFA_00627	rne5 links to Rfam database...	0.84	0.70	1.00	61	56892	5	0	0	5	26
RFA_00628	rne5 links to Rfam database...	0.83	0.69	1.00	59	57232	8	0	0	8	27
RFA_00630	rne5 links to Rfam database...	0.82	0.67	1.00	58	56895	4	0	0	4	29
RFA_00632	HDV_ribozyme links to Rfam database...	0.21	0.11	0.43	3	4088	4	0	4	0	25
RFA_00636	HDV_ribozyme links to Rfam database...	0.21	0.11	0.43	3	3998	4	0	4	0	25
RFA_00639	7SK links to Rfam database...	0.21	0.11	0.40	10	54590	15	4	11	0	77
RFA_00642	Vimentin3 links to Rfam database...	0.57	0.44	0.73	8	2915	3	0	3	0	10
RFA_00643	Vimentin3 links to Rfam database...	-0.01	0.00	0.00	0	2203	8	0	8	0	18
RFA_00644	Vimentin3 links to Rfam database...	0.42	0.33	0.55	6	2690	5	0	5	0	12
RFA_00645	Vimentin3 links to Rfam database...	0.00	0.00	0.00	0	2407	8	0	8	0	18
RFA_00649	Vimentin3 links to Rfam database...	-0.01	0.00	0.00	0	2137	8	0	8	0	18
RFA_00651	Vimentin3 links to Rfam database...	0.42	0.33	0.55	6	2069	5	0	5	0	12
RFA_00653	Vimentin3 links to Rfam database...	-0.01	0.00	0.00	0	2137	8	0	8	0	18
RFA_00654	Vimentin3 links to Rfam database...	0.57	0.44	0.73	8	2404	3	0	3	0	10
RFA_00658	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	1128	0	0	0	0	14
RFA_00659	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	1128	0	0	0	0	14
RFA_00664	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	990	0	0	0	0	14
RFA_00667	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	990	0	0	0	0	14
RFA_00668	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	990	0	0	0	0	14
RFA_00672	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	903	0	0	0	0	13
RFA_00673	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	1128	0	0	0	0	14
RFA_00674	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	1128	0	0	0	0	14
RFA_00675	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	990	0	0	0	0	14
RFA_00677	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	990	0	0	0	0	14
RFA_00678	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	946	0	0	0	0	14
RFA_00680	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	1128	0	0	0	0	14
RFA_00684	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	990	0	0	0	0	14
RFA_00685	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	990	0	0	0	0	14
RFA_00695	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	7021	0	0	0	0	14
RFA_00703	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	4278	0	0	0	0	14
RFA_00704	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	990	0	0	0	0	14
RFA_00705	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	1035	0	0	0	0	14
RFA_00706	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	1035	0	0	0	0	14
RFA_00707	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	1035	0	0	0	0	14
RFA_00708	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	1035	0	0	0	0	14
RFA_00709	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	990	0	0	0	0	14
RFA_00710	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	990	0	0	0	0	14
RFA_00711	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	1035	0	0	0	0	14
RFA_00715	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	946	0	0	0	0	14
RFA_00716	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	946	0	0	0	0	14
RFA_00717	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	903	0	0	0	0	14
RFA_00730	s2m links to Rfam database...	1.00	1.00	1.00	12	891	0	0	0	0	0
RFA_00731	s2m links to Rfam database...	1.00	1.00	1.00	12	891	0	0	0	0	0
RFA_00733	s2m links to Rfam database...	1.00	1.00	1.00	12	891	0	0	0	0	0
RFA_00734	s2m links to Rfam database...	1.00	1.00	1.00	12	891	0	0	0	0	0
RFA_00736	s2m links to Rfam database...	1.00	1.00	1.00	12	891	0	0	0	0	0
RFA_00737	s2m links to Rfam database...	1.00	1.00	1.00	12	891	0	0	0	0	0
RFA_00745	s2m links to Rfam database...	1.00	1.00	1.00	12	934	0	0	0	0	0
RFA_00749	s2m links to Rfam database...	1.00	1.00	1.00	12	891	0	0	0	0	0
RFA_00758	s2m links to Rfam database...	1.00	1.00	1.00	12	891	0	0	0	0	0
RFA_00762	s2m links to Rfam database...	1.00	1.00	1.00	12	891	0	0	0	0	0
RFA_00763	s2m links to Rfam database...	1.00	1.00	1.00	12	891	0	0	0	0	0
RFA_00764	s2m links to Rfam database...	1.00	1.00	1.00	12	891	0	0	0	0	0
RFA_00765	s2m links to Rfam database...	1.00	1.00	1.00	12	891	0	0	0	0	0
RFA_00767	Corona_pk3 links to Rfam database...	0.47	0.33	0.67	6	1882	3	0	3	0	12
RFA_00768	Corona_pk3 links to Rfam database...	0.41	0.28	0.63	5	1883	3	0	3	0	13
RFA_00769	Corona_pk3 links to Rfam database...	0.57	0.44	0.73	8	1942	3	0	3	0	10
RFA_00770	Corona_pk3 links to Rfam database...	0.57	0.44	0.73	8	2005	3	0	3	0	10
RFA_00773	Corona_pk3 links to Rfam database...	0.41	0.28	0.63	5	1945	3	0	3	0	13
RFA_00779	Corona_pk3 links to Rfam database...	0.47	0.33	0.67	6	1944	3	0	3	0	12
RFA_00781	Gammaretro_CES links to Rfam database...	0.83	0.75	0.92	24	5024	2	0	2	0	8
RFA_00786	Gammaretro_CES links to Rfam database...	0.83	0.75	0.92	24	5024	2	0	2	0	8
RFA_00791	Gammaretro_CES links to Rfam database...	0.83	0.75	0.92	24	5125	2	0	2	0	8
RFA_00792	Gammaretro_CES links to Rfam database...	0.83	0.75	0.92	24	5024	2	0	2	0	8
RFA_00801	Gammaretro_CES links to Rfam database...	0.80	0.72	0.88	23	5024	3	0	3	0	9
RFA_00808	RydC links to Rfam database...	0.75	0.56	1.00	9	2007	0	0	0	0	7
RFA_00809	RydC links to Rfam database...	0.50	0.38	0.67	6	2136	3	0	3	0	10
RFA_00814	R2_retro_el links to Rfam database...	0.75	0.63	0.90	26	25171	4	0	3	1	15
RFA_00815	R2_retro_el links to Rfam database...	0.83	0.68	1.00	28	24503	1	0	0	1	13
RFA_00816	R2_retro_el links to Rfam database...	0.75	0.63	0.90	26	23191	4	0	3	1	15
RFA_00817	R2_retro_el links to Rfam database...	0.83	0.68	1.00	28	21917	1	0	0	1	13
RFA_00818	R2_retro_el links to Rfam database...	0.83	0.68	1.00	28	20273	1	0	0	1	13
RFA_00819	R2_retro_el links to Rfam database...	0.83	0.68	1.00	28	27938	0	0	0	0	13
RFA_00820	bicoid_3 links to Rfam database...	0.71	0.56	0.89	90	151424	13	3	8	2	70
RFA_00830	bicoid_3 links to Rfam database...	0.59	0.45	0.78	70	152538	23	3	17	3	84
SRP_00079	Plant_SRP links to Rfam database...	0.54	0.33	0.88	29	41872	6	0	4	2	59
SRP_00124	Metazoa_SRP links to Rfam database...	0.15	0.09	0.24	8	37094	27	3	23	1	77
SRP_00137	Bacteria_small_SRP links to Rfam database...	0.49	0.24	1.00	6	4180	0	0	0	0	19
SRP_00141	Bacteria_small_SRP links to Rfam database...	0.35	0.12	1.00	5	6323	1	0	0	1	36
SRP_00146	Bacteria_small_SRP links to Rfam database...	0.41	0.17	1.00	6	5247	0	0	0	0	30
SRP_00182	Plant_SRP links to Rfam database...	0.59	0.35	1.00	35	46021	1	0	0	1	66
SRP_00197	Archaea_SRP links to Rfam database...	0.47	0.28	0.80	28	49420	8	0	7	1	73
SRP_00198	Archaea_SRP links to Rfam database...	0.47	0.27	0.82	28	51006	7	0	6	1	75
SRP_00199	Archaea_SRP links to Rfam database...	0.47	0.24	0.93	25	51013	3	0	2	1	80
SRP_00202	Archaea_SRP links to Rfam database...	0.48	0.25	0.94	29	54254	2	0	2	0	88
SRP_00241	Plant_SRP links to Rfam database...	0.51	0.33	0.79	27	46022	9	0	7	2	55
SRP_00255	Archaea_SRP links to Rfam database...	0.65	0.43	1.00	40	47546	2	0	0	2	54
SRP_00260	Metazoa_SRP links to Rfam database...	0.21	0.14	0.33	14	47852	29	1	28	0	86
SRP_00278	Archaea_SRP links to Rfam database...	0.53	0.30	0.94	31	46023	3	0	2	1	74
SRP_00285	Bacteria_small_SRP links to Rfam database...	0.45	0.20	1.00	6	3735	0	0	0	0	24
SRP_00322	Archaea_SRP links to Rfam database...	0.44	0.25	0.79	27	48482	8	0	7	1	82
SRP_00328	Metazoa_SRP links to Rfam database...	0.49	0.34	0.71	29	39580	16	1	11	4	56
SRP_00329	Metazoa_SRP links to Rfam database...	0.50	0.34	0.73	29	39863	16	0	11	5	56
SRP_00338	Bacteria_small_SRP links to Rfam database...	0.41	0.17	1.00	6	5454	0	0	0	0	30
SRP_00339	Archaea_SRP links to Rfam database...	0.49	0.32	0.77	30	44512	9	0	9	0	64
SRP_00340	Metazoa_SRP links to Rfam database...	0.44	0.27	0.73	22	41298	12	0	8	4	60

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.

Table of contents:

Overview

Performance plots

Performance of MXScarna(seed) - scored higher in this pairwise comparison

1. Total counts & total scores for MXScarna(seed)

2. Individual counts for MXScarna(seed) [ download as .csv ]

Performance of Murlet(seed) - scored lower in this pairwise comparison

1. Total counts & total scores for Murlet(seed)

2. Individual counts for Murlet(seed) [ download as .csv ]
