Overview

Metric	Multilign(seed)		RNASLOpt
MCC	0.681	>	0.478
Average MCC ± 95% Confidence Intervals	0.547 ± 0.131	>	0.498 ± 0.098
Sensitivity	0.649	>	0.457
Positive Predictive Value	0.717	>	0.502
Total TP	576	>	406
Total TN	406244	>	406239
Total FP	315	<	463
Total FP CONTRA	48	<	90
Total FP INCONS	179	<	312
Total FP COMP	88	>	61
Total FN	312	<	482
P-value	4.94031556815e-08

^top

Performance plots

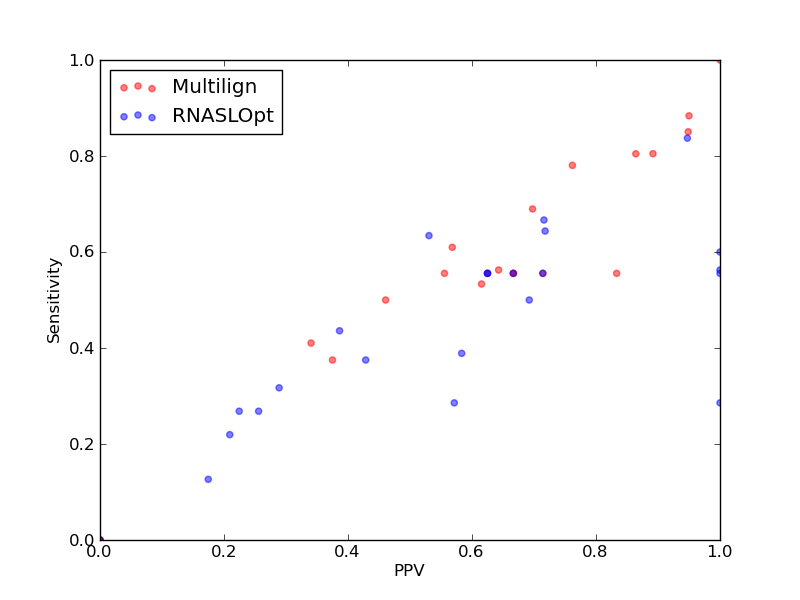

Comparison of performance of Multilign(seed) and RNASLOpt. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for Multilign(seed) and RNASLOpt).

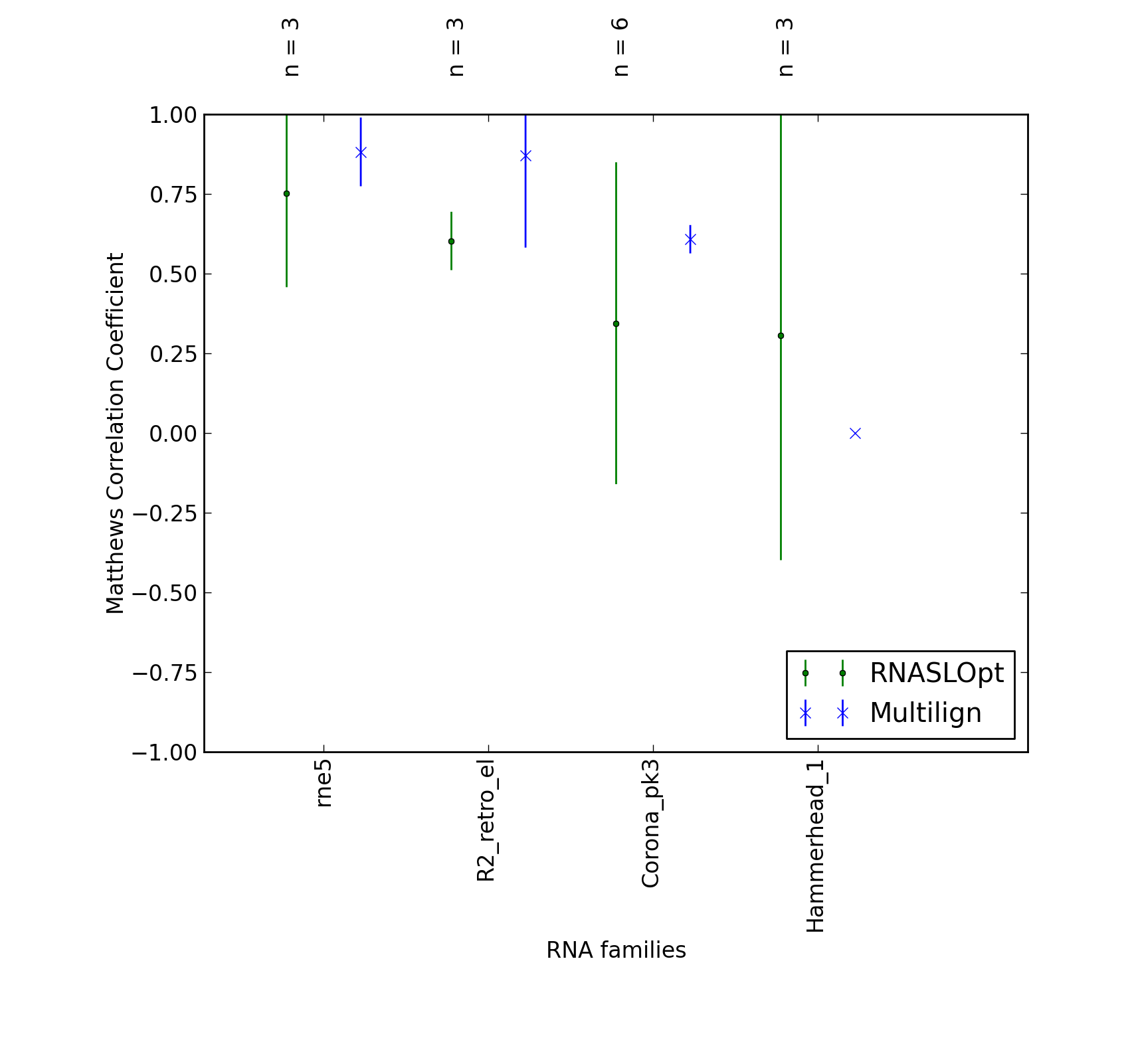

Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for Multilign(seed) and RNASLOpt).

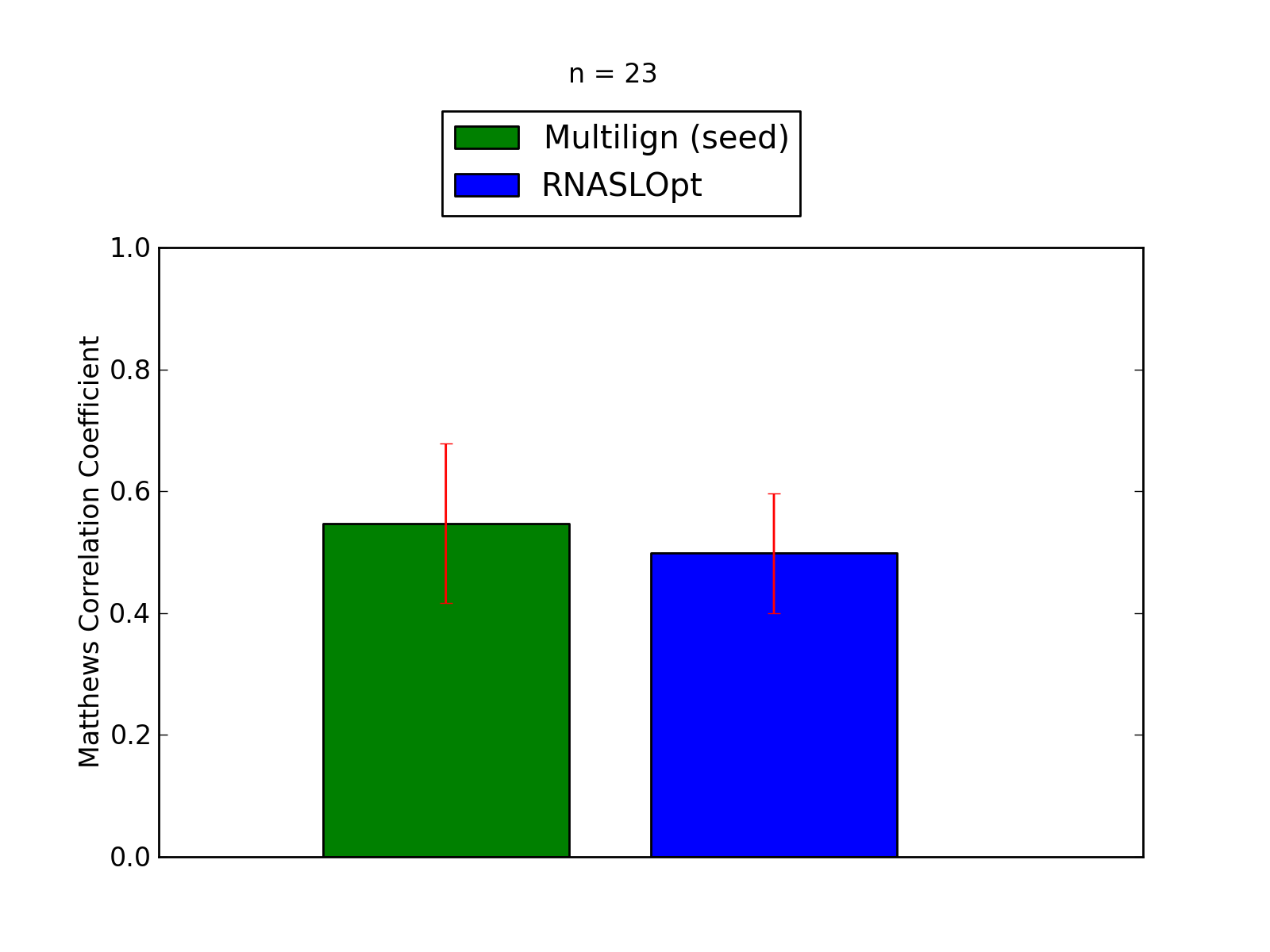

Comparison of average Matthews Correlation Coefficients (MCCs) for Multilign(seed) and RNASLOpt. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for Multilign(seed) and RNASLOpt).

^top

Performance of Multilign(seed) - scored higher in this pairwise comparison

1. Total counts & total scores for Multilign(seed)

Total Base Pair Counts
Total TP	576
Total TN	406244
Total FP	315
Total FP CONTRA	48
Total FP INCONS	179
Total FP COMP	88
Total FN	312

Total Scores
MCC	0.681
Average MCC ± 95% Confidence Intervals	0.547 ± 0.131
Sensitivity	0.649
Positive Predictive Value	0.717
Nr of predictions	23

^top

2. Individual counts for Multilign(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
RFA_00416	Hammerhead_3 links to Rfam database...	0.57	0.53	0.62	8	1472	6	1	4	1	7
RFA_00619	-	0.37	0.41	0.34	16	22744	36	12	19	5	23
RFA_00626	rne5 links to Rfam database...	0.90	0.85	0.95	74	56538	20	0	4	16	13
RFA_00628	rne5 links to Rfam database...	0.92	0.88	0.95	76	57211	18	0	4	14	10
RFA_00630	rne5 links to Rfam database...	0.83	0.80	0.86	70	56872	29	0	11	18	17
RFA_00654	Vimentin3 links to Rfam database...	0.00	0.00	0.00	0	2414	1	0	1	0	18
RFA_00658	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	1128	0	0	0	0	14
RFA_00664	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	990	0	0	0	0	14
RFA_00708	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	1035	0	0	0	0	14
RFA_00767	Corona_pk3 links to Rfam database...	0.63	0.56	0.71	10	1877	4	0	4	0	8
RFA_00768	Corona_pk3 links to Rfam database...	0.61	0.56	0.67	10	1876	5	0	5	0	8
RFA_00769	Corona_pk3 links to Rfam database...	0.55	0.56	0.56	10	1935	8	3	5	0	8
RFA_00770	Corona_pk3 links to Rfam database...	0.68	0.56	0.83	10	2004	2	0	2	0	8
RFA_00773	Corona_pk3 links to Rfam database...	0.59	0.56	0.63	10	1937	6	1	5	0	8
RFA_00779	Corona_pk3 links to Rfam database...	0.61	0.56	0.67	10	1938	5	0	5	0	8
RFA_00808	RydC links to Rfam database...	0.60	0.56	0.64	9	2002	5	0	5	0	7
RFA_00809	RydC links to Rfam database...	0.37	0.38	0.38	6	2129	10	1	9	0	10
RFA_00816	R2_retro_el links to Rfam database...	1.00	1.00	1.00	41	23179	12	0	0	12	0
RFA_00817	R2_retro_el links to Rfam database...	0.77	0.78	0.76	32	21903	13	5	5	3	9
RFA_00818	R2_retro_el links to Rfam database...	0.85	0.80	0.89	33	20264	12	1	3	8	8
SRP_00241	Plant_SRP links to Rfam database...	0.48	0.50	0.46	41	45967	50	15	33	2	41
SRP_00331	Metazoa_SRP links to Rfam database...	0.69	0.69	0.70	60	37589	29	2	24	3	27
SRP_00340	Metazoa_SRP links to Rfam database...	0.59	0.61	0.57	50	41240	44	7	31	6	32

^top

Performance of RNASLOpt - scored lower in this pairwise comparison

1. Total counts & total scores for RNASLOpt

Total Base Pair Counts
Total TP	406
Total TN	406239
Total FP	463
Total FP CONTRA	90
Total FP INCONS	312
Total FP COMP	61
Total FN	482

Total Scores
MCC	0.478
Average MCC ± 95% Confidence Intervals	0.498 ± 0.098
Sensitivity	0.457
Positive Predictive Value	0.502
Nr of predictions	23

^top

2. Individual counts for RNASLOpt [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
RFA_00416	Hammerhead_3 links to Rfam database...	0.77	0.60	1.00	9	1476	1	0	0	1	6
RFA_00619	-	0.41	0.44	0.39	17	22747	41	8	19	14	22
RFA_00626	rne5 links to Rfam database...	0.68	0.64	0.72	56	56538	30	6	16	8	31
RFA_00628	rne5 links to Rfam database...	0.89	0.84	0.95	72	57215	15	0	4	11	14
RFA_00630	rne5 links to Rfam database...	0.69	0.67	0.72	58	56872	32	5	18	9	29
RFA_00654	Vimentin3 links to Rfam database...	0.59	0.50	0.69	9	2402	5	1	3	1	9
RFA_00658	Hammerhead_1 links to Rfam database...	0.40	0.29	0.57	4	1121	5	0	3	2	10
RFA_00664	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	980	11	0	10	1	14
RFA_00708	Hammerhead_1 links to Rfam database...	0.53	0.29	1.00	4	1031	0	0	0	0	10
RFA_00767	Corona_pk3 links to Rfam database...	0.63	0.56	0.71	10	1877	4	0	4	0	8
RFA_00768	Corona_pk3 links to Rfam database...	0.61	0.56	0.67	10	1876	5	0	5	0	8
RFA_00769	Corona_pk3 links to Rfam database...	0.59	0.56	0.63	10	1937	6	1	5	0	8
RFA_00770	Corona_pk3 links to Rfam database...	0.47	0.39	0.58	7	2004	5	1	4	0	11
RFA_00773	Corona_pk3 links to Rfam database...	0.59	0.56	0.63	10	1937	6	1	5	0	8
RFA_00779	Corona_pk3 links to Rfam database...	0.74	0.56	1.00	10	1943	0	0	0	0	8
RFA_00808	RydC links to Rfam database...	0.75	0.56	1.00	9	2007	0	0	0	0	7
RFA_00809	RydC links to Rfam database...	0.40	0.38	0.43	6	2131	8	1	7	0	10
RFA_00816	R2_retro_el links to Rfam database...	0.58	0.63	0.53	26	23171	26	13	10	3	15
RFA_00817	R2_retro_el links to Rfam database...	0.24	0.27	0.22	11	21896	42	12	26	4	30
RFA_00818	R2_retro_el links to Rfam database...	0.21	0.22	0.21	9	20258	39	14	20	5	32
SRP_00241	Plant_SRP links to Rfam database...	0.26	0.27	0.26	22	45970	66	14	50	2	60
SRP_00331	Metazoa_SRP links to Rfam database...	0.15	0.13	0.17	11	37612	52	1	51	0	76
SRP_00340	Metazoa_SRP links to Rfam database...	0.30	0.32	0.29	26	41238	64	12	52	0	56

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
