Overview

Metric	Murlet(seed)		McQFold
MCC	0.530	>	0.500
Average MCC ± 95% Confidence Intervals	0.394 ± 0.065	<	0.504 ± 0.056
Sensitivity	0.336	<	0.480
Positive Predictive Value	0.839	>	0.523
Total TP	1475	<	2111
Total TN	1811980	>	1809698
Total FP	344	<	2218
Total FP CONTRA	15	<	337
Total FP INCONS	268	<	1592
Total FP COMP	61	<	289
Total FN	2919	>	2283
P-value	3.85233844192e-08

^top

Performance plots

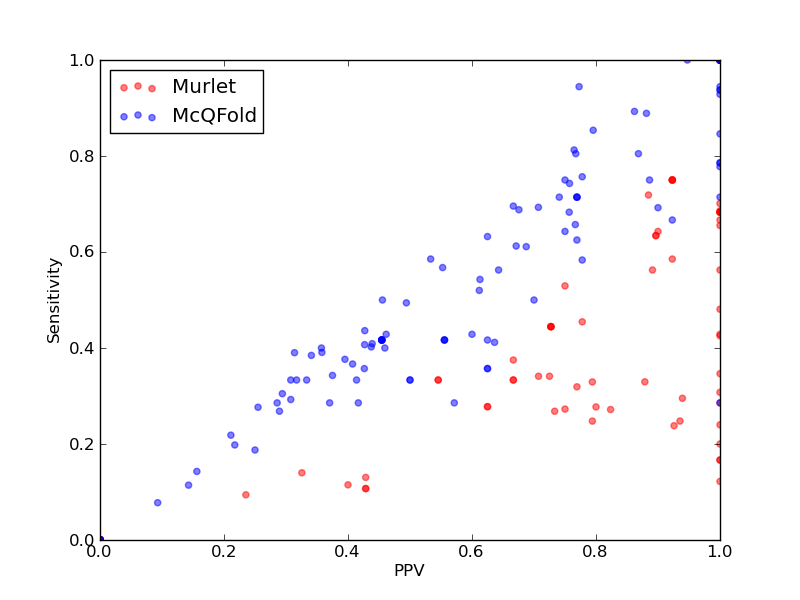

Comparison of performance of Murlet(seed) and McQFold. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for Murlet(seed) and McQFold).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for Murlet(seed) and McQFold).
Comparison of average Matthews Correlation Coefficients (MCCs) for Murlet(seed) and McQFold. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for Murlet(seed) and McQFold).

^top

Performance of Murlet(seed) - scored higher in this pairwise comparison

1. Total counts & total scores for Murlet(seed)

Total Base Pair Counts
Total TP	1475
Total TN	1811980
Total FP	344
Total FP CONTRA	15
Total FP INCONS	268
Total FP COMP	61
Total FN	2919

Total Scores
MCC	0.530
Average MCC ± 95% Confidence Intervals	0.394 ± 0.065
Sensitivity	0.336
Positive Predictive Value	0.839
Nr of predictions	122

^top

2. Individual counts for Murlet(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
PDB_00005	Tymo_tRNA-like links to Rfam database...	0.53	0.29	1.00	4	942	2	0	0	2	10
PDB_00012	mir-TAR links to Rfam database...	0.65	0.43	1.00	3	403	0	0	0	0	4
PDB_00213	Gammaretro_CES links to Rfam database...	0.73	0.59	0.92	24	5024	2	0	2	0	17
PDB_00553	mir-TAR links to Rfam database...	0.45	0.27	0.75	3	461	1	0	1	0	8
PDB_00716	HDV_ribozyme links to Rfam database...	0.23	0.13	0.43	3	2694	4	0	4	0	20
PDB_00810	s2m links to Rfam database...	0.63	0.53	0.75	9	1069	3	0	3	0	8
PDB_01050	UnaL2 links to Rfam database...	0.55	0.31	1.00	4	626	1	0	0	1	9
PDB_01051	Telomerase-cil links to Rfam database...	0.00	0.00	0.00	0	903	0	0	0	0	13
PDB_01092	glmS links to Rfam database...	0.69	0.48	1.00	25	10128	0	0	0	0	27
PDB_01152	HIV_FS2 links to Rfam database...	0.76	0.64	0.90	9	551	1	0	1	0	5
RFA_00390	Hammerhead_3 links to Rfam database...	0.00	0.00	0.00	0	1431	0	0	0	0	15
RFA_00416	Hammerhead_3 links to Rfam database...	0.00	0.00	0.00	0	1485	0	0	0	0	15
RFA_00433	Hammerhead_3 links to Rfam database...	0.00	0.00	0.00	0	1431	0	0	0	0	15
RFA_00587	Y_RNA links to Rfam database...	0.00	0.00	0.00	0	4851	0	0	0	0	15
RFA_00603	Telomerase-cil links to Rfam database...	0.00	0.00	0.00	0	13530	0	0	0	0	35
RFA_00604	Telomerase-cil links to Rfam database...	0.00	0.00	0.00	0	13530	0	0	0	0	35
RFA_00605	Telomerase-cil links to Rfam database...	0.00	0.00	0.00	0	15225	0	0	0	0	35
RFA_00606	Telomerase-cil links to Rfam database...	0.00	0.00	0.00	0	21321	0	0	0	0	39
RFA_00607	Telomerase-cil links to Rfam database...	0.00	0.00	0.00	0	17766	0	0	0	0	36
RFA_00609	Telomerase-cil links to Rfam database...	0.00	0.00	0.00	0	17955	0	0	0	0	37
RFA_00610	Telomerase-cil links to Rfam database...	0.00	0.00	0.00	0	17205	0	0	0	0	37
RFA_00611	Telomerase-cil links to Rfam database...	0.00	0.00	0.00	0	13041	0	0	0	0	35
RFA_00613	Telomerase-cil links to Rfam database...	0.00	0.00	0.00	0	12880	0	0	0	0	35
RFA_00615	Telomerase-cil links to Rfam database...	0.00	0.00	0.00	0	13366	0	0	0	0	35
RFA_00620	Telomerase-cil links to Rfam database...	0.00	0.00	0.00	0	21945	0	0	0	0	39
RFA_00626	rne5 links to Rfam database...	0.81	0.66	1.00	57	56559	4	0	0	4	30
RFA_00627	rne5 links to Rfam database...	0.84	0.70	1.00	61	56892	5	0	0	5	26
RFA_00628	rne5 links to Rfam database...	0.83	0.69	1.00	59	57232	8	0	0	8	27
RFA_00630	rne5 links to Rfam database...	0.82	0.67	1.00	58	56895	4	0	0	4	29
RFA_00632	HDV_ribozyme links to Rfam database...	0.21	0.11	0.43	3	4088	4	0	4	0	25
RFA_00636	HDV_ribozyme links to Rfam database...	0.21	0.11	0.43	3	3998	4	0	4	0	25
RFA_00639	7SK links to Rfam database...	0.21	0.11	0.40	10	54590	15	4	11	0	77
RFA_00642	Vimentin3 links to Rfam database...	0.57	0.44	0.73	8	2915	3	0	3	0	10
RFA_00643	Vimentin3 links to Rfam database...	-0.01	0.00	0.00	0	2203	8	0	8	0	18
RFA_00644	Vimentin3 links to Rfam database...	0.42	0.33	0.55	6	2690	5	0	5	0	12
RFA_00645	Vimentin3 links to Rfam database...	0.00	0.00	0.00	0	2407	8	0	8	0	18
RFA_00649	Vimentin3 links to Rfam database...	-0.01	0.00	0.00	0	2137	8	0	8	0	18
RFA_00651	Vimentin3 links to Rfam database...	0.42	0.33	0.55	6	2069	5	0	5	0	12
RFA_00653	Vimentin3 links to Rfam database...	-0.01	0.00	0.00	0	2137	8	0	8	0	18
RFA_00654	Vimentin3 links to Rfam database...	0.57	0.44	0.73	8	2404	3	0	3	0	10
RFA_00658	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	1128	0	0	0	0	14
RFA_00659	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	1128	0	0	0	0	14
RFA_00664	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	990	0	0	0	0	14
RFA_00667	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	990	0	0	0	0	14
RFA_00668	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	990	0	0	0	0	14
RFA_00672	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	903	0	0	0	0	13
RFA_00673	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	1128	0	0	0	0	14
RFA_00674	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	1128	0	0	0	0	14
RFA_00675	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	990	0	0	0	0	14
RFA_00677	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	990	0	0	0	0	14
RFA_00678	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	946	0	0	0	0	14
RFA_00680	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	1128	0	0	0	0	14
RFA_00684	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	990	0	0	0	0	14
RFA_00685	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	990	0	0	0	0	14
RFA_00695	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	7021	0	0	0	0	14
RFA_00703	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	4278	0	0	0	0	14
RFA_00704	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	990	0	0	0	0	14
RFA_00705	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	1035	0	0	0	0	14
RFA_00706	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	1035	0	0	0	0	14
RFA_00707	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	1035	0	0	0	0	14
RFA_00708	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	1035	0	0	0	0	14
RFA_00709	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	990	0	0	0	0	14
RFA_00710	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	990	0	0	0	0	14
RFA_00711	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	1035	0	0	0	0	14
RFA_00715	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	946	0	0	0	0	14
RFA_00716	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	946	0	0	0	0	14
RFA_00717	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	903	0	0	0	0	14
RFA_00730	s2m links to Rfam database...	1.00	1.00	1.00	12	891	0	0	0	0	0
RFA_00731	s2m links to Rfam database...	1.00	1.00	1.00	12	891	0	0	0	0	0
RFA_00733	s2m links to Rfam database...	1.00	1.00	1.00	12	891	0	0	0	0	0
RFA_00734	s2m links to Rfam database...	1.00	1.00	1.00	12	891	0	0	0	0	0
RFA_00736	s2m links to Rfam database...	1.00	1.00	1.00	12	891	0	0	0	0	0
RFA_00737	s2m links to Rfam database...	1.00	1.00	1.00	12	891	0	0	0	0	0
RFA_00745	s2m links to Rfam database...	1.00	1.00	1.00	12	934	0	0	0	0	0
RFA_00749	s2m links to Rfam database...	1.00	1.00	1.00	12	891	0	0	0	0	0
RFA_00758	s2m links to Rfam database...	1.00	1.00	1.00	12	891	0	0	0	0	0
RFA_00762	s2m links to Rfam database...	1.00	1.00	1.00	12	891	0	0	0	0	0
RFA_00763	s2m links to Rfam database...	1.00	1.00	1.00	12	891	0	0	0	0	0
RFA_00764	s2m links to Rfam database...	1.00	1.00	1.00	12	891	0	0	0	0	0
RFA_00765	s2m links to Rfam database...	1.00	1.00	1.00	12	891	0	0	0	0	0
RFA_00767	Corona_pk3 links to Rfam database...	0.47	0.33	0.67	6	1882	3	0	3	0	12
RFA_00768	Corona_pk3 links to Rfam database...	0.41	0.28	0.63	5	1883	3	0	3	0	13
RFA_00769	Corona_pk3 links to Rfam database...	0.57	0.44	0.73	8	1942	3	0	3	0	10
RFA_00770	Corona_pk3 links to Rfam database...	0.57	0.44	0.73	8	2005	3	0	3	0	10
RFA_00773	Corona_pk3 links to Rfam database...	0.41	0.28	0.63	5	1945	3	0	3	0	13
RFA_00779	Corona_pk3 links to Rfam database...	0.47	0.33	0.67	6	1944	3	0	3	0	12
RFA_00781	Gammaretro_CES links to Rfam database...	0.83	0.75	0.92	24	5024	2	0	2	0	8
RFA_00786	Gammaretro_CES links to Rfam database...	0.83	0.75	0.92	24	5024	2	0	2	0	8
RFA_00791	Gammaretro_CES links to Rfam database...	0.83	0.75	0.92	24	5125	2	0	2	0	8
RFA_00792	Gammaretro_CES links to Rfam database...	0.83	0.75	0.92	24	5024	2	0	2	0	8
RFA_00801	Gammaretro_CES links to Rfam database...	0.80	0.72	0.88	23	5024	3	0	3	0	9
RFA_00808	RydC links to Rfam database...	0.75	0.56	1.00	9	2007	0	0	0	0	7
RFA_00809	RydC links to Rfam database...	0.50	0.38	0.67	6	2136	3	0	3	0	10
RFA_00814	R2_retro_el links to Rfam database...	0.75	0.63	0.90	26	25171	4	0	3	1	15
RFA_00815	R2_retro_el links to Rfam database...	0.83	0.68	1.00	28	24503	1	0	0	1	13
RFA_00816	R2_retro_el links to Rfam database...	0.75	0.63	0.90	26	23191	4	0	3	1	15
RFA_00817	R2_retro_el links to Rfam database...	0.83	0.68	1.00	28	21917	1	0	0	1	13
RFA_00818	R2_retro_el links to Rfam database...	0.83	0.68	1.00	28	20273	1	0	0	1	13
RFA_00819	R2_retro_el links to Rfam database...	0.83	0.68	1.00	28	27938	0	0	0	0	13
RFA_00820	bicoid_3 links to Rfam database...	0.71	0.56	0.89	90	151424	13	3	8	2	70
RFA_00830	bicoid_3 links to Rfam database...	0.59	0.45	0.78	70	152538	23	3	17	3	84
SRP_00079	Plant_SRP links to Rfam database...	0.54	0.33	0.88	29	41872	6	0	4	2	59
SRP_00124	Metazoa_SRP links to Rfam database...	0.15	0.09	0.24	8	37094	27	3	23	1	77
SRP_00137	Bacteria_small_SRP links to Rfam database...	0.49	0.24	1.00	6	4180	0	0	0	0	19
SRP_00141	Bacteria_small_SRP links to Rfam database...	0.35	0.12	1.00	5	6323	1	0	0	1	36
SRP_00146	Bacteria_small_SRP links to Rfam database...	0.41	0.17	1.00	6	5247	0	0	0	0	30
SRP_00182	Plant_SRP links to Rfam database...	0.59	0.35	1.00	35	46021	1	0	0	1	66
SRP_00197	Archaea_SRP links to Rfam database...	0.47	0.28	0.80	28	49420	8	0	7	1	73
SRP_00198	Archaea_SRP links to Rfam database...	0.47	0.27	0.82	28	51006	7	0	6	1	75
SRP_00199	Archaea_SRP links to Rfam database...	0.47	0.24	0.93	25	51013	3	0	2	1	80
SRP_00202	Archaea_SRP links to Rfam database...	0.48	0.25	0.94	29	54254	2	0	2	0	88
SRP_00241	Plant_SRP links to Rfam database...	0.51	0.33	0.79	27	46022	9	0	7	2	55
SRP_00255	Archaea_SRP links to Rfam database...	0.65	0.43	1.00	40	47546	2	0	0	2	54
SRP_00260	Metazoa_SRP links to Rfam database...	0.21	0.14	0.33	14	47852	29	1	28	0	86
SRP_00278	Archaea_SRP links to Rfam database...	0.53	0.30	0.94	31	46023	3	0	2	1	74
SRP_00285	Bacteria_small_SRP links to Rfam database...	0.45	0.20	1.00	6	3735	0	0	0	0	24
SRP_00322	Archaea_SRP links to Rfam database...	0.44	0.25	0.79	27	48482	8	0	7	1	82
SRP_00328	Metazoa_SRP links to Rfam database...	0.49	0.34	0.71	29	39580	16	1	11	4	56
SRP_00329	Metazoa_SRP links to Rfam database...	0.50	0.34	0.73	29	39863	16	0	11	5	56
SRP_00338	Bacteria_small_SRP links to Rfam database...	0.41	0.17	1.00	6	5454	0	0	0	0	30
SRP_00339	Archaea_SRP links to Rfam database...	0.49	0.32	0.77	30	44512	9	0	9	0	64
SRP_00340	Metazoa_SRP links to Rfam database...	0.44	0.27	0.73	22	41298	12	0	8	4	60

^top

Performance of McQFold - scored lower in this pairwise comparison

1. Total counts & total scores for McQFold

Total Base Pair Counts
Total TP	2111
Total TN	1809698
Total FP	2218
Total FP CONTRA	337
Total FP INCONS	1592
Total FP COMP	289
Total FN	2283

Total Scores
MCC	0.500
Average MCC ± 95% Confidence Intervals	0.504 ± 0.056
Sensitivity	0.480
Positive Predictive Value	0.523
Nr of predictions	122

^top

2. Individual counts for McQFold [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
PDB_00005	Tymo_tRNA-like links to Rfam database...	0.88	0.79	1.00	11	935	0	0	0	0	3
PDB_00012	mir-TAR links to Rfam database...	1.00	1.00	1.00	7	399	3	0	0	3	0
PDB_00213	Gammaretro_CES links to Rfam database...	0.72	0.68	0.76	28	5013	9	0	9	0	13
PDB_00553	mir-TAR links to Rfam database...	1.00	1.00	1.00	11	454	0	0	0	0	0
PDB_00716	HDV_ribozyme links to Rfam database...	0.68	0.70	0.67	16	2677	9	0	8	1	7
PDB_00810	s2m links to Rfam database...	0.51	0.41	0.64	7	1070	4	2	2	0	10
PDB_01050	UnaL2 links to Rfam database...	0.92	0.85	1.00	11	619	2	0	0	2	2
PDB_01051	Telomerase-cil links to Rfam database...	0.79	0.69	0.90	9	893	2	0	1	1	4
PDB_01092	glmS links to Rfam database...	0.81	0.75	0.89	39	10109	6	1	4	1	13
PDB_01152	HIV_FS2 links to Rfam database...	0.88	0.79	1.00	11	550	0	0	0	0	3
RFA_00390	Hammerhead_3 links to Rfam database...	1.00	1.00	1.00	15	1416	2	0	0	2	0
RFA_00416	Hammerhead_3 links to Rfam database...	1.00	1.00	1.00	15	1470	4	0	0	4	0
RFA_00433	Hammerhead_3 links to Rfam database...	1.00	1.00	1.00	15	1416	2	0	0	2	0
RFA_00587	Y_RNA links to Rfam database...	1.00	1.00	1.00	15	4836	8	0	0	8	0
RFA_00603	Telomerase-cil links to Rfam database...	0.34	0.29	0.42	10	13506	15	4	10	1	25
RFA_00604	Telomerase-cil links to Rfam database...	0.71	0.66	0.77	23	13500	14	2	5	7	12
RFA_00605	Telomerase-cil links to Rfam database...	0.36	0.34	0.38	12	15193	31	3	17	11	23
RFA_00606	Telomerase-cil links to Rfam database...	0.32	0.33	0.32	13	21280	34	12	16	6	26
RFA_00607	Telomerase-cil links to Rfam database...	0.65	0.61	0.69	22	17734	17	3	7	7	14
RFA_00609	Telomerase-cil links to Rfam database...	0.77	0.76	0.78	28	17919	18	2	6	10	9
RFA_00610	Telomerase-cil links to Rfam database...	0.56	0.57	0.55	21	17167	25	2	15	8	16
RFA_00611	Telomerase-cil links to Rfam database...	0.58	0.54	0.61	19	13010	12	3	9	0	16
RFA_00613	Telomerase-cil links to Rfam database...	0.15	0.14	0.16	5	12848	27	6	21	0	30
RFA_00615	Telomerase-cil links to Rfam database...	0.32	0.29	0.37	10	13339	18	4	13	1	25
RFA_00620	Telomerase-cil links to Rfam database...	0.36	0.38	0.34	15	21901	37	4	25	8	24
RFA_00626	rne5 links to Rfam database...	0.21	0.22	0.21	19	56526	76	15	56	5	68
RFA_00627	rne5 links to Rfam database...	0.42	0.40	0.44	35	56873	47	13	32	2	52
RFA_00628	rne5 links to Rfam database...	0.42	0.41	0.43	35	57209	50	7	40	3	51
RFA_00630	rne5 links to Rfam database...	0.63	0.63	0.63	55	56865	41	6	27	8	32
RFA_00632	HDV_ribozyme links to Rfam database...	0.88	0.89	0.86	25	4066	4	3	1	0	3
RFA_00636	HDV_ribozyme links to Rfam database...	0.73	0.71	0.74	20	3978	7	5	2	0	8
RFA_00639	7SK links to Rfam database...	0.37	0.39	0.36	34	54520	66	13	48	5	53
RFA_00642	Vimentin3 links to Rfam database...	-0.01	0.00	0.00	0	2913	13	1	12	0	18
RFA_00643	Vimentin3 links to Rfam database...	-0.01	0.00	0.00	0	2196	15	1	14	0	18
RFA_00644	Vimentin3 links to Rfam database...	-0.01	0.00	0.00	0	2684	17	3	14	0	18
RFA_00645	Vimentin3 links to Rfam database...	-0.01	0.00	0.00	0	2403	12	3	9	0	18
RFA_00649	Vimentin3 links to Rfam database...	0.78	0.67	0.92	12	2132	1	0	1	0	6
RFA_00651	Vimentin3 links to Rfam database...	0.40	0.33	0.50	6	2068	6	0	6	0	12
RFA_00653	Vimentin3 links to Rfam database...	0.33	0.33	0.33	6	2127	12	3	9	0	12
RFA_00654	Vimentin3 links to Rfam database...	-0.01	0.00	0.00	0	2403	12	2	10	0	18
RFA_00658	Hammerhead_1 links to Rfam database...	0.59	0.50	0.70	7	1118	5	0	3	2	7
RFA_00659	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	1125	5	0	3	2	14
RFA_00664	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	980	11	0	10	1	14
RFA_00667	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	981	10	1	8	1	14
RFA_00668	Hammerhead_1 links to Rfam database...	0.50	0.43	0.60	6	980	4	0	4	0	8
RFA_00672	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	895	10	0	8	2	13
RFA_00673	Hammerhead_1 links to Rfam database...	0.47	0.36	0.63	5	1120	4	0	3	1	9
RFA_00674	Hammerhead_1 links to Rfam database...	0.96	0.93	1.00	13	1115	1	0	0	1	1
RFA_00675	Hammerhead_1 links to Rfam database...	0.28	0.29	0.29	4	976	10	1	9	0	10
RFA_00677	Hammerhead_1 links to Rfam database...	0.74	0.71	0.77	10	977	6	0	3	3	4
RFA_00678	Hammerhead_1 links to Rfam database...	0.53	0.29	1.00	4	942	0	0	0	0	10
RFA_00680	Hammerhead_1 links to Rfam database...	0.74	0.71	0.77	10	1115	6	0	3	3	4
RFA_00684	Hammerhead_1 links to Rfam database...	0.84	0.71	1.00	10	980	1	0	0	1	4
RFA_00685	Hammerhead_1 links to Rfam database...	0.47	0.36	0.63	5	982	4	0	3	1	9
RFA_00695	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	7007	29	4	10	15	14
RFA_00703	Hammerhead_1 links to Rfam database...	0.44	0.43	0.46	6	4265	19	1	6	12	8
RFA_00704	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	983	8	0	7	1	14
RFA_00705	Hammerhead_1 links to Rfam database...	0.74	0.71	0.77	10	1022	4	0	3	1	4
RFA_00706	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	1030	5	0	5	0	14
RFA_00707	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	1030	5	0	5	0	14
RFA_00708	Hammerhead_1 links to Rfam database...	0.40	0.29	0.57	4	1028	4	0	3	1	10
RFA_00709	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	984	7	0	6	1	14
RFA_00710	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	980	10	0	10	0	14
RFA_00711	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	1023	12	0	12	0	14
RFA_00715	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	936	10	0	10	0	14
RFA_00716	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	936	10	0	10	0	14
RFA_00717	Hammerhead_1 links to Rfam database...	0.69	0.64	0.75	9	891	3	0	3	0	5
RFA_00730	s2m links to Rfam database...	0.43	0.42	0.45	5	892	7	1	5	1	7
RFA_00731	s2m links to Rfam database...	0.48	0.42	0.56	5	894	5	1	3	1	7
RFA_00733	s2m links to Rfam database...	0.43	0.42	0.45	5	892	7	1	5	1	7
RFA_00734	s2m links to Rfam database...	0.67	0.58	0.78	7	894	3	0	2	1	5
RFA_00736	s2m links to Rfam database...	0.48	0.42	0.56	5	894	5	1	3	1	7
RFA_00737	s2m links to Rfam database...	0.43	0.42	0.45	5	892	7	0	6	1	7
RFA_00745	s2m links to Rfam database...	0.43	0.42	0.45	5	935	7	1	5	1	7
RFA_00749	s2m links to Rfam database...	0.48	0.42	0.56	5	894	5	1	3	1	7
RFA_00758	s2m links to Rfam database...	0.40	0.33	0.50	4	895	4	2	2	0	8
RFA_00762	s2m links to Rfam database...	0.31	0.33	0.31	4	890	9	2	7	0	8
RFA_00763	s2m links to Rfam database...	0.43	0.42	0.45	5	892	7	1	5	1	7
RFA_00764	s2m links to Rfam database...	0.43	0.42	0.45	5	892	7	1	5	1	7
RFA_00765	s2m links to Rfam database...	0.51	0.42	0.63	5	895	4	0	3	1	7
RFA_00767	Corona_pk3 links to Rfam database...	1.00	1.00	1.00	18	1873	0	0	0	0	0
RFA_00768	Corona_pk3 links to Rfam database...	1.00	1.00	1.00	18	1873	0	0	0	0	0
RFA_00769	Corona_pk3 links to Rfam database...	0.85	0.94	0.77	17	1931	5	4	1	0	1
RFA_00770	Corona_pk3 links to Rfam database...	0.88	0.78	1.00	14	2002	4	0	0	4	4
RFA_00773	Corona_pk3 links to Rfam database...	0.97	1.00	0.95	18	1934	5	1	0	4	0
RFA_00779	Corona_pk3 links to Rfam database...	0.97	0.94	1.00	17	1936	0	0	0	0	1
RFA_00781	Gammaretro_CES links to Rfam database...	0.97	0.94	1.00	30	5020	1	0	0	1	2
RFA_00786	Gammaretro_CES links to Rfam database...	0.21	0.19	0.25	6	5026	19	2	16	1	26
RFA_00791	Gammaretro_CES links to Rfam database...	0.60	0.56	0.64	18	5123	11	0	10	1	14
RFA_00792	Gammaretro_CES links to Rfam database...	0.97	0.94	1.00	30	5020	1	0	0	1	2
RFA_00801	Gammaretro_CES links to Rfam database...	0.69	0.63	0.77	20	5024	8	0	6	2	12
RFA_00808	RydC links to Rfam database...	1.00	1.00	1.00	16	2000	0	0	0	0	0
RFA_00809	RydC links to Rfam database...	0.79	0.81	0.76	13	2128	4	0	4	0	3
RFA_00814	R2_retro_el links to Rfam database...	0.79	0.80	0.77	33	25157	21	0	10	11	8
RFA_00815	R2_retro_el links to Rfam database...	0.56	0.59	0.53	24	24486	27	1	20	6	17
RFA_00816	R2_retro_el links to Rfam database...	0.82	0.85	0.80	35	23176	12	4	5	3	6
RFA_00817	R2_retro_el links to Rfam database...	0.35	0.39	0.31	16	21894	39	9	26	4	25
RFA_00818	R2_retro_el links to Rfam database...	0.28	0.27	0.29	11	20263	30	12	15	3	30
RFA_00819	R2_retro_el links to Rfam database...	0.30	0.29	0.31	12	27927	50	4	23	23	29
RFA_00820	bicoid_3 links to Rfam database...	0.64	0.61	0.67	98	151379	53	13	35	5	62
RFA_00830	bicoid_3 links to Rfam database...	0.39	0.36	0.43	55	152499	100	12	62	26	99
SRP_00079	Plant_SRP links to Rfam database...	0.42	0.41	0.44	36	41823	55	1	45	9	52
SRP_00124	Metazoa_SRP links to Rfam database...	0.43	0.40	0.46	34	37054	43	6	34	3	51
SRP_00137	Bacteria_small_SRP links to Rfam database...	0.37	0.40	0.36	10	4158	18	7	11	0	15
SRP_00141	Bacteria_small_SRP links to Rfam database...	0.84	0.80	0.87	33	6290	5	1	4	0	8
SRP_00146	Bacteria_small_SRP links to Rfam database...	0.37	0.33	0.41	12	5224	17	2	15	0	24
SRP_00182	Plant_SRP links to Rfam database...	0.70	0.69	0.71	70	45957	32	7	22	3	31
SRP_00197	Archaea_SRP links to Rfam database...	0.21	0.20	0.22	20	49363	73	10	62	1	81
SRP_00198	Archaea_SRP links to Rfam database...	0.08	0.08	0.09	8	50954	78	7	71	0	95
SRP_00199	Archaea_SRP links to Rfam database...	0.13	0.11	0.14	12	50956	72	6	66	0	93
SRP_00202	Archaea_SRP links to Rfam database...	0.88	0.89	0.88	104	54167	15	5	9	1	13
SRP_00241	Plant_SRP links to Rfam database...	0.30	0.30	0.29	25	45971	62	12	48	2	57
SRP_00255	Archaea_SRP links to Rfam database...	0.26	0.28	0.25	26	47484	76	14	62	0	68
SRP_00260	Metazoa_SRP links to Rfam database...	0.56	0.52	0.61	52	47810	36	7	26	3	48
SRP_00278	Archaea_SRP links to Rfam database...	0.75	0.74	0.76	78	45953	28	5	20	3	27
SRP_00285	Bacteria_small_SRP links to Rfam database...	0.38	0.37	0.41	11	3714	16	1	15	0	19
SRP_00322	Archaea_SRP links to Rfam database...	0.68	0.69	0.68	75	48405	36	4	32	0	34
SRP_00328	Metazoa_SRP links to Rfam database...	0.49	0.49	0.49	42	39536	43	10	33	0	43
SRP_00329	Metazoa_SRP links to Rfam database...	0.38	0.38	0.40	32	39822	50	8	41	1	53
SRP_00338	Bacteria_small_SRP links to Rfam database...	0.75	0.75	0.75	27	5424	9	3	6	0	9
SRP_00339	Archaea_SRP links to Rfam database...	0.43	0.44	0.43	41	44455	55	8	47	0	53
SRP_00340	Metazoa_SRP links to Rfam database...	0.48	0.50	0.46	41	41238	51	9	40	2	41

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.

Table of contents:

Overview

Performance plots

Performance of Murlet(seed) - scored higher in this pairwise comparison

1. Total counts & total scores for Murlet(seed)

2. Individual counts for Murlet(seed) [ download as .csv ]

Performance of McQFold - scored lower in this pairwise comparison

1. Total counts & total scores for McQFold

2. Individual counts for McQFold [ download as .csv ]
