Overview

Metric	PETfold_pre2.0(seed)		Multilign(seed)
MCC	0.757	>	0.698
Average MCC ± 95% Confidence Intervals	0.685 ± 0.096	>	0.555 ± 0.136
Sensitivity	0.709	>	0.660
Positive Predictive Value	0.809	>	0.741
Total TP	602	>	560
Total TN	383512	>	383500
Total FP	235	<	279
Total FP CONTRA	36	=	36
Total FP INCONS	106	<	160
Total FP COMP	93	>	83
Total FN	247	<	289
P-value	5.10776592382e-08

^top

Performance plots

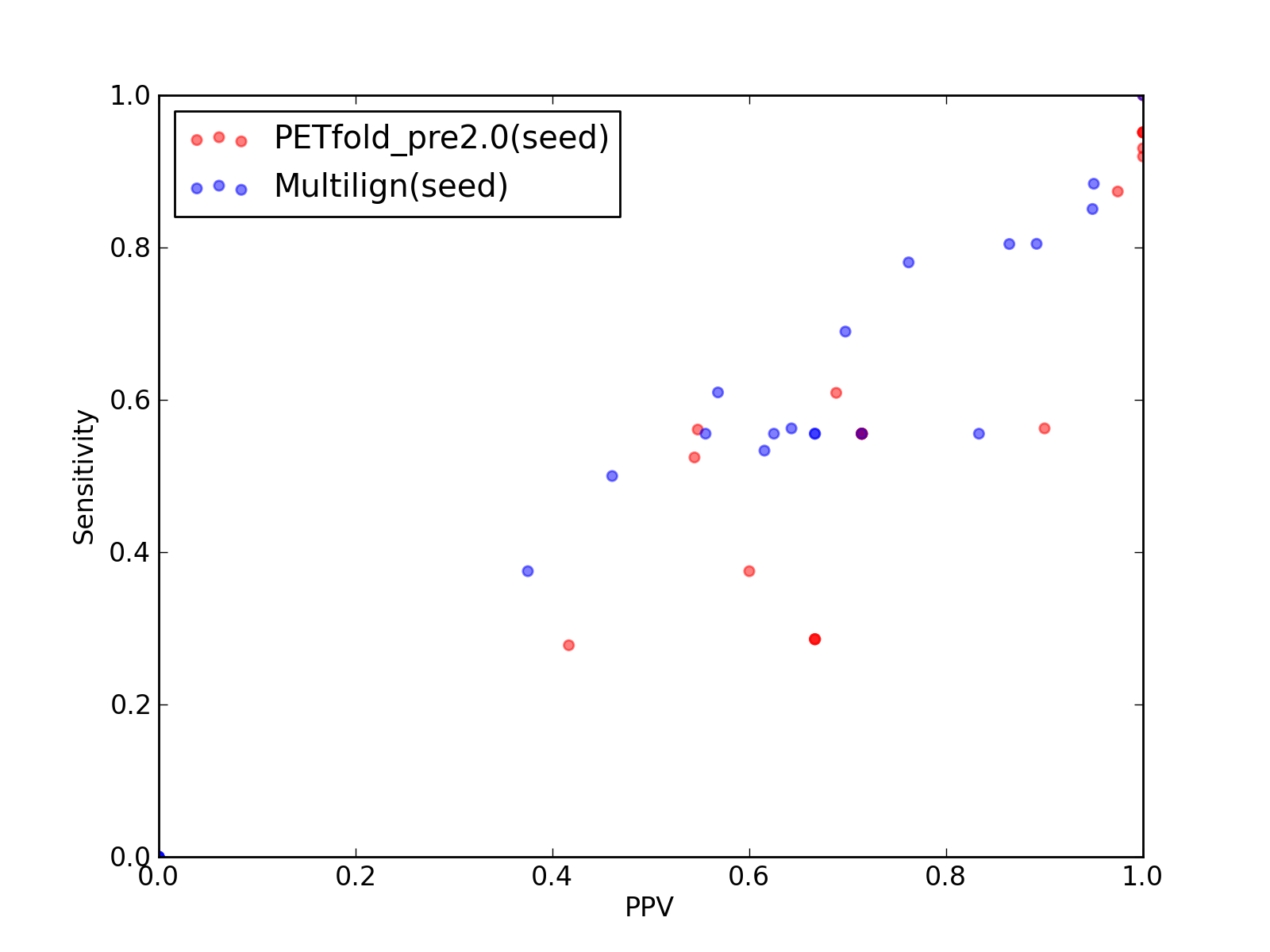

Comparison of performance of PETfold_pre2.0(seed) and Multilign(seed). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for PETfold_pre2.0(seed) and Multilign(seed)).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for PETfold_pre2.0(seed) and Multilign(seed)).

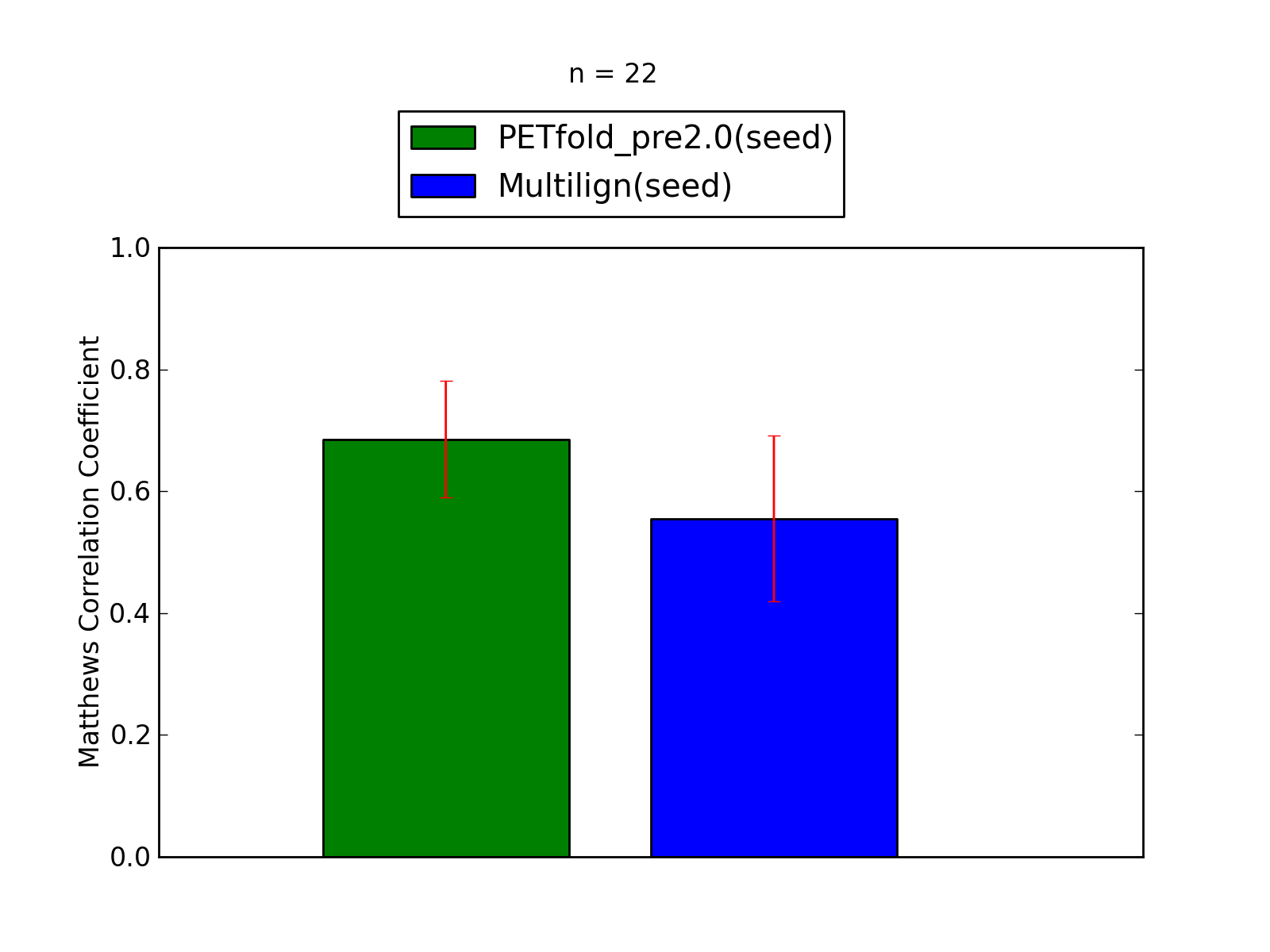

Comparison of average Matthews Correlation Coefficients (MCCs) for PETfold_pre2.0(seed) and Multilign(seed). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for PETfold_pre2.0(seed) and Multilign(seed)).

^top

Performance of PETfold_pre2.0(seed) - scored higher in this pairwise comparison

1. Total counts & total scores for PETfold_pre2.0(seed)

Total Base Pair Counts
Total TP	602
Total TN	383512
Total FP	235
Total FP CONTRA	36
Total FP INCONS	106
Total FP COMP	93
Total FN	247

Total Scores
MCC	0.757
Average MCC ± 95% Confidence Intervals	0.685 ± 0.096
Sensitivity	0.709
Positive Predictive Value	0.809
Nr of predictions	22

^top

2. Individual counts for PETfold_pre2.0(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
RFA_00416	Hammerhead_3 links to Rfam database...	1.00	1.00	1.00	15	1470	3	0	0	3	0
RFA_00626	rne5 links to Rfam database...	0.96	0.92	1.00	80	56536	7	0	0	7	7
RFA_00628	rne5 links to Rfam database...	0.96	0.93	1.00	80	57211	12	0	0	12	6
RFA_00630	rne5 links to Rfam database...	0.92	0.87	0.97	76	56875	17	0	2	15	11
RFA_00654	Vimentin3 links to Rfam database...	0.34	0.28	0.42	5	2403	7	0	7	0	13
RFA_00658	Hammerhead_1 links to Rfam database...	0.43	0.29	0.67	4	1122	3	0	2	1	10
RFA_00664	Hammerhead_1 links to Rfam database...	0.43	0.29	0.67	4	984	3	0	2	1	10
RFA_00708	Hammerhead_1 links to Rfam database...	0.43	0.29	0.67	4	1029	3	0	2	1	10
RFA_00767	Corona_pk3 links to Rfam database...	0.63	0.56	0.71	10	1877	4	3	1	0	8
RFA_00768	Corona_pk3 links to Rfam database...	0.63	0.56	0.71	10	1877	4	3	1	0	8
RFA_00769	Corona_pk3 links to Rfam database...	0.63	0.56	0.71	10	1939	4	3	1	0	8
RFA_00770	Corona_pk3 links to Rfam database...	0.63	0.56	0.71	10	2002	4	3	1	0	8
RFA_00773	Corona_pk3 links to Rfam database...	0.63	0.56	0.71	10	1939	4	3	1	0	8
RFA_00779	Corona_pk3 links to Rfam database...	0.63	0.56	0.71	10	1939	4	3	1	0	8
RFA_00808	RydC links to Rfam database...	0.71	0.56	0.90	9	2006	1	1	0	0	7
RFA_00809	RydC links to Rfam database...	0.47	0.38	0.60	6	2135	4	0	4	0	10
RFA_00816	R2_retro_el links to Rfam database...	0.98	0.95	1.00	39	23181	6	0	0	6	2
RFA_00817	R2_retro_el links to Rfam database...	0.98	0.95	1.00	39	21906	4	0	0	4	2
RFA_00818	R2_retro_el links to Rfam database...	0.98	0.95	1.00	39	20262	3	0	0	3	2
SRP_00241	Plant_SRP links to Rfam database...	0.55	0.56	0.55	46	45972	53	9	29	15	36
SRP_00331	Metazoa_SRP links to Rfam database...	0.65	0.61	0.69	53	37598	34	2	22	10	34
SRP_00340	Metazoa_SRP links to Rfam database...	0.53	0.52	0.54	43	41249	51	6	30	15	39

^top

Performance of Multilign(seed) - scored lower in this pairwise comparison

1. Total counts & total scores for Multilign(seed)

Total Base Pair Counts
Total TP	560
Total TN	383500
Total FP	279
Total FP CONTRA	36
Total FP INCONS	160
Total FP COMP	83
Total FN	289

Total Scores
MCC	0.698
Average MCC ± 95% Confidence Intervals	0.555 ± 0.136
Sensitivity	0.660
Positive Predictive Value	0.741
Nr of predictions	22

^top

2. Individual counts for Multilign(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
RFA_00416	Hammerhead_3 links to Rfam database...	0.57	0.53	0.62	8	1472	6	1	4	1	7
RFA_00626	rne5 links to Rfam database...	0.90	0.85	0.95	74	56538	20	0	4	16	13
RFA_00628	rne5 links to Rfam database...	0.92	0.88	0.95	76	57211	18	0	4	14	10
RFA_00630	rne5 links to Rfam database...	0.83	0.80	0.86	70	56872	29	0	11	18	17
RFA_00654	Vimentin3 links to Rfam database...	0.00	0.00	0.00	0	2414	1	0	1	0	18
RFA_00658	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	1128	0	0	0	0	14
RFA_00664	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	990	0	0	0	0	14
RFA_00708	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	1035	0	0	0	0	14
RFA_00767	Corona_pk3 links to Rfam database...	0.63	0.56	0.71	10	1877	4	0	4	0	8
RFA_00768	Corona_pk3 links to Rfam database...	0.61	0.56	0.67	10	1876	5	0	5	0	8
RFA_00769	Corona_pk3 links to Rfam database...	0.55	0.56	0.56	10	1935	8	3	5	0	8
RFA_00770	Corona_pk3 links to Rfam database...	0.68	0.56	0.83	10	2004	2	0	2	0	8
RFA_00773	Corona_pk3 links to Rfam database...	0.59	0.56	0.63	10	1937	6	1	5	0	8
RFA_00779	Corona_pk3 links to Rfam database...	0.61	0.56	0.67	10	1938	5	0	5	0	8
RFA_00808	RydC links to Rfam database...	0.60	0.56	0.64	9	2002	5	0	5	0	7
RFA_00809	RydC links to Rfam database...	0.37	0.38	0.38	6	2129	10	1	9	0	10
RFA_00816	R2_retro_el links to Rfam database...	1.00	1.00	1.00	41	23179	12	0	0	12	0
RFA_00817	R2_retro_el links to Rfam database...	0.77	0.78	0.76	32	21903	13	5	5	3	9
RFA_00818	R2_retro_el links to Rfam database...	0.85	0.80	0.89	33	20264	12	1	3	8	8
SRP_00241	Plant_SRP links to Rfam database...	0.48	0.50	0.46	41	45967	50	15	33	2	41
SRP_00331	Metazoa_SRP links to Rfam database...	0.69	0.69	0.70	60	37589	29	2	24	3	27
SRP_00340	Metazoa_SRP links to Rfam database...	0.59	0.61	0.57	50	41240	44	7	31	6	32

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
