Overview

Metric	RNAshapes		CMfinder(seed)
MCC	0.555	>	0.489
Average MCC ± 95% Confidence Intervals	0.530 ± 0.050	>	0.507 ± 0.045
Sensitivity	0.548	>	0.316
Positive Predictive Value	0.564	<	0.757
Total TP	3197	>	1847
Total TN	2595617	<	2598845
Total FP	2898	>	662
Total FP CONTRA	363	>	37
Total FP INCONS	2109	>	557
Total FP COMP	426	>	68
Total FN	2641	<	3991
P-value	3.56938820447e-08

^top

Performance plots

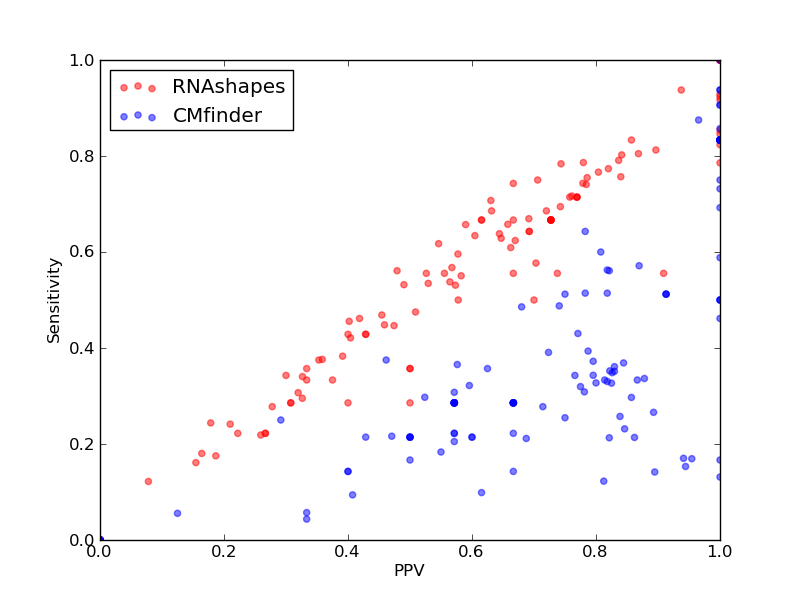

Comparison of performance of RNAshapes and CMfinder(seed). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for RNAshapes and CMfinder(seed)).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for RNAshapes and CMfinder(seed)).
Comparison of average Matthews Correlation Coefficients (MCCs) for RNAshapes and CMfinder(seed). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for RNAshapes and CMfinder(seed)).

^top

Performance of RNAshapes - scored higher in this pairwise comparison

1. Total counts & total scores for RNAshapes

Total Base Pair Counts
Total TP	3197
Total TN	2595617
Total FP	2898
Total FP CONTRA	363
Total FP INCONS	2109
Total FP COMP	426
Total FN	2641

Total Scores
MCC	0.555
Average MCC ± 95% Confidence Intervals	0.530 ± 0.050
Sensitivity	0.548
Positive Predictive Value	0.564
Nr of predictions	126

^top

2. Individual counts for RNAshapes [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
CRW_00016	Intron_gpI links to Rfam database...	0.49	0.48	0.51	57	77309	66	7	48	11	63
CRW_00610	Intron_gpI links to Rfam database...	0.55	0.53	0.57	43	36240	37	3	29	5	38
CRW_00613	Intron_gpI links to Rfam database...	0.64	0.58	0.70	45	34916	28	1	18	9	33
CRW_00618	Intron_gpI links to Rfam database...	0.17	0.18	0.16	11	56213	77	9	47	21	50
CRW_00633	Intron_gpI links to Rfam database...	0.55	0.54	0.56	57	63445	45	8	36	1	49
CRW_00634	Intron_gpI links to Rfam database...	0.33	0.34	0.33	32	64522	75	8	58	9	62
CRW_00670	Intron_gpI links to Rfam database...	0.74	0.72	0.76	86	70012	32	0	27	5	34
CRW_00671	Intron_gpI links to Rfam database...	0.65	0.62	0.67	73	62726	43	1	35	7	44
CRW_00672	Intron_gpI links to Rfam database...	0.66	0.66	0.66	73	72279	45	8	30	7	38
CRW_00674	Intron_gpI links to Rfam database...	0.68	0.67	0.69	83	83316	41	6	31	4	41
CRW_00676	Intron_gpI links to Rfam database...	0.58	0.62	0.55	71	93398	67	17	42	8	44
CRW_00692	Intron_gpI links to Rfam database...	0.43	0.46	0.40	41	68533	70	18	43	9	49
PDB_00005	Tymo_tRNA-like links to Rfam database...	0.88	0.79	1.00	11	935	0	0	0	0	3
PDB_00012	mir-TAR links to Rfam database...	1.00	1.00	1.00	7	399	3	0	0	3	0
PDB_00213	Gammaretro_CES links to Rfam database...	0.92	0.85	1.00	35	5015	0	0	0	0	6
PDB_00553	mir-TAR links to Rfam database...	1.00	1.00	1.00	11	454	0	0	0	0	0
PDB_00716	HDV_ribozyme links to Rfam database...	-0.01	0.00	0.00	0	2678	24	1	22	1	23
PDB_00810	s2m links to Rfam database...	0.91	0.82	1.00	14	1067	0	0	0	0	3
PDB_00827	Intron_gpI links to Rfam database...	0.64	0.56	0.74	45	26967	17	0	16	1	36
PDB_01050	UnaL2 links to Rfam database...	0.92	0.85	1.00	11	619	2	0	0	2	2
PDB_01051	Telomerase-cil links to Rfam database...	0.96	0.92	1.00	12	891	4	0	0	4	1
PDB_01092	glmS links to Rfam database...	0.54	0.50	0.58	26	10108	21	2	17	2	26
PDB_01152	HIV_FS2 links to Rfam database...	0.96	0.93	1.00	13	548	0	0	0	0	1
RFA_00603	Telomerase-cil links to Rfam database...	0.70	0.74	0.67	26	13491	16	4	9	3	9
RFA_00604	Telomerase-cil links to Rfam database...	0.73	0.71	0.76	25	13497	19	2	6	11	10
RFA_00605	Telomerase-cil links to Rfam database...	0.32	0.34	0.30	12	15185	37	3	25	9	23
RFA_00606	Telomerase-cil links to Rfam database...	0.67	0.67	0.67	26	21282	32	1	12	19	13
RFA_00607	Telomerase-cil links to Rfam database...	0.84	0.83	0.86	30	17731	16	1	4	11	6
RFA_00609	Telomerase-cil links to Rfam database...	0.76	0.78	0.74	29	17916	25	2	8	15	8
RFA_00610	Telomerase-cil links to Rfam database...	0.57	0.57	0.57	21	17168	27	2	14	11	16
RFA_00611	Telomerase-cil links to Rfam database...	0.62	0.66	0.59	23	13002	26	5	11	10	12
RFA_00613	Telomerase-cil links to Rfam database...	0.64	0.63	0.65	22	12846	15	4	8	3	13
RFA_00615	Telomerase-cil links to Rfam database...	0.66	0.69	0.63	24	13328	18	5	9	4	11
RFA_00620	Telomerase-cil links to Rfam database...	0.44	0.46	0.42	18	21902	36	7	18	11	21
RFA_00626	rne5 links to Rfam database...	0.45	0.45	0.46	39	56531	61	9	37	15	48
RFA_00627	rne5 links to Rfam database...	0.63	0.61	0.66	53	56873	42	4	23	15	34
RFA_00628	rne5 links to Rfam database...	0.82	0.80	0.84	69	57209	33	1	12	20	17
RFA_00632	HDV_ribozyme links to Rfam database...	0.34	0.36	0.33	10	4065	20	2	18	0	18
RFA_00636	HDV_ribozyme links to Rfam database...	0.42	0.43	0.43	12	3977	16	2	14	0	16
RFA_00639	7SK links to Rfam database...	0.22	0.24	0.21	21	54515	82	20	59	3	66
RFA_00642	Vimentin3 links to Rfam database...	0.24	0.22	0.27	4	2911	11	2	9	0	14
RFA_00643	Vimentin3 links to Rfam database...	0.24	0.22	0.27	4	2196	12	2	9	1	14
RFA_00644	Vimentin3 links to Rfam database...	-0.01	0.00	0.00	0	2681	20	4	16	0	18
RFA_00645	Vimentin3 links to Rfam database...	-0.01	0.00	0.00	0	2400	15	3	12	0	18
RFA_00649	Vimentin3 links to Rfam database...	0.22	0.22	0.22	4	2127	16	0	14	2	14
RFA_00651	Vimentin3 links to Rfam database...	0.35	0.33	0.38	6	2064	10	1	9	0	12
RFA_00653	Vimentin3 links to Rfam database...	0.33	0.33	0.33	6	2127	12	3	9	0	12
RFA_00654	Vimentin3 links to Rfam database...	0.27	0.28	0.28	5	2397	13	2	11	0	13
RFA_00658	Hammerhead_1 links to Rfam database...	0.59	0.50	0.70	7	1118	5	0	3	2	7
RFA_00659	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	1120	10	1	7	2	14
RFA_00664	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	980	11	0	10	1	14
RFA_00667	Hammerhead_1 links to Rfam database...	0.29	0.29	0.31	4	977	10	1	8	1	10
RFA_00668	Hammerhead_1 links to Rfam database...	0.41	0.43	0.40	6	975	9	0	9	0	8
RFA_00672	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	895	9	0	8	1	13
RFA_00673	Hammerhead_1 links to Rfam database...	0.42	0.36	0.50	5	1118	6	0	5	1	9
RFA_00674	Hammerhead_1 links to Rfam database...	0.74	0.71	0.77	10	1115	4	0	3	1	4
RFA_00675	Hammerhead_1 links to Rfam database...	0.29	0.29	0.31	4	977	9	1	8	0	10
RFA_00677	Hammerhead_1 links to Rfam database...	0.42	0.43	0.43	6	976	9	0	8	1	8
RFA_00678	Hammerhead_1 links to Rfam database...	0.43	0.29	0.67	4	940	2	0	2	0	10
RFA_00680	Hammerhead_1 links to Rfam database...	0.74	0.71	0.77	10	1115	6	0	3	3	4
RFA_00684	Hammerhead_1 links to Rfam database...	0.66	0.64	0.69	9	977	5	0	4	1	5
RFA_00685	Hammerhead_1 links to Rfam database...	0.42	0.36	0.50	5	980	6	0	5	1	9
RFA_00704	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	983	8	0	7	1	14
RFA_00705	Hammerhead_1 links to Rfam database...	0.74	0.71	0.77	10	1022	4	0	3	1	4
RFA_00706	Hammerhead_1 links to Rfam database...	0.37	0.29	0.50	4	1027	4	0	4	0	10
RFA_00707	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	1026	9	3	6	0	14
RFA_00708	Hammerhead_1 links to Rfam database...	0.40	0.29	0.57	4	1028	3	0	3	0	10
RFA_00709	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	982	9	0	8	1	14
RFA_00710	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	981	9	0	9	0	14
RFA_00711	Hammerhead_1 links to Rfam database...	0.33	0.29	0.40	4	1025	6	0	6	0	10
RFA_00715	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	936	10	0	10	0	14
RFA_00716	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	935	11	0	11	0	14
RFA_00717	Hammerhead_1 links to Rfam database...	0.66	0.64	0.69	9	890	4	0	4	0	5
RFA_00730	s2m links to Rfam database...	0.69	0.67	0.73	8	892	4	1	2	1	4
RFA_00731	s2m links to Rfam database...	0.69	0.67	0.73	8	892	4	1	2	1	4
RFA_00733	s2m links to Rfam database...	0.69	0.67	0.73	8	892	4	1	2	1	4
RFA_00734	s2m links to Rfam database...	0.64	0.67	0.62	8	890	5	1	4	0	4
RFA_00736	s2m links to Rfam database...	0.69	0.67	0.73	8	892	4	1	2	1	4
RFA_00737	s2m links to Rfam database...	1.00	1.00	1.00	12	891	1	0	0	1	0
RFA_00745	s2m links to Rfam database...	1.00	1.00	1.00	12	934	1	0	0	1	0
RFA_00749	s2m links to Rfam database...	0.69	0.67	0.73	8	892	4	1	2	1	4
RFA_00758	s2m links to Rfam database...	0.96	0.92	1.00	11	892	0	0	0	0	1
RFA_00762	s2m links to Rfam database...	0.64	0.67	0.62	8	890	5	1	4	0	4
RFA_00763	s2m links to Rfam database...	1.00	1.00	1.00	12	891	0	0	0	0	0
RFA_00764	s2m links to Rfam database...	0.69	0.67	0.73	8	892	4	1	2	1	4
RFA_00765	s2m links to Rfam database...	1.00	1.00	1.00	12	891	1	0	0	1	0
RFA_00769	Corona_pk3 links to Rfam database...	0.54	0.56	0.53	10	1934	9	4	5	0	8
RFA_00770	Corona_pk3 links to Rfam database...	0.61	0.56	0.67	10	2001	8	0	5	3	8
RFA_00773	Corona_pk3 links to Rfam database...	0.71	0.56	0.91	10	1942	4	1	0	3	8
RFA_00779	Corona_pk3 links to Rfam database...	0.55	0.56	0.56	10	1935	8	3	5	0	8
RFA_00781	Gammaretro_CES links to Rfam database...	0.73	0.75	0.71	24	5016	10	2	8	0	8
RFA_00786	Gammaretro_CES links to Rfam database...	0.23	0.22	0.26	7	5023	20	1	19	0	25
RFA_00791	Gammaretro_CES links to Rfam database...	0.46	0.47	0.45	15	5118	18	6	12	0	17
RFA_00792	Gammaretro_CES links to Rfam database...	0.94	0.94	0.94	30	5018	4	0	2	2	2
RFA_00801	Gammaretro_CES links to Rfam database...	0.85	0.81	0.90	26	5021	4	0	3	1	6
RFA_00808	RydC links to Rfam database...	-0.01	0.00	0.00	0	2001	15	2	13	0	16
RFA_00809	RydC links to Rfam database...	0.36	0.38	0.35	6	2128	11	1	10	0	10
RFA_00814	R2_retro_el links to Rfam database...	0.62	0.63	0.60	26	25157	26	6	11	9	15
RFA_00815	R2_retro_el links to Rfam database...	0.67	0.71	0.63	29	24485	31	1	16	14	12
RFA_00816	R2_retro_el links to Rfam database...	0.21	0.24	0.18	10	23164	47	18	28	1	31
RFA_00817	R2_retro_el links to Rfam database...	0.10	0.12	0.08	5	21881	60	21	38	1	36
RFA_00818	R2_retro_el links to Rfam database...	0.52	0.56	0.48	23	20253	31	9	16	6	18
RFA_00819	R2_retro_el links to Rfam database...	0.84	0.80	0.87	33	27928	36	0	5	31	8
SRP_00016	Archaea_SRP links to Rfam database...	0.76	0.74	0.78	81	47791	24	1	22	1	28
SRP_00130	Archaea_SRP links to Rfam database...	0.18	0.18	0.19	17	49679	74	10	64	0	80
SRP_00142	Archaea_SRP links to Rfam database...	0.16	0.16	0.15	15	45959	84	8	74	2	78
SRP_00143	Archaea_SRP links to Rfam database...	0.37	0.38	0.36	38	49664	70	6	62	2	63
SRP_00144	Archaea_SRP links to Rfam database...	0.39	0.38	0.39	36	46573	60	8	48	4	58
SRP_00197	Archaea_SRP links to Rfam database...	0.31	0.31	0.32	31	49358	67	4	62	1	70
SRP_00198	Archaea_SRP links to Rfam database...	0.46	0.45	0.47	46	50943	56	3	48	5	57
SRP_00199	Archaea_SRP links to Rfam database...	0.31	0.30	0.33	31	50945	67	3	61	3	74
SRP_00201	Archaea_SRP links to Rfam database...	0.80	0.76	0.84	84	47795	19	1	15	3	27
SRP_00202	Archaea_SRP links to Rfam database...	0.78	0.79	0.78	92	54167	30	3	23	4	25
SRP_00203	Archaea_SRP links to Rfam database...	0.64	0.64	0.64	67	48724	44	2	35	7	38
SRP_00204	Archaea_SRP links to Rfam database...	0.77	0.75	0.79	77	49043	22	5	16	1	25
SRP_00206	Archaea_SRP links to Rfam database...	0.76	0.74	0.78	80	47793	24	5	17	2	28
SRP_00208	Archaea_SRP links to Rfam database...	0.53	0.53	0.53	54	46563	49	10	38	1	47
SRP_00255	Archaea_SRP links to Rfam database...	0.59	0.60	0.58	56	47489	47	2	39	6	38
SRP_00276	Archaea_SRP links to Rfam database...	0.81	0.79	0.84	87	50617	18	0	17	1	23
SRP_00278	Archaea_SRP links to Rfam database...	0.70	0.69	0.72	72	45956	30	3	25	2	33
SRP_00321	Archaea_SRP links to Rfam database...	0.72	0.69	0.74	75	47485	28	3	23	2	33
SRP_00322	Archaea_SRP links to Rfam database...	0.57	0.55	0.58	60	48413	44	3	40	1	49
SRP_00323	Archaea_SRP links to Rfam database...	0.78	0.77	0.80	82	47176	23	0	20	3	25
SRP_00330	Archaea_SRP links to Rfam database...	0.41	0.42	0.40	40	49987	61	5	54	2	55
SRP_00332	Archaea_SRP links to Rfam database...	0.80	0.77	0.82	82	50303	19	1	17	1	24
SRP_00339	Archaea_SRP links to Rfam database...	0.51	0.53	0.49	50	44449	54	8	44	2	44

^top

Performance of CMfinder(seed) - scored lower in this pairwise comparison

1. Total counts & total scores for CMfinder(seed)

Total Base Pair Counts
Total TP	1847
Total TN	2598845
Total FP	662
Total FP CONTRA	37
Total FP INCONS	557
Total FP COMP	68
Total FN	3991

Total Scores
MCC	0.489
Average MCC ± 95% Confidence Intervals	0.507 ± 0.045
Sensitivity	0.316
Positive Predictive Value	0.757
Nr of predictions	126

^top

2. Individual counts for CMfinder(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
CRW_00016	Intron_gpI links to Rfam database...	0.36	0.14	0.89	17	77402	2	0	2	0	103
CRW_00610	Intron_gpI links to Rfam database...	0.49	0.31	0.78	25	36283	7	1	6	0	56
CRW_00613	Intron_gpI links to Rfam database...	0.54	0.33	0.87	26	34950	4	0	4	0	52
CRW_00618	Intron_gpI links to Rfam database...	0.36	0.13	1.00	8	56272	0	0	0	0	53
CRW_00633	Intron_gpI links to Rfam database...	0.32	0.12	0.81	13	63530	3	1	2	0	93
CRW_00634	Intron_gpI links to Rfam database...	0.40	0.17	0.94	16	64603	1	0	1	0	78
CRW_00670	Intron_gpI links to Rfam database...	0.32	0.18	0.55	22	70085	18	0	18	0	98
CRW_00671	Intron_gpI links to Rfam database...	0.20	0.09	0.41	11	62808	16	0	16	0	106
CRW_00672	Intron_gpI links to Rfam database...	0.38	0.15	0.94	17	72372	1	0	1	0	94
CRW_00674	Intron_gpI links to Rfam database...	0.40	0.17	0.95	21	83414	1	0	1	0	103
CRW_00676	Intron_gpI links to Rfam database...	0.12	0.04	0.33	5	93513	10	1	9	0	110
CRW_00692	Intron_gpI links to Rfam database...	0.41	0.17	1.00	15	68620	0	0	0	0	75
PDB_00005	Tymo_tRNA-like links to Rfam database...	0.47	0.36	0.63	5	938	3	0	3	0	9
PDB_00012	mir-TAR links to Rfam database...	1.00	1.00	1.00	7	399	2	0	0	2	0
PDB_00213	Gammaretro_CES links to Rfam database...	0.85	0.73	1.00	30	5020	0	0	0	0	11
PDB_00553	mir-TAR links to Rfam database...	0.00	0.00	0.00	0	465	0	0	0	0	11
PDB_00716	HDV_ribozyme links to Rfam database...	-0.01	0.00	0.00	0	2688	13	0	13	0	23
PDB_00810	s2m links to Rfam database...	0.76	0.59	1.00	10	1071	0	0	0	0	7
PDB_00827	Intron_gpI links to Rfam database...	0.25	0.10	0.62	8	27015	5	0	5	0	73
PDB_01050	UnaL2 links to Rfam database...	0.68	0.46	1.00	6	624	1	0	0	1	7
PDB_01051	Telomerase-cil links to Rfam database...	0.83	0.69	1.00	9	894	4	0	0	4	4
PDB_01092	glmS links to Rfam database...	0.38	0.21	0.69	11	10137	6	0	5	1	41
PDB_01152	HIV_FS2 links to Rfam database...	0.92	0.86	1.00	12	549	0	0	0	0	2
RFA_00603	Telomerase-cil links to Rfam database...	0.70	0.60	0.81	21	13504	7	0	5	2	14
RFA_00604	Telomerase-cil links to Rfam database...	0.63	0.51	0.78	18	13507	8	0	5	3	17
RFA_00605	Telomerase-cil links to Rfam database...	0.14	0.06	0.33	2	15219	5	0	4	1	33
RFA_00606	Telomerase-cil links to Rfam database...	0.34	0.21	0.57	8	21307	8	2	4	2	31
RFA_00607	Telomerase-cil links to Rfam database...	0.08	0.06	0.13	2	17750	15	3	11	1	34
RFA_00609	Telomerase-cil links to Rfam database...	0.32	0.22	0.47	8	17938	12	2	7	3	29
RFA_00610	Telomerase-cil links to Rfam database...	0.39	0.30	0.52	11	17184	13	2	8	3	26
RFA_00611	Telomerase-cil links to Rfam database...	0.65	0.51	0.82	18	13019	5	0	4	1	17
RFA_00613	Telomerase-cil links to Rfam database...	0.70	0.57	0.87	20	12857	4	0	3	1	15
RFA_00615	Telomerase-cil links to Rfam database...	0.57	0.49	0.68	17	13341	10	0	8	2	18
RFA_00620	Telomerase-cil links to Rfam database...	0.00	0.00	0.00	0	21939	6	0	6	0	39
RFA_00626	rne5 links to Rfam database...	0.44	0.32	0.60	28	56569	22	2	17	3	59
RFA_00627	rne5 links to Rfam database...	0.53	0.39	0.72	34	56906	15	3	10	2	53
RFA_00628	rne5 links to Rfam database...	0.58	0.43	0.77	37	57243	14	3	8	3	49
RFA_00632	HDV_ribozyme links to Rfam database...	0.27	0.25	0.29	7	4071	17	0	17	0	21
RFA_00636	HDV_ribozyme links to Rfam database...	0.71	0.64	0.78	18	3982	5	2	3	0	10
RFA_00639	7SK links to Rfam database...	0.00	0.00	0.00	0	54575	44	6	34	4	87
RFA_00642	Vimentin3 links to Rfam database...	0.44	0.28	0.71	5	2919	2	0	2	0	13
RFA_00643	Vimentin3 links to Rfam database...	-0.01	0.00	0.00	0	2203	8	0	8	0	18
RFA_00644	Vimentin3 links to Rfam database...	0.00	0.00	0.00	0	2693	8	0	8	0	18
RFA_00645	Vimentin3 links to Rfam database...	0.29	0.17	0.50	3	2409	3	0	3	0	15
RFA_00649	Vimentin3 links to Rfam database...	0.35	0.22	0.57	4	2138	3	0	3	0	14
RFA_00651	Vimentin3 links to Rfam database...	0.35	0.22	0.57	4	2073	3	0	3	0	14
RFA_00653	Vimentin3 links to Rfam database...	-0.01	0.00	0.00	0	2137	8	0	8	0	18
RFA_00654	Vimentin3 links to Rfam database...	0.38	0.22	0.67	4	2409	2	0	2	0	14
RFA_00658	Hammerhead_1 links to Rfam database...	0.40	0.29	0.57	4	1121	4	0	3	1	10
RFA_00659	Hammerhead_1 links to Rfam database...	0.23	0.14	0.40	2	1123	4	0	3	1	12
RFA_00664	Hammerhead_1 links to Rfam database...	0.40	0.29	0.57	4	983	4	0	3	1	10
RFA_00667	Hammerhead_1 links to Rfam database...	0.40	0.29	0.57	4	983	4	0	3	1	10
RFA_00668	Hammerhead_1 links to Rfam database...	0.35	0.21	0.60	3	985	3	0	2	1	11
RFA_00672	Hammerhead_1 links to Rfam database...	0.41	0.31	0.57	4	896	3	0	3	0	9
RFA_00673	Hammerhead_1 links to Rfam database...	0.23	0.14	0.40	2	1123	4	0	3	1	12
RFA_00674	Hammerhead_1 links to Rfam database...	0.40	0.29	0.57	4	1121	4	0	3	1	10
RFA_00675	Hammerhead_1 links to Rfam database...	0.35	0.21	0.60	3	985	3	0	2	1	11
RFA_00677	Hammerhead_1 links to Rfam database...	0.40	0.29	0.57	4	983	4	0	3	1	10
RFA_00678	Hammerhead_1 links to Rfam database...	0.43	0.29	0.67	4	940	3	0	2	1	10
RFA_00680	Hammerhead_1 links to Rfam database...	0.40	0.29	0.57	4	1121	4	0	3	1	10
RFA_00684	Hammerhead_1 links to Rfam database...	0.43	0.29	0.67	4	984	3	0	2	1	10
RFA_00685	Hammerhead_1 links to Rfam database...	0.32	0.21	0.50	3	984	4	0	3	1	11
RFA_00704	Hammerhead_1 links to Rfam database...	0.32	0.21	0.50	3	984	4	0	3	1	11
RFA_00705	Hammerhead_1 links to Rfam database...	0.40	0.29	0.57	4	1028	4	0	3	1	10
RFA_00706	Hammerhead_1 links to Rfam database...	0.43	0.29	0.67	4	1029	3	0	2	1	10
RFA_00707	Hammerhead_1 links to Rfam database...	0.43	0.29	0.67	4	1029	3	0	2	1	10
RFA_00708	Hammerhead_1 links to Rfam database...	0.40	0.29	0.57	4	1028	4	0	3	1	10
RFA_00709	Hammerhead_1 links to Rfam database...	0.32	0.21	0.50	3	984	4	0	3	1	11
RFA_00710	Hammerhead_1 links to Rfam database...	0.32	0.21	0.50	3	984	3	0	3	0	11
RFA_00711	Hammerhead_1 links to Rfam database...	0.43	0.29	0.67	4	1029	3	0	2	1	10
RFA_00715	Hammerhead_1 links to Rfam database...	0.30	0.14	0.67	2	943	2	0	1	1	12
RFA_00716	Hammerhead_1 links to Rfam database...	0.43	0.29	0.67	4	940	3	0	2	1	10
RFA_00717	Hammerhead_1 links to Rfam database...	0.30	0.21	0.43	3	896	4	0	4	0	11
RFA_00730	s2m links to Rfam database...	0.91	0.83	1.00	10	893	0	0	0	0	2
RFA_00731	s2m links to Rfam database...	0.91	0.83	1.00	10	893	0	0	0	0	2
RFA_00733	s2m links to Rfam database...	0.91	0.83	1.00	10	893	0	0	0	0	2
RFA_00734	s2m links to Rfam database...	0.91	0.83	1.00	10	893	0	0	0	0	2
RFA_00736	s2m links to Rfam database...	0.91	0.83	1.00	10	893	0	0	0	0	2
RFA_00737	s2m links to Rfam database...	0.91	0.83	1.00	10	893	0	0	0	0	2
RFA_00745	s2m links to Rfam database...	0.91	0.83	1.00	10	936	0	0	0	0	2
RFA_00749	s2m links to Rfam database...	0.91	0.83	1.00	10	893	0	0	0	0	2
RFA_00758	s2m links to Rfam database...	0.86	0.75	1.00	9	894	0	0	0	0	3
RFA_00762	s2m links to Rfam database...	0.91	0.83	1.00	10	893	0	0	0	0	2
RFA_00763	s2m links to Rfam database...	0.91	0.83	1.00	10	893	0	0	0	0	2
RFA_00764	s2m links to Rfam database...	0.91	0.83	1.00	10	893	0	0	0	0	2
RFA_00765	s2m links to Rfam database...	0.91	0.83	1.00	10	893	0	0	0	0	2
RFA_00769	Corona_pk3 links to Rfam database...	0.71	0.50	1.00	9	1944	0	0	0	0	9
RFA_00770	Corona_pk3 links to Rfam database...	0.71	0.50	1.00	9	2007	0	0	0	0	9
RFA_00773	Corona_pk3 links to Rfam database...	0.00	0.00	0.00	0	1949	4	0	4	0	18
RFA_00779	Corona_pk3 links to Rfam database...	0.71	0.50	1.00	9	1944	0	0	0	0	9
RFA_00781	Gammaretro_CES links to Rfam database...	0.97	0.94	1.00	30	5020	0	0	0	0	2
RFA_00786	Gammaretro_CES links to Rfam database...	0.95	0.91	1.00	29	5021	0	0	0	0	3
RFA_00791	Gammaretro_CES links to Rfam database...	0.92	0.88	0.97	28	5122	1	0	1	0	4
RFA_00792	Gammaretro_CES links to Rfam database...	0.97	0.94	1.00	30	5020	0	0	0	0	2
RFA_00801	Gammaretro_CES links to Rfam database...	0.95	0.91	1.00	29	5021	0	0	0	0	3
RFA_00808	RydC links to Rfam database...	0.68	0.56	0.82	9	2005	2	0	2	0	7
RFA_00809	RydC links to Rfam database...	0.41	0.38	0.46	6	2132	7	1	6	0	10
RFA_00814	R2_retro_el links to Rfam database...	0.68	0.51	0.91	21	25177	2	0	2	0	20
RFA_00815	R2_retro_el links to Rfam database...	0.68	0.51	0.91	21	24508	2	0	2	0	20
RFA_00816	R2_retro_el links to Rfam database...	0.68	0.51	0.91	21	23197	2	0	2	0	20
RFA_00817	R2_retro_el links to Rfam database...	0.68	0.56	0.82	23	21917	5	0	5	0	18
RFA_00818	R2_retro_el links to Rfam database...	0.60	0.49	0.74	20	20274	8	1	6	1	21
RFA_00819	R2_retro_el links to Rfam database...	0.62	0.51	0.75	21	27938	7	0	7	0	20
SRP_00016	Archaea_SRP links to Rfam database...	0.54	0.35	0.83	38	47849	8	0	8	0	71
SRP_00130	Archaea_SRP links to Rfam database...	0.50	0.32	0.78	31	49730	10	1	8	1	66
SRP_00142	Archaea_SRP links to Rfam database...	0.46	0.37	0.58	34	45997	26	1	24	1	59
SRP_00143	Archaea_SRP links to Rfam database...	0.50	0.30	0.86	30	49735	5	0	5	0	71
SRP_00144	Archaea_SRP links to Rfam database...	0.54	0.37	0.80	35	46621	11	0	9	2	59
SRP_00197	Archaea_SRP links to Rfam database...	0.46	0.26	0.84	26	49424	5	0	5	0	75
SRP_00198	Archaea_SRP links to Rfam database...	0.56	0.37	0.84	38	50995	7	0	7	0	65
SRP_00199	Archaea_SRP links to Rfam database...	0.54	0.35	0.82	37	50995	8	0	8	0	68
SRP_00201	Archaea_SRP links to Rfam database...	0.54	0.35	0.83	39	47848	8	0	8	0	72
SRP_00202	Archaea_SRP links to Rfam database...	0.43	0.21	0.86	25	54256	4	0	4	0	92
SRP_00203	Archaea_SRP links to Rfam database...	0.51	0.34	0.77	36	48781	12	0	11	1	69
SRP_00204	Archaea_SRP links to Rfam database...	0.52	0.34	0.80	35	49097	9	1	8	0	67
SRP_00206	Archaea_SRP links to Rfam database...	0.55	0.36	0.83	39	47848	8	0	8	0	69
SRP_00208	Archaea_SRP links to Rfam database...	0.52	0.33	0.83	33	46625	7	1	6	0	68
SRP_00255	Archaea_SRP links to Rfam database...	0.49	0.27	0.89	25	47558	3	0	3	0	69
SRP_00276	Archaea_SRP links to Rfam database...	0.51	0.33	0.80	36	50676	9	0	9	0	74
SRP_00278	Archaea_SRP links to Rfam database...	0.52	0.33	0.81	35	46013	8	0	8	0	70
SRP_00321	Archaea_SRP links to Rfam database...	0.42	0.21	0.82	23	47558	5	1	4	0	85
SRP_00322	Archaea_SRP links to Rfam database...	0.52	0.33	0.82	36	48472	8	0	8	0	73
SRP_00323	Archaea_SRP links to Rfam database...	0.54	0.34	0.88	36	47237	5	0	5	0	71
SRP_00330	Archaea_SRP links to Rfam database...	0.44	0.23	0.85	22	50060	5	0	4	1	73
SRP_00332	Archaea_SRP links to Rfam database...	0.44	0.25	0.75	27	50367	9	0	9	0	79
SRP_00339	Archaea_SRP links to Rfam database...	0.56	0.39	0.79	37	44504	10	2	8	0	57

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.

Table of contents:

Overview

Performance plots

Performance of RNAshapes - scored higher in this pairwise comparison

1. Total counts & total scores for RNAshapes

2. Individual counts for RNAshapes [ download as .csv ]

Performance of CMfinder(seed) - scored lower in this pairwise comparison

1. Total counts & total scores for CMfinder(seed)

2. Individual counts for CMfinder(seed) [ download as .csv ]
