Overview

Metric	RSpredict(20)		Murlet(seed)
MCC	0.748	>	0.631
Average MCC ± 95% Confidence Intervals	0.767 ± 0.048	>	0.475 ± 0.133
Sensitivity	0.667	>	0.418
Positive Predictive Value	0.844	<	0.956
Total TP	556	>	349
Total TN	121844	<	122138
Total FP	143	>	19
Total FP CONTRA	6	>	0
Total FP INCONS	97	>	16
Total FP COMP	40	>	3
Total FN	278	<	485
P-value	5.23657817852e-08

^top

Performance plots

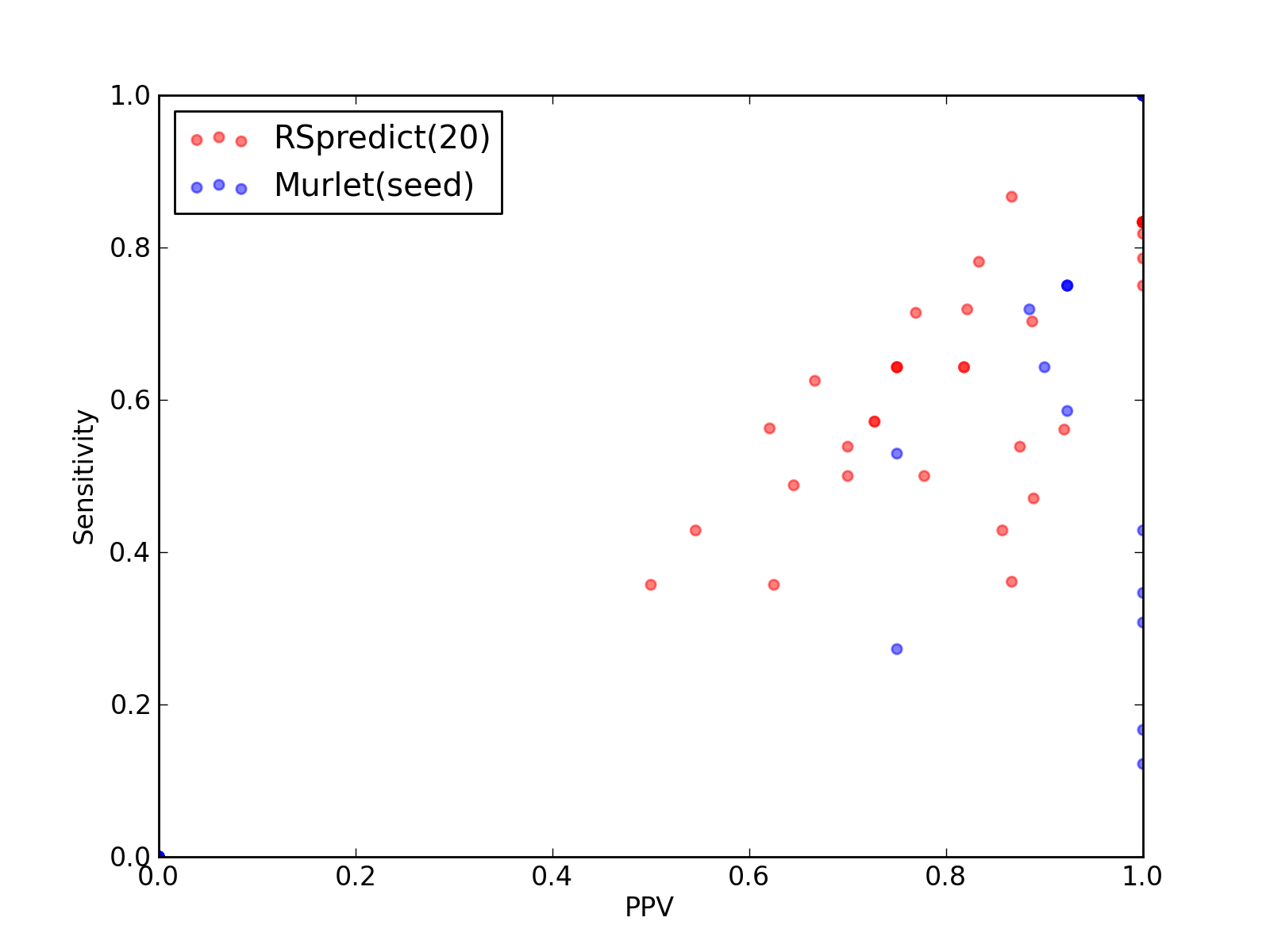

Comparison of performance of RSpredict(20) and Murlet(seed). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for RSpredict(20) and Murlet(seed)).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for RSpredict(20) and Murlet(seed)).

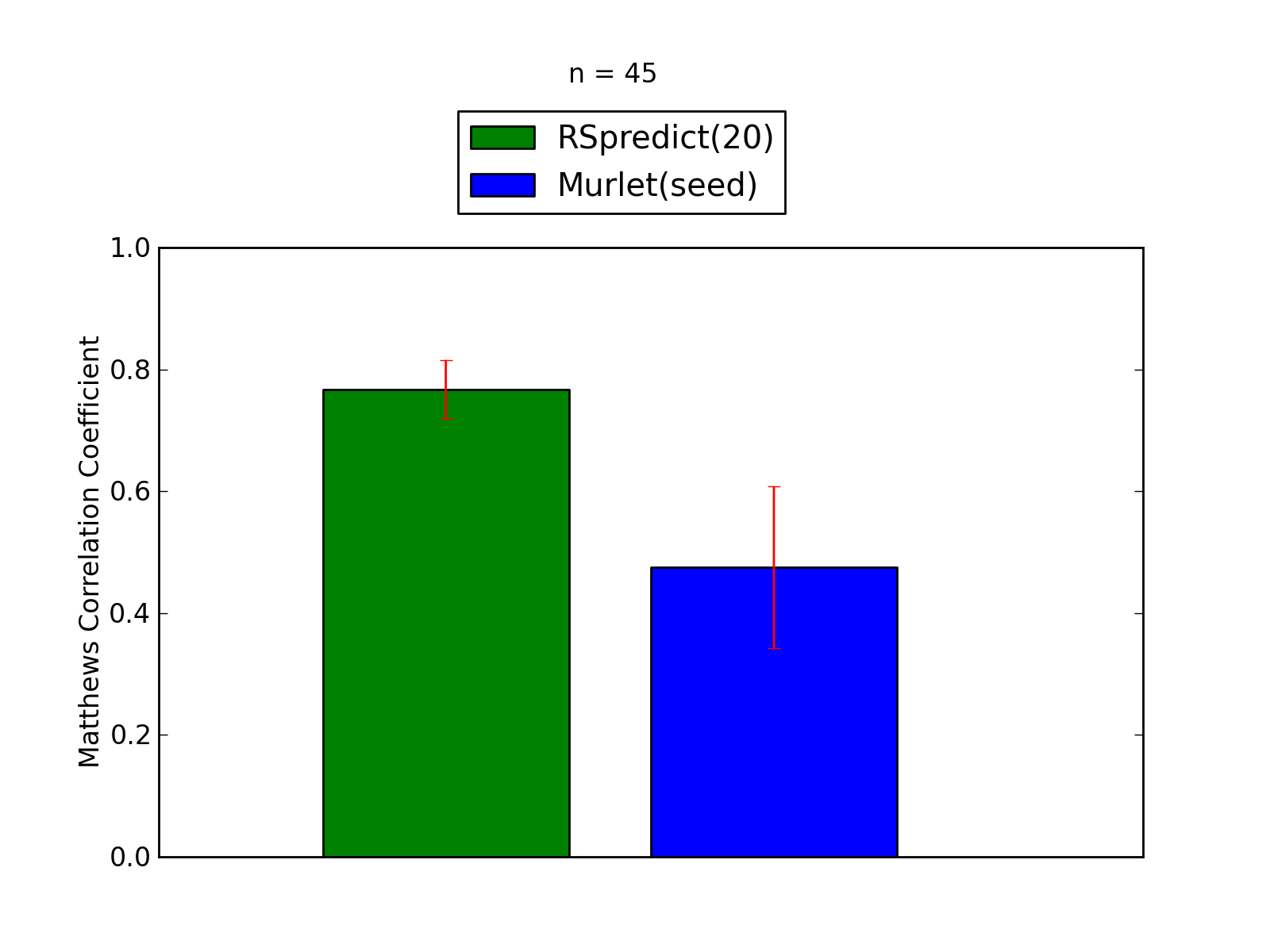

Comparison of average Matthews Correlation Coefficients (MCCs) for RSpredict(20) and Murlet(seed). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for RSpredict(20) and Murlet(seed)).

^top

Performance of RSpredict(20) - scored higher in this pairwise comparison

1. Total counts & total scores for RSpredict(20)

Total Base Pair Counts
Total TP	556
Total TN	121844
Total FP	143
Total FP CONTRA	6
Total FP INCONS	97
Total FP COMP	40
Total FN	278

Total Scores
MCC	0.748
Average MCC ± 95% Confidence Intervals	0.767 ± 0.048
Sensitivity	0.667
Positive Predictive Value	0.844
Nr of predictions	45

^top

2. Individual counts for RSpredict(20) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
PDB_00012	mir-TAR links to Rfam database...	1.00	1.00	1.00	7	399	2	0	0	2	0
PDB_00213	Gammaretro_CES links to Rfam database...	0.56	0.49	0.65	20	5019	11	0	11	0	21
PDB_00553	mir-TAR links to Rfam database...	0.90	0.82	1.00	9	456	0	0	0	0	2
PDB_00810	s2m links to Rfam database...	0.64	0.47	0.89	8	1072	1	0	1	0	9
PDB_01050	UnaL2 links to Rfam database...	0.68	0.54	0.88	7	622	3	0	1	2	6
PDB_01152	HIV_FS2 links to Rfam database...	0.88	0.79	1.00	11	550	0	0	0	0	3
RFA_00390	Hammerhead_3 links to Rfam database...	1.00	1.00	1.00	15	1416	3	0	0	3	0
RFA_00416	Hammerhead_3 links to Rfam database...	0.87	0.87	0.87	13	1470	5	0	2	3	2
RFA_00433	Hammerhead_3 links to Rfam database...	1.00	1.00	1.00	15	1416	3	0	0	3	0
RFA_00587	Y_RNA links to Rfam database...	1.00	1.00	1.00	15	4836	7	0	0	7	0
RFA_00658	Hammerhead_1 links to Rfam database...	0.69	0.64	0.75	9	1116	4	0	3	1	5
RFA_00664	Hammerhead_1 links to Rfam database...	0.64	0.57	0.73	8	979	4	0	3	1	6
RFA_00667	Hammerhead_1 links to Rfam database...	0.64	0.57	0.73	8	979	4	0	3	1	6
RFA_00668	Hammerhead_1 links to Rfam database...	0.47	0.36	0.63	5	982	4	0	3	1	9
RFA_00672	Hammerhead_1 links to Rfam database...	0.61	0.54	0.70	7	893	3	0	3	0	6
RFA_00673	Hammerhead_1 links to Rfam database...	0.59	0.50	0.70	7	1118	4	0	3	1	7
RFA_00674	Hammerhead_1 links to Rfam database...	0.69	0.64	0.75	9	1116	4	0	3	1	5
RFA_00675	Hammerhead_1 links to Rfam database...	0.62	0.50	0.78	7	981	3	0	2	1	7
RFA_00677	Hammerhead_1 links to Rfam database...	0.69	0.64	0.75	9	978	4	0	3	1	5
RFA_00678	Hammerhead_1 links to Rfam database...	0.72	0.64	0.82	9	935	3	0	2	1	5
RFA_00680	Hammerhead_1 links to Rfam database...	0.74	0.71	0.77	10	1115	4	0	3	1	4
RFA_00704	Hammerhead_1 links to Rfam database...	0.42	0.36	0.50	5	980	6	0	5	1	9
RFA_00707	Hammerhead_1 links to Rfam database...	0.72	0.64	0.82	9	1024	3	0	2	1	5
RFA_00715	Hammerhead_1 links to Rfam database...	0.60	0.43	0.86	6	939	2	0	1	1	8
RFA_00717	Hammerhead_1 links to Rfam database...	0.48	0.43	0.55	6	892	5	0	5	0	8
RFA_00730	s2m links to Rfam database...	0.91	0.83	1.00	10	893	1	0	0	1	2
RFA_00731	s2m links to Rfam database...	0.91	0.83	1.00	10	893	0	0	0	0	2
RFA_00733	s2m links to Rfam database...	0.91	0.83	1.00	10	893	0	0	0	0	2
RFA_00734	s2m links to Rfam database...	0.91	0.83	1.00	10	893	0	0	0	0	2
RFA_00736	s2m links to Rfam database...	0.91	0.83	1.00	10	893	0	0	0	0	2
RFA_00737	s2m links to Rfam database...	0.91	0.83	1.00	10	893	0	0	0	0	2
RFA_00745	s2m links to Rfam database...	0.91	0.83	1.00	10	936	1	0	0	1	2
RFA_00749	s2m links to Rfam database...	0.91	0.83	1.00	10	893	0	0	0	0	2
RFA_00758	s2m links to Rfam database...	0.86	0.75	1.00	9	894	0	0	0	0	3
RFA_00762	s2m links to Rfam database...	0.91	0.83	1.00	10	893	0	0	0	0	2
RFA_00763	s2m links to Rfam database...	0.91	0.83	1.00	10	893	1	0	0	1	2
RFA_00764	s2m links to Rfam database...	0.91	0.83	1.00	10	893	0	0	0	0	2
RFA_00765	s2m links to Rfam database...	0.91	0.83	1.00	10	893	0	0	0	0	2
RFA_00786	Gammaretro_CES links to Rfam database...	0.81	0.78	0.83	25	5020	5	1	4	0	7
RFA_00791	Gammaretro_CES links to Rfam database...	0.77	0.72	0.82	23	5123	6	1	4	1	9
RFA_00792	Gammaretro_CES links to Rfam database...	0.64	0.63	0.67	20	5020	11	2	8	1	12
RFA_00801	Gammaretro_CES links to Rfam database...	0.59	0.56	0.62	18	5021	12	2	9	1	14
SRP_00141	Bacteria_small_SRP links to Rfam database...	0.72	0.56	0.92	23	6303	2	0	2	0	18
SRP_00182	Plant_SRP links to Rfam database...	0.79	0.70	0.89	71	45976	10	0	9	1	30
SRP_00338	Bacteria_small_SRP links to Rfam database...	0.56	0.36	0.87	13	5445	2	0	2	0	23

^top

Performance of Murlet(seed) - scored lower in this pairwise comparison

1. Total counts & total scores for Murlet(seed)

Total Base Pair Counts
Total TP	349
Total TN	122138
Total FP	19
Total FP CONTRA	0
Total FP INCONS	16
Total FP COMP	3
Total FN	485

Total Scores
MCC	0.631
Average MCC ± 95% Confidence Intervals	0.475 ± 0.133
Sensitivity	0.418
Positive Predictive Value	0.956
Nr of predictions	45

^top

2. Individual counts for Murlet(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
PDB_00012	mir-TAR links to Rfam database...	0.65	0.43	1.00	3	403	0	0	0	0	4
PDB_00213	Gammaretro_CES links to Rfam database...	0.73	0.59	0.92	24	5024	2	0	2	0	17
PDB_00553	mir-TAR links to Rfam database...	0.45	0.27	0.75	3	461	1	0	1	0	8
PDB_00810	s2m links to Rfam database...	0.63	0.53	0.75	9	1069	3	0	3	0	8
PDB_01050	UnaL2 links to Rfam database...	0.55	0.31	1.00	4	626	1	0	0	1	9
PDB_01152	HIV_FS2 links to Rfam database...	0.76	0.64	0.90	9	551	1	0	1	0	5
RFA_00390	Hammerhead_3 links to Rfam database...	0.00	0.00	0.00	0	1431	0	0	0	0	15
RFA_00416	Hammerhead_3 links to Rfam database...	0.00	0.00	0.00	0	1485	0	0	0	0	15
RFA_00433	Hammerhead_3 links to Rfam database...	0.00	0.00	0.00	0	1431	0	0	0	0	15
RFA_00587	Y_RNA links to Rfam database...	0.00	0.00	0.00	0	4851	0	0	0	0	15
RFA_00658	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	1128	0	0	0	0	14
RFA_00664	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	990	0	0	0	0	14
RFA_00667	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	990	0	0	0	0	14
RFA_00668	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	990	0	0	0	0	14
RFA_00672	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	903	0	0	0	0	13
RFA_00673	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	1128	0	0	0	0	14
RFA_00674	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	1128	0	0	0	0	14
RFA_00675	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	990	0	0	0	0	14
RFA_00677	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	990	0	0	0	0	14
RFA_00678	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	946	0	0	0	0	14
RFA_00680	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	1128	0	0	0	0	14
RFA_00704	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	990	0	0	0	0	14
RFA_00707	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	1035	0	0	0	0	14
RFA_00715	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	946	0	0	0	0	14
RFA_00717	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	903	0	0	0	0	14
RFA_00730	s2m links to Rfam database...	1.00	1.00	1.00	12	891	0	0	0	0	0
RFA_00731	s2m links to Rfam database...	1.00	1.00	1.00	12	891	0	0	0	0	0
RFA_00733	s2m links to Rfam database...	1.00	1.00	1.00	12	891	0	0	0	0	0
RFA_00734	s2m links to Rfam database...	1.00	1.00	1.00	12	891	0	0	0	0	0
RFA_00736	s2m links to Rfam database...	1.00	1.00	1.00	12	891	0	0	0	0	0
RFA_00737	s2m links to Rfam database...	1.00	1.00	1.00	12	891	0	0	0	0	0
RFA_00745	s2m links to Rfam database...	1.00	1.00	1.00	12	934	0	0	0	0	0
RFA_00749	s2m links to Rfam database...	1.00	1.00	1.00	12	891	0	0	0	0	0
RFA_00758	s2m links to Rfam database...	1.00	1.00	1.00	12	891	0	0	0	0	0
RFA_00762	s2m links to Rfam database...	1.00	1.00	1.00	12	891	0	0	0	0	0
RFA_00763	s2m links to Rfam database...	1.00	1.00	1.00	12	891	0	0	0	0	0
RFA_00764	s2m links to Rfam database...	1.00	1.00	1.00	12	891	0	0	0	0	0
RFA_00765	s2m links to Rfam database...	1.00	1.00	1.00	12	891	0	0	0	0	0
RFA_00786	Gammaretro_CES links to Rfam database...	0.83	0.75	0.92	24	5024	2	0	2	0	8
RFA_00791	Gammaretro_CES links to Rfam database...	0.83	0.75	0.92	24	5125	2	0	2	0	8
RFA_00792	Gammaretro_CES links to Rfam database...	0.83	0.75	0.92	24	5024	2	0	2	0	8
RFA_00801	Gammaretro_CES links to Rfam database...	0.80	0.72	0.88	23	5024	3	0	3	0	9
SRP_00141	Bacteria_small_SRP links to Rfam database...	0.35	0.12	1.00	5	6323	1	0	0	1	36
SRP_00182	Plant_SRP links to Rfam database...	0.59	0.35	1.00	35	46021	1	0	0	1	66
SRP_00338	Bacteria_small_SRP links to Rfam database...	0.41	0.17	1.00	6	5454	0	0	0	0	30

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
