Overview

Metric	Sfold		Murlet(seed)
MCC	0.613	>	0.540
Average MCC ± 95% Confidence Intervals	0.572 ± 0.055	>	0.396 ± 0.065
Sensitivity	0.572	>	0.360
Positive Predictive Value	0.658	<	0.811
Total TP	2761	>	1738
Total TN	2787445	<	2789495
Total FP	1821	>	489
Total FP CONTRA	233	>	21
Total FP INCONS	1200	>	385
Total FP COMP	388	>	83
Total FN	2067	<	3090
P-value	3.56938820447e-08

^top

Performance plots

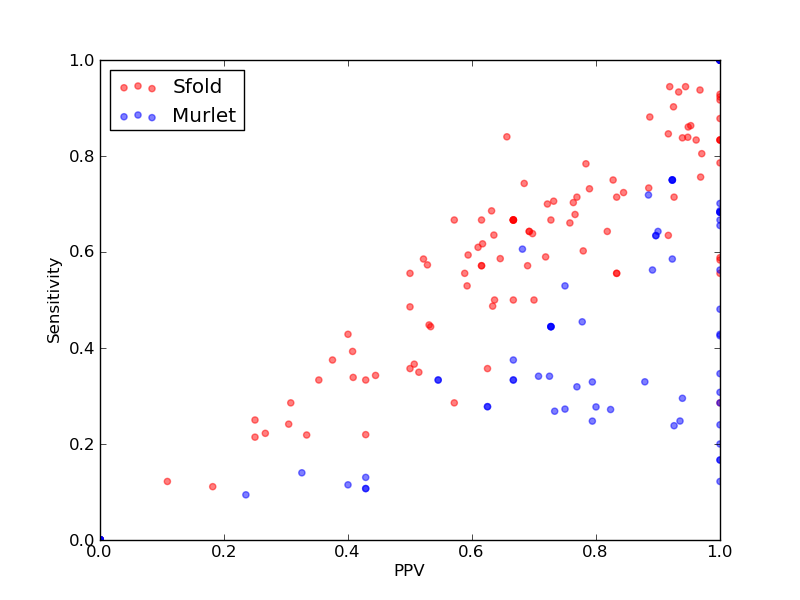

Comparison of performance of Sfold and Murlet(seed). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for Sfold and Murlet(seed)).

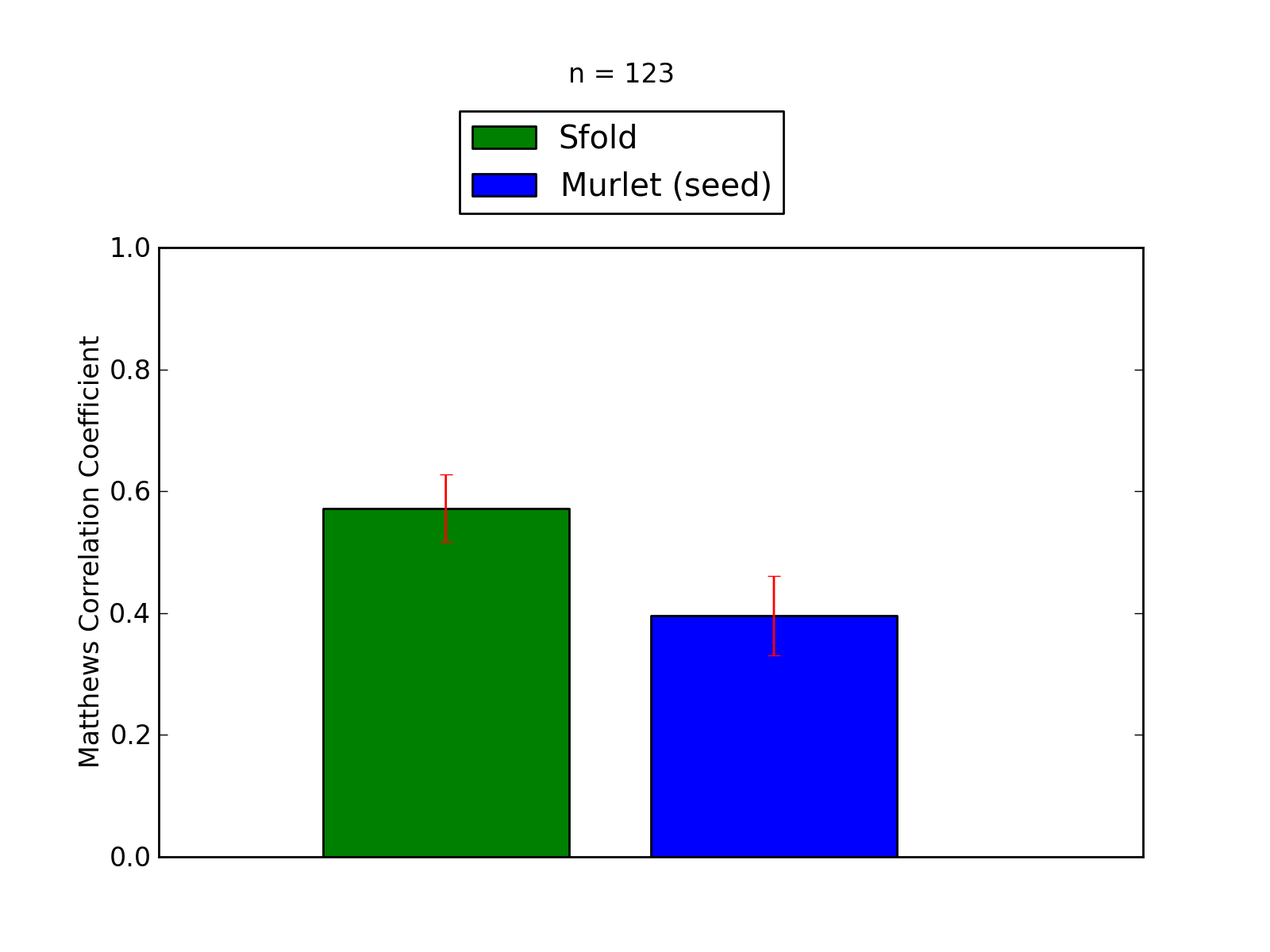

Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for Sfold and Murlet(seed)).
Comparison of average Matthews Correlation Coefficients (MCCs) for Sfold and Murlet(seed). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for Sfold and Murlet(seed)).

^top

Performance of Sfold - scored higher in this pairwise comparison

1. Total counts & total scores for Sfold

Total Base Pair Counts
Total TP	2761
Total TN	2787445
Total FP	1821
Total FP CONTRA	233
Total FP INCONS	1200
Total FP COMP	388
Total FN	2067

Total Scores
MCC	0.613
Average MCC ± 95% Confidence Intervals	0.572 ± 0.055
Sensitivity	0.572
Positive Predictive Value	0.658
Nr of predictions	123

^top

2. Individual counts for Sfold [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
CRW_01343	SSU_rRNA_archaea links to Rfam database...	0.37	0.34	0.41	147	977541	224	31	182	11	287
PDB_00005	Tymo_tRNA-like links to Rfam database...	0.88	0.79	1.00	11	935	0	0	0	0	3
PDB_00012	mir-TAR links to Rfam database...	1.00	1.00	1.00	7	399	3	0	0	3	0
PDB_00213	Gammaretro_CES links to Rfam database...	0.94	0.88	1.00	36	5014	0	0	0	0	5
PDB_00553	mir-TAR links to Rfam database...	1.00	1.00	1.00	11	454	0	0	0	0	0
PDB_00716	HDV_ribozyme links to Rfam database...	-0.01	0.00	0.00	0	2678	24	1	22	1	23
PDB_00810	s2m links to Rfam database...	0.76	0.59	1.00	10	1071	0	0	0	0	7
PDB_01050	UnaL2 links to Rfam database...	0.96	0.92	1.00	12	618	2	0	0	2	1
PDB_01051	Telomerase-cil links to Rfam database...	0.88	0.85	0.92	11	891	5	0	1	4	2
PDB_01092	glmS links to Rfam database...	0.76	0.63	0.92	33	10117	5	0	3	2	19
PDB_01152	HIV_FS2 links to Rfam database...	0.96	0.93	1.00	13	548	0	0	0	0	1
RFA_00390	Hammerhead_3 links to Rfam database...	1.00	1.00	1.00	15	1416	2	0	0	2	0
RFA_00416	Hammerhead_3 links to Rfam database...	0.93	0.93	0.93	14	1470	4	0	1	3	1
RFA_00433	Hammerhead_3 links to Rfam database...	1.00	1.00	1.00	15	1416	2	0	0	2	0
RFA_00587	Y_RNA links to Rfam database...	1.00	1.00	1.00	15	4836	8	0	0	8	0
RFA_00603	Telomerase-cil links to Rfam database...	0.66	0.69	0.63	24	13492	17	4	10	3	11
RFA_00604	Telomerase-cil links to Rfam database...	0.71	0.74	0.68	26	13492	24	2	10	12	9
RFA_00605	Telomerase-cil links to Rfam database...	0.39	0.34	0.44	12	15198	24	3	12	9	23
RFA_00606	Telomerase-cil links to Rfam database...	0.65	0.59	0.72	23	21289	19	7	2	10	16
RFA_00607	Telomerase-cil links to Rfam database...	0.91	0.83	1.00	30	17736	7	0	0	7	6
RFA_00609	Telomerase-cil links to Rfam database...	0.78	0.78	0.78	29	17918	18	2	6	10	8
RFA_00610	Telomerase-cil links to Rfam database...	0.89	0.84	0.94	31	17172	15	0	2	13	6
RFA_00611	Telomerase-cil links to Rfam database...	0.81	0.71	0.93	25	13014	5	0	2	3	10
RFA_00613	Telomerase-cil links to Rfam database...	0.49	0.49	0.50	17	12846	19	7	10	2	18
RFA_00615	Telomerase-cil links to Rfam database...	0.63	0.57	0.69	20	13337	9	4	5	0	15
RFA_00620	Telomerase-cil links to Rfam database...	0.55	0.49	0.63	19	21915	22	3	8	11	20
RFA_00626	rne5 links to Rfam database...	0.89	0.84	0.95	73	56539	20	1	3	16	14
RFA_00627	rne5 links to Rfam database...	0.72	0.68	0.77	59	56876	30	4	14	12	28
RFA_00628	rne5 links to Rfam database...	0.90	0.86	0.95	74	57213	28	0	4	24	12
RFA_00630	rne5 links to Rfam database...	0.61	0.59	0.65	51	56874	38	7	21	10	36
RFA_00632	HDV_ribozyme links to Rfam database...	0.24	0.25	0.25	7	4067	21	2	19	0	21
RFA_00636	HDV_ribozyme links to Rfam database...	0.40	0.39	0.41	11	3978	16	2	14	0	17
RFA_00639	7SK links to Rfam database...	0.27	0.24	0.30	21	54546	53	9	39	5	66
RFA_00642	Vimentin3 links to Rfam database...	0.00	0.00	0.00	0	2926	0	0	0	0	18
RFA_00643	Vimentin3 links to Rfam database...	0.24	0.22	0.27	4	2196	12	2	9	1	14
RFA_00644	Vimentin3 links to Rfam database...	-0.01	0.00	0.00	0	2689	12	0	12	0	18
RFA_00645	Vimentin3 links to Rfam database...	-0.01	0.00	0.00	0	2404	11	3	8	0	18
RFA_00649	Vimentin3 links to Rfam database...	0.37	0.33	0.43	6	2131	10	0	8	2	12
RFA_00651	Vimentin3 links to Rfam database...	0.14	0.11	0.18	2	2069	9	1	8	0	16
RFA_00653	Vimentin3 links to Rfam database...	0.34	0.33	0.35	6	2128	11	3	8	0	12
RFA_00654	Vimentin3 links to Rfam database...	-0.01	0.00	0.00	0	2401	14	2	12	0	18
RFA_00658	Hammerhead_1 links to Rfam database...	0.59	0.50	0.70	7	1118	5	0	3	2	7
RFA_00659	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	1122	8	0	6	2	14
RFA_00664	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	980	11	0	10	1	14
RFA_00667	Hammerhead_1 links to Rfam database...	0.22	0.21	0.25	3	978	10	1	8	1	11
RFA_00668	Hammerhead_1 links to Rfam database...	0.41	0.43	0.40	6	975	9	0	9	0	8
RFA_00672	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	896	7	0	7	0	13
RFA_00673	Hammerhead_1 links to Rfam database...	0.42	0.36	0.50	5	1118	6	0	5	1	9
RFA_00674	Hammerhead_1 links to Rfam database...	0.66	0.64	0.69	9	1115	5	0	4	1	5
RFA_00675	Hammerhead_1 links to Rfam database...	0.29	0.29	0.31	4	977	9	1	8	0	10
RFA_00677	Hammerhead_1 links to Rfam database...	0.59	0.57	0.62	8	977	6	0	5	1	6
RFA_00678	Hammerhead_1 links to Rfam database...	0.53	0.29	1.00	4	942	0	0	0	0	10
RFA_00680	Hammerhead_1 links to Rfam database...	0.74	0.71	0.77	10	1115	6	0	3	3	4
RFA_00684	Hammerhead_1 links to Rfam database...	0.59	0.57	0.62	8	977	6	0	5	1	6
RFA_00685	Hammerhead_1 links to Rfam database...	0.47	0.36	0.63	5	982	4	0	3	1	9
RFA_00695	Hammerhead_1 links to Rfam database...	0.56	0.50	0.64	7	7010	23	1	3	19	7
RFA_00703	Hammerhead_1 links to Rfam database...	0.67	0.64	0.69	9	4265	16	1	3	12	5
RFA_00704	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	981	9	0	9	0	14
RFA_00705	Hammerhead_1 links to Rfam database...	0.77	0.71	0.83	10	1023	2	0	2	0	4
RFA_00706	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	1030	5	0	5	0	14
RFA_00707	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	1028	7	1	6	0	14
RFA_00708	Hammerhead_1 links to Rfam database...	0.40	0.29	0.57	4	1028	3	0	3	0	10
RFA_00709	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	980	10	0	10	0	14
RFA_00710	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	981	9	0	9	0	14
RFA_00711	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	1035	0	0	0	0	14
RFA_00715	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	937	9	0	9	0	14
RFA_00716	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	935	11	0	11	0	14
RFA_00717	Hammerhead_1 links to Rfam database...	0.72	0.64	0.82	9	892	2	0	2	0	5
RFA_00730	s2m links to Rfam database...	0.69	0.67	0.73	8	892	4	1	2	1	4
RFA_00731	s2m links to Rfam database...	0.66	0.67	0.67	8	891	5	1	3	1	4
RFA_00733	s2m links to Rfam database...	0.66	0.67	0.67	8	891	5	1	3	1	4
RFA_00734	s2m links to Rfam database...	0.61	0.67	0.57	8	889	7	1	5	1	4
RFA_00736	s2m links to Rfam database...	0.66	0.67	0.67	8	891	5	1	3	1	4
RFA_00737	s2m links to Rfam database...	0.96	0.92	1.00	11	892	1	0	0	1	1
RFA_00745	s2m links to Rfam database...	0.91	0.83	1.00	10	936	1	0	0	1	2
RFA_00749	s2m links to Rfam database...	0.66	0.67	0.67	8	891	5	1	3	1	4
RFA_00758	s2m links to Rfam database...	0.76	0.58	1.00	7	896	0	0	0	0	5
RFA_00762	s2m links to Rfam database...	0.64	0.67	0.62	8	890	5	1	4	0	4
RFA_00763	s2m links to Rfam database...	0.91	0.83	1.00	10	893	0	0	0	0	2
RFA_00764	s2m links to Rfam database...	0.66	0.67	0.67	8	891	5	1	3	1	4
RFA_00765	s2m links to Rfam database...	1.00	1.00	1.00	12	891	1	0	0	1	0
RFA_00767	Corona_pk3 links to Rfam database...	0.74	0.56	1.00	10	1881	0	0	0	0	8
RFA_00768	Corona_pk3 links to Rfam database...	0.48	0.44	0.53	8	1876	7	1	6	0	10
RFA_00769	Corona_pk3 links to Rfam database...	0.52	0.56	0.50	10	1933	10	4	6	0	8
RFA_00770	Corona_pk3 links to Rfam database...	0.68	0.56	0.83	10	2004	5	0	2	3	8
RFA_00773	Corona_pk3 links to Rfam database...	0.57	0.56	0.59	10	1936	7	1	6	0	8
RFA_00779	Corona_pk3 links to Rfam database...	0.68	0.56	0.83	10	1941	2	0	2	0	8
RFA_00781	Gammaretro_CES links to Rfam database...	0.59	0.59	0.59	19	5018	13	2	11	0	13
RFA_00786	Gammaretro_CES links to Rfam database...	0.27	0.22	0.33	7	5029	14	1	13	0	25
RFA_00791	Gammaretro_CES links to Rfam database...	0.58	0.50	0.67	16	5127	8	1	7	0	16
RFA_00792	Gammaretro_CES links to Rfam database...	0.95	0.94	0.97	30	5019	2	0	1	1	2
RFA_00801	Gammaretro_CES links to Rfam database...	0.79	0.75	0.83	24	5021	6	0	5	1	8
RFA_00808	RydC links to Rfam database...	-0.01	0.00	0.00	0	2000	19	2	14	3	16
RFA_00809	RydC links to Rfam database...	0.37	0.38	0.38	6	2129	10	1	9	0	10
RFA_00814	R2_retro_el links to Rfam database...	0.86	0.76	0.97	31	25168	10	0	1	9	10
RFA_00815	R2_retro_el links to Rfam database...	0.61	0.61	0.61	25	24490	21	6	10	5	16
RFA_00816	R2_retro_el links to Rfam database...	0.76	0.73	0.79	30	23182	12	8	0	4	11
RFA_00817	R2_retro_el links to Rfam database...	0.11	0.12	0.11	5	21899	41	14	27	0	36
RFA_00818	R2_retro_el links to Rfam database...	0.31	0.22	0.43	9	20280	13	8	4	1	32
RFA_00819	R2_retro_el links to Rfam database...	0.88	0.80	0.97	33	27932	25	0	1	24	8
RFA_00820	bicoid_3 links to Rfam database...	0.88	0.88	0.89	141	151366	30	1	17	12	19
RFA_00830	bicoid_3 links to Rfam database...	0.49	0.45	0.53	69	152498	105	6	55	44	85
SRP_00079	Plant_SRP links to Rfam database...	0.68	0.60	0.78	53	41837	20	3	12	5	35
SRP_00124	Metazoa_SRP links to Rfam database...	0.56	0.53	0.59	45	37052	35	4	27	4	40
SRP_00137	Bacteria_small_SRP links to Rfam database...	0.74	0.84	0.66	21	4154	11	4	7	0	4
SRP_00141	Bacteria_small_SRP links to Rfam database...	0.91	0.90	0.93	37	6288	4	1	2	1	4
SRP_00146	Bacteria_small_SRP links to Rfam database...	0.93	0.94	0.92	34	5216	3	1	2	0	2
SRP_00182	Plant_SRP links to Rfam database...	0.73	0.70	0.76	71	45963	24	3	19	2	30
SRP_00197	Archaea_SRP links to Rfam database...	0.43	0.37	0.51	37	49382	36	1	35	0	64
SRP_00198	Archaea_SRP links to Rfam database...	0.42	0.35	0.51	36	50970	35	2	32	1	67
SRP_00199	Archaea_SRP links to Rfam database...	0.78	0.72	0.84	76	50950	15	0	14	1	29
SRP_00202	Archaea_SRP links to Rfam database...	0.91	0.86	0.95	101	54179	7	0	5	2	16
SRP_00241	Plant_SRP links to Rfam database...	0.55	0.57	0.53	47	45967	44	11	31	2	35
SRP_00255	Archaea_SRP links to Rfam database...	0.62	0.62	0.62	58	47492	40	3	33	4	36
SRP_00260	Metazoa_SRP links to Rfam database...	0.71	0.70	0.72	70	47798	29	4	23	2	30
SRP_00278	Archaea_SRP links to Rfam database...	0.81	0.73	0.89	77	45969	12	0	10	2	28
SRP_00285	Bacteria_small_SRP links to Rfam database...	0.89	0.83	0.96	25	3715	1	0	1	0	5
SRP_00322	Archaea_SRP links to Rfam database...	0.71	0.66	0.76	72	48421	24	4	19	1	37
SRP_00328	Metazoa_SRP links to Rfam database...	0.63	0.64	0.64	54	39536	34	7	24	3	31
SRP_00329	Metazoa_SRP links to Rfam database...	0.72	0.71	0.73	60	39821	25	3	19	3	25
SRP_00338	Bacteria_small_SRP links to Rfam database...	0.94	0.94	0.94	34	5424	2	0	2	0	2
SRP_00339	Archaea_SRP links to Rfam database...	0.67	0.64	0.70	60	44465	29	5	21	3	34
SRP_00340	Metazoa_SRP links to Rfam database...	0.55	0.59	0.52	48	41236	46	8	36	2	34

^top

Performance of Murlet(seed) - scored lower in this pairwise comparison

1. Total counts & total scores for Murlet(seed)

Total Base Pair Counts
Total TP	1738
Total TN	2789495
Total FP	489
Total FP CONTRA	21
Total FP INCONS	385
Total FP COMP	83
Total FN	3090

Total Scores
MCC	0.540
Average MCC ± 95% Confidence Intervals	0.396 ± 0.065
Sensitivity	0.360
Positive Predictive Value	0.811
Nr of predictions	123

^top

2. Individual counts for Murlet(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
CRW_01343	SSU_rRNA_archaea links to Rfam database...	0.64	0.61	0.68	263	977515	145	6	117	22	171
PDB_00005	Tymo_tRNA-like links to Rfam database...	0.53	0.29	1.00	4	942	2	0	0	2	10
PDB_00012	mir-TAR links to Rfam database...	0.65	0.43	1.00	3	403	0	0	0	0	4
PDB_00213	Gammaretro_CES links to Rfam database...	0.73	0.59	0.92	24	5024	2	0	2	0	17
PDB_00553	mir-TAR links to Rfam database...	0.45	0.27	0.75	3	461	1	0	1	0	8
PDB_00716	HDV_ribozyme links to Rfam database...	0.23	0.13	0.43	3	2694	4	0	4	0	20
PDB_00810	s2m links to Rfam database...	0.63	0.53	0.75	9	1069	3	0	3	0	8
PDB_01050	UnaL2 links to Rfam database...	0.55	0.31	1.00	4	626	1	0	0	1	9
PDB_01051	Telomerase-cil links to Rfam database...	0.00	0.00	0.00	0	903	0	0	0	0	13
PDB_01092	glmS links to Rfam database...	0.69	0.48	1.00	25	10128	0	0	0	0	27
PDB_01152	HIV_FS2 links to Rfam database...	0.76	0.64	0.90	9	551	1	0	1	0	5
RFA_00390	Hammerhead_3 links to Rfam database...	0.00	0.00	0.00	0	1431	0	0	0	0	15
RFA_00416	Hammerhead_3 links to Rfam database...	0.00	0.00	0.00	0	1485	0	0	0	0	15
RFA_00433	Hammerhead_3 links to Rfam database...	0.00	0.00	0.00	0	1431	0	0	0	0	15
RFA_00587	Y_RNA links to Rfam database...	0.00	0.00	0.00	0	4851	0	0	0	0	15
RFA_00603	Telomerase-cil links to Rfam database...	0.00	0.00	0.00	0	13530	0	0	0	0	35
RFA_00604	Telomerase-cil links to Rfam database...	0.00	0.00	0.00	0	13530	0	0	0	0	35
RFA_00605	Telomerase-cil links to Rfam database...	0.00	0.00	0.00	0	15225	0	0	0	0	35
RFA_00606	Telomerase-cil links to Rfam database...	0.00	0.00	0.00	0	21321	0	0	0	0	39
RFA_00607	Telomerase-cil links to Rfam database...	0.00	0.00	0.00	0	17766	0	0	0	0	36
RFA_00609	Telomerase-cil links to Rfam database...	0.00	0.00	0.00	0	17955	0	0	0	0	37
RFA_00610	Telomerase-cil links to Rfam database...	0.00	0.00	0.00	0	17205	0	0	0	0	37
RFA_00611	Telomerase-cil links to Rfam database...	0.00	0.00	0.00	0	13041	0	0	0	0	35
RFA_00613	Telomerase-cil links to Rfam database...	0.00	0.00	0.00	0	12880	0	0	0	0	35
RFA_00615	Telomerase-cil links to Rfam database...	0.00	0.00	0.00	0	13366	0	0	0	0	35
RFA_00620	Telomerase-cil links to Rfam database...	0.00	0.00	0.00	0	21945	0	0	0	0	39
RFA_00626	rne5 links to Rfam database...	0.81	0.66	1.00	57	56559	4	0	0	4	30
RFA_00627	rne5 links to Rfam database...	0.84	0.70	1.00	61	56892	5	0	0	5	26
RFA_00628	rne5 links to Rfam database...	0.83	0.69	1.00	59	57232	8	0	0	8	27
RFA_00630	rne5 links to Rfam database...	0.82	0.67	1.00	58	56895	4	0	0	4	29
RFA_00632	HDV_ribozyme links to Rfam database...	0.21	0.11	0.43	3	4088	4	0	4	0	25
RFA_00636	HDV_ribozyme links to Rfam database...	0.21	0.11	0.43	3	3998	4	0	4	0	25
RFA_00639	7SK links to Rfam database...	0.21	0.11	0.40	10	54590	15	4	11	0	77
RFA_00642	Vimentin3 links to Rfam database...	0.57	0.44	0.73	8	2915	3	0	3	0	10
RFA_00643	Vimentin3 links to Rfam database...	-0.01	0.00	0.00	0	2203	8	0	8	0	18
RFA_00644	Vimentin3 links to Rfam database...	0.42	0.33	0.55	6	2690	5	0	5	0	12
RFA_00645	Vimentin3 links to Rfam database...	0.00	0.00	0.00	0	2407	8	0	8	0	18
RFA_00649	Vimentin3 links to Rfam database...	-0.01	0.00	0.00	0	2137	8	0	8	0	18
RFA_00651	Vimentin3 links to Rfam database...	0.42	0.33	0.55	6	2069	5	0	5	0	12
RFA_00653	Vimentin3 links to Rfam database...	-0.01	0.00	0.00	0	2137	8	0	8	0	18
RFA_00654	Vimentin3 links to Rfam database...	0.57	0.44	0.73	8	2404	3	0	3	0	10
RFA_00658	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	1128	0	0	0	0	14
RFA_00659	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	1128	0	0	0	0	14
RFA_00664	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	990	0	0	0	0	14
RFA_00667	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	990	0	0	0	0	14
RFA_00668	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	990	0	0	0	0	14
RFA_00672	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	903	0	0	0	0	13
RFA_00673	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	1128	0	0	0	0	14
RFA_00674	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	1128	0	0	0	0	14
RFA_00675	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	990	0	0	0	0	14
RFA_00677	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	990	0	0	0	0	14
RFA_00678	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	946	0	0	0	0	14
RFA_00680	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	1128	0	0	0	0	14
RFA_00684	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	990	0	0	0	0	14
RFA_00685	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	990	0	0	0	0	14
RFA_00695	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	7021	0	0	0	0	14
RFA_00703	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	4278	0	0	0	0	14
RFA_00704	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	990	0	0	0	0	14
RFA_00705	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	1035	0	0	0	0	14
RFA_00706	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	1035	0	0	0	0	14
RFA_00707	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	1035	0	0	0	0	14
RFA_00708	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	1035	0	0	0	0	14
RFA_00709	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	990	0	0	0	0	14
RFA_00710	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	990	0	0	0	0	14
RFA_00711	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	1035	0	0	0	0	14
RFA_00715	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	946	0	0	0	0	14
RFA_00716	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	946	0	0	0	0	14
RFA_00717	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	903	0	0	0	0	14
RFA_00730	s2m links to Rfam database...	1.00	1.00	1.00	12	891	0	0	0	0	0
RFA_00731	s2m links to Rfam database...	1.00	1.00	1.00	12	891	0	0	0	0	0
RFA_00733	s2m links to Rfam database...	1.00	1.00	1.00	12	891	0	0	0	0	0
RFA_00734	s2m links to Rfam database...	1.00	1.00	1.00	12	891	0	0	0	0	0
RFA_00736	s2m links to Rfam database...	1.00	1.00	1.00	12	891	0	0	0	0	0
RFA_00737	s2m links to Rfam database...	1.00	1.00	1.00	12	891	0	0	0	0	0
RFA_00745	s2m links to Rfam database...	1.00	1.00	1.00	12	934	0	0	0	0	0
RFA_00749	s2m links to Rfam database...	1.00	1.00	1.00	12	891	0	0	0	0	0
RFA_00758	s2m links to Rfam database...	1.00	1.00	1.00	12	891	0	0	0	0	0
RFA_00762	s2m links to Rfam database...	1.00	1.00	1.00	12	891	0	0	0	0	0
RFA_00763	s2m links to Rfam database...	1.00	1.00	1.00	12	891	0	0	0	0	0
RFA_00764	s2m links to Rfam database...	1.00	1.00	1.00	12	891	0	0	0	0	0
RFA_00765	s2m links to Rfam database...	1.00	1.00	1.00	12	891	0	0	0	0	0
RFA_00767	Corona_pk3 links to Rfam database...	0.47	0.33	0.67	6	1882	3	0	3	0	12
RFA_00768	Corona_pk3 links to Rfam database...	0.41	0.28	0.63	5	1883	3	0	3	0	13
RFA_00769	Corona_pk3 links to Rfam database...	0.57	0.44	0.73	8	1942	3	0	3	0	10
RFA_00770	Corona_pk3 links to Rfam database...	0.57	0.44	0.73	8	2005	3	0	3	0	10
RFA_00773	Corona_pk3 links to Rfam database...	0.41	0.28	0.63	5	1945	3	0	3	0	13
RFA_00779	Corona_pk3 links to Rfam database...	0.47	0.33	0.67	6	1944	3	0	3	0	12
RFA_00781	Gammaretro_CES links to Rfam database...	0.83	0.75	0.92	24	5024	2	0	2	0	8
RFA_00786	Gammaretro_CES links to Rfam database...	0.83	0.75	0.92	24	5024	2	0	2	0	8
RFA_00791	Gammaretro_CES links to Rfam database...	0.83	0.75	0.92	24	5125	2	0	2	0	8
RFA_00792	Gammaretro_CES links to Rfam database...	0.83	0.75	0.92	24	5024	2	0	2	0	8
RFA_00801	Gammaretro_CES links to Rfam database...	0.80	0.72	0.88	23	5024	3	0	3	0	9
RFA_00808	RydC links to Rfam database...	0.75	0.56	1.00	9	2007	0	0	0	0	7
RFA_00809	RydC links to Rfam database...	0.50	0.38	0.67	6	2136	3	0	3	0	10
RFA_00814	R2_retro_el links to Rfam database...	0.75	0.63	0.90	26	25171	4	0	3	1	15
RFA_00815	R2_retro_el links to Rfam database...	0.83	0.68	1.00	28	24503	1	0	0	1	13
RFA_00816	R2_retro_el links to Rfam database...	0.75	0.63	0.90	26	23191	4	0	3	1	15
RFA_00817	R2_retro_el links to Rfam database...	0.83	0.68	1.00	28	21917	1	0	0	1	13
RFA_00818	R2_retro_el links to Rfam database...	0.83	0.68	1.00	28	20273	1	0	0	1	13
RFA_00819	R2_retro_el links to Rfam database...	0.83	0.68	1.00	28	27938	0	0	0	0	13
RFA_00820	bicoid_3 links to Rfam database...	0.71	0.56	0.89	90	151424	13	3	8	2	70
RFA_00830	bicoid_3 links to Rfam database...	0.59	0.45	0.78	70	152538	23	3	17	3	84
SRP_00079	Plant_SRP links to Rfam database...	0.54	0.33	0.88	29	41872	6	0	4	2	59
SRP_00124	Metazoa_SRP links to Rfam database...	0.15	0.09	0.24	8	37094	27	3	23	1	77
SRP_00137	Bacteria_small_SRP links to Rfam database...	0.49	0.24	1.00	6	4180	0	0	0	0	19
SRP_00141	Bacteria_small_SRP links to Rfam database...	0.35	0.12	1.00	5	6323	1	0	0	1	36
SRP_00146	Bacteria_small_SRP links to Rfam database...	0.41	0.17	1.00	6	5247	0	0	0	0	30
SRP_00182	Plant_SRP links to Rfam database...	0.59	0.35	1.00	35	46021	1	0	0	1	66
SRP_00197	Archaea_SRP links to Rfam database...	0.47	0.28	0.80	28	49420	8	0	7	1	73
SRP_00198	Archaea_SRP links to Rfam database...	0.47	0.27	0.82	28	51006	7	0	6	1	75
SRP_00199	Archaea_SRP links to Rfam database...	0.47	0.24	0.93	25	51013	3	0	2	1	80
SRP_00202	Archaea_SRP links to Rfam database...	0.48	0.25	0.94	29	54254	2	0	2	0	88
SRP_00241	Plant_SRP links to Rfam database...	0.51	0.33	0.79	27	46022	9	0	7	2	55
SRP_00255	Archaea_SRP links to Rfam database...	0.65	0.43	1.00	40	47546	2	0	0	2	54
SRP_00260	Metazoa_SRP links to Rfam database...	0.21	0.14	0.33	14	47852	29	1	28	0	86
SRP_00278	Archaea_SRP links to Rfam database...	0.53	0.30	0.94	31	46023	3	0	2	1	74
SRP_00285	Bacteria_small_SRP links to Rfam database...	0.45	0.20	1.00	6	3735	0	0	0	0	24
SRP_00322	Archaea_SRP links to Rfam database...	0.44	0.25	0.79	27	48482	8	0	7	1	82
SRP_00328	Metazoa_SRP links to Rfam database...	0.49	0.34	0.71	29	39580	16	1	11	4	56
SRP_00329	Metazoa_SRP links to Rfam database...	0.50	0.34	0.73	29	39863	16	0	11	5	56
SRP_00338	Bacteria_small_SRP links to Rfam database...	0.41	0.17	1.00	6	5454	0	0	0	0	30
SRP_00339	Archaea_SRP links to Rfam database...	0.49	0.32	0.77	30	44512	9	0	9	0	64
SRP_00340	Metazoa_SRP links to Rfam database...	0.44	0.27	0.73	22	41298	12	0	8	4	60

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.

Table of contents:

Overview

Performance plots

Performance of Sfold - scored higher in this pairwise comparison

1. Total counts & total scores for Sfold

2. Individual counts for Sfold [ download as .csv ]

Performance of Murlet(seed) - scored lower in this pairwise comparison

1. Total counts & total scores for Murlet(seed)

2. Individual counts for Murlet(seed) [ download as .csv ]
