Overview

Metric	TurboFold(seed)		RNASampler(seed)
MCC	0.825	>	0.722
Average MCC ± 95% Confidence Intervals	0.773 ± 0.091	>	0.596 ± 0.105
Sensitivity	0.771	>	0.582
Positive Predictive Value	0.883	<	0.897
Total TP	692	>	522
Total TN	387643	<	387845
Total FP	257	>	118
Total FP CONTRA	10	<	20
Total FP INCONS	82	>	40
Total FP COMP	165	>	58
Total FN	205	<	375
P-value	3.56938820447e-08

^top

Performance plots

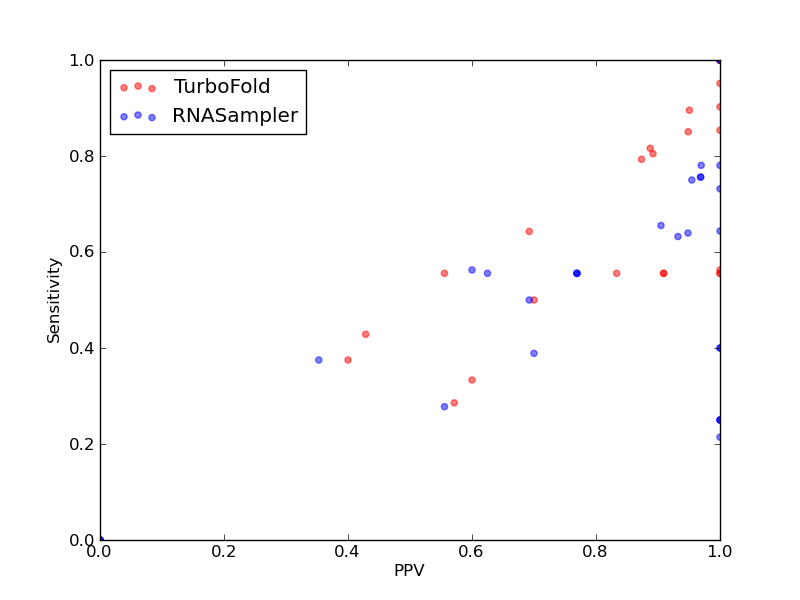

Comparison of performance of TurboFold(seed) and RNASampler(seed). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for TurboFold(seed) and RNASampler(seed)).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for TurboFold(seed) and RNASampler(seed)).
Comparison of average Matthews Correlation Coefficients (MCCs) for TurboFold(seed) and RNASampler(seed). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for TurboFold(seed) and RNASampler(seed)).

^top

Performance of TurboFold(seed) - scored higher in this pairwise comparison

1. Total counts & total scores for TurboFold(seed)

Total Base Pair Counts
Total TP	692
Total TN	387643
Total FP	257
Total FP CONTRA	10
Total FP INCONS	82
Total FP COMP	165
Total FN	205

Total Scores
MCC	0.825
Average MCC ± 95% Confidence Intervals	0.773 ± 0.091
Sensitivity	0.771
Positive Predictive Value	0.883
Nr of predictions	31

^top

2. Individual counts for TurboFold(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
PDB_00012	mir-TAR links to Rfam database...	1.00	1.00	1.00	7	399	3	0	0	3	0
RFA_00390	Hammerhead_3 links to Rfam database...	1.00	1.00	1.00	15	1416	2	0	0	2	0
RFA_00416	Hammerhead_3 links to Rfam database...	1.00	1.00	1.00	15	1470	2	0	0	2	0
RFA_00433	Hammerhead_3 links to Rfam database...	1.00	1.00	1.00	15	1416	2	0	0	2	0
RFA_00587	Y_RNA links to Rfam database...	1.00	1.00	1.00	15	4836	11	0	0	11	0
RFA_00626	rne5 links to Rfam database...	0.90	0.85	0.95	74	56538	17	0	4	13	13
RFA_00627	rne5 links to Rfam database...	0.85	0.82	0.89	71	56873	23	0	9	14	16
RFA_00628	rne5 links to Rfam database...	0.92	0.90	0.95	77	57210	17	0	4	13	9
RFA_00630	rne5 links to Rfam database...	0.83	0.79	0.87	69	56874	22	0	10	12	18
RFA_00636	HDV_ribozyme links to Rfam database...	0.42	0.43	0.43	12	3977	16	2	14	0	16
RFA_00654	Vimentin3 links to Rfam database...	0.44	0.33	0.60	6	2405	5	1	3	1	12
RFA_00658	Hammerhead_1 links to Rfam database...	0.59	0.50	0.70	7	1118	5	0	3	2	7
RFA_00664	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	980	11	0	10	1	14
RFA_00703	Hammerhead_1 links to Rfam database...	0.67	0.64	0.69	9	4265	18	1	3	14	5
RFA_00708	Hammerhead_1 links to Rfam database...	0.40	0.29	0.57	4	1028	3	0	3	0	10
RFA_00749	s2m links to Rfam database...	1.00	1.00	1.00	12	891	1	0	0	1	0
RFA_00764	s2m links to Rfam database...	1.00	1.00	1.00	12	891	1	0	0	1	0
RFA_00765	s2m links to Rfam database...	1.00	1.00	1.00	12	891	1	0	0	1	0
RFA_00767	Corona_pk3 links to Rfam database...	0.74	0.56	1.00	10	1881	0	0	0	0	8
RFA_00768	Corona_pk3 links to Rfam database...	0.74	0.56	1.00	10	1881	0	0	0	0	8
RFA_00769	Corona_pk3 links to Rfam database...	0.55	0.56	0.56	10	1935	8	3	5	0	8
RFA_00770	Corona_pk3 links to Rfam database...	0.68	0.56	0.83	10	2004	5	0	2	3	8
RFA_00773	Corona_pk3 links to Rfam database...	0.71	0.56	0.91	10	1942	2	1	0	1	8
RFA_00779	Corona_pk3 links to Rfam database...	0.71	0.56	0.91	10	1942	1	0	1	0	8
RFA_00808	RydC links to Rfam database...	0.75	0.56	1.00	9	2007	0	0	0	0	7
RFA_00809	RydC links to Rfam database...	0.38	0.38	0.40	6	2130	9	1	8	0	10
RFA_00814	R2_retro_el links to Rfam database...	0.92	0.85	1.00	35	25165	13	0	0	13	6
RFA_00816	R2_retro_el links to Rfam database...	1.00	1.00	1.00	41	23179	14	0	0	14	0
RFA_00817	R2_retro_el links to Rfam database...	0.95	0.90	1.00	37	21908	7	0	0	7	4
RFA_00818	R2_retro_el links to Rfam database...	0.85	0.80	0.89	33	20264	11	1	3	7	8
RFA_00819	R2_retro_el links to Rfam database...	0.98	0.95	1.00	39	27927	27	0	0	27	2

^top

Performance of RNASampler(seed) - scored lower in this pairwise comparison

1. Total counts & total scores for RNASampler(seed)

Total Base Pair Counts
Total TP	522
Total TN	387845
Total FP	118
Total FP CONTRA	20
Total FP INCONS	40
Total FP COMP	58
Total FN	375

Total Scores
MCC	0.722
Average MCC ± 95% Confidence Intervals	0.596 ± 0.105
Sensitivity	0.582
Positive Predictive Value	0.897
Nr of predictions	31

^top

2. Individual counts for RNASampler(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
PDB_00012	mir-TAR links to Rfam database...	1.00	1.00	1.00	7	399	3	0	0	3	0
RFA_00390	Hammerhead_3 links to Rfam database...	0.00	0.00	0.00	0	1431	0	0	0	0	15
RFA_00416	Hammerhead_3 links to Rfam database...	0.63	0.40	1.00	6	1479	1	0	0	1	9
RFA_00433	Hammerhead_3 links to Rfam database...	0.63	0.40	1.00	6	1425	1	0	0	1	9
RFA_00587	Y_RNA links to Rfam database...	1.00	1.00	1.00	15	4836	5	0	0	5	0
RFA_00626	rne5 links to Rfam database...	0.80	0.64	1.00	56	56560	5	0	0	5	31
RFA_00627	rne5 links to Rfam database...	0.77	0.63	0.93	55	56894	8	0	4	4	32
RFA_00628	rne5 links to Rfam database...	0.78	0.64	0.95	55	57233	12	0	3	9	31
RFA_00630	rne5 links to Rfam database...	0.77	0.66	0.90	57	56890	15	0	6	9	30
RFA_00636	HDV_ribozyme links to Rfam database...	0.85	0.75	0.95	21	3983	1	1	0	0	7
RFA_00654	Vimentin3 links to Rfam database...	0.39	0.28	0.56	5	2406	4	1	3	0	13
RFA_00658	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	1128	0	0	0	0	14
RFA_00664	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	990	0	0	0	0	14
RFA_00703	Hammerhead_1 links to Rfam database...	0.46	0.21	1.00	3	4275	0	0	0	0	11
RFA_00708	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	1035	0	0	0	0	14
RFA_00749	s2m links to Rfam database...	0.50	0.25	1.00	3	900	0	0	0	0	9
RFA_00764	s2m links to Rfam database...	0.50	0.25	1.00	3	900	0	0	0	0	9
RFA_00765	s2m links to Rfam database...	0.50	0.25	1.00	3	900	0	0	0	0	9
RFA_00767	Corona_pk3 links to Rfam database...	0.65	0.56	0.77	10	1878	3	3	0	0	8
RFA_00768	Corona_pk3 links to Rfam database...	0.65	0.56	0.77	10	1878	3	3	0	0	8
RFA_00769	Corona_pk3 links to Rfam database...	0.59	0.56	0.63	10	1937	6	1	5	0	8
RFA_00770	Corona_pk3 links to Rfam database...	0.52	0.39	0.70	7	2006	3	3	0	0	11
RFA_00773	Corona_pk3 links to Rfam database...	0.59	0.50	0.69	9	1940	4	4	0	0	9
RFA_00779	Corona_pk3 links to Rfam database...	0.65	0.56	0.77	10	1940	3	3	0	0	8
RFA_00808	RydC links to Rfam database...	0.58	0.56	0.60	9	2001	6	0	6	0	7
RFA_00809	RydC links to Rfam database...	0.36	0.38	0.35	6	2128	11	1	10	0	10
RFA_00814	R2_retro_el links to Rfam database...	0.87	0.78	0.97	32	25167	6	0	1	5	9
RFA_00816	R2_retro_el links to Rfam database...	0.86	0.76	0.97	31	23188	6	0	1	5	10
RFA_00817	R2_retro_el links to Rfam database...	0.86	0.76	0.97	31	21913	1	0	1	0	10
RFA_00818	R2_retro_el links to Rfam database...	0.86	0.73	1.00	30	20271	6	0	0	6	11
RFA_00819	R2_retro_el links to Rfam database...	0.88	0.78	1.00	32	27934	5	0	0	5	9

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
