Overview

Metric	CMfinder(20)		UNAFold
MCC	0.735	>	0.707
Average MCC ± 95% Confidence Intervals	0.736 ± 0.025	>	0.703 ± 0.028
Sensitivity	0.603	<	0.696
Positive Predictive Value	0.899	>	0.722
Total TP	4829	<	5572
Total TN	1268220	>	1265873
Total FP	787	<	2622
Total FP CONTRA	37	<	335
Total FP INCONS	506	<	1812
Total FP COMP	244	<	475
Total FN	3180	>	2437
P-value	3.56938820447e-08

^top

Performance plots

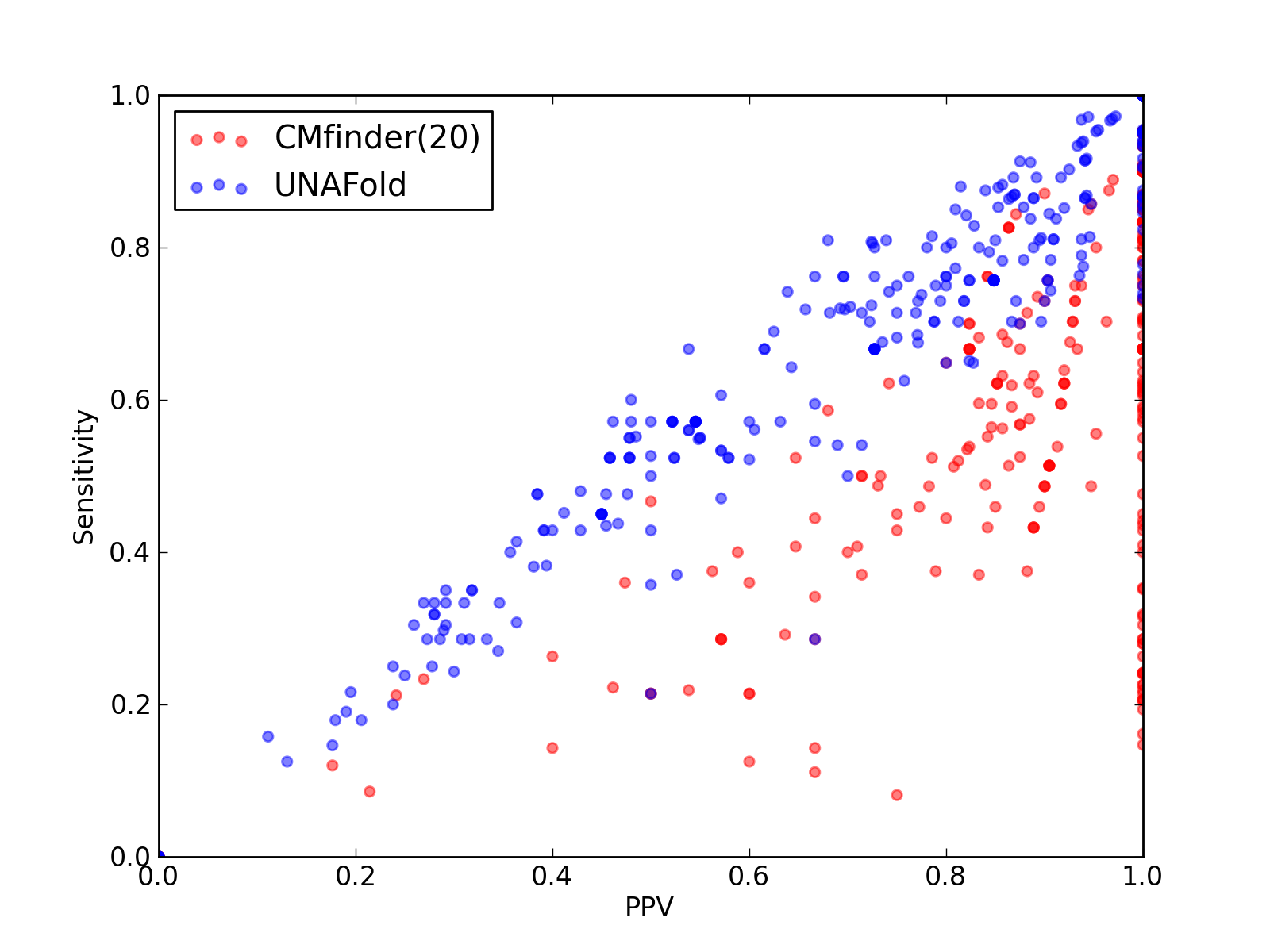

Comparison of performance of CMfinder(20) and UNAFold. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for CMfinder(20) and UNAFold).

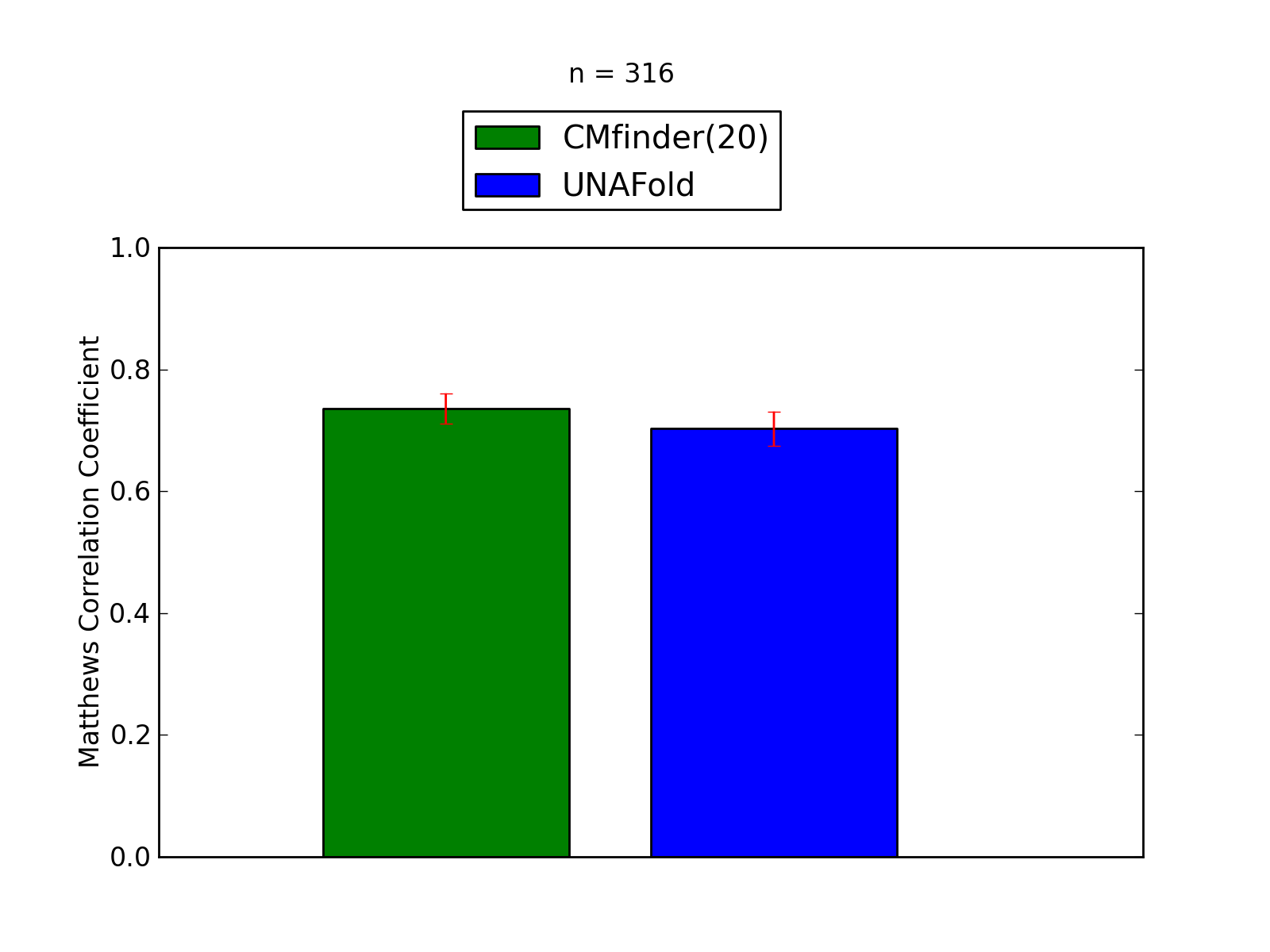

Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for CMfinder(20) and UNAFold).
Comparison of average Matthews Correlation Coefficients (MCCs) for CMfinder(20) and UNAFold. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for CMfinder(20) and UNAFold).

^top

Performance of CMfinder(20) - scored higher in this pairwise comparison

1. Total counts & total scores for CMfinder(20)

Total Base Pair Counts
Total TP	4829
Total TN	1268220
Total FP	787
Total FP CONTRA	37
Total FP INCONS	506
Total FP COMP	244
Total FN	3180

Total Scores
MCC	0.735
Average MCC ± 95% Confidence Intervals	0.736 ± 0.025
Sensitivity	0.603
Positive Predictive Value	0.899
Nr of predictions	316

^top

2. Individual counts for CMfinder(20) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
CRW_00548	5S_rRNA links to Rfam database...	0.73	0.63	0.86	24	7353	4	1	3	0	14
CRW_00552	5S_rRNA links to Rfam database...	0.66	0.44	1.00	17	7123	0	0	0	0	22
CRW_00555	5S_rRNA links to Rfam database...	0.68	0.53	0.88	21	7602	3	0	3	0	19
CRW_00567	5S_rRNA links to Rfam database...	0.79	0.63	1.00	25	7478	1	0	0	1	15
CRW_00570	5S_rRNA links to Rfam database...	0.73	0.62	0.85	23	6876	4	0	4	0	14
CRW_00573	5S_rRNA links to Rfam database...	0.74	0.55	1.00	22	7118	0	0	0	0	18
CRW_01484	5S_rRNA links to Rfam database...	0.69	0.56	0.85	22	7477	5	0	4	1	17
CRW_01485	5S_rRNA links to Rfam database...	0.70	0.54	0.91	21	7480	3	0	2	1	18
CRW_01487	5S_rRNA links to Rfam database...	0.48	0.34	0.67	14	7482	7	2	5	0	27
CRW_01489	5S_rRNA links to Rfam database...	0.60	0.49	0.73	19	7477	7	1	6	0	20
CRW_01491	5S_rRNA links to Rfam database...	0.64	0.49	0.84	21	8360	5	0	4	1	22
CRW_01492	5S_rRNA links to Rfam database...	0.70	0.60	0.83	25	7596	5	0	5	0	17
CRW_01494	5S_rRNA links to Rfam database...	0.54	0.38	0.79	15	7121	6	0	4	2	25
CRW_01497	5S_rRNA links to Rfam database...	0.57	0.38	0.88	15	7123	2	0	2	0	25
CRW_01498	5S_rRNA links to Rfam database...	0.66	0.53	0.82	23	8100	6	0	5	1	20
CRW_01499	5S_rRNA links to Rfam database...	0.64	0.51	0.81	21	7975	5	0	5	0	20
CRW_01500	5S_rRNA links to Rfam database...	0.32	0.26	0.40	10	7725	16	2	13	1	28
CRW_01501	5S_rRNA links to Rfam database...	0.59	0.44	0.80	20	8490	5	0	5	0	25
CRW_01508	5S_rRNA links to Rfam database...	0.33	0.21	0.50	9	7983	11	2	7	2	33
CRW_01532	5S_rRNA links to Rfam database...	0.71	0.59	0.85	22	7114	8	0	4	4	15
CRW_01533	5S_rRNA links to Rfam database...	0.66	0.49	0.90	18	7120	2	0	2	0	19
CRW_01534	5S_rRNA links to Rfam database...	0.81	0.73	0.90	27	7110	6	0	3	3	10
CRW_01535	5S_rRNA links to Rfam database...	0.68	0.51	0.90	19	7119	2	0	2	0	18
CRW_01536	5S_rRNA links to Rfam database...	0.85	0.73	1.00	27	6994	1	0	0	1	10
CRW_01537	5S_rRNA links to Rfam database...	0.68	0.51	0.90	19	7119	5	0	2	3	18
CRW_01539	5S_rRNA links to Rfam database...	0.72	0.65	0.80	24	7110	12	0	6	6	13
CRW_01540	5S_rRNA links to Rfam database...	0.68	0.49	0.95	18	7121	4	0	1	3	19
CRW_01541	5S_rRNA links to Rfam database...	0.62	0.43	0.89	16	7122	4	0	2	2	21
CRW_01542	5S_rRNA links to Rfam database...	0.68	0.51	0.90	19	7119	4	0	2	2	18
CRW_01544	5S_rRNA links to Rfam database...	0.59	0.46	0.77	17	7118	5	0	5	0	20
CRW_01548	5S_rRNA links to Rfam database...	0.73	0.62	0.85	23	6994	6	0	4	2	14
CRW_01555	5S_rRNA links to Rfam database...	0.82	0.70	0.96	26	9018	5	0	1	4	11
CRW_01556	5S_rRNA links to Rfam database...	0.62	0.43	0.89	16	7122	2	0	2	0	21
CRW_01557	5S_rRNA links to Rfam database...	0.80	0.65	1.00	24	7116	1	0	0	1	13
CRW_01559	5S_rRNA links to Rfam database...	0.76	0.68	0.86	25	7231	7	0	4	3	12
CRW_01562	5S_rRNA links to Rfam database...	0.82	0.73	0.93	27	7111	3	0	2	1	10
CRW_01563	5S_rRNA links to Rfam database...	0.68	0.51	0.90	19	6882	3	0	2	1	18
CRW_01566	5S_rRNA links to Rfam database...	0.59	0.35	1.00	13	7127	0	0	0	0	24
CRW_01568	5S_rRNA links to Rfam database...	0.62	0.46	0.85	17	7120	5	0	3	2	20
CRW_01569	5S_rRNA links to Rfam database...	0.66	0.49	0.90	18	7120	2	0	2	0	19
CRW_01570	5S_rRNA links to Rfam database...	0.74	0.59	0.92	22	7116	6	0	2	4	15
CRW_01572	5S_rRNA links to Rfam database...	0.70	0.57	0.88	21	6997	7	0	3	4	16
CRW_01573	5S_rRNA links to Rfam database...	0.82	0.73	0.93	27	7231	4	0	2	2	10
CRW_01578	5S_rRNA links to Rfam database...	0.81	0.70	0.93	26	7112	6	0	2	4	11
CRW_01580	5S_rRNA links to Rfam database...	0.76	0.62	0.92	23	7115	4	0	2	2	14
CRW_01581	5S_rRNA links to Rfam database...	0.74	0.59	0.92	22	7116	3	0	2	1	15
CRW_01583	5S_rRNA links to Rfam database...	0.81	0.70	0.93	26	7112	3	0	2	1	11
CRW_01584	5S_rRNA links to Rfam database...	0.66	0.51	0.86	19	7118	4	0	3	1	18
CRW_01590	5S_rRNA links to Rfam database...	0.76	0.62	0.92	23	7115	3	0	2	1	14
CRW_01593	5S_rRNA links to Rfam database...	0.68	0.51	0.90	19	7119	4	0	2	2	18
CRW_01595	5S_rRNA links to Rfam database...	0.68	0.62	0.74	23	8484	11	0	8	3	14
CRW_01599	5S_rRNA links to Rfam database...	0.79	0.62	1.00	23	7117	1	0	0	1	14
CRW_01603	5S_rRNA links to Rfam database...	0.62	0.43	0.89	16	7122	2	0	2	0	21
CRW_01605	5S_rRNA links to Rfam database...	0.64	0.46	0.89	17	7121	4	0	2	2	20
CRW_01606	5S_rRNA links to Rfam database...	0.66	0.49	0.90	18	7120	5	0	2	3	19
CRW_01608	5S_rRNA links to Rfam database...	0.73	0.62	0.85	23	8358	5	0	4	1	14
CRW_01616	5S_rRNA links to Rfam database...	0.79	0.68	0.93	25	7113	6	0	2	4	12
CRW_01617	5S_rRNA links to Rfam database...	0.74	0.62	0.88	23	7114	6	0	3	3	14
CRW_01620	5S_rRNA links to Rfam database...	0.83	0.76	0.90	28	6990	5	0	3	2	9
CRW_01621	5S_rRNA links to Rfam database...	0.60	0.43	0.84	16	7121	3	0	3	0	21
CRW_01623	5S_rRNA links to Rfam database...	0.70	0.57	0.88	21	7116	4	0	3	1	16
CRW_01625	5S_rRNA links to Rfam database...	0.76	0.62	0.92	23	7115	2	0	2	0	14
PDB_00012	mir-TAR links to Rfam database...	1.00	1.00	1.00	7	399	2	0	0	2	0
PDB_00070	tRNA links to Rfam database...	0.76	0.58	1.00	14	2836	0	0	0	0	10
PDB_00213	Gammaretro_CES links to Rfam database...	0.85	0.73	1.00	30	5020	0	0	0	0	11
PDB_00229	tRNA links to Rfam database...	0.88	0.78	1.00	18	2757	0	0	0	0	5
PDB_00327	tRNA links to Rfam database...	0.93	0.87	1.00	20	3061	0	0	0	0	3
PDB_00362	tRNA links to Rfam database...	0.95	0.91	1.00	20	2830	0	0	0	0	2
PDB_00402	tRNA links to Rfam database...	0.93	0.87	1.00	20	2755	0	0	0	0	3
PDB_00431	tRNA links to Rfam database...	0.95	0.90	1.00	18	2193	0	0	0	0	2
PDB_00474	tRNA links to Rfam database...	0.88	0.78	1.00	18	2683	0	0	0	0	5
PDB_00553	mir-TAR links to Rfam database...	0.90	0.82	1.00	9	456	0	0	0	0	2
PDB_00571	tRNA links to Rfam database...	0.87	0.80	0.95	20	3300	1	0	1	0	5
PDB_00667	tRNA links to Rfam database...	0.71	0.59	0.87	13	2835	3	0	2	1	9
PDB_00741	Entero_5_CRE links to Rfam database...	0.84	0.71	1.00	12	691	0	0	0	0	5
PDB_00810	s2m links to Rfam database...	0.76	0.59	1.00	10	1071	0	0	0	0	7
PDB_00828	Purine links to Rfam database...	0.84	0.70	1.00	19	2466	0	0	0	0	8
PDB_00829	Purine links to Rfam database...	0.84	0.71	1.00	17	2261	0	0	0	0	7
PDB_00876	HIV_FE links to Rfam database...	0.84	0.75	0.94	15	974	1	0	1	0	5
PDB_01002	tRNA links to Rfam database...	0.75	0.57	1.00	12	2763	2	0	0	2	9
PDB_01020	Purine links to Rfam database...	0.78	0.61	1.00	14	2264	0	0	0	0	9
PDB_01050	UnaL2 links to Rfam database...	0.78	0.62	1.00	8	622	1	0	0	1	5
PDB_01053	tRNA links to Rfam database...	0.90	0.81	1.00	13	1365	0	0	0	0	3
PDB_01073	SAM links to Rfam database...	0.59	0.35	1.00	12	4359	1	0	0	1	22
PDB_01114	TPP links to Rfam database...	0.51	0.37	0.71	10	2836	4	0	4	0	17
PDB_01152	HIV_FS2 links to Rfam database...	0.92	0.86	1.00	12	549	0	0	0	0	2
PDB_01236	ykoK links to Rfam database...	0.54	0.41	0.71	22	11597	10	0	9	1	32
RFA_00389	Hammerhead_3 links to Rfam database...	0.93	0.87	1.00	13	1418	1	0	0	1	2
RFA_00390	Hammerhead_3 links to Rfam database...	0.93	0.87	1.00	13	1418	1	0	0	1	2
RFA_00391	Hammerhead_3 links to Rfam database...	0.89	0.80	1.00	12	1419	1	0	0	1	3
RFA_00396	Hammerhead_3 links to Rfam database...	0.93	0.87	1.00	13	1418	1	0	0	1	2
RFA_00402	Hammerhead_3 links to Rfam database...	0.93	0.87	1.00	13	1418	0	0	0	0	2
RFA_00409	Hammerhead_3 links to Rfam database...	0.89	0.80	1.00	12	1419	1	0	0	1	3
RFA_00416	Hammerhead_3 links to Rfam database...	0.93	0.87	1.00	13	1472	1	0	0	1	2
RFA_00433	Hammerhead_3 links to Rfam database...	0.93	0.87	1.00	13	1418	1	0	0	1	2
RFA_00434	Hammerhead_3 links to Rfam database...	0.93	0.87	1.00	13	1418	1	0	0	1	2
RFA_00436	Hammerhead_3 links to Rfam database...	0.93	0.87	1.00	13	1418	1	0	0	1	2
RFA_00440	Hammerhead_3 links to Rfam database...	0.93	0.87	1.00	13	1472	1	0	0	1	2
RFA_00442	Hammerhead_3 links to Rfam database...	0.93	0.87	1.00	13	1418	1	0	0	1	2
RFA_00444	Hammerhead_3 links to Rfam database...	0.82	0.67	1.00	10	1530	0	0	0	0	5
RFA_00583	Y_RNA links to Rfam database...	0.48	0.47	0.50	7	4936	18	0	7	11	8
RFA_00584	Y_RNA links to Rfam database...	0.97	0.93	1.00	14	2912	9	0	0	9	1
RFA_00585	Y_RNA links to Rfam database...	0.97	0.93	1.00	14	4837	11	0	0	11	1
RFA_00586	Y_RNA links to Rfam database...	0.63	0.40	1.00	6	3910	7	0	0	7	9
RFA_00587	Y_RNA links to Rfam database...	0.97	0.93	1.00	14	4837	10	0	0	10	1
RFA_00588	Y_RNA links to Rfam database...	0.00	0.00	0.00	0	4555	10	0	5	5	15
RFA_00589	Y_RNA links to Rfam database...	0.97	0.93	1.00	14	4357	11	0	0	11	1
RFA_00594	Y_RNA links to Rfam database...	0.93	0.87	1.00	13	2762	8	0	0	8	2
RFA_00596	Y_RNA links to Rfam database...	0.86	0.73	1.00	11	5984	16	0	0	16	4
RFA_00658	Hammerhead_1 links to Rfam database...	0.40	0.29	0.57	4	1121	4	0	3	1	10
RFA_00664	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	985	5	0	5	0	14
RFA_00667	Hammerhead_1 links to Rfam database...	0.40	0.29	0.57	4	983	4	0	3	1	10
RFA_00668	Hammerhead_1 links to Rfam database...	0.35	0.21	0.60	3	985	3	0	2	1	11
RFA_00672	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	898	5	0	5	0	13
RFA_00673	Hammerhead_1 links to Rfam database...	0.23	0.14	0.40	2	1123	4	0	3	1	12
RFA_00674	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	1123	5	0	5	0	14
RFA_00675	Hammerhead_1 links to Rfam database...	0.35	0.21	0.60	3	985	3	0	2	1	11
RFA_00677	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	985	5	0	5	0	14
RFA_00678	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	942	4	0	4	0	14
RFA_00680	Hammerhead_1 links to Rfam database...	0.40	0.29	0.57	4	1121	4	0	3	1	10
RFA_00704	Hammerhead_1 links to Rfam database...	0.32	0.21	0.50	3	984	4	0	3	1	11
RFA_00707	Hammerhead_1 links to Rfam database...	0.43	0.29	0.67	4	1029	3	0	2	1	10
RFA_00715	Hammerhead_1 links to Rfam database...	0.30	0.14	0.67	2	943	2	0	1	1	12
RFA_00717	Hammerhead_1 links to Rfam database...	0.46	0.21	1.00	3	900	0	0	0	0	11
RFA_00730	s2m links to Rfam database...	0.91	0.83	1.00	10	893	0	0	0	0	2
RFA_00731	s2m links to Rfam database...	0.91	0.83	1.00	10	893	0	0	0	0	2
RFA_00733	s2m links to Rfam database...	0.81	0.67	1.00	8	895	0	0	0	0	4
RFA_00734	s2m links to Rfam database...	0.81	0.67	1.00	8	895	0	0	0	0	4
RFA_00736	s2m links to Rfam database...	0.91	0.83	1.00	10	893	0	0	0	0	2
RFA_00737	s2m links to Rfam database...	0.81	0.67	1.00	8	895	0	0	0	0	4
RFA_00745	s2m links to Rfam database...	0.91	0.83	1.00	10	936	0	0	0	0	2
RFA_00749	s2m links to Rfam database...	0.91	0.83	1.00	10	893	0	0	0	0	2
RFA_00758	s2m links to Rfam database...	0.86	0.75	1.00	9	894	0	0	0	0	3
RFA_00762	s2m links to Rfam database...	0.91	0.83	1.00	10	893	0	0	0	0	2
RFA_00763	s2m links to Rfam database...	0.91	0.83	1.00	10	893	0	0	0	0	2
RFA_00764	s2m links to Rfam database...	0.81	0.67	1.00	8	895	0	0	0	0	4
RFA_00765	s2m links to Rfam database...	0.91	0.83	1.00	10	893	0	0	0	0	2
RFA_00786	Gammaretro_CES links to Rfam database...	0.95	0.91	1.00	29	5021	0	0	0	0	3
RFA_00791	Gammaretro_CES links to Rfam database...	0.92	0.88	0.97	28	5122	1	0	1	0	4
RFA_00792	Gammaretro_CES links to Rfam database...	0.97	0.94	1.00	30	5020	0	0	0	0	2
RFA_00801	Gammaretro_CES links to Rfam database...	0.95	0.91	1.00	29	5021	0	0	0	0	3
SPR_00007	tRNA links to Rfam database...	0.74	0.67	0.82	14	2833	3	0	3	0	7
SPR_00009	tRNA links to Rfam database...	0.76	0.70	0.82	14	2833	3	0	3	0	6
SPR_00010	tRNA links to Rfam database...	0.98	0.95	1.00	20	2830	0	0	0	0	1
SPR_00012	tRNA links to Rfam database...	0.76	0.70	0.82	14	2833	3	0	3	0	6
SPR_00013	tRNA links to Rfam database...	0.97	0.95	1.00	19	2831	0	0	0	0	1
SPR_00016	tRNA links to Rfam database...	0.79	0.67	0.93	14	2835	1	0	1	0	7
SPR_00017	tRNA links to Rfam database...	0.98	0.95	1.00	20	2830	0	0	0	0	1
SPR_00025	tRNA links to Rfam database...	0.58	0.45	0.75	9	2914	3	0	3	0	11
SPR_00026	tRNA links to Rfam database...	0.98	0.95	1.00	20	2906	0	0	0	0	1
SPR_00027	tRNA links to Rfam database...	0.93	0.86	1.00	18	2908	0	0	0	0	3
SPR_00036	tRNA links to Rfam database...	0.87	0.75	1.00	15	2760	0	0	0	0	5
SPR_00045	tRNA links to Rfam database...	0.75	0.68	0.83	15	2832	3	0	3	0	7
SPR_00064	tRNA links to Rfam database...	0.82	0.67	1.00	14	2836	0	0	0	0	7
SPR_00065	tRNA links to Rfam database...	0.65	0.43	1.00	9	2841	0	0	0	0	12
SPR_00066	tRNA links to Rfam database...	0.95	0.90	1.00	19	2831	0	0	0	0	2
SPR_00068	tRNA links to Rfam database...	0.98	0.95	1.00	20	2830	0	0	0	0	1
SPR_00070	tRNA links to Rfam database...	0.76	0.67	0.88	14	2834	2	0	2	0	7
SPR_00074	tRNA links to Rfam database...	0.97	0.95	1.00	19	2831	0	0	0	0	1
SPR_00079	tRNA links to Rfam database...	0.83	0.68	1.00	13	2472	0	0	0	0	6
SPR_00086	tRNA links to Rfam database...	0.98	0.95	1.00	20	2830	0	0	0	0	1
SPR_00087	tRNA links to Rfam database...	0.95	0.90	1.00	18	2832	0	0	0	0	2
SPR_00088	tRNA links to Rfam database...	0.97	0.95	1.00	19	2831	0	0	0	0	1
SPR_00089	tRNA links to Rfam database...	0.84	0.70	1.00	14	2836	0	0	0	0	6
SPR_00090	tRNA links to Rfam database...	0.97	0.95	1.00	19	2831	0	0	0	0	1
SPR_00091	tRNA links to Rfam database...	0.92	0.85	1.00	17	2833	0	0	0	0	3
SPR_00095	tRNA links to Rfam database...	0.95	0.90	1.00	19	2831	0	0	0	0	2
SPR_00111	tRNA links to Rfam database...	0.95	0.90	1.00	19	2682	0	0	0	0	2
SPR_00112	tRNA links to Rfam database...	0.95	0.90	1.00	19	2682	1	0	0	1	2
SPR_00115	tRNA links to Rfam database...	0.98	0.95	1.00	20	2681	0	0	0	0	1
SPR_00117	tRNA links to Rfam database...	0.95	0.90	1.00	19	2831	1	0	0	1	2
SPR_00139	tRNA links to Rfam database...	0.98	0.95	1.00	20	2906	0	0	0	0	1
SPR_00153	tRNA links to Rfam database...	0.80	0.76	0.84	16	2907	3	0	3	0	5
SPR_00155	tRNA links to Rfam database...	0.79	0.71	0.88	15	2909	2	0	2	0	6
SPR_00156	tRNA links to Rfam database...	0.98	0.95	1.00	20	2906	0	0	0	0	1
SPR_00176	tRNA links to Rfam database...	0.97	0.95	1.00	19	2831	0	0	0	0	1
SPR_00177	tRNA links to Rfam database...	0.98	0.95	1.00	20	2830	0	0	0	0	1
SPR_00178	tRNA links to Rfam database...	0.98	0.95	1.00	20	2830	0	0	0	0	1
SPR_00191	tRNA links to Rfam database...	0.98	0.95	1.00	20	2830	0	0	0	0	1
SPR_00200	tRNA links to Rfam database...	0.98	0.95	1.00	20	2830	0	0	0	0	1
SPR_00224	tRNA links to Rfam database...	0.92	0.85	1.00	17	3724	4	0	0	4	3
SPR_00271	tRNA links to Rfam database...	0.93	0.86	1.00	18	2832	0	0	0	0	3
SPR_00273	tRNA links to Rfam database...	0.74	0.67	0.82	14	2833	3	0	3	0	7
SPR_00276	tRNA links to Rfam database...	0.98	0.95	1.00	20	2906	0	0	0	0	1
SPR_00277	tRNA links to Rfam database...	0.98	0.95	1.00	20	2906	0	0	0	0	1
SPR_00294	tRNA links to Rfam database...	0.95	0.90	1.00	19	2831	0	0	0	0	2
SPR_00295	tRNA links to Rfam database...	0.95	0.90	1.00	19	2756	0	0	0	0	2
SPR_00314	tRNA links to Rfam database...	0.98	0.95	1.00	20	2906	0	0	0	0	1
SPR_00315	tRNA links to Rfam database...	0.98	0.95	1.00	20	2906	0	0	0	0	1
SPR_00317	tRNA links to Rfam database...	0.90	0.85	0.94	17	2908	1	0	1	0	3
SPR_00318	tRNA links to Rfam database...	0.98	0.95	1.00	20	2906	1	0	0	1	1
SPR_00321	tRNA links to Rfam database...	0.90	0.86	0.95	18	2984	1	0	1	0	3
SPR_00333	tRNA links to Rfam database...	0.58	0.52	0.65	11	2758	6	0	6	0	10
SPR_00352	tRNA links to Rfam database...	0.95	0.90	1.00	19	2907	0	0	0	0	2
SPR_00353	tRNA links to Rfam database...	0.82	0.67	1.00	14	2836	0	0	0	0	7
SPR_00357	tRNA links to Rfam database...	0.95	0.90	1.00	19	2907	0	0	0	0	2
SPR_00358	tRNA links to Rfam database...	0.95	0.90	1.00	18	2908	0	0	0	0	2
SPR_00370	tRNA links to Rfam database...	0.82	0.67	1.00	14	2761	0	0	0	0	7
SPR_00386	tRNA links to Rfam database...	0.67	0.45	1.00	9	4177	4	0	0	4	11
SPR_00414	tRNA links to Rfam database...	0.82	0.67	1.00	14	3556	4	0	0	4	7
SPR_00415	tRNA links to Rfam database...	0.64	0.52	0.79	11	3556	7	0	3	4	10
SPR_00417	tRNA links to Rfam database...	0.60	0.50	0.73	11	3555	8	2	2	4	11
SPR_00418	tRNA links to Rfam database...	0.80	0.64	1.00	14	3556	4	0	0	4	8
SPR_00434	tRNA links to Rfam database...	0.90	0.81	1.00	17	2833	0	0	0	0	4
SPR_00435	tRNA links to Rfam database...	0.74	0.67	0.82	14	2833	3	0	3	0	7
SPR_00436	tRNA links to Rfam database...	0.93	0.86	1.00	18	2832	1	0	0	1	3
SPR_00437	tRNA links to Rfam database...	0.73	0.62	0.87	13	2760	3	0	2	1	8
SPR_00438	tRNA links to Rfam database...	0.82	0.67	1.00	14	2761	0	0	0	0	7
SPR_00452	tRNA links to Rfam database...	0.98	0.95	1.00	20	2830	0	0	0	0	1
SPR_00455	tRNA links to Rfam database...	0.74	0.67	0.82	14	2833	3	0	3	0	7
SPR_00456	tRNA links to Rfam database...	0.93	0.86	1.00	18	2832	0	0	0	0	3
SPR_00476	tRNA links to Rfam database...	0.56	0.43	0.75	9	2763	3	1	2	0	12
SPR_00479	tRNA links to Rfam database...	0.93	0.86	1.00	18	2832	0	0	0	0	3
SPR_00482	tRNA links to Rfam database...	0.95	0.90	1.00	19	2682	0	0	0	0	2
SPR_00483	tRNA links to Rfam database...	0.95	0.90	1.00	19	2831	0	0	0	0	2
SPR_00487	tRNA links to Rfam database...	0.64	0.41	1.00	9	2692	0	0	0	0	13
SPR_00493	tRNA links to Rfam database...	0.77	0.59	1.00	13	2762	0	0	0	0	9
SPR_00496	tRNA links to Rfam database...	0.82	0.67	1.00	14	2761	0	0	0	0	7
SPR_00497	tRNA links to Rfam database...	0.82	0.67	1.00	14	2761	0	0	0	0	7
SPR_00502	tRNA links to Rfam database...	0.93	0.86	1.00	18	2908	0	0	0	0	3
SPR_00504	tRNA links to Rfam database...	0.95	0.90	1.00	18	2832	0	0	0	0	2
SPR_00505	tRNA links to Rfam database...	0.92	0.85	1.00	17	2909	0	0	0	0	3
SPR_00506	tRNA links to Rfam database...	0.97	0.95	1.00	19	2907	0	0	0	0	1
SPR_00509	tRNA links to Rfam database...	0.92	0.85	1.00	17	2909	0	0	0	0	3
SPR_00512	tRNA links to Rfam database...	0.78	0.70	0.88	14	2910	2	0	2	0	6
SPR_00513	tRNA links to Rfam database...	0.95	0.90	1.00	18	2908	0	0	0	0	2
SPR_00518	tRNA links to Rfam database...	0.92	0.85	1.00	17	2909	0	0	0	0	3
SPR_00548	tRNA links to Rfam database...	0.82	0.67	1.00	14	3389	0	0	0	0	7
SPR_00557	tRNA links to Rfam database...	0.95	0.90	1.00	19	2831	0	0	0	0	2
SPR_00561	tRNA links to Rfam database...	0.98	0.95	1.00	20	2830	0	0	0	0	1
SPR_00590	tRNA links to Rfam database...	0.60	0.50	0.71	10	2989	5	0	4	1	10
SPR_00593	tRNA links to Rfam database...	0.56	0.32	1.00	6	2769	0	0	0	0	13
SPR_00595	tRNA links to Rfam database...	0.98	0.95	1.00	20	2755	0	0	0	0	1
SPR_00598	tRNA links to Rfam database...	0.79	0.62	1.00	13	2990	1	0	0	1	8
SPR_00610	tRNA links to Rfam database...	0.87	0.76	1.00	16	2540	0	0	0	0	5
SPR_00620	tRNA links to Rfam database...	0.69	0.48	1.00	10	2993	1	0	0	1	11
SPR_00721	tRNA links to Rfam database...	0.90	0.81	1.00	17	2909	0	0	0	0	4
SPR_00722	tRNA links to Rfam database...	0.95	0.90	1.00	18	2908	0	0	0	0	2
SPR_00758	tRNA links to Rfam database...	0.95	0.90	1.00	19	2984	0	0	0	0	2
SPR_00760	tRNA links to Rfam database...	0.98	0.95	1.00	20	3550	0	0	0	0	1
SPR_00777	tRNA links to Rfam database...	0.95	0.90	1.00	18	2610	1	0	0	1	2
SPR_00867	tRNA links to Rfam database...	0.98	0.95	1.00	20	2906	0	0	0	0	1
SPR_00868	tRNA links to Rfam database...	0.95	0.90	1.00	19	2907	0	0	0	0	2
SPR_00943	tRNA links to Rfam database...	0.60	0.50	0.71	10	2542	4	0	4	0	10
SPR_00957	tRNA links to Rfam database...	0.98	0.95	1.00	20	2983	0	0	0	0	1
SPR_01040	tRNA links to Rfam database...	0.93	0.86	1.00	18	2757	0	0	0	0	3
SPR_01088	tRNA links to Rfam database...	0.93	0.86	1.00	18	2908	0	0	0	0	3
SPR_01095	tRNA links to Rfam database...	0.95	0.90	1.00	19	2831	0	0	0	0	2
SPR_01106	tRNA links to Rfam database...	0.82	0.67	1.00	14	2542	0	0	0	0	7
SPR_01117	tRNA links to Rfam database...	0.90	0.81	1.00	17	2986	0	0	0	0	4
SPR_01157	tRNA links to Rfam database...	0.80	0.76	0.84	16	2756	4	0	3	1	5
SRP_00008	Bacteria_small_SRP links to Rfam database...	0.65	0.52	0.81	13	2910	3	0	3	0	12
SRP_00020	Bacteria_small_SRP links to Rfam database...	0.78	0.61	1.00	20	5545	0	0	0	0	13
SRP_00038	Bacteria_small_SRP links to Rfam database...	0.22	0.21	0.24	7	5021	22	0	22	0	26
SRP_00042	Bacteria_small_SRP links to Rfam database...	0.41	0.36	0.47	9	3986	11	3	7	1	16
SRP_00044	Bacteria_small_SRP links to Rfam database...	0.86	0.84	0.87	27	6074	5	1	3	1	5
SRP_00046	Bacteria_small_SRP links to Rfam database...	0.47	0.22	1.00	7	4746	0	0	0	0	25
SRP_00051	Bacteria_small_SRP links to Rfam database...	0.25	0.23	0.27	7	5434	19	1	18	0	23
SRP_00054	Bacteria_small_SRP links to Rfam database...	0.34	0.22	0.54	7	5552	6	0	6	0	25
SRP_00058	Bacteria_small_SRP links to Rfam database...	0.66	0.44	1.00	15	5763	0	0	0	0	19
SRP_00072	Bacteria_small_SRP links to Rfam database...	0.49	0.24	1.00	7	6321	0	0	0	0	22
SRP_00074	Bacteria_small_SRP links to Rfam database...	0.49	0.24	1.00	7	6548	0	0	0	0	22
SRP_00075	Bacteria_small_SRP links to Rfam database...	0.45	0.21	1.00	7	5558	0	0	0	0	27
SRP_00077	Bacteria_small_SRP links to Rfam database...	0.25	0.08	0.75	3	6666	1	0	1	0	34
SRP_00081	Bacteria_small_SRP links to Rfam database...	0.47	0.23	1.00	7	5558	0	0	0	0	24
SRP_00084	Bacteria_small_SRP links to Rfam database...	0.81	0.74	0.89	25	5432	3	1	2	0	9
SRP_00094	Bacteria_small_SRP links to Rfam database...	0.46	0.38	0.56	9	4079	7	2	5	0	15
SRP_00095	Bacteria_small_SRP links to Rfam database...	0.14	0.12	0.18	3	3988	14	1	13	0	22
SRP_00098	Bacteria_small_SRP links to Rfam database...	0.62	0.49	0.78	18	6418	5	1	4	0	19
SRP_00105	Bacteria_small_SRP links to Rfam database...	0.45	0.21	1.00	7	5558	0	0	0	0	27
SRP_00107	Bacteria_small_SRP links to Rfam database...	0.72	0.53	1.00	10	3645	0	0	0	0	9
SRP_00121	Bacteria_small_SRP links to Rfam database...	0.53	0.28	1.00	7	4271	0	0	0	0	18
SRP_00128	Bacteria_small_SRP links to Rfam database...	0.77	0.64	0.92	23	6761	2	1	1	0	13
SRP_00132	Bacteria_small_SRP links to Rfam database...	0.49	0.24	1.00	7	4844	0	0	0	0	22
SRP_00134	Bacteria_large_SRP links to Rfam database...	0.68	0.55	0.84	16	5976	3	0	3	0	13
SRP_00141	Bacteria_small_SRP links to Rfam database...	0.74	0.61	0.89	25	6300	3	1	2	0	16
SRP_00161	Bacteria_small_SRP links to Rfam database...	0.56	0.32	1.00	7	2843	0	0	0	0	15
SRP_00162	Bacteria_small_SRP links to Rfam database...	0.55	0.30	1.00	7	2919	0	0	0	0	16
SRP_00163	Bacteria_small_SRP links to Rfam database...	0.66	0.54	0.82	14	3469	3	0	3	0	12
SRP_00164	Bacteria_small_SRP links to Rfam database...	0.53	0.40	0.70	14	6883	6	1	5	0	21
SRP_00170	Bacteria_small_SRP links to Rfam database...	0.48	0.40	0.59	10	4078	7	1	6	0	15
SRP_00194	Bacteria_small_SRP links to Rfam database...	0.53	0.29	1.00	6	3234	0	0	0	0	15
SRP_00200	Bacteria_small_SRP links to Rfam database...	0.27	0.11	0.67	4	6897	2	0	2	0	32
SRP_00209	Bacteria_small_SRP links to Rfam database...	0.32	0.22	0.46	6	4643	7	1	6	0	21
SRP_00213	Bacteria_small_SRP links to Rfam database...	0.46	0.36	0.60	9	4171	6	1	5	0	16
SRP_00215	Bacteria_small_SRP links to Rfam database...	0.53	0.28	1.00	7	3233	0	0	0	0	18
SRP_00227	Bacteria_small_SRP links to Rfam database...	0.88	0.87	0.90	27	5121	3	1	2	0	4
SRP_00231	Bacteria_small_SRP links to Rfam database...	0.45	0.21	1.00	7	5453	0	0	0	0	27
SRP_00233	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	5140	11	1	10	0	33
SRP_00250	Bacteria_small_SRP links to Rfam database...	0.78	0.61	1.00	22	6764	0	0	0	0	14
SRP_00251	Bacteria_small_SRP links to Rfam database...	0.73	0.56	0.95	20	7000	1	0	1	0	16
SRP_00266	Bacteria_small_SRP links to Rfam database...	0.63	0.59	0.68	17	4631	9	1	7	1	12
SRP_00268	Bacteria_small_SRP links to Rfam database...	0.54	0.44	0.67	12	4168	6	1	5	0	15
SRP_00269	Bacteria_small_SRP links to Rfam database...	0.76	0.58	1.00	19	5031	0	0	0	0	14
SRP_00270	Bacteria_small_SRP links to Rfam database...	0.44	0.19	1.00	6	4650	0	0	0	0	25
SRP_00271	Bacteria_small_SRP links to Rfam database...	0.27	0.13	0.60	3	3235	2	0	2	0	21
SRP_00273	Bacteria_small_SRP links to Rfam database...	0.71	0.58	0.88	23	6760	3	1	2	0	17
SRP_00274	Bacteria_small_SRP links to Rfam database...	0.75	0.63	0.89	24	6876	3	1	2	0	14
SRP_00295	Bacteria_small_SRP links to Rfam database...	0.51	0.26	1.00	10	6893	0	0	0	0	28
SRP_00303	Bacteria_small_SRP links to Rfam database...	0.69	0.56	0.86	18	6649	3	0	3	0	14
SRP_00310	Bacteria_small_SRP links to Rfam database...	0.84	0.83	0.86	19	2904	3	0	3	0	4
SRP_00312	Bacteria_small_SRP links to Rfam database...	0.51	0.41	0.65	11	4169	6	1	5	0	16
SRP_00315	Bacteria_small_SRP links to Rfam database...	0.84	0.83	0.86	19	2904	3	0	3	0	4
SRP_00318	Bacteria_small_SRP links to Rfam database...	0.84	0.83	0.86	19	2981	3	0	3	0	4
SRP_00325	Bacteria_small_SRP links to Rfam database...	0.87	0.76	1.00	25	4346	0	0	0	0	8
SRP_00326	Bacteria_small_SRP links to Rfam database...	0.40	0.16	1.00	5	5045	0	0	0	0	26
SRP_00333	Bacteria_small_SRP links to Rfam database...	0.38	0.15	1.00	5	5146	0	0	0	0	29
SRP_00338	Bacteria_small_SRP links to Rfam database...	0.93	0.89	0.97	32	5427	1	0	1	0	4
SRP_00341	Bacteria_small_SRP links to Rfam database...	0.47	0.23	1.00	7	4746	0	0	0	0	24
SRP_00342	Bacteria_small_SRP links to Rfam database...	0.49	0.24	1.00	6	3999	0	0	0	0	19
SRP_00350	Bacteria_small_SRP links to Rfam database...	0.55	0.37	0.83	10	3904	2	1	1	0	17
SRP_00357	Bacteria_small_SRP links to Rfam database...	0.83	0.75	0.93	27	5327	2	1	1	0	9
SRP_00358	Bacteria_small_SRP links to Rfam database...	0.53	0.29	1.00	10	6318	0	0	0	0	25
SRP_00367	Bacteria_small_SRP links to Rfam database...	0.13	0.09	0.21	3	6772	11	0	11	0	32
SRP_00369	Bacteria_small_SRP links to Rfam database...	0.77	0.69	0.86	24	5750	5	1	3	1	11
SRP_00383	Bacteria_small_SRP links to Rfam database...	0.43	0.29	0.64	7	3229	4	0	4	0	17

^top

Performance of UNAFold - scored lower in this pairwise comparison

1. Total counts & total scores for UNAFold

Total Base Pair Counts
Total TP	5572
Total TN	1265873
Total FP	2622
Total FP CONTRA	335
Total FP INCONS	1812
Total FP COMP	475
Total FN	2437

Total Scores
MCC	0.707
Average MCC ± 95% Confidence Intervals	0.703 ± 0.028
Sensitivity	0.696
Positive Predictive Value	0.722
Nr of predictions	316

^top

2. Individual counts for UNAFold [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
CRW_00548	5S_rRNA links to Rfam database...	0.84	0.76	0.94	29	7350	4	0	2	2	9
CRW_00552	5S_rRNA links to Rfam database...	0.33	0.31	0.36	12	7107	22	2	19	1	27
CRW_00555	5S_rRNA links to Rfam database...	0.78	0.70	0.88	28	7594	5	0	4	1	12
CRW_00567	5S_rRNA links to Rfam database...	0.69	0.63	0.76	25	7470	10	2	6	2	15
CRW_00570	5S_rRNA links to Rfam database...	0.88	0.89	0.87	33	6865	8	0	5	3	4
CRW_00573	5S_rRNA links to Rfam database...	0.26	0.25	0.28	10	7104	26	0	26	0	30
CRW_01484	5S_rRNA links to Rfam database...	0.18	0.18	0.18	7	7464	33	4	28	1	32
CRW_01485	5S_rRNA links to Rfam database...	0.19	0.18	0.21	7	7469	27	1	26	0	32
CRW_01487	5S_rRNA links to Rfam database...	0.16	0.15	0.18	6	7469	28	3	25	0	35
CRW_01489	5S_rRNA links to Rfam database...	0.82	0.74	0.91	29	7471	5	0	3	2	10
CRW_01491	5S_rRNA links to Rfam database...	0.73	0.65	0.82	28	8351	9	0	6	3	15
CRW_01492	5S_rRNA links to Rfam database...	0.76	0.74	0.78	31	7586	14	0	9	5	11
CRW_01494	5S_rRNA links to Rfam database...	0.72	0.68	0.77	27	7105	9	0	8	1	13
CRW_01497	5S_rRNA links to Rfam database...	0.85	0.78	0.94	31	7107	5	0	2	3	9
CRW_01498	5S_rRNA links to Rfam database...	0.88	0.81	0.95	35	8091	4	0	2	2	8
CRW_01499	5S_rRNA links to Rfam database...	0.58	0.56	0.61	23	7963	16	2	13	1	18
CRW_01500	5S_rRNA links to Rfam database...	0.86	0.79	0.94	30	7718	5	0	2	3	8
CRW_01501	5S_rRNA links to Rfam database...	0.87	0.84	0.90	38	8473	7	0	4	3	7
CRW_01508	5S_rRNA links to Rfam database...	0.90	0.86	0.95	36	7963	7	0	2	5	6
CRW_01532	5S_rRNA links to Rfam database...	0.74	0.70	0.79	26	7107	12	0	7	5	11
CRW_01533	5S_rRNA links to Rfam database...	0.80	0.76	0.85	28	7107	11	0	5	6	9
CRW_01534	5S_rRNA links to Rfam database...	0.79	0.76	0.82	28	7106	11	0	6	5	9
CRW_01535	5S_rRNA links to Rfam database...	0.83	0.76	0.90	28	7109	7	0	3	4	9
CRW_01536	5S_rRNA links to Rfam database...	0.88	0.86	0.89	32	6985	4	0	4	0	5
CRW_01537	5S_rRNA links to Rfam database...	0.73	0.65	0.83	24	7111	11	0	5	6	13
CRW_01539	5S_rRNA links to Rfam database...	0.81	0.73	0.90	27	7110	9	0	3	6	10
CRW_01540	5S_rRNA links to Rfam database...	0.63	0.59	0.67	22	7107	15	0	11	4	15
CRW_01541	5S_rRNA links to Rfam database...	0.87	0.84	0.91	31	7106	7	0	3	4	6
CRW_01542	5S_rRNA links to Rfam database...	0.86	0.81	0.91	30	7107	7	0	3	4	7
CRW_01544	5S_rRNA links to Rfam database...	0.86	0.84	0.89	31	7105	7	0	4	3	6
CRW_01548	5S_rRNA links to Rfam database...	0.77	0.73	0.82	27	6988	11	0	6	5	10
CRW_01555	5S_rRNA links to Rfam database...	0.83	0.76	0.90	28	9014	9	0	3	6	9
CRW_01556	5S_rRNA links to Rfam database...	0.71	0.70	0.72	26	7104	14	0	10	4	11
CRW_01557	5S_rRNA links to Rfam database...	0.90	0.86	0.94	32	7106	6	0	2	4	5
CRW_01559	5S_rRNA links to Rfam database...	0.77	0.73	0.82	27	7227	12	0	6	6	10
CRW_01562	5S_rRNA links to Rfam database...	0.83	0.78	0.88	29	7107	9	0	4	5	8
CRW_01563	5S_rRNA links to Rfam database...	0.61	0.54	0.69	20	6874	10	2	7	1	17
CRW_01566	5S_rRNA links to Rfam database...	0.76	0.73	0.79	27	7106	11	0	7	4	10
CRW_01568	5S_rRNA links to Rfam database...	0.79	0.76	0.82	28	7106	11	0	6	5	9
CRW_01569	5S_rRNA links to Rfam database...	0.80	0.76	0.85	28	7107	10	0	5	5	9
CRW_01570	5S_rRNA links to Rfam database...	0.80	0.73	0.87	27	7109	10	0	4	6	10
CRW_01572	5S_rRNA links to Rfam database...	0.27	0.24	0.30	9	6991	21	4	17	0	28
CRW_01573	5S_rRNA links to Rfam database...	0.80	0.76	0.85	28	7227	9	0	5	4	9
CRW_01578	5S_rRNA links to Rfam database...	0.79	0.70	0.90	26	7111	7	0	3	4	11
CRW_01580	5S_rRNA links to Rfam database...	0.62	0.54	0.71	20	7112	14	0	8	6	17
CRW_01581	5S_rRNA links to Rfam database...	0.30	0.27	0.34	10	7111	20	0	19	1	27
CRW_01583	5S_rRNA links to Rfam database...	0.80	0.76	0.85	28	7107	9	0	5	4	9
CRW_01584	5S_rRNA links to Rfam database...	0.90	0.89	0.92	33	7104	7	0	3	4	4
CRW_01590	5S_rRNA links to Rfam database...	0.29	0.30	0.29	11	7102	27	6	21	0	26
CRW_01593	5S_rRNA links to Rfam database...	0.80	0.76	0.85	28	7107	10	0	5	5	9
CRW_01595	5S_rRNA links to Rfam database...	0.74	0.70	0.79	26	8482	12	0	7	5	11
CRW_01599	5S_rRNA links to Rfam database...	0.75	0.70	0.81	26	7108	10	0	6	4	11
CRW_01603	5S_rRNA links to Rfam database...	0.84	0.78	0.91	29	7108	7	0	3	4	8
CRW_01605	5S_rRNA links to Rfam database...	0.72	0.65	0.80	24	7110	10	0	6	4	13
CRW_01606	5S_rRNA links to Rfam database...	0.78	0.70	0.87	26	7110	7	0	4	3	11
CRW_01608	5S_rRNA links to Rfam database...	0.86	0.81	0.91	30	8352	4	0	3	1	7
CRW_01616	5S_rRNA links to Rfam database...	0.80	0.76	0.85	28	7107	11	0	5	6	9
CRW_01617	5S_rRNA links to Rfam database...	0.90	0.86	0.94	32	7106	6	0	2	4	5
CRW_01620	5S_rRNA links to Rfam database...	0.89	0.89	0.89	33	6984	7	0	4	3	4
CRW_01621	5S_rRNA links to Rfam database...	0.70	0.68	0.74	25	7106	13	0	9	4	12
CRW_01623	5S_rRNA links to Rfam database...	0.87	0.81	0.94	30	7108	3	0	2	1	7
CRW_01625	5S_rRNA links to Rfam database...	0.88	0.86	0.89	32	7104	7	0	4	3	5
PDB_00012	mir-TAR links to Rfam database...	1.00	1.00	1.00	7	399	3	0	0	3	0
PDB_00070	tRNA links to Rfam database...	0.93	0.88	1.00	21	2829	0	0	0	0	3
PDB_00213	Gammaretro_CES links to Rfam database...	0.92	0.85	1.00	35	5015	0	0	0	0	6
PDB_00229	tRNA links to Rfam database...	0.44	0.43	0.45	10	2753	12	3	9	0	13
PDB_00327	tRNA links to Rfam database...	0.56	0.52	0.60	12	3061	8	0	8	0	11
PDB_00362	tRNA links to Rfam database...	0.98	0.95	1.00	21	2829	0	0	0	0	1
PDB_00402	tRNA links to Rfam database...	0.27	0.30	0.26	7	2748	20	2	18	0	16
PDB_00431	tRNA links to Rfam database...	0.77	0.75	0.79	15	2192	5	0	4	1	5
PDB_00474	tRNA links to Rfam database...	0.29	0.30	0.29	7	2677	17	0	17	0	16
PDB_00553	mir-TAR links to Rfam database...	1.00	1.00	1.00	11	454	0	0	0	0	0
PDB_00571	tRNA links to Rfam database...	0.21	0.20	0.24	5	3300	16	6	10	0	20
PDB_00667	tRNA links to Rfam database...	0.71	0.68	0.75	15	2830	7	4	1	2	7
PDB_00741	Entero_5_CRE links to Rfam database...	0.87	0.76	1.00	13	690	0	0	0	0	4
PDB_00810	s2m links to Rfam database...	0.91	0.82	1.00	14	1067	0	0	0	0	3
PDB_00828	Purine links to Rfam database...	0.88	0.78	1.00	21	2464	0	0	0	0	6
PDB_00829	Purine links to Rfam database...	0.86	0.75	1.00	18	2260	0	0	0	0	6
PDB_00876	HIV_FE links to Rfam database...	0.97	0.95	1.00	19	971	0	0	0	0	1
PDB_01002	tRNA links to Rfam database...	0.95	0.90	1.00	19	2756	2	0	0	2	2
PDB_01020	Purine links to Rfam database...	0.86	0.74	1.00	17	2261	1	0	0	1	6
PDB_01050	UnaL2 links to Rfam database...	0.92	0.85	1.00	11	619	2	0	0	2	2
PDB_01053	tRNA links to Rfam database...	1.00	1.00	1.00	16	1362	0	0	0	0	0
PDB_01073	SAM links to Rfam database...	0.52	0.47	0.57	16	4343	13	2	10	1	18
PDB_01114	TPP links to Rfam database...	0.44	0.37	0.53	10	2831	9	0	9	0	17
PDB_01152	HIV_FS2 links to Rfam database...	0.92	0.86	1.00	12	549	0	0	0	0	2
PDB_01236	ykoK links to Rfam database...	0.73	0.69	0.77	37	11580	14	0	11	3	17
RFA_00389	Hammerhead_3 links to Rfam database...	1.00	1.00	1.00	15	1416	2	0	0	2	0
RFA_00390	Hammerhead_3 links to Rfam database...	1.00	1.00	1.00	15	1416	2	0	0	2	0
RFA_00391	Hammerhead_3 links to Rfam database...	0.93	0.87	1.00	13	1418	2	0	0	2	2
RFA_00396	Hammerhead_3 links to Rfam database...	0.97	0.93	1.00	14	1417	2	0	0	2	1
RFA_00402	Hammerhead_3 links to Rfam database...	1.00	1.00	1.00	15	1416	0	0	0	0	0
RFA_00409	Hammerhead_3 links to Rfam database...	0.55	0.53	0.57	8	1417	7	1	5	1	7
RFA_00416	Hammerhead_3 links to Rfam database...	0.93	0.93	0.93	14	1470	4	0	1	3	1
RFA_00433	Hammerhead_3 links to Rfam database...	1.00	1.00	1.00	15	1416	2	0	0	2	0
RFA_00434	Hammerhead_3 links to Rfam database...	1.00	1.00	1.00	15	1416	2	0	0	2	0
RFA_00436	Hammerhead_3 links to Rfam database...	1.00	1.00	1.00	15	1416	2	0	0	2	0
RFA_00440	Hammerhead_3 links to Rfam database...	1.00	1.00	1.00	15	1470	2	0	0	2	0
RFA_00442	Hammerhead_3 links to Rfam database...	1.00	1.00	1.00	15	1416	2	0	0	2	0
RFA_00444	Hammerhead_3 links to Rfam database...	1.00	1.00	1.00	15	1525	1	0	0	1	0
RFA_00583	Y_RNA links to Rfam database...	0.55	0.53	0.57	8	4936	20	0	6	14	7
RFA_00584	Y_RNA links to Rfam database...	0.87	0.87	0.87	13	2911	14	0	2	12	2
RFA_00585	Y_RNA links to Rfam database...	1.00	1.00	1.00	15	4836	11	0	0	11	0
RFA_00586	Y_RNA links to Rfam database...	0.86	0.73	1.00	11	3905	11	0	0	11	4
RFA_00587	Y_RNA links to Rfam database...	1.00	1.00	1.00	15	4836	12	0	0	12	0
RFA_00588	Y_RNA links to Rfam database...	0.93	0.87	1.00	13	4547	12	0	0	12	2
RFA_00589	Y_RNA links to Rfam database...	0.93	0.87	1.00	13	4358	12	0	0	12	2
RFA_00594	Y_RNA links to Rfam database...	0.97	0.93	1.00	14	2761	8	0	0	8	1
RFA_00596	Y_RNA links to Rfam database...	0.00	0.00	0.00	0	5982	22	4	9	9	15
RFA_00658	Hammerhead_1 links to Rfam database...	0.59	0.50	0.70	7	1118	5	0	3	2	7
RFA_00664	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	980	11	0	10	1	14
RFA_00667	Hammerhead_1 links to Rfam database...	0.30	0.29	0.33	4	978	8	1	7	0	10
RFA_00668	Hammerhead_1 links to Rfam database...	0.41	0.43	0.40	6	975	9	0	9	0	8
RFA_00672	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	895	9	0	8	1	13
RFA_00673	Hammerhead_1 links to Rfam database...	0.42	0.36	0.50	5	1118	6	0	5	1	9
RFA_00674	Hammerhead_1 links to Rfam database...	0.71	0.71	0.71	10	1114	5	0	4	1	4
RFA_00675	Hammerhead_1 links to Rfam database...	0.29	0.29	0.31	4	977	9	1	8	0	10
RFA_00677	Hammerhead_1 links to Rfam database...	0.42	0.43	0.43	6	976	9	0	8	1	8
RFA_00678	Hammerhead_1 links to Rfam database...	0.43	0.29	0.67	4	940	2	0	2	0	10
RFA_00680	Hammerhead_1 links to Rfam database...	0.74	0.71	0.77	10	1115	6	0	3	3	4
RFA_00704	Hammerhead_1 links to Rfam database...	0.32	0.21	0.50	3	984	4	0	3	1	11
RFA_00707	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	1026	9	3	6	0	14
RFA_00715	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	936	10	0	10	0	14
RFA_00717	Hammerhead_1 links to Rfam database...	0.64	0.64	0.64	9	889	5	0	5	0	5
RFA_00730	s2m links to Rfam database...	0.69	0.67	0.73	8	892	4	1	2	1	4
RFA_00731	s2m links to Rfam database...	0.69	0.67	0.73	8	892	4	1	2	1	4
RFA_00733	s2m links to Rfam database...	0.69	0.67	0.73	8	892	4	1	2	1	4
RFA_00734	s2m links to Rfam database...	0.64	0.67	0.62	8	890	5	1	4	0	4
RFA_00736	s2m links to Rfam database...	0.69	0.67	0.73	8	892	4	1	2	1	4
RFA_00737	s2m links to Rfam database...	1.00	1.00	1.00	12	891	1	0	0	1	0
RFA_00745	s2m links to Rfam database...	1.00	1.00	1.00	12	934	1	0	0	1	0
RFA_00749	s2m links to Rfam database...	0.69	0.67	0.73	8	892	4	1	2	1	4
RFA_00758	s2m links to Rfam database...	0.96	0.92	1.00	11	892	0	0	0	0	1
RFA_00762	s2m links to Rfam database...	0.64	0.67	0.62	8	890	5	1	4	0	4
RFA_00763	s2m links to Rfam database...	1.00	1.00	1.00	12	891	0	0	0	0	0
RFA_00764	s2m links to Rfam database...	0.69	0.67	0.73	8	892	4	1	2	1	4
RFA_00765	s2m links to Rfam database...	1.00	1.00	1.00	12	891	1	0	0	1	0
RFA_00786	Gammaretro_CES links to Rfam database...	0.71	0.72	0.70	23	5017	10	2	8	0	9
RFA_00791	Gammaretro_CES links to Rfam database...	0.95	0.91	1.00	29	5122	1	0	0	1	3
RFA_00792	Gammaretro_CES links to Rfam database...	0.94	0.94	0.94	30	5018	4	0	2	2	2
RFA_00801	Gammaretro_CES links to Rfam database...	0.85	0.81	0.90	26	5021	4	0	3	1	6
SPR_00007	tRNA links to Rfam database...	1.00	1.00	1.00	21	2829	0	0	0	0	0
SPR_00009	tRNA links to Rfam database...	0.97	0.95	1.00	19	2831	0	0	0	0	1
SPR_00010	tRNA links to Rfam database...	0.47	0.48	0.48	10	2829	11	3	8	0	11
SPR_00012	tRNA links to Rfam database...	0.24	0.25	0.24	5	2829	16	2	14	0	15
SPR_00013	tRNA links to Rfam database...	0.97	0.95	1.00	19	2831	0	0	0	0	1
SPR_00016	tRNA links to Rfam database...	0.98	0.95	1.00	20	2830	0	0	0	0	1
SPR_00017	tRNA links to Rfam database...	0.98	0.95	1.00	20	2830	0	0	0	0	1
SPR_00025	tRNA links to Rfam database...	1.00	1.00	1.00	20	2906	1	0	0	1	0
SPR_00026	tRNA links to Rfam database...	0.60	0.57	0.63	12	2907	8	0	7	1	9
SPR_00027	tRNA links to Rfam database...	0.38	0.38	0.38	8	2905	14	0	13	1	13
SPR_00036	tRNA links to Rfam database...	0.84	0.80	0.89	16	2757	3	0	2	1	4
SPR_00045	tRNA links to Rfam database...	0.79	0.77	0.81	17	2829	4	0	4	0	5
SPR_00064	tRNA links to Rfam database...	0.54	0.57	0.52	12	2827	11	2	9	0	9
SPR_00065	tRNA links to Rfam database...	0.50	0.52	0.48	11	2827	12	4	8	0	10
SPR_00066	tRNA links to Rfam database...	1.00	1.00	1.00	21	2829	0	0	0	0	0
SPR_00068	tRNA links to Rfam database...	0.55	0.52	0.58	11	2831	8	3	5	0	10
SPR_00070	tRNA links to Rfam database...	1.00	1.00	1.00	21	2829	0	0	0	0	0
SPR_00074	tRNA links to Rfam database...	0.55	0.55	0.55	11	2830	10	2	7	1	9
SPR_00079	tRNA links to Rfam database...	1.00	1.00	1.00	19	2466	1	0	0	1	0
SPR_00086	tRNA links to Rfam database...	0.30	0.29	0.32	6	2831	13	2	11	0	15
SPR_00087	tRNA links to Rfam database...	0.45	0.45	0.45	9	2830	11	3	8	0	11
SPR_00088	tRNA links to Rfam database...	0.45	0.45	0.45	9	2830	11	3	8	0	11
SPR_00089	tRNA links to Rfam database...	0.45	0.45	0.45	9	2830	11	3	8	0	11
SPR_00090	tRNA links to Rfam database...	0.45	0.45	0.45	9	2830	11	3	8	0	11
SPR_00091	tRNA links to Rfam database...	0.45	0.45	0.45	9	2830	11	3	8	0	11
SPR_00095	tRNA links to Rfam database...	0.54	0.57	0.52	12	2827	11	4	7	0	9
SPR_00111	tRNA links to Rfam database...	0.55	0.57	0.55	12	2679	10	1	9	0	9
SPR_00112	tRNA links to Rfam database...	0.78	0.76	0.80	16	2681	5	3	1	1	5
SPR_00115	tRNA links to Rfam database...	0.85	0.81	0.89	17	2682	2	0	2	0	4
SPR_00117	tRNA links to Rfam database...	1.00	1.00	1.00	21	2829	2	0	0	2	0
SPR_00139	tRNA links to Rfam database...	1.00	1.00	1.00	21	2905	1	0	0	1	0
SPR_00153	tRNA links to Rfam database...	1.00	1.00	1.00	21	2905	0	0	0	0	0
SPR_00155	tRNA links to Rfam database...	0.49	0.52	0.46	11	2902	13	3	10	0	10
SPR_00156	tRNA links to Rfam database...	0.49	0.52	0.46	11	2902	13	4	9	0	10
SPR_00176	tRNA links to Rfam database...	0.51	0.55	0.48	11	2827	13	2	10	1	9
SPR_00177	tRNA links to Rfam database...	0.51	0.57	0.46	12	2824	14	2	12	0	9
SPR_00178	tRNA links to Rfam database...	0.98	0.95	1.00	20	2830	0	0	0	0	1
SPR_00191	tRNA links to Rfam database...	0.18	0.19	0.19	4	2829	17	4	13	0	17
SPR_00200	tRNA links to Rfam database...	0.46	0.43	0.50	9	2832	10	3	6	1	12
SPR_00224	tRNA links to Rfam database...	0.50	0.50	0.50	10	3721	15	5	5	5	10
SPR_00271	tRNA links to Rfam database...	0.53	0.57	0.50	12	2826	12	3	9	0	9
SPR_00273	tRNA links to Rfam database...	0.30	0.33	0.28	7	2825	18	2	16	0	14
SPR_00276	tRNA links to Rfam database...	1.00	1.00	1.00	21	2905	0	0	0	0	0
SPR_00277	tRNA links to Rfam database...	1.00	1.00	1.00	21	2905	0	0	0	0	0
SPR_00294	tRNA links to Rfam database...	0.55	0.57	0.55	12	2828	10	3	7	0	9
SPR_00295	tRNA links to Rfam database...	0.95	0.95	0.95	20	2754	2	0	1	1	1
SPR_00314	tRNA links to Rfam database...	0.71	0.76	0.67	16	2902	11	0	8	3	5
SPR_00315	tRNA links to Rfam database...	0.74	0.81	0.68	17	2901	10	0	8	2	4
SPR_00317	tRNA links to Rfam database...	0.53	0.60	0.48	12	2901	13	7	6	0	8
SPR_00318	tRNA links to Rfam database...	1.00	1.00	1.00	21	2905	2	0	0	2	0
SPR_00321	tRNA links to Rfam database...	1.00	1.00	1.00	21	2982	0	0	0	0	0
SPR_00333	tRNA links to Rfam database...	0.46	0.48	0.45	10	2753	12	4	8	0	11
SPR_00352	tRNA links to Rfam database...	0.74	0.76	0.73	16	2904	6	3	3	0	5
SPR_00353	tRNA links to Rfam database...	1.00	1.00	1.00	21	2829	0	0	0	0	0
SPR_00357	tRNA links to Rfam database...	0.73	0.76	0.70	16	2903	7	0	7	0	5
SPR_00358	tRNA links to Rfam database...	0.31	0.35	0.29	7	2902	17	5	12	0	13
SPR_00370	tRNA links to Rfam database...	0.24	0.24	0.25	5	2755	15	3	12	0	16
SPR_00386	tRNA links to Rfam database...	0.33	0.35	0.32	7	4164	20	6	9	5	13
SPR_00414	tRNA links to Rfam database...	0.55	0.52	0.58	11	3551	12	3	5	4	10
SPR_00415	tRNA links to Rfam database...	0.50	0.52	0.48	11	3547	13	2	10	1	10
SPR_00417	tRNA links to Rfam database...	0.29	0.32	0.28	7	3545	22	7	11	4	15
SPR_00418	tRNA links to Rfam database...	0.29	0.32	0.28	7	3545	22	7	11	4	15
SPR_00434	tRNA links to Rfam database...	0.27	0.29	0.27	6	2828	16	7	9	0	15
SPR_00435	tRNA links to Rfam database...	0.73	0.71	0.75	15	2830	5	0	5	0	6
SPR_00436	tRNA links to Rfam database...	1.00	1.00	1.00	21	2829	2	0	0	2	0
SPR_00437	tRNA links to Rfam database...	1.00	1.00	1.00	21	2754	2	0	0	2	0
SPR_00438	tRNA links to Rfam database...	1.00	1.00	1.00	21	2754	0	0	0	0	0
SPR_00452	tRNA links to Rfam database...	0.73	0.76	0.70	16	2827	7	3	4	0	5
SPR_00455	tRNA links to Rfam database...	0.28	0.29	0.29	6	2829	15	5	10	0	15
SPR_00456	tRNA links to Rfam database...	0.55	0.57	0.55	12	2828	11	2	8	1	9
SPR_00476	tRNA links to Rfam database...	0.42	0.48	0.38	10	2749	16	3	13	0	11
SPR_00479	tRNA links to Rfam database...	1.00	1.00	1.00	21	2829	0	0	0	0	0
SPR_00482	tRNA links to Rfam database...	0.70	0.71	0.68	15	2679	7	0	7	0	6
SPR_00483	tRNA links to Rfam database...	1.00	1.00	1.00	21	2829	0	0	0	0	0
SPR_00487	tRNA links to Rfam database...	0.60	0.55	0.67	12	2683	6	0	6	0	10
SPR_00493	tRNA links to Rfam database...	0.95	0.95	0.95	21	2753	1	0	1	0	1
SPR_00496	tRNA links to Rfam database...	1.00	1.00	1.00	21	2754	0	0	0	0	0
SPR_00497	tRNA links to Rfam database...	0.42	0.48	0.38	10	2749	16	3	13	0	11
SPR_00502	tRNA links to Rfam database...	0.56	0.57	0.55	12	2904	10	2	8	0	9
SPR_00504	tRNA links to Rfam database...	1.00	1.00	1.00	20	2830	0	0	0	0	0
SPR_00505	tRNA links to Rfam database...	1.00	1.00	1.00	20	2906	0	0	0	0	0
SPR_00506	tRNA links to Rfam database...	1.00	1.00	1.00	20	2906	0	0	0	0	0
SPR_00509	tRNA links to Rfam database...	1.00	1.00	1.00	20	2906	0	0	0	0	0
SPR_00512	tRNA links to Rfam database...	1.00	1.00	1.00	20	2906	0	0	0	0	0
SPR_00513	tRNA links to Rfam database...	1.00	1.00	1.00	20	2906	0	0	0	0	0
SPR_00518	tRNA links to Rfam database...	0.55	0.55	0.55	11	2906	9	1	8	0	9
SPR_00548	tRNA links to Rfam database...	0.54	0.57	0.52	12	3380	11	0	11	0	9
SPR_00557	tRNA links to Rfam database...	0.40	0.43	0.39	9	2827	14	1	13	0	12
SPR_00561	tRNA links to Rfam database...	0.40	0.43	0.39	9	2827	14	1	13	0	12
SPR_00590	tRNA links to Rfam database...	0.33	0.35	0.32	7	2981	15	3	12	0	13
SPR_00593	tRNA links to Rfam database...	0.51	0.53	0.50	10	2755	10	4	6	0	9
SPR_00595	tRNA links to Rfam database...	0.55	0.57	0.55	12	2753	10	2	8	0	9
SPR_00598	tRNA links to Rfam database...	0.56	0.57	0.55	12	2981	10	2	8	0	9
SPR_00610	tRNA links to Rfam database...	0.31	0.33	0.29	7	2532	17	6	11	0	14
SPR_00620	tRNA links to Rfam database...	0.52	0.57	0.48	12	2978	14	5	8	1	9
SPR_00721	tRNA links to Rfam database...	0.50	0.52	0.48	11	2903	12	3	9	0	10
SPR_00722	tRNA links to Rfam database...	0.76	0.80	0.73	16	2904	6	4	2	0	4
SPR_00758	tRNA links to Rfam database...	0.29	0.33	0.27	7	2977	19	7	12	0	14
SPR_00760	tRNA links to Rfam database...	0.60	0.67	0.54	14	3544	12	5	7	0	7
SPR_00777	tRNA links to Rfam database...	0.51	0.55	0.48	11	2605	12	5	7	0	9
SPR_00867	tRNA links to Rfam database...	0.49	0.52	0.46	11	2902	15	4	9	2	10
SPR_00868	tRNA links to Rfam database...	0.58	0.57	0.60	12	2906	9	0	8	1	9
SPR_00943	tRNA links to Rfam database...	0.83	0.85	0.81	17	2535	4	1	3	0	3
SPR_00957	tRNA links to Rfam database...	0.78	0.76	0.80	16	2983	5	0	4	1	5
SPR_01040	tRNA links to Rfam database...	0.83	0.81	0.85	17	2755	4	0	3	1	4
SPR_01088	tRNA links to Rfam database...	0.52	0.52	0.52	11	2905	12	2	8	2	10
SPR_01095	tRNA links to Rfam database...	0.76	0.76	0.76	16	2829	6	0	5	1	5
SPR_01106	tRNA links to Rfam database...	0.52	0.52	0.52	11	2535	10	2	8	0	10
SPR_01117	tRNA links to Rfam database...	1.00	1.00	1.00	21	2982	1	0	0	1	0
SPR_01157	tRNA links to Rfam database...	0.54	0.57	0.52	12	2752	12	0	11	1	9
SRP_00008	Bacteria_small_SRP links to Rfam database...	0.70	0.72	0.69	18	2900	9	0	8	1	7
SRP_00020	Bacteria_small_SRP links to Rfam database...	0.86	0.88	0.85	29	5531	5	1	4	0	4
SRP_00038	Bacteria_small_SRP links to Rfam database...	0.94	0.94	0.94	31	5017	2	0	2	0	2
SRP_00042	Bacteria_small_SRP links to Rfam database...	0.45	0.48	0.43	12	3977	18	2	14	2	13
SRP_00044	Bacteria_small_SRP links to Rfam database...	0.77	0.75	0.80	24	6075	9	1	5	3	8
SRP_00046	Bacteria_small_SRP links to Rfam database...	0.97	0.97	0.97	31	4721	2	0	1	1	1
SRP_00051	Bacteria_small_SRP links to Rfam database...	0.97	0.97	0.97	29	5430	3	0	1	2	1
SRP_00054	Bacteria_small_SRP links to Rfam database...	0.45	0.44	0.47	14	5535	16	0	16	0	18
SRP_00058	Bacteria_small_SRP links to Rfam database...	0.90	0.91	0.89	31	5743	8	1	3	4	3
SRP_00072	Bacteria_small_SRP links to Rfam database...	1.00	1.00	1.00	29	6299	1	0	0	1	0
SRP_00074	Bacteria_small_SRP links to Rfam database...	0.39	0.41	0.36	12	6522	25	3	18	4	17
SRP_00075	Bacteria_small_SRP links to Rfam database...	0.82	0.79	0.84	27	5533	8	0	5	3	7
SRP_00077	Bacteria_small_SRP links to Rfam database...	0.20	0.22	0.20	8	6629	33	3	30	0	29
SRP_00081	Bacteria_small_SRP links to Rfam database...	0.69	0.74	0.64	23	5529	13	1	12	0	8
SRP_00084	Bacteria_small_SRP links to Rfam database...	0.85	0.85	0.85	29	5426	5	1	4	0	5
SRP_00094	Bacteria_small_SRP links to Rfam database...	0.86	0.88	0.84	21	4070	4	0	4	0	3
SRP_00095	Bacteria_small_SRP links to Rfam database...	0.85	0.88	0.81	22	3978	5	1	4	0	3
SRP_00098	Bacteria_small_SRP links to Rfam database...	0.75	0.73	0.77	27	6406	9	1	7	1	10
SRP_00105	Bacteria_small_SRP links to Rfam database...	0.38	0.38	0.39	13	5532	20	3	17	0	21
SRP_00107	Bacteria_small_SRP links to Rfam database...	0.13	0.16	0.11	3	3628	26	6	18	2	16
SRP_00121	Bacteria_small_SRP links to Rfam database...	0.80	0.80	0.80	20	4253	6	0	5	1	5
SRP_00128	Bacteria_small_SRP links to Rfam database...	0.76	0.81	0.73	29	6746	11	1	10	0	7
SRP_00132	Bacteria_small_SRP links to Rfam database...	0.65	0.69	0.63	20	4819	15	0	12	3	9
SRP_00134	Bacteria_large_SRP links to Rfam database...	0.51	0.55	0.48	16	5962	23	3	14	6	13
SRP_00141	Bacteria_small_SRP links to Rfam database...	0.91	0.90	0.93	37	6288	3	1	2	0	4
SRP_00161	Bacteria_small_SRP links to Rfam database...	0.86	0.86	0.86	19	2828	3	0	3	0	3
SRP_00162	Bacteria_small_SRP links to Rfam database...	0.89	0.91	0.88	21	2902	4	0	3	1	2
SRP_00163	Bacteria_small_SRP links to Rfam database...	0.76	0.81	0.72	21	3457	8	2	6	0	5
SRP_00164	Bacteria_small_SRP links to Rfam database...	0.83	0.83	0.83	29	6868	6	1	5	0	6
SRP_00170	Bacteria_small_SRP links to Rfam database...	0.55	0.56	0.54	14	4069	13	0	12	1	11
SRP_00194	Bacteria_small_SRP links to Rfam database...	0.77	0.81	0.74	17	3217	6	0	6	0	4
SRP_00200	Bacteria_small_SRP links to Rfam database...	0.80	0.81	0.81	29	6867	7	1	6	0	7
SRP_00209	Bacteria_small_SRP links to Rfam database...	0.80	0.81	0.79	22	4628	6	0	6	0	5
SRP_00213	Bacteria_small_SRP links to Rfam database...	0.37	0.40	0.36	10	4158	18	3	15	0	15
SRP_00215	Bacteria_small_SRP links to Rfam database...	0.82	0.80	0.83	20	3216	4	0	4	0	5
SRP_00227	Bacteria_small_SRP links to Rfam database...	0.95	0.97	0.94	30	5119	2	1	1	0	1
SRP_00231	Bacteria_small_SRP links to Rfam database...	0.87	0.88	0.86	30	5425	5	1	4	0	4
SRP_00233	Bacteria_small_SRP links to Rfam database...	0.97	0.94	1.00	31	5120	0	0	0	0	2
SRP_00250	Bacteria_small_SRP links to Rfam database...	0.75	0.75	0.75	27	6750	11	1	8	2	9
SRP_00251	Bacteria_small_SRP links to Rfam database...	0.71	0.72	0.70	26	6984	11	1	10	0	10
SRP_00266	Bacteria_small_SRP links to Rfam database...	0.72	0.72	0.72	21	4627	9	1	7	1	8
SRP_00268	Bacteria_small_SRP links to Rfam database...	0.88	0.85	0.92	23	4161	2	1	1	0	4
SRP_00269	Bacteria_small_SRP links to Rfam database...	0.59	0.61	0.57	20	5015	15	3	12	0	13
SRP_00270	Bacteria_small_SRP links to Rfam database...	0.43	0.45	0.41	14	4622	20	2	18	0	17
SRP_00271	Bacteria_small_SRP links to Rfam database...	-0.01	0.00	0.00	0	3215	25	3	22	0	24
SRP_00273	Bacteria_small_SRP links to Rfam database...	0.79	0.80	0.78	32	6745	10	1	8	1	8
SRP_00274	Bacteria_small_SRP links to Rfam database...	0.83	0.84	0.82	32	6864	7	1	6	0	6
SRP_00295	Bacteria_small_SRP links to Rfam database...	0.90	0.87	0.94	33	6868	3	1	1	1	5
SRP_00303	Bacteria_small_SRP links to Rfam database...	0.69	0.72	0.66	23	6635	12	1	11	0	9
SRP_00310	Bacteria_small_SRP links to Rfam database...	0.87	0.87	0.87	20	2903	4	0	3	1	3
SRP_00312	Bacteria_small_SRP links to Rfam database...	0.32	0.33	0.31	9	4157	20	3	17	0	18
SRP_00315	Bacteria_small_SRP links to Rfam database...	0.87	0.87	0.87	20	2903	3	0	3	0	3
SRP_00318	Bacteria_small_SRP links to Rfam database...	0.82	0.78	0.86	18	2982	3	0	3	0	5
SRP_00325	Bacteria_small_SRP links to Rfam database...	0.97	0.94	1.00	31	4340	0	0	0	0	2
SRP_00326	Bacteria_small_SRP links to Rfam database...	0.55	0.55	0.55	17	5019	14	3	11	0	14
SRP_00333	Bacteria_small_SRP links to Rfam database...	0.86	0.85	0.88	29	5118	4	0	4	0	5
SRP_00338	Bacteria_small_SRP links to Rfam database...	0.97	0.97	0.97	35	5424	1	0	1	0	1
SRP_00341	Bacteria_small_SRP links to Rfam database...	0.74	0.74	0.74	23	4722	8	0	8	0	8
SRP_00342	Bacteria_small_SRP links to Rfam database...	0.55	0.56	0.54	14	3979	17	1	11	5	11
SRP_00350	Bacteria_small_SRP links to Rfam database...	0.34	0.33	0.35	9	3890	17	2	15	0	18
SRP_00357	Bacteria_small_SRP links to Rfam database...	0.93	0.92	0.94	33	5321	2	1	1	0	3
SRP_00358	Bacteria_small_SRP links to Rfam database...	0.93	0.91	0.94	32	6294	2	1	1	0	3
SRP_00367	Bacteria_small_SRP links to Rfam database...	0.96	0.97	0.94	34	6750	2	1	1	0	1
SRP_00369	Bacteria_small_SRP links to Rfam database...	0.93	0.91	0.94	32	5744	2	1	1	0	3
SRP_00383	Bacteria_small_SRP links to Rfam database...	0.12	0.13	0.13	3	3217	20	3	17	0	21

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.

Table of contents:

Overview

Performance plots

Performance of CMfinder(20) - scored higher in this pairwise comparison

1. Total counts & total scores for CMfinder(20)

2. Individual counts for CMfinder(20) [ download as .csv ]

Performance of UNAFold - scored lower in this pairwise comparison

1. Total counts & total scores for UNAFold

2. Individual counts for UNAFold [ download as .csv ]
