Overview

Metric	CMfinder(seed)		RDfolder
MCC	0.512	>	0.317
Average MCC ± 95% Confidence Intervals	0.511 ± 0.074	>	0.285 ± 0.085
Sensitivity	0.382	>	0.254
Positive Predictive Value	0.696	>	0.411
Total TP	352	>	234
Total TN	83502	>	83439
Total FP	183	<	361
Total FP CONTRA	3	<	42
Total FP INCONS	151	<	293
Total FP COMP	29	>	26
Total FN	569	<	687
P-value	3.56938820447e-08

^top

Performance plots

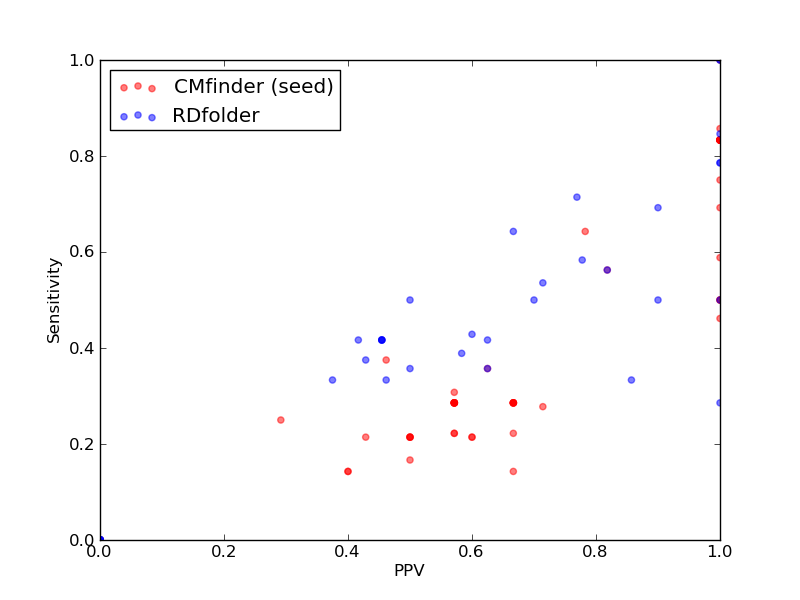

Comparison of performance of CMfinder(seed) and RDfolder. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for CMfinder(seed) and RDfolder).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for CMfinder(seed) and RDfolder).
Comparison of average Matthews Correlation Coefficients (MCCs) for CMfinder(seed) and RDfolder. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for CMfinder(seed) and RDfolder).

^top

Performance of CMfinder(seed) - scored higher in this pairwise comparison

1. Total counts & total scores for CMfinder(seed)

Total Base Pair Counts
Total TP	352
Total TN	83502
Total FP	183
Total FP CONTRA	3
Total FP INCONS	151
Total FP COMP	29
Total FN	569

Total Scores
MCC	0.512
Average MCC ± 95% Confidence Intervals	0.511 ± 0.074
Sensitivity	0.382
Positive Predictive Value	0.696
Nr of predictions	62

^top

2. Individual counts for CMfinder(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
PDB_00005	Tymo_tRNA-like links to Rfam database...	0.47	0.36	0.63	5	938	3	0	3	0	9
PDB_00012	mir-TAR links to Rfam database...	1.00	1.00	1.00	7	399	2	0	0	2	0
PDB_00553	mir-TAR links to Rfam database...	0.00	0.00	0.00	0	465	0	0	0	0	11
PDB_00716	HDV_ribozyme links to Rfam database...	-0.01	0.00	0.00	0	2688	13	0	13	0	23
PDB_00810	s2m links to Rfam database...	0.76	0.59	1.00	10	1071	0	0	0	0	7
PDB_01050	UnaL2 links to Rfam database...	0.68	0.46	1.00	6	624	1	0	0	1	7
PDB_01051	Telomerase-cil links to Rfam database...	0.83	0.69	1.00	9	894	4	0	0	4	4
PDB_01152	HIV_FS2 links to Rfam database...	0.92	0.86	1.00	12	549	0	0	0	0	2
RFA_00632	HDV_ribozyme links to Rfam database...	0.27	0.25	0.29	7	4071	17	0	17	0	21
RFA_00636	HDV_ribozyme links to Rfam database...	0.71	0.64	0.78	18	3982	5	2	3	0	10
RFA_00642	Vimentin3 links to Rfam database...	0.44	0.28	0.71	5	2919	2	0	2	0	13
RFA_00643	Vimentin3 links to Rfam database...	-0.01	0.00	0.00	0	2203	8	0	8	0	18
RFA_00644	Vimentin3 links to Rfam database...	0.00	0.00	0.00	0	2693	8	0	8	0	18
RFA_00645	Vimentin3 links to Rfam database...	0.29	0.17	0.50	3	2409	3	0	3	0	15
RFA_00649	Vimentin3 links to Rfam database...	0.35	0.22	0.57	4	2138	3	0	3	0	14
RFA_00651	Vimentin3 links to Rfam database...	0.35	0.22	0.57	4	2073	3	0	3	0	14
RFA_00653	Vimentin3 links to Rfam database...	-0.01	0.00	0.00	0	2137	8	0	8	0	18
RFA_00654	Vimentin3 links to Rfam database...	0.38	0.22	0.67	4	2409	2	0	2	0	14
RFA_00658	Hammerhead_1 links to Rfam database...	0.40	0.29	0.57	4	1121	4	0	3	1	10
RFA_00659	Hammerhead_1 links to Rfam database...	0.23	0.14	0.40	2	1123	4	0	3	1	12
RFA_00664	Hammerhead_1 links to Rfam database...	0.40	0.29	0.57	4	983	4	0	3	1	10
RFA_00667	Hammerhead_1 links to Rfam database...	0.40	0.29	0.57	4	983	4	0	3	1	10
RFA_00668	Hammerhead_1 links to Rfam database...	0.35	0.21	0.60	3	985	3	0	2	1	11
RFA_00672	Hammerhead_1 links to Rfam database...	0.41	0.31	0.57	4	896	3	0	3	0	9
RFA_00673	Hammerhead_1 links to Rfam database...	0.23	0.14	0.40	2	1123	4	0	3	1	12
RFA_00674	Hammerhead_1 links to Rfam database...	0.40	0.29	0.57	4	1121	4	0	3	1	10
RFA_00675	Hammerhead_1 links to Rfam database...	0.35	0.21	0.60	3	985	3	0	2	1	11
RFA_00677	Hammerhead_1 links to Rfam database...	0.40	0.29	0.57	4	983	4	0	3	1	10
RFA_00678	Hammerhead_1 links to Rfam database...	0.43	0.29	0.67	4	940	3	0	2	1	10
RFA_00680	Hammerhead_1 links to Rfam database...	0.40	0.29	0.57	4	1121	4	0	3	1	10
RFA_00684	Hammerhead_1 links to Rfam database...	0.43	0.29	0.67	4	984	3	0	2	1	10
RFA_00685	Hammerhead_1 links to Rfam database...	0.32	0.21	0.50	3	984	4	0	3	1	11
RFA_00704	Hammerhead_1 links to Rfam database...	0.32	0.21	0.50	3	984	4	0	3	1	11
RFA_00705	Hammerhead_1 links to Rfam database...	0.40	0.29	0.57	4	1028	4	0	3	1	10
RFA_00706	Hammerhead_1 links to Rfam database...	0.43	0.29	0.67	4	1029	3	0	2	1	10
RFA_00707	Hammerhead_1 links to Rfam database...	0.43	0.29	0.67	4	1029	3	0	2	1	10
RFA_00708	Hammerhead_1 links to Rfam database...	0.40	0.29	0.57	4	1028	4	0	3	1	10
RFA_00709	Hammerhead_1 links to Rfam database...	0.32	0.21	0.50	3	984	4	0	3	1	11
RFA_00710	Hammerhead_1 links to Rfam database...	0.32	0.21	0.50	3	984	3	0	3	0	11
RFA_00711	Hammerhead_1 links to Rfam database...	0.43	0.29	0.67	4	1029	3	0	2	1	10
RFA_00715	Hammerhead_1 links to Rfam database...	0.30	0.14	0.67	2	943	2	0	1	1	12
RFA_00716	Hammerhead_1 links to Rfam database...	0.43	0.29	0.67	4	940	3	0	2	1	10
RFA_00717	Hammerhead_1 links to Rfam database...	0.30	0.21	0.43	3	896	4	0	4	0	11
RFA_00730	s2m links to Rfam database...	0.91	0.83	1.00	10	893	0	0	0	0	2
RFA_00731	s2m links to Rfam database...	0.91	0.83	1.00	10	893	0	0	0	0	2
RFA_00733	s2m links to Rfam database...	0.91	0.83	1.00	10	893	0	0	0	0	2
RFA_00734	s2m links to Rfam database...	0.91	0.83	1.00	10	893	0	0	0	0	2
RFA_00736	s2m links to Rfam database...	0.91	0.83	1.00	10	893	0	0	0	0	2
RFA_00737	s2m links to Rfam database...	0.91	0.83	1.00	10	893	0	0	0	0	2
RFA_00745	s2m links to Rfam database...	0.91	0.83	1.00	10	936	0	0	0	0	2
RFA_00749	s2m links to Rfam database...	0.91	0.83	1.00	10	893	0	0	0	0	2
RFA_00758	s2m links to Rfam database...	0.86	0.75	1.00	9	894	0	0	0	0	3
RFA_00762	s2m links to Rfam database...	0.91	0.83	1.00	10	893	0	0	0	0	2
RFA_00763	s2m links to Rfam database...	0.91	0.83	1.00	10	893	0	0	0	0	2
RFA_00764	s2m links to Rfam database...	0.91	0.83	1.00	10	893	0	0	0	0	2
RFA_00765	s2m links to Rfam database...	0.91	0.83	1.00	10	893	0	0	0	0	2
RFA_00769	Corona_pk3 links to Rfam database...	0.71	0.50	1.00	9	1944	0	0	0	0	9
RFA_00770	Corona_pk3 links to Rfam database...	0.71	0.50	1.00	9	2007	0	0	0	0	9
RFA_00773	Corona_pk3 links to Rfam database...	0.00	0.00	0.00	0	1949	4	0	4	0	18
RFA_00779	Corona_pk3 links to Rfam database...	0.71	0.50	1.00	9	1944	0	0	0	0	9
RFA_00808	RydC links to Rfam database...	0.68	0.56	0.82	9	2005	2	0	2	0	7
RFA_00809	RydC links to Rfam database...	0.41	0.38	0.46	6	2132	7	1	6	0	10

^top

Performance of RDfolder - scored lower in this pairwise comparison

1. Total counts & total scores for RDfolder

Total Base Pair Counts
Total TP	234
Total TN	83439
Total FP	361
Total FP CONTRA	42
Total FP INCONS	293
Total FP COMP	26
Total FN	687

Total Scores
MCC	0.317
Average MCC ± 95% Confidence Intervals	0.285 ± 0.085
Sensitivity	0.254
Positive Predictive Value	0.411
Nr of predictions	62

^top

2. Individual counts for RDfolder [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
PDB_00005	Tymo_tRNA-like links to Rfam database...	0.88	0.79	1.00	11	935	0	0	0	0	3
PDB_00012	mir-TAR links to Rfam database...	1.00	1.00	1.00	7	399	3	0	0	3	0
PDB_00553	mir-TAR links to Rfam database...	1.00	1.00	1.00	11	454	0	0	0	0	0
PDB_00716	HDV_ribozyme links to Rfam database...	-0.01	0.00	0.00	0	2684	18	1	16	1	23
PDB_00810	s2m links to Rfam database...	-0.01	0.00	0.00	0	1078	3	0	3	0	17
PDB_01050	UnaL2 links to Rfam database...	0.92	0.85	1.00	11	619	2	0	0	2	2
PDB_01051	Telomerase-cil links to Rfam database...	0.79	0.69	0.90	9	893	5	0	1	4	4
PDB_01152	HIV_FS2 links to Rfam database...	0.88	0.79	1.00	11	550	0	0	0	0	3
RFA_00632	HDV_ribozyme links to Rfam database...	0.62	0.54	0.71	15	4074	6	1	5	0	13
RFA_00636	HDV_ribozyme links to Rfam database...	0.65	0.64	0.67	18	3978	9	3	6	0	10
RFA_00642	Vimentin3 links to Rfam database...	0.00	0.00	0.00	0	2917	9	3	6	0	18
RFA_00643	Vimentin3 links to Rfam database...	0.00	0.00	0.00	0	2205	6	0	6	0	18
RFA_00644	Vimentin3 links to Rfam database...	0.00	0.00	0.00	0	2694	7	3	4	0	18
RFA_00645	Vimentin3 links to Rfam database...	0.00	0.00	0.00	0	2410	5	1	4	0	18
RFA_00649	Vimentin3 links to Rfam database...	0.53	0.33	0.86	6	2138	1	0	1	0	12
RFA_00651	Vimentin3 links to Rfam database...	0.39	0.33	0.46	6	2067	7	0	7	0	12
RFA_00653	Vimentin3 links to Rfam database...	0.35	0.33	0.38	6	2129	10	2	8	0	12
RFA_00654	Vimentin3 links to Rfam database...	-0.01	0.00	0.00	0	2404	11	2	9	0	18
RFA_00658	Hammerhead_1 links to Rfam database...	0.59	0.50	0.70	7	1118	5	0	3	2	7
RFA_00659	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	1122	8	0	6	2	14
RFA_00664	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	980	10	0	10	0	14
RFA_00667	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	982	8	1	7	0	14
RFA_00668	Hammerhead_1 links to Rfam database...	0.50	0.43	0.60	6	980	4	0	4	0	8
RFA_00672	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	897	6	0	6	0	13
RFA_00673	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	1125	3	0	3	0	14
RFA_00674	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	1122	6	0	6	0	14
RFA_00675	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	985	5	0	5	0	14
RFA_00677	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	984	6	0	6	0	14
RFA_00678	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	941	5	0	5	0	14
RFA_00680	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	1121	7	2	5	0	14
RFA_00684	Hammerhead_1 links to Rfam database...	0.53	0.29	1.00	4	986	1	0	0	1	10
RFA_00685	Hammerhead_1 links to Rfam database...	0.47	0.36	0.63	5	982	4	0	3	1	9
RFA_00704	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	983	7	0	7	0	14
RFA_00705	Hammerhead_1 links to Rfam database...	0.74	0.71	0.77	10	1022	4	0	3	1	4
RFA_00706	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	1027	8	0	8	0	14
RFA_00707	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	1030	5	0	5	0	14
RFA_00708	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	1028	7	0	7	0	14
RFA_00709	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	982	8	0	8	0	14
RFA_00710	Hammerhead_1 links to Rfam database...	0.42	0.36	0.50	5	980	6	0	5	1	9
RFA_00711	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	1023	12	0	12	0	14
RFA_00715	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	940	6	0	6	0	14
RFA_00716	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	939	7	0	7	0	14
RFA_00717	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	898	5	0	5	0	14
RFA_00730	s2m links to Rfam database...	-0.01	0.00	0.00	0	897	6	1	5	0	12
RFA_00731	s2m links to Rfam database...	0.41	0.42	0.42	5	891	8	3	4	1	7
RFA_00733	s2m links to Rfam database...	-0.01	0.00	0.00	0	898	5	0	5	0	12
RFA_00734	s2m links to Rfam database...	0.67	0.58	0.78	7	894	3	0	2	1	5
RFA_00736	s2m links to Rfam database...	0.43	0.42	0.45	5	892	7	1	5	1	7
RFA_00737	s2m links to Rfam database...	0.43	0.42	0.45	5	892	7	2	4	1	7
RFA_00745	s2m links to Rfam database...	-0.01	0.00	0.00	0	938	8	2	6	0	12
RFA_00749	s2m links to Rfam database...	0.43	0.42	0.45	5	892	7	1	5	1	7
RFA_00758	s2m links to Rfam database...	-0.01	0.00	0.00	0	900	3	0	3	0	12
RFA_00762	s2m links to Rfam database...	-0.01	0.00	0.00	0	894	9	2	7	0	12
RFA_00763	s2m links to Rfam database...	-0.01	0.00	0.00	0	897	6	1	5	0	12
RFA_00764	s2m links to Rfam database...	0.51	0.42	0.63	5	895	4	1	2	1	7
RFA_00765	s2m links to Rfam database...	0.43	0.42	0.45	5	892	7	2	4	1	7
RFA_00769	Corona_pk3 links to Rfam database...	0.50	0.50	0.50	9	1935	9	4	5	0	9
RFA_00770	Corona_pk3 links to Rfam database...	0.47	0.39	0.58	7	2004	5	1	4	0	11
RFA_00773	Corona_pk3 links to Rfam database...	0.67	0.50	0.90	9	1943	1	1	0	0	9
RFA_00779	Corona_pk3 links to Rfam database...	0.71	0.50	1.00	9	1944	0	0	0	0	9
RFA_00808	RydC links to Rfam database...	0.68	0.56	0.82	9	2005	3	0	2	1	7
RFA_00809	RydC links to Rfam database...	0.40	0.38	0.43	6	2131	8	1	7	0	10

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
