Overview

Metric	CentroidAlifold(20)		Cylofold
MCC	0.849	>	0.557
Average MCC ± 95% Confidence Intervals	0.849 ± 0.022	>	0.586 ± 0.034
Sensitivity	0.753	>	0.543
Positive Predictive Value	0.959	>	0.577
Total TP	5718	>	4124
Total TN	1185063	>	1183880
Total FP	714	<	3257
Total FP CONTRA	11	<	524
Total FP INCONS	234	<	2498
Total FP COMP	469	>	235
Total FN	1872	<	3466
P-value	3.56938820447e-08

^top

Performance plots

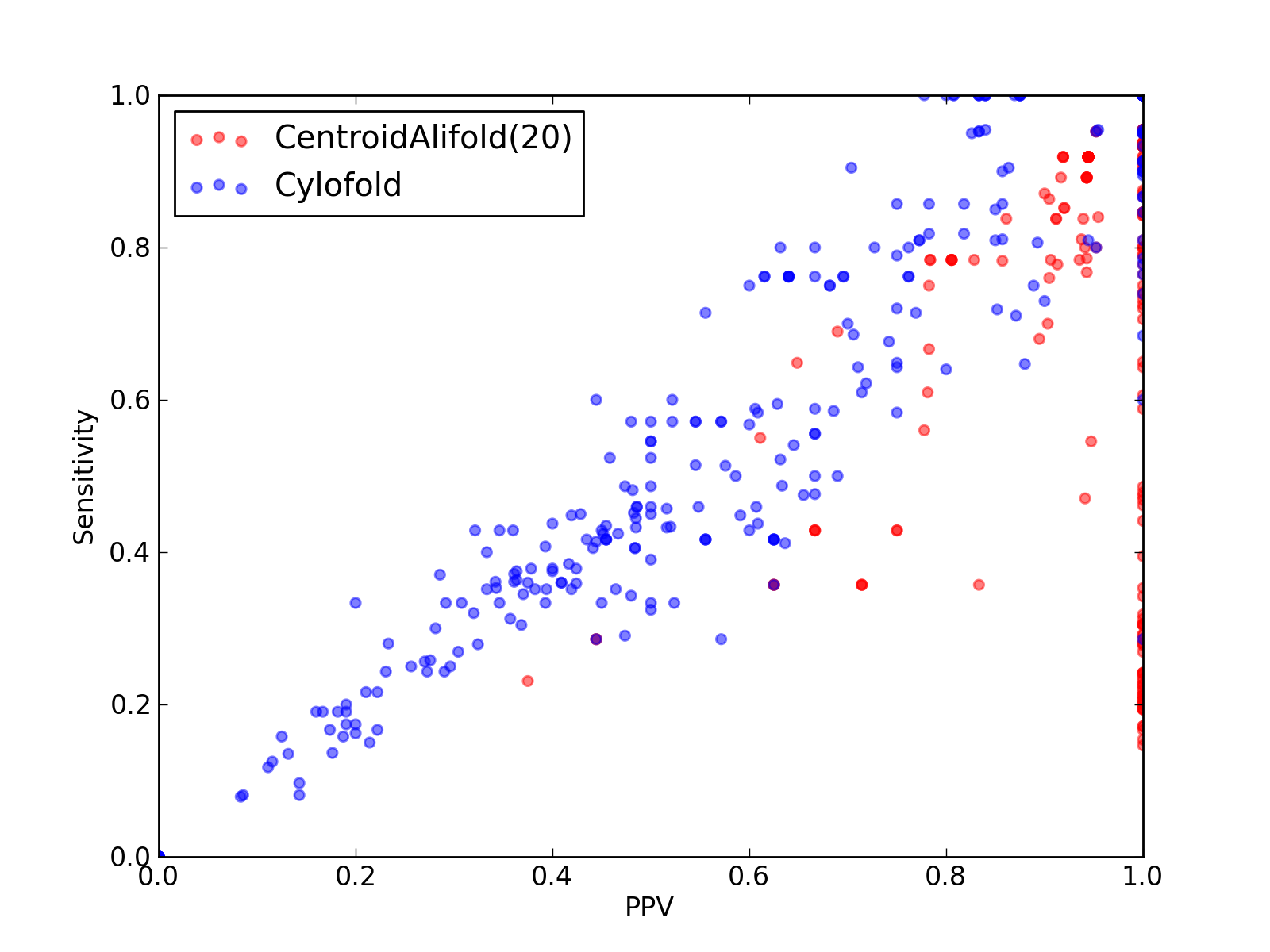

Comparison of performance of CentroidAlifold(20) and Cylofold. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for CentroidAlifold(20) and Cylofold).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for CentroidAlifold(20) and Cylofold).
Comparison of average Matthews Correlation Coefficients (MCCs) for CentroidAlifold(20) and Cylofold. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for CentroidAlifold(20) and Cylofold).

^top

Performance of CentroidAlifold(20) - scored higher in this pairwise comparison

1. Total counts & total scores for CentroidAlifold(20)

Total Base Pair Counts
Total TP	5718
Total TN	1185063
Total FP	714
Total FP CONTRA	11
Total FP INCONS	234
Total FP COMP	469
Total FN	1872

Total Scores
MCC	0.849
Average MCC ± 95% Confidence Intervals	0.849 ± 0.022
Sensitivity	0.753
Positive Predictive Value	0.959
Nr of predictions	304

^top

2. Individual counts for CentroidAlifold(20) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
CRW_00548	5S_rRNA links to Rfam database...	0.92	0.84	1.00	32	7349	2	0	0	2	6
CRW_00552	5S_rRNA links to Rfam database...	0.92	0.85	1.00	33	7107	2	0	0	2	6
CRW_00555	5S_rRNA links to Rfam database...	0.81	0.65	1.00	26	7600	1	0	0	1	14
CRW_00567	5S_rRNA links to Rfam database...	0.89	0.80	1.00	32	7471	1	0	0	1	8
CRW_00570	5S_rRNA links to Rfam database...	0.92	0.89	0.94	33	6868	4	0	2	2	4
CRW_00573	5S_rRNA links to Rfam database...	0.87	0.80	0.94	32	7106	3	0	2	1	8
CRW_01484	5S_rRNA links to Rfam database...	0.93	0.87	1.00	34	7469	2	0	0	2	5
CRW_01485	5S_rRNA links to Rfam database...	0.92	0.85	1.00	33	7470	2	0	0	2	6
CRW_01489	5S_rRNA links to Rfam database...	0.92	0.85	1.00	33	7470	2	0	0	2	6
CRW_01491	5S_rRNA links to Rfam database...	0.85	0.77	0.94	33	8350	2	0	2	0	10
CRW_01492	5S_rRNA links to Rfam database...	0.86	0.79	0.94	33	7591	2	0	2	0	9
CRW_01494	5S_rRNA links to Rfam database...	0.89	0.80	1.00	32	7108	0	0	0	0	8
CRW_01497	5S_rRNA links to Rfam database...	0.85	0.73	1.00	29	7111	0	0	0	0	11
CRW_01498	5S_rRNA links to Rfam database...	0.89	0.79	1.00	34	8094	0	0	0	0	9
CRW_01499	5S_rRNA links to Rfam database...	0.69	0.61	0.78	25	7969	7	0	7	0	16
CRW_01500	5S_rRNA links to Rfam database...	0.92	0.84	1.00	32	7718	3	0	0	3	6
CRW_01532	5S_rRNA links to Rfam database...	0.79	0.78	0.81	29	7104	9	0	7	2	8
CRW_01533	5S_rRNA links to Rfam database...	0.93	0.92	0.94	34	7104	4	0	2	2	3
CRW_01535	5S_rRNA links to Rfam database...	0.92	0.92	0.92	34	7103	5	0	3	2	3
CRW_01536	5S_rRNA links to Rfam database...	0.96	0.92	1.00	34	6987	2	0	0	2	3
CRW_01537	5S_rRNA links to Rfam database...	0.78	0.78	0.78	29	7103	11	0	8	3	8
CRW_01539	5S_rRNA links to Rfam database...	0.85	0.84	0.86	31	7104	7	0	5	2	6
CRW_01540	5S_rRNA links to Rfam database...	0.80	0.78	0.83	29	7105	9	0	6	3	8
CRW_01541	5S_rRNA links to Rfam database...	0.92	0.89	0.94	33	7105	4	0	2	2	4
CRW_01542	5S_rRNA links to Rfam database...	0.93	0.92	0.94	34	7104	4	0	2	2	3
CRW_01548	5S_rRNA links to Rfam database...	0.79	0.78	0.81	29	6985	9	0	7	2	8
CRW_01556	5S_rRNA links to Rfam database...	0.93	0.92	0.94	34	7104	4	0	2	2	3
CRW_01557	5S_rRNA links to Rfam database...	0.79	0.78	0.81	29	7104	9	0	7	2	8
CRW_01559	5S_rRNA links to Rfam database...	0.79	0.78	0.81	29	7224	9	0	7	2	8
CRW_01562	5S_rRNA links to Rfam database...	0.84	0.78	0.91	29	7108	5	0	3	2	8
CRW_01563	5S_rRNA links to Rfam database...	0.78	0.78	0.78	29	6866	8	0	8	0	8
CRW_01566	5S_rRNA links to Rfam database...	0.87	0.81	0.94	30	7108	3	0	2	1	7
CRW_01568	5S_rRNA links to Rfam database...	0.93	0.92	0.94	34	7104	4	0	2	2	3
CRW_01569	5S_rRNA links to Rfam database...	0.93	0.92	0.94	34	7104	4	0	2	2	3
CRW_01570	5S_rRNA links to Rfam database...	0.87	0.84	0.91	31	7106	5	0	3	2	6
CRW_01572	5S_rRNA links to Rfam database...	0.65	0.65	0.65	24	6984	16	0	13	3	13
CRW_01573	5S_rRNA links to Rfam database...	0.93	0.92	0.94	34	7224	4	0	2	2	3
CRW_01578	5S_rRNA links to Rfam database...	0.93	0.92	0.94	34	7104	4	0	2	2	3
CRW_01580	5S_rRNA links to Rfam database...	0.92	0.92	0.92	34	7103	5	0	3	2	3
CRW_01581	5S_rRNA links to Rfam database...	0.96	0.92	1.00	34	7106	1	0	0	1	3
CRW_01583	5S_rRNA links to Rfam database...	0.93	0.92	0.94	34	7104	4	0	2	2	3
CRW_01584	5S_rRNA links to Rfam database...	0.92	0.92	0.92	34	7103	5	0	3	2	3
CRW_01590	5S_rRNA links to Rfam database...	0.89	0.84	0.94	31	7107	4	0	2	2	6
CRW_01593	5S_rRNA links to Rfam database...	0.92	0.89	0.94	33	7105	4	0	2	2	4
CRW_01599	5S_rRNA links to Rfam database...	0.93	0.92	0.94	34	7104	4	0	2	2	3
CRW_01603	5S_rRNA links to Rfam database...	0.86	0.78	0.94	29	7109	3	0	2	1	8
CRW_01605	5S_rRNA links to Rfam database...	0.92	0.89	0.94	33	7105	4	0	2	2	4
CRW_01606	5S_rRNA links to Rfam database...	0.90	0.89	0.92	33	7104	5	0	3	2	4
CRW_01608	5S_rRNA links to Rfam database...	0.93	0.92	0.94	34	8349	3	0	2	1	3
CRW_01616	5S_rRNA links to Rfam database...	0.87	0.84	0.91	31	7106	5	0	3	2	6
CRW_01617	5S_rRNA links to Rfam database...	0.93	0.92	0.94	34	7104	4	0	2	2	3
CRW_01620	5S_rRNA links to Rfam database...	0.93	0.92	0.94	34	6985	4	0	2	2	3
CRW_01621	5S_rRNA links to Rfam database...	0.92	0.89	0.94	33	7105	4	0	2	2	4
CRW_01623	5S_rRNA links to Rfam database...	0.93	0.92	0.94	34	7104	3	0	2	1	3
PDB_00012	mir-TAR links to Rfam database...	1.00	1.00	1.00	7	399	2	0	0	2	0
PDB_00070	tRNA links to Rfam database...	0.93	0.88	1.00	21	2829	0	0	0	0	3
PDB_00213	Gammaretro_CES links to Rfam database...	0.85	0.73	1.00	30	5020	0	0	0	0	11
PDB_00229	tRNA links to Rfam database...	0.96	0.91	1.00	21	2754	0	0	0	0	2
PDB_00327	tRNA links to Rfam database...	0.96	0.91	1.00	21	3060	0	0	0	0	2
PDB_00362	tRNA links to Rfam database...	0.98	0.95	1.00	21	2829	0	0	0	0	1
PDB_00402	tRNA links to Rfam database...	0.96	0.91	1.00	21	2754	0	0	0	0	2
PDB_00431	tRNA links to Rfam database...	0.97	0.95	1.00	19	2192	0	0	0	0	1
PDB_00474	tRNA links to Rfam database...	0.96	0.91	1.00	21	2680	0	0	0	0	2
PDB_00553	mir-TAR links to Rfam database...	1.00	1.00	1.00	11	454	0	0	0	0	0
PDB_00571	tRNA links to Rfam database...	0.87	0.80	0.95	20	3300	1	1	0	0	5
PDB_00667	tRNA links to Rfam database...	0.98	0.95	1.00	21	2829	0	0	0	0	1
PDB_00741	Entero_5_CRE links to Rfam database...	0.76	0.59	1.00	10	693	0	0	0	0	7
PDB_00810	s2m links to Rfam database...	0.87	0.76	1.00	13	1068	1	0	0	1	4
PDB_00828	Purine links to Rfam database...	0.88	0.78	1.00	21	2464	0	0	0	0	6
PDB_00829	Purine links to Rfam database...	0.86	0.75	1.00	18	2260	0	0	0	0	6
PDB_00876	HIV_FE links to Rfam database...	0.57	0.55	0.61	11	972	7	0	7	0	9
PDB_01002	tRNA links to Rfam database...	0.95	0.90	1.00	19	2756	3	0	0	3	2
PDB_01020	Purine links to Rfam database...	0.86	0.74	1.00	17	2261	1	0	0	1	6
PDB_01050	UnaL2 links to Rfam database...	0.68	0.46	1.00	6	624	2	0	0	2	7
PDB_01053	tRNA links to Rfam database...	1.00	1.00	1.00	16	1362	0	0	0	0	0
PDB_01073	SAM links to Rfam database...	0.84	0.71	1.00	24	4347	1	0	0	1	10
PDB_01114	TPP links to Rfam database...	0.86	0.74	1.00	20	2830	0	0	0	0	7
PDB_01152	HIV_FS2 links to Rfam database...	0.80	0.64	1.00	9	552	0	0	0	0	5
RFA_00389	Hammerhead_3 links to Rfam database...	0.97	0.93	1.00	14	1417	2	0	0	2	1
RFA_00390	Hammerhead_3 links to Rfam database...	0.97	0.93	1.00	14	1417	2	0	0	2	1
RFA_00391	Hammerhead_3 links to Rfam database...	0.97	0.93	1.00	14	1417	2	0	0	2	1
RFA_00396	Hammerhead_3 links to Rfam database...	0.97	0.93	1.00	14	1417	2	0	0	2	1
RFA_00402	Hammerhead_3 links to Rfam database...	0.97	0.93	1.00	14	1417	2	0	0	2	1
RFA_00409	Hammerhead_3 links to Rfam database...	0.97	0.93	1.00	14	1417	2	0	0	2	1
RFA_00416	Hammerhead_3 links to Rfam database...	0.97	0.93	1.00	14	1471	2	0	0	2	1
RFA_00433	Hammerhead_3 links to Rfam database...	1.00	1.00	1.00	15	1416	2	0	0	2	0
RFA_00434	Hammerhead_3 links to Rfam database...	0.97	0.93	1.00	14	1417	2	0	0	2	1
RFA_00436	Hammerhead_3 links to Rfam database...	0.97	0.93	1.00	14	1417	2	0	0	2	1
RFA_00440	Hammerhead_3 links to Rfam database...	0.97	0.93	1.00	14	1471	2	0	0	2	1
RFA_00442	Hammerhead_3 links to Rfam database...	0.97	0.93	1.00	14	1417	2	0	0	2	1
RFA_00444	Hammerhead_3 links to Rfam database...	0.97	0.93	1.00	14	1526	2	0	0	2	1
RFA_00583	Y_RNA links to Rfam database...	0.97	0.93	1.00	14	4936	3	0	0	3	1
RFA_00584	Y_RNA links to Rfam database...	1.00	1.00	1.00	15	2911	6	0	0	6	0
RFA_00585	Y_RNA links to Rfam database...	1.00	1.00	1.00	15	4836	3	0	0	3	0
RFA_00586	Y_RNA links to Rfam database...	0.97	0.93	1.00	14	3902	3	0	0	3	1
RFA_00587	Y_RNA links to Rfam database...	0.97	0.93	1.00	14	4837	3	0	0	3	1
RFA_00588	Y_RNA links to Rfam database...	0.97	0.93	1.00	14	4546	1	0	0	1	1
RFA_00589	Y_RNA links to Rfam database...	0.97	0.93	1.00	14	4357	8	0	0	8	1
RFA_00594	Y_RNA links to Rfam database...	1.00	1.00	1.00	15	2760	2	0	0	2	0
RFA_00596	Y_RNA links to Rfam database...	0.93	0.87	1.00	13	5982	2	0	0	2	2
RFA_00658	Hammerhead_1 links to Rfam database...	0.53	0.43	0.67	6	1119	4	0	3	1	8
RFA_00664	Hammerhead_1 links to Rfam database...	0.50	0.36	0.71	5	983	2	0	2	0	9
RFA_00667	Hammerhead_1 links to Rfam database...	0.47	0.36	0.63	5	982	3	0	3	0	9
RFA_00668	Hammerhead_1 links to Rfam database...	0.35	0.29	0.44	4	981	5	0	5	0	10
RFA_00672	Hammerhead_1 links to Rfam database...	0.29	0.23	0.38	3	895	5	0	5	0	10
RFA_00673	Hammerhead_1 links to Rfam database...	0.53	0.43	0.67	6	1119	4	0	3	1	8
RFA_00674	Hammerhead_1 links to Rfam database...	0.56	0.43	0.75	6	1120	3	0	2	1	8
RFA_00675	Hammerhead_1 links to Rfam database...	0.35	0.29	0.44	4	981	5	0	5	0	10
RFA_00677	Hammerhead_1 links to Rfam database...	0.47	0.36	0.63	5	982	3	0	3	0	9
RFA_00678	Hammerhead_1 links to Rfam database...	0.56	0.43	0.75	6	938	3	0	2	1	8
RFA_00680	Hammerhead_1 links to Rfam database...	0.53	0.43	0.67	6	1119	4	0	3	1	8
RFA_00704	Hammerhead_1 links to Rfam database...	0.50	0.36	0.71	5	983	3	0	2	1	9
RFA_00707	Hammerhead_1 links to Rfam database...	0.50	0.36	0.71	5	1028	3	0	2	1	9
RFA_00715	Hammerhead_1 links to Rfam database...	0.47	0.36	0.63	5	938	3	0	3	0	9
RFA_00717	Hammerhead_1 links to Rfam database...	0.54	0.36	0.83	5	897	1	0	1	0	9
RFA_00730	s2m links to Rfam database...	1.00	1.00	1.00	12	891	2	0	0	2	0
RFA_00731	s2m links to Rfam database...	1.00	1.00	1.00	12	891	2	0	0	2	0
RFA_00733	s2m links to Rfam database...	1.00	1.00	1.00	12	891	2	0	0	2	0
RFA_00734	s2m links to Rfam database...	1.00	1.00	1.00	12	891	2	0	0	2	0
RFA_00736	s2m links to Rfam database...	1.00	1.00	1.00	12	891	2	0	0	2	0
RFA_00737	s2m links to Rfam database...	1.00	1.00	1.00	12	891	2	0	0	2	0
RFA_00745	s2m links to Rfam database...	1.00	1.00	1.00	12	934	2	0	0	2	0
RFA_00749	s2m links to Rfam database...	1.00	1.00	1.00	12	891	2	0	0	2	0
RFA_00758	s2m links to Rfam database...	1.00	1.00	1.00	12	891	2	0	0	2	0
RFA_00762	s2m links to Rfam database...	1.00	1.00	1.00	12	891	2	0	0	2	0
RFA_00763	s2m links to Rfam database...	1.00	1.00	1.00	12	891	2	0	0	2	0
RFA_00764	s2m links to Rfam database...	1.00	1.00	1.00	12	891	2	0	0	2	0
RFA_00765	s2m links to Rfam database...	1.00	1.00	1.00	12	891	2	0	0	2	0
RFA_00786	Gammaretro_CES links to Rfam database...	0.97	0.94	1.00	30	5020	0	0	0	0	2
RFA_00791	Gammaretro_CES links to Rfam database...	0.97	0.94	1.00	30	5121	0	0	0	0	2
RFA_00792	Gammaretro_CES links to Rfam database...	0.97	0.94	1.00	30	5020	0	0	0	0	2
RFA_00801	Gammaretro_CES links to Rfam database...	0.97	0.94	1.00	30	5020	0	0	0	0	2
SPR_00007	tRNA links to Rfam database...	1.00	1.00	1.00	21	2829	0	0	0	0	0
SPR_00009	tRNA links to Rfam database...	1.00	1.00	1.00	20	2830	1	0	0	1	0
SPR_00010	tRNA links to Rfam database...	1.00	1.00	1.00	21	2829	0	0	0	0	0
SPR_00012	tRNA links to Rfam database...	1.00	1.00	1.00	20	2830	1	0	0	1	0
SPR_00013	tRNA links to Rfam database...	1.00	1.00	1.00	20	2830	1	0	0	1	0
SPR_00016	tRNA links to Rfam database...	1.00	1.00	1.00	21	2829	0	0	0	0	0
SPR_00017	tRNA links to Rfam database...	1.00	1.00	1.00	21	2829	0	0	0	0	0
SPR_00025	tRNA links to Rfam database...	1.00	1.00	1.00	20	2906	1	0	0	1	0
SPR_00026	tRNA links to Rfam database...	1.00	1.00	1.00	21	2905	0	0	0	0	0
SPR_00027	tRNA links to Rfam database...	1.00	1.00	1.00	21	2905	0	0	0	0	0
SPR_00036	tRNA links to Rfam database...	0.89	0.80	1.00	16	2759	1	0	0	1	4
SPR_00045	tRNA links to Rfam database...	0.98	0.95	1.00	21	2829	0	0	0	0	1
SPR_00064	tRNA links to Rfam database...	1.00	1.00	1.00	21	2829	0	0	0	0	0
SPR_00065	tRNA links to Rfam database...	1.00	1.00	1.00	21	2829	0	0	0	0	0
SPR_00066	tRNA links to Rfam database...	1.00	1.00	1.00	21	2829	0	0	0	0	0
SPR_00068	tRNA links to Rfam database...	1.00	1.00	1.00	21	2829	0	0	0	0	0
SPR_00070	tRNA links to Rfam database...	1.00	1.00	1.00	21	2829	0	0	0	0	0
SPR_00074	tRNA links to Rfam database...	1.00	1.00	1.00	20	2830	1	0	0	1	0
SPR_00079	tRNA links to Rfam database...	0.89	0.79	1.00	15	2470	1	0	0	1	4
SPR_00086	tRNA links to Rfam database...	1.00	1.00	1.00	21	2829	0	0	0	0	0
SPR_00087	tRNA links to Rfam database...	1.00	1.00	1.00	20	2830	1	0	0	1	0
SPR_00088	tRNA links to Rfam database...	1.00	1.00	1.00	20	2830	1	0	0	1	0
SPR_00089	tRNA links to Rfam database...	1.00	1.00	1.00	20	2830	1	0	0	1	0
SPR_00090	tRNA links to Rfam database...	1.00	1.00	1.00	20	2830	1	0	0	1	0
SPR_00091	tRNA links to Rfam database...	1.00	1.00	1.00	20	2830	1	0	0	1	0
SPR_00095	tRNA links to Rfam database...	1.00	1.00	1.00	21	2829	0	0	0	0	0
SPR_00111	tRNA links to Rfam database...	1.00	1.00	1.00	21	2680	0	0	0	0	0
SPR_00112	tRNA links to Rfam database...	1.00	1.00	1.00	21	2680	0	0	0	0	0
SPR_00115	tRNA links to Rfam database...	1.00	1.00	1.00	21	2680	0	0	0	0	0
SPR_00117	tRNA links to Rfam database...	1.00	1.00	1.00	21	2829	1	0	0	1	0
SPR_00139	tRNA links to Rfam database...	0.95	0.90	1.00	19	2907	2	0	0	2	2
SPR_00153	tRNA links to Rfam database...	1.00	1.00	1.00	21	2905	0	0	0	0	0
SPR_00155	tRNA links to Rfam database...	1.00	1.00	1.00	21	2905	0	0	0	0	0
SPR_00156	tRNA links to Rfam database...	1.00	1.00	1.00	21	2905	0	0	0	0	0
SPR_00176	tRNA links to Rfam database...	1.00	1.00	1.00	20	2830	1	0	0	1	0
SPR_00177	tRNA links to Rfam database...	1.00	1.00	1.00	21	2829	0	0	0	0	0
SPR_00178	tRNA links to Rfam database...	1.00	1.00	1.00	21	2829	0	0	0	0	0
SPR_00191	tRNA links to Rfam database...	1.00	1.00	1.00	21	2829	0	0	0	0	0
SPR_00200	tRNA links to Rfam database...	1.00	1.00	1.00	21	2829	0	0	0	0	0
SPR_00224	tRNA links to Rfam database...	1.00	1.00	1.00	20	3721	0	0	0	0	0
SPR_00273	tRNA links to Rfam database...	0.95	0.95	0.95	20	2829	1	0	1	0	1
SPR_00276	tRNA links to Rfam database...	1.00	1.00	1.00	21	2905	0	0	0	0	0
SPR_00294	tRNA links to Rfam database...	1.00	1.00	1.00	21	2829	0	0	0	0	0
SPR_00295	tRNA links to Rfam database...	1.00	1.00	1.00	21	2754	1	0	0	1	0
SPR_00314	tRNA links to Rfam database...	1.00	1.00	1.00	21	2905	0	0	0	0	0
SPR_00315	tRNA links to Rfam database...	1.00	1.00	1.00	21	2905	0	0	0	0	0
SPR_00317	tRNA links to Rfam database...	1.00	1.00	1.00	20	2906	1	0	0	1	0
SPR_00318	tRNA links to Rfam database...	1.00	1.00	1.00	21	2905	1	0	0	1	0
SPR_00333	tRNA links to Rfam database...	1.00	1.00	1.00	21	2754	0	0	0	0	0
SPR_00353	tRNA links to Rfam database...	1.00	1.00	1.00	21	2829	0	0	0	0	0
SPR_00357	tRNA links to Rfam database...	1.00	1.00	1.00	21	2905	0	0	0	0	0
SPR_00358	tRNA links to Rfam database...	1.00	1.00	1.00	20	2906	1	0	0	1	0
SPR_00370	tRNA links to Rfam database...	0.95	0.95	0.95	20	2754	1	0	1	0	1
SPR_00386	tRNA links to Rfam database...	1.00	1.00	1.00	20	4166	0	0	0	0	0
SPR_00414	tRNA links to Rfam database...	1.00	1.00	1.00	21	3549	3	0	0	3	0
SPR_00415	tRNA links to Rfam database...	1.00	1.00	1.00	21	3549	3	0	0	3	0
SPR_00417	tRNA links to Rfam database...	0.98	0.95	1.00	21	3549	4	0	0	4	1
SPR_00418	tRNA links to Rfam database...	1.00	1.00	1.00	22	3548	4	0	0	4	0
SPR_00434	tRNA links to Rfam database...	1.00	1.00	1.00	21	2829	0	0	0	0	0
SPR_00435	tRNA links to Rfam database...	1.00	1.00	1.00	21	2829	0	0	0	0	0
SPR_00436	tRNA links to Rfam database...	1.00	1.00	1.00	21	2829	0	0	0	0	0
SPR_00437	tRNA links to Rfam database...	1.00	1.00	1.00	21	2754	0	0	0	0	0
SPR_00438	tRNA links to Rfam database...	1.00	1.00	1.00	21	2754	0	0	0	0	0
SPR_00452	tRNA links to Rfam database...	1.00	1.00	1.00	21	2829	0	0	0	0	0
SPR_00455	tRNA links to Rfam database...	1.00	1.00	1.00	21	2829	0	0	0	0	0
SPR_00456	tRNA links to Rfam database...	1.00	1.00	1.00	21	2829	0	0	0	0	0
SPR_00476	tRNA links to Rfam database...	1.00	1.00	1.00	21	2754	1	0	0	1	0
SPR_00479	tRNA links to Rfam database...	1.00	1.00	1.00	21	2829	0	0	0	0	0
SPR_00482	tRNA links to Rfam database...	1.00	1.00	1.00	21	2680	0	0	0	0	0
SPR_00483	tRNA links to Rfam database...	1.00	1.00	1.00	21	2829	0	0	0	0	0
SPR_00487	tRNA links to Rfam database...	0.88	0.86	0.90	19	2680	2	0	2	0	3
SPR_00493	tRNA links to Rfam database...	0.98	0.95	1.00	21	2754	0	0	0	0	1
SPR_00496	tRNA links to Rfam database...	1.00	1.00	1.00	21	2754	0	0	0	0	0
SPR_00497	tRNA links to Rfam database...	1.00	1.00	1.00	21	2754	1	0	0	1	0
SPR_00502	tRNA links to Rfam database...	1.00	1.00	1.00	21	2905	0	0	0	0	0
SPR_00504	tRNA links to Rfam database...	1.00	1.00	1.00	20	2830	1	0	0	1	0
SPR_00505	tRNA links to Rfam database...	1.00	1.00	1.00	20	2906	1	0	0	1	0
SPR_00506	tRNA links to Rfam database...	1.00	1.00	1.00	20	2906	1	0	0	1	0
SPR_00509	tRNA links to Rfam database...	1.00	1.00	1.00	20	2906	1	0	0	1	0
SPR_00512	tRNA links to Rfam database...	1.00	1.00	1.00	20	2906	1	0	0	1	0
SPR_00513	tRNA links to Rfam database...	1.00	1.00	1.00	20	2906	1	0	0	1	0
SPR_00518	tRNA links to Rfam database...	1.00	1.00	1.00	20	2906	1	0	0	1	0
SPR_00548	tRNA links to Rfam database...	1.00	1.00	1.00	21	3382	0	0	0	0	0
SPR_00557	tRNA links to Rfam database...	1.00	1.00	1.00	21	2829	0	0	0	0	0
SPR_00561	tRNA links to Rfam database...	1.00	1.00	1.00	21	2829	0	0	0	0	0
SPR_00590	tRNA links to Rfam database...	1.00	1.00	1.00	20	2983	1	0	0	1	0
SPR_00593	tRNA links to Rfam database...	1.00	1.00	1.00	19	2756	2	0	0	2	0
SPR_00595	tRNA links to Rfam database...	1.00	1.00	1.00	21	2754	0	0	0	0	0
SPR_00598	tRNA links to Rfam database...	1.00	1.00	1.00	21	2982	1	0	0	1	0
SPR_00610	tRNA links to Rfam database...	0.90	0.81	1.00	17	2539	0	0	0	0	4
SPR_00620	tRNA links to Rfam database...	0.98	0.95	1.00	20	2983	1	0	0	1	1
SPR_00721	tRNA links to Rfam database...	1.00	1.00	1.00	21	2905	0	0	0	0	0
SPR_00722	tRNA links to Rfam database...	1.00	1.00	1.00	20	2906	1	0	0	1	0
SPR_00758	tRNA links to Rfam database...	1.00	1.00	1.00	21	2982	0	0	0	0	0
SPR_00760	tRNA links to Rfam database...	1.00	1.00	1.00	21	3549	0	0	0	0	0
SPR_00777	tRNA links to Rfam database...	1.00	1.00	1.00	20	2608	2	0	0	2	0
SPR_00867	tRNA links to Rfam database...	1.00	1.00	1.00	21	2905	0	0	0	0	0
SPR_00868	tRNA links to Rfam database...	1.00	1.00	1.00	21	2905	0	0	0	0	0
SPR_00943	tRNA links to Rfam database...	1.00	1.00	1.00	20	2536	0	0	0	0	0
SPR_00957	tRNA links to Rfam database...	1.00	1.00	1.00	21	2982	0	0	0	0	0
SPR_01040	tRNA links to Rfam database...	1.00	1.00	1.00	21	2754	0	0	0	0	0
SPR_01088	tRNA links to Rfam database...	1.00	1.00	1.00	21	2905	0	0	0	0	0
SPR_01095	tRNA links to Rfam database...	1.00	1.00	1.00	21	2829	0	0	0	0	0
SPR_01106	tRNA links to Rfam database...	1.00	1.00	1.00	21	2535	0	0	0	0	0
SPR_01117	tRNA links to Rfam database...	1.00	1.00	1.00	21	2982	0	0	0	0	0
SPR_01157	tRNA links to Rfam database...	1.00	1.00	1.00	21	2754	1	0	0	1	0
SRP_00008	Bacteria_small_SRP links to Rfam database...	0.85	0.72	1.00	18	2908	0	0	0	0	7
SRP_00020	Bacteria_small_SRP links to Rfam database...	0.72	0.55	0.95	18	5546	5	0	1	4	15
SRP_00038	Bacteria_small_SRP links to Rfam database...	0.46	0.21	1.00	7	5043	4	0	0	4	26
SRP_00042	Bacteria_small_SRP links to Rfam database...	0.78	0.68	0.89	17	3986	3	1	1	1	8
SRP_00044	Bacteria_small_SRP links to Rfam database...	0.68	0.47	1.00	15	6090	4	0	0	4	17
SRP_00046	Bacteria_small_SRP links to Rfam database...	0.47	0.22	1.00	7	4746	4	0	0	4	25
SRP_00051	Bacteria_small_SRP links to Rfam database...	0.48	0.23	1.00	7	5453	2	0	0	2	23
SRP_00054	Bacteria_small_SRP links to Rfam database...	0.47	0.22	1.00	7	5558	2	0	0	2	25
SRP_00057	Bacteria_small_SRP links to Rfam database...	0.45	0.20	1.00	7	6321	4	0	0	4	28
SRP_00058	Bacteria_small_SRP links to Rfam database...	0.66	0.47	0.94	16	5761	5	0	1	4	18
SRP_00072	Bacteria_small_SRP links to Rfam database...	0.49	0.24	1.00	7	6321	4	0	0	4	22
SRP_00075	Bacteria_small_SRP links to Rfam database...	0.45	0.21	1.00	7	5558	4	0	0	4	27
SRP_00081	Bacteria_small_SRP links to Rfam database...	0.47	0.23	1.00	7	5558	4	0	0	4	24
SRP_00084	Bacteria_small_SRP links to Rfam database...	0.59	0.35	1.00	12	5448	4	0	0	4	22
SRP_00094	Bacteria_small_SRP links to Rfam database...	0.76	0.75	0.78	18	4072	5	1	4	0	6
SRP_00095	Bacteria_small_SRP links to Rfam database...	0.66	0.56	0.78	14	3987	4	1	3	0	11
SRP_00105	Bacteria_small_SRP links to Rfam database...	0.45	0.21	1.00	7	5558	4	0	0	4	27
SRP_00107	Bacteria_small_SRP links to Rfam database...	0.69	0.47	1.00	9	3646	1	0	0	1	10
SRP_00121	Bacteria_small_SRP links to Rfam database...	0.53	0.28	1.00	7	4271	4	0	0	4	18
SRP_00128	Bacteria_small_SRP links to Rfam database...	0.55	0.31	1.00	11	6775	4	0	0	4	25
SRP_00132	Bacteria_small_SRP links to Rfam database...	0.49	0.24	1.00	7	4844	4	0	0	4	22
SRP_00134	Bacteria_large_SRP links to Rfam database...	0.69	0.69	0.69	20	5966	17	0	9	8	9
SRP_00141	Bacteria_small_SRP links to Rfam database...	0.38	0.15	1.00	6	6322	5	0	0	5	35
SRP_00161	Bacteria_small_SRP links to Rfam database...	0.56	0.32	1.00	7	2843	4	0	0	4	15
SRP_00162	Bacteria_small_SRP links to Rfam database...	0.55	0.30	1.00	7	2919	4	0	0	4	16
SRP_00163	Bacteria_small_SRP links to Rfam database...	0.52	0.27	1.00	7	3479	4	0	0	4	19
SRP_00164	Bacteria_small_SRP links to Rfam database...	0.70	0.49	1.00	17	6886	6	0	0	6	18
SRP_00170	Bacteria_small_SRP links to Rfam database...	0.83	0.76	0.90	19	4074	4	1	1	2	6
SRP_00194	Bacteria_small_SRP links to Rfam database...	0.53	0.29	1.00	6	3234	4	0	0	4	15
SRP_00200	Bacteria_small_SRP links to Rfam database...	0.41	0.17	1.00	6	6897	1	0	0	1	30
SRP_00209	Bacteria_small_SRP links to Rfam database...	0.72	0.67	0.78	18	4633	6	1	4	1	9
SRP_00213	Bacteria_small_SRP links to Rfam database...	0.89	0.84	0.95	21	4164	1	0	1	0	4
SRP_00215	Bacteria_small_SRP links to Rfam database...	0.53	0.28	1.00	7	3233	4	0	0	4	18
SRP_00227	Bacteria_small_SRP links to Rfam database...	0.88	0.87	0.90	27	5121	10	1	2	7	4
SRP_00231	Bacteria_small_SRP links to Rfam database...	0.66	0.44	1.00	15	5445	4	0	0	4	19
SRP_00233	Bacteria_small_SRP links to Rfam database...	0.46	0.21	1.00	7	5144	4	0	0	4	26
SRP_00243	Bacteria_small_SRP links to Rfam database...	0.47	0.23	1.00	7	5144	4	0	0	4	24
SRP_00244	Bacteria_small_SRP links to Rfam database...	0.39	0.15	1.00	6	6897	5	0	0	5	33
SRP_00250	Bacteria_small_SRP links to Rfam database...	0.55	0.31	1.00	11	6775	4	0	0	4	25
SRP_00251	Bacteria_small_SRP links to Rfam database...	0.53	0.28	1.00	10	7011	5	0	0	5	26
SRP_00266	Bacteria_small_SRP links to Rfam database...	0.49	0.24	1.00	7	4649	4	0	0	4	22
SRP_00268	Bacteria_small_SRP links to Rfam database...	0.88	0.85	0.92	23	4161	3	1	1	1	4
SRP_00269	Bacteria_small_SRP links to Rfam database...	0.46	0.21	1.00	7	5043	4	0	0	4	26
SRP_00270	Bacteria_small_SRP links to Rfam database...	0.44	0.19	1.00	6	4650	5	0	0	5	25
SRP_00271	Bacteria_small_SRP links to Rfam database...	0.54	0.29	1.00	7	3233	4	0	0	4	17
SRP_00273	Bacteria_small_SRP links to Rfam database...	0.79	0.70	0.90	28	6755	7	1	2	4	12
SRP_00274	Bacteria_small_SRP links to Rfam database...	0.63	0.39	1.00	15	6888	4	0	0	4	23
SRP_00295	Bacteria_small_SRP links to Rfam database...	0.58	0.34	1.00	13	6890	5	0	0	5	25
SRP_00303	Bacteria_small_SRP links to Rfam database...	0.56	0.31	1.00	10	6660	5	0	0	5	22
SRP_00310	Bacteria_small_SRP links to Rfam database...	0.69	0.48	1.00	11	2915	4	0	0	4	12
SRP_00312	Bacteria_small_SRP links to Rfam database...	0.88	0.85	0.92	23	4161	3	1	1	1	4
SRP_00315	Bacteria_small_SRP links to Rfam database...	0.82	0.78	0.86	18	2905	6	0	3	3	5
SRP_00318	Bacteria_small_SRP links to Rfam database...	0.55	0.30	1.00	7	2996	4	0	0	4	16
SRP_00325	Bacteria_small_SRP links to Rfam database...	0.78	0.61	1.00	20	4351	4	0	0	4	13
SRP_00326	Bacteria_small_SRP links to Rfam database...	0.44	0.19	1.00	6	5044	5	0	0	5	25
SRP_00333	Bacteria_small_SRP links to Rfam database...	0.45	0.21	1.00	7	5144	4	0	0	4	27
SRP_00338	Bacteria_small_SRP links to Rfam database...	0.44	0.19	1.00	7	5453	4	0	0	4	29
SRP_00341	Bacteria_small_SRP links to Rfam database...	0.47	0.23	1.00	7	4746	4	0	0	4	24
SRP_00342	Bacteria_small_SRP links to Rfam database...	0.49	0.24	1.00	6	3999	1	0	0	1	19
SRP_00350	Bacteria_small_SRP links to Rfam database...	0.84	0.78	0.91	21	3893	2	1	1	0	6
SRP_00356	Bacteria_small_SRP links to Rfam database...	0.48	0.23	1.00	7	5043	4	0	0	4	23
SRP_00357	Bacteria_small_SRP links to Rfam database...	0.44	0.19	1.00	7	5349	4	0	0	4	29
SRP_00358	Bacteria_small_SRP links to Rfam database...	0.45	0.20	1.00	7	6321	4	0	0	4	28
SRP_00367	Bacteria_small_SRP links to Rfam database...	0.41	0.17	1.00	6	6780	4	0	0	4	29
SRP_00369	Bacteria_small_SRP links to Rfam database...	0.41	0.17	1.00	6	5772	3	0	0	3	29
SRP_00383	Bacteria_small_SRP links to Rfam database...	0.54	0.29	1.00	7	3233	0	0	0	0	17

^top

Performance of Cylofold - scored lower in this pairwise comparison

1. Total counts & total scores for Cylofold

Total Base Pair Counts
Total TP	4124
Total TN	1183880
Total FP	3257
Total FP CONTRA	524
Total FP INCONS	2498
Total FP COMP	235
Total FN	3466

Total Scores
MCC	0.557
Average MCC ± 95% Confidence Intervals	0.586 ± 0.034
Sensitivity	0.543
Positive Predictive Value	0.577
Nr of predictions	304

^top

2. Individual counts for Cylofold [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
CRW_00548	5S_rRNA links to Rfam database...	0.08	0.08	0.08	3	7345	33	2	31	0	35
CRW_00552	5S_rRNA links to Rfam database...	0.39	0.36	0.42	14	7107	22	2	17	3	25
CRW_00555	5S_rRNA links to Rfam database...	0.59	0.50	0.69	20	7597	9	1	8	0	20
CRW_00567	5S_rRNA links to Rfam database...	0.47	0.45	0.50	18	7467	20	4	14	2	22
CRW_00570	5S_rRNA links to Rfam database...	0.83	0.81	0.86	30	6868	6	0	5	1	7
CRW_00573	5S_rRNA links to Rfam database...	0.25	0.25	0.26	10	7101	29	0	29	0	30
CRW_01484	5S_rRNA links to Rfam database...	0.26	0.26	0.27	10	7466	27	3	24	0	29
CRW_01485	5S_rRNA links to Rfam database...	0.40	0.38	0.42	15	7467	21	2	19	0	24
CRW_01489	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7468	35	2	33	0	39
CRW_01491	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	8351	34	3	31	0	43
CRW_01492	5S_rRNA links to Rfam database...	0.67	0.64	0.71	27	7588	14	0	11	3	15
CRW_01494	5S_rRNA links to Rfam database...	0.18	0.15	0.21	6	7112	23	0	22	1	34
CRW_01497	5S_rRNA links to Rfam database...	0.58	0.50	0.67	20	7110	10	0	10	0	20
CRW_01498	5S_rRNA links to Rfam database...	0.30	0.28	0.32	12	8091	26	0	25	1	31
CRW_01499	5S_rRNA links to Rfam database...	0.44	0.39	0.50	16	7969	17	1	15	1	25
CRW_01500	5S_rRNA links to Rfam database...	0.17	0.16	0.19	6	7718	26	2	24	0	32
CRW_01532	5S_rRNA links to Rfam database...	0.59	0.54	0.65	20	7109	13	3	8	2	17
CRW_01533	5S_rRNA links to Rfam database...	0.70	0.65	0.75	24	7108	10	2	6	2	13
CRW_01535	5S_rRNA links to Rfam database...	0.40	0.38	0.42	14	7107	21	2	17	2	23
CRW_01536	5S_rRNA links to Rfam database...	0.42	0.41	0.44	15	6987	20	3	16	1	22
CRW_01537	5S_rRNA links to Rfam database...	0.10	0.08	0.14	3	7119	18	3	15	0	34
CRW_01539	5S_rRNA links to Rfam database...	0.47	0.46	0.49	17	7105	21	1	17	3	20
CRW_01540	5S_rRNA links to Rfam database...	0.34	0.35	0.33	13	7101	26	3	23	0	24
CRW_01541	5S_rRNA links to Rfam database...	0.61	0.59	0.63	22	7105	14	1	12	1	15
CRW_01542	5S_rRNA links to Rfam database...	0.39	0.38	0.40	14	7105	21	2	19	0	23
CRW_01548	5S_rRNA links to Rfam database...	0.47	0.46	0.49	17	6986	19	3	15	1	20
CRW_01556	5S_rRNA links to Rfam database...	0.58	0.57	0.60	21	7105	15	2	12	1	16
CRW_01557	5S_rRNA links to Rfam database...	0.48	0.46	0.50	17	7106	19	2	15	2	20
CRW_01559	5S_rRNA links to Rfam database...	0.81	0.73	0.90	27	7230	7	0	3	4	10
CRW_01562	5S_rRNA links to Rfam database...	0.13	0.14	0.13	5	7102	33	8	25	0	32
CRW_01563	5S_rRNA links to Rfam database...	0.40	0.32	0.50	12	6879	13	0	12	1	25
CRW_01566	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7110	30	2	28	0	37
CRW_01568	5S_rRNA links to Rfam database...	0.49	0.49	0.50	18	7104	18	2	16	0	19
CRW_01569	5S_rRNA links to Rfam database...	0.54	0.51	0.58	19	7107	15	4	10	1	18
CRW_01570	5S_rRNA links to Rfam database...	0.46	0.43	0.48	16	7107	19	1	16	2	21
CRW_01572	5S_rRNA links to Rfam database...	0.47	0.43	0.52	16	6990	18	1	14	3	21
CRW_01573	5S_rRNA links to Rfam database...	0.22	0.22	0.22	8	7224	28	1	27	0	29
CRW_01578	5S_rRNA links to Rfam database...	0.38	0.38	0.38	14	7103	23	3	20	0	23
CRW_01580	5S_rRNA links to Rfam database...	0.37	0.35	0.39	13	7107	20	3	17	0	24
CRW_01581	5S_rRNA links to Rfam database...	0.40	0.35	0.46	13	7112	16	0	15	1	24
CRW_01583	5S_rRNA links to Rfam database...	0.18	0.16	0.20	6	7110	24	1	23	0	31
CRW_01584	5S_rRNA links to Rfam database...	0.23	0.24	0.23	9	7101	30	3	27	0	28
CRW_01590	5S_rRNA links to Rfam database...	0.08	0.08	0.09	3	7105	32	4	28	0	34
CRW_01593	5S_rRNA links to Rfam database...	0.26	0.24	0.29	9	7109	22	5	17	0	28
CRW_01599	5S_rRNA links to Rfam database...	0.21	0.22	0.21	8	7102	30	2	28	0	29
CRW_01603	5S_rRNA links to Rfam database...	0.50	0.46	0.55	17	7109	14	2	12	0	20
CRW_01605	5S_rRNA links to Rfam database...	0.44	0.41	0.48	15	7109	16	2	14	0	22
CRW_01606	5S_rRNA links to Rfam database...	0.36	0.35	0.38	13	7106	22	6	15	1	24
CRW_01608	5S_rRNA links to Rfam database...	0.53	0.46	0.61	17	8357	13	0	11	2	20
CRW_01616	5S_rRNA links to Rfam database...	0.48	0.49	0.47	18	7102	20	5	15	0	19
CRW_01617	5S_rRNA links to Rfam database...	0.25	0.24	0.27	9	7107	24	4	20	0	28
CRW_01620	5S_rRNA links to Rfam database...	0.67	0.62	0.72	23	6989	10	2	7	1	14
CRW_01621	5S_rRNA links to Rfam database...	0.38	0.35	0.42	13	7109	18	0	18	0	24
CRW_01623	5S_rRNA links to Rfam database...	0.44	0.41	0.48	15	7109	17	0	16	1	22
PDB_00012	mir-TAR links to Rfam database...	1.00	1.00	1.00	7	399	3	0	0	3	0
PDB_00070	tRNA links to Rfam database...	0.59	0.58	0.61	14	2827	9	1	8	0	10
PDB_00213	Gammaretro_CES links to Rfam database...	0.66	0.61	0.71	25	5015	10	0	10	0	16
PDB_00229	tRNA links to Rfam database...	0.96	0.91	1.00	21	2754	0	0	0	0	2
PDB_00327	tRNA links to Rfam database...	0.57	0.52	0.63	12	3062	7	0	7	0	11
PDB_00362	tRNA links to Rfam database...	0.98	0.95	1.00	21	2829	0	0	0	0	1
PDB_00402	tRNA links to Rfam database...	0.96	0.91	1.00	21	2754	0	0	0	0	2
PDB_00431	tRNA links to Rfam database...	0.88	0.95	0.83	19	2188	5	4	0	1	1
PDB_00474	tRNA links to Rfam database...	0.96	0.91	1.00	21	2680	0	0	0	0	2
PDB_00553	mir-TAR links to Rfam database...	1.00	1.00	1.00	11	454	0	0	0	0	0
PDB_00571	tRNA links to Rfam database...	0.87	0.80	0.95	20	3300	1	1	0	0	5
PDB_00667	tRNA links to Rfam database...	0.80	0.82	0.78	18	2827	6	4	1	1	4
PDB_00741	Entero_5_CRE links to Rfam database...	0.87	0.76	1.00	13	690	0	0	0	0	4
PDB_00810	s2m links to Rfam database...	0.51	0.41	0.64	7	1070	4	2	2	0	10
PDB_00828	Purine links to Rfam database...	0.88	0.78	1.00	21	2464	0	0	0	0	6
PDB_00829	Purine links to Rfam database...	0.43	0.42	0.45	10	2256	12	0	12	0	14
PDB_00876	HIV_FE links to Rfam database...	0.97	0.95	1.00	19	971	0	0	0	0	1
PDB_01002	tRNA links to Rfam database...	0.88	0.90	0.86	19	2753	5	3	0	2	2
PDB_01020	Purine links to Rfam database...	0.86	0.74	1.00	17	2261	1	0	0	1	6
PDB_01050	UnaL2 links to Rfam database...	0.92	0.85	1.00	11	619	2	0	0	2	2
PDB_01053	tRNA links to Rfam database...	1.00	1.00	1.00	16	1362	0	0	0	0	0
PDB_01073	SAM links to Rfam database...	0.75	0.65	0.88	22	4346	4	2	1	1	12
PDB_01114	TPP links to Rfam database...	0.38	0.33	0.45	9	2830	11	0	11	0	18
PDB_01152	HIV_FS2 links to Rfam database...	0.88	0.79	1.00	11	550	0	0	0	0	3
RFA_00389	Hammerhead_3 links to Rfam database...	1.00	1.00	1.00	15	1416	2	0	0	2	0
RFA_00390	Hammerhead_3 links to Rfam database...	1.00	1.00	1.00	15	1416	2	0	0	2	0
RFA_00391	Hammerhead_3 links to Rfam database...	0.93	0.87	1.00	13	1418	2	0	0	2	2
RFA_00396	Hammerhead_3 links to Rfam database...	0.97	0.93	1.00	14	1417	2	0	0	2	1
RFA_00402	Hammerhead_3 links to Rfam database...	0.40	0.33	0.50	5	1421	5	0	5	0	10
RFA_00409	Hammerhead_3 links to Rfam database...	0.77	0.60	1.00	9	1422	1	0	0	1	6
RFA_00416	Hammerhead_3 links to Rfam database...	1.00	1.00	1.00	15	1470	3	0	0	3	0
RFA_00433	Hammerhead_3 links to Rfam database...	1.00	1.00	1.00	15	1416	2	0	0	2	0
RFA_00434	Hammerhead_3 links to Rfam database...	1.00	1.00	1.00	15	1416	2	0	0	2	0
RFA_00436	Hammerhead_3 links to Rfam database...	1.00	1.00	1.00	15	1416	2	0	0	2	0
RFA_00440	Hammerhead_3 links to Rfam database...	1.00	1.00	1.00	15	1470	2	0	0	2	0
RFA_00442	Hammerhead_3 links to Rfam database...	1.00	1.00	1.00	15	1416	2	0	0	2	0
RFA_00444	Hammerhead_3 links to Rfam database...	1.00	1.00	1.00	15	1525	1	0	0	1	0
RFA_00583	Y_RNA links to Rfam database...	1.00	1.00	1.00	15	4935	6	0	0	6	0
RFA_00584	Y_RNA links to Rfam database...	1.00	1.00	1.00	15	2911	8	0	0	8	0
RFA_00585	Y_RNA links to Rfam database...	1.00	1.00	1.00	15	4836	11	0	0	11	0
RFA_00586	Y_RNA links to Rfam database...	0.71	0.80	0.63	12	3897	8	4	3	1	3
RFA_00587	Y_RNA links to Rfam database...	1.00	1.00	1.00	15	4836	8	0	0	8	0
RFA_00588	Y_RNA links to Rfam database...	1.00	1.00	1.00	15	4545	7	0	0	7	0
RFA_00589	Y_RNA links to Rfam database...	1.00	1.00	1.00	15	4356	11	0	0	11	0
RFA_00594	Y_RNA links to Rfam database...	0.93	0.87	1.00	13	2762	5	0	0	5	2
RFA_00596	Y_RNA links to Rfam database...	0.26	0.33	0.20	5	5970	28	8	12	8	10
RFA_00658	Hammerhead_1 links to Rfam database...	0.40	0.29	0.57	4	1121	5	0	3	2	10
RFA_00664	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	980	11	0	10	1	14
RFA_00667	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	981	10	1	8	1	14
RFA_00668	Hammerhead_1 links to Rfam database...	0.50	0.43	0.60	6	980	4	0	4	0	8
RFA_00672	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	895	9	0	8	1	13
RFA_00673	Hammerhead_1 links to Rfam database...	0.47	0.36	0.63	5	1120	4	0	3	1	9
RFA_00674	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	1117	11	0	11	0	14
RFA_00675	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	981	9	1	8	0	14
RFA_00677	Hammerhead_1 links to Rfam database...	0.69	0.64	0.75	9	978	5	0	3	2	5
RFA_00678	Hammerhead_1 links to Rfam database...	0.53	0.29	1.00	4	942	0	0	0	0	10
RFA_00680	Hammerhead_1 links to Rfam database...	0.74	0.71	0.77	10	1115	6	0	3	3	4
RFA_00704	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	983	8	0	7	1	14
RFA_00707	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	1030	5	0	5	0	14
RFA_00715	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	939	7	0	7	0	14
RFA_00717	Hammerhead_1 links to Rfam database...	0.35	0.29	0.44	4	894	5	0	5	0	10
RFA_00730	s2m links to Rfam database...	0.51	0.42	0.63	5	895	4	1	2	1	7
RFA_00731	s2m links to Rfam database...	0.48	0.42	0.56	5	894	5	1	3	1	7
RFA_00733	s2m links to Rfam database...	0.51	0.42	0.63	5	895	4	0	3	1	7
RFA_00734	s2m links to Rfam database...	0.18	0.17	0.22	2	894	8	0	7	1	10
RFA_00736	s2m links to Rfam database...	0.48	0.42	0.56	5	894	5	1	3	1	7
RFA_00737	s2m links to Rfam database...	0.43	0.42	0.45	5	892	7	0	6	1	7
RFA_00745	s2m links to Rfam database...	-0.01	0.00	0.00	0	938	8	1	7	0	12
RFA_00749	s2m links to Rfam database...	0.48	0.42	0.56	5	894	5	1	3	1	7
RFA_00758	s2m links to Rfam database...	-0.01	0.00	0.00	0	898	5	0	5	0	12
RFA_00762	s2m links to Rfam database...	0.31	0.33	0.31	4	890	9	2	7	0	8
RFA_00763	s2m links to Rfam database...	0.43	0.42	0.45	5	892	7	0	6	1	7
RFA_00764	s2m links to Rfam database...	0.51	0.42	0.63	5	895	4	0	3	1	7
RFA_00765	s2m links to Rfam database...	0.51	0.42	0.63	5	895	4	0	3	1	7
RFA_00786	Gammaretro_CES links to Rfam database...	0.33	0.31	0.36	10	5022	18	1	17	0	22
RFA_00791	Gammaretro_CES links to Rfam database...	0.51	0.44	0.61	14	5128	9	0	9	0	18
RFA_00792	Gammaretro_CES links to Rfam database...	0.78	0.72	0.85	23	5023	4	2	2	0	9
RFA_00801	Gammaretro_CES links to Rfam database...	0.82	0.75	0.89	24	5023	4	0	3	1	8
SPR_00007	tRNA links to Rfam database...	1.00	1.00	1.00	21	2829	0	0	0	0	0
SPR_00009	tRNA links to Rfam database...	0.93	1.00	0.87	20	2827	3	3	0	0	0
SPR_00010	tRNA links to Rfam database...	0.93	1.00	0.88	21	2826	3	3	0	0	0
SPR_00012	tRNA links to Rfam database...	-0.01	0.00	0.00	0	2832	18	0	18	0	20
SPR_00013	tRNA links to Rfam database...	0.97	0.95	1.00	19	2831	0	0	0	0	1
SPR_00016	tRNA links to Rfam database...	1.00	1.00	1.00	21	2829	0	0	0	0	0
SPR_00017	tRNA links to Rfam database...	1.00	1.00	1.00	21	2829	0	0	0	0	0
SPR_00025	tRNA links to Rfam database...	0.91	1.00	0.83	20	2902	5	4	0	1	0
SPR_00026	tRNA links to Rfam database...	1.00	1.00	1.00	21	2905	0	0	0	0	0
SPR_00027	tRNA links to Rfam database...	0.92	1.00	0.84	21	2901	4	4	0	0	0
SPR_00036	tRNA links to Rfam database...	0.73	0.80	0.67	16	2751	9	8	0	1	4
SPR_00045	tRNA links to Rfam database...	0.95	0.95	0.95	21	2828	1	0	1	0	1
SPR_00064	tRNA links to Rfam database...	0.52	0.57	0.48	12	2825	13	2	11	0	9
SPR_00065	tRNA links to Rfam database...	1.00	1.00	1.00	21	2829	0	0	0	0	0
SPR_00066	tRNA links to Rfam database...	0.93	1.00	0.88	21	2826	3	3	0	0	0
SPR_00068	tRNA links to Rfam database...	0.93	1.00	0.88	21	2826	3	3	0	0	0
SPR_00070	tRNA links to Rfam database...	0.57	0.57	0.57	12	2829	9	5	4	0	9
SPR_00074	tRNA links to Rfam database...	0.97	0.95	1.00	19	2831	1	0	0	1	1
SPR_00079	tRNA links to Rfam database...	0.83	0.68	1.00	13	2472	1	0	0	1	6
SPR_00086	tRNA links to Rfam database...	0.55	0.57	0.55	12	2828	10	4	6	0	9
SPR_00087	tRNA links to Rfam database...	0.95	0.90	1.00	18	2832	0	0	0	0	2
SPR_00088	tRNA links to Rfam database...	0.88	0.90	0.86	18	2829	3	3	0	0	2
SPR_00089	tRNA links to Rfam database...	0.19	0.20	0.19	4	2829	17	6	11	0	16
SPR_00090	tRNA links to Rfam database...	0.95	0.90	1.00	18	2832	0	0	0	0	2
SPR_00091	tRNA links to Rfam database...	0.95	0.90	1.00	18	2832	0	0	0	0	2
SPR_00095	tRNA links to Rfam database...	0.55	0.57	0.55	12	2828	10	4	6	0	9
SPR_00111	tRNA links to Rfam database...	0.93	1.00	0.88	21	2677	4	3	0	1	0
SPR_00112	tRNA links to Rfam database...	1.00	1.00	1.00	21	2680	2	0	0	2	0
SPR_00115	tRNA links to Rfam database...	0.73	0.76	0.70	16	2678	7	4	3	0	5
SPR_00117	tRNA links to Rfam database...	0.63	0.71	0.56	15	2823	12	5	7	0	6
SPR_00139	tRNA links to Rfam database...	1.00	1.00	1.00	21	2905	1	0	0	1	0
SPR_00153	tRNA links to Rfam database...	0.89	0.95	0.83	20	2902	4	4	0	0	1
SPR_00155	tRNA links to Rfam database...	0.92	1.00	0.84	21	2901	4	4	0	0	0
SPR_00156	tRNA links to Rfam database...	1.00	1.00	1.00	21	2905	0	0	0	0	0
SPR_00176	tRNA links to Rfam database...	0.78	0.80	0.76	16	2829	5	2	3	0	4
SPR_00177	tRNA links to Rfam database...	0.70	0.76	0.64	16	2825	9	3	6	0	5
SPR_00178	tRNA links to Rfam database...	0.73	0.76	0.70	16	2827	7	3	4	0	5
SPR_00191	tRNA links to Rfam database...	0.17	0.19	0.17	4	2826	20	4	16	0	17
SPR_00200	tRNA links to Rfam database...	0.68	0.76	0.62	16	2824	10	7	3	0	5
SPR_00224	tRNA links to Rfam database...	-0.01	0.00	0.00	0	3720	23	3	18	2	20
SPR_00273	tRNA links to Rfam database...	0.44	0.43	0.45	9	2830	11	0	11	0	12
SPR_00276	tRNA links to Rfam database...	0.98	0.95	1.00	20	2906	0	0	0	0	1
SPR_00294	tRNA links to Rfam database...	0.57	0.57	0.57	12	2829	9	2	7	0	9
SPR_00295	tRNA links to Rfam database...	0.80	0.90	0.70	19	2748	9	6	2	1	2
SPR_00314	tRNA links to Rfam database...	0.71	0.76	0.67	16	2902	8	6	2	0	5
SPR_00315	tRNA links to Rfam database...	1.00	1.00	1.00	21	2905	2	0	0	2	0
SPR_00317	tRNA links to Rfam database...	0.51	0.60	0.44	12	2899	15	8	7	0	8
SPR_00318	tRNA links to Rfam database...	1.00	1.00	1.00	21	2905	2	0	0	2	0
SPR_00333	tRNA links to Rfam database...	0.86	0.86	0.86	18	2754	3	0	3	0	3
SPR_00353	tRNA links to Rfam database...	1.00	1.00	1.00	21	2829	0	0	0	0	0
SPR_00357	tRNA links to Rfam database...	0.90	1.00	0.81	21	2900	5	5	0	0	0
SPR_00358	tRNA links to Rfam database...	0.89	1.00	0.80	20	2901	5	5	0	0	0
SPR_00370	tRNA links to Rfam database...	1.00	1.00	1.00	21	2754	0	0	0	0	0
SPR_00386	tRNA links to Rfam database...	-0.01	0.00	0.00	0	4163	24	4	19	1	20
SPR_00414	tRNA links to Rfam database...	0.82	0.86	0.78	18	3547	9	4	1	4	3
SPR_00415	tRNA links to Rfam database...	0.84	0.86	0.82	18	3548	8	3	1	4	3
SPR_00417	tRNA links to Rfam database...	0.52	0.55	0.50	12	3546	16	3	9	4	10
SPR_00418	tRNA links to Rfam database...	0.52	0.55	0.50	12	3546	16	3	9	4	10
SPR_00434	tRNA links to Rfam database...	0.90	1.00	0.81	21	2824	5	5	0	0	0
SPR_00435	tRNA links to Rfam database...	0.89	0.95	0.83	20	2826	4	4	0	0	1
SPR_00436	tRNA links to Rfam database...	1.00	1.00	1.00	21	2829	1	0	0	1	0
SPR_00437	tRNA links to Rfam database...	0.88	1.00	0.78	21	2748	7	6	0	1	0
SPR_00438	tRNA links to Rfam database...	1.00	1.00	1.00	21	2754	0	0	0	0	0
SPR_00452	tRNA links to Rfam database...	1.00	1.00	1.00	21	2829	0	0	0	0	0
SPR_00455	tRNA links to Rfam database...	0.51	0.52	0.50	11	2828	11	5	6	0	10
SPR_00456	tRNA links to Rfam database...	0.68	0.76	0.62	16	2824	11	4	6	1	5
SPR_00476	tRNA links to Rfam database...	0.76	0.76	0.76	16	2754	5	0	5	0	5
SPR_00479	tRNA links to Rfam database...	1.00	1.00	1.00	21	2829	0	0	0	0	0
SPR_00482	tRNA links to Rfam database...	0.90	0.81	1.00	17	2684	0	0	0	0	4
SPR_00483	tRNA links to Rfam database...	0.92	1.00	0.84	21	2825	4	4	0	0	0
SPR_00487	tRNA links to Rfam database...	0.82	0.82	0.82	18	2679	4	4	0	0	4
SPR_00493	tRNA links to Rfam database...	0.89	0.95	0.84	21	2750	4	2	2	0	1
SPR_00496	tRNA links to Rfam database...	0.70	0.76	0.64	16	2750	9	4	5	0	5
SPR_00497	tRNA links to Rfam database...	0.76	0.76	0.76	16	2754	5	0	5	0	5
SPR_00502	tRNA links to Rfam database...	1.00	1.00	1.00	21	2905	0	0	0	0	0
SPR_00504	tRNA links to Rfam database...	0.91	1.00	0.83	20	2826	4	4	0	0	0
SPR_00505	tRNA links to Rfam database...	0.67	0.75	0.60	15	2901	10	3	7	0	5
SPR_00506	tRNA links to Rfam database...	1.00	1.00	1.00	20	2906	0	0	0	0	0
SPR_00509	tRNA links to Rfam database...	0.71	0.75	0.68	15	2904	7	2	5	0	5
SPR_00512	tRNA links to Rfam database...	0.71	0.75	0.68	15	2904	7	2	5	0	5
SPR_00513	tRNA links to Rfam database...	0.44	0.45	0.43	9	2905	12	1	11	0	11
SPR_00518	tRNA links to Rfam database...	0.91	1.00	0.83	20	2902	4	4	0	0	0
SPR_00548	tRNA links to Rfam database...	0.80	0.86	0.75	18	3379	6	2	4	0	3
SPR_00557	tRNA links to Rfam database...	1.00	1.00	1.00	21	2829	0	0	0	0	0
SPR_00561	tRNA links to Rfam database...	0.37	0.43	0.32	9	2822	19	1	18	0	12
SPR_00590	tRNA links to Rfam database...	0.56	0.60	0.52	12	2980	11	4	7	0	8
SPR_00593	tRNA links to Rfam database...	0.77	0.79	0.75	15	2755	6	4	1	1	4
SPR_00595	tRNA links to Rfam database...	0.70	0.76	0.64	16	2750	9	6	3	0	5
SPR_00598	tRNA links to Rfam database...	0.54	0.57	0.52	12	2980	12	5	6	1	9
SPR_00610	tRNA links to Rfam database...	0.87	0.81	0.94	17	2538	2	0	1	1	4
SPR_00620	tRNA links to Rfam database...	0.79	0.81	0.77	17	2981	8	2	3	3	4
SPR_00721	tRNA links to Rfam database...	0.18	0.19	0.19	4	2905	17	2	15	0	17
SPR_00722	tRNA links to Rfam database...	0.76	0.80	0.73	16	2904	6	4	2	0	4
SPR_00758	tRNA links to Rfam database...	0.53	0.57	0.50	12	2979	12	2	10	0	9
SPR_00760	tRNA links to Rfam database...	0.39	0.43	0.36	9	3545	16	1	15	0	12
SPR_00777	tRNA links to Rfam database...	0.70	0.70	0.70	14	2608	6	1	5	0	6
SPR_00867	tRNA links to Rfam database...	0.49	0.52	0.46	11	2902	13	3	10	0	10
SPR_00868	tRNA links to Rfam database...	0.95	0.95	0.95	20	2905	2	0	1	1	1
SPR_00943	tRNA links to Rfam database...	0.85	0.85	0.85	17	2536	4	0	3	1	3
SPR_00957	tRNA links to Rfam database...	0.83	0.81	0.85	17	2983	4	0	3	1	4
SPR_01040	tRNA links to Rfam database...	0.17	0.19	0.16	4	2750	21	0	21	0	17
SPR_01088	tRNA links to Rfam database...	0.18	0.19	0.18	4	2904	18	1	17	0	17
SPR_01095	tRNA links to Rfam database...	0.38	0.43	0.35	9	2824	17	5	12	0	12
SPR_01106	tRNA links to Rfam database...	0.70	0.76	0.64	16	2531	9	3	6	0	5
SPR_01117	tRNA links to Rfam database...	0.31	0.33	0.29	7	2979	18	1	16	1	14
SPR_01157	tRNA links to Rfam database...	0.79	0.81	0.77	17	2753	6	4	1	1	4
SRP_00008	Bacteria_small_SRP links to Rfam database...	0.73	0.72	0.75	18	2902	6	0	6	0	7
SRP_00020	Bacteria_small_SRP links to Rfam database...	0.43	0.42	0.45	14	5534	17	1	16	0	19
SRP_00038	Bacteria_small_SRP links to Rfam database...	0.36	0.36	0.36	12	5017	21	0	21	0	21
SRP_00042	Bacteria_small_SRP links to Rfam database...	0.38	0.36	0.41	9	3983	14	4	9	1	16
SRP_00044	Bacteria_small_SRP links to Rfam database...	0.42	0.44	0.40	14	6070	21	6	15	0	18
SRP_00046	Bacteria_small_SRP links to Rfam database...	0.38	0.38	0.40	12	4723	19	1	17	1	20
SRP_00051	Bacteria_small_SRP links to Rfam database...	0.29	0.30	0.28	9	5428	25	4	19	2	21
SRP_00054	Bacteria_small_SRP links to Rfam database...	0.37	0.38	0.36	12	5532	21	0	21	0	20
SRP_00057	Bacteria_small_SRP links to Rfam database...	0.40	0.34	0.48	12	6303	14	2	11	1	23
SRP_00058	Bacteria_small_SRP links to Rfam database...	0.71	0.68	0.74	23	5747	10	2	6	2	11
SRP_00072	Bacteria_small_SRP links to Rfam database...	0.43	0.41	0.44	12	6301	16	3	12	1	17
SRP_00075	Bacteria_small_SRP links to Rfam database...	0.34	0.35	0.34	12	5530	25	1	22	2	22
SRP_00081	Bacteria_small_SRP links to Rfam database...	0.26	0.26	0.28	8	5536	21	4	17	0	23
SRP_00084	Bacteria_small_SRP links to Rfam database...	0.59	0.59	0.61	20	5427	13	3	10	0	14
SRP_00094	Bacteria_small_SRP links to Rfam database...	0.42	0.42	0.43	10	4072	13	2	11	0	14
SRP_00095	Bacteria_small_SRP links to Rfam database...	0.25	0.28	0.23	7	3975	23	5	18	0	18
SRP_00105	Bacteria_small_SRP links to Rfam database...	0.11	0.12	0.11	4	5529	32	2	30	0	30
SRP_00107	Bacteria_small_SRP links to Rfam database...	0.14	0.16	0.13	3	3631	23	4	17	2	16
SRP_00121	Bacteria_small_SRP links to Rfam database...	0.32	0.32	0.32	8	4253	17	1	16	0	17
SRP_00128	Bacteria_small_SRP links to Rfam database...	0.35	0.36	0.34	13	6748	25	2	23	0	23
SRP_00132	Bacteria_small_SRP links to Rfam database...	0.35	0.34	0.37	10	4824	20	2	15	3	19
SRP_00134	Bacteria_large_SRP links to Rfam database...	0.43	0.45	0.42	13	5964	22	4	14	4	16
SRP_00141	Bacteria_small_SRP links to Rfam database...	0.63	0.59	0.69	24	6293	11	0	11	0	17
SRP_00161	Bacteria_small_SRP links to Rfam database...	0.15	0.14	0.18	3	2833	14	2	12	0	19
SRP_00162	Bacteria_small_SRP links to Rfam database...	0.33	0.30	0.37	7	2907	13	2	10	1	16
SRP_00163	Bacteria_small_SRP links to Rfam database...	0.28	0.27	0.30	7	3463	16	4	12	0	19
SRP_00164	Bacteria_small_SRP links to Rfam database...	0.36	0.37	0.36	13	6867	23	6	17	0	22
SRP_00170	Bacteria_small_SRP links to Rfam database...	0.36	0.36	0.38	9	4071	16	2	13	1	16
SRP_00194	Bacteria_small_SRP links to Rfam database...	0.56	0.48	0.67	10	3225	5	0	5	0	11
SRP_00200	Bacteria_small_SRP links to Rfam database...	0.61	0.56	0.67	20	6873	10	1	9	0	16
SRP_00209	Bacteria_small_SRP links to Rfam database...	0.40	0.41	0.39	11	4628	17	3	14	0	16
SRP_00213	Bacteria_small_SRP links to Rfam database...	0.36	0.40	0.33	10	4156	20	5	15	0	15
SRP_00215	Bacteria_small_SRP links to Rfam database...	0.71	0.64	0.80	16	3220	4	0	4	0	9
SRP_00227	Bacteria_small_SRP links to Rfam database...	0.85	0.81	0.89	25	5123	3	0	3	0	6
SRP_00231	Bacteria_small_SRP links to Rfam database...	0.62	0.59	0.67	20	5430	10	2	8	0	14
SRP_00233	Bacteria_small_SRP links to Rfam database...	0.36	0.33	0.39	11	5123	17	0	17	0	22
SRP_00243	Bacteria_small_SRP links to Rfam database...	0.37	0.29	0.47	9	5132	10	1	9	0	22
SRP_00244	Bacteria_small_SRP links to Rfam database...	0.55	0.49	0.63	19	6873	11	0	11	0	20
SRP_00250	Bacteria_small_SRP links to Rfam database...	0.66	0.58	0.75	21	6758	9	0	7	2	15
SRP_00251	Bacteria_small_SRP links to Rfam database...	0.36	0.36	0.36	13	6985	23	2	21	0	23
SRP_00266	Bacteria_small_SRP links to Rfam database...	0.51	0.45	0.59	13	4634	9	0	9	0	16
SRP_00268	Bacteria_small_SRP links to Rfam database...	0.48	0.48	0.48	13	4159	14	2	12	0	14
SRP_00269	Bacteria_small_SRP links to Rfam database...	0.44	0.42	0.47	14	5020	16	3	13	0	19
SRP_00270	Bacteria_small_SRP links to Rfam database...	0.46	0.45	0.48	14	4627	15	2	13	0	17
SRP_00271	Bacteria_small_SRP links to Rfam database...	0.16	0.17	0.17	4	3217	19	2	17	0	20
SRP_00273	Bacteria_small_SRP links to Rfam database...	0.56	0.48	0.66	19	6757	10	0	10	0	21
SRP_00274	Bacteria_small_SRP links to Rfam database...	0.79	0.71	0.87	27	6872	4	1	3	0	11
SRP_00295	Bacteria_small_SRP links to Rfam database...	0.95	0.89	1.00	34	6869	0	0	0	0	4
SRP_00303	Bacteria_small_SRP links to Rfam database...	0.27	0.25	0.30	8	6643	19	1	18	0	24
SRP_00310	Bacteria_small_SRP links to Rfam database...	0.18	0.17	0.19	4	2905	17	4	13	0	19
SRP_00312	Bacteria_small_SRP links to Rfam database...	0.32	0.37	0.29	10	4151	25	4	21	0	17
SRP_00315	Bacteria_small_SRP links to Rfam database...	0.18	0.17	0.20	4	2906	16	1	15	0	19
SRP_00318	Bacteria_small_SRP links to Rfam database...	0.44	0.43	0.45	10	2981	12	2	10	0	13
SRP_00325	Bacteria_small_SRP links to Rfam database...	0.41	0.33	0.52	11	4350	10	0	10	0	22
SRP_00326	Bacteria_small_SRP links to Rfam database...	-0.01	0.00	0.00	0	5020	30	3	27	0	31
SRP_00333	Bacteria_small_SRP links to Rfam database...	0.54	0.50	0.59	17	5122	12	2	10	0	17
SRP_00338	Bacteria_small_SRP links to Rfam database...	0.61	0.56	0.67	20	5430	10	0	10	0	16
SRP_00341	Bacteria_small_SRP links to Rfam database...	0.11	0.10	0.14	3	4732	18	1	17	0	28
SRP_00342	Bacteria_small_SRP links to Rfam database...	0.38	0.36	0.41	9	3983	13	2	11	0	16
SRP_00350	Bacteria_small_SRP links to Rfam database...	0.34	0.33	0.35	9	3890	17	3	14	0	18
SRP_00356	Bacteria_small_SRP links to Rfam database...	0.47	0.43	0.52	13	5025	12	4	8	0	17
SRP_00357	Bacteria_small_SRP links to Rfam database...	0.46	0.44	0.48	16	5323	17	1	16	0	20
SRP_00358	Bacteria_small_SRP links to Rfam database...	0.48	0.46	0.52	16	6297	15	0	15	0	19
SRP_00367	Bacteria_small_SRP links to Rfam database...	0.69	0.69	0.71	24	6752	10	0	10	0	11
SRP_00369	Bacteria_small_SRP links to Rfam database...	0.53	0.51	0.55	18	5745	15	2	13	0	17
SRP_00383	Bacteria_small_SRP links to Rfam database...	0.11	0.13	0.12	3	3214	23	2	21	0	21

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.

Table of contents:

Overview

Performance plots

Performance of CentroidAlifold(20) - scored higher in this pairwise comparison

1. Total counts & total scores for CentroidAlifold(20)

2. Individual counts for CentroidAlifold(20) [ download as .csv ]

Performance of Cylofold - scored lower in this pairwise comparison

1. Total counts & total scores for Cylofold

2. Individual counts for Cylofold [ download as .csv ]
