CompaRNA - on-line benchmarks of RNA structure prediction methods

FAQ

Metric	PknotsRG		Multilign(seed)
MCC	0.742	>	0.485
Average MCC ± 95% Confidence Intervals	0.706 ± 0.237	>	0.399 ± 0.173
Sensitivity	0.716	>	0.386
Positive Predictive Value	0.774	>	0.619
Total TP	154	>	83
Total TN	22672	<	22737
Total FP	67	>	52
Total FP CONTRA	4	<	6
Total FP INCONS	41	<	45
Total FP COMP	22	>	1
Total FN	61	<	132
P-value	2.57237423209e-08

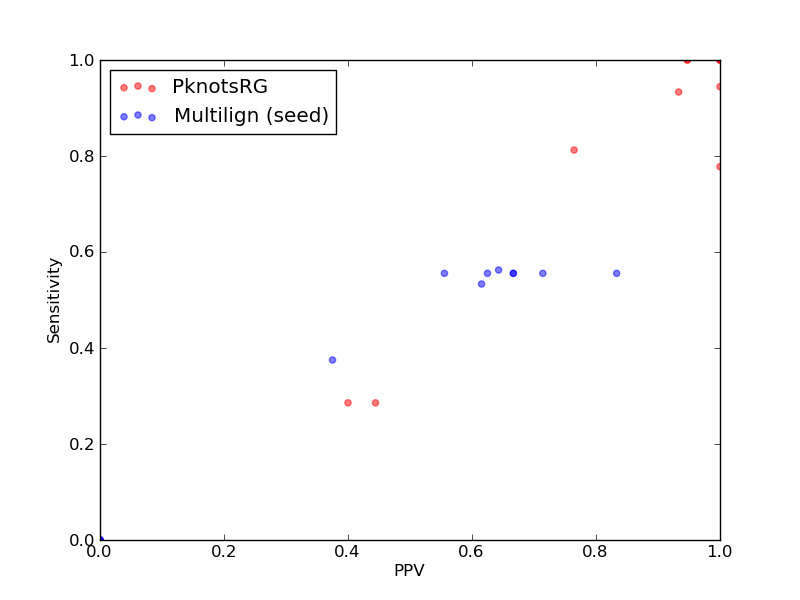

Comparison of performance of PknotsRG and Multilign(seed). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for PknotsRG and Multilign(seed)).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for PknotsRG and Multilign(seed)).
Comparison of average Matthews Correlation Coefficients (MCCs) for PknotsRG and Multilign(seed). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for PknotsRG and Multilign(seed)).

Total Scores
MCC	0.742
Average MCC ± 95% Confidence Intervals	0.706 ± 0.237
Sensitivity	0.716
Positive Predictive Value	0.774
Nr of predictions	13

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
RFA_00416	Hammerhead_3 links to Rfam database...	0.93	0.93	0.93	14	1470	4	0	1	3	1
RFA_00654	Vimentin3 links to Rfam database...	-0.01	0.00	0.00	0	2398	17	2	15	0	18
RFA_00658	Hammerhead_1 links to Rfam database...	0.33	0.29	0.40	4	1118	8	0	6	2	10
RFA_00664	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	980	11	0	10	1	14
RFA_00708	Hammerhead_1 links to Rfam database...	0.35	0.29	0.44	4	1026	6	0	5	1	10
RFA_00767	Corona_pk3 links to Rfam database...	1.00	1.00	1.00	18	1873	3	0	0	3	0
RFA_00768	Corona_pk3 links to Rfam database...	1.00	1.00	1.00	18	1873	2	0	0	2	0
RFA_00769	Corona_pk3 links to Rfam database...	0.97	1.00	0.95	18	1934	3	1	0	2	0
RFA_00770	Corona_pk3 links to Rfam database...	0.88	0.78	1.00	14	2002	3	0	0	3	4
RFA_00773	Corona_pk3 links to Rfam database...	0.97	1.00	0.95	18	1934	4	1	0	3	0
RFA_00779	Corona_pk3 links to Rfam database...	0.97	0.94	1.00	17	1936	2	0	0	2	1
RFA_00808	RydC links to Rfam database...	1.00	1.00	1.00	16	2000	0	0	0	0	0
RFA_00809	RydC links to Rfam database...	0.79	0.81	0.76	13	2128	4	0	4	0	3

Total Scores
MCC	0.485
Average MCC ± 95% Confidence Intervals	0.399 ± 0.173
Sensitivity	0.386
Positive Predictive Value	0.619
Nr of predictions	13

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
RFA_00416	Hammerhead_3 links to Rfam database...	0.57	0.53	0.62	8	1472	6	1	4	1	7
RFA_00654	Vimentin3 links to Rfam database...	0.00	0.00	0.00	0	2414	1	0	1	0	18
RFA_00658	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	1128	0	0	0	0	14
RFA_00664	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	990	0	0	0	0	14
RFA_00708	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	1035	0	0	0	0	14
RFA_00767	Corona_pk3 links to Rfam database...	0.63	0.56	0.71	10	1877	4	0	4	0	8
RFA_00768	Corona_pk3 links to Rfam database...	0.61	0.56	0.67	10	1876	5	0	5	0	8
RFA_00769	Corona_pk3 links to Rfam database...	0.55	0.56	0.56	10	1935	8	3	5	0	8
RFA_00770	Corona_pk3 links to Rfam database...	0.68	0.56	0.83	10	2004	2	0	2	0	8
RFA_00773	Corona_pk3 links to Rfam database...	0.59	0.56	0.63	10	1937	6	1	5	0	8
RFA_00779	Corona_pk3 links to Rfam database...	0.61	0.56	0.67	10	1938	5	0	5	0	8
RFA_00808	RydC links to Rfam database...	0.60	0.56	0.64	9	2002	5	0	5	0	7
RFA_00809	RydC links to Rfam database...	0.37	0.38	0.38	6	2129	10	1	9	0	10

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
