Overview

Metric	RNAshapes		RSpredict(seed)
MCC	0.680	>	0.373
Average MCC ± 95% Confidence Intervals	0.663 ± 0.040	>	0.388 ± 0.044
Sensitivity	0.677	>	0.251
Positive Predictive Value	0.686	>	0.562
Total TP	3457	>	1281
Total TN	853759	<	856517
Total FP	2028	>	1108
Total FP CONTRA	246	>	132
Total FP INCONS	1334	>	866
Total FP COMP	448	>	110
Total FN	1653	<	3829
P-value	3.56938820447e-08

^top

Performance plots

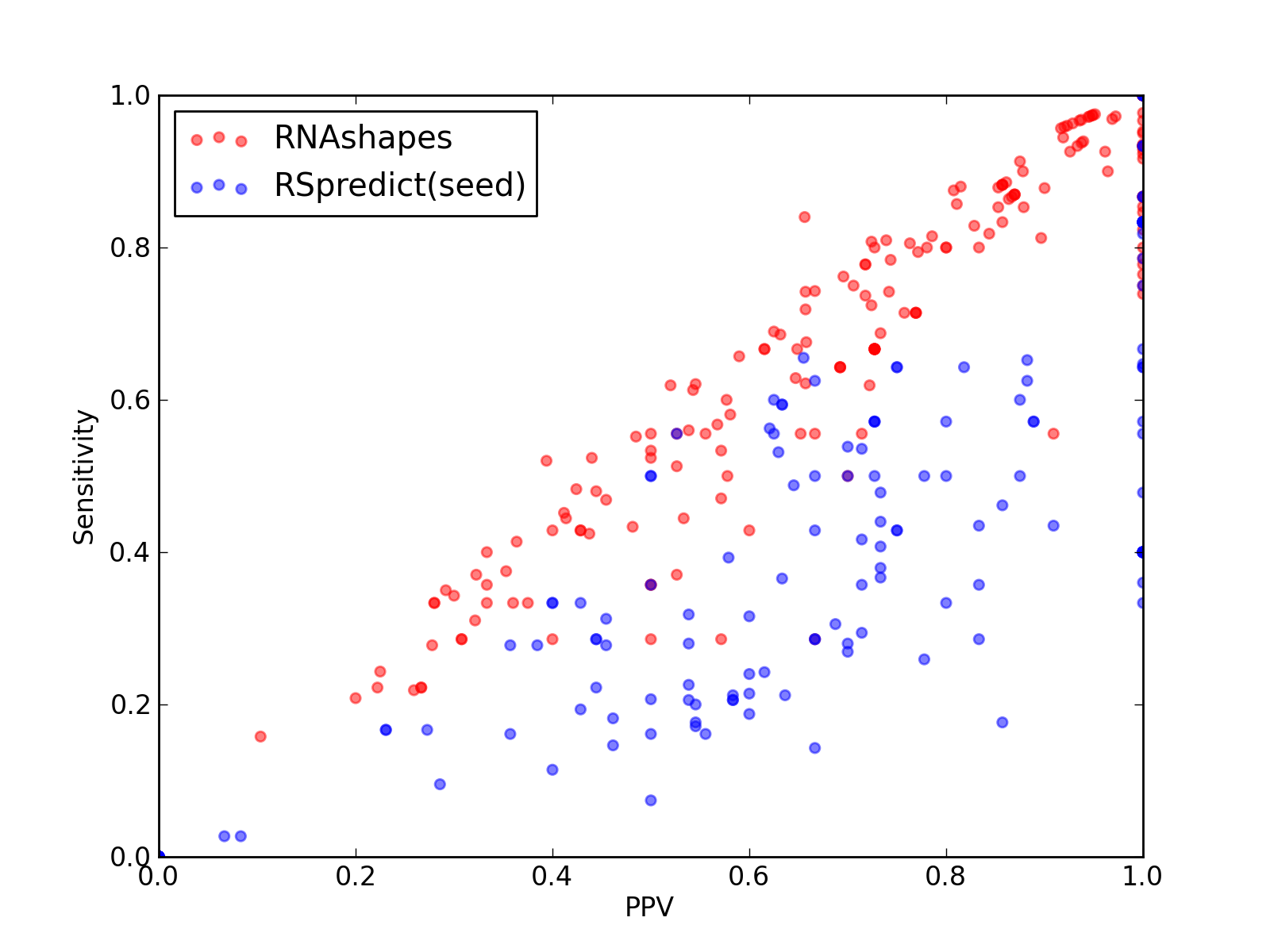

Comparison of performance of RNAshapes and RSpredict(seed). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for RNAshapes and RSpredict(seed)).

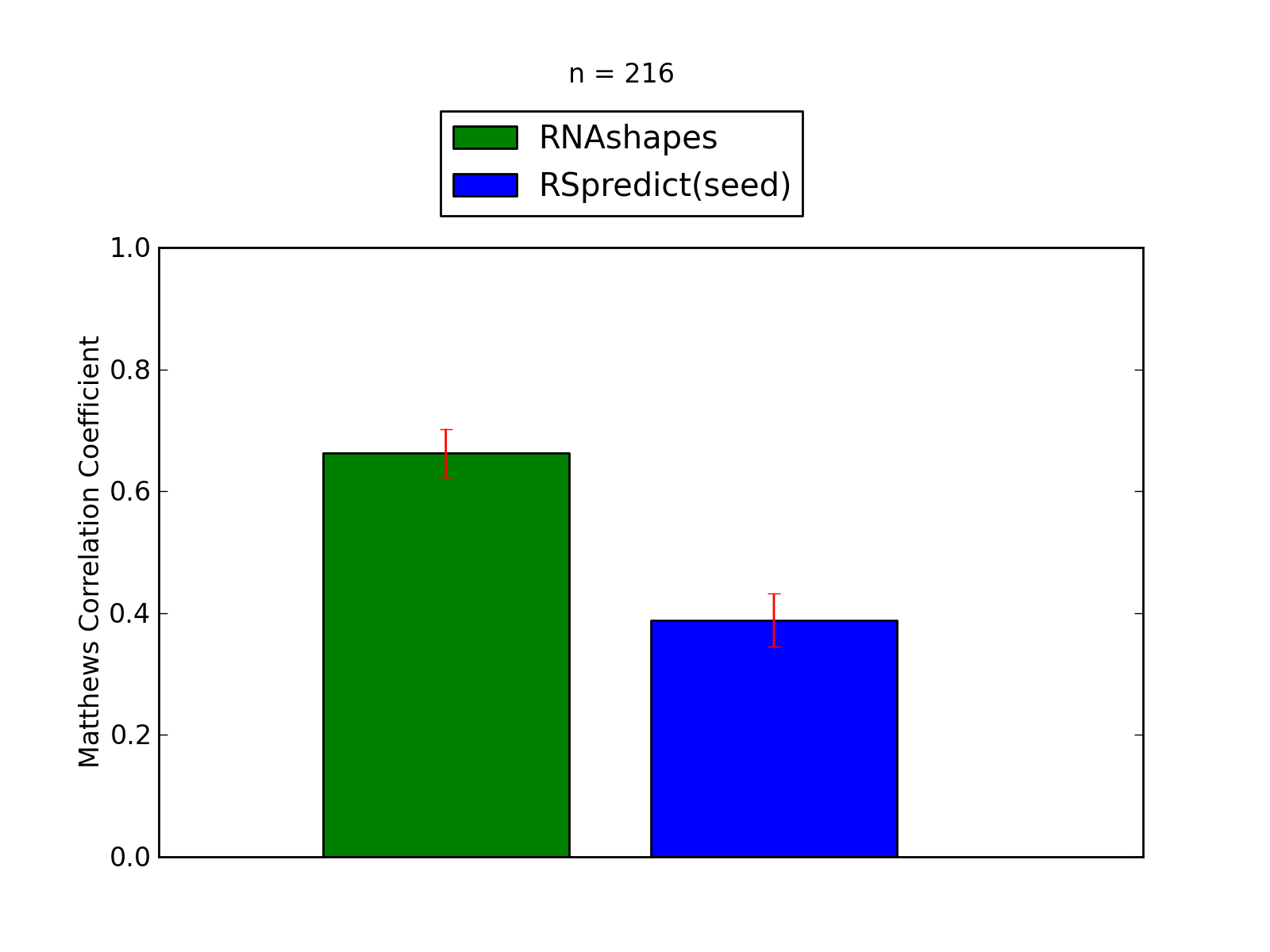

Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for RNAshapes and RSpredict(seed)).
Comparison of average Matthews Correlation Coefficients (MCCs) for RNAshapes and RSpredict(seed). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for RNAshapes and RSpredict(seed)).

^top

Performance of RNAshapes - scored higher in this pairwise comparison

1. Total counts & total scores for RNAshapes

Total Base Pair Counts
Total TP	3457
Total TN	853759
Total FP	2028
Total FP CONTRA	246
Total FP INCONS	1334
Total FP COMP	448
Total FN	1653

Total Scores
MCC	0.680
Average MCC ± 95% Confidence Intervals	0.663 ± 0.040
Sensitivity	0.677
Positive Predictive Value	0.686
Nr of predictions	216

^top

2. Individual counts for RNAshapes [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
ASE_00251	RNaseP_nuc links to Rfam database...	0.99	0.98	1.00	42	17724	20	0	0	20	1
PDB_00005	Tymo_tRNA-like links to Rfam database...	0.88	0.79	1.00	11	935	0	0	0	0	3
PDB_00012	mir-TAR links to Rfam database...	1.00	1.00	1.00	7	399	3	0	0	3	0
PDB_00213	Gammaretro_CES links to Rfam database...	0.92	0.85	1.00	35	5015	0	0	0	0	6
PDB_00553	mir-TAR links to Rfam database...	1.00	1.00	1.00	11	454	0	0	0	0	0
PDB_00716	HDV_ribozyme links to Rfam database...	-0.01	0.00	0.00	0	2678	24	1	22	1	23
PDB_00741	Entero_5_CRE links to Rfam database...	0.87	0.76	1.00	13	690	0	0	0	0	4
PDB_00810	s2m links to Rfam database...	0.91	0.82	1.00	14	1067	0	0	0	0	3
PDB_00828	Purine links to Rfam database...	0.88	0.78	1.00	21	2464	0	0	0	0	6
PDB_00829	Purine links to Rfam database...	0.86	0.75	1.00	18	2260	0	0	0	0	6
PDB_00876	HIV_FE links to Rfam database...	0.97	0.95	1.00	19	971	0	0	0	0	1
PDB_01001	tRNA links to Rfam database...	0.52	0.56	0.50	10	2125	10	3	7	0	8
PDB_01020	Purine links to Rfam database...	0.86	0.74	1.00	17	2261	1	0	0	1	6
PDB_01050	UnaL2 links to Rfam database...	0.92	0.85	1.00	11	619	2	0	0	2	2
PDB_01051	Telomerase-cil links to Rfam database...	0.96	0.92	1.00	12	891	4	0	0	4	1
PDB_01073	SAM links to Rfam database...	0.52	0.47	0.57	16	4343	13	2	10	1	18
PDB_01092	glmS links to Rfam database...	0.54	0.50	0.58	26	10108	21	2	17	2	26
PDB_01114	TPP links to Rfam database...	0.44	0.37	0.53	10	2831	9	0	9	0	17
PDB_01152	HIV_FS2 links to Rfam database...	0.96	0.93	1.00	13	548	0	0	0	0	1
PDB_01236	ykoK links to Rfam database...	0.60	0.56	0.65	30	11582	17	0	16	1	24
RFA_00389	Hammerhead_3 links to Rfam database...	1.00	1.00	1.00	15	1416	2	0	0	2	0
RFA_00390	Hammerhead_3 links to Rfam database...	1.00	1.00	1.00	15	1416	2	0	0	2	0
RFA_00391	Hammerhead_3 links to Rfam database...	0.93	0.87	1.00	13	1418	2	0	0	2	2
RFA_00396	Hammerhead_3 links to Rfam database...	0.97	0.93	1.00	14	1417	2	0	0	2	1
RFA_00402	Hammerhead_3 links to Rfam database...	1.00	1.00	1.00	15	1416	0	0	0	0	0
RFA_00409	Hammerhead_3 links to Rfam database...	0.55	0.53	0.57	8	1417	7	1	5	1	7
RFA_00416	Hammerhead_3 links to Rfam database...	0.93	0.93	0.93	14	1470	4	0	1	3	1
RFA_00425	Hammerhead_3 links to Rfam database...	0.93	0.87	1.00	13	1640	4	0	0	4	2
RFA_00427	Hammerhead_3 links to Rfam database...	0.97	0.93	1.00	14	1471	2	0	0	2	1
RFA_00433	Hammerhead_3 links to Rfam database...	1.00	1.00	1.00	15	1416	2	0	0	2	0
RFA_00434	Hammerhead_3 links to Rfam database...	1.00	1.00	1.00	15	1416	2	0	0	2	0
RFA_00436	Hammerhead_3 links to Rfam database...	1.00	1.00	1.00	15	1416	2	0	0	2	0
RFA_00440	Hammerhead_3 links to Rfam database...	1.00	1.00	1.00	15	1470	2	0	0	2	0
RFA_00442	Hammerhead_3 links to Rfam database...	1.00	1.00	1.00	15	1416	2	0	0	2	0
RFA_00444	Hammerhead_3 links to Rfam database...	1.00	1.00	1.00	15	1525	1	0	0	1	0
RFA_00446	Hammerhead_3 links to Rfam database...	0.97	0.93	1.00	14	1471	2	0	0	2	1
RFA_00449	Hammerhead_3 links to Rfam database...	0.97	0.93	1.00	14	1471	2	0	0	2	1
RFA_00582	Y_RNA links to Rfam database...	1.00	1.00	1.00	15	5980	21	0	0	21	0
RFA_00583	Y_RNA links to Rfam database...	0.51	0.53	0.50	8	4934	22	0	8	14	7
RFA_00584	Y_RNA links to Rfam database...	0.87	0.87	0.87	13	2911	16	0	2	14	2
RFA_00585	Y_RNA links to Rfam database...	1.00	1.00	1.00	15	4836	14	0	0	14	0
RFA_00586	Y_RNA links to Rfam database...	0.89	0.80	1.00	12	3904	11	0	0	11	3
RFA_00587	Y_RNA links to Rfam database...	1.00	1.00	1.00	15	4836	12	0	0	12	0
RFA_00588	Y_RNA links to Rfam database...	0.93	0.87	1.00	13	4547	12	0	0	12	2
RFA_00589	Y_RNA links to Rfam database...	1.00	1.00	1.00	15	4356	16	0	0	16	0
RFA_00594	Y_RNA links to Rfam database...	0.97	0.93	1.00	14	2761	11	0	0	11	1
RFA_00596	Y_RNA links to Rfam database...	0.00	0.00	0.00	0	5981	23	4	10	9	15
RFA_00603	Telomerase-cil links to Rfam database...	0.70	0.74	0.67	26	13491	16	4	9	3	9
RFA_00604	Telomerase-cil links to Rfam database...	0.73	0.71	0.76	25	13497	19	2	6	11	10
RFA_00605	Telomerase-cil links to Rfam database...	0.32	0.34	0.30	12	15185	37	3	25	9	23
RFA_00607	Telomerase-cil links to Rfam database...	0.84	0.83	0.86	30	17731	16	1	4	11	6
RFA_00609	Telomerase-cil links to Rfam database...	0.76	0.78	0.74	29	17916	25	2	8	15	8
RFA_00610	Telomerase-cil links to Rfam database...	0.57	0.57	0.57	21	17168	27	2	14	11	16
RFA_00611	Telomerase-cil links to Rfam database...	0.62	0.66	0.59	23	13002	26	5	11	10	12
RFA_00613	Telomerase-cil links to Rfam database...	0.64	0.63	0.65	22	12846	15	4	8	3	13
RFA_00615	Telomerase-cil links to Rfam database...	0.66	0.69	0.63	24	13328	18	5	9	4	11
RFA_00632	HDV_ribozyme links to Rfam database...	0.34	0.36	0.33	10	4065	20	2	18	0	18
RFA_00636	HDV_ribozyme links to Rfam database...	0.42	0.43	0.43	12	3977	16	2	14	0	16
RFA_00642	Vimentin3 links to Rfam database...	0.24	0.22	0.27	4	2911	11	2	9	0	14
RFA_00643	Vimentin3 links to Rfam database...	0.24	0.22	0.27	4	2196	12	2	9	1	14
RFA_00644	Vimentin3 links to Rfam database...	-0.01	0.00	0.00	0	2681	20	4	16	0	18
RFA_00645	Vimentin3 links to Rfam database...	-0.01	0.00	0.00	0	2400	15	3	12	0	18
RFA_00649	Vimentin3 links to Rfam database...	0.22	0.22	0.22	4	2127	16	0	14	2	14
RFA_00651	Vimentin3 links to Rfam database...	0.35	0.33	0.38	6	2064	10	1	9	0	12
RFA_00653	Vimentin3 links to Rfam database...	0.33	0.33	0.33	6	2127	12	3	9	0	12
RFA_00654	Vimentin3 links to Rfam database...	0.27	0.28	0.28	5	2397	13	2	11	0	13
RFA_00658	Hammerhead_1 links to Rfam database...	0.59	0.50	0.70	7	1118	5	0	3	2	7
RFA_00659	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	1120	10	1	7	2	14
RFA_00664	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	980	11	0	10	1	14
RFA_00667	Hammerhead_1 links to Rfam database...	0.29	0.29	0.31	4	977	10	1	8	1	10
RFA_00668	Hammerhead_1 links to Rfam database...	0.41	0.43	0.40	6	975	9	0	9	0	8
RFA_00672	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	895	9	0	8	1	13
RFA_00673	Hammerhead_1 links to Rfam database...	0.42	0.36	0.50	5	1118	6	0	5	1	9
RFA_00674	Hammerhead_1 links to Rfam database...	0.74	0.71	0.77	10	1115	4	0	3	1	4
RFA_00675	Hammerhead_1 links to Rfam database...	0.29	0.29	0.31	4	977	9	1	8	0	10
RFA_00677	Hammerhead_1 links to Rfam database...	0.42	0.43	0.43	6	976	9	0	8	1	8
RFA_00678	Hammerhead_1 links to Rfam database...	0.43	0.29	0.67	4	940	2	0	2	0	10
RFA_00680	Hammerhead_1 links to Rfam database...	0.74	0.71	0.77	10	1115	6	0	3	3	4
RFA_00684	Hammerhead_1 links to Rfam database...	0.66	0.64	0.69	9	977	5	0	4	1	5
RFA_00685	Hammerhead_1 links to Rfam database...	0.42	0.36	0.50	5	980	6	0	5	1	9
RFA_00695	Hammerhead_1 links to Rfam database...	0.51	0.43	0.60	6	7011	29	1	3	25	8
RFA_00703	Hammerhead_1 links to Rfam database...	0.67	0.64	0.69	9	4265	18	1	3	14	5
RFA_00704	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	983	8	0	7	1	14
RFA_00705	Hammerhead_1 links to Rfam database...	0.74	0.71	0.77	10	1022	4	0	3	1	4
RFA_00706	Hammerhead_1 links to Rfam database...	0.37	0.29	0.50	4	1027	4	0	4	0	10
RFA_00707	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	1026	9	3	6	0	14
RFA_00708	Hammerhead_1 links to Rfam database...	0.40	0.29	0.57	4	1028	3	0	3	0	10
RFA_00709	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	982	9	0	8	1	14
RFA_00710	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	981	9	0	9	0	14
RFA_00711	Hammerhead_1 links to Rfam database...	0.33	0.29	0.40	4	1025	6	0	6	0	10
RFA_00715	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	936	10	0	10	0	14
RFA_00716	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	935	11	0	11	0	14
RFA_00717	Hammerhead_1 links to Rfam database...	0.66	0.64	0.69	9	890	4	0	4	0	5
RFA_00730	s2m links to Rfam database...	0.69	0.67	0.73	8	892	4	1	2	1	4
RFA_00731	s2m links to Rfam database...	0.69	0.67	0.73	8	892	4	1	2	1	4
RFA_00733	s2m links to Rfam database...	0.69	0.67	0.73	8	892	4	1	2	1	4
RFA_00734	s2m links to Rfam database...	0.64	0.67	0.62	8	890	5	1	4	0	4
RFA_00736	s2m links to Rfam database...	0.69	0.67	0.73	8	892	4	1	2	1	4
RFA_00737	s2m links to Rfam database...	1.00	1.00	1.00	12	891	1	0	0	1	0
RFA_00745	s2m links to Rfam database...	1.00	1.00	1.00	12	934	1	0	0	1	0
RFA_00749	s2m links to Rfam database...	0.69	0.67	0.73	8	892	4	1	2	1	4
RFA_00758	s2m links to Rfam database...	0.96	0.92	1.00	11	892	0	0	0	0	1
RFA_00762	s2m links to Rfam database...	0.64	0.67	0.62	8	890	5	1	4	0	4
RFA_00763	s2m links to Rfam database...	1.00	1.00	1.00	12	891	0	0	0	0	0
RFA_00764	s2m links to Rfam database...	0.69	0.67	0.73	8	892	4	1	2	1	4
RFA_00765	s2m links to Rfam database...	1.00	1.00	1.00	12	891	1	0	0	1	0
RFA_00767	Corona_pk3 links to Rfam database...	0.63	0.56	0.71	10	1877	4	0	4	0	8
RFA_00768	Corona_pk3 links to Rfam database...	0.48	0.44	0.53	8	1876	7	1	6	0	10
RFA_00769	Corona_pk3 links to Rfam database...	0.54	0.56	0.53	10	1934	9	4	5	0	8
RFA_00770	Corona_pk3 links to Rfam database...	0.61	0.56	0.67	10	2001	8	0	5	3	8
RFA_00773	Corona_pk3 links to Rfam database...	0.71	0.56	0.91	10	1942	4	1	0	3	8
RFA_00779	Corona_pk3 links to Rfam database...	0.55	0.56	0.56	10	1935	8	3	5	0	8
RFA_00781	Gammaretro_CES links to Rfam database...	0.73	0.75	0.71	24	5016	10	2	8	0	8
RFA_00786	Gammaretro_CES links to Rfam database...	0.23	0.22	0.26	7	5023	20	1	19	0	25
RFA_00791	Gammaretro_CES links to Rfam database...	0.46	0.47	0.45	15	5118	18	6	12	0	17
RFA_00792	Gammaretro_CES links to Rfam database...	0.94	0.94	0.94	30	5018	4	0	2	2	2
RFA_00801	Gammaretro_CES links to Rfam database...	0.85	0.81	0.90	26	5021	4	0	3	1	6
RFA_00808	RydC links to Rfam database...	-0.01	0.00	0.00	0	2001	15	2	13	0	16
RFA_00809	RydC links to Rfam database...	0.36	0.38	0.35	6	2128	11	1	10	0	10
SPR_00020	tRNA links to Rfam database...	0.76	0.80	0.73	16	2679	9	2	4	3	4
SPR_00023	tRNA links to Rfam database...	0.51	0.52	0.50	11	2828	11	2	9	0	10
SPR_00137	tRNA links to Rfam database...	0.56	0.62	0.52	13	2901	15	4	8	3	8
SPR_00273	tRNA links to Rfam database...	0.30	0.33	0.28	7	2825	19	2	16	1	14
SPR_00277	tRNA links to Rfam database...	0.98	0.95	1.00	20	2906	0	0	0	0	1
SPR_00394	tRNA links to Rfam database...	0.30	0.33	0.28	7	3630	20	8	10	2	14
SPR_00402	tRNA links to Rfam database...	0.67	0.62	0.72	13	2538	5	0	5	0	8
SPR_00721	tRNA links to Rfam database...	0.48	0.52	0.44	11	2901	14	3	11	0	10
SPR_00816	tRNA links to Rfam database...	0.32	0.35	0.29	7	3462	20	5	12	3	13
SPR_01157	tRNA links to Rfam database...	0.73	0.76	0.70	16	2752	8	0	7	1	5
SRP_00001	Bacteria_large_SRP links to Rfam database...	0.89	0.90	0.88	36	6745	7	1	4	2	4
SRP_00008	Bacteria_small_SRP links to Rfam database...	1.00	1.00	1.00	25	2901	0	0	0	0	0
SRP_00020	Bacteria_small_SRP links to Rfam database...	0.86	0.88	0.85	29	5531	5	1	4	0	4
SRP_00038	Bacteria_small_SRP links to Rfam database...	0.94	0.94	0.94	31	5017	2	0	2	0	2
SRP_00040	Bacteria_small_SRP links to Rfam database...	0.70	0.74	0.66	23	5530	14	1	11	2	8
SRP_00042	Bacteria_small_SRP links to Rfam database...	0.46	0.48	0.44	12	3978	17	1	14	2	13
SRP_00043	Bacteria_small_SRP links to Rfam database...	0.45	0.48	0.42	14	5017	22	4	15	3	15
SRP_00044	Bacteria_small_SRP links to Rfam database...	0.71	0.69	0.73	22	6075	12	1	7	4	10
SRP_00046	Bacteria_small_SRP links to Rfam database...	0.97	0.97	0.97	31	4721	2	0	1	1	1
SRP_00051	Bacteria_small_SRP links to Rfam database...	0.93	0.90	0.96	27	5432	3	0	1	2	3
SRP_00054	Bacteria_small_SRP links to Rfam database...	-0.01	0.00	0.00	0	5533	32	3	29	0	32
SRP_00056	Bacteria_small_SRP links to Rfam database...	0.64	0.62	0.66	23	6406	12	1	11	0	14
SRP_00057	Bacteria_small_SRP links to Rfam database...	0.83	0.83	0.83	29	6293	7	1	5	1	6
SRP_00058	Bacteria_small_SRP links to Rfam database...	0.87	0.88	0.86	30	5743	9	1	4	4	4
SRP_00067	Bacteria_small_SRP links to Rfam database...	0.96	0.97	0.95	37	5739	2	1	1	0	1
SRP_00072	Bacteria_small_SRP links to Rfam database...	0.31	0.31	0.32	9	6300	20	1	18	1	20
SRP_00074	Bacteria_small_SRP links to Rfam database...	0.39	0.41	0.36	12	6522	24	3	18	3	17
SRP_00075	Bacteria_small_SRP links to Rfam database...	0.85	0.85	0.85	29	5531	8	0	5	3	5
SRP_00077	Bacteria_small_SRP links to Rfam database...	0.23	0.24	0.23	9	6630	31	4	27	0	28
SRP_00081	Bacteria_small_SRP links to Rfam database...	0.57	0.61	0.54	19	5530	16	1	15	0	12
SRP_00084	Bacteria_small_SRP links to Rfam database...	0.87	0.88	0.86	30	5425	5	1	4	0	4
SRP_00094	Bacteria_small_SRP links to Rfam database...	0.84	0.88	0.81	21	4069	5	1	4	0	3
SRP_00095	Bacteria_small_SRP links to Rfam database...	0.85	0.88	0.81	22	3978	5	1	4	0	3
SRP_00098	Bacteria_small_SRP links to Rfam database...	0.66	0.68	0.66	25	6403	16	1	12	3	12
SRP_00105	Bacteria_small_SRP links to Rfam database...	0.78	0.79	0.77	27	5530	10	1	7	2	7
SRP_00106	Bacteria_large_SRP links to Rfam database...	0.45	0.52	0.39	13	5220	23	9	11	3	12
SRP_00107	Bacteria_small_SRP links to Rfam database...	0.12	0.16	0.10	3	3626	29	7	19	3	16
SRP_00121	Bacteria_small_SRP links to Rfam database...	0.80	0.80	0.80	20	4253	6	0	5	1	5
SRP_00128	Bacteria_small_SRP links to Rfam database...	0.75	0.78	0.72	28	6747	11	1	10	0	8
SRP_00132	Bacteria_small_SRP links to Rfam database...	0.65	0.69	0.63	20	4819	15	0	12	3	9
SRP_00134	Bacteria_large_SRP links to Rfam database...	0.51	0.55	0.48	16	5962	23	3	14	6	13
SRP_00137	Bacteria_small_SRP links to Rfam database...	0.74	0.84	0.66	21	4154	13	4	7	2	4
SRP_00141	Bacteria_small_SRP links to Rfam database...	0.89	0.88	0.90	36	6288	5	1	3	1	5
SRP_00145	Bacteria_small_SRP links to Rfam database...	0.96	0.98	0.95	39	6287	2	1	1	0	1
SRP_00146	Bacteria_small_SRP links to Rfam database...	0.93	0.94	0.92	34	5216	3	1	2	0	2
SRP_00161	Bacteria_small_SRP links to Rfam database...	0.86	0.86	0.86	19	2828	3	0	3	0	3
SRP_00162	Bacteria_small_SRP links to Rfam database...	0.89	0.91	0.88	21	2902	4	0	3	1	2
SRP_00163	Bacteria_small_SRP links to Rfam database...	0.76	0.81	0.72	21	3457	8	2	6	0	5
SRP_00164	Bacteria_small_SRP links to Rfam database...	0.80	0.80	0.80	28	6868	9	1	6	2	7
SRP_00170	Bacteria_small_SRP links to Rfam database...	0.59	0.60	0.58	15	4069	12	0	11	1	10
SRP_00194	Bacteria_small_SRP links to Rfam database...	0.77	0.81	0.74	17	3217	6	0	6	0	4
SRP_00200	Bacteria_small_SRP links to Rfam database...	0.66	0.67	0.65	24	6866	15	1	12	2	12
SRP_00209	Bacteria_small_SRP links to Rfam database...	0.80	0.81	0.79	22	4628	6	0	6	0	5
SRP_00213	Bacteria_small_SRP links to Rfam database...	0.36	0.40	0.33	10	4156	20	5	15	0	15
SRP_00215	Bacteria_small_SRP links to Rfam database...	0.82	0.80	0.83	20	3216	4	0	4	0	5
SRP_00216	Bacteria_small_SRP links to Rfam database...	0.95	0.96	0.93	26	3375	3	1	1	1	1
SRP_00217	Bacteria_small_SRP links to Rfam database...	0.94	0.96	0.92	23	3296	3	0	2	1	1
SRP_00219	Bacteria_small_SRP links to Rfam database...	0.94	0.96	0.92	22	3297	3	0	2	1	1
SRP_00222	Bacteria_small_SRP links to Rfam database...	0.94	0.96	0.92	24	3055	3	1	1	1	1
SRP_00227	Bacteria_small_SRP links to Rfam database...	0.95	0.97	0.94	30	5119	2	1	1	0	1
SRP_00229	Bacteria_small_SRP links to Rfam database...	0.43	0.44	0.41	12	5224	17	5	12	0	15
SRP_00231	Bacteria_small_SRP links to Rfam database...	0.87	0.88	0.86	30	5425	5	1	4	0	4
SRP_00233	Bacteria_small_SRP links to Rfam database...	0.83	0.82	0.84	27	5119	5	0	5	0	6
SRP_00243	Bacteria_small_SRP links to Rfam database...	0.97	0.94	1.00	29	5122	1	0	0	1	2
SRP_00244	Bacteria_small_SRP links to Rfam database...	0.52	0.51	0.53	20	6865	18	3	15	0	19
SRP_00250	Bacteria_small_SRP links to Rfam database...	0.78	0.81	0.76	29	6748	11	1	8	2	7
SRP_00251	Bacteria_small_SRP links to Rfam database...	0.75	0.78	0.72	28	6982	11	1	10	0	8
SRP_00266	Bacteria_small_SRP links to Rfam database...	0.72	0.72	0.72	21	4627	9	1	7	1	8
SRP_00268	Bacteria_small_SRP links to Rfam database...	0.93	0.93	0.93	25	4159	2	1	1	0	2
SRP_00269	Bacteria_small_SRP links to Rfam database...	0.43	0.42	0.44	14	5018	18	3	15	0	19
SRP_00270	Bacteria_small_SRP links to Rfam database...	0.43	0.45	0.41	14	4622	20	2	18	0	17
SRP_00271	Bacteria_small_SRP links to Rfam database...	-0.01	0.00	0.00	0	3215	25	3	22	0	24
SRP_00273	Bacteria_small_SRP links to Rfam database...	0.79	0.80	0.78	32	6745	10	1	8	1	8
SRP_00274	Bacteria_small_SRP links to Rfam database...	0.73	0.74	0.72	28	6864	11	1	10	0	10
SRP_00285	Bacteria_small_SRP links to Rfam database...	0.98	0.97	1.00	29	3712	0	0	0	0	1
SRP_00295	Bacteria_small_SRP links to Rfam database...	0.96	0.97	0.95	37	6864	3	1	1	1	1
SRP_00303	Bacteria_small_SRP links to Rfam database...	0.69	0.72	0.66	23	6635	12	1	11	0	9
SRP_00310	Bacteria_small_SRP links to Rfam database...	0.87	0.87	0.87	20	2903	4	0	3	1	3
SRP_00312	Bacteria_small_SRP links to Rfam database...	0.34	0.37	0.32	10	4155	21	5	16	0	17
SRP_00315	Bacteria_small_SRP links to Rfam database...	0.87	0.87	0.87	20	2903	3	0	3	0	3
SRP_00318	Bacteria_small_SRP links to Rfam database...	0.87	0.87	0.87	20	2980	3	0	3	0	3
SRP_00324	Bacteria_small_SRP links to Rfam database...	0.58	0.62	0.55	18	5323	15	4	11	0	11
SRP_00325	Bacteria_small_SRP links to Rfam database...	1.00	1.00	1.00	33	4338	0	0	0	0	0
SRP_00326	Bacteria_small_SRP links to Rfam database...	0.58	0.58	0.58	18	5019	13	3	10	0	13
SRP_00333	Bacteria_small_SRP links to Rfam database...	0.86	0.85	0.88	29	5118	4	0	4	0	5
SRP_00338	Bacteria_small_SRP links to Rfam database...	0.97	0.97	0.97	35	5424	1	0	1	0	1
SRP_00341	Bacteria_small_SRP links to Rfam database...	0.74	0.74	0.74	23	4722	8	0	8	0	8
SRP_00342	Bacteria_small_SRP links to Rfam database...	0.55	0.56	0.54	14	3979	17	1	11	5	11
SRP_00350	Bacteria_small_SRP links to Rfam database...	0.34	0.33	0.36	9	3891	16	2	14	0	18
SRP_00356	Bacteria_small_SRP links to Rfam database...	0.45	0.43	0.48	13	5023	14	4	10	0	17
SRP_00357	Bacteria_small_SRP links to Rfam database...	0.96	0.97	0.95	35	5319	2	1	1	0	1
SRP_00358	Bacteria_small_SRP links to Rfam database...	0.96	0.97	0.94	34	6292	2	1	1	0	1
SRP_00363	Bacteria_small_SRP links to Rfam database...	0.95	0.97	0.94	29	4722	4	0	2	2	1
SRP_00365	Bacteria_small_SRP links to Rfam database...	0.94	0.93	0.96	25	3377	1	0	1	0	2
SRP_00367	Bacteria_small_SRP links to Rfam database...	0.83	0.86	0.81	30	6749	7	1	6	0	5
SRP_00369	Bacteria_small_SRP links to Rfam database...	0.87	0.89	0.86	31	5742	7	1	4	2	4
SRP_00383	Bacteria_small_SRP links to Rfam database...	0.20	0.21	0.20	5	3215	20	4	16	0	19

^top

Performance of RSpredict(seed) - scored lower in this pairwise comparison

1. Total counts & total scores for RSpredict(seed)

Total Base Pair Counts
Total TP	1281
Total TN	856517
Total FP	1108
Total FP CONTRA	132
Total FP INCONS	866
Total FP COMP	110
Total FN	3829

Total Scores
MCC	0.373
Average MCC ± 95% Confidence Intervals	0.388 ± 0.044
Sensitivity	0.251
Positive Predictive Value	0.562
Nr of predictions	216

^top

2. Individual counts for RSpredict(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
ASE_00251	RNaseP_nuc links to Rfam database...	0.00	0.00	0.00	0	17766	0	0	0	0	43
PDB_00005	Tymo_tRNA-like links to Rfam database...	0.71	0.57	0.89	8	937	1	0	1	0	6
PDB_00012	mir-TAR links to Rfam database...	1.00	1.00	1.00	7	399	1	0	0	1	0
PDB_00213	Gammaretro_CES links to Rfam database...	0.56	0.49	0.65	20	5019	11	0	11	0	21
PDB_00553	mir-TAR links to Rfam database...	0.90	0.82	1.00	9	456	0	0	0	0	2
PDB_00716	HDV_ribozyme links to Rfam database...	0.59	0.48	0.73	11	2686	4	0	4	0	12
PDB_00741	Entero_5_CRE links to Rfam database...	0.00	0.00	0.00	0	703	0	0	0	0	17
PDB_00810	s2m links to Rfam database...	0.80	0.65	1.00	11	1070	0	0	0	0	6
PDB_00828	Purine links to Rfam database...	0.54	0.41	0.73	11	2470	4	2	2	0	16
PDB_00829	Purine links to Rfam database...	0.74	0.63	0.88	15	2261	2	2	0	0	9
PDB_00876	HIV_FE links to Rfam database...	0.57	0.50	0.67	10	975	5	0	5	0	10
PDB_01001	tRNA links to Rfam database...	0.00	0.00	0.00	0	2144	1	0	1	0	18
PDB_01020	Purine links to Rfam database...	0.76	0.65	0.88	15	2261	2	2	0	0	8
PDB_01050	UnaL2 links to Rfam database...	0.62	0.46	0.86	6	623	2	0	1	1	7
PDB_01051	Telomerase-cil links to Rfam database...	-0.01	0.00	0.00	0	899	4	2	2	0	13
PDB_01073	SAM links to Rfam database...	0.39	0.18	0.86	6	4364	1	0	1	0	28
PDB_01092	glmS links to Rfam database...	0.48	0.37	0.63	19	10123	13	1	10	2	33
PDB_01114	TPP links to Rfam database...	0.74	0.56	1.00	15	2835	0	0	0	0	12
PDB_01152	HIV_FS2 links to Rfam database...	0.88	0.79	1.00	11	550	0	0	0	0	3
PDB_01236	ykoK links to Rfam database...	0.00	0.00	0.00	0	11621	7	0	7	0	54
RFA_00389	Hammerhead_3 links to Rfam database...	0.63	0.40	1.00	6	1425	1	0	0	1	9
RFA_00390	Hammerhead_3 links to Rfam database...	0.63	0.40	1.00	6	1425	1	0	0	1	9
RFA_00391	Hammerhead_3 links to Rfam database...	0.63	0.40	1.00	6	1425	1	0	0	1	9
RFA_00396	Hammerhead_3 links to Rfam database...	0.63	0.40	1.00	6	1425	1	0	0	1	9
RFA_00402	Hammerhead_3 links to Rfam database...	0.63	0.40	1.00	6	1425	0	0	0	0	9
RFA_00409	Hammerhead_3 links to Rfam database...	0.58	0.33	1.00	5	1426	1	0	0	1	10
RFA_00416	Hammerhead_3 links to Rfam database...	0.63	0.40	1.00	6	1479	1	0	0	1	9
RFA_00425	Hammerhead_3 links to Rfam database...	0.63	0.40	1.00	6	1647	0	0	0	0	9
RFA_00427	Hammerhead_3 links to Rfam database...	0.00	0.00	0.00	0	1482	3	0	3	0	15
RFA_00433	Hammerhead_3 links to Rfam database...	0.63	0.40	1.00	6	1425	1	0	0	1	9
RFA_00434	Hammerhead_3 links to Rfam database...	0.63	0.40	1.00	6	1425	1	0	0	1	9
RFA_00436	Hammerhead_3 links to Rfam database...	0.63	0.40	1.00	6	1425	1	0	0	1	9
RFA_00440	Hammerhead_3 links to Rfam database...	0.63	0.40	1.00	6	1479	1	0	0	1	9
RFA_00442	Hammerhead_3 links to Rfam database...	0.63	0.40	1.00	6	1425	1	0	0	1	9
RFA_00444	Hammerhead_3 links to Rfam database...	0.00	0.00	0.00	0	1538	2	0	2	0	15
RFA_00446	Hammerhead_3 links to Rfam database...	-0.01	0.00	0.00	0	1481	4	0	4	0	15
RFA_00449	Hammerhead_3 links to Rfam database...	-0.01	0.00	0.00	0	1481	4	0	4	0	15
RFA_00582	Y_RNA links to Rfam database...	1.00	1.00	1.00	15	5980	4	0	0	4	0
RFA_00583	Y_RNA links to Rfam database...	1.00	1.00	1.00	15	4935	7	0	0	7	0
RFA_00584	Y_RNA links to Rfam database...	1.00	1.00	1.00	15	2911	2	0	0	2	0
RFA_00585	Y_RNA links to Rfam database...	1.00	1.00	1.00	15	4836	6	0	0	6	0
RFA_00586	Y_RNA links to Rfam database...	0.97	0.93	1.00	14	3902	2	0	0	2	1
RFA_00587	Y_RNA links to Rfam database...	1.00	1.00	1.00	15	4836	4	0	0	4	0
RFA_00588	Y_RNA links to Rfam database...	0.97	0.93	1.00	14	4546	4	0	0	4	1
RFA_00589	Y_RNA links to Rfam database...	0.93	0.87	1.00	13	4358	3	0	0	3	2
RFA_00594	Y_RNA links to Rfam database...	0.93	0.87	1.00	13	2762	2	0	0	2	2
RFA_00596	Y_RNA links to Rfam database...	0.82	0.67	1.00	10	5985	5	0	0	5	5
RFA_00603	Telomerase-cil links to Rfam database...	0.00	0.00	0.00	0	13520	11	2	8	1	35
RFA_00604	Telomerase-cil links to Rfam database...	0.00	0.00	0.00	0	13529	1	0	1	0	35
RFA_00605	Telomerase-cil links to Rfam database...	0.00	0.00	0.00	0	15215	11	2	8	1	35
RFA_00607	Telomerase-cil links to Rfam database...	0.00	0.00	0.00	0	17752	15	0	14	1	36
RFA_00609	Telomerase-cil links to Rfam database...	0.00	0.00	0.00	0	17949	9	1	5	3	37
RFA_00610	Telomerase-cil links to Rfam database...	0.00	0.00	0.00	0	17195	10	3	7	0	37
RFA_00611	Telomerase-cil links to Rfam database...	0.00	0.00	0.00	0	13032	10	0	9	1	35
RFA_00613	Telomerase-cil links to Rfam database...	0.00	0.00	0.00	0	12879	1	0	1	0	35
RFA_00615	Telomerase-cil links to Rfam database...	0.00	0.00	0.00	0	13360	6	0	6	0	35
RFA_00632	HDV_ribozyme links to Rfam database...	0.47	0.39	0.58	11	4076	8	3	5	0	17
RFA_00636	HDV_ribozyme links to Rfam database...	0.62	0.54	0.71	15	3984	6	3	3	0	13
RFA_00642	Vimentin3 links to Rfam database...	0.31	0.22	0.44	4	2917	5	0	5	0	14
RFA_00643	Vimentin3 links to Rfam database...	0.21	0.17	0.27	3	2200	8	0	8	0	15
RFA_00644	Vimentin3 links to Rfam database...	0.36	0.33	0.40	6	2686	9	1	8	0	12
RFA_00645	Vimentin3 links to Rfam database...	0.31	0.28	0.36	5	2401	9	1	8	0	13
RFA_00649	Vimentin3 links to Rfam database...	0.37	0.33	0.43	6	2131	8	0	8	0	12
RFA_00651	Vimentin3 links to Rfam database...	0.32	0.28	0.38	5	2067	8	0	8	0	13
RFA_00653	Vimentin3 links to Rfam database...	0.36	0.33	0.40	6	2130	9	1	8	0	12
RFA_00654	Vimentin3 links to Rfam database...	0.35	0.28	0.45	5	2404	6	0	6	0	13
RFA_00658	Hammerhead_1 links to Rfam database...	0.64	0.57	0.73	8	1117	4	0	3	1	6
RFA_00659	Hammerhead_1 links to Rfam database...	0.35	0.29	0.44	4	1119	6	0	5	1	10
RFA_00664	Hammerhead_1 links to Rfam database...	0.59	0.50	0.70	7	980	4	0	3	1	7
RFA_00667	Hammerhead_1 links to Rfam database...	0.64	0.57	0.73	8	979	4	0	3	1	6
RFA_00668	Hammerhead_1 links to Rfam database...	0.71	0.57	0.89	8	981	1	0	1	0	6
RFA_00672	Hammerhead_1 links to Rfam database...	0.61	0.54	0.70	7	893	3	0	3	0	6
RFA_00673	Hammerhead_1 links to Rfam database...	0.42	0.36	0.50	5	1118	6	0	5	1	9
RFA_00674	Hammerhead_1 links to Rfam database...	0.69	0.64	0.75	9	1116	4	0	3	1	5
RFA_00675	Hammerhead_1 links to Rfam database...	0.62	0.50	0.78	7	981	3	0	2	1	7
RFA_00677	Hammerhead_1 links to Rfam database...	0.72	0.64	0.82	9	979	2	0	2	0	5
RFA_00678	Hammerhead_1 links to Rfam database...	0.43	0.29	0.67	4	940	3	0	2	1	10
RFA_00680	Hammerhead_1 links to Rfam database...	0.69	0.64	0.75	9	1116	4	0	3	1	5
RFA_00684	Hammerhead_1 links to Rfam database...	0.80	0.64	1.00	9	981	1	0	0	1	5
RFA_00685	Hammerhead_1 links to Rfam database...	0.64	0.57	0.73	8	979	4	0	3	1	6
RFA_00695	Hammerhead_1 links to Rfam database...	0.31	0.14	0.67	2	7018	2	0	1	1	12
RFA_00703	Hammerhead_1 links to Rfam database...	0.54	0.36	0.83	5	4272	1	0	1	0	9
RFA_00704	Hammerhead_1 links to Rfam database...	0.35	0.29	0.44	4	981	6	0	5	1	10
RFA_00705	Hammerhead_1 links to Rfam database...	0.80	0.64	1.00	9	1026	1	0	0	1	5
RFA_00706	Hammerhead_1 links to Rfam database...	0.56	0.43	0.75	6	1027	3	0	2	1	8
RFA_00707	Hammerhead_1 links to Rfam database...	0.67	0.57	0.80	8	1025	3	0	2	1	6
RFA_00708	Hammerhead_1 links to Rfam database...	0.75	0.57	1.00	8	1027	1	0	0	1	6
RFA_00709	Hammerhead_1 links to Rfam database...	0.53	0.43	0.67	6	981	3	0	3	0	8
RFA_00710	Hammerhead_1 links to Rfam database...	0.43	0.29	0.67	4	984	2	0	2	0	10
RFA_00711	Hammerhead_1 links to Rfam database...	0.35	0.21	0.60	3	1030	3	0	2	1	11
RFA_00715	Hammerhead_1 links to Rfam database...	0.66	0.50	0.88	7	938	2	0	1	1	7
RFA_00716	Hammerhead_1 links to Rfam database...	0.56	0.43	0.75	6	938	3	0	2	1	8
RFA_00717	Hammerhead_1 links to Rfam database...	0.50	0.36	0.71	5	896	2	0	2	0	9
RFA_00730	s2m links to Rfam database...	0.91	0.83	1.00	10	893	1	0	0	1	2
RFA_00731	s2m links to Rfam database...	0.91	0.83	1.00	10	893	1	0	0	1	2
RFA_00733	s2m links to Rfam database...	0.91	0.83	1.00	10	893	1	0	0	1	2
RFA_00734	s2m links to Rfam database...	0.91	0.83	1.00	10	893	0	0	0	0	2
RFA_00736	s2m links to Rfam database...	0.91	0.83	1.00	10	893	1	0	0	1	2
RFA_00737	s2m links to Rfam database...	0.91	0.83	1.00	10	893	1	0	0	1	2
RFA_00745	s2m links to Rfam database...	0.91	0.83	1.00	10	936	1	0	0	1	2
RFA_00749	s2m links to Rfam database...	0.91	0.83	1.00	10	893	1	0	0	1	2
RFA_00758	s2m links to Rfam database...	0.86	0.75	1.00	9	894	0	0	0	0	3
RFA_00762	s2m links to Rfam database...	0.91	0.83	1.00	10	893	0	0	0	0	2
RFA_00763	s2m links to Rfam database...	0.91	0.83	1.00	10	893	1	0	0	1	2
RFA_00764	s2m links to Rfam database...	0.91	0.83	1.00	10	893	1	0	0	1	2
RFA_00765	s2m links to Rfam database...	0.91	0.83	1.00	10	893	1	0	0	1	2
RFA_00767	Corona_pk3 links to Rfam database...	0.19	0.17	0.23	3	1878	10	3	7	0	15
RFA_00768	Corona_pk3 links to Rfam database...	0.19	0.17	0.23	3	1878	10	3	7	0	15
RFA_00769	Corona_pk3 links to Rfam database...	0.59	0.56	0.63	10	1937	6	4	2	0	8
RFA_00770	Corona_pk3 links to Rfam database...	0.54	0.56	0.53	10	1997	9	6	3	0	8
RFA_00773	Corona_pk3 links to Rfam database...	0.50	0.50	0.50	9	1935	9	6	3	0	9
RFA_00779	Corona_pk3 links to Rfam database...	0.50	0.50	0.50	9	1935	9	6	3	0	9
RFA_00781	Gammaretro_CES links to Rfam database...	0.61	0.59	0.63	19	5020	12	2	9	1	13
RFA_00786	Gammaretro_CES links to Rfam database...	0.61	0.59	0.63	19	5020	12	2	9	1	13
RFA_00791	Gammaretro_CES links to Rfam database...	0.58	0.53	0.63	17	5124	11	2	8	1	15
RFA_00792	Gammaretro_CES links to Rfam database...	0.64	0.63	0.67	20	5020	11	2	8	1	12
RFA_00801	Gammaretro_CES links to Rfam database...	0.59	0.56	0.62	18	5021	12	2	9	1	14
RFA_00808	RydC links to Rfam database...	0.60	0.50	0.73	8	2005	4	0	3	1	8
RFA_00809	RydC links to Rfam database...	0.37	0.31	0.45	5	2134	7	0	6	1	11
SPR_00020	tRNA links to Rfam database...	0.00	0.00	0.00	0	2696	5	0	5	0	20
SPR_00023	tRNA links to Rfam database...	0.00	0.00	0.00	0	2846	5	0	4	1	21
SPR_00137	tRNA links to Rfam database...	0.00	0.00	0.00	0	2924	2	0	2	0	21
SPR_00273	tRNA links to Rfam database...	0.00	0.00	0.00	0	2846	4	0	4	0	21
SPR_00277	tRNA links to Rfam database...	0.00	0.00	0.00	0	2923	4	0	3	1	21
SPR_00394	tRNA links to Rfam database...	0.00	0.00	0.00	0	3649	7	0	6	1	21
SPR_00402	tRNA links to Rfam database...	0.00	0.00	0.00	0	2552	4	0	4	0	21
SPR_00721	tRNA links to Rfam database...	0.00	0.00	0.00	0	2923	3	0	3	0	21
SPR_00816	tRNA links to Rfam database...	0.00	0.00	0.00	0	3484	2	0	2	0	20
SPR_01157	tRNA links to Rfam database...	0.00	0.00	0.00	0	2774	1	0	1	0	21
SRP_00001	Bacteria_large_SRP links to Rfam database...	0.63	0.50	0.80	20	6761	5	1	4	0	20
SRP_00008	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	2921	5	1	4	0	25
SRP_00020	Bacteria_small_SRP links to Rfam database...	0.38	0.24	0.62	8	5552	5	0	5	0	25
SRP_00038	Bacteria_small_SRP links to Rfam database...	0.35	0.21	0.58	7	5038	5	1	4	0	26
SRP_00040	Bacteria_small_SRP links to Rfam database...	0.24	0.16	0.36	5	5551	9	2	7	0	26
SRP_00042	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	3997	8	0	8	0	25
SRP_00043	Bacteria_small_SRP links to Rfam database...	0.53	0.38	0.73	11	5035	5	0	4	1	18
SRP_00044	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	6095	11	1	9	1	32
SRP_00046	Bacteria_small_SRP links to Rfam database...	0.33	0.19	0.60	6	4743	4	1	3	0	26
SRP_00051	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	5448	12	1	11	0	30
SRP_00054	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	5555	10	1	9	0	32
SRP_00056	Bacteria_small_SRP links to Rfam database...	0.04	0.03	0.07	1	6426	14	3	11	0	36
SRP_00057	Bacteria_small_SRP links to Rfam database...	0.21	0.11	0.40	4	6318	6	0	6	0	31
SRP_00058	Bacteria_small_SRP links to Rfam database...	0.31	0.18	0.55	6	5767	6	0	5	1	28
SRP_00067	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	5768	10	0	10	0	38
SRP_00072	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	6320	8	4	4	0	29
SRP_00074	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	6548	7	1	6	0	29
SRP_00075	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	5557	9	1	7	1	34
SRP_00077	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	6660	10	1	9	0	37
SRP_00081	Bacteria_small_SRP links to Rfam database...	0.29	0.19	0.43	6	5551	8	1	7	0	25
SRP_00084	Bacteria_small_SRP links to Rfam database...	0.34	0.21	0.58	7	5448	5	1	4	0	27
SRP_00094	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	4089	6	1	5	0	24
SRP_00095	Bacteria_small_SRP links to Rfam database...	0.57	0.44	0.73	11	3990	4	3	1	0	14
SRP_00098	Bacteria_small_SRP links to Rfam database...	0.04	0.03	0.08	1	6429	11	0	11	0	36
SRP_00105	Bacteria_small_SRP links to Rfam database...	0.34	0.21	0.58	7	5553	5	1	4	0	27
SRP_00106	Bacteria_large_SRP links to Rfam database...	0.61	0.60	0.63	15	5229	10	2	7	1	10
SRP_00107	Bacteria_small_SRP links to Rfam database...	0.43	0.32	0.60	6	3645	4	0	4	0	13
SRP_00121	Bacteria_small_SRP links to Rfam database...	0.60	0.36	1.00	9	4269	0	0	0	0	16
SRP_00128	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	6778	8	2	6	0	36
SRP_00132	Bacteria_small_SRP links to Rfam database...	0.32	0.21	0.50	6	4839	6	2	4	0	23
SRP_00134	Bacteria_large_SRP links to Rfam database...	0.65	0.66	0.66	19	5966	11	0	10	1	10
SRP_00137	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	4178	8	1	7	0	25
SRP_00141	Bacteria_small_SRP links to Rfam database...	0.26	0.15	0.46	6	6315	7	0	7	0	35
SRP_00145	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	6315	13	0	13	0	40
SRP_00146	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	5246	7	1	6	0	36
SRP_00161	Bacteria_small_SRP links to Rfam database...	0.41	0.32	0.54	7	2837	6	0	6	0	15
SRP_00162	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	2921	5	4	1	0	23
SRP_00163	Bacteria_small_SRP links to Rfam database...	0.43	0.27	0.70	7	3476	3	0	3	0	19
SRP_00164	Bacteria_small_SRP links to Rfam database...	0.72	0.60	0.88	21	6879	4	1	2	1	14
SRP_00170	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	4091	4	0	4	0	25
SRP_00194	Bacteria_small_SRP links to Rfam database...	0.16	0.10	0.29	2	3233	5	2	3	0	19
SRP_00200	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	6888	15	1	14	0	36
SRP_00209	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	4649	7	1	6	0	27
SRP_00213	Bacteria_small_SRP links to Rfam database...	0.39	0.28	0.54	7	4173	6	1	5	0	18
SRP_00215	Bacteria_small_SRP links to Rfam database...	0.44	0.28	0.70	7	3230	3	1	2	0	18
SRP_00216	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	3396	7	1	6	0	27
SRP_00217	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	3312	9	1	8	0	24
SRP_00219	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	3315	6	1	5	0	23
SRP_00222	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	3074	7	1	6	0	25
SRP_00227	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	5143	8	0	8	0	31
SRP_00229	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	5246	7	2	5	0	27
SRP_00231	Bacteria_small_SRP links to Rfam database...	0.46	0.29	0.71	10	5446	4	0	4	0	24
SRP_00233	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	5141	10	1	9	0	33
SRP_00243	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	5140	11	1	10	0	31
SRP_00244	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	6891	12	1	11	0	39
SRP_00250	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	6775	11	2	9	0	36
SRP_00251	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	7011	10	1	9	0	36
SRP_00266	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	4647	9	1	8	0	29
SRP_00268	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	4180	6	1	5	0	27
SRP_00269	Bacteria_small_SRP links to Rfam database...	0.29	0.18	0.46	6	5037	7	0	7	0	27
SRP_00270	Bacteria_small_SRP links to Rfam database...	0.28	0.16	0.50	5	4646	5	0	5	0	26
SRP_00271	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	3235	5	0	5	0	24
SRP_00273	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	6778	8	1	7	0	40
SRP_00274	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	6892	11	1	10	0	38
SRP_00285	Bacteria_small_SRP links to Rfam database...	0.33	0.20	0.55	6	3730	5	0	5	0	24
SRP_00295	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	6894	9	1	8	0	38
SRP_00303	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	6665	5	1	4	0	32
SRP_00310	Bacteria_small_SRP links to Rfam database...	0.60	0.43	0.83	10	2914	3	0	2	1	13
SRP_00312	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	4178	8	0	8	0	27
SRP_00315	Bacteria_small_SRP links to Rfam database...	0.63	0.43	0.91	10	2915	1	0	1	0	13
SRP_00318	Bacteria_small_SRP links to Rfam database...	0.69	0.48	1.00	11	2992	0	0	0	0	12
SRP_00324	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	5344	12	2	10	0	29
SRP_00325	Bacteria_small_SRP links to Rfam database...	0.36	0.21	0.64	7	4360	4	0	4	0	26
SRP_00326	Bacteria_small_SRP links to Rfam database...	0.30	0.16	0.56	5	5041	4	0	4	0	26
SRP_00333	Bacteria_small_SRP links to Rfam database...	0.33	0.21	0.54	7	5138	6	0	6	0	27
SRP_00338	Bacteria_small_SRP links to Rfam database...	0.51	0.33	0.80	12	5445	4	0	3	1	24
SRP_00341	Bacteria_small_SRP links to Rfam database...	0.35	0.23	0.54	7	4740	6	1	5	0	24
SRP_00342	Bacteria_small_SRP links to Rfam database...	0.38	0.24	0.60	6	3995	4	0	4	0	19
SRP_00350	Bacteria_small_SRP links to Rfam database...	0.19	0.07	0.50	2	3912	2	0	2	0	25
SRP_00356	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	5043	7	1	6	0	30
SRP_00357	Bacteria_small_SRP links to Rfam database...	0.46	0.31	0.69	11	5340	5	0	5	0	25
SRP_00358	Bacteria_small_SRP links to Rfam database...	0.49	0.29	0.83	10	6316	2	1	1	0	25
SRP_00363	Bacteria_small_SRP links to Rfam database...	0.52	0.37	0.73	11	4738	4	0	4	0	19
SRP_00365	Bacteria_small_SRP links to Rfam database...	0.45	0.26	0.78	7	3394	2	0	2	0	20
SRP_00367	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	6774	12	0	12	0	35
SRP_00369	Bacteria_small_SRP links to Rfam database...	0.30	0.17	0.55	6	5767	5	0	5	0	29
SRP_00383	Bacteria_small_SRP links to Rfam database...	0.54	0.42	0.71	10	3226	4	0	4	0	14

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.

Table of contents:

Overview

Performance plots

Performance of RNAshapes - scored higher in this pairwise comparison

1. Total counts & total scores for RNAshapes

2. Individual counts for RNAshapes [ download as .csv ]

Performance of RSpredict(seed) - scored lower in this pairwise comparison

1. Total counts & total scores for RSpredict(seed)

2. Individual counts for RSpredict(seed) [ download as .csv ]
