Overview

Metric	RNAsubopt		PPfold(seed)
MCC	0.721	>	0.380
Average MCC ± 95% Confidence Intervals	0.680 ± 0.085	>	0.300 ± 0.117
Sensitivity	0.720	>	0.170
Positive Predictive Value	0.727	<	0.852
Total TP	659	>	156
Total TN	126781	<	127505
Total FP	299	>	34
Total FP CONTRA	48	>	6
Total FP INCONS	200	>	21
Total FP COMP	51	>	7
Total FN	256	<	759
P-value	3.56938820447e-08

^top

Performance plots

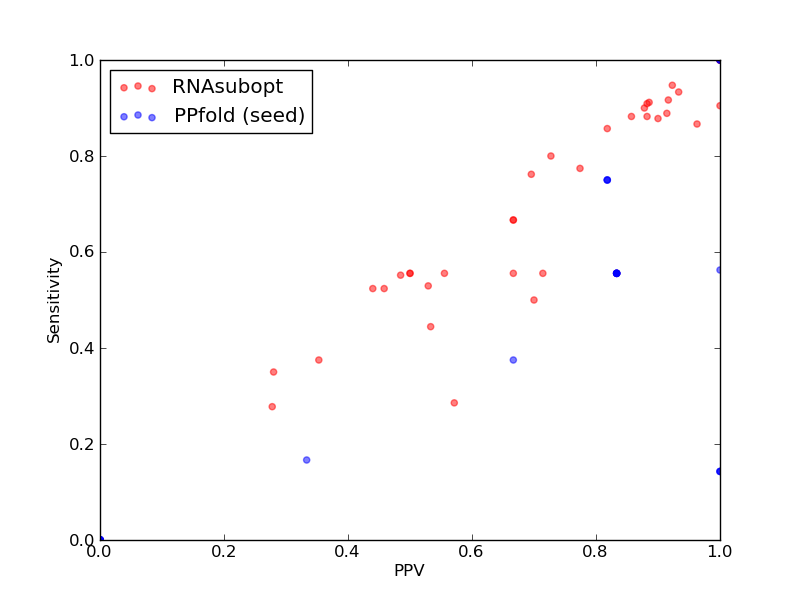

Comparison of performance of RNAsubopt and PPfold(seed). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for RNAsubopt and PPfold(seed)).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for RNAsubopt and PPfold(seed)).
Comparison of average Matthews Correlation Coefficients (MCCs) for RNAsubopt and PPfold(seed). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for RNAsubopt and PPfold(seed)).

^top

Performance of RNAsubopt - scored higher in this pairwise comparison

1. Total counts & total scores for RNAsubopt

Total Base Pair Counts
Total TP	659
Total TN	126781
Total FP	299
Total FP CONTRA	48
Total FP INCONS	200
Total FP COMP	51
Total FN	256

Total Scores
MCC	0.721
Average MCC ± 95% Confidence Intervals	0.680 ± 0.085
Sensitivity	0.720
Positive Predictive Value	0.727
Nr of predictions	40

^top

2. Individual counts for RNAsubopt [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
PDB_01001	tRNA links to Rfam database...	0.52	0.56	0.50	10	2125	10	3	7	0	8
RFA_00390	Hammerhead_3 links to Rfam database...	1.00	1.00	1.00	15	1416	2	0	0	2	0
RFA_00416	Hammerhead_3 links to Rfam database...	0.93	0.93	0.93	14	1470	4	0	1	3	1
RFA_00433	Hammerhead_3 links to Rfam database...	1.00	1.00	1.00	15	1416	2	0	0	2	0
RFA_00654	Vimentin3 links to Rfam database...	0.27	0.28	0.28	5	2397	13	2	11	0	13
RFA_00658	Hammerhead_1 links to Rfam database...	0.59	0.50	0.70	7	1118	5	0	3	2	7
RFA_00664	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	980	11	0	10	1	14
RFA_00708	Hammerhead_1 links to Rfam database...	0.40	0.29	0.57	4	1028	3	0	3	0	10
RFA_00749	s2m links to Rfam database...	0.66	0.67	0.67	8	891	5	1	3	1	4
RFA_00764	s2m links to Rfam database...	0.66	0.67	0.67	8	891	5	1	3	1	4
RFA_00765	s2m links to Rfam database...	1.00	1.00	1.00	12	891	1	0	0	1	0
RFA_00767	Corona_pk3 links to Rfam database...	0.63	0.56	0.71	10	1877	4	0	4	0	8
RFA_00768	Corona_pk3 links to Rfam database...	0.48	0.44	0.53	8	1876	7	1	6	0	10
RFA_00769	Corona_pk3 links to Rfam database...	0.52	0.56	0.50	10	1933	10	4	6	0	8
RFA_00770	Corona_pk3 links to Rfam database...	0.61	0.56	0.67	10	2001	8	0	5	3	8
RFA_00773	Corona_pk3 links to Rfam database...	0.68	0.56	0.83	10	1941	5	1	1	3	8
RFA_00779	Corona_pk3 links to Rfam database...	0.55	0.56	0.56	10	1935	8	3	5	0	8
RFA_00808	RydC links to Rfam database...	-0.01	0.00	0.00	0	2001	18	2	13	3	16
RFA_00809	RydC links to Rfam database...	0.36	0.38	0.35	6	2128	11	1	10	0	10
SPR_00020	tRNA links to Rfam database...	0.76	0.80	0.73	16	2679	8	2	4	2	4
SPR_00137	tRNA links to Rfam database...	0.84	0.86	0.82	18	2904	10	0	4	6	3
SPR_00277	tRNA links to Rfam database...	1.00	1.00	1.00	21	2905	0	0	0	0	0
SPR_00394	tRNA links to Rfam database...	0.49	0.52	0.46	11	3631	14	5	8	1	10
SPR_00402	tRNA links to Rfam database...	0.95	0.90	1.00	19	2537	2	0	0	2	2
SPR_00721	tRNA links to Rfam database...	0.48	0.52	0.44	11	2901	14	3	11	0	10
SPR_00816	tRNA links to Rfam database...	0.31	0.35	0.28	7	3461	21	5	13	3	13
SPR_01157	tRNA links to Rfam database...	0.73	0.76	0.70	16	2752	8	0	7	1	5
SRP_00020	Bacteria_small_SRP links to Rfam database...	0.89	0.91	0.88	30	5531	4	1	3	0	3
SRP_00058	Bacteria_small_SRP links to Rfam database...	0.87	0.88	0.86	30	5743	9	1	4	4	4
SRP_00084	Bacteria_small_SRP links to Rfam database...	0.88	0.88	0.88	30	5426	4	1	3	0	4
SRP_00105	Bacteria_small_SRP links to Rfam database...	0.53	0.53	0.53	18	5531	16	3	13	0	16
SRP_00134	Bacteria_large_SRP links to Rfam database...	0.51	0.55	0.48	16	5962	23	3	14	6	13
SRP_00141	Bacteria_small_SRP links to Rfam database...	0.89	0.88	0.90	36	6288	4	1	3	0	5
SRP_00231	Bacteria_small_SRP links to Rfam database...	0.90	0.91	0.89	31	5425	4	1	3	0	3
SRP_00273	Bacteria_small_SRP links to Rfam database...	0.89	0.90	0.88	36	6745	7	1	4	2	4
SRP_00274	Bacteria_small_SRP links to Rfam database...	0.93	0.95	0.92	36	6864	4	1	2	1	2
SRP_00285	Bacteria_small_SRP links to Rfam database...	0.91	0.87	0.96	26	3714	1	0	1	0	4
SRP_00338	Bacteria_small_SRP links to Rfam database...	0.92	0.92	0.92	33	5424	3	0	3	0	3
SRP_00341	Bacteria_small_SRP links to Rfam database...	0.77	0.77	0.77	24	4722	7	0	7	0	7
SRP_00357	Bacteria_small_SRP links to Rfam database...	0.90	0.89	0.91	32	5321	4	1	2	1	4

^top

Performance of PPfold(seed) - scored lower in this pairwise comparison

1. Total counts & total scores for PPfold(seed)

Total Base Pair Counts
Total TP	156
Total TN	127505
Total FP	34
Total FP CONTRA	6
Total FP INCONS	21
Total FP COMP	7
Total FN	759

Total Scores
MCC	0.380
Average MCC ± 95% Confidence Intervals	0.300 ± 0.117
Sensitivity	0.170
Positive Predictive Value	0.852
Nr of predictions	40

^top

2. Individual counts for PPfold(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
PDB_01001	tRNA links to Rfam database...	0.00	0.00	0.00	0	2145	0	0	0	0	18
RFA_00390	Hammerhead_3 links to Rfam database...	1.00	1.00	1.00	15	1416	1	0	0	1	0
RFA_00416	Hammerhead_3 links to Rfam database...	1.00	1.00	1.00	15	1470	1	0	0	1	0
RFA_00433	Hammerhead_3 links to Rfam database...	1.00	1.00	1.00	15	1416	2	0	0	2	0
RFA_00654	Vimentin3 links to Rfam database...	0.23	0.17	0.33	3	2406	6	0	6	0	15
RFA_00658	Hammerhead_1 links to Rfam database...	0.38	0.14	1.00	2	1126	1	0	0	1	12
RFA_00664	Hammerhead_1 links to Rfam database...	0.38	0.14	1.00	2	988	1	0	0	1	12
RFA_00708	Hammerhead_1 links to Rfam database...	0.38	0.14	1.00	2	1033	1	0	0	1	12
RFA_00749	s2m links to Rfam database...	0.78	0.75	0.82	9	892	2	0	2	0	3
RFA_00764	s2m links to Rfam database...	0.78	0.75	0.82	9	892	2	0	2	0	3
RFA_00765	s2m links to Rfam database...	0.78	0.75	0.82	9	892	2	0	2	0	3
RFA_00767	Corona_pk3 links to Rfam database...	0.68	0.56	0.83	10	1879	2	1	1	0	8
RFA_00768	Corona_pk3 links to Rfam database...	0.68	0.56	0.83	10	1879	2	1	1	0	8
RFA_00769	Corona_pk3 links to Rfam database...	0.68	0.56	0.83	10	1941	2	1	1	0	8
RFA_00770	Corona_pk3 links to Rfam database...	0.68	0.56	0.83	10	2004	2	1	1	0	8
RFA_00773	Corona_pk3 links to Rfam database...	0.68	0.56	0.83	10	1941	2	1	1	0	8
RFA_00779	Corona_pk3 links to Rfam database...	0.68	0.56	0.83	10	1941	2	1	1	0	8
RFA_00808	RydC links to Rfam database...	0.75	0.56	1.00	9	2007	0	0	0	0	7
RFA_00809	RydC links to Rfam database...	0.50	0.38	0.67	6	2136	3	0	3	0	10
SPR_00020	tRNA links to Rfam database...	0.00	0.00	0.00	0	2701	0	0	0	0	20
SPR_00137	tRNA links to Rfam database...	0.00	0.00	0.00	0	2926	0	0	0	0	21
SPR_00277	tRNA links to Rfam database...	0.00	0.00	0.00	0	2926	0	0	0	0	21
SPR_00394	tRNA links to Rfam database...	0.00	0.00	0.00	0	3655	0	0	0	0	21
SPR_00402	tRNA links to Rfam database...	0.00	0.00	0.00	0	2556	0	0	0	0	21
SPR_00721	tRNA links to Rfam database...	0.00	0.00	0.00	0	2926	0	0	0	0	21
SPR_00816	tRNA links to Rfam database...	0.00	0.00	0.00	0	3486	0	0	0	0	20
SPR_01157	tRNA links to Rfam database...	0.00	0.00	0.00	0	2775	0	0	0	0	21
SRP_00020	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	5565	0	0	0	0	33
SRP_00058	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	5778	0	0	0	0	34
SRP_00084	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	5460	0	0	0	0	34
SRP_00105	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	5565	0	0	0	0	34
SRP_00134	Bacteria_large_SRP links to Rfam database...	0.00	0.00	0.00	0	5995	0	0	0	0	29
SRP_00141	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	6328	0	0	0	0	41
SRP_00231	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	5460	0	0	0	0	34
SRP_00273	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	6786	0	0	0	0	40
SRP_00274	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	6903	0	0	0	0	38
SRP_00285	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	3741	0	0	0	0	30
SRP_00338	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	5460	0	0	0	0	36
SRP_00341	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	4753	0	0	0	0	31
SRP_00357	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	5356	0	0	0	0	36

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
