Overview

Metric	RSpredict(20)		RNASampler(seed)
MCC	0.753	>	0.571
Average MCC ± 95% Confidence Intervals	0.773 ± 0.051	>	0.424 ± 0.109
Sensitivity	0.684	>	0.343
Positive Predictive Value	0.833	<	0.957
Total TP	449	>	225
Total TN	64120	<	64424
Total FP	129	>	25
Total FP CONTRA	6	>	0
Total FP INCONS	84	>	10
Total FP COMP	39	>	15
Total FN	207	<	431
P-value	5.23657817852e-08

^top

Performance plots

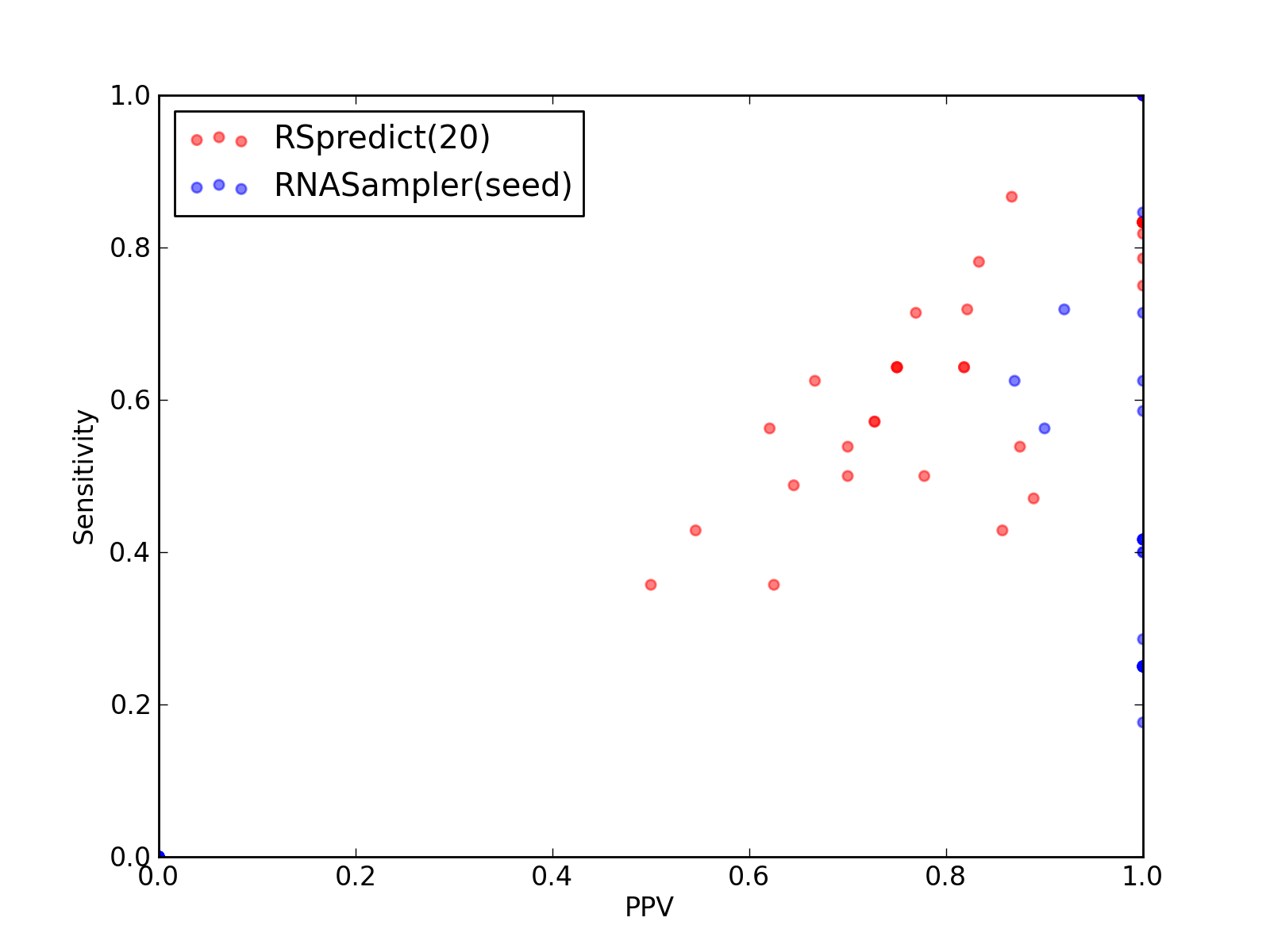

Comparison of performance of RSpredict(20) and RNASampler(seed). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for RSpredict(20) and RNASampler(seed)).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for RSpredict(20) and RNASampler(seed)).
Comparison of average Matthews Correlation Coefficients (MCCs) for RSpredict(20) and RNASampler(seed). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for RSpredict(20) and RNASampler(seed)).

^top

Performance of RSpredict(20) - scored higher in this pairwise comparison

1. Total counts & total scores for RSpredict(20)

Total Base Pair Counts
Total TP	449
Total TN	64120
Total FP	129
Total FP CONTRA	6
Total FP INCONS	84
Total FP COMP	39
Total FN	207

Total Scores
MCC	0.753
Average MCC ± 95% Confidence Intervals	0.773 ± 0.051
Sensitivity	0.684
Positive Predictive Value	0.833
Nr of predictions	42

^top

2. Individual counts for RSpredict(20) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
PDB_00012	mir-TAR links to Rfam database...	1.00	1.00	1.00	7	399	2	0	0	2	0
PDB_00213	Gammaretro_CES links to Rfam database...	0.56	0.49	0.65	20	5019	11	0	11	0	21
PDB_00553	mir-TAR links to Rfam database...	0.90	0.82	1.00	9	456	0	0	0	0	2
PDB_00810	s2m links to Rfam database...	0.64	0.47	0.89	8	1072	1	0	1	0	9
PDB_01050	UnaL2 links to Rfam database...	0.68	0.54	0.88	7	622	3	0	1	2	6
PDB_01152	HIV_FS2 links to Rfam database...	0.88	0.79	1.00	11	550	0	0	0	0	3
RFA_00390	Hammerhead_3 links to Rfam database...	1.00	1.00	1.00	15	1416	3	0	0	3	0
RFA_00416	Hammerhead_3 links to Rfam database...	0.87	0.87	0.87	13	1470	5	0	2	3	2
RFA_00433	Hammerhead_3 links to Rfam database...	1.00	1.00	1.00	15	1416	3	0	0	3	0
RFA_00587	Y_RNA links to Rfam database...	1.00	1.00	1.00	15	4836	7	0	0	7	0
RFA_00658	Hammerhead_1 links to Rfam database...	0.69	0.64	0.75	9	1116	4	0	3	1	5
RFA_00664	Hammerhead_1 links to Rfam database...	0.64	0.57	0.73	8	979	4	0	3	1	6
RFA_00667	Hammerhead_1 links to Rfam database...	0.64	0.57	0.73	8	979	4	0	3	1	6
RFA_00668	Hammerhead_1 links to Rfam database...	0.47	0.36	0.63	5	982	4	0	3	1	9
RFA_00672	Hammerhead_1 links to Rfam database...	0.61	0.54	0.70	7	893	3	0	3	0	6
RFA_00673	Hammerhead_1 links to Rfam database...	0.59	0.50	0.70	7	1118	4	0	3	1	7
RFA_00674	Hammerhead_1 links to Rfam database...	0.69	0.64	0.75	9	1116	4	0	3	1	5
RFA_00675	Hammerhead_1 links to Rfam database...	0.62	0.50	0.78	7	981	3	0	2	1	7
RFA_00677	Hammerhead_1 links to Rfam database...	0.69	0.64	0.75	9	978	4	0	3	1	5
RFA_00678	Hammerhead_1 links to Rfam database...	0.72	0.64	0.82	9	935	3	0	2	1	5
RFA_00680	Hammerhead_1 links to Rfam database...	0.74	0.71	0.77	10	1115	4	0	3	1	4
RFA_00704	Hammerhead_1 links to Rfam database...	0.42	0.36	0.50	5	980	6	0	5	1	9
RFA_00707	Hammerhead_1 links to Rfam database...	0.72	0.64	0.82	9	1024	3	0	2	1	5
RFA_00715	Hammerhead_1 links to Rfam database...	0.60	0.43	0.86	6	939	2	0	1	1	8
RFA_00717	Hammerhead_1 links to Rfam database...	0.48	0.43	0.55	6	892	5	0	5	0	8
RFA_00730	s2m links to Rfam database...	0.91	0.83	1.00	10	893	1	0	0	1	2
RFA_00731	s2m links to Rfam database...	0.91	0.83	1.00	10	893	0	0	0	0	2
RFA_00733	s2m links to Rfam database...	0.91	0.83	1.00	10	893	0	0	0	0	2
RFA_00734	s2m links to Rfam database...	0.91	0.83	1.00	10	893	0	0	0	0	2
RFA_00736	s2m links to Rfam database...	0.91	0.83	1.00	10	893	0	0	0	0	2
RFA_00737	s2m links to Rfam database...	0.91	0.83	1.00	10	893	0	0	0	0	2
RFA_00745	s2m links to Rfam database...	0.91	0.83	1.00	10	936	1	0	0	1	2
RFA_00749	s2m links to Rfam database...	0.91	0.83	1.00	10	893	0	0	0	0	2
RFA_00758	s2m links to Rfam database...	0.86	0.75	1.00	9	894	0	0	0	0	3
RFA_00762	s2m links to Rfam database...	0.91	0.83	1.00	10	893	0	0	0	0	2
RFA_00763	s2m links to Rfam database...	0.91	0.83	1.00	10	893	1	0	0	1	2
RFA_00764	s2m links to Rfam database...	0.91	0.83	1.00	10	893	0	0	0	0	2
RFA_00765	s2m links to Rfam database...	0.91	0.83	1.00	10	893	0	0	0	0	2
RFA_00786	Gammaretro_CES links to Rfam database...	0.81	0.78	0.83	25	5020	5	1	4	0	7
RFA_00791	Gammaretro_CES links to Rfam database...	0.77	0.72	0.82	23	5123	6	1	4	1	9
RFA_00792	Gammaretro_CES links to Rfam database...	0.64	0.63	0.67	20	5020	11	2	8	1	12
RFA_00801	Gammaretro_CES links to Rfam database...	0.59	0.56	0.62	18	5021	12	2	9	1	14

^top

Performance of RNASampler(seed) - scored lower in this pairwise comparison

1. Total counts & total scores for RNASampler(seed)

Total Base Pair Counts
Total TP	225
Total TN	64424
Total FP	25
Total FP CONTRA	0
Total FP INCONS	10
Total FP COMP	15
Total FN	431

Total Scores
MCC	0.571
Average MCC ± 95% Confidence Intervals	0.424 ± 0.109
Sensitivity	0.343
Positive Predictive Value	0.957
Nr of predictions	42

^top

2. Individual counts for RNASampler(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
PDB_00012	mir-TAR links to Rfam database...	1.00	1.00	1.00	7	399	3	0	0	3	0
PDB_00213	Gammaretro_CES links to Rfam database...	0.76	0.59	1.00	24	5026	0	0	0	0	17
PDB_00553	mir-TAR links to Rfam database...	1.00	1.00	1.00	11	454	0	0	0	0	0
PDB_00810	s2m links to Rfam database...	0.42	0.18	1.00	3	1078	0	0	0	0	14
PDB_01050	UnaL2 links to Rfam database...	0.92	0.85	1.00	11	619	2	0	0	2	2
PDB_01152	HIV_FS2 links to Rfam database...	0.84	0.71	1.00	10	551	0	0	0	0	4
RFA_00390	Hammerhead_3 links to Rfam database...	0.00	0.00	0.00	0	1431	0	0	0	0	15
RFA_00416	Hammerhead_3 links to Rfam database...	0.63	0.40	1.00	6	1479	1	0	0	1	9
RFA_00433	Hammerhead_3 links to Rfam database...	0.63	0.40	1.00	6	1425	1	0	0	1	9
RFA_00587	Y_RNA links to Rfam database...	1.00	1.00	1.00	15	4836	5	0	0	5	0
RFA_00658	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	1128	0	0	0	0	14
RFA_00664	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	990	0	0	0	0	14
RFA_00667	Hammerhead_1 links to Rfam database...	0.53	0.29	1.00	4	986	0	0	0	0	10
RFA_00668	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	990	0	0	0	0	14
RFA_00672	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	903	0	0	0	0	13
RFA_00673	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	1128	0	0	0	0	14
RFA_00674	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	1128	0	0	0	0	14
RFA_00675	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	990	0	0	0	0	14
RFA_00677	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	990	0	0	0	0	14
RFA_00678	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	946	0	0	0	0	14
RFA_00680	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	1128	0	0	0	0	14
RFA_00704	Hammerhead_1 links to Rfam database...	-0.01	0.00	0.00	0	987	3	0	3	0	14
RFA_00707	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	1035	0	0	0	0	14
RFA_00715	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	946	0	0	0	0	14
RFA_00717	Hammerhead_1 links to Rfam database...	0.00	0.00	0.00	0	903	0	0	0	0	14
RFA_00730	s2m links to Rfam database...	0.50	0.25	1.00	3	900	0	0	0	0	9
RFA_00731	s2m links to Rfam database...	0.64	0.42	1.00	5	898	1	0	0	1	7
RFA_00733	s2m links to Rfam database...	0.50	0.25	1.00	3	900	0	0	0	0	9
RFA_00734	s2m links to Rfam database...	0.64	0.42	1.00	5	898	0	0	0	0	7
RFA_00736	s2m links to Rfam database...	0.50	0.25	1.00	3	900	0	0	0	0	9
RFA_00737	s2m links to Rfam database...	0.64	0.42	1.00	5	898	1	0	0	1	7
RFA_00745	s2m links to Rfam database...	0.50	0.25	1.00	3	943	0	0	0	0	9
RFA_00749	s2m links to Rfam database...	0.50	0.25	1.00	3	900	0	0	0	0	9
RFA_00758	s2m links to Rfam database...	0.50	0.25	1.00	3	900	0	0	0	0	9
RFA_00762	s2m links to Rfam database...	0.64	0.42	1.00	5	898	0	0	0	0	7
RFA_00763	s2m links to Rfam database...	0.50	0.25	1.00	3	900	0	0	0	0	9
RFA_00764	s2m links to Rfam database...	0.50	0.25	1.00	3	900	0	0	0	0	9
RFA_00765	s2m links to Rfam database...	0.50	0.25	1.00	3	900	0	0	0	0	9
RFA_00786	Gammaretro_CES links to Rfam database...	0.79	0.63	1.00	20	5030	0	0	0	0	12
RFA_00791	Gammaretro_CES links to Rfam database...	0.71	0.56	0.90	18	5131	2	0	2	0	14
RFA_00792	Gammaretro_CES links to Rfam database...	0.81	0.72	0.92	23	5025	2	0	2	0	9
RFA_00801	Gammaretro_CES links to Rfam database...	0.74	0.63	0.87	20	5027	4	0	3	1	12

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
