Overview

Metric	MXScarna(seed)		RNAalifold(20)
MCC	0.684	>	0.675
Average MCC ± 95% Confidence Intervals	0.683 ± 0.020	>	0.675 ± 0.014
Sensitivity	0.582	>	0.541
Positive Predictive Value	0.805	<	0.843
Total TP	12348	>	11494
Total TN	11558000	<	11559696
Total FP	3958	>	2464
Total FP CONTRA	432	>	315
Total FP INCONS	2553	>	1828
Total FP COMP	973	>	321
Total FN	8881	<	9735
P-value	3.56938820447e-08

^top

Performance plots

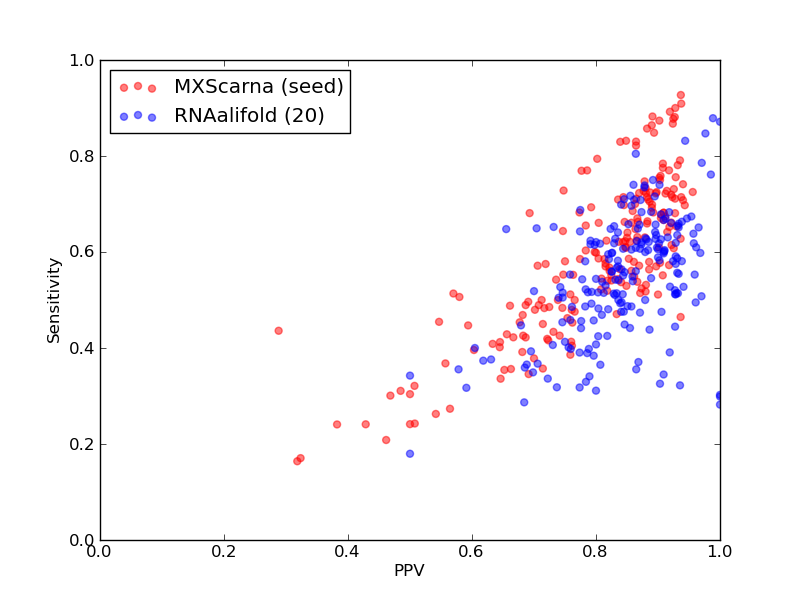

Comparison of performance of MXScarna(seed) and RNAalifold(20). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for MXScarna(seed) and RNAalifold(20)).

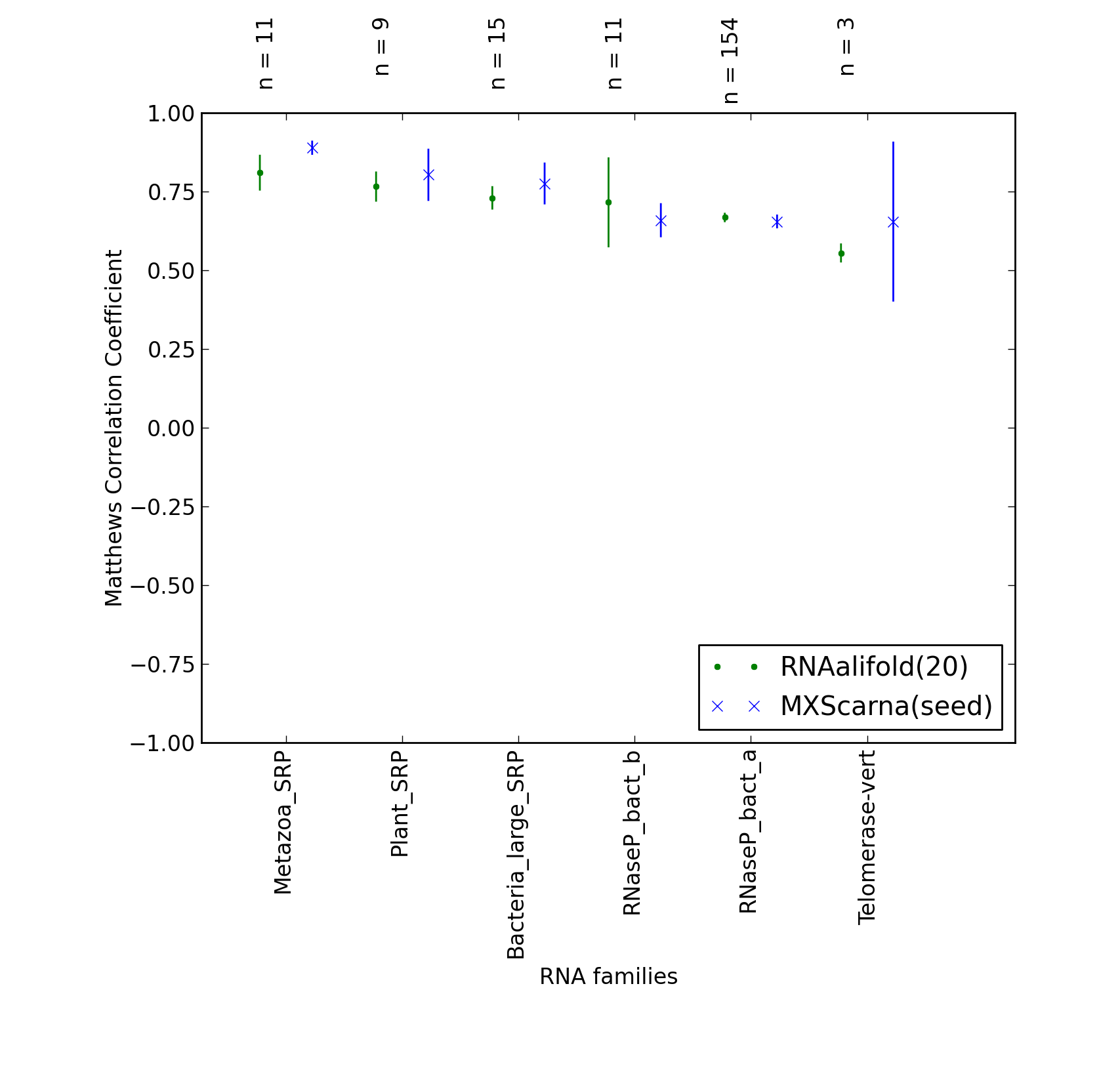

Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for MXScarna(seed) and RNAalifold(20)).
Comparison of average Matthews Correlation Coefficients (MCCs) for MXScarna(seed) and RNAalifold(20). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for MXScarna(seed) and RNAalifold(20)).

^top

Performance of MXScarna(seed) - scored higher in this pairwise comparison

1. Total counts & total scores for MXScarna(seed)

Total Base Pair Counts
Total TP	12348
Total TN	11558000
Total FP	3958
Total FP CONTRA	432
Total FP INCONS	2553
Total FP COMP	973
Total FN	8881

Total Scores
MCC	0.684
Average MCC ± 95% Confidence Intervals	0.683 ± 0.020
Sensitivity	0.582
Positive Predictive Value	0.805
Nr of predictions	205

^top

2. Individual counts for MXScarna(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
ASE_00004	RNaseP_bact_a links to Rfam database...	0.52	0.41	0.65	40	47833	24	4	18	2	57
ASE_00005	RNaseP_bact_a links to Rfam database...	0.72	0.57	0.92	67	57897	8	2	4	2	50
ASE_00006	RNaseP_bact_a links to Rfam database...	0.51	0.41	0.63	38	47526	25	3	19	3	55
ASE_00007	RNaseP_bact_a links to Rfam database...	0.82	0.75	0.90	83	59593	12	4	5	3	27
ASE_00012	RNaseP_bact_a links to Rfam database...	0.64	0.55	0.75	68	73829	26	4	19	3	55
ASE_00018	RNaseP_bact_a links to Rfam database...	0.77	0.64	0.91	86	80507	11	2	6	3	48
ASE_00020	RNaseP_bact_a links to Rfam database...	0.50	0.36	0.71	45	73857	21	6	12	3	81
ASE_00021	RNaseP_bact_a links to Rfam database...	0.49	0.36	0.66	57	104110	34	4	25	5	103
ASE_00022	RNaseP_bact_b links to Rfam database...	0.66	0.58	0.75	72	82932	31	5	19	7	52
ASE_00028	RNaseP_bact_b links to Rfam database...	0.69	0.60	0.78	76	84569	29	5	16	8	50
ASE_00035	RNaseP_bact_a links to Rfam database...	0.75	0.66	0.86	78	70409	18	3	10	5	40
ASE_00037	RNaseP_bact_a links to Rfam database...	0.86	0.79	0.94	87	59247	9	2	4	3	23
ASE_00038	RNaseP_bact_a links to Rfam database...	0.69	0.56	0.84	57	53560	14	1	10	3	44
ASE_00040	RNaseP_bact_a links to Rfam database...	0.69	0.59	0.80	78	78906	22	4	15	3	55
ASE_00041	RNaseP_bact_a links to Rfam database...	0.80	0.72	0.90	78	57543	12	2	7	3	30
ASE_00042	RNaseP_bact_a links to Rfam database...	0.68	0.52	0.87	76	90013	14	1	10	3	69
ASE_00044	RNaseP_bact_a links to Rfam database...	0.85	0.78	0.93	82	54527	9	3	3	3	23
ASE_00045	RNaseP_bact_b links to Rfam database...	0.64	0.58	0.72	46	47214	28	4	14	10	34
ASE_00064	RNaseP_bact_a links to Rfam database...	0.82	0.71	0.94	63	45384	7	1	3	3	26
ASE_00068	RNaseP_bact_a links to Rfam database...	0.67	0.52	0.88	44	37625	8	1	5	2	41
ASE_00074	RNaseP_bact_a links to Rfam database...	0.81	0.70	0.94	83	67808	9	2	3	4	36
ASE_00075	RNaseP_bact_a links to Rfam database...	0.49	0.35	0.69	56	108730	31	3	22	6	106
ASE_00077	RNaseP_bact_a links to Rfam database...	0.77	0.70	0.85	60	45079	14	4	7	3	26
ASE_00078	RNaseP_bact_a links to Rfam database...	0.79	0.72	0.87	60	43002	13	2	7	4	23
ASE_00080	RNaseP_bact_a links to Rfam database...	0.37	0.30	0.47	37	71552	44	6	36	2	86
ASE_00081	RNaseP_bact_a links to Rfam database...	0.76	0.67	0.87	65	49695	13	2	8	3	32
ASE_00082	RNaseP_bact_a links to Rfam database...	0.35	0.24	0.50	28	70444	31	1	27	3	88
ASE_00083	RNaseP_bact_a links to Rfam database...	0.71	0.56	0.89	62	62411	11	1	7	3	48
ASE_00084	RNaseP_bact_a links to Rfam database...	0.71	0.59	0.85	58	53560	14	1	9	4	41
ASE_00087	RNaseP_bact_a links to Rfam database...	0.31	0.21	0.46	30	88345	36	0	35	1	114
ASE_00090	RNaseP_bact_a links to Rfam database...	0.66	0.54	0.81	55	55543	16	2	11	3	46
ASE_00092	RNaseP_bact_a links to Rfam database...	0.56	0.43	0.73	49	63479	21	2	16	3	64
ASE_00099	RNaseP_bact_a links to Rfam database...	0.83	0.73	0.96	87	64529	7	2	2	3	33
ASE_00104	RNaseP_bact_a links to Rfam database...	0.82	0.73	0.93	87	64167	10	2	5	3	32
ASE_00105	RNaseP_bact_a links to Rfam database...	0.51	0.38	0.70	42	64201	21	5	13	3	69
ASE_00107	RNaseP_bact_a links to Rfam database...	0.78	0.68	0.91	86	73058	12	2	7	3	41
ASE_00114	RNaseP_bact_b links to Rfam database...	0.50	0.45	0.55	35	45387	40	4	25	11	42
ASE_00115	RNaseP_bact_a links to Rfam database...	0.54	0.43	0.68	43	54552	23	1	19	3	58
ASE_00118	RNaseP_bact_a links to Rfam database...	0.39	0.30	0.50	31	60664	34	3	28	3	71
ASE_00119	RNaseP_bact_a links to Rfam database...	0.30	0.24	0.38	26	62767	43	2	40	1	82
ASE_00123	RNaseP_bact_a links to Rfam database...	0.67	0.53	0.85	45	38450	10	2	6	2	40
ASE_00125	RNaseP_bact_a links to Rfam database...	0.68	0.51	0.90	45	39290	7	1	4	2	43
ASE_00128	RNaseP_bact_a links to Rfam database...	0.66	0.54	0.82	54	53235	15	1	11	3	46
ASE_00129	RNaseP_bact_a links to Rfam database...	0.68	0.53	0.88	59	62768	11	1	7	3	52
ASE_00131	RNaseP_bact_a links to Rfam database...	0.63	0.47	0.83	40	39292	10	1	7	2	45
ASE_00134	RNaseP_bact_a links to Rfam database...	0.73	0.62	0.86	59	50334	13	1	9	3	36
ASE_00135	RNaseP_bact_a links to Rfam database...	0.40	0.32	0.51	35	63121	35	4	30	1	74
ASE_00136	RNaseP_bact_a links to Rfam database...	0.78	0.67	0.91	62	48137	9	1	5	3	30
ASE_00137	RNaseP_bact_a links to Rfam database...	0.53	0.43	0.66	42	48452	25	2	20	3	56
ASE_00138	RNaseP_bact_a links to Rfam database...	0.73	0.63	0.85	51	40410	13	3	6	4	30
ASE_00140	RNaseP_bact_a links to Rfam database...	0.47	0.34	0.65	42	70811	26	3	20	3	83
ASE_00142	RNaseP_bact_a links to Rfam database...	0.79	0.70	0.89	86	67064	14	3	8	3	36
ASE_00146	RNaseP_bact_a links to Rfam database...	0.78	0.66	0.92	82	70787	10	2	5	3	42
ASE_00153	RNaseP_nuc links to Rfam database...	0.60	0.48	0.76	35	57584	26	0	11	15	38
ASE_00161	RNaseP_bact_b links to Rfam database...	0.69	0.64	0.75	56	53553	29	4	15	10	31
ASE_00163	RNaseP_bact_a links to Rfam database...	0.79	0.70	0.89	65	53228	11	2	6	3	28
ASE_00165	RNaseP_bact_a links to Rfam database...	0.56	0.43	0.74	43	52917	19	1	14	4	58
ASE_00170	RNaseP_bact_a links to Rfam database...	0.71	0.62	0.82	58	48757	16	2	11	3	35
ASE_00171	RNaseP_bact_a links to Rfam database...	0.59	0.49	0.71	46	48451	22	1	18	3	48
ASE_00172	RNaseP_bact_a links to Rfam database...	0.59	0.46	0.75	49	58931	19	4	12	3	57
ASE_00174	RNaseP_bact_a links to Rfam database...	0.54	0.42	0.69	46	61008	24	3	18	3	63
ASE_00175	RNaseP_bact_a links to Rfam database...	0.71	0.55	0.91	59	59966	9	1	5	3	48
ASE_00179	RNaseP_bact_a links to Rfam database...	0.57	0.49	0.66	41	44191	24	4	17	3	43
ASE_00180	RNaseP_bact_a links to Rfam database...	0.72	0.61	0.85	61	51288	14	2	9	3	39
ASE_00181	RNaseP_bact_a links to Rfam database...	0.59	0.45	0.76	48	57567	19	3	12	4	58
ASE_00182	RNaseP_bact_a links to Rfam database...	0.35	0.24	0.51	33	84190	33	3	29	1	103
ASE_00183	RNaseP_bact_a links to Rfam database...	0.65	0.52	0.81	59	61352	17	0	14	3	54
ASE_00184	RNaseP_bact_a links to Rfam database...	0.69	0.55	0.86	56	54550	12	0	9	3	46
ASE_00185	RNaseP_bact_a links to Rfam database...	0.23	0.16	0.32	21	73470	46	8	37	1	107
ASE_00186	RNaseP_bact_a links to Rfam database...	0.72	0.62	0.84	82	78905	21	2	14	5	50
ASE_00190	RNaseP_bact_b links to Rfam database...	0.53	0.42	0.67	38	45394	23	5	14	4	52
ASE_00197	RNaseP_bact_a links to Rfam database...	0.67	0.55	0.82	80	89156	20	2	15	3	65
ASE_00198	RNaseP_bact_a links to Rfam database...	0.75	0.61	0.93	62	52583	8	1	4	3	40
ASE_00203	RNaseP_bact_a links to Rfam database...	0.56	0.47	0.68	45	46599	24	1	20	3	51
ASE_00212	RNaseP_bact_a links to Rfam database...	0.67	0.54	0.82	80	93864	20	2	15	3	68
ASE_00214	RNaseP_bact_a links to Rfam database...	0.74	0.63	0.87	65	56205	13	2	8	3	38
ASE_00215	RNaseP_bact_a links to Rfam database...	0.38	0.26	0.54	26	48468	23	2	20	1	73
ASE_00216	RNaseP_bact_a links to Rfam database...	0.69	0.59	0.81	48	39281	14	3	8	3	34
ASE_00217	RNaseP_bact_a links to Rfam database...	0.81	0.71	0.93	64	40401	8	2	3	3	26
ASE_00221	RNaseP_bact_a links to Rfam database...	0.78	0.69	0.89	81	64529	13	2	8	3	36
ASE_00228	RNaseP_bact_a links to Rfam database...	0.62	0.51	0.76	44	46913	18	2	12	4	42
ASE_00229	RNaseP_bact_a links to Rfam database...	0.72	0.62	0.84	54	42422	13	1	9	3	33
ASE_00231	RNaseP_bact_a links to Rfam database...	0.49	0.40	0.60	38	47832	27	5	20	2	58
ASE_00232	RNaseP_bact_a links to Rfam database...	0.63	0.57	0.71	48	38435	23	4	16	3	36
ASE_00234	RNaseP_bact_a links to Rfam database...	0.23	0.17	0.32	22	75398	48	3	43	2	107
ASE_00238	RNaseP_bact_a links to Rfam database...	0.54	0.39	0.76	44	64203	17	3	11	3	70
ASE_00241	RNaseP_bact_a links to Rfam database...	0.80	0.72	0.89	63	43885	11	2	6	3	24
ASE_00242	RNaseP_bact_a links to Rfam database...	0.82	0.75	0.90	84	60982	12	2	7	3	28
ASE_00248	RNaseP_bact_a links to Rfam database...	0.81	0.72	0.92	82	62392	11	2	5	4	32
ASE_00254	RNaseP_bact_a links to Rfam database...	0.67	0.59	0.77	48	36794	17	1	13	3	34
ASE_00255	RNaseP_bact_a links to Rfam database...	0.61	0.50	0.74	65	74603	26	5	18	3	65
ASE_00257	RNaseP_bact_a links to Rfam database...	0.72	0.58	0.90	56	50978	9	4	2	3	41
ASE_00263	RNaseP_bact_a links to Rfam database...	0.52	0.39	0.68	47	70431	25	3	19	3	73
ASE_00267	RNaseP_bact_a links to Rfam database...	0.75	0.65	0.86	57	45084	12	2	7	3	31
ASE_00270	RNaseP_bact_a links to Rfam database...	0.39	0.27	0.56	35	72328	32	0	27	5	93
ASE_00274	RNaseP_bact_a links to Rfam database...	0.60	0.48	0.77	49	55547	18	1	14	3	54
ASE_00277	RNaseP_bact_a links to Rfam database...	0.60	0.48	0.75	44	48146	19	1	14	4	47
ASE_00279	RNaseP_bact_a links to Rfam database...	0.78	0.65	0.93	66	53230	8	2	3	3	35
ASE_00280	RNaseP_bact_a links to Rfam database...	0.73	0.62	0.85	61	51931	14	1	10	3	37
ASE_00281	RNaseP_bact_a links to Rfam database...	0.79	0.68	0.91	60	44485	9	2	4	3	28
ASE_00282	RNaseP_bact_a links to Rfam database...	0.48	0.35	0.65	45	77746	26	3	21	2	82
ASE_00283	RNaseP_bact_a links to Rfam database...	0.68	0.56	0.82	60	61703	16	2	11	3	47
ASE_00284	RNaseP_bact_a links to Rfam database...	0.67	0.54	0.84	58	58242	14	2	9	3	50
ASE_00285	RNaseP_bact_a links to Rfam database...	0.51	0.40	0.64	49	68930	30	2	25	3	73
ASE_00286	RNaseP_bact_a links to Rfam database...	0.68	0.58	0.82	53	46600	15	1	11	3	39
ASE_00287	RNaseP_bact_a links to Rfam database...	0.67	0.54	0.84	56	54879	14	2	9	3	47
ASE_00292	RNaseP_bact_a links to Rfam database...	0.77	0.65	0.92	90	81712	11	3	5	3	48
ASE_00294	RNaseP_bact_a links to Rfam database...	0.67	0.51	0.87	88	114380	16	2	11	3	83
ASE_00296	RNaseP_bact_a links to Rfam database...	0.68	0.54	0.87	78	91716	15	3	9	3	67
ASE_00297	RNaseP_bact_a links to Rfam database...	0.62	0.50	0.77	49	52911	18	0	15	3	49
ASE_00298	RNaseP_bact_a links to Rfam database...	0.55	0.42	0.72	47	67463	21	4	14	3	66
ASE_00305	RNaseP_bact_b links to Rfam database...	0.73	0.68	0.77	58	54540	28	4	13	11	27
ASE_00318	RNaseP_bact_b links to Rfam database...	0.63	0.54	0.74	64	80113	37	6	17	14	54
ASE_00321	RNaseP_bact_b links to Rfam database...	0.74	0.69	0.79	61	54538	25	4	12	9	27
ASE_00328	RNaseP_bact_b links to Rfam database...	0.73	0.66	0.80	74	72679	31	5	13	13	38
ASE_00332	RNaseP_bact_a links to Rfam database...	0.74	0.63	0.88	87	81711	15	2	10	3	51
ASE_00335	RNaseP_bact_b links to Rfam database...	0.72	0.66	0.78	76	75369	33	6	15	12	40
ASE_00340	RNaseP_bact_a links to Rfam database...	0.51	0.45	0.59	38	45992	31	3	23	5	47
ASE_00342	RNaseP_bact_a links to Rfam database...	0.81	0.72	0.91	83	62390	11	3	5	3	32
ASE_00353	RNaseP_bact_a links to Rfam database...	0.69	0.56	0.86	60	57900	13	1	9	3	47
ASE_00361	RNaseP_bact_a links to Rfam database...	0.66	0.46	0.94	59	75403	7	1	3	3	68
ASE_00362	RNaseP_bact_a links to Rfam database...	0.76	0.66	0.88	60	48137	12	2	6	4	31
ASE_00363	RNaseP_bact_a links to Rfam database...	0.77	0.63	0.94	59	51297	7	1	3	3	35
ASE_00364	RNaseP_bact_a links to Rfam database...	0.70	0.57	0.87	60	54216	12	1	8	3	45
ASE_00366	RNaseP_bact_a links to Rfam database...	0.58	0.48	0.70	47	58586	23	6	14	3	51
ASE_00367	RNaseP_bact_a links to Rfam database...	0.79	0.71	0.88	61	43002	11	2	6	3	25
ASE_00369	RNaseP_bact_a links to Rfam database...	0.71	0.58	0.86	62	55873	13	1	9	3	45
ASE_00370	RNaseP_bact_a links to Rfam database...	0.81	0.71	0.92	60	41840	8	1	4	3	24
ASE_00372	RNaseP_bact_a links to Rfam database...	0.57	0.45	0.71	45	51940	21	2	16	3	55
ASE_00374	RNaseP_bact_a links to Rfam database...	0.79	0.68	0.91	60	44784	9	2	4	3	28
ASE_00376	RNaseP_bact_a links to Rfam database...	0.65	0.55	0.76	58	56877	21	2	16	3	47
ASE_00377	RNaseP_bact_a links to Rfam database...	0.72	0.58	0.89	62	57560	11	1	7	3	45
ASE_00379	RNaseP_bact_a links to Rfam database...	0.76	0.66	0.87	59	45988	12	2	7	3	30
ASE_00382	RNaseP_bact_a links to Rfam database...	0.79	0.71	0.88	60	41837	11	2	6	3	24
ASE_00383	RNaseP_bact_a links to Rfam database...	0.78	0.67	0.91	70	54538	10	2	5	3	35
ASE_00384	RNaseP_bact_a links to Rfam database...	0.72	0.61	0.85	56	48450	13	1	9	3	36
ASE_00386	RNaseP_bact_a links to Rfam database...	0.75	0.61	0.92	59	50339	8	1	4	3	37
ASE_00387	RNaseP_bact_a links to Rfam database...	0.60	0.50	0.71	52	55872	25	2	19	4	52
ASE_00388	RNaseP_bact_a links to Rfam database...	0.74	0.64	0.85	57	45686	14	2	8	4	32
ASE_00390	RNaseP_bact_a links to Rfam database...	0.78	0.68	0.89	58	42130	10	2	5	3	27
ASE_00393	RNaseP_bact_a links to Rfam database...	0.68	0.57	0.82	53	47830	15	1	11	3	40
ASE_00394	RNaseP_bact_a links to Rfam database...	0.73	0.62	0.87	58	46904	12	1	8	3	35
ASE_00395	RNaseP_bact_a links to Rfam database...	0.82	0.71	0.94	60	41552	7	1	3	3	24
ASE_00396	RNaseP_bact_a links to Rfam database...	0.75	0.66	0.85	55	41551	12	2	8	2	28
ASE_00397	RNaseP_bact_a links to Rfam database...	0.74	0.61	0.90	64	54544	10	2	5	3	41
ASE_00398	RNaseP_bact_a links to Rfam database...	0.65	0.52	0.82	54	55879	15	0	12	3	50
ASE_00400	RNaseP_bact_a links to Rfam database...	0.45	0.37	0.56	39	57900	33	2	29	2	67
ASE_00401	RNaseP_bact_a links to Rfam database...	0.55	0.40	0.76	51	76961	19	0	16	3	75
ASE_00402	RNaseP_bact_a links to Rfam database...	0.83	0.74	0.94	63	42419	7	1	3	3	22
ASE_00403	RNaseP_bact_a links to Rfam database...	0.71	0.57	0.90	61	55877	10	1	6	3	46
ASE_00404	RNaseP_bact_a links to Rfam database...	0.78	0.67	0.90	57	43008	10	2	4	4	28
ASE_00406	RNaseP_bact_a links to Rfam database...	0.79	0.68	0.93	64	48759	8	2	3	3	30
ASE_00411	RNaseP_bact_a links to Rfam database...	0.59	0.48	0.72	43	49395	20	2	15	3	46
ASE_00412	RNaseP_bact_a links to Rfam database...	0.55	0.42	0.72	44	58250	20	1	16	3	61
ASE_00413	RNaseP_bact_a links to Rfam database...	0.68	0.57	0.82	46	44495	14	1	9	4	35
ASE_00415	RNaseP_bact_a links to Rfam database...	0.39	0.31	0.48	32	54880	36	3	31	2	71
ASE_00416	RNaseP_bact_a links to Rfam database...	0.69	0.60	0.80	76	77326	23	3	16	4	51
ASE_00419	RNaseP_bact_a links to Rfam database...	0.59	0.49	0.72	50	54877	20	3	16	1	53
ASE_00422	RNaseP_bact_a links to Rfam database...	0.58	0.49	0.69	46	46904	24	3	18	3	48
ASE_00423	RNaseP_bact_a links to Rfam database...	0.81	0.72	0.90	79	56865	13	3	6	4	30
ASE_00427	RNaseP_nuc links to Rfam database...	0.56	0.41	0.76	19	40730	18	1	5	12	27
ASE_00428	RNaseP_bact_a links to Rfam database...	0.69	0.60	0.80	75	76542	22	5	14	3	50
ASE_00430	RNaseP_bact_a links to Rfam database...	0.55	0.45	0.68	44	46906	24	1	20	3	53
ASE_00437	RNaseP_bact_a links to Rfam database...	0.58	0.50	0.69	67	79304	33	2	28	3	68
ASE_00441	RNaseP_bact_a links to Rfam database...	0.32	0.24	0.43	27	64198	40	4	32	4	85
ASE_00448	RNaseP_bact_a links to Rfam database...	0.80	0.72	0.88	81	64169	14	2	9	3	31
ASE_00451	RNaseP_bact_a links to Rfam database...	0.77	0.66	0.88	83	70782	14	2	9	3	42
RFA_00599	Telomerase-vert links to Rfam database...	0.54	0.51	0.57	57	101375	62	5	38	19	54
RFA_00601	Telomerase-vert links to Rfam database...	0.74	0.73	0.75	83	99124	49	4	24	21	31
RFA_00602	Telomerase-vert links to Rfam database...	0.69	0.68	0.69	79	101361	50	5	30	15	37
SRP_00006	Metazoa_SRP links to Rfam database...	0.84	0.82	0.86	83	45657	22	0	13	9	18
SRP_00011	Plant_SRP links to Rfam database...	0.77	0.77	0.78	80	46257	31	0	23	8	24
SRP_00015	Plant_SRP links to Rfam database...	0.87	0.85	0.89	84	46266	25	0	10	15	15
SRP_00024	Bacteria_large_SRP links to Rfam database...	0.81	0.75	0.88	65	37601	13	0	9	4	22
SRP_00026	Bacteria_large_SRP links to Rfam database...	0.80	0.73	0.88	64	36783	15	0	9	6	24
SRP_00027	Bacteria_large_SRP links to Rfam database...	0.83	0.76	0.90	66	37055	14	0	7	7	21
SRP_00030	Bacteria_large_SRP links to Rfam database...	0.84	0.78	0.91	69	36780	11	0	7	4	19
SRP_00031	Bacteria_large_SRP links to Rfam database...	0.84	0.78	0.91	69	36239	11	0	7	4	20
SRP_00037	Bacteria_large_SRP links to Rfam database...	0.84	0.77	0.92	67	36512	13	0	6	7	20
SRP_00050	Metazoa_SRP links to Rfam database...	0.92	0.91	0.94	90	44754	20	0	6	14	9
SRP_00066	Metazoa_SRP links to Rfam database...	0.85	0.83	0.86	83	45355	25	0	13	12	17
SRP_00086	Metazoa_SRP links to Rfam database...	0.91	0.90	0.93	90	44156	17	0	7	10	10
SRP_00088	Bacteria_large_SRP links to Rfam database...	0.77	0.69	0.86	61	34120	13	1	9	3	28
SRP_00089	Bacteria_large_SRP links to Rfam database...	0.80	0.73	0.88	66	35703	13	1	8	4	24
SRP_00090	Bacteria_large_SRP links to Rfam database...	0.78	0.71	0.86	64	35437	14	1	9	4	26
SRP_00102	Metazoa_SRP links to Rfam database...	0.90	0.88	0.93	89	44455	16	0	7	9	12
SRP_00103	Metazoa_SRP links to Rfam database...	0.91	0.89	0.92	91	45352	17	0	8	9	11
SRP_00152	Plant_SRP links to Rfam database...	0.88	0.86	0.89	89	45653	21	0	11	10	14
SRP_00171	Metazoa_SRP links to Rfam database...	0.83	0.83	0.84	73	45364	36	0	14	22	15
SRP_00173	Bacteria_large_SRP links to Rfam database...	0.78	0.70	0.86	63	38153	15	0	10	5	27
SRP_00174	Bacteria_large_SRP links to Rfam database...	0.77	0.71	0.84	61	38708	15	0	12	3	25
SRP_00178	Plant_SRP links to Rfam database...	0.89	0.88	0.89	90	45652	23	0	11	12	12
SRP_00179	Plant_SRP links to Rfam database...	0.87	0.86	0.88	90	45954	23	0	12	11	15
SRP_00181	Plant_SRP links to Rfam database...	0.80	0.79	0.80	81	45955	30	0	20	10	21
SRP_00182	Plant_SRP links to Rfam database...	0.84	0.83	0.85	84	45957	25	0	15	10	17
SRP_00184	Plant_SRP links to Rfam database...	0.78	0.77	0.79	77	45958	34	0	21	13	23
SRP_00188	Plant_SRP links to Rfam database...	0.54	0.51	0.58	40	31056	32	7	22	3	39
SRP_00228	Metazoa_SRP links to Rfam database...	0.89	0.87	0.90	83	45359	23	0	9	14	12
SRP_00234	Bacteria_large_SRP links to Rfam database...	0.84	0.76	0.93	65	36245	14	0	5	9	21
SRP_00308	Bacteria_large_SRP links to Rfam database...	0.82	0.73	0.91	64	36245	15	0	6	9	24
SRP_00317	Metazoa_SRP links to Rfam database...	0.89	0.87	0.92	85	45058	22	0	7	15	13
SRP_00335	Bacteria_large_SRP links to Rfam database...	0.35	0.44	0.29	17	35186	58	21	21	16	22
SRP_00337	Bacteria_large_SRP links to Rfam database...	0.78	0.71	0.84	65	35434	14	1	11	2	26
SRP_00347	Metazoa_SRP links to Rfam database...	0.93	0.93	0.94	89	46570	18	0	6	12	7
SRP_00368	Metazoa_SRP links to Rfam database...	0.90	0.88	0.92	86	43863	19	0	7	12	12

^top

Performance of RNAalifold(20) - scored lower in this pairwise comparison

1. Total counts & total scores for RNAalifold(20)

Total Base Pair Counts
Total TP	11494
Total TN	11559696
Total FP	2464
Total FP CONTRA	315
Total FP INCONS	1828
Total FP COMP	321
Total FN	9735

Total Scores
MCC	0.675
Average MCC ± 95% Confidence Intervals	0.675 ± 0.014
Sensitivity	0.541
Positive Predictive Value	0.843
Nr of predictions	205

^top

2. Individual counts for RNAalifold(20) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
ASE_00004	RNaseP_bact_a links to Rfam database...	0.58	0.45	0.75	44	47836	15	1	14	0	53
ASE_00005	RNaseP_bact_a links to Rfam database...	0.64	0.49	0.85	57	57903	10	1	9	0	60
ASE_00006	RNaseP_bact_a links to Rfam database...	0.68	0.56	0.83	52	47523	12	0	11	1	41
ASE_00007	RNaseP_bact_a links to Rfam database...	0.75	0.63	0.90	69	59608	8	1	7	0	41
ASE_00012	RNaseP_bact_a links to Rfam database...	0.55	0.45	0.68	55	73839	30	1	25	4	68
ASE_00018	RNaseP_bact_a links to Rfam database...	0.74	0.60	0.91	80	80513	8	3	5	0	54
ASE_00020	RNaseP_bact_a links to Rfam database...	0.49	0.35	0.70	44	73857	20	7	12	1	82
ASE_00021	RNaseP_bact_a links to Rfam database...	0.54	0.41	0.73	65	104107	28	4	20	4	95
ASE_00022	RNaseP_bact_b links to Rfam database...	0.74	0.62	0.89	77	82941	16	0	10	6	47
ASE_00028	RNaseP_bact_b links to Rfam database...	0.76	0.62	0.93	78	84582	10	1	5	4	48
ASE_00035	RNaseP_bact_a links to Rfam database...	0.67	0.54	0.83	64	70423	19	2	11	6	54
ASE_00037	RNaseP_bact_a links to Rfam database...	0.72	0.62	0.83	68	59258	18	0	14	4	42
ASE_00038	RNaseP_bact_a links to Rfam database...	0.65	0.51	0.81	52	53564	12	1	11	0	49
ASE_00040	RNaseP_bact_a links to Rfam database...	0.69	0.55	0.86	73	78918	13	1	11	1	60
ASE_00041	RNaseP_bact_a links to Rfam database...	0.73	0.65	0.82	70	57545	15	0	15	0	38
ASE_00042	RNaseP_bact_a links to Rfam database...	0.52	0.39	0.70	57	90018	25	1	24	0	88
ASE_00044	RNaseP_bact_a links to Rfam database...	0.74	0.63	0.88	66	54540	9	1	8	0	39
ASE_00045	RNaseP_bact_b links to Rfam database...	0.73	0.69	0.77	55	47207	21	2	14	5	25
ASE_00064	RNaseP_bact_a links to Rfam database...	0.72	0.61	0.84	54	45387	13	0	10	3	35
ASE_00068	RNaseP_bact_a links to Rfam database...	0.73	0.55	0.96	47	37626	2	2	0	0	38
ASE_00074	RNaseP_bact_a links to Rfam database...	0.72	0.61	0.86	72	67812	14	0	12	2	47
ASE_00075	RNaseP_bact_a links to Rfam database...	0.55	0.40	0.76	65	108725	27	3	18	6	97
ASE_00077	RNaseP_bact_a links to Rfam database...	0.79	0.65	0.97	56	45092	5	1	1	3	30
ASE_00078	RNaseP_bact_a links to Rfam database...	0.77	0.70	0.84	58	43002	11	3	8	0	25
ASE_00080	RNaseP_bact_a links to Rfam database...	0.43	0.32	0.59	39	71565	27	3	24	0	84
ASE_00081	RNaseP_bact_a links to Rfam database...	0.72	0.56	0.93	54	49712	4	0	4	0	43
ASE_00082	RNaseP_bact_a links to Rfam database...	0.49	0.34	0.72	39	70446	21	1	14	6	77
ASE_00083	RNaseP_bact_a links to Rfam database...	0.77	0.62	0.96	68	62410	4	2	1	1	42
ASE_00084	RNaseP_bact_a links to Rfam database...	0.61	0.51	0.75	50	53561	17	4	13	0	49
ASE_00087	RNaseP_bact_a links to Rfam database...	0.64	0.44	0.93	64	88341	5	0	5	0	80
ASE_00090	RNaseP_bact_a links to Rfam database...	0.72	0.55	0.93	56	55551	4	0	4	0	45
ASE_00092	RNaseP_bact_a links to Rfam database...	0.73	0.58	0.93	65	63476	6	1	4	1	48
ASE_00099	RNaseP_bact_a links to Rfam database...	0.76	0.64	0.90	77	64534	11	0	9	2	43
ASE_00104	RNaseP_bact_a links to Rfam database...	0.66	0.54	0.81	64	64182	15	2	13	0	55
ASE_00105	RNaseP_bact_a links to Rfam database...	0.62	0.49	0.78	54	64192	18	2	13	3	57
ASE_00107	RNaseP_bact_a links to Rfam database...	0.72	0.58	0.90	74	73071	8	0	8	0	53
ASE_00114	RNaseP_bact_b links to Rfam database...	0.68	0.65	0.70	50	45380	31	0	21	10	27
ASE_00115	RNaseP_bact_a links to Rfam database...	0.73	0.60	0.88	61	54546	12	1	7	4	40
ASE_00118	RNaseP_bact_a links to Rfam database...	0.58	0.44	0.78	45	60668	14	4	9	1	57
ASE_00119	RNaseP_bact_a links to Rfam database...	0.57	0.41	0.80	44	62780	11	3	8	0	64
ASE_00123	RNaseP_bact_a links to Rfam database...	0.67	0.54	0.84	46	38448	9	2	7	0	39
ASE_00125	RNaseP_bact_a links to Rfam database...	0.70	0.55	0.89	48	39286	6	0	6	0	40
ASE_00128	RNaseP_bact_a links to Rfam database...	0.74	0.60	0.91	60	53235	6	0	6	0	40
ASE_00129	RNaseP_bact_a links to Rfam database...	0.65	0.49	0.86	54	62772	9	3	6	0	57
ASE_00131	RNaseP_bact_a links to Rfam database...	0.62	0.48	0.80	41	39289	10	3	7	0	44
ASE_00134	RNaseP_bact_a links to Rfam database...	0.64	0.52	0.80	49	50342	12	3	9	0	46
ASE_00135	RNaseP_bact_a links to Rfam database...	0.49	0.38	0.63	41	63125	24	1	23	0	68
ASE_00136	RNaseP_bact_a links to Rfam database...	0.80	0.67	0.95	62	48140	3	2	1	0	30
ASE_00137	RNaseP_bact_a links to Rfam database...	0.62	0.45	0.85	44	48464	9	2	6	1	54
ASE_00138	RNaseP_bact_a links to Rfam database...	0.71	0.62	0.81	50	40408	15	0	12	3	31
ASE_00140	RNaseP_bact_a links to Rfam database...	0.69	0.51	0.93	64	70807	5	1	4	0	61
ASE_00142	RNaseP_bact_a links to Rfam database...	0.70	0.58	0.84	71	67076	16	0	14	2	51
ASE_00146	RNaseP_bact_a links to Rfam database...	0.78	0.67	0.91	83	70785	11	1	7	3	41
ASE_00153	RNaseP_nuc links to Rfam database...	0.41	0.34	0.50	25	57580	28	1	24	3	48
ASE_00161	RNaseP_bact_b links to Rfam database...	0.83	0.80	0.86	70	53547	17	0	11	6	17
ASE_00163	RNaseP_bact_a links to Rfam database...	0.64	0.52	0.79	48	53240	13	4	9	0	45
ASE_00165	RNaseP_bact_a links to Rfam database...	0.66	0.48	0.91	48	52922	6	1	4	1	53
ASE_00170	RNaseP_bact_a links to Rfam database...	0.62	0.53	0.74	49	48762	18	4	13	1	44
ASE_00171	RNaseP_bact_a links to Rfam database...	0.60	0.46	0.80	43	48462	11	4	7	0	51
ASE_00172	RNaseP_bact_a links to Rfam database...	0.80	0.67	0.95	71	58921	7	3	1	3	35
ASE_00174	RNaseP_bact_a links to Rfam database...	0.56	0.41	0.75	45	61015	15	2	13	0	64
ASE_00175	RNaseP_bact_a links to Rfam database...	0.61	0.50	0.74	54	59958	19	3	16	0	53
ASE_00179	RNaseP_bact_a links to Rfam database...	0.78	0.68	0.90	57	44190	6	2	4	0	27
ASE_00180	RNaseP_bact_a links to Rfam database...	0.66	0.53	0.82	53	51295	12	4	8	0	47
ASE_00181	RNaseP_bact_a links to Rfam database...	0.58	0.42	0.80	45	57574	12	3	8	1	61
ASE_00182	RNaseP_bact_a links to Rfam database...	0.44	0.29	0.68	39	84198	18	4	14	0	97
ASE_00183	RNaseP_bact_a links to Rfam database...	0.55	0.39	0.79	44	61369	12	4	8	0	69
ASE_00184	RNaseP_bact_a links to Rfam database...	0.65	0.50	0.84	51	54554	10	3	7	0	51
ASE_00185	RNaseP_bact_a links to Rfam database...	0.70	0.51	0.97	65	73469	2	1	1	0	63
ASE_00186	RNaseP_bact_a links to Rfam database...	0.62	0.49	0.79	65	78921	19	2	15	2	67
ASE_00190	RNaseP_bact_b links to Rfam database...	0.64	0.52	0.78	47	45391	17	0	13	4	43
ASE_00197	RNaseP_bact_a links to Rfam database...	0.50	0.37	0.69	53	89176	24	0	24	0	92
ASE_00198	RNaseP_bact_a links to Rfam database...	0.68	0.54	0.86	55	52586	9	1	8	0	47
ASE_00203	RNaseP_bact_a links to Rfam database...	0.65	0.51	0.83	49	46606	10	2	8	0	47
ASE_00212	RNaseP_bact_a links to Rfam database...	0.64	0.49	0.84	73	93874	17	0	14	3	75
ASE_00214	RNaseP_bact_a links to Rfam database...	0.69	0.51	0.93	53	56223	5	0	4	1	50
ASE_00215	RNaseP_bact_a links to Rfam database...	0.69	0.49	0.96	49	48465	2	2	0	0	50
ASE_00216	RNaseP_bact_a links to Rfam database...	0.77	0.61	0.96	50	39288	3	0	2	1	32
ASE_00217	RNaseP_bact_a links to Rfam database...	0.78	0.67	0.91	60	40404	7	2	4	1	30
ASE_00221	RNaseP_bact_a links to Rfam database...	0.78	0.68	0.89	80	64530	10	1	9	0	37
ASE_00228	RNaseP_bact_a links to Rfam database...	0.70	0.62	0.79	53	46904	15	5	9	1	33
ASE_00229	RNaseP_bact_a links to Rfam database...	0.74	0.61	0.90	53	42427	8	0	6	2	34
ASE_00231	RNaseP_bact_a links to Rfam database...	0.59	0.46	0.76	44	47837	18	0	14	4	52
ASE_00232	RNaseP_bact_a links to Rfam database...	0.78	0.65	0.93	55	38444	4	0	4	0	29
ASE_00234	RNaseP_bact_a links to Rfam database...	0.50	0.32	0.77	41	75413	12	3	9	0	88
ASE_00238	RNaseP_bact_a links to Rfam database...	0.59	0.46	0.78	52	64194	16	0	15	1	62
ASE_00241	RNaseP_bact_a links to Rfam database...	0.70	0.60	0.83	52	43893	14	3	8	3	35
ASE_00242	RNaseP_bact_a links to Rfam database...	0.73	0.62	0.87	69	60996	11	1	9	1	43
ASE_00248	RNaseP_bact_a links to Rfam database...	0.73	0.62	0.87	71	62399	11	3	8	0	43
ASE_00254	RNaseP_bact_a links to Rfam database...	0.79	0.68	0.92	56	36795	6	0	5	1	26
ASE_00255	RNaseP_bact_a links to Rfam database...	0.49	0.40	0.60	52	74605	35	1	33	1	78
ASE_00257	RNaseP_bact_a links to Rfam database...	0.62	0.52	0.75	50	50973	17	3	14	0	47
ASE_00263	RNaseP_bact_a links to Rfam database...	0.61	0.44	0.85	53	70438	9	1	8	0	67
ASE_00267	RNaseP_bact_a links to Rfam database...	0.82	0.75	0.89	66	45076	9	3	5	1	22
ASE_00270	RNaseP_bact_a links to Rfam database...	0.30	0.18	0.50	23	72344	25	1	22	2	105
ASE_00274	RNaseP_bact_a links to Rfam database...	0.50	0.36	0.69	37	55557	17	5	12	0	66
ASE_00277	RNaseP_bact_a links to Rfam database...	0.48	0.37	0.62	34	48150	21	4	17	0	57
ASE_00279	RNaseP_bact_a links to Rfam database...	0.74	0.60	0.91	61	53234	6	0	6	0	40
ASE_00280	RNaseP_bact_a links to Rfam database...	0.68	0.55	0.84	54	51939	10	1	9	0	44
ASE_00281	RNaseP_bact_a links to Rfam database...	0.87	0.76	0.99	67	44483	1	0	1	0	21
ASE_00282	RNaseP_bact_a links to Rfam database...	0.59	0.43	0.82	54	77749	12	3	9	0	73
ASE_00283	RNaseP_bact_a links to Rfam database...	0.65	0.51	0.83	55	61710	11	2	9	0	52
ASE_00284	RNaseP_bact_a links to Rfam database...	0.70	0.53	0.92	57	58249	5	0	5	0	51
ASE_00285	RNaseP_bact_a links to Rfam database...	0.63	0.48	0.84	58	68937	11	2	9	0	64
ASE_00286	RNaseP_bact_a links to Rfam database...	0.79	0.66	0.94	61	46600	4	0	4	0	31
ASE_00287	RNaseP_bact_a links to Rfam database...	0.63	0.48	0.84	49	54888	9	1	8	0	54
ASE_00292	RNaseP_bact_a links to Rfam database...	0.69	0.56	0.85	77	81719	14	3	11	0	61
ASE_00294	RNaseP_bact_a links to Rfam database...	0.64	0.47	0.87	81	114388	14	2	10	2	90
ASE_00296	RNaseP_bact_a links to Rfam database...	0.62	0.47	0.81	68	91722	16	3	13	0	77
ASE_00297	RNaseP_bact_a links to Rfam database...	0.69	0.52	0.93	51	52920	7	0	4	3	47
ASE_00298	RNaseP_bact_a links to Rfam database...	0.65	0.51	0.83	58	67458	12	5	7	0	55
ASE_00305	RNaseP_bact_b links to Rfam database...	0.70	0.62	0.79	53	54548	24	1	13	10	32
ASE_00318	RNaseP_bact_b links to Rfam database...	0.74	0.60	0.91	71	80122	17	2	5	10	47
ASE_00321	RNaseP_bact_b links to Rfam database...	0.81	0.74	0.88	65	54541	20	1	8	11	23
ASE_00328	RNaseP_bact_b links to Rfam database...	0.71	0.64	0.77	72	72678	27	5	16	6	40
ASE_00332	RNaseP_bact_a links to Rfam database...	0.76	0.63	0.92	87	81715	8	0	8	0	51
ASE_00335	RNaseP_bact_b links to Rfam database...	0.70	0.62	0.80	72	75376	24	5	13	6	44
ASE_00340	RNaseP_bact_a links to Rfam database...	0.65	0.55	0.76	47	45994	15	7	8	0	38
ASE_00342	RNaseP_bact_a links to Rfam database...	0.72	0.61	0.86	70	62400	14	3	8	3	45
ASE_00353	RNaseP_bact_a links to Rfam database...	0.65	0.50	0.84	53	57907	10	1	9	0	54
ASE_00361	RNaseP_bact_a links to Rfam database...	0.69	0.51	0.93	65	75396	5	1	4	0	62
ASE_00362	RNaseP_bact_a links to Rfam database...	0.75	0.63	0.90	57	48142	6	2	4	0	34
ASE_00363	RNaseP_bact_a links to Rfam database...	0.72	0.63	0.83	59	51289	12	2	10	0	35
ASE_00364	RNaseP_bact_a links to Rfam database...	0.55	0.39	0.77	41	54232	12	1	11	0	64
ASE_00366	RNaseP_bact_a links to Rfam database...	0.51	0.37	0.71	36	58602	16	1	14	1	62
ASE_00367	RNaseP_bact_a links to Rfam database...	0.78	0.65	0.93	56	43011	4	0	4	0	30
ASE_00369	RNaseP_bact_a links to Rfam database...	0.69	0.57	0.84	61	55872	12	3	9	0	46
ASE_00370	RNaseP_bact_a links to Rfam database...	0.66	0.51	0.84	43	41854	8	0	8	0	41
ASE_00372	RNaseP_bact_a links to Rfam database...	0.74	0.62	0.87	62	51932	9	0	9	0	38
ASE_00374	RNaseP_bact_a links to Rfam database...	0.74	0.59	0.93	52	44794	4	0	4	0	36
ASE_00376	RNaseP_bact_a links to Rfam database...	0.73	0.58	0.92	61	56887	6	0	5	1	44
ASE_00377	RNaseP_bact_a links to Rfam database...	0.73	0.59	0.90	63	57560	7	0	7	0	44
ASE_00379	RNaseP_bact_a links to Rfam database...	0.75	0.62	0.90	55	45995	6	2	4	0	34
ASE_00382	RNaseP_bact_a links to Rfam database...	0.70	0.60	0.82	50	41844	11	2	9	0	34
ASE_00383	RNaseP_bact_a links to Rfam database...	0.77	0.66	0.90	69	54538	11	3	5	3	36
ASE_00384	RNaseP_bact_a links to Rfam database...	0.74	0.59	0.93	54	48458	4	0	4	0	38
ASE_00386	RNaseP_bact_a links to Rfam database...	0.75	0.64	0.90	61	50335	7	2	5	0	35
ASE_00387	RNaseP_bact_a links to Rfam database...	0.74	0.61	0.90	63	55875	7	0	7	0	41
ASE_00388	RNaseP_bact_a links to Rfam database...	0.73	0.61	0.87	54	45691	10	1	7	2	35
ASE_00390	RNaseP_bact_a links to Rfam database...	0.73	0.60	0.88	51	42137	7	0	7	0	34
ASE_00393	RNaseP_bact_a links to Rfam database...	0.67	0.58	0.78	54	47826	16	2	13	1	39
ASE_00394	RNaseP_bact_a links to Rfam database...	0.68	0.56	0.83	52	46908	11	3	8	0	41
ASE_00395	RNaseP_bact_a links to Rfam database...	0.87	0.79	0.97	66	41548	2	0	2	0	18
ASE_00396	RNaseP_bact_a links to Rfam database...	0.74	0.63	0.88	52	41557	7	0	7	0	31
ASE_00397	RNaseP_bact_a links to Rfam database...	0.78	0.64	0.96	67	54545	5	3	0	2	38
ASE_00398	RNaseP_bact_a links to Rfam database...	0.63	0.48	0.82	50	55884	12	3	8	1	54
ASE_00400	RNaseP_bact_a links to Rfam database...	0.78	0.66	0.92	70	57894	11	3	3	5	36
ASE_00401	RNaseP_bact_a links to Rfam database...	0.54	0.37	0.81	46	76971	11	3	8	0	80
ASE_00402	RNaseP_bact_a links to Rfam database...	0.78	0.66	0.93	56	42426	4	0	4	0	29
ASE_00403	RNaseP_bact_a links to Rfam database...	0.69	0.51	0.93	55	55886	4	0	4	0	52
ASE_00404	RNaseP_bact_a links to Rfam database...	0.77	0.64	0.93	54	43013	5	1	3	1	31
ASE_00406	RNaseP_bact_a links to Rfam database...	0.69	0.56	0.84	53	48765	10	1	9	0	41
ASE_00411	RNaseP_bact_a links to Rfam database...	0.64	0.52	0.79	46	49397	12	7	5	0	43
ASE_00412	RNaseP_bact_a links to Rfam database...	0.61	0.49	0.76	51	58244	20	0	16	4	54
ASE_00413	RNaseP_bact_a links to Rfam database...	0.60	0.52	0.70	42	44491	21	4	14	3	39
ASE_00415	RNaseP_bact_a links to Rfam database...	0.55	0.40	0.76	41	54892	14	0	13	1	62
ASE_00416	RNaseP_bact_a links to Rfam database...	0.70	0.60	0.83	76	77329	16	2	14	0	51
ASE_00419	RNaseP_bact_a links to Rfam database...	0.56	0.40	0.79	41	54894	11	2	9	0	62
ASE_00422	RNaseP_bact_a links to Rfam database...	0.69	0.59	0.82	55	46904	13	0	12	1	39
ASE_00423	RNaseP_bact_a links to Rfam database...	0.70	0.61	0.80	67	56869	18	3	14	1	42
ASE_00427	RNaseP_nuc links to Rfam database...	0.69	0.65	0.73	30	40714	23	4	7	12	16
ASE_00428	RNaseP_bact_a links to Rfam database...	0.66	0.54	0.80	68	76551	17	1	16	0	57
ASE_00430	RNaseP_bact_a links to Rfam database...	0.69	0.57	0.83	55	46905	12	0	11	1	42
ASE_00437	RNaseP_bact_a links to Rfam database...	0.45	0.36	0.58	48	79318	35	2	33	0	87
ASE_00441	RNaseP_bact_a links to Rfam database...	0.55	0.38	0.80	43	64207	15	0	11	4	69
ASE_00448	RNaseP_bact_a links to Rfam database...	0.77	0.70	0.86	78	64170	13	1	12	0	34
ASE_00451	RNaseP_bact_a links to Rfam database...	0.70	0.56	0.86	70	70795	11	3	8	0	55
RFA_00599	Telomerase-vert links to Rfam database...	0.75	0.65	0.87	72	101392	18	0	11	7	39
RFA_00601	Telomerase-vert links to Rfam database...	0.75	0.66	0.85	75	99147	17	0	13	4	39
RFA_00602	Telomerase-vert links to Rfam database...	0.65	0.54	0.78	63	101394	21	0	18	3	53
SRP_00006	Metazoa_SRP links to Rfam database...	0.93	0.87	1.00	88	45665	3	0	0	3	13
SRP_00011	Plant_SRP links to Rfam database...	0.74	0.65	0.83	68	46278	17	0	14	3	36
SRP_00015	Plant_SRP links to Rfam database...	0.78	0.72	0.86	71	46277	20	0	12	8	28
SRP_00024	Bacteria_large_SRP links to Rfam database...	0.56	0.34	0.91	30	37642	3	0	3	0	57
SRP_00026	Bacteria_large_SRP links to Rfam database...	0.51	0.33	0.78	29	36819	9	4	4	1	59
SRP_00027	Bacteria_large_SRP links to Rfam database...	0.60	0.39	0.92	34	37091	3	0	3	0	53
SRP_00030	Bacteria_large_SRP links to Rfam database...	0.52	0.34	0.79	30	36818	8	4	4	0	58
SRP_00031	Bacteria_large_SRP links to Rfam database...	0.62	0.44	0.89	39	36271	6	0	5	1	50
SRP_00037	Bacteria_large_SRP links to Rfam database...	0.55	0.30	1.00	26	36559	0	0	0	0	61
SRP_00050	Metazoa_SRP links to Rfam database...	0.93	0.88	0.99	87	44762	4	0	1	3	12
SRP_00066	Metazoa_SRP links to Rfam database...	0.77	0.71	0.85	71	45367	17	2	11	4	29
SRP_00086	Metazoa_SRP links to Rfam database...	0.80	0.74	0.86	74	44167	14	5	7	2	26
SRP_00088	Bacteria_large_SRP links to Rfam database...	0.57	0.37	0.87	33	34153	5	0	5	0	56
SRP_00089	Bacteria_large_SRP links to Rfam database...	0.50	0.31	0.80	28	35743	7	3	4	0	62
SRP_00090	Bacteria_large_SRP links to Rfam database...	0.55	0.32	0.94	29	35480	2	0	2	0	61
SRP_00102	Metazoa_SRP links to Rfam database...	0.77	0.68	0.87	69	44472	13	1	9	3	32
SRP_00103	Metazoa_SRP links to Rfam database...	0.76	0.66	0.87	67	45374	12	1	9	2	35
SRP_00152	Plant_SRP links to Rfam database...	0.73	0.64	0.84	66	45674	16	5	8	3	37
SRP_00171	Metazoa_SRP links to Rfam database...	0.65	0.65	0.66	57	45364	38	6	24	8	31
SRP_00173	Bacteria_large_SRP links to Rfam database...	0.55	0.36	0.86	32	38189	6	0	5	1	58
SRP_00174	Bacteria_large_SRP links to Rfam database...	0.55	0.30	1.00	26	38755	0	0	0	0	60
SRP_00178	Plant_SRP links to Rfam database...	0.76	0.60	0.97	61	45690	3	0	2	1	41
SRP_00179	Plant_SRP links to Rfam database...	0.74	0.58	0.94	61	45991	7	0	4	3	44
SRP_00181	Plant_SRP links to Rfam database...	0.66	0.50	0.88	51	45998	9	0	7	2	51
SRP_00182	Plant_SRP links to Rfam database...	0.89	0.83	0.94	84	45967	7	0	5	2	17
SRP_00184	Plant_SRP links to Rfam database...	0.82	0.74	0.90	74	45974	11	0	8	3	26
SRP_00188	Plant_SRP links to Rfam database...	0.78	0.71	0.86	56	31060	10	0	9	1	23
SRP_00228	Metazoa_SRP links to Rfam database...	0.80	0.72	0.89	68	45375	16	0	8	8	27
SRP_00234	Bacteria_large_SRP links to Rfam database...	0.54	0.33	0.90	28	36284	4	0	3	1	58
SRP_00308	Bacteria_large_SRP links to Rfam database...	0.48	0.32	0.74	28	36277	10	4	6	0	60
SRP_00317	Metazoa_SRP links to Rfam database...	0.91	0.85	0.98	83	45065	7	0	2	5	15
SRP_00335	Bacteria_large_SRP links to Rfam database...	0.53	0.28	1.00	11	35234	0	0	0	0	28
SRP_00337	Bacteria_large_SRP links to Rfam database...	0.70	0.53	0.94	48	35460	4	0	3	1	43
SRP_00347	Metazoa_SRP links to Rfam database...	0.79	0.71	0.87	68	46587	18	1	9	8	28
SRP_00368	Metazoa_SRP links to Rfam database...	0.80	0.73	0.88	72	43874	14	1	9	4	26

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.

Table of contents:

Overview

Performance plots

Performance of MXScarna(seed) - scored higher in this pairwise comparison

1. Total counts & total scores for MXScarna(seed)

2. Individual counts for MXScarna(seed) [ download as .csv ]

Performance of RNAalifold(20) - scored lower in this pairwise comparison

1. Total counts & total scores for RNAalifold(20)

2. Individual counts for RNAalifold(20) [ download as .csv ]
