CompaRNA - on-line benchmarks of RNA structure prediction methods

FAQ

Metric	Multilign(seed)		Vsfold5
MCC	0.734	>	0.228
Average MCC ± 95% Confidence Intervals	0.740 ± 0.146	>	0.234 ± 0.067
Sensitivity	0.733	>	0.235
Positive Predictive Value	0.737	>	0.225
Total TP	493	>	158
Total TN	383507	>	383473
Total FP	263	<	593
Total FP CONTRA	42	<	116
Total FP INCONS	134	<	429
Total FP COMP	87	>	48
Total FN	180	<	515
P-value	1.10032755566e-08

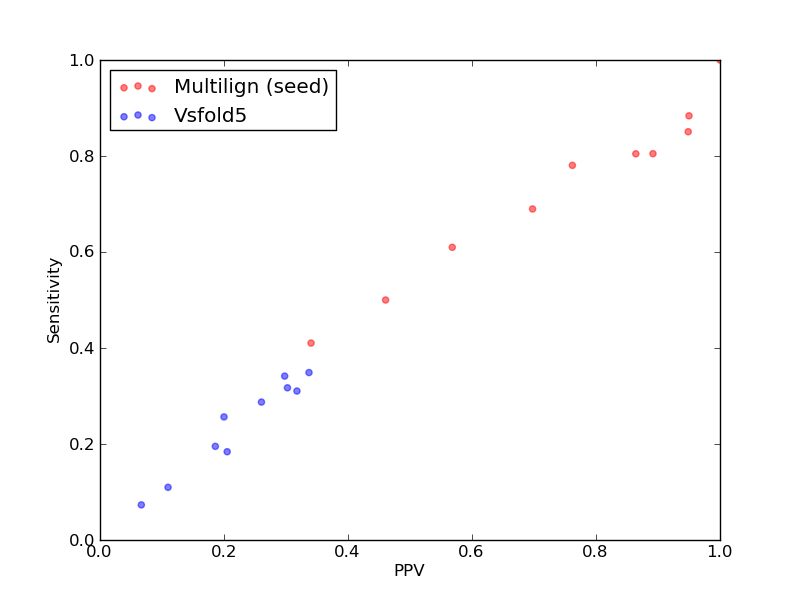

Comparison of performance of Multilign(seed) and Vsfold5. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for Multilign(seed) and Vsfold5).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for Multilign(seed) and Vsfold5).

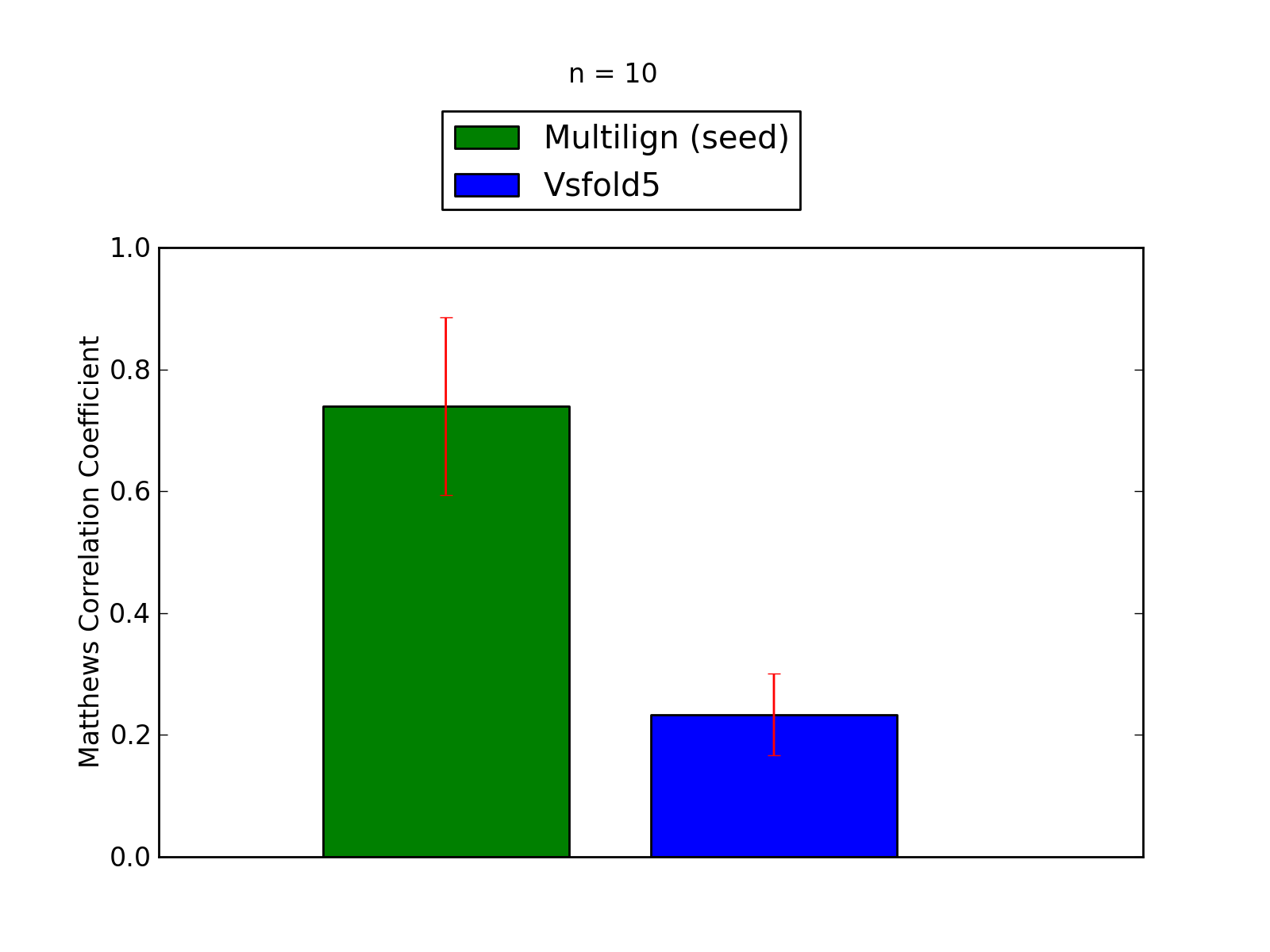

Comparison of average Matthews Correlation Coefficients (MCCs) for Multilign(seed) and Vsfold5. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for Multilign(seed) and Vsfold5).

Total Scores
MCC	0.734
Average MCC ± 95% Confidence Intervals	0.740 ± 0.146
Sensitivity	0.733
Positive Predictive Value	0.737
Nr of predictions	10

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
RFA_00619	-	0.37	0.41	0.34	16	22744	36	12	19	5	23
RFA_00626	rne5 links to Rfam database...	0.90	0.85	0.95	74	56538	20	0	4	16	13
RFA_00628	rne5 links to Rfam database...	0.92	0.88	0.95	76	57211	18	0	4	14	10
RFA_00630	rne5 links to Rfam database...	0.83	0.80	0.86	70	56872	29	0	11	18	17
RFA_00816	R2_retro_el links to Rfam database...	1.00	1.00	1.00	41	23179	12	0	0	12	0
RFA_00817	R2_retro_el links to Rfam database...	0.77	0.78	0.76	32	21903	13	5	5	3	9
RFA_00818	R2_retro_el links to Rfam database...	0.85	0.80	0.89	33	20264	12	1	3	8	8
SRP_00241	Plant_SRP links to Rfam database...	0.48	0.50	0.46	41	45967	50	15	33	2	41
SRP_00331	Metazoa_SRP links to Rfam database...	0.69	0.69	0.70	60	37589	29	2	24	3	27
SRP_00340	Metazoa_SRP links to Rfam database...	0.59	0.61	0.57	50	41240	44	7	31	6	32

Total Scores
MCC	0.228
Average MCC ± 95% Confidence Intervals	0.234 ± 0.067
Sensitivity	0.235
Positive Predictive Value	0.225
Nr of predictions	10

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
RFA_00619	-	0.22	0.26	0.20	10	22741	51	16	24	11	29
RFA_00626	rne5 links to Rfam database...	0.31	0.31	0.32	27	56531	62	15	43	4	60
RFA_00628	rne5 links to Rfam database...	0.34	0.35	0.34	30	57202	66	13	46	7	56
RFA_00630	rne5 links to Rfam database...	0.27	0.29	0.26	25	56857	78	13	58	7	62
RFA_00816	R2_retro_el links to Rfam database...	0.31	0.32	0.30	13	23177	38	12	18	8	28
RFA_00817	R2_retro_el links to Rfam database...	0.32	0.34	0.30	14	21898	35	10	23	2	27
RFA_00818	R2_retro_el links to Rfam database...	0.19	0.20	0.19	8	20258	41	8	27	6	33
SRP_00241	Plant_SRP links to Rfam database...	0.07	0.07	0.07	6	45966	85	13	71	1	76
SRP_00331	Metazoa_SRP links to Rfam database...	0.19	0.18	0.21	16	37597	62	7	55	0	71
SRP_00340	Metazoa_SRP links to Rfam database...	0.11	0.11	0.11	9	41246	75	9	64	2	73

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
