Overview

Metric	PPfold(seed)		MaxExpect
MCC	0.716	>	0.631
Average MCC ± 95% Confidence Intervals	0.749 ± 0.077	>	0.616 ± 0.087
Sensitivity	0.652	>	0.641
Positive Predictive Value	0.787	>	0.624
Total TP	1226	>	1204
Total TN	1050327	>	1049953
Total FP	467	<	896
Total FP CONTRA	48	<	154
Total FP INCONS	283	<	573
Total FP COMP	136	<	169
Total FN	653	<	675
P-value	5.19332990918e-08

^top

Performance plots

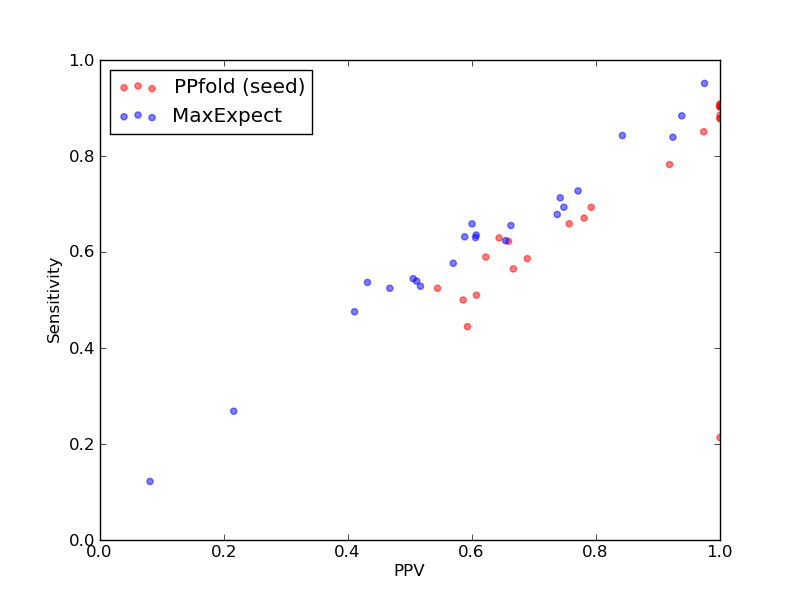

Comparison of performance of PPfold(seed) and MaxExpect. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for PPfold(seed) and MaxExpect).

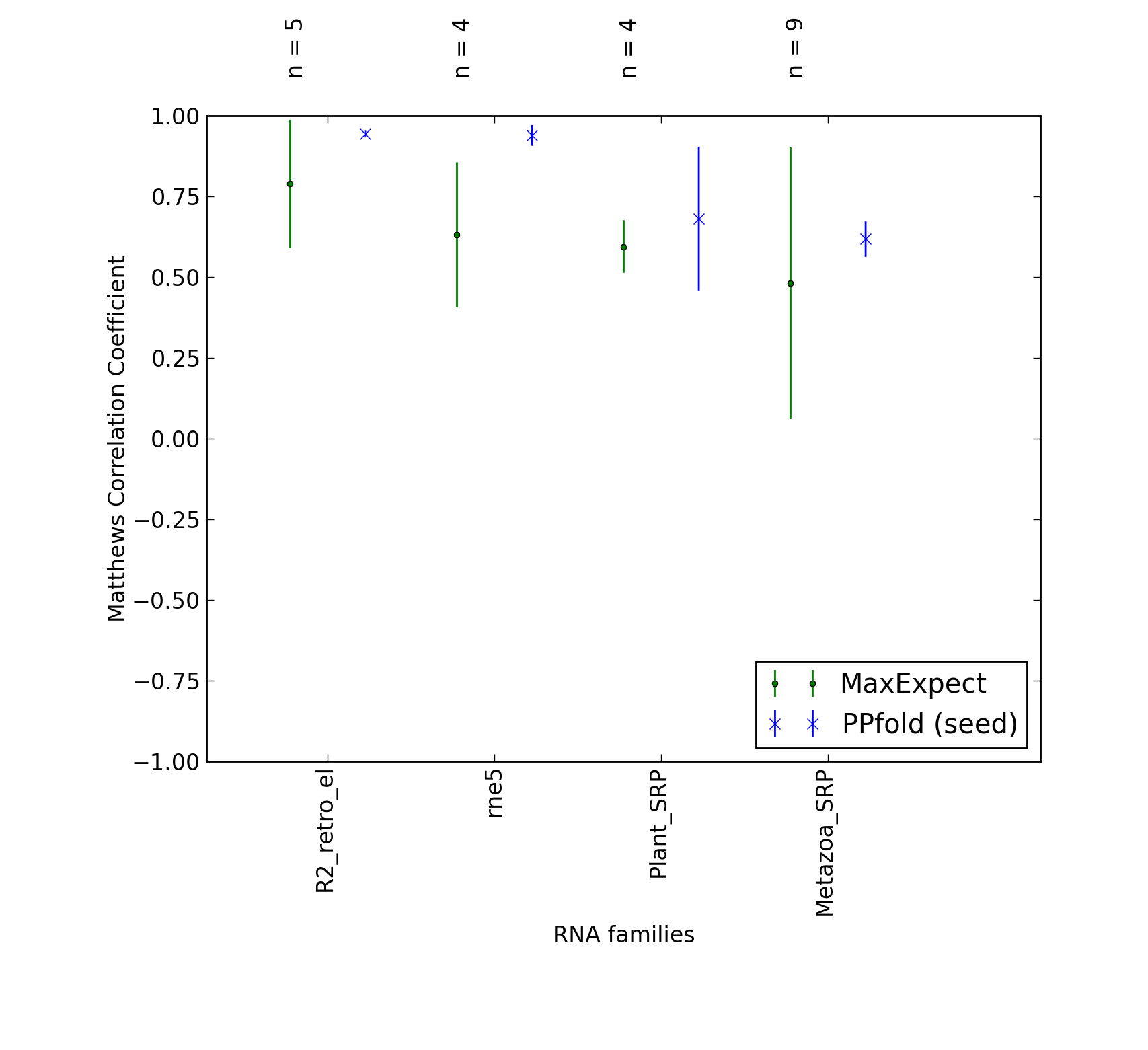

Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for PPfold(seed) and MaxExpect).

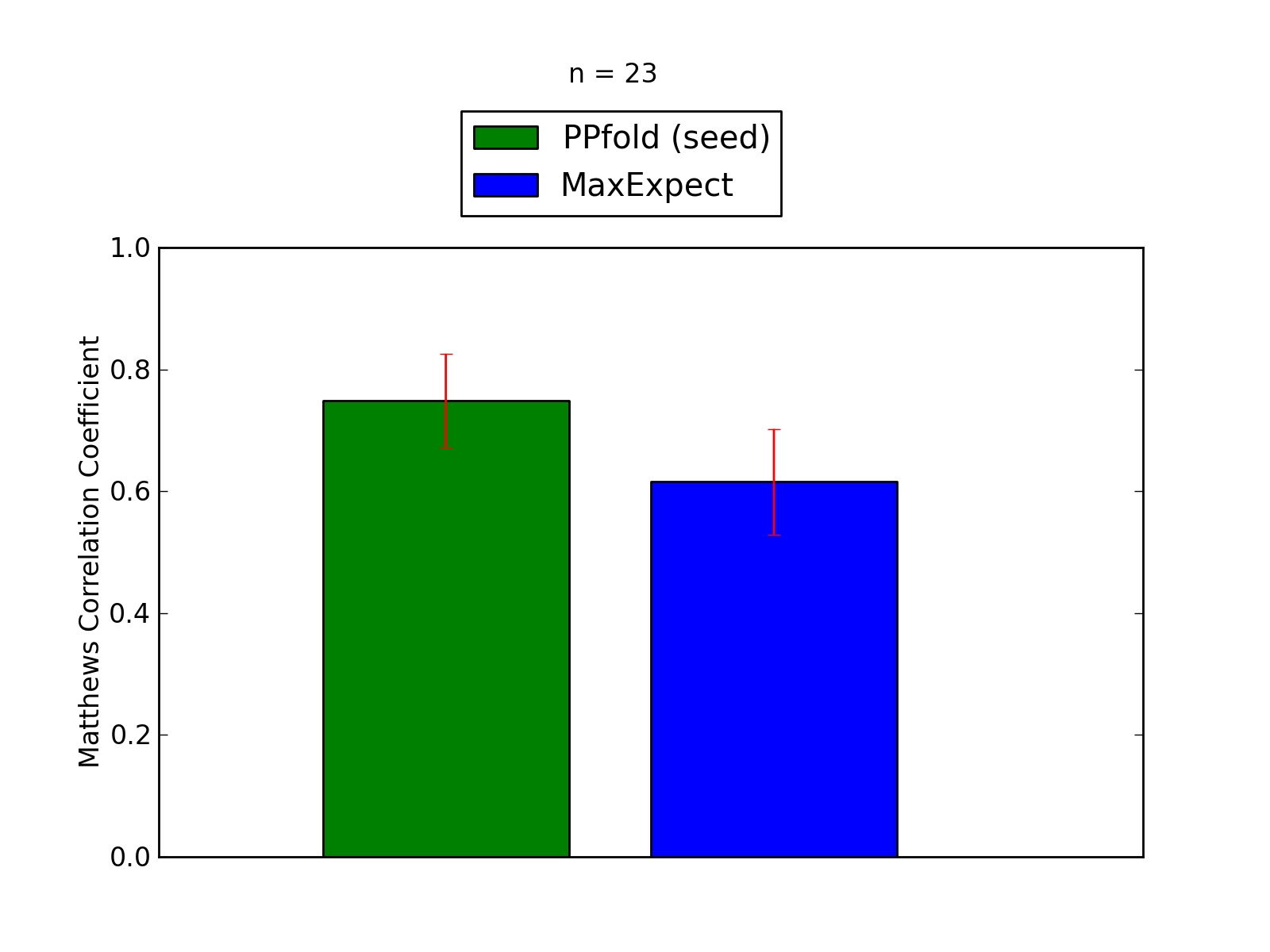

Comparison of average Matthews Correlation Coefficients (MCCs) for PPfold(seed) and MaxExpect. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for PPfold(seed) and MaxExpect).

^top

Performance of PPfold(seed) - scored higher in this pairwise comparison

1. Total counts & total scores for PPfold(seed)

Total Base Pair Counts
Total TP	1226
Total TN	1050327
Total FP	467
Total FP CONTRA	48
Total FP INCONS	283
Total FP COMP	136
Total FN	653

Total Scores
MCC	0.716
Average MCC ± 95% Confidence Intervals	0.749 ± 0.077
Sensitivity	0.652
Positive Predictive Value	0.787
Nr of predictions	23

^top

2. Individual counts for PPfold(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
RFA_00626	rne5 links to Rfam database...	0.94	0.89	1.00	77	56539	1	0	0	1	10
RFA_00627	rne5 links to Rfam database...	0.95	0.91	1.00	79	56874	4	0	0	4	8
RFA_00628	rne5 links to Rfam database...	0.95	0.91	1.00	78	57213	2	0	0	2	8
RFA_00630	rne5 links to Rfam database...	0.91	0.85	0.97	74	56877	5	0	2	3	13
RFA_00805	RNAIII links to Rfam database...	0.46	0.21	1.00	32	133354	0	0	0	0	118
RFA_00814	R2_retro_el links to Rfam database...	0.94	0.88	1.00	36	25164	2	0	0	2	5
RFA_00816	R2_retro_el links to Rfam database...	0.95	0.90	1.00	37	23183	2	0	0	2	4
RFA_00817	R2_retro_el links to Rfam database...	0.95	0.90	1.00	37	21908	1	0	0	1	4
RFA_00818	R2_retro_el links to Rfam database...	0.94	0.88	1.00	36	20265	2	0	0	2	5
RFA_00819	R2_retro_el links to Rfam database...	0.95	0.90	1.00	37	27929	2	0	0	2	4
SRP_00079	Plant_SRP links to Rfam database...	0.74	0.69	0.79	61	41828	28	0	16	12	27
SRP_00099	Plant_SRP links to Rfam database...	0.60	0.59	0.62	56	44760	40	2	32	6	39
SRP_00124	Metazoa_SRP links to Rfam database...	0.71	0.66	0.76	56	37054	27	3	15	9	29
SRP_00182	Plant_SRP links to Rfam database...	0.85	0.78	0.92	79	45970	17	0	7	10	22
SRP_00241	Plant_SRP links to Rfam database...	0.53	0.52	0.54	43	45977	49	9	27	13	39
SRP_00252	Metazoa_SRP links to Rfam database...	0.64	0.63	0.64	56	49054	42	5	26	11	33
SRP_00253	Metazoa_SRP links to Rfam database...	0.64	0.62	0.66	56	49370	40	5	24	11	34
SRP_00257	Metazoa_SRP links to Rfam database...	0.51	0.44	0.59	48	50959	36	5	28	3	60
SRP_00260	Metazoa_SRP links to Rfam database...	0.56	0.51	0.61	51	47811	39	5	28	6	49
SRP_00328	Metazoa_SRP links to Rfam database...	0.61	0.56	0.67	48	39549	29	5	19	5	37
SRP_00329	Metazoa_SRP links to Rfam database...	0.72	0.67	0.78	57	39830	26	2	14	10	28
SRP_00331	Metazoa_SRP links to Rfam database...	0.63	0.59	0.69	51	37601	31	2	21	8	36
SRP_00340	Metazoa_SRP links to Rfam database...	0.54	0.50	0.59	41	41258	42	5	24	13	41

^top

Performance of MaxExpect - scored lower in this pairwise comparison

1. Total counts & total scores for MaxExpect

Total Base Pair Counts
Total TP	1204
Total TN	1049953
Total FP	896
Total FP CONTRA	154
Total FP INCONS	573
Total FP COMP	169
Total FN	675

Total Scores
MCC	0.631
Average MCC ± 95% Confidence Intervals	0.616 ± 0.087
Sensitivity	0.641
Positive Predictive Value	0.624
Nr of predictions	23

^top

2. Individual counts for MaxExpect [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
RFA_00626	rne5 links to Rfam database...	0.88	0.84	0.92	73	56537	23	2	4	17	14
RFA_00627	rne5 links to Rfam database...	0.71	0.68	0.74	59	56873	37	5	16	16	28
RFA_00628	rne5 links to Rfam database...	0.91	0.88	0.94	76	57210	25	0	5	20	10
RFA_00630	rne5 links to Rfam database...	0.66	0.66	0.66	57	56867	44	7	22	15	30
RFA_00805	RNAIII links to Rfam database...	0.72	0.69	0.75	104	133247	44	5	30	9	46
RFA_00814	R2_retro_el links to Rfam database...	0.24	0.27	0.22	11	25149	45	9	31	5	30
RFA_00816	R2_retro_el links to Rfam database...	0.63	0.66	0.60	27	23175	24	11	7	6	14
RFA_00817	R2_retro_el links to Rfam database...	0.10	0.12	0.08	5	21883	57	17	40	0	36
RFA_00818	R2_retro_el links to Rfam database...	0.48	0.54	0.43	22	20250	30	12	17	1	19
RFA_00819	R2_retro_el links to Rfam database...	0.96	0.95	0.98	39	27926	33	0	1	32	2
SRP_00079	Plant_SRP links to Rfam database...	0.75	0.73	0.77	64	41822	28	3	16	9	24
SRP_00099	Plant_SRP links to Rfam database...	0.61	0.63	0.59	60	44748	43	7	35	1	35
SRP_00124	Metazoa_SRP links to Rfam database...	0.64	0.62	0.65	53	37047	33	3	25	5	32
SRP_00182	Plant_SRP links to Rfam database...	0.73	0.71	0.74	72	45959	28	3	22	3	29
SRP_00241	Plant_SRP links to Rfam database...	0.44	0.48	0.41	39	45961	58	14	42	2	43
SRP_00252	Metazoa_SRP links to Rfam database...	0.52	0.54	0.51	48	49047	49	9	37	3	41
SRP_00253	Metazoa_SRP links to Rfam database...	0.52	0.54	0.51	49	49358	54	9	39	6	41
SRP_00257	Metazoa_SRP links to Rfam database...	0.84	0.84	0.84	91	50932	19	3	14	2	17
SRP_00260	Metazoa_SRP links to Rfam database...	0.62	0.63	0.61	63	47791	44	5	36	3	37
SRP_00328	Metazoa_SRP links to Rfam database...	0.62	0.64	0.61	54	39532	40	8	27	5	31
SRP_00329	Metazoa_SRP links to Rfam database...	0.57	0.58	0.57	49	39817	41	6	31	4	36
SRP_00331	Metazoa_SRP links to Rfam database...	0.52	0.53	0.52	46	37586	45	7	36	2	41
SRP_00340	Metazoa_SRP links to Rfam database...	0.49	0.52	0.47	43	41236	52	9	40	3	39

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
