Overview

Metric	PPfold(seed)		Sfold
MCC	0.716	>	0.668
Average MCC ± 95% Confidence Intervals	0.749 ± 0.077	>	0.658 ± 0.079
Sensitivity	0.652	>	0.642
Positive Predictive Value	0.787	>	0.696
Total TP	1226	>	1207
Total TN	1050327	>	1050149
Total FP	467	<	669
Total FP CONTRA	48	<	118
Total FP INCONS	283	<	410
Total FP COMP	136	<	141
Total FN	653	<	672
P-value	5.19332990918e-08

^top

Performance plots

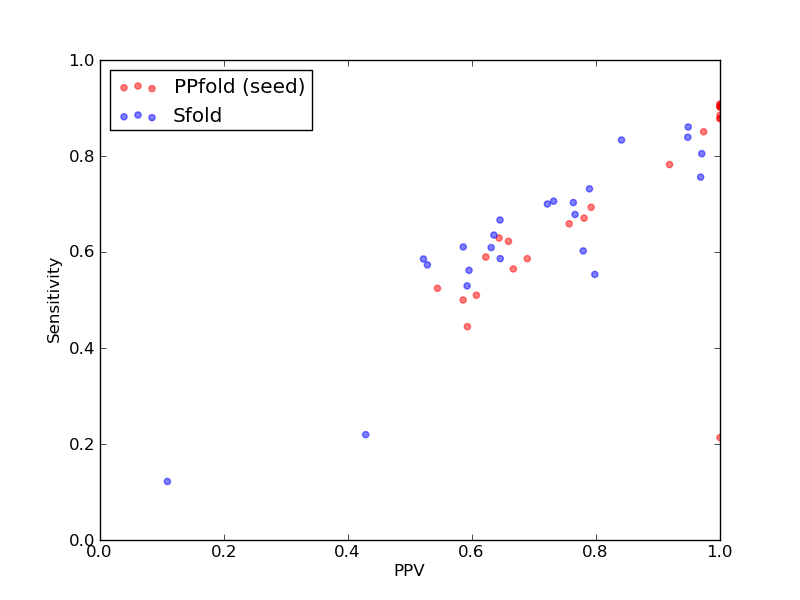

Comparison of performance of PPfold(seed) and Sfold. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for PPfold(seed) and Sfold).

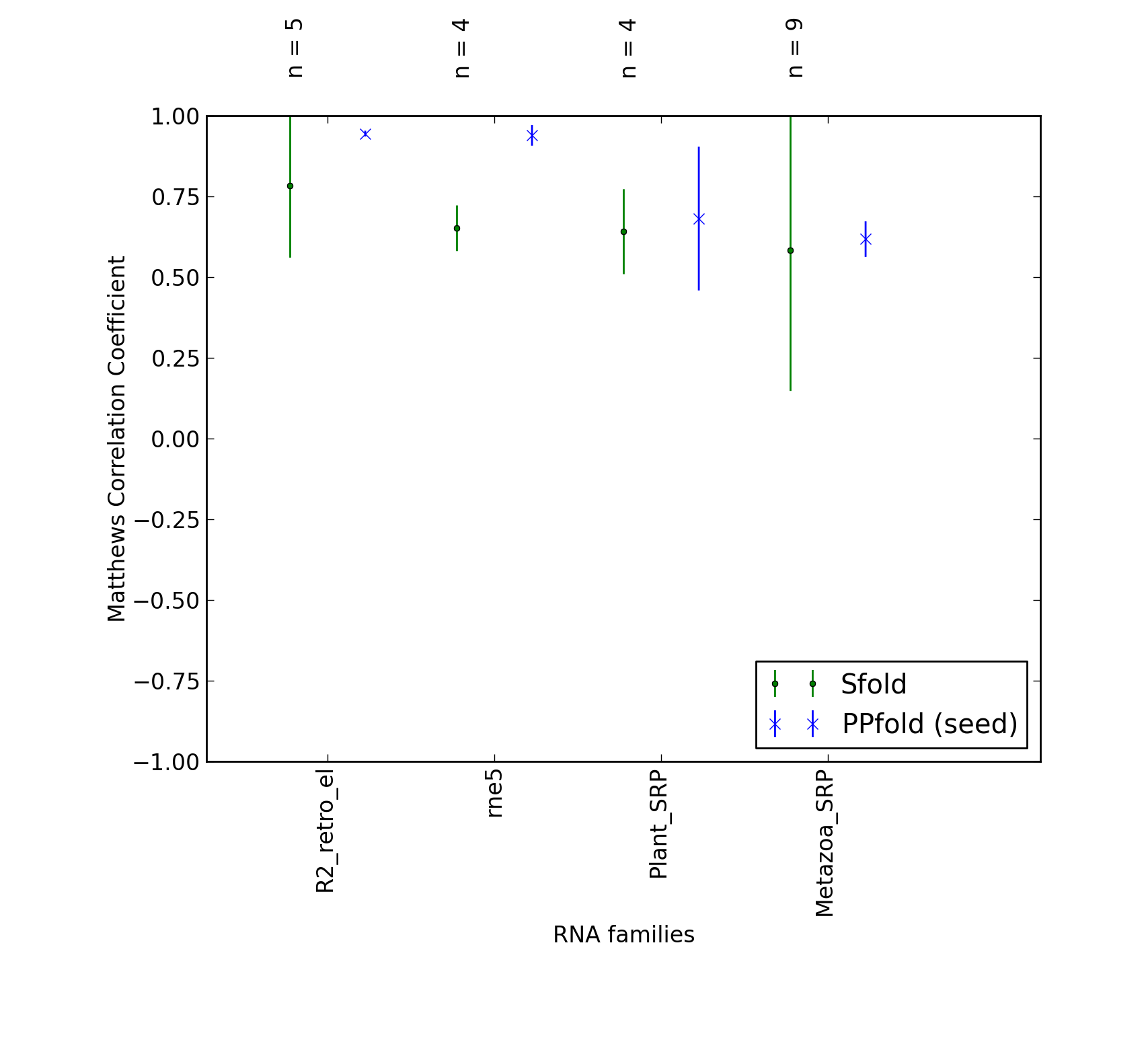

Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for PPfold(seed) and Sfold).
Comparison of average Matthews Correlation Coefficients (MCCs) for PPfold(seed) and Sfold. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for PPfold(seed) and Sfold).

^top

Performance of PPfold(seed) - scored higher in this pairwise comparison

1. Total counts & total scores for PPfold(seed)

Total Base Pair Counts
Total TP	1226
Total TN	1050327
Total FP	467
Total FP CONTRA	48
Total FP INCONS	283
Total FP COMP	136
Total FN	653

Total Scores
MCC	0.716
Average MCC ± 95% Confidence Intervals	0.749 ± 0.077
Sensitivity	0.652
Positive Predictive Value	0.787
Nr of predictions	23

^top

2. Individual counts for PPfold(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
RFA_00626	rne5 links to Rfam database...	0.94	0.89	1.00	77	56539	1	0	0	1	10
RFA_00627	rne5 links to Rfam database...	0.95	0.91	1.00	79	56874	4	0	0	4	8
RFA_00628	rne5 links to Rfam database...	0.95	0.91	1.00	78	57213	2	0	0	2	8
RFA_00630	rne5 links to Rfam database...	0.91	0.85	0.97	74	56877	5	0	2	3	13
RFA_00805	RNAIII links to Rfam database...	0.46	0.21	1.00	32	133354	0	0	0	0	118
RFA_00814	R2_retro_el links to Rfam database...	0.94	0.88	1.00	36	25164	2	0	0	2	5
RFA_00816	R2_retro_el links to Rfam database...	0.95	0.90	1.00	37	23183	2	0	0	2	4
RFA_00817	R2_retro_el links to Rfam database...	0.95	0.90	1.00	37	21908	1	0	0	1	4
RFA_00818	R2_retro_el links to Rfam database...	0.94	0.88	1.00	36	20265	2	0	0	2	5
RFA_00819	R2_retro_el links to Rfam database...	0.95	0.90	1.00	37	27929	2	0	0	2	4
SRP_00079	Plant_SRP links to Rfam database...	0.74	0.69	0.79	61	41828	28	0	16	12	27
SRP_00099	Plant_SRP links to Rfam database...	0.60	0.59	0.62	56	44760	40	2	32	6	39
SRP_00124	Metazoa_SRP links to Rfam database...	0.71	0.66	0.76	56	37054	27	3	15	9	29
SRP_00182	Plant_SRP links to Rfam database...	0.85	0.78	0.92	79	45970	17	0	7	10	22
SRP_00241	Plant_SRP links to Rfam database...	0.53	0.52	0.54	43	45977	49	9	27	13	39
SRP_00252	Metazoa_SRP links to Rfam database...	0.64	0.63	0.64	56	49054	42	5	26	11	33
SRP_00253	Metazoa_SRP links to Rfam database...	0.64	0.62	0.66	56	49370	40	5	24	11	34
SRP_00257	Metazoa_SRP links to Rfam database...	0.51	0.44	0.59	48	50959	36	5	28	3	60
SRP_00260	Metazoa_SRP links to Rfam database...	0.56	0.51	0.61	51	47811	39	5	28	6	49
SRP_00328	Metazoa_SRP links to Rfam database...	0.61	0.56	0.67	48	39549	29	5	19	5	37
SRP_00329	Metazoa_SRP links to Rfam database...	0.72	0.67	0.78	57	39830	26	2	14	10	28
SRP_00331	Metazoa_SRP links to Rfam database...	0.63	0.59	0.69	51	37601	31	2	21	8	36
SRP_00340	Metazoa_SRP links to Rfam database...	0.54	0.50	0.59	41	41258	42	5	24	13	41

^top

Performance of Sfold - scored lower in this pairwise comparison

1. Total counts & total scores for Sfold

Total Base Pair Counts
Total TP	1207
Total TN	1050149
Total FP	669
Total FP CONTRA	118
Total FP INCONS	410
Total FP COMP	141
Total FN	672

Total Scores
MCC	0.668
Average MCC ± 95% Confidence Intervals	0.658 ± 0.079
Sensitivity	0.642
Positive Predictive Value	0.696
Nr of predictions	23

^top

2. Individual counts for Sfold [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
RFA_00626	rne5 links to Rfam database...	0.89	0.84	0.95	73	56539	20	1	3	16	14
RFA_00627	rne5 links to Rfam database...	0.72	0.68	0.77	59	56876	30	4	14	12	28
RFA_00628	rne5 links to Rfam database...	0.90	0.86	0.95	74	57213	28	0	4	24	12
RFA_00630	rne5 links to Rfam database...	0.61	0.59	0.65	51	56874	38	7	21	10	36
RFA_00805	RNAIII links to Rfam database...	0.66	0.55	0.80	83	133282	25	1	20	4	67
RFA_00814	R2_retro_el links to Rfam database...	0.86	0.76	0.97	31	25168	10	0	1	9	10
RFA_00816	R2_retro_el links to Rfam database...	0.76	0.73	0.79	30	23182	12	8	0	4	11
RFA_00817	R2_retro_el links to Rfam database...	0.11	0.12	0.11	5	21899	41	14	27	0	36
RFA_00818	R2_retro_el links to Rfam database...	0.31	0.22	0.43	9	20280	13	8	4	1	32
RFA_00819	R2_retro_el links to Rfam database...	0.88	0.80	0.97	33	27932	25	0	1	24	8
SRP_00079	Plant_SRP links to Rfam database...	0.68	0.60	0.78	53	41837	20	3	12	5	35
SRP_00099	Plant_SRP links to Rfam database...	0.60	0.61	0.59	58	44751	43	7	34	2	37
SRP_00124	Metazoa_SRP links to Rfam database...	0.56	0.53	0.59	45	37052	35	4	27	4	40
SRP_00182	Plant_SRP links to Rfam database...	0.73	0.70	0.76	71	45963	24	3	19	2	30
SRP_00241	Plant_SRP links to Rfam database...	0.55	0.57	0.53	47	45967	44	11	31	2	35
SRP_00252	Metazoa_SRP links to Rfam database...	0.58	0.56	0.60	50	49057	37	9	25	3	39
SRP_00253	Metazoa_SRP links to Rfam database...	0.66	0.67	0.65	60	49362	38	6	27	5	30
SRP_00257	Metazoa_SRP links to Rfam database...	0.84	0.83	0.84	90	50933	19	4	13	2	18
SRP_00260	Metazoa_SRP links to Rfam database...	0.71	0.70	0.72	70	47798	29	4	23	2	30
SRP_00328	Metazoa_SRP links to Rfam database...	0.63	0.64	0.64	54	39536	34	7	24	3	31
SRP_00329	Metazoa_SRP links to Rfam database...	0.72	0.71	0.73	60	39821	25	3	19	3	25
SRP_00331	Metazoa_SRP links to Rfam database...	0.62	0.61	0.63	53	37591	33	6	25	2	34
SRP_00340	Metazoa_SRP links to Rfam database...	0.55	0.59	0.52	48	41236	46	8	36	2	34

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
