Metric	RNASampler(seed)		ContextFold
MCC	0.779	>	0.694
Average MCC ± 95% Confidence Intervals	0.774 ± 0.092	>	0.693 ± 0.097
Sensitivity	0.659	<	0.680
Positive Predictive Value	0.921	>	0.709
Total TP	442	<	456
Total TN	413762	>	413599
Total FP	105	<	270
Total FP CONTRA	9	<	64
Total FP INCONS	29	<	123
Total FP COMP	67	<	83
Total FN	229	>	215
P-value	2.32677072069e-08

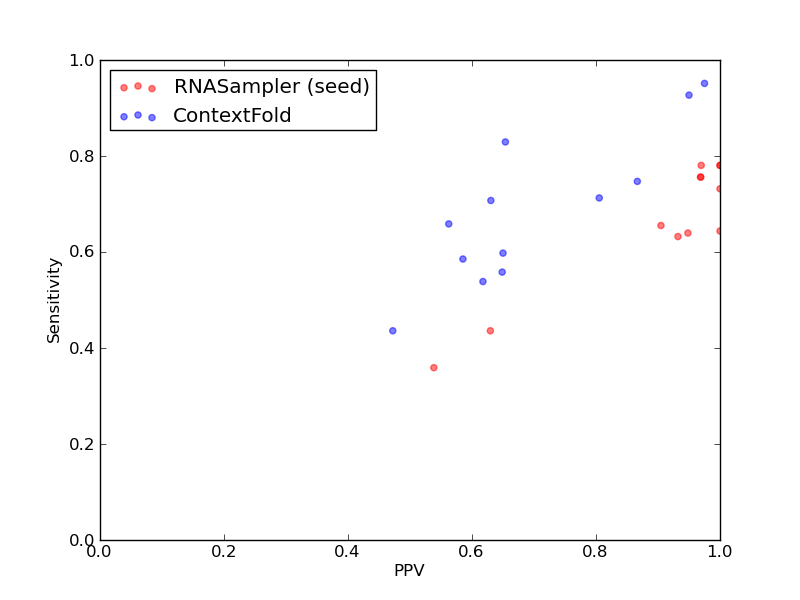

Comparison of performance of RNASampler(seed) and ContextFold. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for RNASampler(seed) and ContextFold).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for RNASampler(seed) and ContextFold).
Comparison of average Matthews Correlation Coefficients (MCCs) for RNASampler(seed) and ContextFold. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for RNASampler(seed) and ContextFold).

Total Scores
MCC	0.779
Average MCC ± 95% Confidence Intervals	0.774 ± 0.092
Sensitivity	0.659
Positive Predictive Value	0.921
Nr of predictions	12

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
RFA_00606	Telomerase-cil links to Rfam database...	0.44	0.36	0.54	14	21295	18	7	5	6	25
RFA_00620	Telomerase-cil links to Rfam database...	0.52	0.44	0.63	17	21918	15	2	8	5	22
RFA_00626	rne5 links to Rfam database...	0.80	0.64	1.00	56	56560	5	0	0	5	31
RFA_00627	rne5 links to Rfam database...	0.77	0.63	0.93	55	56894	8	0	4	4	32
RFA_00628	rne5 links to Rfam database...	0.78	0.64	0.95	55	57233	12	0	3	9	31
RFA_00630	rne5 links to Rfam database...	0.77	0.66	0.90	57	56890	15	0	6	9	30
RFA_00814	R2_retro_el links to Rfam database...	0.87	0.78	0.97	32	25167	6	0	1	5	9
RFA_00815	R2_retro_el links to Rfam database...	0.88	0.78	1.00	32	24499	8	0	0	8	9
RFA_00816	R2_retro_el links to Rfam database...	0.86	0.76	0.97	31	23188	6	0	1	5	10
RFA_00817	R2_retro_el links to Rfam database...	0.86	0.76	0.97	31	21913	1	0	1	0	10
RFA_00818	R2_retro_el links to Rfam database...	0.86	0.73	1.00	30	20271	6	0	0	6	11
RFA_00819	R2_retro_el links to Rfam database...	0.88	0.78	1.00	32	27934	5	0	0	5	9

Total Scores
MCC	0.694
Average MCC ± 95% Confidence Intervals	0.693 ± 0.097
Sensitivity	0.680
Positive Predictive Value	0.709
Nr of predictions	12

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
RFA_00606	Telomerase-cil links to Rfam database...	0.45	0.44	0.47	17	21285	23	10	9	4	22
RFA_00620	Telomerase-cil links to Rfam database...	0.58	0.54	0.62	21	21911	27	3	10	14	18
RFA_00626	rne5 links to Rfam database...	0.80	0.75	0.87	65	56541	19	1	9	9	22
RFA_00627	rne5 links to Rfam database...	0.76	0.71	0.81	62	56876	16	3	12	1	25
RFA_00628	rne5 links to Rfam database...	0.60	0.56	0.65	48	57217	28	3	23	2	38
RFA_00630	rne5 links to Rfam database...	0.62	0.60	0.65	52	56873	35	3	25	7	35
RFA_00814	R2_retro_el links to Rfam database...	0.94	0.93	0.95	38	25160	18	0	2	16	3
RFA_00815	R2_retro_el links to Rfam database...	0.74	0.83	0.65	34	24479	21	13	5	3	7
RFA_00816	R2_retro_el links to Rfam database...	0.67	0.71	0.63	29	23174	22	13	4	5	12
RFA_00817	R2_retro_el links to Rfam database...	0.58	0.59	0.59	24	21904	17	5	12	0	17
RFA_00818	R2_retro_el links to Rfam database...	0.61	0.66	0.56	27	20253	29	10	11	8	14
RFA_00819	R2_retro_el links to Rfam database...	0.96	0.95	0.98	39	27926	15	0	1	14	2

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
