Metric	RNASampler(seed)		ProbKnot
MCC	0.779	>	0.644
Average MCC ± 95% Confidence Intervals	0.774 ± 0.092	>	0.616 ± 0.162
Sensitivity	0.659	<	0.668
Positive Predictive Value	0.921	>	0.623
Total TP	442	<	448
Total TN	413762	>	413523
Total FP	105	<	457
Total FP CONTRA	9	<	80
Total FP INCONS	29	<	191
Total FP COMP	67	<	186
Total FN	229	>	223
P-value	2.22210847902e-08

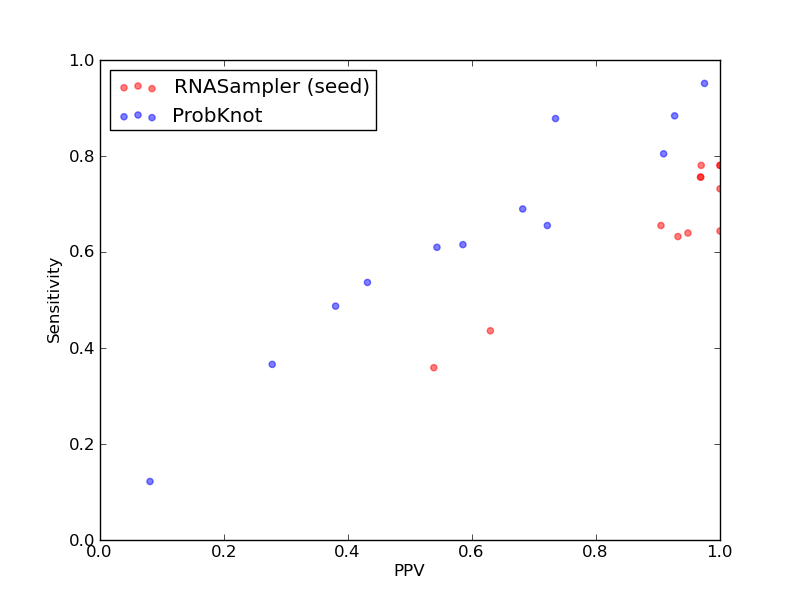

Comparison of performance of RNASampler(seed) and ProbKnot. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for RNASampler(seed) and ProbKnot).

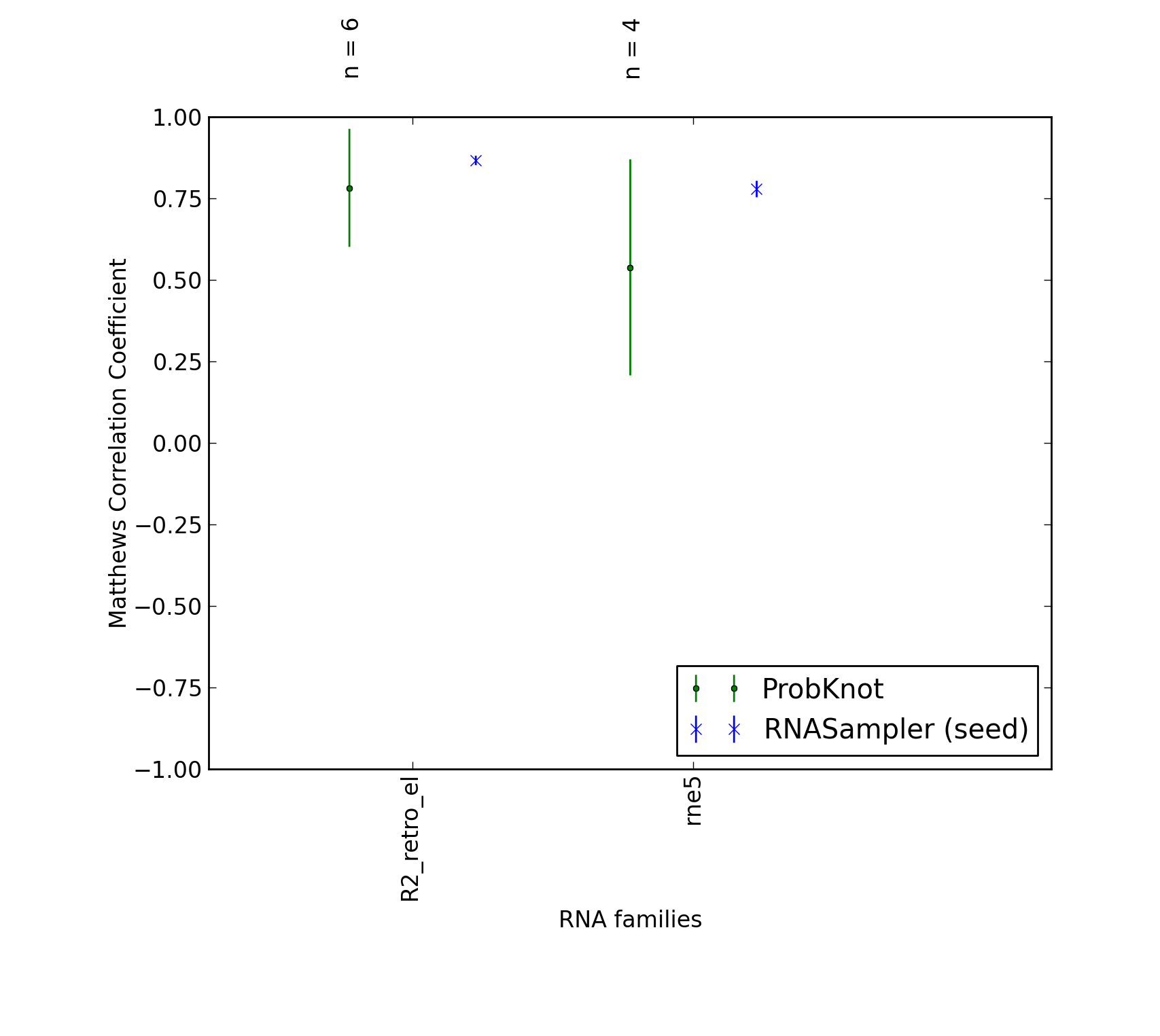

Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for RNASampler(seed) and ProbKnot).
Comparison of average Matthews Correlation Coefficients (MCCs) for RNASampler(seed) and ProbKnot. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for RNASampler(seed) and ProbKnot).

Total Scores
MCC	0.779
Average MCC ± 95% Confidence Intervals	0.774 ± 0.092
Sensitivity	0.659
Positive Predictive Value	0.921
Nr of predictions	12

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
RFA_00606	Telomerase-cil links to Rfam database...	0.44	0.36	0.54	14	21295	18	7	5	6	25
RFA_00620	Telomerase-cil links to Rfam database...	0.52	0.44	0.63	17	21918	15	2	8	5	22
RFA_00626	rne5 links to Rfam database...	0.80	0.64	1.00	56	56560	5	0	0	5	31
RFA_00627	rne5 links to Rfam database...	0.77	0.63	0.93	55	56894	8	0	4	4	32
RFA_00628	rne5 links to Rfam database...	0.78	0.64	0.95	55	57233	12	0	3	9	31
RFA_00630	rne5 links to Rfam database...	0.77	0.66	0.90	57	56890	15	0	6	9	30
RFA_00814	R2_retro_el links to Rfam database...	0.87	0.78	0.97	32	25167	6	0	1	5	9
RFA_00815	R2_retro_el links to Rfam database...	0.88	0.78	1.00	32	24499	8	0	0	8	9
RFA_00816	R2_retro_el links to Rfam database...	0.86	0.76	0.97	31	23188	6	0	1	5	10
RFA_00817	R2_retro_el links to Rfam database...	0.86	0.76	0.97	31	21913	1	0	1	0	10
RFA_00818	R2_retro_el links to Rfam database...	0.86	0.73	1.00	30	20271	6	0	0	6	11
RFA_00819	R2_retro_el links to Rfam database...	0.88	0.78	1.00	32	27934	5	0	0	5	9

Total Scores
MCC	0.644
Average MCC ± 95% Confidence Intervals	0.616 ± 0.162
Sensitivity	0.668
Positive Predictive Value	0.623
Nr of predictions	12

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
RFA_00606	Telomerase-cil links to Rfam database...	0.60	0.62	0.59	24	21280	33	7	10	16	15
RFA_00620	Telomerase-cil links to Rfam database...	0.43	0.49	0.38	19	21895	44	8	23	13	20
RFA_00626	rne5 links to Rfam database...	0.86	0.80	0.91	70	56539	32	1	6	25	17
RFA_00627	rne5 links to Rfam database...	0.69	0.69	0.68	60	56865	47	6	22	19	27
RFA_00628	rne5 links to Rfam database...	0.90	0.88	0.93	76	57209	31	1	5	25	10
RFA_00630	rne5 links to Rfam database...	0.69	0.66	0.72	57	56874	41	4	18	19	30
RFA_00814	R2_retro_el links to Rfam database...	0.32	0.37	0.28	15	25146	45	8	31	6	26
RFA_00815	R2_retro_el links to Rfam database...	0.57	0.61	0.54	25	24485	35	5	16	14	16
RFA_00816	R2_retro_el links to Rfam database...	0.80	0.88	0.73	36	23171	20	9	4	7	5
RFA_00817	R2_retro_el links to Rfam database...	0.10	0.12	0.08	5	21883	57	18	39	0	36
RFA_00818	R2_retro_el links to Rfam database...	0.48	0.54	0.43	22	20250	38	13	16	9	19
RFA_00819	R2_retro_el links to Rfam database...	0.96	0.95	0.98	39	27926	34	0	1	33	2

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
