CompaRNA - on-line benchmarks of RNA structure prediction methods

FAQ

Metric	TurboFold(seed)		Vsfold4
MCC	0.776	>	0.171
Average MCC ± 95% Confidence Intervals	0.801 ± 0.070	>	0.170 ± 0.048
Sensitivity	0.753	>	0.159
Positive Predictive Value	0.802	>	0.188
Total TP	929	>	196
Total TN	664485	<	664599
Total FP	370	<	920
Total FP CONTRA	40	<	144
Total FP INCONS	190	<	705
Total FP COMP	140	>	71
Total FN	305	<	1038
P-value	3.21671975982e-08

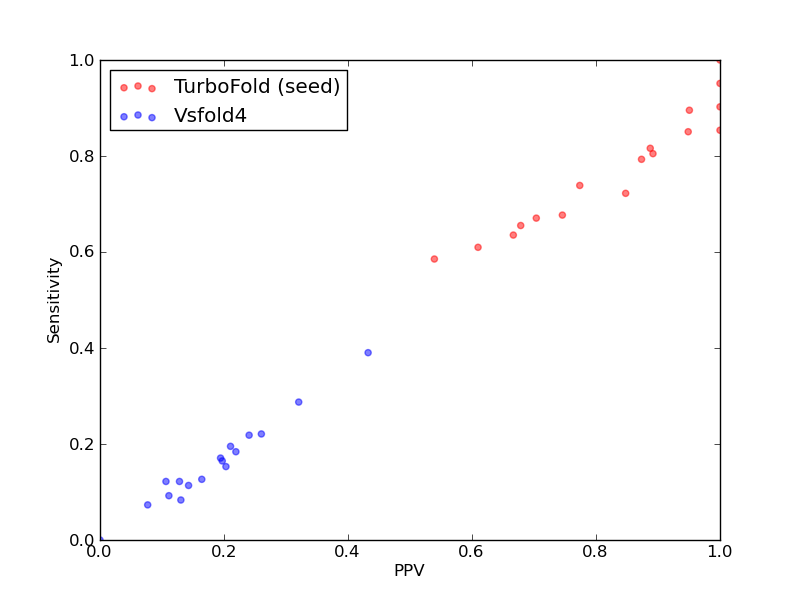

Comparison of performance of TurboFold(seed) and Vsfold4. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for TurboFold(seed) and Vsfold4).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for TurboFold(seed) and Vsfold4).

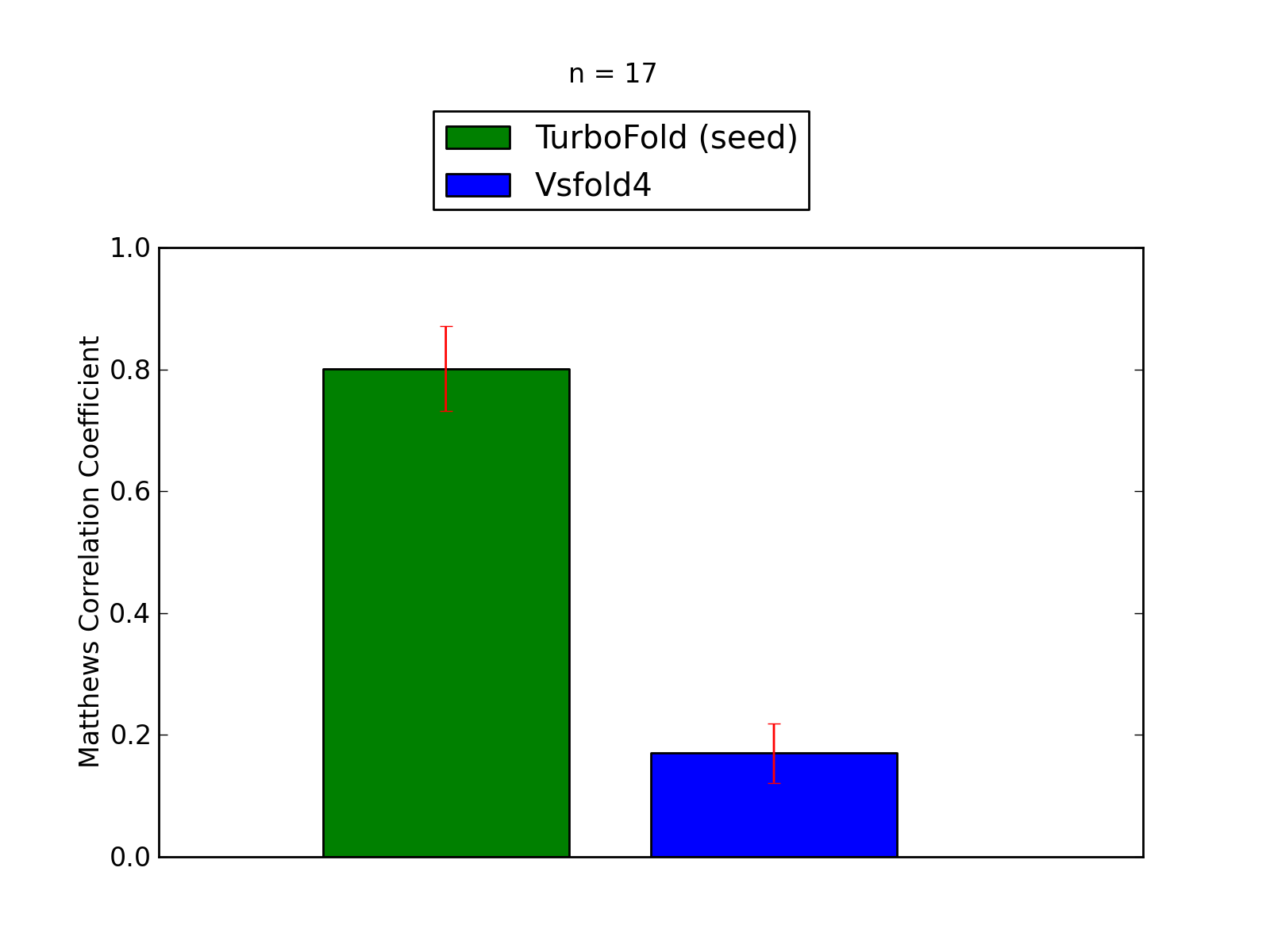

Comparison of average Matthews Correlation Coefficients (MCCs) for TurboFold(seed) and Vsfold4. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for TurboFold(seed) and Vsfold4).

Total Scores
MCC	0.776
Average MCC ± 95% Confidence Intervals	0.801 ± 0.070
Sensitivity	0.753
Positive Predictive Value	0.802
Nr of predictions	17

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
ASE_00210	RNaseP_arch links to Rfam database...	0.71	0.68	0.75	44	27202	16	4	11	1	21
RFA_00626	rne5 links to Rfam database...	0.90	0.85	0.95	74	56538	17	0	4	13	13
RFA_00627	rne5 links to Rfam database...	0.85	0.82	0.89	71	56873	23	0	9	14	16
RFA_00628	rne5 links to Rfam database...	0.92	0.90	0.95	77	57210	17	0	4	13	9
RFA_00630	rne5 links to Rfam database...	0.83	0.79	0.87	69	56874	22	0	10	12	18
RFA_00814	R2_retro_el links to Rfam database...	0.92	0.85	1.00	35	25165	13	0	0	13	6
RFA_00816	R2_retro_el links to Rfam database...	1.00	1.00	1.00	41	23179	14	0	0	14	0
RFA_00817	R2_retro_el links to Rfam database...	0.95	0.90	1.00	37	21908	7	0	0	7	4
RFA_00818	R2_retro_el links to Rfam database...	0.85	0.80	0.89	33	20264	11	1	3	7	8
RFA_00819	R2_retro_el links to Rfam database...	0.98	0.95	1.00	39	27927	27	0	0	27	2
SRP_00241	Plant_SRP links to Rfam database...	0.56	0.59	0.54	48	45967	43	12	29	2	34
SRP_00257	Metazoa_SRP links to Rfam database...	0.78	0.72	0.85	78	50948	16	4	10	2	30
SRP_00308	Bacteria_large_SRP links to Rfam database...	0.76	0.74	0.77	65	36231	20	2	17	1	23
SRP_00328	Metazoa_SRP links to Rfam database...	0.69	0.67	0.70	57	39540	27	5	19	3	28
SRP_00329	Metazoa_SRP links to Rfam database...	0.65	0.64	0.67	54	39822	30	3	24	3	31
SRP_00331	Metazoa_SRP links to Rfam database...	0.67	0.66	0.68	57	37591	29	3	24	2	30
SRP_00340	Metazoa_SRP links to Rfam database...	0.61	0.61	0.61	50	41246	38	6	26	6	32

Total Scores
MCC	0.171
Average MCC ± 95% Confidence Intervals	0.170 ± 0.048
Sensitivity	0.159
Positive Predictive Value	0.188
Nr of predictions	17

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
ASE_00210	RNaseP_arch links to Rfam database...	0.10	0.09	0.11	6	27207	50	7	41	2	59
RFA_00626	rne5 links to Rfam database...	0.20	0.18	0.22	16	56543	61	11	46	4	71
RFA_00627	rne5 links to Rfam database...	0.23	0.22	0.24	19	56874	63	13	47	3	68
RFA_00628	rne5 links to Rfam database...	0.24	0.22	0.26	19	57218	64	8	46	10	67
RFA_00630	rne5 links to Rfam database...	0.30	0.29	0.32	25	56875	58	3	50	5	62
RFA_00814	R2_retro_el links to Rfam database...	0.41	0.39	0.43	16	25163	33	3	18	12	25
RFA_00816	R2_retro_el links to Rfam database...	0.12	0.12	0.13	5	23181	42	9	25	8	36
RFA_00817	R2_retro_el links to Rfam database...	0.11	0.12	0.11	5	21898	42	16	26	0	36
RFA_00818	R2_retro_el links to Rfam database...	0.00	0.00	0.00	0	20265	46	10	26	10	41
RFA_00819	R2_retro_el links to Rfam database...	0.20	0.20	0.21	8	27928	45	6	24	15	33
SRP_00241	Plant_SRP links to Rfam database...	0.07	0.07	0.08	6	45978	74	13	59	2	76
SRP_00257	Metazoa_SRP links to Rfam database...	0.10	0.08	0.13	9	50971	60	1	59	0	99
SRP_00308	Bacteria_large_SRP links to Rfam database...	0.13	0.11	0.14	10	36245	60	12	48	0	78
SRP_00328	Metazoa_SRP links to Rfam database...	0.18	0.16	0.20	14	39550	57	11	46	0	71
SRP_00329	Metazoa_SRP links to Rfam database...	0.17	0.15	0.20	13	39839	51	5	46	0	72
SRP_00331	Metazoa_SRP links to Rfam database...	0.14	0.13	0.16	11	37608	56	5	51	0	76
SRP_00340	Metazoa_SRP links to Rfam database...	0.18	0.17	0.19	14	41256	58	11	47	0	68

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
