Overview

Metric	CentroidAlifold(seed)		Afold
MCC	0.797	>	0.444
Average MCC ± 95% Confidence Intervals	0.792 ± 0.032	>	0.443 ± 0.033
Sensitivity	0.708	>	0.438
Positive Predictive Value	0.898	>	0.450
Total TP	20308	>	12564
Total TN	75365265	>	75359949
Total FP	3339	<	17145
Total FP CONTRA	427	<	2185
Total FP INCONS	1883	<	13185
Total FP COMP	1029	<	1775
Total FN	8372	<	16116
P-value	3.56938820447e-08

^top

Performance plots

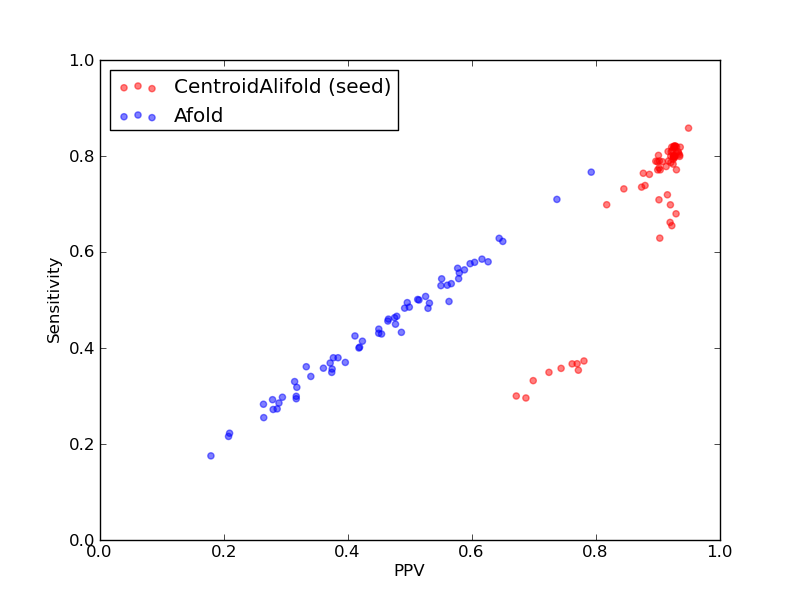

Comparison of performance of CentroidAlifold(seed) and Afold. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for CentroidAlifold(seed) and Afold).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for CentroidAlifold(seed) and Afold).
Comparison of average Matthews Correlation Coefficients (MCCs) for CentroidAlifold(seed) and Afold. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for CentroidAlifold(seed) and Afold).

^top

Performance of CentroidAlifold(seed) - scored higher in this pairwise comparison

1. Total counts & total scores for CentroidAlifold(seed)

Total Base Pair Counts
Total TP	20308
Total TN	75365265
Total FP	3339
Total FP CONTRA	427
Total FP INCONS	1883
Total FP COMP	1029
Total FN	8372

Total Scores
MCC	0.797
Average MCC ± 95% Confidence Intervals	0.792 ± 0.032
Sensitivity	0.708
Positive Predictive Value	0.898
Nr of predictions	61

^top

2. Individual counts for CentroidAlifold(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
CRW_00024	SSU_rRNA_archaea links to Rfam database...	0.90	0.86	0.95	393	1085187	55	6	15	34	65
CRW_00048	SSU_rRNA_bacteria links to Rfam database...	0.87	0.82	0.93	385	1170801	38	9	20	9	85
CRW_00054	SSU_rRNA_bacteria links to Rfam database...	0.87	0.82	0.93	374	1107413	39	9	20	10	82
CRW_00059	SSU_rRNA_bacteria links to Rfam database...	0.85	0.79	0.92	372	1172342	41	9	23	9	101
CRW_00061	SSU_rRNA_bacteria links to Rfam database...	0.86	0.80	0.92	381	1181541	41	9	22	10	95
CRW_00068	SSU_rRNA_bacteria links to Rfam database...	0.87	0.82	0.93	375	1108900	39	9	21	9	82
CRW_00096	SSU_rRNA_bacteria links to Rfam database...	0.87	0.80	0.93	373	1178481	41	4	22	15	92
CRW_00140	SSU_rRNA_bacteria links to Rfam database...	0.87	0.82	0.92	379	1135867	41	9	23	9	84
CRW_00141	SSU_rRNA_bacteria links to Rfam database...	0.86	0.80	0.93	381	1201614	41	9	21	11	95
CRW_00150	SSU_rRNA_bacteria links to Rfam database...	0.86	0.80	0.93	372	1152519	39	9	21	9	94
CRW_00152	SSU_rRNA_bacteria links to Rfam database...	0.86	0.80	0.93	376	1180010	40	9	21	10	95
CRW_00166	SSU_rRNA_bacteria links to Rfam database...	0.86	0.80	0.94	374	1190796	41	4	22	15	94
CRW_00173	SSU_rRNA_bacteria links to Rfam database...	0.82	0.76	0.88	340	1082268	59	9	39	11	105
CRW_00177	SSU_rRNA_bacteria links to Rfam database...	0.84	0.78	0.91	368	1178477	47	9	26	12	105
CRW_00196	SSU_rRNA_bacteria links to Rfam database...	0.87	0.81	0.93	383	1207823	39	9	20	10	92
CRW_00230	SSU_rRNA_bacteria links to Rfam database...	0.86	0.80	0.93	381	1198515	40	9	21	10	97
CRW_00245	SSU_rRNA_bacteria links to Rfam database...	0.87	0.82	0.93	372	1105927	39	9	20	10	81
CRW_00248	SSU_rRNA_bacteria links to Rfam database...	0.85	0.78	0.92	379	1218731	41	9	22	10	105
CRW_00250	SSU_rRNA_bacteria links to Rfam database...	0.86	0.80	0.92	382	1198513	40	9	22	9	96
CRW_00256	SSU_rRNA_bacteria links to Rfam database...	0.86	0.80	0.93	374	1192336	40	9	21	10	94
CRW_00270	SSU_rRNA_bacteria links to Rfam database...	0.87	0.82	0.93	373	1111883	39	9	21	9	82
CRW_00271	SSU_rRNA_bacteria links to Rfam database...	0.84	0.77	0.90	358	1122354	48	8	31	9	104
CRW_00273	SSU_rRNA_bacteria links to Rfam database...	0.86	0.81	0.92	361	1085207	41	8	25	8	85
CRW_00275	SSU_rRNA_bacteria links to Rfam database...	0.87	0.81	0.92	371	1114869	40	9	22	9	86
CRW_00277	SSU_rRNA_bacteria links to Rfam database...	0.85	0.80	0.90	363	1110392	50	13	27	10	90
CRW_00278	SSU_rRNA_bacteria links to Rfam database...	0.83	0.77	0.90	347	1129872	48	8	29	11	103
CRW_00279	SSU_rRNA_bacteria links to Rfam database...	0.86	0.80	0.92	371	1180013	46	9	23	14	93
CRW_00280	SSU_rRNA_bacteria links to Rfam database...	0.84	0.79	0.90	357	1117863	52	9	31	12	96
CRW_00281	SSU_rRNA_bacteria links to Rfam database...	0.86	0.79	0.92	368	1144943	39	9	21	9	96
CRW_00283	SSU_rRNA_bacteria links to Rfam database...	0.79	0.73	0.84	316	1015651	66	12	46	8	116
CRW_00284	SSU_rRNA_bacteria links to Rfam database...	0.84	0.79	0.90	360	1131361	50	9	30	11	96
CRW_00285	SSU_rRNA_bacteria links to Rfam database...	0.85	0.79	0.91	361	1117862	46	11	26	9	97
CRW_00289	SSU_rRNA_bacteria links to Rfam database...	0.83	0.77	0.90	367	1189245	50	10	31	9	109
CRW_00292	SSU_rRNA_bacteria links to Rfam database...	0.76	0.70	0.82	322	1123856	83	13	59	11	139
CRW_00366	SSU_rRNA_eukarya links to Rfam database...	0.53	0.37	0.77	177	1579523	74	4	49	21	305
CRW_00371	SSU_rRNA_eukarya links to Rfam database...	0.54	0.37	0.78	185	1611673	73	4	48	21	311
CRW_00379	SSU_rRNA_eukarya links to Rfam database...	0.45	0.30	0.69	158	2126723	93	6	66	21	376
CRW_00411	SSU_rRNA_eukarya links to Rfam database...	0.53	0.37	0.76	182	1615264	78	4	53	21	314
CRW_00414	SSU_rRNA_eukarya links to Rfam database...	0.52	0.36	0.74	177	1665987	83	5	56	22	318
CRW_00466	SSU_rRNA_bacteria links to Rfam database...	0.87	0.82	0.93	374	1116361	39	8	22	9	84
CRW_00589	SSU_rRNA_bacteria links to Rfam database...	0.87	0.81	0.93	360	1094074	43	2	24	17	85
CRW_00590	SSU_rRNA_bacteria links to Rfam database...	0.87	0.81	0.93	364	1119366	44	2	24	18	88
CRW_00591	SSU_rRNA_bacteria links to Rfam database...	0.88	0.82	0.94	365	1098513	44	3	22	19	81
CRW_00759	SSU_rRNA_eukarya links to Rfam database...	0.50	0.35	0.72	168	1636913	92	3	61	28	313
CRW_00763	SSU_rRNA_bacteria links to Rfam database...	0.85	0.77	0.93	344	1215650	51	2	24	25	102
CRW_00772	SSU_rRNA_bacteria links to Rfam database...	0.80	0.74	0.87	297	945660	69	2	41	26	107
CRW_00778	SSU_rRNA_bacteria links to Rfam database...	0.84	0.79	0.90	303	1201687	92	4	31	57	81
CRW_00789	SSU_rRNA_bacteria links to Rfam database...	0.85	0.79	0.92	353	1137401	53	5	27	21	94
CRW_00795	SSU_rRNA_bacteria links to Rfam database...	0.81	0.74	0.88	291	1152590	94	3	37	54	103
CRW_00800	SSU_rRNA_eukarya links to Rfam database...	0.45	0.30	0.67	141	1401765	92	7	62	23	329
CRW_00849	SSU_rRNA_bacteria links to Rfam database...	0.82	0.76	0.89	358	1117856	57	12	34	11	112
CRW_01153	SSU_rRNA_eukarya links to Rfam database...	0.48	0.33	0.70	167	1606289	89	4	68	17	336
CRW_01171	SSU_rRNA_eukarya links to Rfam database...	0.52	0.35	0.77	179	1593773	71	4	49	18	327
CRW_01343	SSU_rRNA_archaea links to Rfam database...	0.86	0.81	0.92	351	977520	61	3	27	31	83
PDB_00703	SSU_rRNA_bacteria links to Rfam database...	0.81	0.72	0.92	356	1073456	57	6	27	24	139
PDB_00854	SSU_rRNA_bacteria links to Rfam database...	0.78	0.66	0.92	354	1500393	66	5	26	35	181
PDB_01088	SSU_rRNA_bacteria links to Rfam database...	0.75	0.63	0.90	344	1471089	68	3	34	31	203
PDB_01103	SSU_rRNA_bacteria links to Rfam database...	0.78	0.65	0.92	368	1606129	52	6	25	21	194
PDB_01105	SSU_rRNA_bacteria links to Rfam database...	0.79	0.68	0.93	367	1433576	53	2	26	25	173
PDB_01120	SSU_rRNA_bacteria links to Rfam database...	0.80	0.70	0.92	368	1204728	49	8	24	17	159
PDB_01273	SSU_rRNA_bacteria links to Rfam database...	0.80	0.71	0.90	348	1117874	63	6	32	25	143

^top

Performance of Afold - scored lower in this pairwise comparison

1. Total counts & total scores for Afold

Total Base Pair Counts
Total TP	12564
Total TN	75359949
Total FP	17145
Total FP CONTRA	2185
Total FP INCONS	13185
Total FP COMP	1775
Total FN	16116

Total Scores
MCC	0.444
Average MCC ± 95% Confidence Intervals	0.443 ± 0.033
Sensitivity	0.438
Positive Predictive Value	0.450
Nr of predictions	61

^top

2. Individual counts for Afold [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
CRW_00024	SSU_rRNA_archaea links to Rfam database...	0.78	0.77	0.79	351	1085158	132	17	75	40	107
CRW_00048	SSU_rRNA_bacteria links to Rfam database...	0.49	0.49	0.50	228	1170758	252	20	209	23	242
CRW_00054	SSU_rRNA_bacteria links to Rfam database...	0.46	0.46	0.46	208	1107368	260	31	209	20	248
CRW_00059	SSU_rRNA_bacteria links to Rfam database...	0.52	0.51	0.53	240	1172289	233	26	191	16	233
CRW_00061	SSU_rRNA_bacteria links to Rfam database...	0.55	0.54	0.55	259	1181483	231	27	184	20	217
CRW_00068	SSU_rRNA_bacteria links to Rfam database...	0.49	0.49	0.50	226	1108849	247	24	206	17	231
CRW_00096	SSU_rRNA_bacteria links to Rfam database...	0.46	0.46	0.47	214	1178420	264	32	214	18	251
CRW_00140	SSU_rRNA_bacteria links to Rfam database...	0.64	0.63	0.64	291	1135826	182	20	141	21	172
CRW_00141	SSU_rRNA_bacteria links to Rfam database...	0.59	0.58	0.60	274	1201566	212	26	159	27	202
CRW_00150	SSU_rRNA_bacteria links to Rfam database...	0.42	0.41	0.42	193	1152465	282	35	228	19	273
CRW_00152	SSU_rRNA_bacteria links to Rfam database...	0.64	0.62	0.65	293	1179965	180	30	128	22	178
CRW_00166	SSU_rRNA_bacteria links to Rfam database...	0.54	0.53	0.55	248	1190745	226	28	175	23	220
CRW_00173	SSU_rRNA_bacteria links to Rfam database...	0.29	0.29	0.29	127	1082216	323	37	276	10	318
CRW_00177	SSU_rRNA_bacteria links to Rfam database...	0.44	0.43	0.45	203	1178433	259	22	222	15	270
CRW_00196	SSU_rRNA_bacteria links to Rfam database...	0.47	0.46	0.48	220	1207772	267	24	219	24	255
CRW_00230	SSU_rRNA_bacteria links to Rfam database...	0.57	0.56	0.58	266	1198467	216	21	172	23	212
CRW_00245	SSU_rRNA_bacteria links to Rfam database...	0.38	0.38	0.38	172	1105880	289	44	232	13	281
CRW_00248	SSU_rRNA_bacteria links to Rfam database...	0.57	0.57	0.58	274	1218666	234	21	180	33	210
CRW_00250	SSU_rRNA_bacteria links to Rfam database...	0.44	0.44	0.45	210	1198459	274	34	223	17	268
CRW_00256	SSU_rRNA_bacteria links to Rfam database...	0.41	0.40	0.42	188	1192291	278	39	222	17	280
CRW_00270	SSU_rRNA_bacteria links to Rfam database...	0.44	0.43	0.45	196	1111850	260	40	200	20	259
CRW_00271	SSU_rRNA_bacteria links to Rfam database...	0.51	0.50	0.51	231	1122302	237	43	175	19	231
CRW_00273	SSU_rRNA_bacteria links to Rfam database...	0.59	0.58	0.60	258	1085174	195	26	143	26	188
CRW_00275	SSU_rRNA_bacteria links to Rfam database...	0.47	0.47	0.48	213	1114826	258	28	204	26	244
CRW_00277	SSU_rRNA_bacteria links to Rfam database...	0.38	0.38	0.38	172	1110338	300	45	240	15	281
CRW_00278	SSU_rRNA_bacteria links to Rfam database...	0.41	0.40	0.42	180	1129825	274	33	218	23	270
CRW_00279	SSU_rRNA_bacteria links to Rfam database...	0.51	0.49	0.53	229	1179985	227	29	173	25	235
CRW_00280	SSU_rRNA_bacteria links to Rfam database...	0.51	0.50	0.51	227	1117817	231	28	188	15	226
CRW_00281	SSU_rRNA_bacteria links to Rfam database...	0.30	0.30	0.29	138	1144872	347	41	290	16	326
CRW_00283	SSU_rRNA_bacteria links to Rfam database...	0.28	0.27	0.29	118	1015612	321	39	256	26	314
CRW_00284	SSU_rRNA_bacteria links to Rfam database...	0.28	0.27	0.28	124	1131316	337	30	290	17	332
CRW_00285	SSU_rRNA_bacteria links to Rfam database...	0.72	0.71	0.74	325	1117819	142	23	93	26	133
CRW_00289	SSU_rRNA_bacteria links to Rfam database...	0.46	0.45	0.48	214	1189204	258	34	201	23	262
CRW_00292	SSU_rRNA_bacteria links to Rfam database...	0.31	0.30	0.32	138	1123814	315	46	252	17	323
CRW_00366	SSU_rRNA_eukarya links to Rfam database...	0.35	0.36	0.33	174	1579230	395	88	261	46	308
CRW_00371	SSU_rRNA_eukarya links to Rfam database...	0.29	0.29	0.28	145	1611389	409	77	299	33	351
CRW_00379	SSU_rRNA_eukarya links to Rfam database...	0.42	0.43	0.41	227	2126401	423	55	270	98	307
CRW_00411	SSU_rRNA_eukarya links to Rfam database...	0.34	0.34	0.34	169	1615006	381	62	266	53	327
CRW_00414	SSU_rRNA_eukarya links to Rfam database...	0.27	0.28	0.26	140	1665694	436	77	314	45	355
CRW_00466	SSU_rRNA_bacteria links to Rfam database...	0.60	0.59	0.62	268	1116330	196	21	146	29	190
CRW_00589	SSU_rRNA_bacteria links to Rfam database...	0.18	0.18	0.18	78	1094024	374	34	324	16	367
CRW_00590	SSU_rRNA_bacteria links to Rfam database...	0.36	0.36	0.37	161	1119326	290	30	239	21	291
CRW_00591	SSU_rRNA_bacteria links to Rfam database...	0.57	0.56	0.59	251	1098476	205	23	153	29	195
CRW_00759	SSU_rRNA_eukarya links to Rfam database...	0.22	0.22	0.21	107	1636633	462	78	327	57	374
CRW_00763	SSU_rRNA_bacteria links to Rfam database...	0.38	0.37	0.40	165	1215603	304	24	228	52	281
CRW_00772	SSU_rRNA_bacteria links to Rfam database...	0.26	0.25	0.26	103	945610	313	37	250	26	301
CRW_00778	SSU_rRNA_bacteria links to Rfam database...	0.30	0.29	0.32	113	1201668	314	34	210	70	271
CRW_00789	SSU_rRNA_bacteria links to Rfam database...	0.36	0.36	0.36	160	1137342	302	44	240	18	287
CRW_00795	SSU_rRNA_bacteria links to Rfam database...	0.21	0.22	0.21	85	1152511	379	51	274	54	309
CRW_00800	SSU_rRNA_eukarya links to Rfam database...	0.55	0.53	0.57	251	1401532	269	24	168	77	219
CRW_00849	SSU_rRNA_bacteria links to Rfam database...	0.49	0.48	0.49	227	1117798	259	23	212	24	243
CRW_01153	SSU_rRNA_eukarya links to Rfam database...	0.32	0.32	0.32	160	1606024	390	54	290	46	343
CRW_01171	SSU_rRNA_eukarya links to Rfam database...	0.32	0.33	0.31	167	1593473	402	81	284	37	339
CRW_01343	SSU_rRNA_archaea links to Rfam database...	0.37	0.37	0.37	160	977470	284	42	229	13	274
PDB_00703	SSU_rRNA_bacteria links to Rfam database...	0.53	0.50	0.56	246	1073408	220	17	174	29	249
PDB_00854	SSU_rRNA_bacteria links to Rfam database...	0.55	0.53	0.56	284	1500271	276	22	201	53	251
PDB_01088	SSU_rRNA_bacteria links to Rfam database...	0.36	0.35	0.37	191	1470959	352	45	275	32	356
PDB_01103	SSU_rRNA_bacteria links to Rfam database...	0.56	0.54	0.58	306	1605999	254	32	191	31	256
PDB_01105	SSU_rRNA_bacteria links to Rfam database...	0.60	0.58	0.63	313	1433471	221	15	172	34	227
PDB_01120	SSU_rRNA_bacteria links to Rfam database...	0.46	0.43	0.49	228	1204659	250	31	210	9	299
PDB_01273	SSU_rRNA_bacteria links to Rfam database...	0.51	0.48	0.53	237	1117812	242	21	190	31	254

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
