Overview

Metric	CentroidAlifold(seed)		MXScarna(seed)
MCC	0.796	>	0.659
Average MCC ± 95% Confidence Intervals	0.790 ± 0.032	>	0.662 ± 0.026
Sensitivity	0.706	>	0.589
Positive Predictive Value	0.897	>	0.738
Total TP	21223	>	17728
Total TN	79088671	>	79088306
Total FP	3503	<	8922
Total FP CONTRA	450	<	930
Total FP INCONS	1983	<	5363
Total FP COMP	1070	<	2629
Total FN	8857	<	12352
P-value	3.56938820447e-08

^top

Performance plots

Comparison of performance of CentroidAlifold(seed) and MXScarna(seed). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for CentroidAlifold(seed) and MXScarna(seed)).

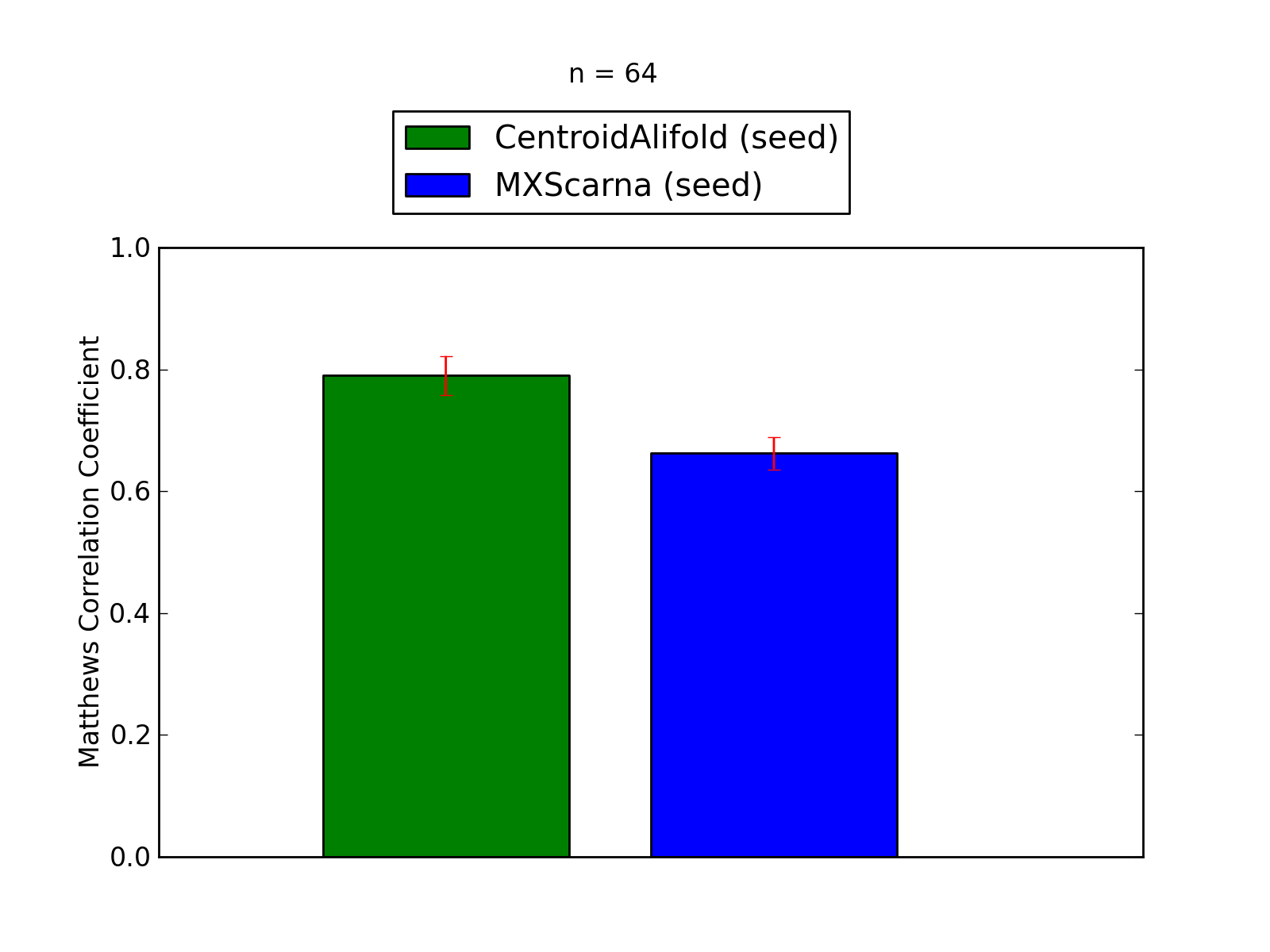

Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for CentroidAlifold(seed) and MXScarna(seed)).
Comparison of average Matthews Correlation Coefficients (MCCs) for CentroidAlifold(seed) and MXScarna(seed). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for CentroidAlifold(seed) and MXScarna(seed)).

^top

Performance of CentroidAlifold(seed) - scored higher in this pairwise comparison

1. Total counts & total scores for CentroidAlifold(seed)

Total Base Pair Counts
Total TP	21223
Total TN	79088671
Total FP	3503
Total FP CONTRA	450
Total FP INCONS	1983
Total FP COMP	1070
Total FN	8857

Total Scores
MCC	0.796
Average MCC ± 95% Confidence Intervals	0.790 ± 0.032
Sensitivity	0.706
Positive Predictive Value	0.897
Nr of predictions	64

^top

2. Individual counts for CentroidAlifold(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
CRW_00024	SSU_rRNA_archaea links to Rfam database...	0.90	0.86	0.95	393	1085187	55	6	15	34	65
CRW_00034	SSU_rRNA_bacteria links to Rfam database...	0.83	0.78	0.90	368	1141906	52	10	32	10	106
CRW_00048	SSU_rRNA_bacteria links to Rfam database...	0.87	0.82	0.93	385	1170801	38	9	20	9	85
CRW_00054	SSU_rRNA_bacteria links to Rfam database...	0.87	0.82	0.93	374	1107413	39	9	20	10	82
CRW_00059	SSU_rRNA_bacteria links to Rfam database...	0.85	0.79	0.92	372	1172342	41	9	23	9	101
CRW_00061	SSU_rRNA_bacteria links to Rfam database...	0.86	0.80	0.92	381	1181541	41	9	22	10	95
CRW_00068	SSU_rRNA_bacteria links to Rfam database...	0.87	0.82	0.93	375	1108900	39	9	21	9	82
CRW_00096	SSU_rRNA_bacteria links to Rfam database...	0.87	0.80	0.93	373	1178481	41	4	22	15	92
CRW_00140	SSU_rRNA_bacteria links to Rfam database...	0.87	0.82	0.92	379	1135867	41	9	23	9	84
CRW_00141	SSU_rRNA_bacteria links to Rfam database...	0.86	0.80	0.93	381	1201614	41	9	21	11	95
CRW_00150	SSU_rRNA_bacteria links to Rfam database...	0.86	0.80	0.93	372	1152519	39	9	21	9	94
CRW_00152	SSU_rRNA_bacteria links to Rfam database...	0.86	0.80	0.93	376	1180010	40	9	21	10	95
CRW_00166	SSU_rRNA_bacteria links to Rfam database...	0.86	0.80	0.94	374	1190796	41	4	22	15	94
CRW_00173	SSU_rRNA_bacteria links to Rfam database...	0.82	0.76	0.88	340	1082268	59	9	39	11	105
CRW_00177	SSU_rRNA_bacteria links to Rfam database...	0.84	0.78	0.91	368	1178477	47	9	26	12	105
CRW_00196	SSU_rRNA_bacteria links to Rfam database...	0.87	0.81	0.93	383	1207823	39	9	20	10	92
CRW_00230	SSU_rRNA_bacteria links to Rfam database...	0.86	0.80	0.93	381	1198515	40	9	21	10	97
CRW_00245	SSU_rRNA_bacteria links to Rfam database...	0.87	0.82	0.93	372	1105927	39	9	20	10	81
CRW_00248	SSU_rRNA_bacteria links to Rfam database...	0.85	0.78	0.92	379	1218731	41	9	22	10	105
CRW_00250	SSU_rRNA_bacteria links to Rfam database...	0.86	0.80	0.92	382	1198513	40	9	22	9	96
CRW_00256	SSU_rRNA_bacteria links to Rfam database...	0.86	0.80	0.93	374	1192336	40	9	21	10	94
CRW_00270	SSU_rRNA_bacteria links to Rfam database...	0.87	0.82	0.93	373	1111883	39	9	21	9	82
CRW_00271	SSU_rRNA_bacteria links to Rfam database...	0.84	0.77	0.90	358	1122354	48	8	31	9	104
CRW_00273	SSU_rRNA_bacteria links to Rfam database...	0.86	0.81	0.92	361	1085207	41	8	25	8	85
CRW_00275	SSU_rRNA_bacteria links to Rfam database...	0.87	0.81	0.92	371	1114869	40	9	22	9	86
CRW_00277	SSU_rRNA_bacteria links to Rfam database...	0.85	0.80	0.90	363	1110392	50	13	27	10	90
CRW_00278	SSU_rRNA_bacteria links to Rfam database...	0.83	0.77	0.90	347	1129872	48	8	29	11	103
CRW_00279	SSU_rRNA_bacteria links to Rfam database...	0.86	0.80	0.92	371	1180013	46	9	23	14	93
CRW_00280	SSU_rRNA_bacteria links to Rfam database...	0.84	0.79	0.90	357	1117863	52	9	31	12	96
CRW_00281	SSU_rRNA_bacteria links to Rfam database...	0.86	0.79	0.92	368	1144943	39	9	21	9	96
CRW_00283	SSU_rRNA_bacteria links to Rfam database...	0.79	0.73	0.84	316	1015651	66	12	46	8	116
CRW_00284	SSU_rRNA_bacteria links to Rfam database...	0.84	0.79	0.90	360	1131361	50	9	30	11	96
CRW_00285	SSU_rRNA_bacteria links to Rfam database...	0.85	0.79	0.91	361	1117862	46	11	26	9	97
CRW_00289	SSU_rRNA_bacteria links to Rfam database...	0.83	0.77	0.90	367	1189245	50	10	31	9	109
CRW_00292	SSU_rRNA_bacteria links to Rfam database...	0.76	0.70	0.82	322	1123856	83	13	59	11	139
CRW_00306	SSU_rRNA_eukarya links to Rfam database...	0.53	0.37	0.77	170	1445629	73	4	47	22	292
CRW_00366	SSU_rRNA_eukarya links to Rfam database...	0.53	0.37	0.77	177	1579523	74	4	49	21	305
CRW_00371	SSU_rRNA_eukarya links to Rfam database...	0.54	0.37	0.78	185	1611673	73	4	48	21	311
CRW_00379	SSU_rRNA_eukarya links to Rfam database...	0.45	0.30	0.69	158	2126723	93	6	66	21	376
CRW_00411	SSU_rRNA_eukarya links to Rfam database...	0.53	0.37	0.76	182	1615264	78	4	53	21	314
CRW_00414	SSU_rRNA_eukarya links to Rfam database...	0.52	0.36	0.74	177	1665987	83	5	56	22	318
CRW_00466	SSU_rRNA_bacteria links to Rfam database...	0.87	0.82	0.93	374	1116361	39	8	22	9	84
CRW_00589	SSU_rRNA_bacteria links to Rfam database...	0.87	0.81	0.93	360	1094074	43	2	24	17	85
CRW_00590	SSU_rRNA_bacteria links to Rfam database...	0.87	0.81	0.93	364	1119366	44	2	24	18	88
CRW_00591	SSU_rRNA_bacteria links to Rfam database...	0.88	0.82	0.94	365	1098513	44	3	22	19	81
CRW_00759	SSU_rRNA_eukarya links to Rfam database...	0.50	0.35	0.72	168	1636913	92	3	61	28	313
CRW_00763	SSU_rRNA_bacteria links to Rfam database...	0.85	0.77	0.93	344	1215650	51	2	24	25	102
CRW_00772	SSU_rRNA_bacteria links to Rfam database...	0.80	0.74	0.87	297	945660	69	2	41	26	107
CRW_00778	SSU_rRNA_bacteria links to Rfam database...	0.84	0.79	0.90	303	1201687	92	4	31	57	81
CRW_00789	SSU_rRNA_bacteria links to Rfam database...	0.85	0.79	0.92	353	1137401	53	5	27	21	94
CRW_00795	SSU_rRNA_bacteria links to Rfam database...	0.81	0.74	0.88	291	1152590	94	3	37	54	103
CRW_00800	SSU_rRNA_eukarya links to Rfam database...	0.45	0.30	0.67	141	1401765	92	7	62	23	329
CRW_00849	SSU_rRNA_bacteria links to Rfam database...	0.82	0.76	0.89	358	1117856	57	12	34	11	112
CRW_00997	SSU_rRNA_bacteria links to Rfam database...	0.87	0.81	0.93	377	1135871	39	9	21	9	87
CRW_01153	SSU_rRNA_eukarya links to Rfam database...	0.48	0.33	0.70	167	1606289	89	4	68	17	336
CRW_01171	SSU_rRNA_eukarya links to Rfam database...	0.52	0.35	0.77	179	1593773	71	4	49	18	327
CRW_01343	SSU_rRNA_archaea links to Rfam database...	0.86	0.81	0.92	351	977520	61	3	27	31	83
PDB_00703	SSU_rRNA_bacteria links to Rfam database...	0.81	0.72	0.92	356	1073456	57	6	27	24	139
PDB_00854	SSU_rRNA_bacteria links to Rfam database...	0.78	0.66	0.92	354	1500393	66	5	26	35	181
PDB_01088	SSU_rRNA_bacteria links to Rfam database...	0.75	0.63	0.90	344	1471089	68	3	34	31	203
PDB_01103	SSU_rRNA_bacteria links to Rfam database...	0.78	0.65	0.92	368	1606129	52	6	25	21	194
PDB_01105	SSU_rRNA_bacteria links to Rfam database...	0.79	0.68	0.93	367	1433576	53	2	26	25	173
PDB_01120	SSU_rRNA_bacteria links to Rfam database...	0.80	0.70	0.92	368	1204728	49	8	24	17	159
PDB_01273	SSU_rRNA_bacteria links to Rfam database...	0.80	0.71	0.90	348	1117874	63	6	32	25	143

^top

Performance of MXScarna(seed) - scored lower in this pairwise comparison

1. Total counts & total scores for MXScarna(seed)

Total Base Pair Counts
Total TP	17728
Total TN	79088306
Total FP	8922
Total FP CONTRA	930
Total FP INCONS	5363
Total FP COMP	2629
Total FN	12352

Total Scores
MCC	0.659
Average MCC ± 95% Confidence Intervals	0.662 ± 0.026
Sensitivity	0.589
Positive Predictive Value	0.738
Nr of predictions	64

^top

2. Individual counts for MXScarna(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
CRW_00024	SSU_rRNA_archaea links to Rfam database...	0.83	0.81	0.86	369	1085172	112	11	49	52	89
CRW_00034	SSU_rRNA_bacteria links to Rfam database...	0.68	0.60	0.78	285	1141950	117	9	72	36	189
CRW_00048	SSU_rRNA_bacteria links to Rfam database...	0.74	0.68	0.82	318	1170827	101	10	60	31	152
CRW_00054	SSU_rRNA_bacteria links to Rfam database...	0.73	0.66	0.81	302	1107443	101	13	58	30	154
CRW_00059	SSU_rRNA_bacteria links to Rfam database...	0.72	0.64	0.81	305	1172369	105	12	60	33	168
CRW_00061	SSU_rRNA_bacteria links to Rfam database...	0.73	0.66	0.81	312	1181569	104	11	61	32	164
CRW_00068	SSU_rRNA_bacteria links to Rfam database...	0.74	0.67	0.82	305	1108933	99	12	55	32	152
CRW_00096	SSU_rRNA_bacteria links to Rfam database...	0.72	0.65	0.81	301	1178507	110	5	67	38	164
CRW_00140	SSU_rRNA_bacteria links to Rfam database...	0.73	0.66	0.81	304	1135902	106	11	61	34	159
CRW_00141	SSU_rRNA_bacteria links to Rfam database...	0.73	0.66	0.82	312	1201645	103	12	56	35	164
CRW_00150	SSU_rRNA_bacteria links to Rfam database...	0.72	0.64	0.81	300	1152549	106	11	61	34	166
CRW_00152	SSU_rRNA_bacteria links to Rfam database...	0.74	0.68	0.82	319	1180025	107	12	60	35	152
CRW_00166	SSU_rRNA_bacteria links to Rfam database...	0.73	0.65	0.82	305	1190824	106	6	61	39	163
CRW_00173	SSU_rRNA_bacteria links to Rfam database...	0.65	0.59	0.72	264	1082289	130	14	89	27	181
CRW_00177	SSU_rRNA_bacteria links to Rfam database...	0.68	0.61	0.77	287	1178505	117	12	76	29	186
CRW_00196	SSU_rRNA_bacteria links to Rfam database...	0.76	0.69	0.83	327	1207841	102	11	56	35	148
CRW_00230	SSU_rRNA_bacteria links to Rfam database...	0.75	0.67	0.83	321	1198539	99	12	54	33	157
CRW_00245	SSU_rRNA_bacteria links to Rfam database...	0.73	0.66	0.81	299	1105958	104	12	59	33	154
CRW_00248	SSU_rRNA_bacteria links to Rfam database...	0.72	0.64	0.81	311	1218757	105	11	62	32	173
CRW_00250	SSU_rRNA_bacteria links to Rfam database...	0.71	0.64	0.78	307	1198533	120	11	75	34	171
CRW_00256	SSU_rRNA_bacteria links to Rfam database...	0.74	0.66	0.82	311	1192362	98	11	56	31	157
CRW_00270	SSU_rRNA_bacteria links to Rfam database...	0.74	0.67	0.82	304	1111915	100	11	56	33	151
CRW_00271	SSU_rRNA_bacteria links to Rfam database...	0.71	0.64	0.80	295	1122381	105	12	63	30	167
CRW_00273	SSU_rRNA_bacteria links to Rfam database...	0.72	0.65	0.80	290	1085237	110	10	64	36	156
CRW_00275	SSU_rRNA_bacteria links to Rfam database...	0.74	0.67	0.82	306	1114897	103	10	58	35	151
CRW_00277	SSU_rRNA_bacteria links to Rfam database...	0.73	0.66	0.80	300	1110421	108	12	62	34	153
CRW_00278	SSU_rRNA_bacteria links to Rfam database...	0.68	0.60	0.78	271	1129907	113	9	69	35	179
CRW_00279	SSU_rRNA_bacteria links to Rfam database...	0.72	0.64	0.81	299	1180047	107	10	60	37	165
CRW_00280	SSU_rRNA_bacteria links to Rfam database...	0.70	0.63	0.79	284	1117899	114	10	67	37	169
CRW_00281	SSU_rRNA_bacteria links to Rfam database...	0.73	0.66	0.82	305	1144968	102	10	58	34	159
CRW_00283	SSU_rRNA_bacteria links to Rfam database...	0.63	0.56	0.71	242	1015684	127	13	86	28	190
CRW_00284	SSU_rRNA_bacteria links to Rfam database...	0.73	0.65	0.81	297	1131394	104	10	59	35	159
CRW_00285	SSU_rRNA_bacteria links to Rfam database...	0.71	0.64	0.79	294	1117886	113	13	67	33	164
CRW_00289	SSU_rRNA_bacteria links to Rfam database...	0.68	0.60	0.77	287	1189280	118	12	74	32	189
CRW_00292	SSU_rRNA_bacteria links to Rfam database...	0.62	0.53	0.71	245	1123906	126	12	87	27	216
CRW_00306	SSU_rRNA_eukarya links to Rfam database...	0.42	0.39	0.46	181	1445456	267	46	167	54	281
CRW_00366	SSU_rRNA_eukarya links to Rfam database...	0.48	0.45	0.51	215	1579331	275	41	166	68	267
CRW_00371	SSU_rRNA_eukarya links to Rfam database...	0.50	0.47	0.53	232	1611469	276	42	167	67	264
CRW_00379	SSU_rRNA_eukarya links to Rfam database...	0.36	0.32	0.41	170	2126540	318	50	193	75	364
CRW_00411	SSU_rRNA_eukarya links to Rfam database...	0.49	0.47	0.52	231	1615062	273	41	169	63	265
CRW_00414	SSU_rRNA_eukarya links to Rfam database...	0.46	0.43	0.49	213	1665792	286	43	177	66	282
CRW_00466	SSU_rRNA_bacteria links to Rfam database...	0.74	0.66	0.82	304	1116392	101	11	58	32	154
CRW_00589	SSU_rRNA_bacteria links to Rfam database...	0.70	0.63	0.79	279	1094105	117	6	70	41	166
CRW_00590	SSU_rRNA_bacteria links to Rfam database...	0.73	0.65	0.82	294	1119399	104	6	57	41	158
CRW_00591	SSU_rRNA_bacteria links to Rfam database...	0.74	0.66	0.82	294	1098545	110	6	58	46	152
CRW_00759	SSU_rRNA_eukarya links to Rfam database...	0.45	0.42	0.48	201	1636722	295	39	183	73	280
CRW_00763	SSU_rRNA_bacteria links to Rfam database...	0.68	0.59	0.78	262	1215683	119	6	69	44	184
CRW_00772	SSU_rRNA_bacteria links to Rfam database...	0.63	0.55	0.72	223	945690	133	6	81	46	181
CRW_00778	SSU_rRNA_bacteria links to Rfam database...	0.63	0.55	0.73	212	1201733	150	4	76	70	172
CRW_00789	SSU_rRNA_bacteria links to Rfam database...	0.71	0.63	0.80	280	1137437	111	7	62	42	167
CRW_00795	SSU_rRNA_bacteria links to Rfam database...	0.63	0.55	0.72	216	1152623	164	8	74	82	178
CRW_00800	SSU_rRNA_eukarya links to Rfam database...	0.34	0.29	0.39	137	1401627	256	36	175	45	333
CRW_00849	SSU_rRNA_bacteria links to Rfam database...	0.67	0.59	0.76	279	1117895	114	13	73	28	191
CRW_00997	SSU_rRNA_bacteria links to Rfam database...	0.72	0.65	0.80	301	1135902	107	11	64	32	163
CRW_01153	SSU_rRNA_eukarya links to Rfam database...	0.47	0.44	0.50	221	1606085	276	37	185	54	282
CRW_01171	SSU_rRNA_eukarya links to Rfam database...	0.49	0.46	0.53	231	1593565	264	35	174	55	275
CRW_01343	SSU_rRNA_archaea links to Rfam database...	0.73	0.68	0.78	294	977526	128	10	71	47	140
PDB_00703	SSU_rRNA_bacteria links to Rfam database...	0.66	0.56	0.77	278	1073486	114	9	72	33	217
PDB_00854	SSU_rRNA_bacteria links to Rfam database...	0.63	0.52	0.77	280	1500414	135	2	82	51	255
PDB_01088	SSU_rRNA_bacteria links to Rfam database...	0.61	0.49	0.76	269	1471116	131	6	79	46	278
PDB_01103	SSU_rRNA_bacteria links to Rfam database...	0.57	0.47	0.69	263	1606145	154	8	112	34	299
PDB_01105	SSU_rRNA_bacteria links to Rfam database...	0.66	0.55	0.80	299	1433595	117	1	76	40	241
PDB_01120	SSU_rRNA_bacteria links to Rfam database...	0.66	0.56	0.79	296	1204752	112	8	72	32	231
PDB_01273	SSU_rRNA_bacteria links to Rfam database...	0.69	0.59	0.80	290	1117898	113	9	63	41	201

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.

Table of contents:

Overview

Performance plots

Performance of CentroidAlifold(seed) - scored higher in this pairwise comparison

1. Total counts & total scores for CentroidAlifold(seed)

2. Individual counts for CentroidAlifold(seed) [ download as .csv ]

Performance of MXScarna(seed) - scored lower in this pairwise comparison

1. Total counts & total scores for MXScarna(seed)

2. Individual counts for MXScarna(seed) [ download as .csv ]
