Overview

Metric	CentroidFold		Contrafold
MCC	0.445	>	0.437
Average MCC ± 95% Confidence Intervals	0.454 ± 0.020	>	0.449 ± 0.020
Sensitivity	0.378	<	0.416
Positive Predictive Value	0.525	>	0.458
Total TP	28625	<	31534
Total TN	217187968	>	217173754
Total FP	36179	<	50907
Total FP CONTRA	4208	<	5884
Total FP INCONS	21730	<	31359
Total FP COMP	10241	<	13664
Total FN	47134	>	44225
P-value	3.56938820447e-08

^top

Performance plots

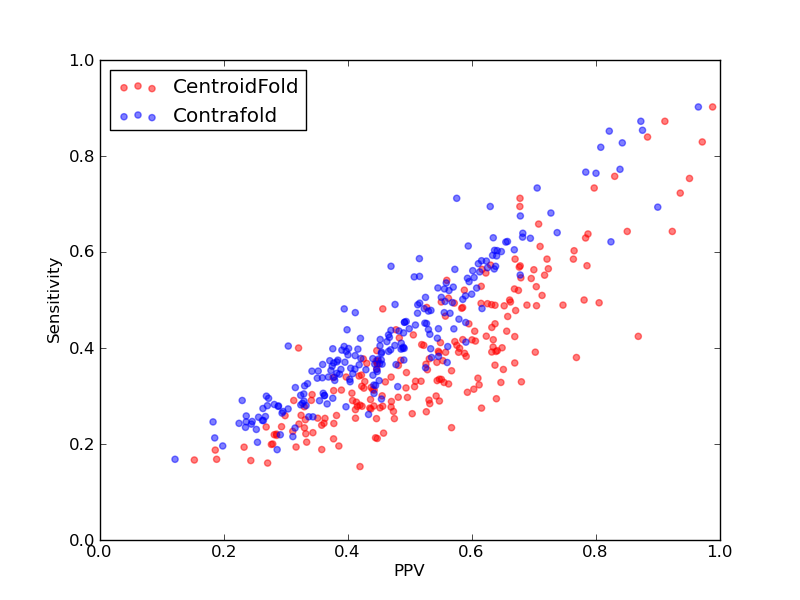

Comparison of performance of CentroidFold and Contrafold. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for CentroidFold and Contrafold).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for CentroidFold and Contrafold).

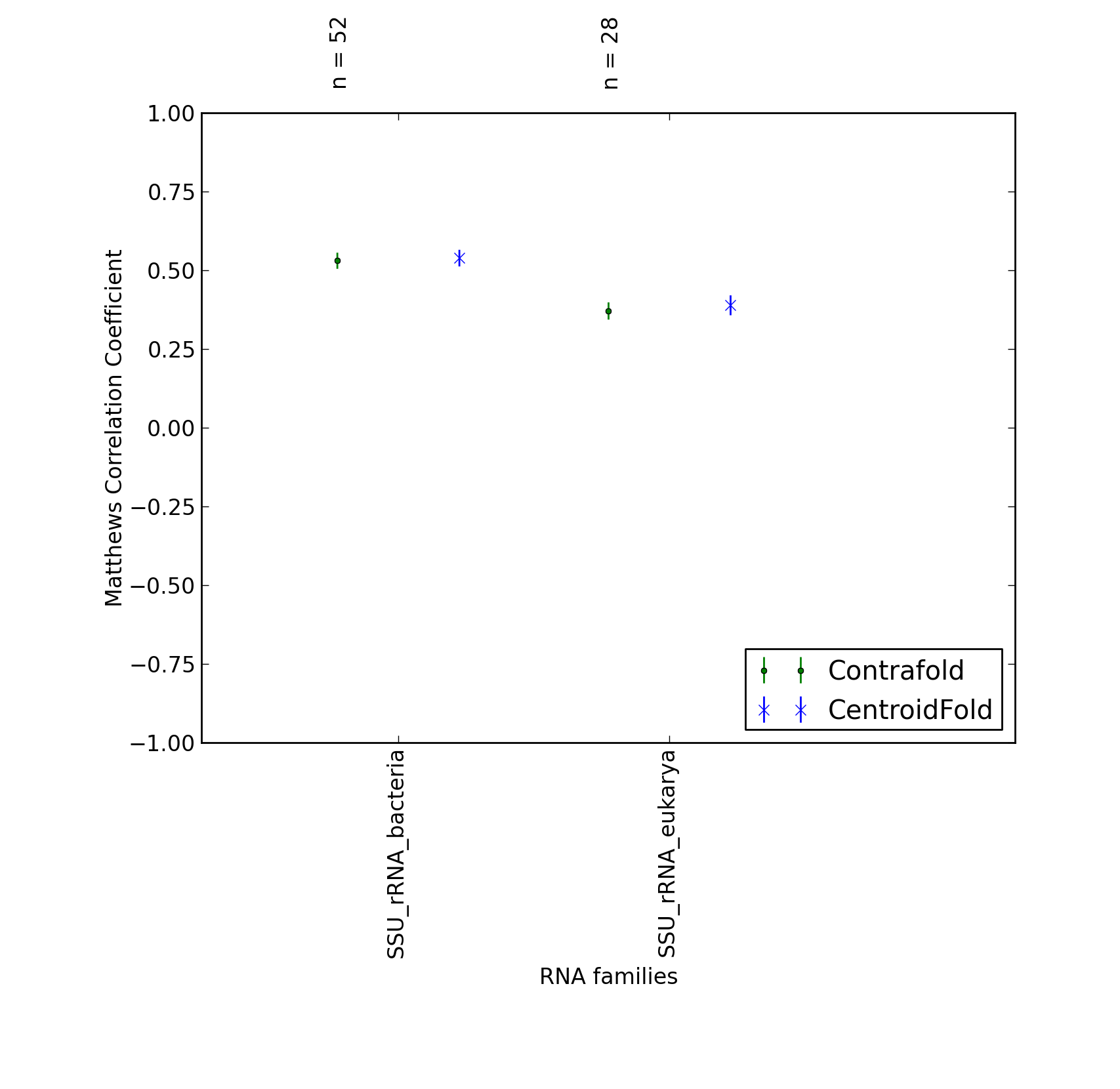

Comparison of average Matthews Correlation Coefficients (MCCs) for CentroidFold and Contrafold. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for CentroidFold and Contrafold).

^top

Performance of CentroidFold - scored higher in this pairwise comparison

1. Total counts & total scores for CentroidFold

Total Base Pair Counts
Total TP	28625
Total TN	217187968
Total FP	36179
Total FP CONTRA	4208
Total FP INCONS	21730
Total FP COMP	10241
Total FN	47134

Total Scores
MCC	0.445
Average MCC ± 95% Confidence Intervals	0.454 ± 0.020
Sensitivity	0.378
Positive Predictive Value	0.525
Nr of predictions	215

^top

2. Individual counts for CentroidFold [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
CRW_00002	-	0.61	0.42	0.87	112	408931	51	0	17	34	152
CRW_00024	SSU_rRNA_archaea links to Rfam database...	0.79	0.76	0.83	347	1085183	108	8	63	37	111
CRW_00034	SSU_rRNA_bacteria links to Rfam database...	0.68	0.66	0.71	312	1141875	159	19	110	30	162
CRW_00048	SSU_rRNA_bacteria links to Rfam database...	0.60	0.49	0.75	230	1170907	91	8	70	13	240
CRW_00054	SSU_rRNA_bacteria links to Rfam database...	0.56	0.49	0.64	223	1107466	140	16	111	13	233
CRW_00059	SSU_rRNA_bacteria links to Rfam database...	0.60	0.51	0.71	241	1172408	111	9	88	14	232
CRW_00061	SSU_rRNA_bacteria links to Rfam database...	0.64	0.57	0.72	269	1181581	110	23	80	7	207
CRW_00068	SSU_rRNA_bacteria links to Rfam database...	0.55	0.49	0.63	225	1108945	147	19	116	12	232
CRW_00096	SSU_rRNA_bacteria links to Rfam database...	0.56	0.49	0.63	228	1178519	155	15	118	22	237
CRW_00140	SSU_rRNA_bacteria links to Rfam database...	0.59	0.49	0.70	226	1135957	106	11	84	11	237
CRW_00141	SSU_rRNA_bacteria links to Rfam database...	0.63	0.56	0.70	268	1201642	136	16	99	21	208
CRW_00150	SSU_rRNA_bacteria links to Rfam database...	0.55	0.47	0.66	217	1152591	126	17	96	13	249
CRW_00152	SSU_rRNA_bacteria links to Rfam database...	0.51	0.42	0.62	200	1180095	129	14	107	8	271
CRW_00166	SSU_rRNA_bacteria links to Rfam database...	0.61	0.53	0.70	247	1190845	120	6	98	16	221
CRW_00173	SSU_rRNA_bacteria links to Rfam database...	0.35	0.31	0.39	139	1082299	226	23	195	8	306
CRW_00177	SSU_rRNA_bacteria links to Rfam database...	0.52	0.45	0.59	213	1178522	162	17	128	17	260
CRW_00196	SSU_rRNA_bacteria links to Rfam database...	0.59	0.52	0.67	247	1207869	131	18	101	12	228
CRW_00230	SSU_rRNA_bacteria links to Rfam database...	0.59	0.52	0.67	250	1198552	140	19	105	16	228
CRW_00245	SSU_rRNA_bacteria links to Rfam database...	0.56	0.49	0.65	221	1105989	128	13	105	10	232
CRW_00248	SSU_rRNA_bacteria links to Rfam database...	0.66	0.61	0.71	296	1218724	154	20	101	33	188
CRW_00250	SSU_rRNA_bacteria links to Rfam database...	0.57	0.50	0.66	237	1198568	130	20	101	9	241
CRW_00256	SSU_rRNA_bacteria links to Rfam database...	0.45	0.35	0.57	165	1192449	145	20	106	19	303
CRW_00270	SSU_rRNA_bacteria links to Rfam database...	0.67	0.57	0.79	260	1111955	83	11	60	12	195
CRW_00271	SSU_rRNA_bacteria links to Rfam database...	0.48	0.41	0.55	190	1122405	171	26	130	15	272
CRW_00273	SSU_rRNA_bacteria links to Rfam database...	0.51	0.43	0.60	194	1085280	142	14	113	15	252
CRW_00275	SSU_rRNA_bacteria links to Rfam database...	0.62	0.54	0.70	249	1114913	130	13	96	21	208
CRW_00277	SSU_rRNA_bacteria links to Rfam database...	0.48	0.36	0.64	165	1110536	105	15	79	11	288
CRW_00278	SSU_rRNA_bacteria links to Rfam database...	0.49	0.41	0.57	186	1129931	157	13	126	18	264
CRW_00279	SSU_rRNA_bacteria links to Rfam database...	0.54	0.45	0.64	209	1180088	132	19	100	13	255
CRW_00280	SSU_rRNA_bacteria links to Rfam database...	0.53	0.42	0.67	192	1117973	105	9	86	10	261
CRW_00281	SSU_rRNA_bacteria links to Rfam database...	0.62	0.57	0.68	265	1144950	146	18	108	20	199
CRW_00283	SSU_rRNA_bacteria links to Rfam database...	0.40	0.32	0.51	138	1015753	153	22	112	19	294
CRW_00284	SSU_rRNA_bacteria links to Rfam database...	0.48	0.36	0.65	162	1131511	101	11	76	14	294
CRW_00285	SSU_rRNA_bacteria links to Rfam database...	0.67	0.59	0.76	268	1117909	98	16	67	15	190
CRW_00289	SSU_rRNA_bacteria links to Rfam database...	0.61	0.55	0.68	260	1189270	143	18	105	20	216
CRW_00292	SSU_rRNA_bacteria links to Rfam database...	0.35	0.31	0.41	141	1123903	217	34	172	11	320
CRW_00298	SSU_rRNA_eukarya links to Rfam database...	0.25	0.22	0.28	109	1620517	295	50	224	21	385
CRW_00301	SSU_rRNA_eukarya links to Rfam database...	0.48	0.39	0.58	203	1762152	211	28	120	63	316
CRW_00306	SSU_rRNA_eukarya links to Rfam database...	0.29	0.26	0.32	120	1445480	309	50	200	59	342
CRW_00310	SSU_rRNA_eukarya links to Rfam database...	0.38	0.34	0.42	178	1805524	303	44	204	55	343
CRW_00326	SSU_rRNA_eukarya links to Rfam database...	0.57	0.48	0.67	240	1627752	163	19	99	45	262
CRW_00330	SSU_rRNA_eukarya links to Rfam database...	0.30	0.25	0.36	131	1988654	302	33	197	72	386
CRW_00332	SSU_rRNA_eukarya links to Rfam database...	0.25	0.22	0.28	104	1769656	299	47	214	38	373
CRW_00333	SSU_rRNA_eukarya links to Rfam database...	0.30	0.24	0.36	125	1892139	288	29	192	67	389
CRW_00338	-	0.19	0.19	0.19	74	1053028	329	76	248	5	321
CRW_00345	SSU_rRNA_eukarya links to Rfam database...	0.41	0.37	0.45	186	1586456	267	40	189	38	312
CRW_00346	SSU_rRNA_eukarya links to Rfam database...	0.40	0.38	0.42	189	1584645	289	48	208	33	312
CRW_00348	SSU_rRNA_eukarya links to Rfam database...	0.37	0.31	0.44	157	1615148	235	27	171	37	346
CRW_00358	SSU_rRNA_eukarya links to Rfam database...	0.42	0.39	0.45	200	1674917	285	39	209	37	307
CRW_00366	SSU_rRNA_eukarya links to Rfam database...	0.34	0.31	0.38	150	1579355	289	44	204	41	332
CRW_00370	SSU_rRNA_eukarya links to Rfam database...	0.38	0.33	0.43	167	1640375	256	43	181	32	339
CRW_00371	SSU_rRNA_eukarya links to Rfam database...	0.47	0.39	0.56	194	1611562	196	29	125	42	302
CRW_00372	SSU_rRNA_eukarya links to Rfam database...	0.48	0.41	0.58	202	1625955	204	26	123	55	296
CRW_00381	-	0.44	0.37	0.53	204	2303343	267	31	153	83	353
CRW_00386	SSU_rRNA_eukarya links to Rfam database...	0.32	0.30	0.34	156	1750800	337	47	253	37	359
CRW_00403	SSU_rRNA_eukarya links to Rfam database...	0.31	0.29	0.34	135	1606132	324	52	209	63	329
CRW_00411	SSU_rRNA_eukarya links to Rfam database...	0.42	0.35	0.49	173	1615153	226	27	150	49	323
CRW_00414	SSU_rRNA_eukarya links to Rfam database...	0.42	0.36	0.48	180	1665851	239	34	160	45	315
CRW_00417	-	0.43	0.33	0.55	86	458248	77	14	55	8	176
CRW_00418	-	0.26	0.19	0.36	49	441193	89	7	81	1	211
CRW_00419	-	0.36	0.27	0.47	71	464016	84	5	74	5	194
CRW_00421	-	0.51	0.42	0.63	111	463028	80	7	57	16	155
CRW_00422	-	0.41	0.33	0.52	87	455367	99	11	70	18	176
CRW_00424	-	0.48	0.40	0.58	145	789146	122	5	100	17	218
CRW_00426	-	0.43	0.35	0.53	94	457268	91	7	77	7	171
CRW_00427	-	0.28	0.23	0.33	61	454396	136	25	99	12	200
CRW_00428	-	0.43	0.33	0.55	87	465937	79	14	57	8	173
CRW_00430	-	0.36	0.26	0.50	70	456351	73	13	56	4	196
CRW_00433	-	0.31	0.21	0.44	56	467902	74	4	66	4	207
CRW_00434	-	0.50	0.37	0.67	97	457301	54	8	40	6	166
CRW_00435	-	0.32	0.22	0.46	59	451596	77	8	62	7	206
CRW_00437	-	0.26	0.20	0.33	53	456331	112	13	93	6	207
CRW_00438	-	0.32	0.25	0.41	68	454416	105	12	85	8	200
CRW_00441	-	0.37	0.27	0.53	70	454448	67	6	57	4	192
CRW_00442	-	0.34	0.25	0.45	66	453480	92	8	74	10	195
CRW_00443	-	0.31	0.21	0.45	55	456367	78	4	64	10	205
CRW_00444	-	0.44	0.32	0.61	85	459222	61	10	44	7	178
CRW_00445	-	0.45	0.37	0.55	99	458224	87	12	68	7	166
CRW_00446	-	0.34	0.29	0.41	77	468807	124	14	98	12	188
CRW_00447	-	0.30	0.25	0.35	66	452488	131	16	106	9	194
CRW_00448	-	0.28	0.21	0.38	55	457300	97	18	73	6	206
CRW_00449	-	0.43	0.31	0.59	80	444961	60	11	44	5	180
CRW_00450	-	0.41	0.27	0.62	72	458286	58	4	41	13	190
CRW_00451	-	0.39	0.28	0.53	75	457305	72	6	60	6	189
CRW_00452	-	0.46	0.33	0.65	86	453495	63	5	42	16	176
CRW_00453	-	0.35	0.25	0.47	66	452537	84	5	68	11	195
CRW_00454	-	0.20	0.17	0.24	72	1730434	300	41	183	76	363
CRW_00456	-	0.43	0.29	0.64	78	470813	48	5	39	4	187
CRW_00457	-	0.48	0.38	0.59	101	467857	82	10	60	12	163
CRW_00458	-	0.45	0.34	0.61	89	464984	66	3	54	9	175
CRW_00459	-	0.50	0.41	0.61	109	462061	91	8	63	20	154
CRW_00460	-	0.37	0.29	0.47	157	1972757	216	24	153	39	387
CRW_00462	-	0.44	0.31	0.60	82	458267	67	4	50	13	179
CRW_00463	-	0.45	0.37	0.54	94	445867	85	17	62	6	160
CRW_00464	-	0.47	0.33	0.68	87	462113	50	4	37	9	177
CRW_00466	SSU_rRNA_bacteria links to Rfam database...	0.71	0.64	0.79	292	1116394	100	14	65	21	166
CRW_00522	-	0.29	0.24	0.36	187	3643127	351	60	276	15	595
CRW_00530	-	0.37	0.31	0.44	84	534904	119	34	73	12	184
CRW_00532	-	0.27	0.23	0.31	60	579233	143	38	95	10	205
CRW_00533	-	0.43	0.37	0.49	82	453459	114	18	69	27	137
CRW_00534	-	0.40	0.32	0.49	153	1832345	179	36	121	22	330
CRW_00535	-	0.46	0.39	0.55	128	898236	125	27	79	19	200
CRW_00538	-	0.40	0.30	0.54	90	812009	98	11	65	22	210
CRW_00542	-	0.30	0.28	0.33	88	994488	198	47	132	19	229
CRW_00545	-	0.40	0.37	0.43	71	1343815	222	20	74	128	122
CRW_00589	SSU_rRNA_bacteria links to Rfam database...	0.34	0.28	0.42	125	1094162	188	16	157	15	320
CRW_00590	SSU_rRNA_bacteria links to Rfam database...	0.37	0.32	0.43	143	1119420	207	36	157	14	309
CRW_00591	SSU_rRNA_bacteria links to Rfam database...	0.65	0.59	0.72	261	1098541	124	19	82	23	185
CRW_00594	-	0.25	0.24	0.27	93	1028548	271	39	215	17	302
CRW_00596	-	0.28	0.26	0.30	100	1024261	257	35	200	22	286
CRW_00597	-	0.29	0.25	0.33	103	1200164	243	22	186	35	308
CRW_00598	SSU_rRNA_eukarya links to Rfam database...	0.40	0.37	0.45	180	1665823	270	42	180	48	311
CRW_00604	-	0.86	0.84	0.88	68	411701	143	3	6	134	13
CRW_00606	-	0.94	0.90	0.99	83	559069	184	0	1	183	9
CRW_00607	-	0.85	0.75	0.95	58	536069	241	0	3	238	19
CRW_00615	-	0.90	0.83	0.97	68	553808	240	0	2	238	14
CRW_00616	-	0.60	0.57	0.63	63	1699146	369	3	34	332	47
CRW_00617	-	0.53	0.48	0.58	31	426373	170	6	16	148	33
CRW_00678	-	0.46	0.44	0.48	53	666324	233	11	47	175	68
CRW_00680	-	0.55	0.54	0.56	66	516518	178	13	39	126	56
CRW_00683	-	0.63	0.59	0.67	79	460202	174	2	37	135	56
CRW_00684	-	0.53	0.50	0.56	68	612050	219	16	37	166	67
CRW_00702	-	0.76	0.73	0.80	55	357366	141	5	9	127	20
CRW_00704	-	0.89	0.87	0.91	82	386670	176	3	5	168	12
CRW_00705	-	0.30	0.29	0.31	25	1461115	278	17	38	223	61
CRW_00706	-	0.69	0.71	0.68	42	695548	245	8	12	225	17
CRW_00709	-	0.25	0.15	0.42	13	1728839	281	0	18	263	72
CRW_00710	-	0.62	0.50	0.78	57	1040330	209	2	14	193	57
CRW_00712	-	0.47	0.48	0.46	52	952776	318	19	43	256	56
CRW_00713	-	0.82	0.72	0.94	73	731367	238	1	4	233	28
CRW_00723	-	0.57	0.50	0.66	37	1583254	319	6	13	300	37
CRW_00725	-	0.53	0.48	0.58	84	1957087	330	9	51	270	90
CRW_00730	-	0.51	0.48	0.53	78	338928	126	11	59	56	83
CRW_00734	-	0.46	0.43	0.51	47	537073	124	20	26	78	63
CRW_00735	-	0.52	0.50	0.55	60	677921	138	21	28	89	61
CRW_00740	-	0.18	0.17	0.19	19	489454	123	38	44	41	94
CRW_00742	-	0.74	0.64	0.85	108	1723169	284	3	16	265	60
CRW_00745	-	0.69	0.69	0.68	107	1343822	250	16	35	199	47
CRW_00746	-	0.55	0.52	0.59	114	550531	138	19	61	58	105
CRW_00750	-	0.59	0.56	0.62	89	709693	207	14	40	153	71
CRW_00751	-	0.70	0.63	0.78	112	489412	98	6	25	67	66
CRW_00753	-	0.28	0.24	0.32	43	489421	148	17	74	57	135
CRW_00757	-	0.16	0.17	0.15	21	415278	186	52	65	69	105
CRW_00758	SSU_rRNA_eukarya links to Rfam database...	0.37	0.34	0.40	164	1640353	298	41	208	49	319
CRW_00759	SSU_rRNA_eukarya links to Rfam database...	0.34	0.28	0.42	134	1636828	232	34	149	49	347
CRW_00760	SSU_rRNA_eukarya links to Rfam database...	0.38	0.34	0.42	167	1638559	278	50	179	49	319
CRW_00763	SSU_rRNA_bacteria links to Rfam database...	0.39	0.29	0.53	130	1215775	153	18	97	38	316
CRW_00765	-	0.41	0.33	0.51	85	452509	86	16	66	4	172
CRW_00766	-	0.27	0.20	0.39	47	440269	88	14	61	13	193
CRW_00768	-	0.63	0.49	0.81	128	471747	57	6	25	26	131
CRW_00769	-	0.50	0.39	0.64	99	451570	74	13	43	18	153
CRW_00772	SSU_rRNA_bacteria links to Rfam database...	0.38	0.30	0.50	120	945758	137	16	106	15	284
CRW_00773	-	0.50	0.42	0.60	108	451545	87	15	57	15	151
CRW_00774	-	0.50	0.39	0.63	103	488403	77	3	57	17	160
CRW_00777	-	0.35	0.27	0.44	83	719210	137	18	89	30	221
CRW_00778	SSU_rRNA_bacteria links to Rfam database...	0.54	0.38	0.77	146	1201835	66	6	38	22	238
CRW_00779	-	0.39	0.33	0.46	139	1031464	177	19	144	14	283
CRW_00780	-	0.34	0.28	0.42	71	475629	114	18	82	14	184
CRW_00781	-	0.24	0.20	0.28	90	1978732	354	40	193	121	360
CRW_00783	-	0.40	0.29	0.55	75	453491	73	7	55	11	184
CRW_00784	-	0.42	0.33	0.54	87	456330	83	15	58	10	175
CRW_00785	-	0.52	0.39	0.70	99	452535	48	8	34	6	154
CRW_00786	-	0.37	0.32	0.44	143	1947024	334	24	160	150	307
CRW_00787	-	0.50	0.40	0.63	123	646759	83	6	65	12	183
CRW_00788	-	0.36	0.28	0.47	100	1758537	290	20	93	177	261
CRW_00789	SSU_rRNA_bacteria links to Rfam database...	0.51	0.40	0.65	179	1137510	120	5	92	23	268
CRW_00790	-	0.23	0.20	0.28	89	1803728	328	38	195	95	358
CRW_00792	-	0.34	0.29	0.41	110	1581265	294	19	137	138	273
CRW_00793	-	0.53	0.44	0.66	164	1048826	147	21	65	61	213
CRW_00794	-	0.36	0.29	0.44	72	434613	106	13	80	13	174
CRW_00795	SSU_rRNA_bacteria links to Rfam database...	0.35	0.28	0.44	110	1152672	173	15	124	34	284
CRW_00796	-	0.36	0.23	0.57	55	384906	60	0	42	18	180
CRW_00797	-	0.35	0.27	0.44	94	693037	141	20	102	19	248
CRW_00800	SSU_rRNA_eukarya links to Rfam database...	0.58	0.49	0.69	230	1401641	149	10	94	45	240
CRW_00801	-	0.45	0.38	0.53	94	438339	92	22	61	9	155
CRW_00802	-	0.37	0.30	0.46	76	460153	109	16	75	18	177
CRW_00803	-	0.26	0.24	0.29	106	1952914	338	51	205	82	343
CRW_00804	-	0.43	0.33	0.56	131	1420222	169	12	90	67	272
CRW_00806	-	0.30	0.24	0.38	109	1913657	271	31	149	91	340
CRW_00807	-	0.50	0.39	0.64	157	1391701	161	15	73	73	241
CRW_00808	-	0.35	0.28	0.45	98	1301474	199	30	89	80	258
CRW_00813	-	0.45	0.42	0.48	56	530849	163	27	33	103	77
CRW_00849	SSU_rRNA_bacteria links to Rfam database...	0.59	0.56	0.62	265	1117830	190	14	151	25	205
CRW_00997	SSU_rRNA_bacteria links to Rfam database...	0.63	0.55	0.72	256	1135921	119	15	86	18	208
CRW_01134	-	0.38	0.30	0.48	127	965091	143	26	111	6	300
CRW_01153	SSU_rRNA_eukarya links to Rfam database...	0.41	0.37	0.45	185	1606114	268	39	190	39	318
CRW_01168	-	0.53	0.44	0.63	182	900865	124	17	89	18	229
CRW_01171	SSU_rRNA_eukarya links to Rfam database...	0.46	0.41	0.52	206	1593608	228	40	151	37	300
CRW_01186	-	0.40	0.34	0.47	131	836292	164	14	134	16	255
CRW_01188	-	0.21	0.19	0.23	76	837538	253	40	211	2	317
CRW_01189	-	0.25	0.22	0.28	86	862335	227	38	182	7	306
CRW_01214	-	0.33	0.27	0.41	110	932028	163	16	141	6	295
CRW_01222	-	0.31	0.26	0.38	103	913006	171	35	132	4	294
CRW_01224	-	0.43	0.34	0.55	133	913033	118	11	99	8	264
CRW_01239	-	0.25	0.19	0.32	74	840222	162	22	138	2	308
CRW_01250	-	0.48	0.39	0.59	147	781625	116	11	92	13	231
CRW_01260	-	0.21	0.16	0.27	63	913043	183	23	147	13	330
CRW_01266	-	0.36	0.34	0.38	129	818217	229	37	177	15	252
CRW_01271	-	0.37	0.32	0.42	122	827252	174	25	142	7	259
CRW_01275	-	0.40	0.36	0.45	154	1082311	205	36	155	14	278
CRW_01283	-	0.36	0.28	0.46	114	963716	147	18	118	11	295
CRW_01300	SSU_rRNA_eukarya links to Rfam database...	0.41	0.37	0.45	192	1693289	291	56	183	52	323
CRW_01314	-	0.28	0.22	0.34	91	937500	180	20	154	6	316
CRW_01343	SSU_rRNA_archaea links to Rfam database...	0.46	0.41	0.52	176	977564	173	23	138	12	258
CRW_01344	-	0.27	0.22	0.33	81	791667	168	23	140	5	285
PDB_00409	-	0.36	0.40	0.32	98	688245	284	64	144	76	147
PDB_00703	SSU_rRNA_bacteria links to Rfam database...	0.55	0.49	0.61	244	1073448	180	13	140	27	251
PDB_00805	-	0.68	0.60	0.76	182	467790	85	2	54	29	120
PDB_00854	SSU_rRNA_bacteria links to Rfam database...	0.53	0.49	0.57	264	1500316	234	15	183	36	271
PDB_01088	SSU_rRNA_bacteria links to Rfam database...	0.46	0.39	0.55	215	1471076	203	25	154	24	332
PDB_01103	SSU_rRNA_bacteria links to Rfam database...	0.57	0.53	0.61	297	1606045	214	20	166	28	265
PDB_01105	SSU_rRNA_bacteria links to Rfam database...	0.62	0.57	0.68	307	1433517	177	8	139	30	233
PDB_01120	SSU_rRNA_bacteria links to Rfam database...	0.49	0.42	0.59	220	1204752	177	19	137	21	307
PDB_01261	-	0.77	0.64	0.92	216	467794	23	1	17	5	120
PDB_01273	SSU_rRNA_bacteria links to Rfam database...	0.51	0.47	0.56	229	1117849	211	14	168	29	262

^top

Performance of Contrafold - scored lower in this pairwise comparison

1. Total counts & total scores for Contrafold

Total Base Pair Counts
Total TP	31534
Total TN	217173754
Total FP	50907
Total FP CONTRA	5884
Total FP INCONS	31359
Total FP COMP	13664
Total FN	44225

Total Scores
MCC	0.437
Average MCC ± 95% Confidence Intervals	0.449 ± 0.020
Sensitivity	0.416
Positive Predictive Value	0.458
Nr of predictions	215

^top

2. Individual counts for Contrafold [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
CRW_00002	-	0.72	0.62	0.82	164	408861	79	5	30	44	100
CRW_00024	SSU_rRNA_archaea links to Rfam database...	0.77	0.77	0.78	351	1085153	140	12	85	43	107
CRW_00034	SSU_rRNA_bacteria links to Rfam database...	0.68	0.68	0.68	320	1141844	188	22	130	36	154
CRW_00048	SSU_rRNA_bacteria links to Rfam database...	0.60	0.57	0.64	268	1170795	174	25	127	22	202
CRW_00054	SSU_rRNA_bacteria links to Rfam database...	0.54	0.52	0.56	237	1107395	202	25	159	18	219
CRW_00059	SSU_rRNA_bacteria links to Rfam database...	0.64	0.60	0.67	286	1172318	164	20	122	22	187
CRW_00061	SSU_rRNA_bacteria links to Rfam database...	0.59	0.58	0.61	274	1181504	188	29	146	13	202
CRW_00068	SSU_rRNA_bacteria links to Rfam database...	0.51	0.51	0.53	231	1108865	226	32	177	17	226
CRW_00096	SSU_rRNA_bacteria links to Rfam database...	0.55	0.53	0.57	245	1178450	213	19	166	28	220
CRW_00140	SSU_rRNA_bacteria links to Rfam database...	0.56	0.52	0.61	243	1135878	175	14	143	18	220
CRW_00141	SSU_rRNA_bacteria links to Rfam database...	0.62	0.60	0.64	287	1201577	192	19	142	31	189
CRW_00150	SSU_rRNA_bacteria links to Rfam database...	0.55	0.51	0.59	237	1152519	185	22	143	20	229
CRW_00152	SSU_rRNA_bacteria links to Rfam database...	0.53	0.49	0.57	233	1180006	196	22	155	19	238
CRW_00166	SSU_rRNA_bacteria links to Rfam database...	0.62	0.59	0.64	277	1190763	182	19	137	26	191
CRW_00173	SSU_rRNA_bacteria links to Rfam database...	0.34	0.34	0.35	150	1082228	288	32	246	10	295
CRW_00177	SSU_rRNA_bacteria links to Rfam database...	0.50	0.48	0.52	228	1178444	227	20	188	19	245
CRW_00196	SSU_rRNA_bacteria links to Rfam database...	0.57	0.55	0.59	259	1207798	197	27	151	19	216
CRW_00230	SSU_rRNA_bacteria links to Rfam database...	0.54	0.52	0.56	250	1198476	220	27	173	20	228
CRW_00245	SSU_rRNA_bacteria links to Rfam database...	0.53	0.51	0.55	229	1105912	212	23	164	25	224
CRW_00248	SSU_rRNA_bacteria links to Rfam database...	0.64	0.62	0.66	301	1218683	200	21	136	43	183
CRW_00250	SSU_rRNA_bacteria links to Rfam database...	0.58	0.56	0.61	267	1198490	184	24	145	15	211
CRW_00256	SSU_rRNA_bacteria links to Rfam database...	0.47	0.44	0.50	206	1192327	232	26	181	25	262
CRW_00270	SSU_rRNA_bacteria links to Rfam database...	0.66	0.63	0.69	286	1111874	157	20	106	31	169
CRW_00271	SSU_rRNA_bacteria links to Rfam database...	0.51	0.48	0.53	221	1122337	215	30	163	22	241
CRW_00273	SSU_rRNA_bacteria links to Rfam database...	0.47	0.46	0.49	203	1085190	233	20	188	25	243
CRW_00275	SSU_rRNA_bacteria links to Rfam database...	0.61	0.59	0.63	271	1114843	186	19	138	29	186
CRW_00277	SSU_rRNA_bacteria links to Rfam database...	0.44	0.40	0.49	182	1110423	203	23	167	13	271
CRW_00278	SSU_rRNA_bacteria links to Rfam database...	0.44	0.42	0.47	190	1129849	240	28	189	23	260
CRW_00279	SSU_rRNA_bacteria links to Rfam database...	0.60	0.56	0.64	262	1180004	173	25	125	23	202
CRW_00280	SSU_rRNA_bacteria links to Rfam database...	0.55	0.51	0.60	232	1117873	173	15	140	18	221
CRW_00281	SSU_rRNA_bacteria links to Rfam database...	0.64	0.62	0.65	288	1144901	182	17	135	30	176
CRW_00283	SSU_rRNA_bacteria links to Rfam database...	0.41	0.38	0.45	162	1015668	217	29	166	22	270
CRW_00284	SSU_rRNA_bacteria links to Rfam database...	0.51	0.47	0.56	216	1131371	196	24	149	23	240
CRW_00285	SSU_rRNA_bacteria links to Rfam database...	0.66	0.63	0.68	289	1117836	159	19	116	24	169
CRW_00289	SSU_rRNA_bacteria links to Rfam database...	0.60	0.57	0.63	270	1189221	197	21	141	35	206
CRW_00292	SSU_rRNA_bacteria links to Rfam database...	0.38	0.36	0.40	165	1123842	258	35	208	15	296
CRW_00298	SSU_rRNA_eukarya links to Rfam database...	0.25	0.25	0.25	122	1620403	431	72	303	56	372
CRW_00301	SSU_rRNA_eukarya links to Rfam database...	0.43	0.40	0.45	210	1762038	324	41	214	69	309
CRW_00306	SSU_rRNA_eukarya links to Rfam database...	0.28	0.28	0.29	129	1445402	388	63	256	69	333
CRW_00310	SSU_rRNA_eukarya links to Rfam database...	0.36	0.35	0.37	184	1805456	377	53	257	67	337
CRW_00326	SSU_rRNA_eukarya links to Rfam database...	0.50	0.49	0.51	246	1627630	284	52	182	50	256
CRW_00330	SSU_rRNA_eukarya links to Rfam database...	0.33	0.32	0.33	166	1988512	422	56	281	85	351
CRW_00332	SSU_rRNA_eukarya links to Rfam database...	0.26	0.26	0.26	122	1769544	429	70	285	74	355
CRW_00333	SSU_rRNA_eukarya links to Rfam database...	0.38	0.36	0.41	183	1892040	342	42	220	80	331
CRW_00338	-	0.20	0.21	0.19	84	1052972	396	77	293	26	311
CRW_00345	SSU_rRNA_eukarya links to Rfam database...	0.39	0.40	0.39	197	1586366	355	58	250	47	301
CRW_00346	SSU_rRNA_eukarya links to Rfam database...	0.40	0.40	0.39	202	1584577	358	54	257	47	299
CRW_00348	SSU_rRNA_eukarya links to Rfam database...	0.35	0.34	0.36	170	1615029	355	51	253	51	333
CRW_00358	SSU_rRNA_eukarya links to Rfam database...	0.39	0.40	0.38	202	1674827	390	57	279	54	305
CRW_00366	SSU_rRNA_eukarya links to Rfam database...	0.33	0.33	0.33	157	1579284	361	57	255	49	325
CRW_00370	SSU_rRNA_eukarya links to Rfam database...	0.37	0.37	0.37	189	1640256	363	64	257	42	317
CRW_00371	SSU_rRNA_eukarya links to Rfam database...	0.44	0.41	0.46	205	1611467	295	42	196	57	291
CRW_00372	SSU_rRNA_eukarya links to Rfam database...	0.41	0.40	0.42	198	1625830	342	48	230	64	300
CRW_00381	-	0.40	0.38	0.41	214	2303211	410	37	269	104	343
CRW_00386	SSU_rRNA_eukarya links to Rfam database...	0.28	0.30	0.27	152	1750697	447	70	337	40	363
CRW_00403	SSU_rRNA_eukarya links to Rfam database...	0.28	0.28	0.28	131	1606062	404	68	267	69	333
CRW_00411	SSU_rRNA_eukarya links to Rfam database...	0.39	0.36	0.42	181	1615070	306	41	211	54	315
CRW_00414	SSU_rRNA_eukarya links to Rfam database...	0.36	0.37	0.36	181	1665721	382	54	269	59	314
CRW_00417	-	0.41	0.38	0.44	99	458178	135	23	103	9	163
CRW_00418	-	0.26	0.22	0.31	56	441150	130	14	110	6	204
CRW_00419	-	0.40	0.35	0.45	93	463958	122	7	108	7	172
CRW_00421	-	0.50	0.44	0.57	117	462998	111	10	78	23	149
CRW_00422	-	0.44	0.40	0.49	105	455320	131	13	97	21	158
CRW_00424	-	0.49	0.45	0.52	164	789083	172	18	131	23	199
CRW_00426	-	0.42	0.39	0.45	103	457219	137	13	111	13	162
CRW_00427	-	0.28	0.26	0.29	69	454346	182	30	136	16	192
CRW_00428	-	0.37	0.33	0.40	87	465879	144	17	112	15	173
CRW_00430	-	0.39	0.32	0.48	85	456313	101	17	75	9	181
CRW_00433	-	0.33	0.28	0.40	73	467844	115	12	99	4	190
CRW_00434	-	0.48	0.40	0.56	106	457257	91	9	74	8	157
CRW_00435	-	0.30	0.26	0.34	68	451527	139	21	109	9	197
CRW_00437	-	0.25	0.22	0.29	57	456294	151	16	123	12	203
CRW_00438	-	0.39	0.34	0.44	92	454372	126	15	102	9	176
CRW_00441	-	0.37	0.31	0.44	80	454400	110	12	89	9	182
CRW_00442	-	0.32	0.28	0.37	74	453426	139	14	114	11	187
CRW_00443	-	0.34	0.26	0.43	68	456333	107	8	81	18	192
CRW_00444	-	0.45	0.38	0.53	100	459174	99	15	72	12	163
CRW_00445	-	0.43	0.40	0.47	105	458179	127	19	100	8	160
CRW_00446	-	0.33	0.31	0.36	81	468771	157	18	126	13	184
CRW_00447	-	0.29	0.27	0.30	71	452442	174	23	140	11	189
CRW_00448	-	0.29	0.26	0.34	67	457247	143	23	109	11	194
CRW_00449	-	0.42	0.37	0.48	95	444897	111	20	84	7	165
CRW_00450	-	0.43	0.36	0.53	94	458224	101	11	74	16	168
CRW_00451	-	0.43	0.38	0.49	99	457244	114	11	92	11	165
CRW_00452	-	0.49	0.41	0.59	108	453445	94	7	68	19	154
CRW_00453	-	0.38	0.32	0.44	84	452487	117	13	92	12	177
CRW_00454	-	0.24	0.24	0.24	105	1730300	445	60	265	120	330
CRW_00456	-	0.45	0.37	0.56	98	470760	83	10	67	6	167
CRW_00457	-	0.44	0.41	0.48	107	467803	134	17	101	16	157
CRW_00458	-	0.48	0.42	0.54	111	464926	106	9	84	13	153
CRW_00459	-	0.52	0.46	0.58	121	462032	112	10	78	24	142
CRW_00460	-	0.39	0.35	0.43	193	1972641	344	20	237	87	351
CRW_00462	-	0.46	0.40	0.53	104	458208	107	10	81	16	157
CRW_00463	-	0.44	0.40	0.49	101	445832	116	18	89	9	153
CRW_00464	-	0.46	0.38	0.55	101	462056	95	8	76	11	163
CRW_00466	SSU_rRNA_bacteria links to Rfam database...	0.70	0.68	0.73	312	1116336	148	19	98	31	146
CRW_00522	-	0.32	0.30	0.33	238	3642926	513	86	400	27	544
CRW_00530	-	0.35	0.34	0.37	91	534848	170	47	109	14	177
CRW_00532	-	0.26	0.25	0.26	66	579174	202	50	136	16	199
CRW_00533	-	0.42	0.42	0.42	92	453409	172	30	97	45	127
CRW_00534	-	0.47	0.45	0.49	219	1832209	275	43	184	48	264
CRW_00535	-	0.37	0.37	0.38	121	898149	221	45	155	21	207
CRW_00538	-	0.41	0.38	0.45	113	811923	164	23	116	25	187
CRW_00542	-	0.28	0.30	0.27	95	994401	299	70	189	40	222
CRW_00545	-	0.40	0.40	0.40	77	1343788	300	25	90	185	116
CRW_00589	SSU_rRNA_bacteria links to Rfam database...	0.33	0.30	0.36	134	1094090	257	24	212	21	311
CRW_00590	SSU_rRNA_bacteria links to Rfam database...	0.36	0.35	0.38	157	1119345	281	41	213	27	295
CRW_00591	SSU_rRNA_bacteria links to Rfam database...	0.62	0.60	0.65	268	1098489	182	28	118	36	178
CRW_00594	-	0.23	0.24	0.22	96	1028467	363	49	283	31	299
CRW_00596	-	0.24	0.25	0.24	95	1024193	335	44	264	27	291
CRW_00597	-	0.27	0.28	0.27	115	1200049	353	41	270	42	296
CRW_00598	SSU_rRNA_eukarya links to Rfam database...	0.39	0.39	0.40	193	1665739	354	59	234	61	298
CRW_00604	-	0.84	0.85	0.82	69	411694	186	4	11	171	12
CRW_00606	-	0.93	0.90	0.97	83	559067	236	0	3	233	9
CRW_00607	-	0.81	0.82	0.81	63	536052	269	3	12	254	14
CRW_00615	-	0.86	0.85	0.88	70	553798	271	0	10	261	12
CRW_00616	-	0.60	0.58	0.62	64	1699142	445	5	35	405	46
CRW_00617	-	0.57	0.55	0.60	35	426368	211	6	17	188	29
CRW_00678	-	0.42	0.44	0.40	53	666302	315	14	66	235	68
CRW_00680	-	0.53	0.55	0.52	67	516506	229	17	46	166	55
CRW_00683	-	0.63	0.63	0.63	85	460186	216	2	47	167	50
CRW_00684	-	0.53	0.55	0.51	74	612025	266	16	56	194	61
CRW_00702	-	0.72	0.73	0.71	55	357357	187	7	16	164	20
CRW_00704	-	0.87	0.87	0.87	82	386666	195	4	8	183	12
CRW_00705	-	0.26	0.29	0.23	25	1461086	417	29	55	333	61
CRW_00706	-	0.64	0.71	0.58	42	695537	308	13	18	277	17
CRW_00709	-	0.23	0.19	0.29	16	1728814	485	1	39	445	69
CRW_00710	-	0.69	0.64	0.74	73	1040304	312	2	24	286	41
CRW_00712	-	0.44	0.48	0.39	52	952758	374	24	56	294	56
CRW_00713	-	0.80	0.77	0.84	78	731352	295	5	10	280	23
CRW_00723	-	0.60	0.58	0.62	43	1583241	438	9	17	412	31
CRW_00725	-	0.55	0.59	0.52	102	1957033	455	34	62	359	72
CRW_00730	-	0.48	0.49	0.48	79	338910	157	15	72	70	82
CRW_00734	-	0.45	0.43	0.47	47	537065	184	20	34	130	63
CRW_00735	-	0.52	0.57	0.47	69	677883	231	42	36	153	52
CRW_00740	-	0.14	0.17	0.12	19	489398	229	53	85	91	94
CRW_00742	-	0.83	0.83	0.84	139	1723131	386	5	21	360	29
CRW_00745	-	0.66	0.69	0.63	107	1343810	322	19	44	259	47
CRW_00746	-	0.53	0.53	0.55	115	550514	165	22	74	69	104
CRW_00750	-	0.60	0.61	0.59	98	709671	249	18	49	182	62
CRW_00751	-	0.78	0.76	0.80	136	489385	143	3	31	109	42
CRW_00753	-	0.25	0.26	0.24	46	489360	233	42	107	84	132
CRW_00757	-	0.21	0.25	0.18	31	415246	217	58	81	78	95
CRW_00758	SSU_rRNA_eukarya links to Rfam database...	0.35	0.35	0.35	170	1640283	375	51	262	62	313
CRW_00759	SSU_rRNA_eukarya links to Rfam database...	0.31	0.30	0.32	145	1636697	372	51	252	69	336
CRW_00760	SSU_rRNA_eukarya links to Rfam database...	0.37	0.36	0.37	176	1638485	358	65	229	64	310
CRW_00763	SSU_rRNA_bacteria links to Rfam database...	0.38	0.32	0.44	144	1215694	231	27	155	49	302
CRW_00765	-	0.43	0.39	0.47	101	452459	126	21	95	10	156
CRW_00766	-	0.27	0.23	0.31	56	440213	138	20	102	16	184
CRW_00768	-	0.61	0.55	0.68	143	471695	100	7	61	32	116
CRW_00769	-	0.48	0.43	0.53	108	451522	115	21	74	20	144
CRW_00772	SSU_rRNA_bacteria links to Rfam database...	0.40	0.37	0.44	148	945666	215	18	168	29	256
CRW_00773	-	0.48	0.45	0.51	116	451497	135	19	93	23	143
CRW_00774	-	0.44	0.40	0.49	105	488352	131	8	101	22	158
CRW_00777	-	0.43	0.42	0.45	127	719119	199	27	127	45	177
CRW_00778	SSU_rRNA_bacteria links to Rfam database...	0.52	0.45	0.59	174	1201730	163	16	105	42	210
CRW_00779	-	0.37	0.36	0.39	150	1031380	264	22	214	28	272
CRW_00780	-	0.32	0.29	0.35	74	475591	151	18	117	16	181
CRW_00781	-	0.26	0.25	0.26	112	1978630	474	35	278	161	338
CRW_00783	-	0.39	0.33	0.45	86	453437	121	12	93	16	173
CRW_00784	-	0.41	0.37	0.45	96	456279	134	19	96	19	166
CRW_00785	-	0.54	0.48	0.62	122	452478	89	12	64	13	131
CRW_00786	-	0.38	0.37	0.38	167	1946914	424	48	222	154	283
CRW_00787	-	0.49	0.45	0.53	138	646691	151	13	111	27	168
CRW_00788	-	0.36	0.33	0.40	119	1758455	393	31	145	217	242
CRW_00789	SSU_rRNA_bacteria links to Rfam database...	0.48	0.44	0.53	196	1137416	209	14	160	35	251
CRW_00790	-	0.26	0.26	0.27	115	1803619	442	38	278	126	332
CRW_00792	-	0.36	0.34	0.38	130	1581187	378	24	190	164	253
CRW_00793	-	0.54	0.50	0.59	189	1048753	210	26	108	76	188
CRW_00794	-	0.37	0.35	0.39	85	434558	154	20	115	19	161
CRW_00795	SSU_rRNA_bacteria links to Rfam database...	0.35	0.33	0.38	131	1152575	263	22	193	48	263
CRW_00796	-	0.36	0.29	0.45	69	384851	109	2	81	26	166
CRW_00797	-	0.33	0.30	0.38	101	692984	189	25	143	21	241
CRW_00800	SSU_rRNA_eukarya links to Rfam database...	0.57	0.54	0.60	253	1401550	230	21	151	58	217
CRW_00801	-	0.47	0.45	0.49	113	438286	131	27	90	14	136
CRW_00802	-	0.42	0.39	0.45	99	460102	145	19	100	26	154
CRW_00803	-	0.27	0.27	0.26	123	1952808	452	64	281	107	326
CRW_00804	-	0.41	0.37	0.45	148	1420127	285	21	159	105	255
CRW_00806	-	0.28	0.28	0.29	125	1913511	410	53	257	100	324
CRW_00807	-	0.52	0.47	0.56	188	1391613	233	14	131	88	210
CRW_00808	-	0.31	0.29	0.33	103	1301378	324	43	167	114	253
CRW_00813	-	0.44	0.47	0.41	63	530812	220	29	61	130	70
CRW_00849	SSU_rRNA_bacteria links to Rfam database...	0.57	0.56	0.57	265	1117797	226	19	179	28	205
CRW_00997	SSU_rRNA_bacteria links to Rfam database...	0.62	0.60	0.64	280	1135838	187	19	141	27	184
CRW_01134	-	0.38	0.35	0.41	148	964992	225	35	180	10	279
CRW_01153	SSU_rRNA_eukarya links to Rfam database...	0.39	0.39	0.40	194	1606043	347	52	239	56	309
CRW_01168	-	0.50	0.48	0.53	196	900783	197	25	149	23	215
CRW_01171	SSU_rRNA_eukarya links to Rfam database...	0.45	0.44	0.47	221	1593534	302	49	201	52	285
CRW_01186	-	0.40	0.38	0.42	146	836224	219	23	178	18	240
CRW_01188	-	0.20	0.20	0.20	77	837476	320	47	265	8	316
CRW_01189	-	0.23	0.23	0.23	92	862249	314	44	256	14	300
CRW_01214	-	0.30	0.28	0.32	114	931943	252	28	210	14	291
CRW_01222	-	0.30	0.28	0.33	113	912930	241	48	185	8	284
CRW_01224	-	0.40	0.36	0.45	141	912960	188	17	158	13	256
CRW_01239	-	0.24	0.23	0.25	88	840107	271	42	219	10	294
CRW_01250	-	0.45	0.41	0.49	155	781556	186	19	145	22	223
CRW_01260	-	0.23	0.20	0.25	80	912961	256	30	205	21	313
CRW_01266	-	0.35	0.35	0.34	134	818168	277	41	217	19	247
CRW_01271	-	0.32	0.32	0.32	121	827157	280	31	232	17	260
CRW_01275	-	0.38	0.37	0.40	160	1082251	264	41	204	19	272
CRW_01283	-	0.33	0.30	0.36	123	963626	238	25	192	21	286
CRW_01300	SSU_rRNA_eukarya links to Rfam database...	0.38	0.37	0.38	193	1693217	355	53	257	45	322
CRW_01314	-	0.30	0.28	0.33	114	937422	242	30	199	13	293
CRW_01343	SSU_rRNA_archaea links to Rfam database...	0.46	0.44	0.48	189	977509	217	30	173	14	245
CRW_01344	-	0.28	0.27	0.30	98	791579	243	31	203	9	268
PDB_00409	-	0.35	0.40	0.30	99	688225	317	68	159	90	146
PDB_00703	SSU_rRNA_bacteria links to Rfam database...	0.53	0.50	0.56	246	1073403	229	19	177	33	249
PDB_00805	-	0.66	0.64	0.68	193	467745	126	7	83	36	109
PDB_00854	SSU_rRNA_bacteria links to Rfam database...	0.50	0.49	0.52	264	1500266	296	25	223	48	271
PDB_01088	SSU_rRNA_bacteria links to Rfam database...	0.46	0.43	0.49	236	1470988	271	34	212	25	311
PDB_01103	SSU_rRNA_bacteria links to Rfam database...	0.55	0.54	0.56	301	1605989	279	31	207	41	261
PDB_01105	SSU_rRNA_bacteria links to Rfam database...	0.58	0.56	0.60	303	1433467	242	16	185	41	237
PDB_01120	SSU_rRNA_bacteria links to Rfam database...	0.49	0.44	0.55	232	1204703	216	20	173	23	295
PDB_01261	-	0.79	0.69	0.90	233	467769	32	2	24	6	103
PDB_01273	SSU_rRNA_bacteria links to Rfam database...	0.49	0.47	0.51	232	1117807	258	16	205	37	259

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.

Table of contents:

Overview

Performance plots

Performance of CentroidFold - scored higher in this pairwise comparison

1. Total counts & total scores for CentroidFold

2. Individual counts for CentroidFold [ download as .csv ]

Performance of Contrafold - scored lower in this pairwise comparison

1. Total counts & total scores for Contrafold

2. Individual counts for Contrafold [ download as .csv ]
