Overview

Metric	IPknot		Afold
MCC	0.496	>	0.371
Average MCC ± 95% Confidence Intervals	0.487 ± 0.021	>	0.365 ± 0.019
Sensitivity	0.423	>	0.372
Positive Predictive Value	0.583	>	0.371
Total TP	38042	>	33489
Total TN	317792945	>	317768000
Total FP	39062	<	72671
Total FP CONTRA	4593	<	9480
Total FP INCONS	22640	<	47251
Total FP COMP	11829	<	15940
Total FN	51961	<	56514
P-value	3.56938820447e-08

^top

Performance plots

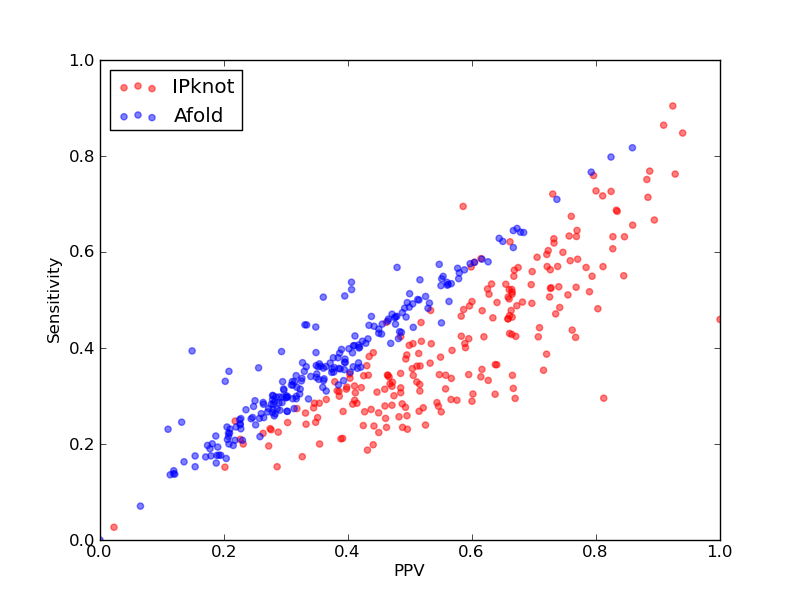

Comparison of performance of IPknot and Afold. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for IPknot and Afold).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for IPknot and Afold).
Comparison of average Matthews Correlation Coefficients (MCCs) for IPknot and Afold. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for IPknot and Afold).

^top

Performance of IPknot - scored higher in this pairwise comparison

1. Total counts & total scores for IPknot

Total Base Pair Counts
Total TP	38042
Total TN	317792945
Total FP	39062
Total FP CONTRA	4593
Total FP INCONS	22640
Total FP COMP	11829
Total FN	51961

Total Scores
MCC	0.496
Average MCC ± 95% Confidence Intervals	0.487 ± 0.021
Sensitivity	0.423
Positive Predictive Value	0.583
Nr of predictions	219

^top

2. Individual counts for IPknot [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
CRW_00001	-	0.58	0.51	0.66	107	3173779	466	10	44	412	102
CRW_00002	-	0.64	0.53	0.77	139	408879	64	18	24	22	125
CRW_00024	SSU_rRNA_archaea links to Rfam database...	0.83	0.77	0.89	352	1085204	78	4	41	33	106
CRW_00048	SSU_rRNA_bacteria links to Rfam database...	0.72	0.63	0.83	297	1170856	75	6	56	13	173
CRW_00054	SSU_rRNA_bacteria links to Rfam database...	0.58	0.50	0.66	229	1107469	137	16	102	19	227
CRW_00059	SSU_rRNA_bacteria links to Rfam database...	0.71	0.61	0.83	287	1172399	74	4	56	14	186
CRW_00061	SSU_rRNA_bacteria links to Rfam database...	0.66	0.60	0.72	287	1181556	121	23	87	11	189
CRW_00068	SSU_rRNA_bacteria links to Rfam database...	0.59	0.52	0.66	236	1108950	134	23	96	15	221
CRW_00096	SSU_rRNA_bacteria links to Rfam database...	0.55	0.50	0.60	231	1178495	170	17	137	16	234
CRW_00140	SSU_rRNA_bacteria links to Rfam database...	0.76	0.68	0.83	317	1135898	79	6	57	16	146
CRW_00141	SSU_rRNA_bacteria links to Rfam database...	0.70	0.64	0.77	307	1201626	111	11	81	19	169
CRW_00150	SSU_rRNA_bacteria links to Rfam database...	0.58	0.50	0.68	231	1152582	123	17	91	15	235
CRW_00152	SSU_rRNA_bacteria links to Rfam database...	0.54	0.48	0.62	225	1180051	148	20	120	8	246
CRW_00166	SSU_rRNA_bacteria links to Rfam database...	0.61	0.53	0.70	249	1190838	118	6	103	9	219
CRW_00173	SSU_rRNA_bacteria links to Rfam database...	0.37	0.34	0.40	150	1082284	231	30	192	9	295
CRW_00177	SSU_rRNA_bacteria links to Rfam database...	0.59	0.53	0.65	252	1178495	145	17	116	12	221
CRW_00196	SSU_rRNA_bacteria links to Rfam database...	0.61	0.55	0.67	261	1207844	146	17	113	16	214
CRW_00230	SSU_rRNA_bacteria links to Rfam database...	0.73	0.63	0.85	302	1198569	73	7	48	18	176
CRW_00245	SSU_rRNA_bacteria links to Rfam database...	0.62	0.53	0.74	239	1106005	96	13	71	12	214
CRW_00248	SSU_rRNA_bacteria links to Rfam database...	0.76	0.72	0.81	347	1218713	108	15	66	27	137
CRW_00250	SSU_rRNA_bacteria links to Rfam database...	0.57	0.52	0.63	250	1198526	164	23	127	14	228
CRW_00256	SSU_rRNA_bacteria links to Rfam database...	0.56	0.44	0.71	207	1192448	104	18	67	19	261
CRW_00270	SSU_rRNA_bacteria links to Rfam database...	0.66	0.55	0.79	250	1111971	79	11	54	14	205
CRW_00271	SSU_rRNA_bacteria links to Rfam database...	0.56	0.47	0.66	216	1122424	126	25	86	15	246
CRW_00273	SSU_rRNA_bacteria links to Rfam database...	0.52	0.47	0.58	208	1085244	163	20	129	14	238
CRW_00275	SSU_rRNA_bacteria links to Rfam database...	0.76	0.69	0.83	314	1114894	79	11	52	16	143
CRW_00277	SSU_rRNA_bacteria links to Rfam database...	0.53	0.43	0.66	194	1110503	106	22	76	8	259
CRW_00278	SSU_rRNA_bacteria links to Rfam database...	0.60	0.48	0.74	218	1129962	95	5	71	19	232
CRW_00279	SSU_rRNA_bacteria links to Rfam database...	0.66	0.58	0.76	270	1180060	100	16	70	14	194
CRW_00280	SSU_rRNA_bacteria links to Rfam database...	0.67	0.58	0.77	265	1117916	90	11	68	11	188
CRW_00281	SSU_rRNA_bacteria links to Rfam database...	0.65	0.59	0.72	276	1144958	123	17	90	16	188
CRW_00283	SSU_rRNA_bacteria links to Rfam database...	0.42	0.31	0.56	136	1015781	124	17	91	16	296
CRW_00284	SSU_rRNA_bacteria links to Rfam database...	0.55	0.42	0.71	193	1131487	92	13	67	12	263
CRW_00285	SSU_rRNA_bacteria links to Rfam database...	0.79	0.71	0.88	327	1117890	60	13	30	17	131
CRW_00289	SSU_rRNA_bacteria links to Rfam database...	0.64	0.56	0.73	268	1189284	121	17	84	20	208
CRW_00292	SSU_rRNA_bacteria links to Rfam database...	0.41	0.35	0.48	160	1123920	187	28	142	17	301
CRW_00294	-	0.41	0.38	0.43	224	2620389	387	73	219	95	362
CRW_00298	SSU_rRNA_eukarya links to Rfam database...	0.25	0.22	0.29	111	1620514	296	48	227	21	383
CRW_00301	SSU_rRNA_eukarya links to Rfam database...	0.47	0.39	0.57	205	1762142	202	32	124	46	314
CRW_00310	SSU_rRNA_eukarya links to Rfam database...	0.36	0.32	0.40	166	1805533	303	42	209	52	355
CRW_00326	SSU_rRNA_eukarya links to Rfam database...	0.53	0.43	0.66	216	1627783	139	27	84	28	286
CRW_00330	SSU_rRNA_eukarya links to Rfam database...	0.35	0.31	0.39	160	1988600	320	42	213	65	357
CRW_00332	SSU_rRNA_eukarya links to Rfam database...	0.24	0.22	0.26	106	1769618	328	73	224	31	371
CRW_00333	SSU_rRNA_eukarya links to Rfam database...	0.34	0.30	0.39	154	1892086	305	42	203	60	360
CRW_00338	-	0.21	0.20	0.23	79	1053084	273	64	199	10	316
CRW_00345	SSU_rRNA_eukarya links to Rfam database...	0.45	0.42	0.49	211	1586436	264	42	182	40	287
CRW_00348	SSU_rRNA_eukarya links to Rfam database...	0.38	0.31	0.46	158	1615159	219	33	153	33	345
CRW_00358	SSU_rRNA_eukarya links to Rfam database...	0.39	0.34	0.43	174	1674963	268	35	193	40	333
CRW_00366	SSU_rRNA_eukarya links to Rfam database...	0.37	0.32	0.42	153	1579390	248	42	168	38	329
CRW_00370	SSU_rRNA_eukarya links to Rfam database...	0.35	0.31	0.40	159	1640366	275	46	195	34	347
CRW_00371	SSU_rRNA_eukarya links to Rfam database...	0.49	0.41	0.59	203	1611565	179	27	115	37	293
CRW_00372	SSU_rRNA_eukarya links to Rfam database...	0.45	0.41	0.50	202	1625901	232	30	173	29	296
CRW_00374	-	0.34	0.31	0.38	171	2182558	359	34	242	83	379
CRW_00375	-	0.36	0.31	0.41	166	2299037	265	34	203	28	375
CRW_00379	SSU_rRNA_eukarya links to Rfam database...	0.49	0.40	0.59	214	2126590	218	30	119	69	320
CRW_00381	-	0.42	0.34	0.51	191	2303353	262	31	156	75	366
CRW_00386	SSU_rRNA_eukarya links to Rfam database...	0.29	0.27	0.32	141	1750812	337	58	245	34	374
CRW_00400	-	0.30	0.26	0.35	126	2678096	393	35	198	160	368
CRW_00403	SSU_rRNA_eukarya links to Rfam database...	0.35	0.33	0.38	153	1606124	308	45	206	57	311
CRW_00411	SSU_rRNA_eukarya links to Rfam database...	0.40	0.34	0.46	170	1615137	238	31	165	42	326
CRW_00414	SSU_rRNA_eukarya links to Rfam database...	0.41	0.33	0.51	163	1665906	188	30	126	32	332
CRW_00417	-	0.43	0.36	0.52	95	458219	97	18	71	8	167
CRW_00418	-	0.34	0.23	0.50	60	441209	66	5	56	5	200
CRW_00419	-	0.38	0.28	0.52	73	464026	72	7	60	5	192
CRW_00421	-	0.53	0.39	0.72	103	463060	53	4	36	13	163
CRW_00422	-	0.48	0.37	0.64	96	455385	74	8	46	20	167
CRW_00426	-	0.34	0.28	0.41	75	457262	117	15	94	8	190
CRW_00427	-	0.29	0.25	0.35	64	454397	126	20	100	6	197
CRW_00428	-	0.48	0.37	0.64	95	465946	65	11	43	11	165
CRW_00430	-	0.38	0.27	0.55	71	456361	67	8	50	9	195
CRW_00433	-	0.35	0.24	0.53	63	467908	59	3	54	2	200
CRW_00434	-	0.41	0.29	0.57	77	457310	60	10	49	1	186
CRW_00435	-	0.35	0.26	0.48	68	451584	77	6	67	4	197
CRW_00437	-	0.32	0.24	0.42	62	456344	92	9	75	8	198
CRW_00438	-	0.44	0.34	0.56	92	454416	83	8	65	10	176
CRW_00441	-	0.30	0.20	0.44	52	454463	69	13	53	3	210
CRW_00442	-	0.40	0.31	0.52	81	453471	81	13	63	5	180
CRW_00443	-	0.33	0.23	0.46	61	456358	81	9	62	10	199
CRW_00444	-	0.43	0.30	0.60	80	459228	59	5	48	6	183
CRW_00445	-	0.36	0.28	0.46	74	458242	92	11	76	5	191
CRW_00446	-	0.40	0.34	0.47	90	468803	112	14	89	9	175
CRW_00447	-	0.36	0.28	0.47	73	452521	91	10	72	9	187
CRW_00448	-	0.44	0.30	0.67	77	457331	46	7	31	8	184
CRW_00449	-	0.34	0.23	0.49	61	444971	65	6	58	1	199
CRW_00451	-	0.39	0.31	0.49	81	457279	94	10	76	8	183
CRW_00452	-	0.39	0.29	0.54	75	453490	77	8	55	14	187
CRW_00453	-	0.37	0.27	0.51	70	452540	75	7	59	9	191
CRW_00458	-	0.53	0.42	0.67	112	464963	60	6	49	5	152
CRW_00459	-	0.58	0.44	0.76	115	462090	50	5	31	14	148
CRW_00460	-	0.34	0.28	0.41	155	1972717	247	25	194	28	389
CRW_00462	-	0.41	0.29	0.58	76	458271	66	6	50	10	185
CRW_00463	-	0.43	0.36	0.51	92	445860	95	22	66	7	162
CRW_00464	-	0.49	0.30	0.81	78	462145	24	1	17	6	186
CRW_00466	SSU_rRNA_bacteria links to Rfam database...	0.81	0.75	0.88	344	1116375	69	10	36	23	114
CRW_00474	-	0.67	0.60	0.75	501	3976939	206	33	137	36	335
CRW_00476	-	0.62	0.53	0.73	462	4278640	202	29	144	29	417
CRW_00487	-	0.62	0.52	0.73	457	4223242	193	34	138	21	415
CRW_00488	-	0.54	0.46	0.63	410	4325564	254	30	207	17	476
CRW_00490	-	0.50	0.42	0.58	366	4145132	283	39	223	21	496
CRW_00496	-	0.59	0.49	0.70	427	4194243	213	24	162	27	439
CRW_00497	-	0.57	0.51	0.63	421	4402357	287	40	210	37	401
CRW_00499	-	0.57	0.49	0.67	431	4372762	238	23	187	28	452
CRW_00503	-	0.43	0.38	0.49	327	4252323	348	37	299	12	540
CRW_00507	-	0.61	0.51	0.73	438	4174001	191	27	139	25	427
CRW_00509	-	0.56	0.49	0.64	429	4182608	266	40	201	25	438
CRW_00511	-	0.47	0.41	0.53	350	4107756	326	31	274	21	506
CRW_00512	-	0.62	0.56	0.70	458	3815046	219	42	157	20	361
CRW_00518	-	0.39	0.32	0.47	283	4358027	331	46	272	13	601
CRW_00519	-	0.72	0.67	0.76	561	4246417	223	27	150	46	271
CRW_00521	-	0.47	0.36	0.62	300	4136639	203	18	169	16	544
CRW_00530	-	0.34	0.26	0.45	71	534937	94	30	57	7	197
CRW_00532	-	0.24	0.17	0.33	46	579285	103	22	73	8	219
CRW_00534	-	0.46	0.38	0.55	184	1832320	170	29	122	19	299
CRW_00535	-	0.33	0.29	0.37	96	898207	180	41	126	13	232
CRW_00538	-	0.34	0.25	0.46	76	812010	109	15	74	20	224
CRW_00545	-	0.31	0.28	0.35	55	1343821	197	26	78	93	138
CRW_00547	-	0.67	0.57	0.78	490	4278650	168	26	109	33	373
CRW_00589	SSU_rRNA_bacteria links to Rfam database...	0.44	0.37	0.53	164	1094152	163	21	123	19	281
CRW_00590	SSU_rRNA_bacteria links to Rfam database...	0.53	0.48	0.59	217	1119386	165	27	126	12	235
CRW_00591	SSU_rRNA_bacteria links to Rfam database...	0.70	0.63	0.77	282	1098536	110	15	70	25	164
CRW_00594	-	0.35	0.29	0.41	115	1028615	180	23	142	15	280
CRW_00596	-	0.32	0.28	0.35	110	1024285	218	26	175	17	276
CRW_00598	SSU_rRNA_eukarya links to Rfam database...	0.38	0.34	0.43	168	1665830	265	48	179	38	323
CRW_00599	-	0.46	0.41	0.52	226	3754734	569	28	182	359	320
CRW_00604	-	0.89	0.86	0.91	70	411701	129	5	2	122	11
CRW_00606	-	0.89	0.85	0.94	78	559070	188	0	5	183	14
CRW_00607	-	0.76	0.73	0.80	56	536060	259	10	4	245	21
CRW_00617	-	0.48	0.45	0.52	29	426370	178	4	23	151	35
CRW_00678	-	0.59	0.58	0.60	70	666319	212	9	37	166	51
CRW_00684	-	0.58	0.53	0.63	72	612057	178	14	28	136	63
CRW_00704	-	0.91	0.90	0.92	85	386668	146	4	3	139	9
CRW_00706	-	0.64	0.69	0.59	41	695540	219	11	18	190	18
CRW_00708	-	0.64	0.62	0.66	41	3457073	499	16	5	478	25
CRW_00709	-	0.27	0.20	0.35	17	1728822	327	2	29	296	68
CRW_00710	-	0.77	0.67	0.89	76	1040318	214	1	8	205	38
CRW_00711	-	0.22	0.21	0.23	26	2318666	488	38	51	399	98
CRW_00712	-	0.78	0.76	0.80	82	952787	274	3	18	253	26
CRW_00713	-	0.84	0.76	0.93	77	731362	240	1	5	234	24
CRW_00723	-	0.68	0.46	1.00	34	1583276	308	0	0	308	40
CRW_00725	-	0.60	0.59	0.61	102	1957065	284	37	27	220	72
CRW_00730	-	0.46	0.45	0.46	73	338918	141	20	65	56	88
CRW_00732	-	0.23	0.25	0.22	29	3402003	471	41	63	367	88
CRW_00734	-	0.62	0.48	0.80	53	537100	84	2	11	71	57
CRW_00735	-	0.54	0.49	0.60	59	677931	126	11	29	86	62
CRW_00740	-	0.02	0.03	0.02	3	489422	159	62	68	29	110
CRW_00742	-	0.77	0.73	0.82	122	1723148	310	5	21	284	46
CRW_00744	-	0.75	0.66	0.86	122	3433368	529	5	15	509	64
CRW_00745	-	0.73	0.72	0.73	111	1343828	207	15	26	166	43
CRW_00746	-	0.64	0.59	0.70	129	550542	110	18	36	56	90
CRW_00747	-	0.27	0.24	0.30	46	3722204	441	30	76	335	142
CRW_00750	-	0.58	0.57	0.60	91	709684	186	19	42	125	69
CRW_00752	-	0.51	0.48	0.53	88	2975415	477	27	50	400	96
CRW_00753	-	0.17	0.15	0.20	27	489421	156	27	80	49	151
CRW_00758	SSU_rRNA_eukarya links to Rfam database...	0.40	0.34	0.46	166	1640408	227	30	162	35	317
CRW_00759	SSU_rRNA_eukarya links to Rfam database...	0.28	0.24	0.33	116	1636796	279	54	179	46	365
CRW_00760	SSU_rRNA_eukarya links to Rfam database...	0.36	0.32	0.41	156	1638575	268	48	176	44	330
CRW_00761	-	0.25	0.23	0.27	110	2864020	525	63	228	234	364
CRW_00763	SSU_rRNA_bacteria links to Rfam database...	0.48	0.34	0.67	153	1215790	109	10	67	32	293
CRW_00766	-	0.32	0.24	0.44	57	440262	83	10	62	11	183
CRW_00768	-	0.59	0.47	0.73	122	471740	54	6	38	10	137
CRW_00769	-	0.56	0.46	0.66	117	451549	68	12	47	9	135
CRW_00772	SSU_rRNA_bacteria links to Rfam database...	0.44	0.34	0.57	136	945760	126	16	88	22	268
CRW_00774	-	0.50	0.35	0.72	93	488436	52	4	33	15	170
CRW_00778	SSU_rRNA_bacteria links to Rfam database...	0.42	0.29	0.60	111	1201840	104	12	62	30	273
CRW_00779	-	0.45	0.39	0.51	164	1031447	169	24	131	14	258
CRW_00780	-	0.29	0.21	0.39	54	475662	88	18	66	4	201
CRW_00781	-	0.30	0.26	0.33	119	1978696	336	39	201	96	331
CRW_00783	-	0.32	0.22	0.45	58	453499	79	9	62	8	201
CRW_00784	-	0.34	0.27	0.43	70	456326	105	18	76	11	192
CRW_00785	-	0.46	0.34	0.61	86	452536	58	8	46	4	167
CRW_00787	-	0.39	0.32	0.49	97	646753	108	19	84	5	209
CRW_00788	-	0.46	0.32	0.67	114	1758579	242	6	51	185	247
CRW_00789	SSU_rRNA_bacteria links to Rfam database...	0.55	0.46	0.66	206	1137473	121	11	96	14	241
CRW_00790	-	0.31	0.28	0.34	123	1803693	328	29	205	94	324
CRW_00792	-	0.45	0.34	0.59	132	1581309	202	11	79	112	251
CRW_00793	-	0.64	0.52	0.79	195	1048829	114	14	38	62	182
CRW_00794	-	0.37	0.28	0.49	68	434640	81	10	60	11	178
CRW_00795	SSU_rRNA_bacteria links to Rfam database...	0.36	0.26	0.50	102	1152715	143	20	84	39	292
CRW_00796	-	0.28	0.19	0.43	44	384901	70	6	52	12	191
CRW_00797	-	0.37	0.28	0.49	97	693054	121	12	90	19	245
CRW_00800	SSU_rRNA_eukarya links to Rfam database...	0.62	0.51	0.75	240	1401657	117	12	66	39	230
CRW_00801	-	0.44	0.39	0.49	96	438322	108	21	77	10	153
CRW_00802	-	0.41	0.32	0.52	82	460161	86	14	63	9	171
CRW_00804	-	0.46	0.33	0.63	134	1420241	141	12	68	61	269
CRW_00807	-	0.57	0.42	0.77	168	1391727	109	4	47	58	230
CRW_00808	-	0.29	0.21	0.39	75	1301498	175	36	82	57	281
CRW_00849	SSU_rRNA_bacteria links to Rfam database...	0.68	0.63	0.73	295	1117857	132	9	99	24	175
CRW_01134	-	0.39	0.28	0.55	119	965137	105	17	82	6	308
CRW_01153	SSU_rRNA_eukarya links to Rfam database...	0.37	0.35	0.40	174	1606096	291	43	215	33	329
CRW_01168	-	0.51	0.42	0.62	174	900872	124	17	90	17	237
CRW_01171	SSU_rRNA_eukarya links to Rfam database...	0.45	0.41	0.50	207	1593595	240	34	169	37	299
CRW_01186	-	0.43	0.34	0.55	133	836328	116	15	95	6	253
CRW_01188	-	0.23	0.20	0.27	77	837582	210	31	175	4	316
CRW_01189	-	0.25	0.23	0.28	90	862315	245	36	200	9	302
CRW_01214	-	0.44	0.30	0.64	123	932102	77	10	60	7	282
CRW_01222	-	0.34	0.27	0.44	108	913029	140	28	111	1	289
CRW_01250	-	0.39	0.33	0.47	123	781612	152	20	120	12	255
CRW_01260	-	0.21	0.15	0.29	60	913066	164	21	129	14	333
CRW_01266	-	0.42	0.36	0.50	136	818290	147	12	122	13	245
CRW_01275	-	0.39	0.33	0.47	142	1082355	170	34	125	11	290
CRW_01283	-	0.37	0.31	0.45	126	963684	171	17	139	15	283
CRW_01300	SSU_rRNA_eukarya links to Rfam database...	0.41	0.39	0.44	201	1693264	280	54	201	25	314
CRW_01314	-	0.32	0.27	0.39	109	937487	176	23	146	7	298
CRW_01343	SSU_rRNA_archaea links to Rfam database...	0.50	0.42	0.59	182	977595	134	16	108	10	252
CRW_01344	-	0.38	0.30	0.47	110	791679	131	20	102	9	256
CRW_01456	-	0.40	0.36	0.43	309	4240610	420	57	352	11	542
PDB_00401	-	0.59	0.52	0.66	497	3996625	290	30	226	34	456
PDB_00675	-	0.58	0.51	0.66	493	4168079	291	29	227	35	481
PDB_00703	SSU_rRNA_bacteria links to Rfam database...	0.64	0.57	0.72	282	1073454	132	13	96	23	213
PDB_00704	-	0.59	0.52	0.66	508	4249305	293	32	225	36	465
PDB_00805	-	0.68	0.57	0.81	172	467816	53	6	34	13	130
PDB_00854	SSU_rRNA_bacteria links to Rfam database...	0.67	0.62	0.73	331	1500326	158	17	104	37	204
PDB_01088	SSU_rRNA_bacteria links to Rfam database...	0.55	0.46	0.66	252	1471087	150	21	110	19	295
PDB_01103	SSU_rRNA_bacteria links to Rfam database...	0.62	0.57	0.67	319	1606055	171	20	134	17	243
PDB_01105	SSU_rRNA_bacteria links to Rfam database...	0.69	0.63	0.76	342	1433519	132	10	100	22	198
PDB_01120	SSU_rRNA_bacteria links to Rfam database...	0.56	0.48	0.66	252	1204748	138	22	106	10	275
PDB_01140	-	0.65	0.57	0.74	530	4176777	245	24	164	57	400
PDB_01261	-	0.68	0.55	0.84	185	467809	34	0	34	0	151
PDB_01273	SSU_rRNA_bacteria links to Rfam database...	0.61	0.56	0.67	276	1117847	163	10	127	26	215

^top

Performance of Afold - scored lower in this pairwise comparison

1. Total counts & total scores for Afold

Total Base Pair Counts
Total TP	33489
Total TN	317768000
Total FP	72671
Total FP CONTRA	9480
Total FP INCONS	47251
Total FP COMP	15940
Total FN	56514

Total Scores
MCC	0.371
Average MCC ± 95% Confidence Intervals	0.365 ± 0.019
Sensitivity	0.372
Positive Predictive Value	0.371
Nr of predictions	219

^top

2. Individual counts for Afold [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
CRW_00001	-	0.48	0.47	0.49	99	3173737	672	15	89	568	110
CRW_00002	-	0.55	0.55	0.55	145	408798	132	32	85	15	119
CRW_00024	SSU_rRNA_archaea links to Rfam database...	0.78	0.77	0.79	351	1085158	132	17	75	40	107
CRW_00048	SSU_rRNA_bacteria links to Rfam database...	0.49	0.49	0.50	228	1170758	252	20	209	23	242
CRW_00054	SSU_rRNA_bacteria links to Rfam database...	0.46	0.46	0.46	208	1107368	260	31	209	20	248
CRW_00059	SSU_rRNA_bacteria links to Rfam database...	0.52	0.51	0.53	240	1172289	233	26	191	16	233
CRW_00061	SSU_rRNA_bacteria links to Rfam database...	0.55	0.54	0.55	259	1181483	231	27	184	20	217
CRW_00068	SSU_rRNA_bacteria links to Rfam database...	0.49	0.49	0.50	226	1108849	247	24	206	17	231
CRW_00096	SSU_rRNA_bacteria links to Rfam database...	0.46	0.46	0.47	214	1178420	264	32	214	18	251
CRW_00140	SSU_rRNA_bacteria links to Rfam database...	0.64	0.63	0.64	291	1135826	182	20	141	21	172
CRW_00141	SSU_rRNA_bacteria links to Rfam database...	0.59	0.58	0.60	274	1201566	212	26	159	27	202
CRW_00150	SSU_rRNA_bacteria links to Rfam database...	0.42	0.41	0.42	193	1152465	282	35	228	19	273
CRW_00152	SSU_rRNA_bacteria links to Rfam database...	0.64	0.62	0.65	293	1179965	180	30	128	22	178
CRW_00166	SSU_rRNA_bacteria links to Rfam database...	0.54	0.53	0.55	248	1190745	226	28	175	23	220
CRW_00173	SSU_rRNA_bacteria links to Rfam database...	0.29	0.29	0.29	127	1082216	323	37	276	10	318
CRW_00177	SSU_rRNA_bacteria links to Rfam database...	0.44	0.43	0.45	203	1178433	259	22	222	15	270
CRW_00196	SSU_rRNA_bacteria links to Rfam database...	0.47	0.46	0.48	220	1207772	267	24	219	24	255
CRW_00230	SSU_rRNA_bacteria links to Rfam database...	0.57	0.56	0.58	266	1198467	216	21	172	23	212
CRW_00245	SSU_rRNA_bacteria links to Rfam database...	0.38	0.38	0.38	172	1105880	289	44	232	13	281
CRW_00248	SSU_rRNA_bacteria links to Rfam database...	0.57	0.57	0.58	274	1218666	234	21	180	33	210
CRW_00250	SSU_rRNA_bacteria links to Rfam database...	0.44	0.44	0.45	210	1198459	274	34	223	17	268
CRW_00256	SSU_rRNA_bacteria links to Rfam database...	0.41	0.40	0.42	188	1192291	278	39	222	17	280
CRW_00270	SSU_rRNA_bacteria links to Rfam database...	0.44	0.43	0.45	196	1111850	260	40	200	20	259
CRW_00271	SSU_rRNA_bacteria links to Rfam database...	0.51	0.50	0.51	231	1122302	237	43	175	19	231
CRW_00273	SSU_rRNA_bacteria links to Rfam database...	0.59	0.58	0.60	258	1085174	195	26	143	26	188
CRW_00275	SSU_rRNA_bacteria links to Rfam database...	0.47	0.47	0.48	213	1114826	258	28	204	26	244
CRW_00277	SSU_rRNA_bacteria links to Rfam database...	0.38	0.38	0.38	172	1110338	300	45	240	15	281
CRW_00278	SSU_rRNA_bacteria links to Rfam database...	0.41	0.40	0.42	180	1129825	274	33	218	23	270
CRW_00279	SSU_rRNA_bacteria links to Rfam database...	0.51	0.49	0.53	229	1179985	227	29	173	25	235
CRW_00280	SSU_rRNA_bacteria links to Rfam database...	0.51	0.50	0.51	227	1117817	231	28	188	15	226
CRW_00281	SSU_rRNA_bacteria links to Rfam database...	0.30	0.30	0.29	138	1144872	347	41	290	16	326
CRW_00283	SSU_rRNA_bacteria links to Rfam database...	0.28	0.27	0.29	118	1015612	321	39	256	26	314
CRW_00284	SSU_rRNA_bacteria links to Rfam database...	0.28	0.27	0.28	124	1131316	337	30	290	17	332
CRW_00285	SSU_rRNA_bacteria links to Rfam database...	0.72	0.71	0.74	325	1117819	142	23	93	26	133
CRW_00289	SSU_rRNA_bacteria links to Rfam database...	0.46	0.45	0.48	214	1189204	258	34	201	23	262
CRW_00292	SSU_rRNA_bacteria links to Rfam database...	0.31	0.30	0.32	138	1123814	315	46	252	17	323
CRW_00294	-	0.26	0.28	0.25	163	2620247	578	92	403	83	423
CRW_00298	SSU_rRNA_eukarya links to Rfam database...	0.19	0.20	0.18	99	1620353	490	81	367	42	395
CRW_00301	SSU_rRNA_eukarya links to Rfam database...	0.30	0.31	0.30	162	1761957	428	86	298	44	357
CRW_00310	SSU_rRNA_eukarya links to Rfam database...	0.29	0.30	0.28	157	1805386	453	81	326	46	364
CRW_00326	SSU_rRNA_eukarya links to Rfam database...	0.41	0.41	0.42	204	1627621	339	47	238	54	298
CRW_00330	SSU_rRNA_eukarya links to Rfam database...	0.32	0.32	0.31	167	1988474	452	69	305	78	350
CRW_00332	SSU_rRNA_eukarya links to Rfam database...	0.18	0.20	0.17	94	1769479	492	105	343	44	383
CRW_00333	SSU_rRNA_eukarya links to Rfam database...	0.29	0.30	0.28	153	1891946	449	74	312	63	361
CRW_00338	-	0.13	0.14	0.12	57	1052947	427	76	346	5	338
CRW_00345	SSU_rRNA_eukarya links to Rfam database...	0.34	0.35	0.33	175	1586340	403	71	285	47	323
CRW_00348	SSU_rRNA_eukarya links to Rfam database...	0.25	0.25	0.24	127	1614982	437	68	326	43	376
CRW_00358	SSU_rRNA_eukarya links to Rfam database...	0.36	0.36	0.35	183	1674845	391	61	276	54	324
CRW_00366	SSU_rRNA_eukarya links to Rfam database...	0.35	0.36	0.33	174	1579230	395	88	261	46	308
CRW_00370	SSU_rRNA_eukarya links to Rfam database...	0.28	0.28	0.28	143	1640248	420	77	298	45	363
CRW_00371	SSU_rRNA_eukarya links to Rfam database...	0.29	0.29	0.28	145	1611389	409	77	299	33	351
CRW_00372	SSU_rRNA_eukarya links to Rfam database...	0.36	0.36	0.35	181	1625787	378	59	279	40	317
CRW_00374	-	0.44	0.45	0.43	246	2182438	413	58	263	92	304
CRW_00375	-	0.27	0.29	0.26	155	2298851	514	78	356	80	386
CRW_00379	SSU_rRNA_eukarya links to Rfam database...	0.42	0.43	0.41	227	2126401	423	55	270	98	307
CRW_00381	-	0.32	0.33	0.31	184	2303138	513	67	342	104	373
CRW_00386	SSU_rRNA_eukarya links to Rfam database...	0.24	0.25	0.23	129	1750683	478	83	361	34	386
CRW_00400	-	0.24	0.25	0.23	125	2677905	618	72	353	193	369
CRW_00403	SSU_rRNA_eukarya links to Rfam database...	0.31	0.31	0.30	146	1606035	431	65	282	84	318
CRW_00411	SSU_rRNA_eukarya links to Rfam database...	0.34	0.34	0.34	169	1615006	381	62	266	53	327
CRW_00414	SSU_rRNA_eukarya links to Rfam database...	0.27	0.28	0.26	140	1665694	436	77	314	45	355
CRW_00417	-	0.38	0.37	0.39	97	458157	161	21	128	12	165
CRW_00418	-	0.24	0.22	0.26	56	441113	170	17	144	9	204
CRW_00419	-	0.19	0.17	0.20	45	463945	187	22	154	11	220
CRW_00421	-	0.38	0.36	0.41	96	462968	155	22	117	16	170
CRW_00422	-	0.36	0.35	0.38	92	455291	171	23	129	19	171
CRW_00426	-	0.30	0.29	0.31	78	457195	183	24	149	10	187
CRW_00427	-	0.18	0.18	0.19	46	454337	212	30	168	14	215
CRW_00428	-	0.39	0.38	0.40	98	465847	162	29	121	12	162
CRW_00430	-	0.18	0.18	0.19	47	456245	207	30	168	9	219
CRW_00433	-	0.35	0.32	0.38	85	467807	142	19	117	6	178
CRW_00434	-	0.38	0.35	0.40	92	457218	146	18	118	10	171
CRW_00435	-	0.36	0.33	0.39	88	451501	148	14	122	12	177
CRW_00437	-	0.21	0.21	0.22	54	456242	197	25	169	3	206
CRW_00438	-	0.35	0.34	0.36	90	454332	170	19	140	11	178
CRW_00441	-	0.17	0.16	0.19	42	454357	187	31	151	5	220
CRW_00442	-	0.37	0.36	0.39	93	453388	156	25	122	9	168
CRW_00443	-	0.39	0.36	0.42	93	456266	153	18	113	22	167
CRW_00444	-	0.27	0.26	0.28	68	459119	181	24	150	7	195
CRW_00445	-	0.28	0.27	0.30	71	458168	175	24	140	11	194
CRW_00446	-	0.46	0.43	0.48	115	468758	135	14	109	12	150
CRW_00447	-	0.27	0.27	0.28	69	452428	194	23	156	15	191
CRW_00448	-	0.34	0.32	0.36	83	457215	169	23	125	21	178
CRW_00449	-	0.22	0.21	0.23	54	444861	185	20	161	4	206
CRW_00451	-	0.21	0.20	0.21	52	457204	204	25	165	14	212
CRW_00452	-	0.31	0.29	0.34	77	453399	174	20	132	22	185
CRW_00453	-	0.34	0.31	0.36	81	452454	150	22	119	9	180
CRW_00458	-	0.32	0.31	0.32	83	464873	185	34	140	11	181
CRW_00459	-	0.29	0.27	0.31	72	462011	176	27	131	18	191
CRW_00460	-	0.27	0.27	0.27	149	1972543	463	72	327	64	395
CRW_00462	-	0.28	0.27	0.30	70	458171	178	16	146	16	191
CRW_00463	-	0.34	0.33	0.35	85	445799	164	22	134	8	169
CRW_00464	-	0.39	0.36	0.42	95	462015	142	15	116	11	169
CRW_00466	SSU_rRNA_bacteria links to Rfam database...	0.60	0.59	0.62	268	1116330	196	21	146	29	190
CRW_00474	-	0.51	0.51	0.50	429	3976751	463	78	352	33	407
CRW_00476	-	0.39	0.40	0.39	349	4278379	577	75	472	30	530
CRW_00487	-	0.55	0.54	0.56	468	4223035	405	51	317	37	404
CRW_00488	-	0.41	0.41	0.41	359	4325336	540	80	436	24	527
CRW_00490	-	0.36	0.36	0.36	312	4144884	592	83	481	28	550
CRW_00496	-	0.42	0.41	0.43	355	4194028	507	59	414	34	511
CRW_00497	-	0.44	0.45	0.44	366	4402200	520	80	382	58	456
CRW_00499	-	0.43	0.42	0.43	370	4372547	511	63	423	25	513
CRW_00503	-	0.35	0.35	0.35	300	4252128	583	76	482	25	567
CRW_00507	-	0.30	0.30	0.30	257	4173750	615	69	529	17	608
CRW_00509	-	0.47	0.46	0.48	403	4182433	475	78	364	33	464
CRW_00511	-	0.34	0.34	0.35	290	4107580	558	57	484	17	566
CRW_00512	-	0.50	0.49	0.50	403	3814904	427	60	336	31	416
CRW_00518	-	0.26	0.25	0.26	224	4357757	657	75	572	10	660
CRW_00519	-	0.53	0.54	0.52	451	4246281	466	64	359	43	381
CRW_00521	-	0.36	0.36	0.36	305	4136289	554	83	449	22	539
CRW_00530	-	0.35	0.37	0.33	99	534792	223	55	149	19	169
CRW_00532	-	0.12	0.14	0.11	36	579108	293	84	198	11	229
CRW_00534	-	0.29	0.30	0.28	145	1832136	410	68	306	36	338
CRW_00535	-	0.25	0.27	0.24	89	898092	316	73	216	27	239
CRW_00538	-	0.20	0.22	0.19	65	811827	304	77	206	21	235
CRW_00545	-	0.27	0.29	0.25	56	1343756	374	51	117	206	137
CRW_00547	-	0.47	0.47	0.47	406	4278413	487	64	392	31	457
CRW_00589	SSU_rRNA_bacteria links to Rfam database...	0.18	0.18	0.18	78	1094024	374	34	324	16	367
CRW_00590	SSU_rRNA_bacteria links to Rfam database...	0.36	0.36	0.37	161	1119326	290	30	239	21	291
CRW_00591	SSU_rRNA_bacteria links to Rfam database...	0.57	0.56	0.59	251	1098476	205	23	153	29	195
CRW_00594	-	0.22	0.24	0.20	93	1028441	382	52	309	21	302
CRW_00596	-	0.21	0.22	0.21	86	1024181	349	55	274	20	300
CRW_00598	SSU_rRNA_eukarya links to Rfam database...	0.31	0.33	0.29	162	1665675	440	88	300	52	329
CRW_00599	-	0.33	0.34	0.32	187	3754579	730	79	325	326	359
CRW_00604	-	0.52	0.57	0.48	46	411682	214	15	35	164	35
CRW_00606	-	0.66	0.64	0.68	59	559066	266	2	26	238	33
CRW_00607	-	0.55	0.53	0.56	41	536057	274	4	28	242	36
CRW_00617	-	0.66	0.64	0.68	41	426366	236	1	18	217	23
CRW_00678	-	0.66	0.64	0.67	78	666318	274	10	29	235	43
CRW_00684	-	0.34	0.39	0.29	53	611990	298	44	84	170	82
CRW_00704	-	0.81	0.80	0.82	75	386669	198	4	12	182	19
CRW_00706	-	0.45	0.51	0.39	30	695534	340	11	35	294	29
CRW_00708	-	0.24	0.39	0.15	26	3456960	728	99	50	579	40
CRW_00709	-	0.07	0.07	0.07	6	1728778	562	20	66	476	79
CRW_00710	-	0.66	0.65	0.67	74	1040293	375	8	28	339	40
CRW_00711	-	0.13	0.14	0.12	17	2318640	641	36	88	517	107
CRW_00712	-	0.47	0.54	0.41	58	952747	370	30	55	285	50
CRW_00713	-	0.56	0.57	0.55	58	731339	313	11	37	265	43
CRW_00723	-	0.27	0.35	0.21	26	1583185	519	41	58	420	48
CRW_00725	-	0.38	0.45	0.33	78	1956995	536	46	112	378	96
CRW_00730	-	0.46	0.52	0.41	84	338869	186	39	84	63	77
CRW_00732	-	0.16	0.23	0.11	27	3401890	751	114	105	532	90
CRW_00734	-	0.18	0.25	0.13	27	536961	263	99	79	85	83
CRW_00735	-	0.26	0.33	0.20	40	677832	298	85	73	140	81
CRW_00740	-	0.00	0.00	0.00	0	489332	297	100	123	74	113
CRW_00742	-	0.43	0.51	0.36	85	1723060	507	56	95	356	83
CRW_00744	-	0.84	0.82	0.86	152	3433333	706	2	23	681	34
CRW_00745	-	0.39	0.45	0.33	69	1343773	422	48	90	284	85
CRW_00746	-	0.45	0.47	0.44	102	550492	206	29	102	75	117
CRW_00747	-	0.13	0.14	0.12	26	3722137	789	49	144	596	162
CRW_00750	-	0.39	0.44	0.35	71	709632	301	38	95	168	89
CRW_00752	-	0.30	0.36	0.26	66	2975322	682	63	129	490	118
CRW_00753	-	0.15	0.16	0.14	29	489341	277	47	138	92	149
CRW_00758	SSU_rRNA_eukarya links to Rfam database...	0.29	0.30	0.29	144	1640268	416	66	288	62	339
CRW_00759	SSU_rRNA_eukarya links to Rfam database...	0.22	0.22	0.21	107	1636633	462	78	327	57	374
CRW_00760	SSU_rRNA_eukarya links to Rfam database...	0.28	0.29	0.28	140	1638458	411	74	283	54	346
CRW_00761	-	0.16	0.18	0.15	83	2863880	708	103	355	250	391
CRW_00763	SSU_rRNA_bacteria links to Rfam database...	0.38	0.37	0.40	165	1215603	304	24	228	52	281
CRW_00766	-	0.27	0.26	0.28	63	440168	177	20	140	17	177
CRW_00768	-	0.40	0.39	0.41	101	471658	164	22	125	17	158
CRW_00769	-	0.39	0.37	0.42	93	451502	148	20	110	18	159
CRW_00772	SSU_rRNA_bacteria links to Rfam database...	0.26	0.25	0.26	103	945610	313	37	250	26	301
CRW_00774	-	0.37	0.36	0.39	94	488322	170	17	133	20	169
CRW_00778	SSU_rRNA_bacteria links to Rfam database...	0.30	0.29	0.32	113	1201668	314	34	210	70	271
CRW_00779	-	0.30	0.30	0.30	126	1031350	307	35	255	17	296
CRW_00780	-	0.18	0.18	0.19	45	475569	201	21	165	15	210
CRW_00781	-	0.22	0.23	0.21	104	1978559	534	49	343	142	346
CRW_00783	-	0.37	0.36	0.38	93	453382	165	15	138	12	166
CRW_00784	-	0.37	0.35	0.39	93	456254	166	21	122	23	169
CRW_00785	-	0.35	0.33	0.36	84	452443	162	27	122	13	169
CRW_00787	-	0.23	0.24	0.23	74	646626	267	36	217	14	232
CRW_00788	-	0.23	0.24	0.22	85	1758363	476	50	252	174	276
CRW_00789	SSU_rRNA_bacteria links to Rfam database...	0.36	0.36	0.36	160	1137342	302	44	240	18	287
CRW_00790	-	0.18	0.19	0.18	85	1803571	519	41	353	125	362
CRW_00792	-	0.23	0.24	0.23	92	1581124	465	54	261	150	291
CRW_00793	-	0.33	0.34	0.33	127	1048686	318	55	208	55	250
CRW_00794	-	0.24	0.24	0.25	59	434543	196	15	161	20	187
CRW_00795	SSU_rRNA_bacteria links to Rfam database...	0.21	0.22	0.21	85	1152511	379	51	274	54	309
CRW_00796	-	0.20	0.20	0.21	47	384777	193	27	152	14	188
CRW_00797	-	0.26	0.26	0.26	90	692907	280	33	223	24	252
CRW_00800	SSU_rRNA_eukarya links to Rfam database...	0.55	0.53	0.57	251	1401532	269	24	168	77	219
CRW_00801	-	0.45	0.45	0.46	112	438270	149	29	105	15	137
CRW_00802	-	0.19	0.19	0.19	49	460062	218	33	176	9	204
CRW_00804	-	0.32	0.32	0.31	130	1420037	396	39	249	108	273
CRW_00807	-	0.41	0.40	0.41	161	1391552	340	38	195	107	237
CRW_00808	-	0.37	0.39	0.35	139	1301292	367	81	179	107	217
CRW_00849	SSU_rRNA_bacteria links to Rfam database...	0.49	0.48	0.49	227	1117798	259	23	212	24	243
CRW_01134	-	0.25	0.26	0.25	109	964912	341	41	293	7	318
CRW_01153	SSU_rRNA_eukarya links to Rfam database...	0.32	0.32	0.32	160	1606024	390	54	290	46	343
CRW_01168	-	0.39	0.39	0.39	160	900739	274	33	221	20	251
CRW_01171	SSU_rRNA_eukarya links to Rfam database...	0.32	0.33	0.31	167	1593473	402	81	284	37	339
CRW_01186	-	0.27	0.27	0.27	103	836190	293	44	234	15	283
CRW_01188	-	0.17	0.17	0.17	68	837466	339	48	283	8	325
CRW_01189	-	0.21	0.21	0.21	82	862242	334	47	270	17	310
CRW_01214	-	0.29	0.29	0.29	116	931900	288	36	243	9	289
CRW_01222	-	0.23	0.23	0.23	92	912871	321	54	259	8	305
CRW_01250	-	0.31	0.30	0.32	115	781518	257	33	209	15	263
CRW_01260	-	0.15	0.15	0.15	60	912885	340	48	283	9	333
CRW_01266	-	0.28	0.28	0.28	108	818174	292	43	235	14	273
CRW_01275	-	0.30	0.30	0.30	128	1082230	316	45	253	18	304
CRW_01283	-	0.40	0.40	0.40	163	963560	265	37	206	22	246
CRW_01300	SSU_rRNA_eukarya links to Rfam database...	0.36	0.37	0.35	189	1693186	392	71	274	47	326
CRW_01314	-	0.28	0.27	0.29	110	937386	284	37	232	15	297
CRW_01343	SSU_rRNA_archaea links to Rfam database...	0.37	0.37	0.37	160	977470	284	42	229	13	274
CRW_01344	-	0.30	0.30	0.30	110	791545	267	40	216	11	256
CRW_01456	-	0.33	0.33	0.32	282	4240460	604	73	513	18	569
PDB_00401	-	0.45	0.42	0.48	400	3996547	462	46	385	31	553
PDB_00675	-	0.44	0.41	0.47	399	4167977	482	45	407	30	575
PDB_00703	SSU_rRNA_bacteria links to Rfam database...	0.53	0.50	0.56	246	1073408	220	17	174	29	249
PDB_00704	-	0.47	0.44	0.51	431	4249217	451	57	365	29	542
PDB_00805	-	0.64	0.61	0.67	184	467752	116	18	74	24	118
PDB_00854	SSU_rRNA_bacteria links to Rfam database...	0.55	0.53	0.56	284	1500271	276	22	201	53	251
PDB_01088	SSU_rRNA_bacteria links to Rfam database...	0.36	0.35	0.37	191	1470959	352	45	275	32	356
PDB_01103	SSU_rRNA_bacteria links to Rfam database...	0.56	0.54	0.58	306	1605999	254	32	191	31	256
PDB_01105	SSU_rRNA_bacteria links to Rfam database...	0.60	0.58	0.63	313	1433471	221	15	172	34	227
PDB_01120	SSU_rRNA_bacteria links to Rfam database...	0.46	0.43	0.49	228	1204659	250	31	210	9	299
PDB_01140	-	0.48	0.46	0.49	432	4176620	490	61	382	47	498
PDB_01261	-	0.50	0.45	0.55	152	467752	128	4	120	4	184
PDB_01273	SSU_rRNA_bacteria links to Rfam database...	0.51	0.48	0.53	237	1117812	242	21	190	31	254

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.

Table of contents:

Overview

Performance plots

Performance of IPknot - scored higher in this pairwise comparison

1. Total counts & total scores for IPknot

2. Individual counts for IPknot [ download as .csv ]

Performance of Afold - scored lower in this pairwise comparison

1. Total counts & total scores for Afold

2. Individual counts for Afold [ download as .csv ]
