Overview

Metric	PETfold_pre2.0(20)		RNAalifold(seed)
MCC	0.771	>	0.743
Average MCC ± 95% Confidence Intervals	0.773 ± 0.028	>	0.741 ± 0.041
Sensitivity	0.743	>	0.677
Positive Predictive Value	0.801	<	0.817
Total TP	21908	>	19947
Total TN	78827810	<	78830741
Total FP	7531	>	5352
Total FP CONTRA	957	<	1039
Total FP INCONS	4493	>	3441
Total FP COMP	2081	>	872
Total FN	7567	<	9528
P-value	3.56938820447e-08

^top

Performance plots

Comparison of performance of PETfold_pre2.0(20) and RNAalifold(seed). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for PETfold_pre2.0(20) and RNAalifold(seed)).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for PETfold_pre2.0(20) and RNAalifold(seed)).

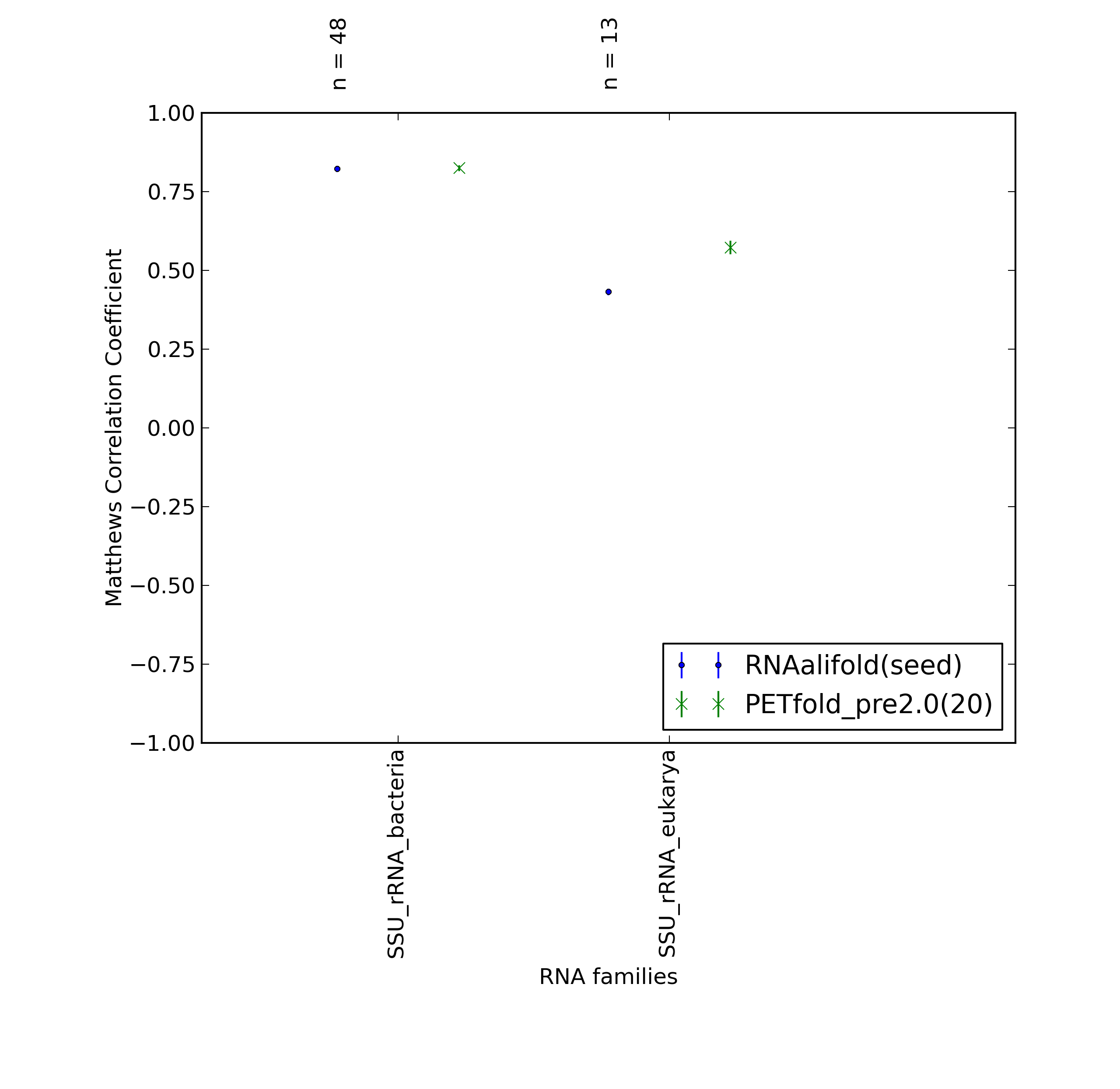

Comparison of average Matthews Correlation Coefficients (MCCs) for PETfold_pre2.0(20) and RNAalifold(seed). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for PETfold_pre2.0(20) and RNAalifold(seed)).

^top

Performance of PETfold_pre2.0(20) - scored higher in this pairwise comparison

1. Total counts & total scores for PETfold_pre2.0(20)

Total Base Pair Counts
Total TP	21908
Total TN	78827810
Total FP	7531
Total FP CONTRA	957
Total FP INCONS	4493
Total FP COMP	2081
Total FN	7567

Total Scores
MCC	0.771
Average MCC ± 95% Confidence Intervals	0.773 ± 0.028
Sensitivity	0.743
Positive Predictive Value	0.801
Nr of predictions	62

^top

2. Individual counts for PETfold_pre2.0(20) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
CRW_00024	SSU_rRNA_archaea links to Rfam database...	0.89	0.88	0.90	404	1085151	82	10	36	36	54
CRW_00034	SSU_rRNA_bacteria links to Rfam database...	0.82	0.79	0.85	374	1141875	86	17	50	19	100
CRW_00048	SSU_rRNA_bacteria links to Rfam database...	0.84	0.83	0.84	390	1170753	91	18	54	19	80
CRW_00054	SSU_rRNA_bacteria links to Rfam database...	0.84	0.84	0.84	381	1107361	95	17	57	21	75
CRW_00059	SSU_rRNA_bacteria links to Rfam database...	0.84	0.82	0.85	390	1172289	85	17	50	18	83
CRW_00061	SSU_rRNA_bacteria links to Rfam database...	0.84	0.82	0.86	390	1181501	85	16	46	23	86
CRW_00068	SSU_rRNA_bacteria links to Rfam database...	0.84	0.84	0.84	383	1108851	87	16	55	16	74
CRW_00096	SSU_rRNA_bacteria links to Rfam database...	0.85	0.83	0.87	388	1178436	81	12	44	25	77
CRW_00140	SSU_rRNA_bacteria links to Rfam database...	0.85	0.84	0.86	388	1135827	85	15	48	22	75
CRW_00141	SSU_rRNA_bacteria links to Rfam database...	0.83	0.81	0.85	387	1201568	90	18	52	20	89
CRW_00150	SSU_rRNA_bacteria links to Rfam database...	0.83	0.82	0.85	381	1152473	90	16	51	23	85
CRW_00152	SSU_rRNA_bacteria links to Rfam database...	0.83	0.81	0.85	381	1179968	89	17	50	22	90
CRW_00166	SSU_rRNA_bacteria links to Rfam database...	0.85	0.83	0.86	387	1190748	90	11	50	29	81
CRW_00173	SSU_rRNA_bacteria links to Rfam database...	0.80	0.80	0.81	354	1082220	107	18	64	25	91
CRW_00177	SSU_rRNA_bacteria links to Rfam database...	0.82	0.81	0.84	382	1178424	101	17	57	27	91
CRW_00196	SSU_rRNA_bacteria links to Rfam database...	0.83	0.81	0.85	387	1207780	91	16	52	23	88
CRW_00230	SSU_rRNA_bacteria links to Rfam database...	0.85	0.82	0.87	394	1198472	81	16	44	21	84
CRW_00245	SSU_rRNA_bacteria links to Rfam database...	0.87	0.86	0.87	390	1105881	79	17	40	22	63
CRW_00248	SSU_rRNA_bacteria links to Rfam database...	0.84	0.82	0.87	396	1218684	87	15	46	26	88
CRW_00250	SSU_rRNA_bacteria links to Rfam database...	0.83	0.80	0.85	382	1198478	88	15	51	22	96
CRW_00256	SSU_rRNA_bacteria links to Rfam database...	0.83	0.81	0.85	379	1192296	87	16	49	22	89
CRW_00270	SSU_rRNA_bacteria links to Rfam database...	0.86	0.86	0.86	390	1111833	85	15	48	22	65
CRW_00271	SSU_rRNA_bacteria links to Rfam database...	0.82	0.81	0.84	375	1122302	98	14	60	24	87
CRW_00273	SSU_rRNA_bacteria links to Rfam database...	0.84	0.84	0.84	375	1085156	94	14	56	24	71
CRW_00275	SSU_rRNA_bacteria links to Rfam database...	0.86	0.86	0.87	391	1114821	86	15	44	27	66
CRW_00277	SSU_rRNA_bacteria links to Rfam database...	0.84	0.84	0.85	379	1110348	89	16	52	21	74
CRW_00278	SSU_rRNA_bacteria links to Rfam database...	0.84	0.82	0.86	371	1129827	85	12	46	27	79
CRW_00279	SSU_rRNA_bacteria links to Rfam database...	0.82	0.81	0.84	377	1179965	98	18	56	24	87
CRW_00280	SSU_rRNA_bacteria links to Rfam database...	0.85	0.85	0.86	384	1117811	93	15	50	28	69
CRW_00281	SSU_rRNA_bacteria links to Rfam database...	0.84	0.82	0.85	381	1144895	89	14	51	24	83
CRW_00284	SSU_rRNA_bacteria links to Rfam database...	0.84	0.82	0.85	376	1131317	94	16	51	27	80
CRW_00285	SSU_rRNA_bacteria links to Rfam database...	0.84	0.83	0.86	380	1117816	91	17	47	27	78
CRW_00289	SSU_rRNA_bacteria links to Rfam database...	0.83	0.81	0.85	386	1189199	95	13	55	27	90
CRW_00306	SSU_rRNA_eukarya links to Rfam database...	0.60	0.57	0.63	263	1445430	208	26	131	51	199
CRW_00326	SSU_rRNA_eukarya links to Rfam database...	0.64	0.60	0.68	299	1627669	193	22	120	51	203
CRW_00358	SSU_rRNA_eukarya links to Rfam database...	0.56	0.53	0.60	269	1674914	228	29	153	46	238
CRW_00366	SSU_rRNA_eukarya links to Rfam database...	0.60	0.56	0.64	269	1579331	210	25	128	57	213
CRW_00371	SSU_rRNA_eukarya links to Rfam database...	0.58	0.55	0.60	275	1611455	232	17	163	52	221
CRW_00372	SSU_rRNA_eukarya links to Rfam database...	0.59	0.55	0.62	275	1625865	212	23	143	46	223
CRW_00379	SSU_rRNA_eukarya links to Rfam database...	0.58	0.52	0.65	277	2126526	213	25	125	63	257
CRW_00386	SSU_rRNA_eukarya links to Rfam database...	0.49	0.46	0.53	236	1750812	258	28	180	50	279
CRW_00411	SSU_rRNA_eukarya links to Rfam database...	0.58	0.54	0.61	269	1615064	222	21	149	52	227
CRW_00414	SSU_rRNA_eukarya links to Rfam database...	0.57	0.53	0.62	263	1665801	210	25	136	49	232
CRW_00466	SSU_rRNA_bacteria links to Rfam database...	0.85	0.85	0.85	388	1116310	90	13	54	23	70
CRW_00589	SSU_rRNA_bacteria links to Rfam database...	0.84	0.82	0.86	367	1094034	98	8	51	39	78
CRW_00590	SSU_rRNA_bacteria links to Rfam database...	0.87	0.84	0.89	381	1119329	87	4	42	41	71
CRW_00591	SSU_rRNA_bacteria links to Rfam database...	0.85	0.84	0.86	373	1098469	103	7	54	42	73
CRW_00759	SSU_rRNA_eukarya links to Rfam database...	0.56	0.53	0.59	254	1636715	232	18	158	56	227
CRW_00772	SSU_rRNA_bacteria links to Rfam database...	0.78	0.76	0.80	306	945618	127	7	69	51	98
CRW_00789	SSU_rRNA_bacteria links to Rfam database...	0.82	0.80	0.85	357	1137365	108	8	56	44	90
CRW_00795	SSU_rRNA_bacteria links to Rfam database...	0.79	0.76	0.82	301	1152552	149	5	63	81	93
CRW_00849	SSU_rRNA_bacteria links to Rfam database...	0.80	0.78	0.82	366	1117816	101	14	64	23	104
CRW_00997	SSU_rRNA_bacteria links to Rfam database...	0.85	0.84	0.85	389	1135822	85	16	51	18	75
CRW_01153	SSU_rRNA_eukarya links to Rfam database...	0.59	0.56	0.63	283	1606076	220	25	144	51	220
CRW_01171	SSU_rRNA_eukarya links to Rfam database...	0.52	0.48	0.56	245	1593566	240	31	163	46	261
PDB_00703	SSU_rRNA_bacteria links to Rfam database...	0.78	0.72	0.84	355	1073423	101	6	61	34	140
PDB_00854	SSU_rRNA_bacteria links to Rfam database...	0.75	0.68	0.84	363	1500344	118	10	61	47	172
PDB_01088	SSU_rRNA_bacteria links to Rfam database...	0.74	0.65	0.83	357	1471042	115	5	66	44	190
PDB_01103	SSU_rRNA_bacteria links to Rfam database...	0.75	0.66	0.85	373	1606088	99	8	59	32	189
PDB_01105	SSU_rRNA_bacteria links to Rfam database...	0.75	0.68	0.84	366	1433533	107	4	68	35	174
PDB_01120	SSU_rRNA_bacteria links to Rfam database...	0.78	0.72	0.85	378	1204681	101	9	60	32	149
PDB_01273	SSU_rRNA_bacteria links to Rfam database...	0.78	0.73	0.84	358	1117834	110	9	59	42	133

^top

Performance of RNAalifold(seed) - scored lower in this pairwise comparison

1. Total counts & total scores for RNAalifold(seed)

Total Base Pair Counts
Total TP	19947
Total TN	78830741
Total FP	5352
Total FP CONTRA	1039
Total FP INCONS	3441
Total FP COMP	872
Total FN	9528

Total Scores
MCC	0.743
Average MCC ± 95% Confidence Intervals	0.741 ± 0.041
Sensitivity	0.677
Positive Predictive Value	0.817
Nr of predictions	62

^top

2. Individual counts for RNAalifold(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
CRW_00024	SSU_rRNA_archaea links to Rfam database...	0.87	0.84	0.90	385	1085175	58	7	34	17	73
CRW_00034	SSU_rRNA_bacteria links to Rfam database...	0.82	0.77	0.88	363	1141905	62	14	34	14	111
CRW_00048	SSU_rRNA_bacteria links to Rfam database...	0.84	0.79	0.88	372	1170793	59	16	34	9	98
CRW_00054	SSU_rRNA_bacteria links to Rfam database...	0.84	0.81	0.88	369	1107397	60	16	34	10	87
CRW_00059	SSU_rRNA_bacteria links to Rfam database...	0.82	0.78	0.88	367	1172327	61	16	36	9	106
CRW_00061	SSU_rRNA_bacteria links to Rfam database...	0.82	0.77	0.88	367	1181535	61	16	35	10	109
CRW_00068	SSU_rRNA_bacteria links to Rfam database...	0.85	0.81	0.88	370	1108886	58	15	34	9	87
CRW_00096	SSU_rRNA_bacteria links to Rfam database...	0.84	0.79	0.89	368	1178465	61	12	35	14	97
CRW_00140	SSU_rRNA_bacteria links to Rfam database...	0.83	0.79	0.87	367	1135858	62	16	37	9	96
CRW_00141	SSU_rRNA_bacteria links to Rfam database...	0.83	0.78	0.88	369	1201606	61	16	34	11	107
CRW_00150	SSU_rRNA_bacteria links to Rfam database...	0.85	0.79	0.91	368	1152515	47	13	25	9	98
CRW_00152	SSU_rRNA_bacteria links to Rfam database...	0.85	0.79	0.91	372	1180006	46	13	25	8	99
CRW_00166	SSU_rRNA_bacteria links to Rfam database...	0.83	0.78	0.88	365	1190782	64	12	37	15	103
CRW_00173	SSU_rRNA_bacteria links to Rfam database...	0.79	0.76	0.84	336	1082254	76	16	50	10	109
CRW_00177	SSU_rRNA_bacteria links to Rfam database...	0.82	0.77	0.87	364	1178460	66	16	40	10	109
CRW_00196	SSU_rRNA_bacteria links to Rfam database...	0.82	0.77	0.87	365	1207815	63	16	39	8	110
CRW_00230	SSU_rRNA_bacteria links to Rfam database...	0.83	0.77	0.88	369	1198508	59	15	34	10	109
CRW_00245	SSU_rRNA_bacteria links to Rfam database...	0.84	0.81	0.88	366	1105912	60	16	34	10	87
CRW_00248	SSU_rRNA_bacteria links to Rfam database...	0.82	0.76	0.88	369	1218720	61	16	36	9	115
CRW_00250	SSU_rRNA_bacteria links to Rfam database...	0.82	0.77	0.88	369	1198505	61	16	36	9	109
CRW_00256	SSU_rRNA_bacteria links to Rfam database...	0.85	0.79	0.91	369	1192333	48	13	25	10	99
CRW_00270	SSU_rRNA_bacteria links to Rfam database...	0.84	0.81	0.88	368	1111868	59	15	35	9	87
CRW_00271	SSU_rRNA_bacteria links to Rfam database...	0.83	0.78	0.90	359	1122350	51	13	29	9	103
CRW_00273	SSU_rRNA_bacteria links to Rfam database...	0.84	0.80	0.87	358	1085191	60	16	36	8	88
CRW_00275	SSU_rRNA_bacteria links to Rfam database...	0.84	0.80	0.88	366	1114854	59	16	35	8	91
CRW_00277	SSU_rRNA_bacteria links to Rfam database...	0.83	0.79	0.87	359	1110382	64	17	37	10	94
CRW_00278	SSU_rRNA_bacteria links to Rfam database...	0.83	0.78	0.88	349	1129861	58	13	33	12	101
CRW_00279	SSU_rRNA_bacteria links to Rfam database...	0.85	0.80	0.91	372	1180005	54	13	26	15	92
CRW_00280	SSU_rRNA_bacteria links to Rfam database...	0.84	0.80	0.89	363	1117851	59	13	33	13	90
CRW_00281	SSU_rRNA_bacteria links to Rfam database...	0.85	0.80	0.91	372	1144932	48	13	24	11	92
CRW_00284	SSU_rRNA_bacteria links to Rfam database...	0.83	0.78	0.89	356	1131358	59	13	33	13	100
CRW_00285	SSU_rRNA_bacteria links to Rfam database...	0.82	0.78	0.86	356	1117847	66	17	40	9	102
CRW_00289	SSU_rRNA_bacteria links to Rfam database...	0.80	0.75	0.86	358	1189235	67	16	44	7	118
CRW_00306	SSU_rRNA_eukarya links to Rfam database...	0.45	0.39	0.52	178	1445508	175	32	132	11	284
CRW_00326	SSU_rRNA_eukarya links to Rfam database...	0.44	0.37	0.53	184	1627762	174	32	132	10	318
CRW_00358	SSU_rRNA_eukarya links to Rfam database...	0.44	0.36	0.53	184	1675017	173	32	132	9	323
CRW_00366	SSU_rRNA_eukarya links to Rfam database...	0.42	0.36	0.51	172	1579413	180	32	136	12	310
CRW_00371	SSU_rRNA_eukarya links to Rfam database...	0.44	0.36	0.52	181	1611565	175	31	133	11	315
CRW_00372	SSU_rRNA_eukarya links to Rfam database...	0.44	0.37	0.53	184	1625958	174	32	132	10	314
CRW_00379	SSU_rRNA_eukarya links to Rfam database...	0.40	0.32	0.50	169	2126616	180	32	136	12	365
CRW_00386	SSU_rRNA_eukarya links to Rfam database...	0.44	0.35	0.55	182	1750923	164	28	123	13	333
CRW_00411	SSU_rRNA_eukarya links to Rfam database...	0.45	0.38	0.55	186	1615165	163	28	124	11	310
CRW_00414	SSU_rRNA_eukarya links to Rfam database...	0.45	0.37	0.54	182	1665890	171	28	125	18	313
CRW_00466	SSU_rRNA_bacteria links to Rfam database...	0.86	0.82	0.91	377	1116350	49	12	26	11	81
CRW_00589	SSU_rRNA_bacteria links to Rfam database...	0.86	0.81	0.92	361	1094068	53	6	25	22	84
CRW_00590	SSU_rRNA_bacteria links to Rfam database...	0.87	0.81	0.92	366	1119360	52	6	24	22	86
CRW_00591	SSU_rRNA_bacteria links to Rfam database...	0.87	0.82	0.92	365	1098507	56	8	23	25	81
CRW_00759	SSU_rRNA_eukarya links to Rfam database...	0.41	0.34	0.49	163	1636811	183	35	136	12	318
CRW_00772	SSU_rRNA_bacteria links to Rfam database...	0.81	0.75	0.88	302	945656	72	5	37	30	102
CRW_00789	SSU_rRNA_bacteria links to Rfam database...	0.85	0.79	0.91	355	1137395	59	8	28	23	92
CRW_00795	SSU_rRNA_bacteria links to Rfam database...	0.78	0.73	0.84	288	1152577	109	10	46	53	106
CRW_00849	SSU_rRNA_bacteria links to Rfam database...	0.82	0.76	0.88	356	1117856	63	14	34	15	114
CRW_00997	SSU_rRNA_bacteria links to Rfam database...	0.84	0.80	0.88	372	1135856	59	15	35	9	92
CRW_01153	SSU_rRNA_eukarya links to Rfam database...	0.41	0.34	0.49	172	1606179	193	36	141	16	331
CRW_01171	SSU_rRNA_eukarya links to Rfam database...	0.43	0.36	0.52	181	1593657	177	34	133	10	325
PDB_00703	SSU_rRNA_bacteria links to Rfam database...	0.78	0.69	0.87	344	1073448	73	7	46	20	151
PDB_00854	SSU_rRNA_bacteria links to Rfam database...	0.74	0.64	0.87	342	1500383	85	10	43	32	193
PDB_01088	SSU_rRNA_bacteria links to Rfam database...	0.73	0.63	0.86	342	1471073	85	8	47	30	205
PDB_01103	SSU_rRNA_bacteria links to Rfam database...	0.74	0.63	0.87	355	1606120	72	10	43	19	207
PDB_01105	SSU_rRNA_bacteria links to Rfam database...	0.76	0.66	0.88	355	1433566	72	7	43	22	185
PDB_01120	SSU_rRNA_bacteria links to Rfam database...	0.77	0.68	0.87	358	1204715	73	7	48	18	169
PDB_01273	SSU_rRNA_bacteria links to Rfam database...	0.78	0.70	0.86	346	1117856	80	13	45	22	145

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
