Overview

Metric	PETfold_pre2.0(20)		RSpredict(seed)
MCC	0.782	>	0.012
Average MCC ± 95% Confidence Intervals	0.783 ± 0.028	>	0.012 ± 0.004
Sensitivity	0.753	>	0.011
Positive Predictive Value	0.811	>	0.014
Total TP	18645	>	272
Total TN	65502132	<	65505609
Total FP	6059	<	19547
Total FP CONTRA	768	<	2913
Total FP INCONS	3578	<	16329
Total FP COMP	1713	>	305
Total FN	6102	<	24475
P-value	3.56938820447e-08

^top

Performance plots

Comparison of performance of PETfold_pre2.0(20) and RSpredict(seed). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for PETfold_pre2.0(20) and RSpredict(seed)).

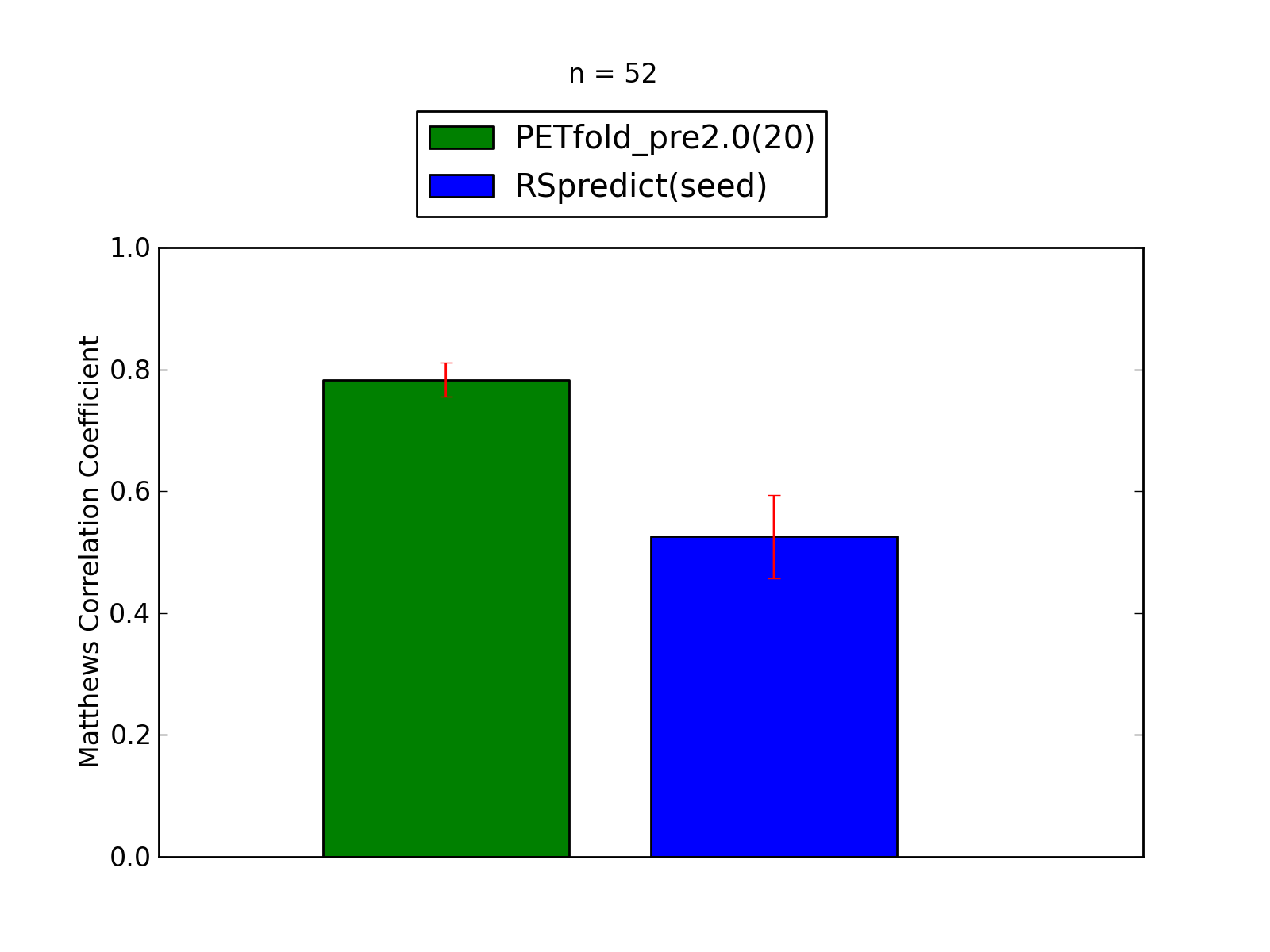

Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for PETfold_pre2.0(20) and RSpredict(seed)).
Comparison of average Matthews Correlation Coefficients (MCCs) for PETfold_pre2.0(20) and RSpredict(seed). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for PETfold_pre2.0(20) and RSpredict(seed)).

^top

Performance of PETfold_pre2.0(20) - scored higher in this pairwise comparison

1. Total counts & total scores for PETfold_pre2.0(20)

Total Base Pair Counts
Total TP	18645
Total TN	65502132
Total FP	6059
Total FP CONTRA	768
Total FP INCONS	3578
Total FP COMP	1713
Total FN	6102

Total Scores
MCC	0.782
Average MCC ± 95% Confidence Intervals	0.783 ± 0.028
Sensitivity	0.753
Positive Predictive Value	0.811
Nr of predictions	52

^top

2. Individual counts for PETfold_pre2.0(20) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
CRW_00024	SSU_rRNA_archaea links to Rfam database...	0.89	0.88	0.90	404	1085151	82	10	36	36	54
CRW_00048	SSU_rRNA_bacteria links to Rfam database...	0.84	0.83	0.84	390	1170753	91	18	54	19	80
CRW_00054	SSU_rRNA_bacteria links to Rfam database...	0.84	0.84	0.84	381	1107361	95	17	57	21	75
CRW_00059	SSU_rRNA_bacteria links to Rfam database...	0.84	0.82	0.85	390	1172289	85	17	50	18	83
CRW_00061	SSU_rRNA_bacteria links to Rfam database...	0.84	0.82	0.86	390	1181501	85	16	46	23	86
CRW_00068	SSU_rRNA_bacteria links to Rfam database...	0.84	0.84	0.84	383	1108851	87	16	55	16	74
CRW_00096	SSU_rRNA_bacteria links to Rfam database...	0.85	0.83	0.87	388	1178436	81	12	44	25	77
CRW_00140	SSU_rRNA_bacteria links to Rfam database...	0.85	0.84	0.86	388	1135827	85	15	48	22	75
CRW_00141	SSU_rRNA_bacteria links to Rfam database...	0.83	0.81	0.85	387	1201568	90	18	52	20	89
CRW_00150	SSU_rRNA_bacteria links to Rfam database...	0.83	0.82	0.85	381	1152473	90	16	51	23	85
CRW_00152	SSU_rRNA_bacteria links to Rfam database...	0.83	0.81	0.85	381	1179968	89	17	50	22	90
CRW_00166	SSU_rRNA_bacteria links to Rfam database...	0.85	0.83	0.86	387	1190748	90	11	50	29	81
CRW_00173	SSU_rRNA_bacteria links to Rfam database...	0.80	0.80	0.81	354	1082220	107	18	64	25	91
CRW_00177	SSU_rRNA_bacteria links to Rfam database...	0.82	0.81	0.84	382	1178424	101	17	57	27	91
CRW_00196	SSU_rRNA_bacteria links to Rfam database...	0.83	0.81	0.85	387	1207780	91	16	52	23	88
CRW_00230	SSU_rRNA_bacteria links to Rfam database...	0.85	0.82	0.87	394	1198472	81	16	44	21	84
CRW_00245	SSU_rRNA_bacteria links to Rfam database...	0.87	0.86	0.87	390	1105881	79	17	40	22	63
CRW_00248	SSU_rRNA_bacteria links to Rfam database...	0.84	0.82	0.87	396	1218684	87	15	46	26	88
CRW_00250	SSU_rRNA_bacteria links to Rfam database...	0.83	0.80	0.85	382	1198478	88	15	51	22	96
CRW_00256	SSU_rRNA_bacteria links to Rfam database...	0.83	0.81	0.85	379	1192296	87	16	49	22	89
CRW_00270	SSU_rRNA_bacteria links to Rfam database...	0.86	0.86	0.86	390	1111833	85	15	48	22	65
CRW_00271	SSU_rRNA_bacteria links to Rfam database...	0.82	0.81	0.84	375	1122302	98	14	60	24	87
CRW_00273	SSU_rRNA_bacteria links to Rfam database...	0.84	0.84	0.84	375	1085156	94	14	56	24	71
CRW_00275	SSU_rRNA_bacteria links to Rfam database...	0.86	0.86	0.87	391	1114821	86	15	44	27	66
CRW_00277	SSU_rRNA_bacteria links to Rfam database...	0.84	0.84	0.85	379	1110348	89	16	52	21	74
CRW_00280	SSU_rRNA_bacteria links to Rfam database...	0.85	0.85	0.86	384	1117811	93	15	50	28	69
CRW_00281	SSU_rRNA_bacteria links to Rfam database...	0.84	0.82	0.85	381	1144895	89	14	51	24	83
CRW_00289	SSU_rRNA_bacteria links to Rfam database...	0.83	0.81	0.85	386	1189199	95	13	55	27	90
CRW_00306	SSU_rRNA_eukarya links to Rfam database...	0.60	0.57	0.63	263	1445430	208	26	131	51	199
CRW_00366	SSU_rRNA_eukarya links to Rfam database...	0.60	0.56	0.64	269	1579331	210	25	128	57	213
CRW_00371	SSU_rRNA_eukarya links to Rfam database...	0.58	0.55	0.60	275	1611455	232	17	163	52	221
CRW_00379	SSU_rRNA_eukarya links to Rfam database...	0.58	0.52	0.65	277	2126526	213	25	125	63	257
CRW_00411	SSU_rRNA_eukarya links to Rfam database...	0.58	0.54	0.61	269	1615064	222	21	149	52	227
CRW_00414	SSU_rRNA_eukarya links to Rfam database...	0.57	0.53	0.62	263	1665801	210	25	136	49	232
CRW_00466	SSU_rRNA_bacteria links to Rfam database...	0.85	0.85	0.85	388	1116310	90	13	54	23	70
CRW_00589	SSU_rRNA_bacteria links to Rfam database...	0.84	0.82	0.86	367	1094034	98	8	51	39	78
CRW_00590	SSU_rRNA_bacteria links to Rfam database...	0.87	0.84	0.89	381	1119329	87	4	42	41	71
CRW_00591	SSU_rRNA_bacteria links to Rfam database...	0.85	0.84	0.86	373	1098469	103	7	54	42	73
CRW_00759	SSU_rRNA_eukarya links to Rfam database...	0.56	0.53	0.59	254	1636715	232	18	158	56	227
CRW_00789	SSU_rRNA_bacteria links to Rfam database...	0.82	0.80	0.85	357	1137365	108	8	56	44	90
CRW_00795	SSU_rRNA_bacteria links to Rfam database...	0.79	0.76	0.82	301	1152552	149	5	63	81	93
CRW_00849	SSU_rRNA_bacteria links to Rfam database...	0.80	0.78	0.82	366	1117816	101	14	64	23	104
CRW_00997	SSU_rRNA_bacteria links to Rfam database...	0.85	0.84	0.85	389	1135822	85	16	51	18	75
CRW_01153	SSU_rRNA_eukarya links to Rfam database...	0.59	0.56	0.63	283	1606076	220	25	144	51	220
CRW_01171	SSU_rRNA_eukarya links to Rfam database...	0.52	0.48	0.56	245	1593566	240	31	163	46	261
PDB_00703	SSU_rRNA_bacteria links to Rfam database...	0.78	0.72	0.84	355	1073423	101	6	61	34	140
PDB_00854	SSU_rRNA_bacteria links to Rfam database...	0.75	0.68	0.84	363	1500344	118	10	61	47	172
PDB_01088	SSU_rRNA_bacteria links to Rfam database...	0.74	0.65	0.83	357	1471042	115	5	66	44	190
PDB_01103	SSU_rRNA_bacteria links to Rfam database...	0.75	0.66	0.85	373	1606088	99	8	59	32	189
PDB_01105	SSU_rRNA_bacteria links to Rfam database...	0.75	0.68	0.84	366	1433533	107	4	68	35	174
PDB_01120	SSU_rRNA_bacteria links to Rfam database...	0.78	0.72	0.85	378	1204681	101	9	60	32	149
PDB_01273	SSU_rRNA_bacteria links to Rfam database...	0.78	0.73	0.84	358	1117834	110	9	59	42	133

^top

Performance of RSpredict(seed) - scored lower in this pairwise comparison

1. Total counts & total scores for RSpredict(seed)

Total Base Pair Counts
Total TP	272
Total TN	65505609
Total FP	19547
Total FP CONTRA	2913
Total FP INCONS	16329
Total FP COMP	305
Total FN	24475

Total Scores
MCC	0.012
Average MCC ± 95% Confidence Intervals	0.012 ± 0.004
Sensitivity	0.011
Positive Predictive Value	0.014
Nr of predictions	52

^top

2. Individual counts for RSpredict(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
CRW_00024	SSU_rRNA_archaea links to Rfam database...	0.00	0.00	0.00	0	1085147	454	58	396	0	458
CRW_00048	SSU_rRNA_bacteria links to Rfam database...	0.00	0.00	0.00	0	1170823	393	56	336	1	470
CRW_00054	SSU_rRNA_bacteria links to Rfam database...	0.02	0.02	0.02	9	1107442	369	56	309	4	447
CRW_00059	SSU_rRNA_bacteria links to Rfam database...	0.02	0.02	0.02	9	1172351	389	70	316	3	464
CRW_00061	SSU_rRNA_bacteria links to Rfam database...	0.02	0.02	0.02	9	1181549	397	64	331	2	467
CRW_00068	SSU_rRNA_bacteria links to Rfam database...	0.02	0.02	0.02	9	1108929	368	61	306	1	448
CRW_00096	SSU_rRNA_bacteria links to Rfam database...	0.00	0.00	0.00	0	1178474	406	51	355	0	465
CRW_00140	SSU_rRNA_bacteria links to Rfam database...	0.02	0.02	0.02	9	1135894	379	57	318	4	454
CRW_00141	SSU_rRNA_bacteria links to Rfam database...	0.02	0.02	0.02	10	1201613	405	59	343	3	466
CRW_00150	SSU_rRNA_bacteria links to Rfam database...	0.00	0.00	0.00	0	1152527	398	50	344	4	466
CRW_00152	SSU_rRNA_bacteria links to Rfam database...	0.01	0.01	0.01	3	1180016	399	56	341	2	468
CRW_00166	SSU_rRNA_bacteria links to Rfam database...	0.00	0.00	0.00	0	1190789	408	55	352	1	468
CRW_00173	SSU_rRNA_bacteria links to Rfam database...	0.00	0.00	0.00	1	1082302	361	46	307	8	444
CRW_00177	SSU_rRNA_bacteria links to Rfam database...	0.00	0.00	0.00	0	1178475	411	54	351	6	473
CRW_00196	SSU_rRNA_bacteria links to Rfam database...	0.02	0.02	0.02	8	1207825	403	55	347	1	467
CRW_00230	SSU_rRNA_bacteria links to Rfam database...	0.02	0.02	0.02	9	1198522	397	65	330	2	469
CRW_00245	SSU_rRNA_bacteria links to Rfam database...	0.02	0.02	0.02	9	1105951	369	62	306	1	444
CRW_00248	SSU_rRNA_bacteria links to Rfam database...	0.00	0.00	0.00	0	1218721	423	52	368	3	484
CRW_00250	SSU_rRNA_bacteria links to Rfam database...	0.00	0.00	0.00	0	1198517	412	51	358	3	478
CRW_00256	SSU_rRNA_bacteria links to Rfam database...	0.00	0.00	0.00	0	1192358	394	66	316	12	468
CRW_00270	SSU_rRNA_bacteria links to Rfam database...	0.02	0.02	0.02	9	1111909	369	63	305	1	446
CRW_00271	SSU_rRNA_bacteria links to Rfam database...	0.04	0.03	0.04	16	1122383	354	58	294	2	446
CRW_00273	SSU_rRNA_bacteria links to Rfam database...	0.03	0.02	0.03	11	1085239	353	59	292	2	435
CRW_00275	SSU_rRNA_bacteria links to Rfam database...	0.02	0.02	0.02	9	1114898	365	61	303	1	448
CRW_00277	SSU_rRNA_bacteria links to Rfam database...	0.04	0.04	0.04	16	1110429	352	54	296	2	437
CRW_00280	SSU_rRNA_bacteria links to Rfam database...	0.02	0.02	0.02	9	1117885	368	54	312	2	444
CRW_00281	SSU_rRNA_bacteria links to Rfam database...	0.02	0.02	0.02	9	1144967	366	62	303	1	455
CRW_00289	SSU_rRNA_bacteria links to Rfam database...	0.02	0.02	0.02	9	1189252	396	60	332	4	467
CRW_00306	SSU_rRNA_eukarya links to Rfam database...	0.00	0.00	0.00	0	1445558	306	53	239	14	462
CRW_00366	SSU_rRNA_eukarya links to Rfam database...	0.00	0.00	0.00	0	1579464	301	50	239	12	482
CRW_00371	SSU_rRNA_eukarya links to Rfam database...	0.00	0.00	0.00	0	1611598	319	50	262	7	496
CRW_00379	SSU_rRNA_eukarya links to Rfam database...	0.00	0.00	0.00	0	2126581	414	77	295	42	534
CRW_00411	SSU_rRNA_eukarya links to Rfam database...	0.00	0.00	0.00	0	1615206	309	45	252	12	496
CRW_00414	SSU_rRNA_eukarya links to Rfam database...	0.00	0.00	0.00	0	1665933	312	53	239	20	495
CRW_00466	SSU_rRNA_bacteria links to Rfam database...	0.02	0.02	0.02	9	1116386	371	63	307	1	449
CRW_00589	SSU_rRNA_bacteria links to Rfam database...	0.04	0.04	0.04	16	1094092	354	55	297	2	429
CRW_00590	SSU_rRNA_bacteria links to Rfam database...	0.02	0.02	0.02	9	1119377	371	50	320	1	443
CRW_00591	SSU_rRNA_bacteria links to Rfam database...	0.02	0.02	0.02	9	1098530	368	58	306	4	437
CRW_00759	SSU_rRNA_eukarya links to Rfam database...	0.00	0.00	0.00	1	1636859	310	50	235	25	480
CRW_00789	SSU_rRNA_bacteria links to Rfam database...	0.02	0.02	0.02	9	1137386	398	62	329	7	438
CRW_00795	SSU_rRNA_bacteria links to Rfam database...	0.04	0.04	0.04	15	1152569	351	71	266	14	379
CRW_00849	SSU_rRNA_bacteria links to Rfam database...	0.02	0.02	0.02	9	1117886	369	53	312	4	461
CRW_00997	SSU_rRNA_bacteria links to Rfam database...	0.02	0.02	0.02	9	1135900	370	64	305	1	455
CRW_01153	SSU_rRNA_eukarya links to Rfam database...	0.00	0.00	0.00	0	1606225	319	65	238	16	503
CRW_01171	SSU_rRNA_eukarya links to Rfam database...	0.00	0.00	0.00	0	1593701	318	50	254	14	506
PDB_00703	SSU_rRNA_bacteria links to Rfam database...	0.02	0.02	0.02	9	1073471	365	45	320	0	486
PDB_00854	SSU_rRNA_bacteria links to Rfam database...	0.00	0.00	0.00	0	1500362	424	57	359	8	535
PDB_01088	SSU_rRNA_bacteria links to Rfam database...	0.00	0.00	0.00	0	1471050	425	45	375	5	547
PDB_01103	SSU_rRNA_bacteria links to Rfam database...	0.00	0.00	0.00	1	1606120	411	54	353	4	561
PDB_01105	SSU_rRNA_bacteria links to Rfam database...	0.00	0.00	0.00	0	1433563	415	44	364	7	540
PDB_01120	SSU_rRNA_bacteria links to Rfam database...	0.01	0.01	0.01	3	1204725	405	40	360	5	524
PDB_01273	SSU_rRNA_bacteria links to Rfam database...	0.00	0.00	0.00	0	1117880	384	44	336	4	491

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
