Overview

Metric	RNAalifold(seed)		RSpredict(seed)
MCC	0.762	>	0.012
Average MCC ± 95% Confidence Intervals	0.760 ± 0.039	>	0.012 ± 0.003
Sensitivity	0.698	>	0.011
Positive Predictive Value	0.832	>	0.014
Total TP	18771	>	302
Total TN	71038781	<	71039984
Total FP	4654	<	21410
Total FP CONTRA	883	<	3177
Total FP INCONS	2909	<	17881
Total FP COMP	862	>	352
Total FN	8133	<	26602
P-value	3.56938820447e-08

^top

Performance plots

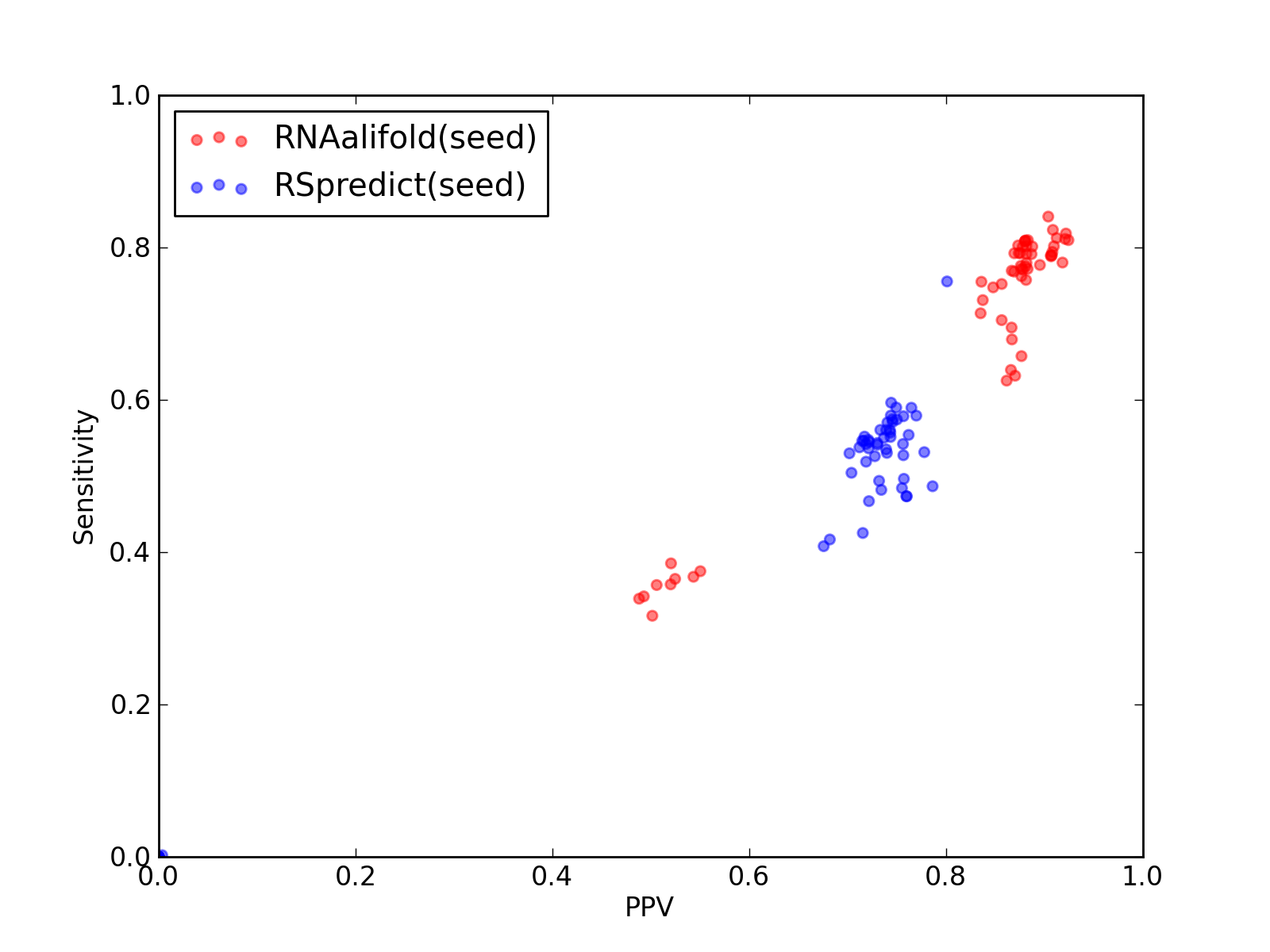

Comparison of performance of RNAalifold(seed) and RSpredict(seed). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for RNAalifold(seed) and RSpredict(seed)).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for RNAalifold(seed) and RSpredict(seed)).
Comparison of average Matthews Correlation Coefficients (MCCs) for RNAalifold(seed) and RSpredict(seed). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for RNAalifold(seed) and RSpredict(seed)).

^top

Performance of RNAalifold(seed) - scored higher in this pairwise comparison

1. Total counts & total scores for RNAalifold(seed)

Total Base Pair Counts
Total TP	18771
Total TN	71038781
Total FP	4654
Total FP CONTRA	883
Total FP INCONS	2909
Total FP COMP	862
Total FN	8133

Total Scores
MCC	0.762
Average MCC ± 95% Confidence Intervals	0.760 ± 0.039
Sensitivity	0.698
Positive Predictive Value	0.832
Nr of predictions	57

^top

2. Individual counts for RNAalifold(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
CRW_00024	SSU_rRNA_archaea links to Rfam database...	0.87	0.84	0.90	385	1085175	58	7	34	17	73
CRW_00048	SSU_rRNA_bacteria links to Rfam database...	0.84	0.79	0.88	372	1170793	59	16	34	9	98
CRW_00054	SSU_rRNA_bacteria links to Rfam database...	0.84	0.81	0.88	369	1107397	60	16	34	10	87
CRW_00059	SSU_rRNA_bacteria links to Rfam database...	0.82	0.78	0.88	367	1172327	61	16	36	9	106
CRW_00061	SSU_rRNA_bacteria links to Rfam database...	0.82	0.77	0.88	367	1181535	61	16	35	10	109
CRW_00068	SSU_rRNA_bacteria links to Rfam database...	0.85	0.81	0.88	370	1108886	58	15	34	9	87
CRW_00096	SSU_rRNA_bacteria links to Rfam database...	0.84	0.79	0.89	368	1178465	61	12	35	14	97
CRW_00140	SSU_rRNA_bacteria links to Rfam database...	0.83	0.79	0.87	367	1135858	62	16	37	9	96
CRW_00141	SSU_rRNA_bacteria links to Rfam database...	0.83	0.78	0.88	369	1201606	61	16	34	11	107
CRW_00150	SSU_rRNA_bacteria links to Rfam database...	0.85	0.79	0.91	368	1152515	47	13	25	9	98
CRW_00152	SSU_rRNA_bacteria links to Rfam database...	0.85	0.79	0.91	372	1180006	46	13	25	8	99
CRW_00166	SSU_rRNA_bacteria links to Rfam database...	0.83	0.78	0.88	365	1190782	64	12	37	15	103
CRW_00173	SSU_rRNA_bacteria links to Rfam database...	0.79	0.76	0.84	336	1082254	76	16	50	10	109
CRW_00177	SSU_rRNA_bacteria links to Rfam database...	0.82	0.77	0.87	364	1178460	66	16	40	10	109
CRW_00196	SSU_rRNA_bacteria links to Rfam database...	0.82	0.77	0.87	365	1207815	63	16	39	8	110
CRW_00230	SSU_rRNA_bacteria links to Rfam database...	0.83	0.77	0.88	369	1198508	59	15	34	10	109
CRW_00245	SSU_rRNA_bacteria links to Rfam database...	0.84	0.81	0.88	366	1105912	60	16	34	10	87
CRW_00248	SSU_rRNA_bacteria links to Rfam database...	0.82	0.76	0.88	369	1218720	61	16	36	9	115
CRW_00250	SSU_rRNA_bacteria links to Rfam database...	0.82	0.77	0.88	369	1198505	61	16	36	9	109
CRW_00256	SSU_rRNA_bacteria links to Rfam database...	0.85	0.79	0.91	369	1192333	48	13	25	10	99
CRW_00270	SSU_rRNA_bacteria links to Rfam database...	0.84	0.81	0.88	368	1111868	59	15	35	9	87
CRW_00271	SSU_rRNA_bacteria links to Rfam database...	0.83	0.78	0.90	359	1122350	51	13	29	9	103
CRW_00273	SSU_rRNA_bacteria links to Rfam database...	0.84	0.80	0.87	358	1085191	60	16	36	8	88
CRW_00275	SSU_rRNA_bacteria links to Rfam database...	0.84	0.80	0.88	366	1114854	59	16	35	8	91
CRW_00277	SSU_rRNA_bacteria links to Rfam database...	0.83	0.79	0.87	359	1110382	64	17	37	10	94
CRW_00280	SSU_rRNA_bacteria links to Rfam database...	0.84	0.80	0.89	363	1117851	59	13	33	13	90
CRW_00281	SSU_rRNA_bacteria links to Rfam database...	0.85	0.80	0.91	372	1144932	48	13	24	11	92
CRW_00283	SSU_rRNA_bacteria links to Rfam database...	0.80	0.75	0.85	323	1015644	67	14	44	9	109
CRW_00289	SSU_rRNA_bacteria links to Rfam database...	0.80	0.75	0.86	358	1189235	67	16	44	7	118
CRW_00292	SSU_rRNA_bacteria links to Rfam database...	0.77	0.71	0.84	329	1123856	76	14	51	11	132
CRW_00306	SSU_rRNA_eukarya links to Rfam database...	0.45	0.39	0.52	178	1445508	175	32	132	11	284
CRW_00366	SSU_rRNA_eukarya links to Rfam database...	0.42	0.36	0.51	172	1579413	180	32	136	12	310
CRW_00371	SSU_rRNA_eukarya links to Rfam database...	0.44	0.36	0.52	181	1611565	175	31	133	11	315
CRW_00379	SSU_rRNA_eukarya links to Rfam database...	0.40	0.32	0.50	169	2126616	180	32	136	12	365
CRW_00411	SSU_rRNA_eukarya links to Rfam database...	0.45	0.38	0.55	186	1615165	163	28	124	11	310
CRW_00414	SSU_rRNA_eukarya links to Rfam database...	0.45	0.37	0.54	182	1665890	171	28	125	18	313
CRW_00466	SSU_rRNA_bacteria links to Rfam database...	0.86	0.82	0.91	377	1116350	49	12	26	11	81
CRW_00589	SSU_rRNA_bacteria links to Rfam database...	0.86	0.81	0.92	361	1094068	53	6	25	22	84
CRW_00590	SSU_rRNA_bacteria links to Rfam database...	0.87	0.81	0.92	366	1119360	52	6	24	22	86
CRW_00591	SSU_rRNA_bacteria links to Rfam database...	0.87	0.82	0.92	365	1098507	56	8	23	25	81
CRW_00759	SSU_rRNA_eukarya links to Rfam database...	0.41	0.34	0.49	163	1636811	183	35	136	12	318
CRW_00763	SSU_rRNA_bacteria links to Rfam database...	0.85	0.78	0.92	348	1215641	59	6	25	28	98
CRW_00778	SSU_rRNA_bacteria links to Rfam database...	0.86	0.81	0.91	312	1201683	85	4	26	55	72
CRW_00789	SSU_rRNA_bacteria links to Rfam database...	0.85	0.79	0.91	355	1137395	59	8	28	23	92
CRW_00795	SSU_rRNA_bacteria links to Rfam database...	0.78	0.73	0.84	288	1152577	109	10	46	53	106
CRW_00849	SSU_rRNA_bacteria links to Rfam database...	0.82	0.76	0.88	356	1117856	63	14	34	15	114
CRW_00997	SSU_rRNA_bacteria links to Rfam database...	0.84	0.80	0.88	372	1135856	59	15	35	9	92
CRW_01153	SSU_rRNA_eukarya links to Rfam database...	0.41	0.34	0.49	172	1606179	193	36	141	16	331
CRW_01171	SSU_rRNA_eukarya links to Rfam database...	0.43	0.36	0.52	181	1593657	177	34	133	10	325
CRW_01343	SSU_rRNA_archaea links to Rfam database...	0.83	0.79	0.88	344	977508	71	5	44	22	90
PDB_00703	SSU_rRNA_bacteria links to Rfam database...	0.78	0.69	0.87	344	1073448	73	7	46	20	151
PDB_00854	SSU_rRNA_bacteria links to Rfam database...	0.74	0.64	0.87	342	1500383	85	10	43	32	193
PDB_01088	SSU_rRNA_bacteria links to Rfam database...	0.73	0.63	0.86	342	1471073	85	8	47	30	205
PDB_01103	SSU_rRNA_bacteria links to Rfam database...	0.74	0.63	0.87	355	1606120	72	10	43	19	207
PDB_01105	SSU_rRNA_bacteria links to Rfam database...	0.76	0.66	0.88	355	1433566	72	7	43	22	185
PDB_01120	SSU_rRNA_bacteria links to Rfam database...	0.77	0.68	0.87	358	1204715	73	7	48	18	169
PDB_01273	SSU_rRNA_bacteria links to Rfam database...	0.78	0.70	0.86	346	1117856	80	13	45	22	145

^top

Performance of RSpredict(seed) - scored lower in this pairwise comparison

1. Total counts & total scores for RSpredict(seed)

Total Base Pair Counts
Total TP	302
Total TN	71039984
Total FP	21410
Total FP CONTRA	3177
Total FP INCONS	17881
Total FP COMP	352
Total FN	26602

Total Scores
MCC	0.012
Average MCC ± 95% Confidence Intervals	0.012 ± 0.003
Sensitivity	0.011
Positive Predictive Value	0.014
Nr of predictions	57

^top

2. Individual counts for RSpredict(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
CRW_00024	SSU_rRNA_archaea links to Rfam database...	0.00	0.00	0.00	0	1085147	454	58	396	0	458
CRW_00048	SSU_rRNA_bacteria links to Rfam database...	0.00	0.00	0.00	0	1170823	393	56	336	1	470
CRW_00054	SSU_rRNA_bacteria links to Rfam database...	0.02	0.02	0.02	9	1107442	369	56	309	4	447
CRW_00059	SSU_rRNA_bacteria links to Rfam database...	0.02	0.02	0.02	9	1172351	389	70	316	3	464
CRW_00061	SSU_rRNA_bacteria links to Rfam database...	0.02	0.02	0.02	9	1181549	397	64	331	2	467
CRW_00068	SSU_rRNA_bacteria links to Rfam database...	0.02	0.02	0.02	9	1108929	368	61	306	1	448
CRW_00096	SSU_rRNA_bacteria links to Rfam database...	0.00	0.00	0.00	0	1178474	406	51	355	0	465
CRW_00140	SSU_rRNA_bacteria links to Rfam database...	0.02	0.02	0.02	9	1135894	379	57	318	4	454
CRW_00141	SSU_rRNA_bacteria links to Rfam database...	0.02	0.02	0.02	10	1201613	405	59	343	3	466
CRW_00150	SSU_rRNA_bacteria links to Rfam database...	0.00	0.00	0.00	0	1152527	398	50	344	4	466
CRW_00152	SSU_rRNA_bacteria links to Rfam database...	0.01	0.01	0.01	3	1180016	399	56	341	2	468
CRW_00166	SSU_rRNA_bacteria links to Rfam database...	0.00	0.00	0.00	0	1190789	408	55	352	1	468
CRW_00173	SSU_rRNA_bacteria links to Rfam database...	0.00	0.00	0.00	1	1082302	361	46	307	8	444
CRW_00177	SSU_rRNA_bacteria links to Rfam database...	0.00	0.00	0.00	0	1178475	411	54	351	6	473
CRW_00196	SSU_rRNA_bacteria links to Rfam database...	0.02	0.02	0.02	8	1207825	403	55	347	1	467
CRW_00230	SSU_rRNA_bacteria links to Rfam database...	0.02	0.02	0.02	9	1198522	397	65	330	2	469
CRW_00245	SSU_rRNA_bacteria links to Rfam database...	0.02	0.02	0.02	9	1105951	369	62	306	1	444
CRW_00248	SSU_rRNA_bacteria links to Rfam database...	0.00	0.00	0.00	0	1218721	423	52	368	3	484
CRW_00250	SSU_rRNA_bacteria links to Rfam database...	0.00	0.00	0.00	0	1198517	412	51	358	3	478
CRW_00256	SSU_rRNA_bacteria links to Rfam database...	0.00	0.00	0.00	0	1192358	394	66	316	12	468
CRW_00270	SSU_rRNA_bacteria links to Rfam database...	0.02	0.02	0.02	9	1111909	369	63	305	1	446
CRW_00271	SSU_rRNA_bacteria links to Rfam database...	0.04	0.03	0.04	16	1122383	354	58	294	2	446
CRW_00273	SSU_rRNA_bacteria links to Rfam database...	0.03	0.02	0.03	11	1085239	353	59	292	2	435
CRW_00275	SSU_rRNA_bacteria links to Rfam database...	0.02	0.02	0.02	9	1114898	365	61	303	1	448
CRW_00277	SSU_rRNA_bacteria links to Rfam database...	0.04	0.04	0.04	16	1110429	352	54	296	2	437
CRW_00280	SSU_rRNA_bacteria links to Rfam database...	0.02	0.02	0.02	9	1117885	368	54	312	2	444
CRW_00281	SSU_rRNA_bacteria links to Rfam database...	0.02	0.02	0.02	9	1144967	366	62	303	1	455
CRW_00283	SSU_rRNA_bacteria links to Rfam database...	0.00	0.00	0.00	0	1015663	366	41	321	4	432
CRW_00289	SSU_rRNA_bacteria links to Rfam database...	0.02	0.02	0.02	9	1189252	396	60	332	4	467
CRW_00292	SSU_rRNA_bacteria links to Rfam database...	0.03	0.02	0.03	11	1123875	370	46	318	6	450
CRW_00306	SSU_rRNA_eukarya links to Rfam database...	0.00	0.00	0.00	0	1445558	306	53	239	14	462
CRW_00366	SSU_rRNA_eukarya links to Rfam database...	0.00	0.00	0.00	0	1579464	301	50	239	12	482
CRW_00371	SSU_rRNA_eukarya links to Rfam database...	0.00	0.00	0.00	0	1611598	319	50	262	7	496
CRW_00379	SSU_rRNA_eukarya links to Rfam database...	0.00	0.00	0.00	0	2126581	414	77	295	42	534
CRW_00411	SSU_rRNA_eukarya links to Rfam database...	0.00	0.00	0.00	0	1615206	309	45	252	12	496
CRW_00414	SSU_rRNA_eukarya links to Rfam database...	0.00	0.00	0.00	0	1665933	312	53	239	20	495
CRW_00466	SSU_rRNA_bacteria links to Rfam database...	0.02	0.02	0.02	9	1116386	371	63	307	1	449
CRW_00589	SSU_rRNA_bacteria links to Rfam database...	0.04	0.04	0.04	16	1094092	354	55	297	2	429
CRW_00590	SSU_rRNA_bacteria links to Rfam database...	0.02	0.02	0.02	9	1119377	371	50	320	1	443
CRW_00591	SSU_rRNA_bacteria links to Rfam database...	0.02	0.02	0.02	9	1098530	368	58	306	4	437
CRW_00759	SSU_rRNA_eukarya links to Rfam database...	0.00	0.00	0.00	1	1636859	310	50	235	25	480
CRW_00763	SSU_rRNA_bacteria links to Rfam database...	0.00	0.00	0.00	1	1215655	374	61	303	10	445
CRW_00778	SSU_rRNA_bacteria links to Rfam database...	0.02	0.02	0.02	9	1201664	378	83	269	26	375
CRW_00789	SSU_rRNA_bacteria links to Rfam database...	0.02	0.02	0.02	9	1137386	398	62	329	7	438
CRW_00795	SSU_rRNA_bacteria links to Rfam database...	0.04	0.04	0.04	15	1152569	351	71	266	14	379
CRW_00849	SSU_rRNA_bacteria links to Rfam database...	0.02	0.02	0.02	9	1117886	369	53	312	4	461
CRW_00997	SSU_rRNA_bacteria links to Rfam database...	0.02	0.02	0.02	9	1135900	370	64	305	1	455
CRW_01153	SSU_rRNA_eukarya links to Rfam database...	0.00	0.00	0.00	0	1606225	319	65	238	16	503
CRW_01171	SSU_rRNA_eukarya links to Rfam database...	0.00	0.00	0.00	0	1593701	318	50	254	14	506
CRW_01343	SSU_rRNA_archaea links to Rfam database...	0.02	0.02	0.02	9	977518	375	33	341	1	425
PDB_00703	SSU_rRNA_bacteria links to Rfam database...	0.02	0.02	0.02	9	1073471	365	45	320	0	486
PDB_00854	SSU_rRNA_bacteria links to Rfam database...	0.00	0.00	0.00	0	1500362	424	57	359	8	535
PDB_01088	SSU_rRNA_bacteria links to Rfam database...	0.00	0.00	0.00	0	1471050	425	45	375	5	547
PDB_01103	SSU_rRNA_bacteria links to Rfam database...	0.00	0.00	0.00	1	1606120	411	54	353	4	561
PDB_01105	SSU_rRNA_bacteria links to Rfam database...	0.00	0.00	0.00	0	1433563	415	44	364	7	540
PDB_01120	SSU_rRNA_bacteria links to Rfam database...	0.01	0.01	0.01	3	1204725	405	40	360	5	524
PDB_01273	SSU_rRNA_bacteria links to Rfam database...	0.00	0.00	0.00	0	1117880	384	44	336	4	491

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
