Overview

Metric	MXScarna(seed)		Carnac(seed)
MCC	0.533	>	0.253
Average MCC ± 95% Confidence Intervals	0.460 ± 0.067	>	0.107 ± 0.067
Sensitivity	0.405	>	0.068
Positive Predictive Value	0.703	<	0.940
Total TP	2151	>	362
Total TN	4546136	<	4548811
Total FP	1171	>	40
Total FP CONTRA	126	>	9
Total FP INCONS	783	>	14
Total FP COMP	262	>	17
Total FN	3163	<	4952
P-value	3.56938820447e-08

^top

Performance plots

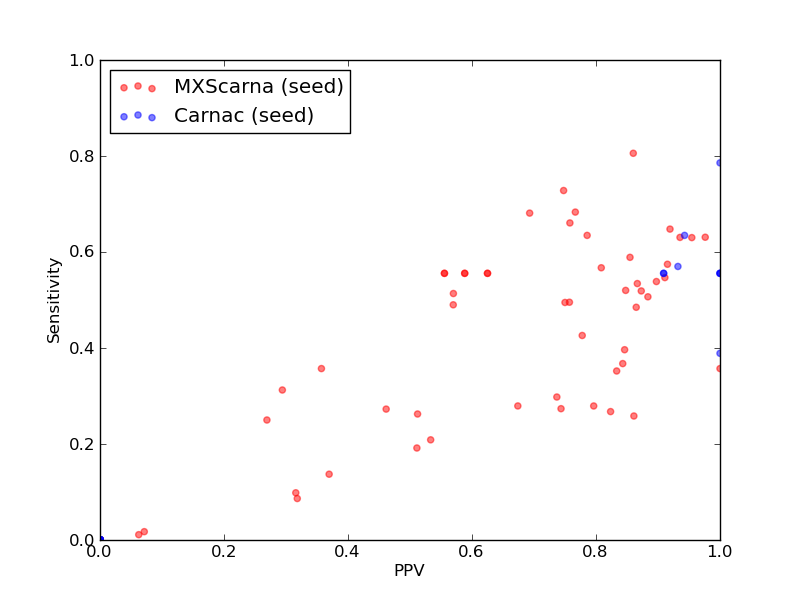

Comparison of performance of MXScarna(seed) and Carnac(seed). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for MXScarna(seed) and Carnac(seed)).

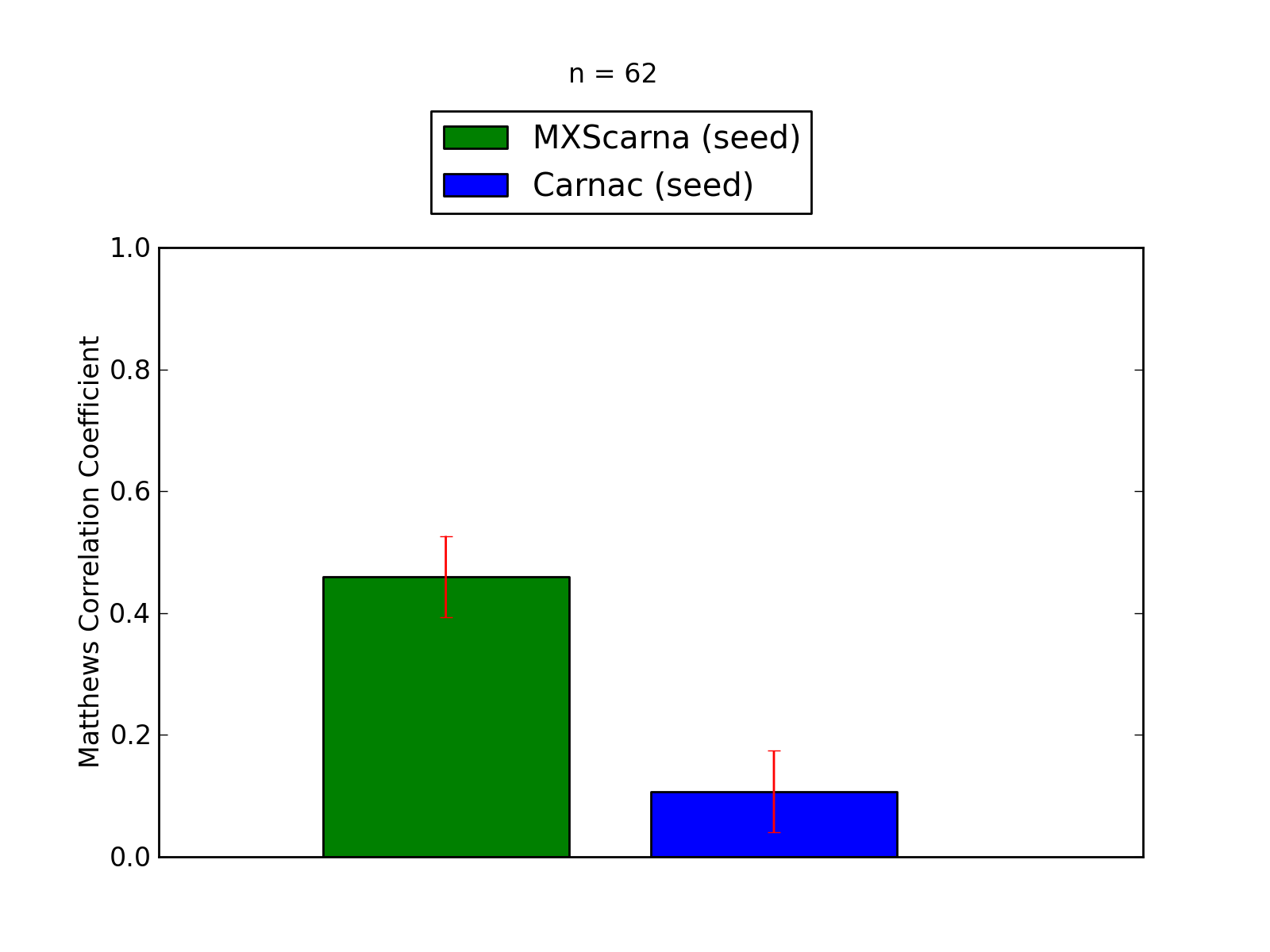

Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for MXScarna(seed) and Carnac(seed)).
Comparison of average Matthews Correlation Coefficients (MCCs) for MXScarna(seed) and Carnac(seed). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for MXScarna(seed) and Carnac(seed)).

^top

Performance of MXScarna(seed) - scored higher in this pairwise comparison

1. Total counts & total scores for MXScarna(seed)

Total Base Pair Counts
Total TP	2151
Total TN	4546136
Total FP	1171
Total FP CONTRA	126
Total FP INCONS	783
Total FP COMP	262
Total FN	3163

Total Scores
MCC	0.533
Average MCC ± 95% Confidence Intervals	0.460 ± 0.067
Sensitivity	0.405
Positive Predictive Value	0.703
Nr of predictions	62

^top

2. Individual counts for MXScarna(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
ASE_00001	RNaseP_arch links to Rfam database...	0.67	0.51	0.88	38	34148	6	0	5	1	37
ASE_00002	RNaseP_arch links to Rfam database...	0.68	0.53	0.87	39	35466	7	1	5	1	34
ASE_00009	RNaseP_arch links to Rfam database...	0.68	0.57	0.81	38	26059	10	1	8	1	29
ASE_00014	RNaseP_arch links to Rfam database...	0.67	0.52	0.87	55	54222	9	0	8	1	51
ASE_00116	RNaseP_arch links to Rfam database...	0.35	0.27	0.46	18	31587	22	1	20	1	48
ASE_00120	RNaseP_arch links to Rfam database...	0.72	0.57	0.92	54	46912	7	0	5	2	40
ASE_00121	RNaseP_arch links to Rfam database...	0.77	0.63	0.94	58	45088	5	0	4	1	34
ASE_00145	RNaseP_arch links to Rfam database...	0.58	0.40	0.85	44	70073	9	0	8	1	67
ASE_00148	RNaseP_arch links to Rfam database...	0.47	0.28	0.80	43	112521	12	0	11	1	111
ASE_00154	RNaseP_arch links to Rfam database...	0.61	0.50	0.76	53	65271	18	4	13	1	54
ASE_00155	RNaseP_arch links to Rfam database...	0.54	0.35	0.83	50	93468	12	0	10	2	92
ASE_00187	RNaseP_arch links to Rfam database...	0.58	0.43	0.78	49	68572	17	1	13	3	66
ASE_00196	RNaseP_arch links to Rfam database...	0.66	0.52	0.85	39	31580	9	0	7	2	36
ASE_00205	RNaseP_arch links to Rfam database...	0.71	0.59	0.85	53	45994	12	0	9	3	37
ASE_00209	RNaseP_arch links to Rfam database...	0.77	0.65	0.92	57	43009	7	0	5	2	31
ASE_00210	RNaseP_arch links to Rfam database...	0.69	0.54	0.90	35	27222	5	0	4	1	30
ASE_00213	RNaseP_arch links to Rfam database...	0.65	0.48	0.86	32	27224	6	0	5	1	34
ASE_00222	RNaseP_arch links to Rfam database...	0.47	0.27	0.82	42	112050	10	0	9	1	115
ASE_00346	RNaseP_arch links to Rfam database...	0.61	0.49	0.75	48	48141	18	2	14	2	49
ASE_00359	RNaseP_arch links to Rfam database...	0.37	0.26	0.51	21	42737	24	1	19	4	59
ASE_00360	RNaseP_arch links to Rfam database...	0.78	0.63	0.98	41	29361	2	0	1	1	24
ASE_00417	RNaseP_arch links to Rfam database...	0.78	0.63	0.95	63	54549	5	0	3	2	37
ASE_00418	RNaseP_arch links to Rfam database...	0.71	0.55	0.91	41	38736	6	0	4	2	34
CRW_00013	Intron_gpI links to Rfam database...	0.33	0.21	0.53	24	103695	23	4	17	2	91
CRW_00016	Intron_gpI links to Rfam database...	0.31	0.19	0.51	23	77376	24	7	15	2	97
CRW_00024	SSU_rRNA_archaea links to Rfam database...	0.83	0.81	0.86	369	1085172	112	11	49	52	89
CRW_00610	Intron_gpI links to Rfam database...	0.16	0.09	0.32	7	36293	15	1	14	0	74
CRW_00613	Intron_gpI links to Rfam database...	0.00	0.00	0.00	0	34956	24	7	17	0	78
CRW_00614	Intron_gpI links to Rfam database...	0.00	0.00	0.00	0	121749	22	4	18	0	57
CRW_00618	Intron_gpI links to Rfam database...	0.18	0.10	0.32	6	56261	13	1	12	0	55
CRW_00619	Intron_gpI links to Rfam database...	0.00	0.00	0.00	0	165006	19	2	17	0	73
CRW_00620	Intron_gpI links to Rfam database...	0.00	0.00	0.00	0	150963	16	0	12	4	63
CRW_00621	Intron_gpI links to Rfam database...	0.00	0.00	0.00	0	153149	34	7	25	2	71
CRW_00623	Intron_gpI links to Rfam database...	0.00	0.00	0.00	0	129785	17	1	9	7	83
CRW_00633	Intron_gpI links to Rfam database...	0.45	0.27	0.74	29	63507	14	0	10	4	77
CRW_00634	Intron_gpI links to Rfam database...	0.47	0.30	0.74	28	64582	18	0	10	8	66
CRW_00670	Intron_gpI links to Rfam database...	0.47	0.26	0.86	31	70089	7	0	5	2	89
CRW_00671	Intron_gpI links to Rfam database...	0.56	0.37	0.84	43	62784	10	0	8	2	74
CRW_00672	Intron_gpI links to Rfam database...	0.43	0.28	0.67	31	72344	17	0	15	2	80
CRW_00674	Intron_gpI links to Rfam database...	0.22	0.14	0.37	17	83390	29	5	24	0	107
CRW_00676	Intron_gpI links to Rfam database...	0.03	0.02	0.07	2	93500	31	4	22	5	113
CRW_00692	Intron_gpI links to Rfam database...	0.03	0.01	0.06	1	68619	22	0	15	7	89
PDB_00005	Tymo_tRNA-like links to Rfam database...	0.59	0.36	1.00	5	941	0	0	0	0	9
PDB_00716	HDV_ribozyme links to Rfam database...	-0.01	0.00	0.00	0	2681	21	1	19	1	23
PDB_00827	Intron_gpI links to Rfam database...	0.00	0.00	0.00	0	27011	17	1	16	0	81
PDB_01092	glmS links to Rfam database...	0.70	0.63	0.79	33	10111	12	2	7	3	19
RFA_00597	Telomerase-vert links to Rfam database...	0.71	0.66	0.76	72	97808	43	8	15	20	37
RFA_00598	Telomerase-vert links to Rfam database...	0.72	0.68	0.77	69	84576	40	5	16	19	32
RFA_00599	Telomerase-vert links to Rfam database...	0.54	0.51	0.57	57	101375	62	5	38	19	54
RFA_00600	Telomerase-vert links to Rfam database...	0.53	0.49	0.57	49	120209	62	10	27	25	51
RFA_00601	Telomerase-vert links to Rfam database...	0.74	0.73	0.75	83	99124	49	4	24	21	31
RFA_00602	Telomerase-vert links to Rfam database...	0.69	0.68	0.69	79	101361	50	5	30	15	37
RFA_00632	HDV_ribozyme links to Rfam database...	0.25	0.25	0.27	7	4069	19	1	18	0	21
RFA_00636	HDV_ribozyme links to Rfam database...	0.35	0.36	0.36	10	3977	18	2	16	0	18
RFA_00767	Corona_pk3 links to Rfam database...	0.59	0.56	0.63	10	1875	6	2	4	0	8
RFA_00768	Corona_pk3 links to Rfam database...	0.59	0.56	0.63	10	1875	6	2	4	0	8
RFA_00769	Corona_pk3 links to Rfam database...	0.55	0.56	0.56	10	1935	8	3	5	0	8
RFA_00770	Corona_pk3 links to Rfam database...	0.57	0.56	0.59	10	1999	7	2	5	0	8
RFA_00773	Corona_pk3 links to Rfam database...	0.55	0.56	0.56	10	1935	8	3	5	0	8
RFA_00779	Corona_pk3 links to Rfam database...	0.57	0.56	0.59	10	1936	7	2	5	0	8
RFA_00808	RydC links to Rfam database...	-0.01	0.00	0.00	0	2000	19	2	14	3	16
RFA_00809	RydC links to Rfam database...	0.30	0.31	0.29	5	2128	12	1	11	0	11

^top

Performance of Carnac(seed) - scored lower in this pairwise comparison

1. Total counts & total scores for Carnac(seed)

Total Base Pair Counts
Total TP	362
Total TN	4548811
Total FP	40
Total FP CONTRA	9
Total FP INCONS	14
Total FP COMP	17
Total FN	4952

Total Scores
MCC	0.253
Average MCC ± 95% Confidence Intervals	0.107 ± 0.067
Sensitivity	0.068
Positive Predictive Value	0.940
Nr of predictions	62

^top

2. Individual counts for Carnac(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
ASE_00001	RNaseP_arch links to Rfam database...	0.00	0.00	0.00	0	34191	0	0	0	0	75
ASE_00002	RNaseP_arch links to Rfam database...	0.00	0.00	0.00	0	35511	0	0	0	0	73
ASE_00009	RNaseP_arch links to Rfam database...	0.00	0.00	0.00	0	26106	0	0	0	0	67
ASE_00014	RNaseP_arch links to Rfam database...	0.00	0.00	0.00	0	54285	0	0	0	0	106
ASE_00116	RNaseP_arch links to Rfam database...	0.00	0.00	0.00	0	31626	0	0	0	0	66
ASE_00120	RNaseP_arch links to Rfam database...	0.00	0.00	0.00	0	46971	0	0	0	0	94
ASE_00121	RNaseP_arch links to Rfam database...	0.00	0.00	0.00	0	45150	0	0	0	0	92
ASE_00145	RNaseP_arch links to Rfam database...	0.00	0.00	0.00	0	70125	0	0	0	0	111
ASE_00148	RNaseP_arch links to Rfam database...	0.00	0.00	0.00	0	112575	0	0	0	0	154
ASE_00154	RNaseP_arch links to Rfam database...	0.00	0.00	0.00	0	65341	0	0	0	0	107
ASE_00155	RNaseP_arch links to Rfam database...	0.00	0.00	0.00	0	93528	0	0	0	0	142
ASE_00187	RNaseP_arch links to Rfam database...	0.00	0.00	0.00	0	68635	0	0	0	0	115
ASE_00196	RNaseP_arch links to Rfam database...	0.00	0.00	0.00	0	31626	0	0	0	0	75
ASE_00205	RNaseP_arch links to Rfam database...	0.00	0.00	0.00	0	46056	0	0	0	0	90
ASE_00209	RNaseP_arch links to Rfam database...	0.00	0.00	0.00	0	43071	0	0	0	0	88
ASE_00210	RNaseP_arch links to Rfam database...	0.00	0.00	0.00	0	27261	0	0	0	0	65
ASE_00213	RNaseP_arch links to Rfam database...	0.00	0.00	0.00	0	27261	0	0	0	0	66
ASE_00222	RNaseP_arch links to Rfam database...	0.00	0.00	0.00	0	112101	0	0	0	0	157
ASE_00346	RNaseP_arch links to Rfam database...	0.00	0.00	0.00	0	48205	0	0	0	0	97
ASE_00359	RNaseP_arch links to Rfam database...	0.00	0.00	0.00	0	42778	0	0	0	0	80
ASE_00360	RNaseP_arch links to Rfam database...	0.00	0.00	0.00	0	29403	0	0	0	0	65
ASE_00417	RNaseP_arch links to Rfam database...	0.00	0.00	0.00	0	54615	0	0	0	0	100
ASE_00418	RNaseP_arch links to Rfam database...	0.00	0.00	0.00	0	38781	0	0	0	0	75
CRW_00013	Intron_gpI links to Rfam database...	0.00	0.00	0.00	0	103740	0	0	0	0	115
CRW_00016	Intron_gpI links to Rfam database...	0.00	0.00	0.00	0	77421	0	0	0	0	120
CRW_00024	SSU_rRNA_archaea links to Rfam database...	0.73	0.57	0.93	261	1085321	35	6	13	16	197
CRW_00610	Intron_gpI links to Rfam database...	0.00	0.00	0.00	0	36315	0	0	0	0	81
CRW_00613	Intron_gpI links to Rfam database...	0.00	0.00	0.00	0	34980	0	0	0	0	78
CRW_00614	Intron_gpI links to Rfam database...	0.00	0.00	0.00	0	121771	0	0	0	0	57
CRW_00618	Intron_gpI links to Rfam database...	0.00	0.00	0.00	0	56280	0	0	0	0	61
CRW_00619	Intron_gpI links to Rfam database...	0.00	0.00	0.00	0	165025	0	0	0	0	73
CRW_00620	Intron_gpI links to Rfam database...	0.00	0.00	0.00	0	150975	0	0	0	0	63
CRW_00621	Intron_gpI links to Rfam database...	0.00	0.00	0.00	0	153181	0	0	0	0	71
CRW_00623	Intron_gpI links to Rfam database...	0.00	0.00	0.00	0	129795	0	0	0	0	83
CRW_00633	Intron_gpI links to Rfam database...	0.00	0.00	0.00	0	63546	0	0	0	0	106
CRW_00634	Intron_gpI links to Rfam database...	0.00	0.00	0.00	0	64620	0	0	0	0	94
CRW_00670	Intron_gpI links to Rfam database...	0.00	0.00	0.00	0	70125	0	0	0	0	120
CRW_00671	Intron_gpI links to Rfam database...	0.00	0.00	0.00	0	62835	0	0	0	0	117
CRW_00672	Intron_gpI links to Rfam database...	0.00	0.00	0.00	0	72390	0	0	0	0	111
CRW_00674	Intron_gpI links to Rfam database...	0.00	0.00	0.00	0	83436	0	0	0	0	124
CRW_00676	Intron_gpI links to Rfam database...	0.00	0.00	0.00	0	93528	0	0	0	0	115
CRW_00692	Intron_gpI links to Rfam database...	0.00	0.00	0.00	0	68635	0	0	0	0	90
PDB_00005	Tymo_tRNA-like links to Rfam database...	0.88	0.79	1.00	11	935	0	0	0	0	3
PDB_00716	HDV_ribozyme links to Rfam database...	0.00	0.00	0.00	0	2701	0	0	0	0	23
PDB_00827	Intron_gpI links to Rfam database...	0.00	0.00	0.00	0	27028	0	0	0	0	81
PDB_01092	glmS links to Rfam database...	0.77	0.63	0.94	33	10118	3	1	1	1	19
RFA_00597	Telomerase-vert links to Rfam database...	0.00	0.00	0.00	0	97903	0	0	0	0	109
RFA_00598	Telomerase-vert links to Rfam database...	0.00	0.00	0.00	0	84666	0	0	0	0	101
RFA_00599	Telomerase-vert links to Rfam database...	0.00	0.00	0.00	0	101475	0	0	0	0	111
RFA_00600	Telomerase-vert links to Rfam database...	0.00	0.00	0.00	0	120295	0	0	0	0	100
RFA_00601	Telomerase-vert links to Rfam database...	0.00	0.00	0.00	0	99235	0	0	0	0	114
RFA_00602	Telomerase-vert links to Rfam database...	0.00	0.00	0.00	0	101475	0	0	0	0	116
RFA_00632	HDV_ribozyme links to Rfam database...	0.00	0.00	0.00	0	4095	0	0	0	0	28
RFA_00636	HDV_ribozyme links to Rfam database...	0.00	0.00	0.00	0	4005	0	0	0	0	28
RFA_00767	Corona_pk3 links to Rfam database...	0.74	0.56	1.00	10	1881	0	0	0	0	8
RFA_00768	Corona_pk3 links to Rfam database...	0.74	0.56	1.00	10	1881	0	0	0	0	8
RFA_00769	Corona_pk3 links to Rfam database...	0.71	0.56	0.91	10	1942	1	1	0	0	8
RFA_00770	Corona_pk3 links to Rfam database...	0.62	0.39	1.00	7	2009	0	0	0	0	11
RFA_00773	Corona_pk3 links to Rfam database...	0.71	0.56	0.91	10	1942	1	1	0	0	8
RFA_00779	Corona_pk3 links to Rfam database...	0.74	0.56	1.00	10	1943	0	0	0	0	8
RFA_00808	RydC links to Rfam database...	0.00	0.00	0.00	0	2016	0	0	0	0	16
RFA_00809	RydC links to Rfam database...	0.00	0.00	0.00	0	2145	0	0	0	0	16

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
