Overview

Metric	MaxExpect		CMfinder(seed)
MCC	0.552	>	0.363
Average MCC ± 95% Confidence Intervals	0.534 ± 0.089	>	0.399 ± 0.081
Sensitivity	0.535	>	0.184
Positive Predictive Value	0.571	<	0.716
Total TP	919	>	317
Total TN	1068977	<	1070143
Total FP	871	>	134
Total FP CONTRA	128	>	6
Total FP INCONS	562	>	120
Total FP COMP	181	>	8
Total FN	800	<	1402
P-value	5.10776592382e-08

^top

Performance plots

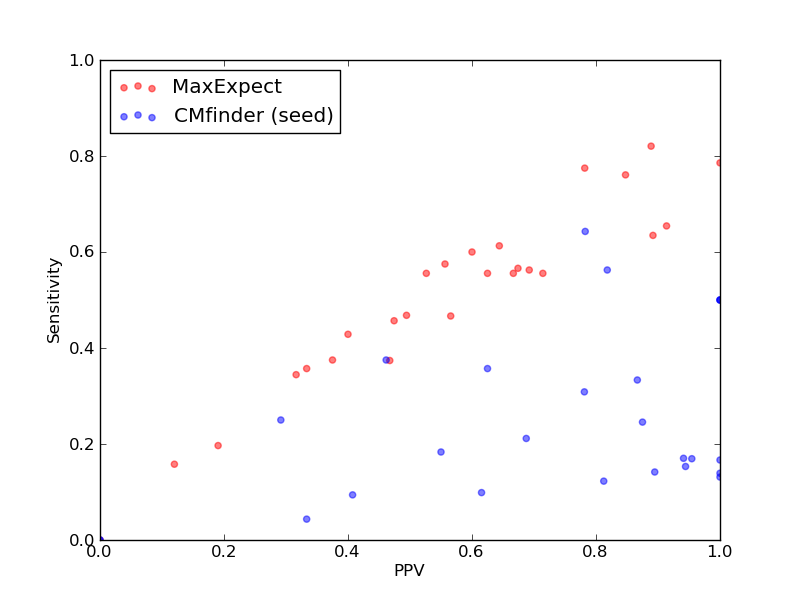

Comparison of performance of MaxExpect and CMfinder(seed). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for MaxExpect and CMfinder(seed)).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for MaxExpect and CMfinder(seed)).
Comparison of average Matthews Correlation Coefficients (MCCs) for MaxExpect and CMfinder(seed). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for MaxExpect and CMfinder(seed)).

^top

Performance of MaxExpect - scored higher in this pairwise comparison

1. Total counts & total scores for MaxExpect

Total Base Pair Counts
Total TP	919
Total TN	1068977
Total FP	871
Total FP CONTRA	128
Total FP INCONS	562
Total FP COMP	181
Total FN	800

Total Scores
MCC	0.552
Average MCC ± 95% Confidence Intervals	0.534 ± 0.089
Sensitivity	0.535
Positive Predictive Value	0.571
Nr of predictions	26

^top

2. Individual counts for MaxExpect [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
CRW_00013	Intron_gpI links to Rfam database...	0.42	0.37	0.47	43	103648	69	4	45	20	72
CRW_00016	Intron_gpI links to Rfam database...	0.51	0.47	0.57	56	77322	56	6	37	13	64
CRW_00610	Intron_gpI links to Rfam database...	0.46	0.46	0.47	37	36237	41	7	34	0	44
CRW_00613	Intron_gpI links to Rfam database...	0.85	0.82	0.89	64	34908	16	0	8	8	14
CRW_00614	Intron_gpI links to Rfam database...	0.14	0.16	0.12	9	121696	125	18	48	59	48
CRW_00618	Intron_gpI links to Rfam database...	0.19	0.20	0.19	12	56217	69	7	44	18	49
CRW_00633	Intron_gpI links to Rfam database...	0.62	0.57	0.67	60	63457	32	8	21	3	46
CRW_00634	Intron_gpI links to Rfam database...	0.48	0.47	0.49	44	64531	49	9	36	4	50
CRW_00670	Intron_gpI links to Rfam database...	0.56	0.58	0.56	69	70001	57	12	43	2	51
CRW_00671	Intron_gpI links to Rfam database...	0.80	0.76	0.85	89	62730	20	1	15	4	28
CRW_00672	Intron_gpI links to Rfam database...	0.78	0.77	0.78	86	72280	32	6	18	8	25
CRW_00674	Intron_gpI links to Rfam database...	0.63	0.61	0.64	76	83318	45	8	34	3	48
CRW_00676	Intron_gpI links to Rfam database...	0.60	0.60	0.60	69	93413	64	12	34	18	46
CRW_00692	Intron_gpI links to Rfam database...	0.33	0.34	0.32	31	68537	80	17	50	13	59
PDB_00005	Tymo_tRNA-like links to Rfam database...	0.88	0.79	1.00	11	935	0	0	0	0	3
PDB_00716	HDV_ribozyme links to Rfam database...	-0.01	0.00	0.00	0	2678	24	1	22	1	23
PDB_00827	Intron_gpI links to Rfam database...	0.77	0.65	0.91	53	26970	7	0	5	2	28
PDB_01092	glmS links to Rfam database...	0.75	0.63	0.89	33	10116	6	0	4	2	19
RFA_00632	HDV_ribozyme links to Rfam database...	0.34	0.36	0.33	10	4065	20	2	18	0	18
RFA_00636	HDV_ribozyme links to Rfam database...	0.41	0.43	0.40	12	3975	18	2	16	0	16
RFA_00769	Corona_pk3 links to Rfam database...	0.54	0.56	0.53	10	1934	9	4	5	0	8
RFA_00770	Corona_pk3 links to Rfam database...	0.63	0.56	0.71	10	2002	7	0	4	3	8
RFA_00773	Corona_pk3 links to Rfam database...	0.59	0.56	0.63	10	1937	6	1	5	0	8
RFA_00779	Corona_pk3 links to Rfam database...	0.61	0.56	0.67	10	1938	5	2	3	0	8
RFA_00808	RydC links to Rfam database...	0.62	0.56	0.69	9	2003	4	0	4	0	7
RFA_00809	RydC links to Rfam database...	0.37	0.38	0.38	6	2129	10	1	9	0	10

^top

Performance of CMfinder(seed) - scored lower in this pairwise comparison

1. Total counts & total scores for CMfinder(seed)

Total Base Pair Counts
Total TP	317
Total TN	1070143
Total FP	134
Total FP CONTRA	6
Total FP INCONS	120
Total FP COMP	8
Total FN	1402

Total Scores
MCC	0.363
Average MCC ± 95% Confidence Intervals	0.399 ± 0.081
Sensitivity	0.184
Positive Predictive Value	0.716
Nr of predictions	26

^top

2. Individual counts for CMfinder(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
CRW_00013	Intron_gpI links to Rfam database...	0.37	0.14	1.00	16	103724	0	0	0	0	99
CRW_00016	Intron_gpI links to Rfam database...	0.36	0.14	0.89	17	77402	2	0	2	0	103
CRW_00610	Intron_gpI links to Rfam database...	0.49	0.31	0.78	25	36283	7	1	6	0	56
CRW_00613	Intron_gpI links to Rfam database...	0.54	0.33	0.87	26	34950	4	0	4	0	52
CRW_00614	Intron_gpI links to Rfam database...	0.46	0.25	0.88	14	121755	9	0	2	7	43
CRW_00618	Intron_gpI links to Rfam database...	0.36	0.13	1.00	8	56272	0	0	0	0	53
CRW_00633	Intron_gpI links to Rfam database...	0.32	0.12	0.81	13	63530	3	1	2	0	93
CRW_00634	Intron_gpI links to Rfam database...	0.40	0.17	0.94	16	64603	1	0	1	0	78
CRW_00670	Intron_gpI links to Rfam database...	0.32	0.18	0.55	22	70085	18	0	18	0	98
CRW_00671	Intron_gpI links to Rfam database...	0.20	0.09	0.41	11	62808	16	0	16	0	106
CRW_00672	Intron_gpI links to Rfam database...	0.38	0.15	0.94	17	72372	1	0	1	0	94
CRW_00674	Intron_gpI links to Rfam database...	0.40	0.17	0.95	21	83414	1	0	1	0	103
CRW_00676	Intron_gpI links to Rfam database...	0.12	0.04	0.33	5	93513	10	1	9	0	110
CRW_00692	Intron_gpI links to Rfam database...	0.41	0.17	1.00	15	68620	0	0	0	0	75
PDB_00005	Tymo_tRNA-like links to Rfam database...	0.47	0.36	0.63	5	938	3	0	3	0	9
PDB_00716	HDV_ribozyme links to Rfam database...	-0.01	0.00	0.00	0	2688	13	0	13	0	23
PDB_00827	Intron_gpI links to Rfam database...	0.25	0.10	0.62	8	27015	5	0	5	0	73
PDB_01092	glmS links to Rfam database...	0.38	0.21	0.69	11	10137	6	0	5	1	41
RFA_00632	HDV_ribozyme links to Rfam database...	0.27	0.25	0.29	7	4071	17	0	17	0	21
RFA_00636	HDV_ribozyme links to Rfam database...	0.71	0.64	0.78	18	3982	5	2	3	0	10
RFA_00769	Corona_pk3 links to Rfam database...	0.71	0.50	1.00	9	1944	0	0	0	0	9
RFA_00770	Corona_pk3 links to Rfam database...	0.71	0.50	1.00	9	2007	0	0	0	0	9
RFA_00773	Corona_pk3 links to Rfam database...	0.00	0.00	0.00	0	1949	4	0	4	0	18
RFA_00779	Corona_pk3 links to Rfam database...	0.71	0.50	1.00	9	1944	0	0	0	0	9
RFA_00808	RydC links to Rfam database...	0.68	0.56	0.82	9	2005	2	0	2	0	7
RFA_00809	RydC links to Rfam database...	0.41	0.38	0.46	6	2132	7	1	6	0	10

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
