Overview

Metric	McQFold		RDfolder
MCC	0.705	>	0.508
Average MCC ± 95% Confidence Intervals	0.757 ± 0.085	>	0.545 ± 0.084
Sensitivity	0.679	>	0.432
Positive Predictive Value	0.738	>	0.609
Total TP	593	>	377
Total TN	76794	<	76979
Total FP	225	<	245
Total FP CONTRA	30	>	22
Total FP INCONS	181	<	220
Total FP COMP	14	>	3
Total FN	280	<	496
P-value	3.56938820447e-08

^top

Performance plots

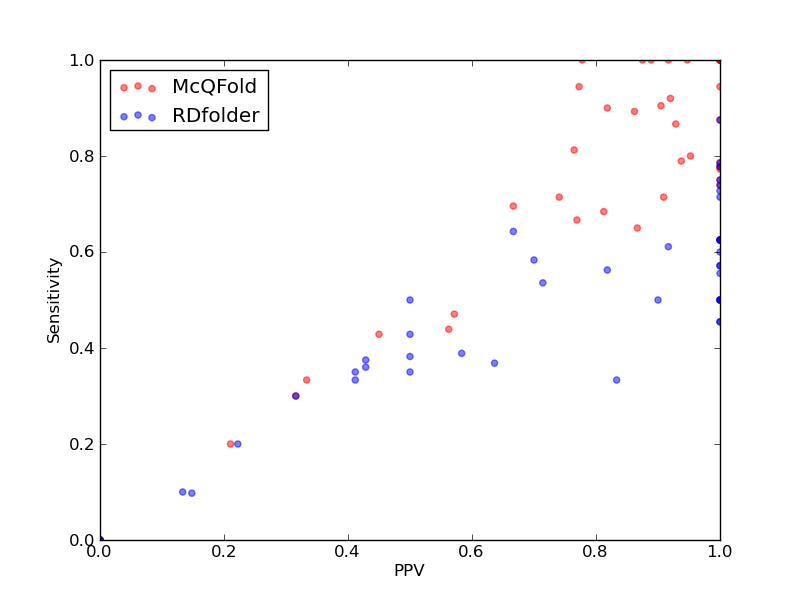

Comparison of performance of McQFold and RDfolder. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for McQFold and RDfolder).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for McQFold and RDfolder).
Comparison of average Matthews Correlation Coefficients (MCCs) for McQFold and RDfolder. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for McQFold and RDfolder).

^top

Performance of McQFold - scored higher in this pairwise comparison

1. Total counts & total scores for McQFold

Total Base Pair Counts
Total TP	593
Total TN	76794
Total FP	225
Total FP CONTRA	30
Total FP INCONS	181
Total FP COMP	14
Total FN	280

Total Scores
MCC	0.705
Average MCC ± 95% Confidence Intervals	0.757 ± 0.085
Sensitivity	0.679
Positive Predictive Value	0.738
Nr of predictions	46

^top

2. Individual counts for McQFold [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
PDB_00005	Tymo_tRNA-like links to Rfam database...	0.88	0.79	1.00	11	935	0	0	0	0	3
PDB_00018	-	0.19	0.20	0.21	4	1016	15	2	13	0	16
PDB_00020	-	0.75	0.65	0.87	13	765	2	0	2	0	7
PDB_00041	-	1.00	1.00	1.00	12	618	0	0	0	0	0
PDB_00053	-	1.00	1.00	1.00	11	424	0	0	0	0	0
PDB_00056	-	0.93	0.88	1.00	14	616	0	0	0	0	2
PDB_00123	-	0.33	0.33	0.33	12	4150	24	0	24	0	24
PDB_00124	-	0.86	0.90	0.82	9	485	2	2	0	0	1
PDB_00128	-	0.80	0.71	0.91	10	485	1	0	1	0	4
PDB_00134	-	0.79	0.63	1.00	5	373	0	0	0	0	3
PDB_00138	-	0.94	1.00	0.89	8	369	1	1	0	0	0
PDB_00209	-	0.96	1.00	0.92	11	549	1	1	0	0	0
PDB_00243	-	1.00	1.00	1.00	12	618	0	0	0	0	0
PDB_00352	-	0.86	0.79	0.94	15	1209	1	0	1	0	4
PDB_00571	tRNA links to Rfam database...	0.87	0.80	0.95	20	3300	1	1	0	0	5
PDB_00713	-	0.43	0.43	0.45	9	1996	11	0	11	0	12
PDB_00716	HDV_ribozyme links to Rfam database...	0.68	0.70	0.67	16	2677	9	0	8	1	7
PDB_00828	Purine links to Rfam database...	0.88	0.78	1.00	21	2464	0	0	0	0	6
PDB_00829	Purine links to Rfam database...	0.86	0.75	1.00	18	2260	0	0	0	0	6
PDB_00842	-	0.79	0.63	1.00	5	373	0	0	0	0	3
PDB_00851	-	0.49	0.44	0.56	18	4721	14	0	14	0	23
PDB_00857	-	1.00	1.00	1.00	15	1066	0	0	0	0	0
PDB_00874	-	-0.02	0.00	0.00	0	928	18	0	18	0	20
PDB_00886	-	-0.01	0.00	0.00	0	4147	39	0	39	0	40
PDB_00918	-	0.93	1.00	0.88	7	317	1	1	0	0	0
PDB_01009	tRNA links to Rfam database...	0.90	0.90	0.90	19	2464	5	0	2	3	2
PDB_01020	Purine links to Rfam database...	0.86	0.74	1.00	17	2261	1	0	0	1	6
PDB_01040	-	0.30	0.30	0.32	6	1109	13	0	13	0	14
PDB_01059	-	0.88	1.00	0.78	7	222	2	2	0	0	0
PDB_01073	SAM links to Rfam database...	0.52	0.47	0.57	16	4343	13	2	10	1	18
PDB_01194	-	0.89	0.87	0.93	13	482	1	1	0	0	2
PDB_01201	-	0.88	0.77	1.00	17	1111	0	0	0	0	5
PDB_01203	-	0.74	0.68	0.81	13	1160	3	2	1	0	6
PDB_01260	-	0.92	0.92	0.92	23	1805	2	1	1	0	2
PDB_01281	-	-0.04	0.00	0.00	0	365	13	0	13	0	14
PDB_01299	-	0.71	0.67	0.77	10	890	3	1	2	0	5
RFA_00632	HDV_ribozyme links to Rfam database...	0.88	0.89	0.86	25	4066	4	3	1	0	3
RFA_00636	HDV_ribozyme links to Rfam database...	0.73	0.71	0.74	20	3978	7	5	2	0	8
RFA_00767	Corona_pk3 links to Rfam database...	1.00	1.00	1.00	18	1873	0	0	0	0	0
RFA_00768	Corona_pk3 links to Rfam database...	1.00	1.00	1.00	18	1873	0	0	0	0	0
RFA_00769	Corona_pk3 links to Rfam database...	0.85	0.94	0.77	17	1931	5	4	1	0	1
RFA_00770	Corona_pk3 links to Rfam database...	0.88	0.78	1.00	14	2002	4	0	0	4	4
RFA_00773	Corona_pk3 links to Rfam database...	0.97	1.00	0.95	18	1934	5	1	0	4	0
RFA_00779	Corona_pk3 links to Rfam database...	0.97	0.94	1.00	17	1936	0	0	0	0	1
RFA_00808	RydC links to Rfam database...	1.00	1.00	1.00	16	2000	0	0	0	0	0
RFA_00809	RydC links to Rfam database...	0.79	0.81	0.76	13	2128	4	0	4	0	3

^top

Performance of RDfolder - scored lower in this pairwise comparison

1. Total counts & total scores for RDfolder

Total Base Pair Counts
Total TP	377
Total TN	76979
Total FP	245
Total FP CONTRA	22
Total FP INCONS	220
Total FP COMP	3
Total FN	496

Total Scores
MCC	0.508
Average MCC ± 95% Confidence Intervals	0.545 ± 0.084
Sensitivity	0.432
Positive Predictive Value	0.609
Nr of predictions	46

^top

2. Individual counts for RDfolder [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
PDB_00005	Tymo_tRNA-like links to Rfam database...	0.88	0.79	1.00	11	935	0	0	0	0	3
PDB_00018	-	0.20	0.20	0.22	4	1017	14	2	12	0	16
PDB_00020	-	0.41	0.35	0.50	7	766	7	0	7	0	13
PDB_00041	-	0.70	0.50	1.00	6	624	0	0	0	0	6
PDB_00053	-	0.67	0.45	1.00	5	430	0	0	0	0	6
PDB_00056	-	0.93	0.88	1.00	14	616	0	0	0	0	2
PDB_00123	-	0.75	0.61	0.92	22	4162	2	2	0	0	14
PDB_00124	-	0.70	0.50	1.00	5	491	0	0	0	0	5
PDB_00128	-	0.84	0.71	1.00	10	486	0	0	0	0	4
PDB_00134	-	0.79	0.63	1.00	5	373	0	0	0	0	3
PDB_00138	-	0.79	0.63	1.00	5	373	0	0	0	0	3
PDB_00209	-	0.67	0.45	1.00	5	556	0	0	0	0	6
PDB_00243	-	0.63	0.58	0.70	7	620	3	0	3	0	5
PDB_00352	-	0.48	0.37	0.64	7	1214	4	0	4	0	12
PDB_00571	tRNA links to Rfam database...	0.39	0.36	0.43	9	3300	12	0	12	0	16
PDB_00713	-	0.46	0.43	0.50	9	1998	9	0	9	0	12
PDB_00716	HDV_ribozyme links to Rfam database...	-0.01	0.00	0.00	0	2684	18	1	16	1	23
PDB_00828	Purine links to Rfam database...	0.88	0.78	1.00	21	2464	0	0	0	0	6
PDB_00829	Purine links to Rfam database...	0.86	0.75	1.00	18	2260	0	0	0	0	6
PDB_00842	-	0.79	0.63	1.00	5	373	0	0	0	0	3
PDB_00851	-	0.11	0.10	0.15	4	4726	23	0	23	0	37
PDB_00857	-	0.77	0.60	1.00	9	1072	0	0	0	0	6
PDB_00874	-	0.10	0.10	0.13	2	931	13	2	11	0	18
PDB_00886	-	0.37	0.35	0.41	14	4152	20	0	20	0	26
PDB_00918	-	0.75	0.57	1.00	4	321	0	0	0	0	3
PDB_01009	tRNA links to Rfam database...	0.37	0.33	0.41	7	2468	10	0	10	0	14
PDB_01020	Purine links to Rfam database...	0.86	0.74	1.00	17	2261	1	0	0	1	6
PDB_01040	-	0.30	0.30	0.32	6	1109	13	0	13	0	14
PDB_01059	-	0.75	0.57	1.00	4	227	0	0	0	0	3
PDB_01073	SAM links to Rfam database...	0.43	0.38	0.50	13	4345	13	1	12	0	21
PDB_01194	-	0.52	0.33	0.83	5	490	1	1	0	0	10
PDB_01201	-	0.85	0.73	1.00	16	1112	0	0	0	0	6
PDB_01203	-	-0.01	0.00	0.00	0	1166	10	0	10	0	19
PDB_01260	-	-0.01	0.00	0.00	0	1817	13	0	13	0	25
PDB_01281	-	-0.03	0.00	0.00	0	366	12	0	12	0	14
PDB_01299	-	-0.01	0.00	0.00	0	897	6	2	4	0	15
RFA_00632	HDV_ribozyme links to Rfam database...	0.62	0.54	0.71	15	4074	6	1	5	0	13
RFA_00636	HDV_ribozyme links to Rfam database...	0.65	0.64	0.67	18	3978	9	3	6	0	10
RFA_00767	Corona_pk3 links to Rfam database...	0.71	0.50	1.00	9	1882	0	0	0	0	9
RFA_00768	Corona_pk3 links to Rfam database...	0.74	0.56	1.00	10	1881	0	0	0	0	8
RFA_00769	Corona_pk3 links to Rfam database...	0.50	0.50	0.50	9	1935	9	4	5	0	9
RFA_00770	Corona_pk3 links to Rfam database...	0.47	0.39	0.58	7	2004	5	1	4	0	11
RFA_00773	Corona_pk3 links to Rfam database...	0.67	0.50	0.90	9	1943	1	1	0	0	9
RFA_00779	Corona_pk3 links to Rfam database...	0.71	0.50	1.00	9	1944	0	0	0	0	9
RFA_00808	RydC links to Rfam database...	0.68	0.56	0.82	9	2005	3	0	2	1	7
RFA_00809	RydC links to Rfam database...	0.40	0.38	0.43	6	2131	8	1	7	0	10

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
