Overview

Metric	Pknots		CentroidFold
MCC	0.697	>	0.544
Average MCC ± 95% Confidence Intervals	0.757 ± 0.084	>	0.586 ± 0.086
Sensitivity	0.668	>	0.485
Positive Predictive Value	0.733	>	0.621
Total TP	583	>	423
Total TN	76803	<	76917
Total FP	237	<	265
Total FP CONTRA	31	>	25
Total FP INCONS	181	<	233
Total FP COMP	25	>	7
Total FN	290	<	450
P-value	3.56938820447e-08

^top

Performance plots

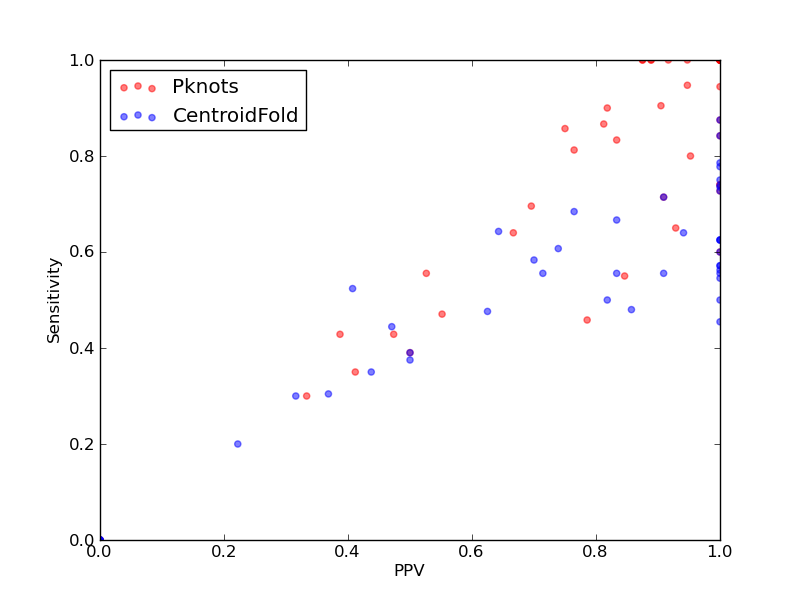

Comparison of performance of Pknots and CentroidFold. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for Pknots and CentroidFold).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for Pknots and CentroidFold).
Comparison of average Matthews Correlation Coefficients (MCCs) for Pknots and CentroidFold. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for Pknots and CentroidFold).

^top

Performance of Pknots - scored higher in this pairwise comparison

1. Total counts & total scores for Pknots

Total Base Pair Counts
Total TP	583
Total TN	76803
Total FP	237
Total FP CONTRA	31
Total FP INCONS	181
Total FP COMP	25
Total FN	290

Total Scores
MCC	0.697
Average MCC ± 95% Confidence Intervals	0.757 ± 0.084
Sensitivity	0.668
Positive Predictive Value	0.733
Nr of predictions	46

^top

2. Individual counts for Pknots [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
PDB_00005	Tymo_tRNA-like links to Rfam database...	1.00	1.00	1.00	14	932	0	0	0	0	0
PDB_00018	-	0.68	0.55	0.85	11	1022	2	2	0	0	9
PDB_00020	-	0.77	0.65	0.93	13	766	1	0	1	0	7
PDB_00041	-	1.00	1.00	1.00	12	618	0	0	0	0	0
PDB_00053	-	1.00	1.00	1.00	11	424	0	0	0	0	0
PDB_00056	-	0.93	0.88	1.00	14	616	0	0	0	0	2
PDB_00123	-	-0.01	0.00	0.00	0	4153	33	0	33	0	36
PDB_00124	-	0.86	0.90	0.82	9	485	2	2	0	0	1
PDB_00128	-	0.80	0.71	0.91	10	485	1	0	1	0	4
PDB_00134	-	0.94	1.00	0.89	8	369	1	1	0	0	0
PDB_00138	-	0.94	1.00	0.89	8	369	1	1	0	0	0
PDB_00209	-	0.96	1.00	0.92	11	549	1	1	0	0	0
PDB_00243	-	1.00	1.00	1.00	12	618	0	0	0	0	0
PDB_00352	-	0.92	0.84	1.00	16	1209	0	0	0	0	3
PDB_00571	tRNA links to Rfam database...	0.87	0.80	0.95	20	3300	1	1	0	0	5
PDB_00713	-	0.45	0.43	0.47	9	1997	10	0	10	0	12
PDB_00716	HDV_ribozyme links to Rfam database...	0.69	0.70	0.70	16	2678	8	0	7	1	7
PDB_00828	Purine links to Rfam database...	0.86	0.74	1.00	20	2465	2	0	0	2	7
PDB_00829	Purine links to Rfam database...	0.60	0.46	0.79	11	2264	5	0	3	2	13
PDB_00842	-	1.00	1.00	1.00	8	370	0	0	0	0	0
PDB_00851	-	0.44	0.39	0.50	16	4721	16	0	16	0	25
PDB_00857	-	1.00	1.00	1.00	15	1066	0	0	0	0	0
PDB_00874	-	-0.02	0.00	0.00	0	930	16	0	16	0	20
PDB_00886	-	0.37	0.35	0.41	14	4152	20	0	20	0	26
PDB_00918	-	0.93	1.00	0.88	7	317	1	1	0	0	0
PDB_01009	tRNA links to Rfam database...	0.90	0.90	0.90	19	2464	4	0	2	2	2
PDB_01020	Purine links to Rfam database...	0.86	0.74	1.00	17	2261	3	0	0	3	6
PDB_01040	-	0.30	0.30	0.33	6	1110	12	0	12	0	14
PDB_01059	-	0.93	1.00	0.88	7	223	1	1	0	0	0
PDB_01073	SAM links to Rfam database...	0.51	0.47	0.55	16	4342	14	2	11	1	18
PDB_01194	-	0.77	0.60	1.00	9	487	0	0	0	0	6
PDB_01201	-	0.85	0.73	1.00	16	1112	0	0	0	0	6
PDB_01203	-	0.95	0.95	0.95	18	1157	1	1	0	0	1
PDB_01260	-	0.65	0.64	0.67	16	1806	8	1	7	0	9
PDB_01281	-	-0.03	0.00	0.00	0	366	12	0	12	0	14
PDB_01299	-	0.84	0.87	0.81	13	887	3	1	2	0	2
RFA_00632	HDV_ribozyme links to Rfam database...	0.40	0.43	0.39	12	4064	19	4	15	0	16
RFA_00636	HDV_ribozyme links to Rfam database...	0.80	0.86	0.75	24	3973	8	6	2	0	4
RFA_00767	Corona_pk3 links to Rfam database...	1.00	1.00	1.00	18	1873	4	0	0	4	0
RFA_00768	Corona_pk3 links to Rfam database...	1.00	1.00	1.00	18	1873	3	0	0	3	0
RFA_00769	Corona_pk3 links to Rfam database...	0.54	0.56	0.53	10	1934	9	4	5	0	8
RFA_00770	Corona_pk3 links to Rfam database...	0.97	0.94	1.00	17	1999	3	0	0	3	1
RFA_00773	Corona_pk3 links to Rfam database...	0.97	1.00	0.95	18	1934	4	1	0	3	0
RFA_00779	Corona_pk3 links to Rfam database...	0.83	0.83	0.83	15	1935	4	1	2	1	3
RFA_00808	RydC links to Rfam database...	1.00	1.00	1.00	16	2000	0	0	0	0	0
RFA_00809	RydC links to Rfam database...	0.79	0.81	0.76	13	2128	4	0	4	0	3

^top

Performance of CentroidFold - scored lower in this pairwise comparison

1. Total counts & total scores for CentroidFold

Total Base Pair Counts
Total TP	423
Total TN	76917
Total FP	265
Total FP CONTRA	25
Total FP INCONS	233
Total FP COMP	7
Total FN	450

Total Scores
MCC	0.544
Average MCC ± 95% Confidence Intervals	0.586 ± 0.086
Sensitivity	0.485
Positive Predictive Value	0.621
Nr of predictions	46

^top

2. Individual counts for CentroidFold [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
PDB_00005	Tymo_tRNA-like links to Rfam database...	0.88	0.79	1.00	11	935	0	0	0	0	3
PDB_00018	-	0.20	0.20	0.22	4	1017	14	2	12	0	16
PDB_00020	-	0.38	0.35	0.44	7	764	9	0	9	0	13
PDB_00041	-	0.70	0.50	1.00	6	624	0	0	0	0	6
PDB_00053	-	0.73	0.55	1.00	6	429	0	0	0	0	5
PDB_00056	-	0.93	0.88	1.00	14	616	0	0	0	0	2
PDB_00123	-	-0.01	0.00	0.00	0	4151	35	0	35	0	36
PDB_00124	-	-0.02	0.00	0.00	0	488	8	2	6	0	10
PDB_00128	-	0.80	0.71	0.91	10	485	1	0	1	0	4
PDB_00134	-	0.79	0.63	1.00	5	373	0	0	0	0	3
PDB_00138	-	0.79	0.63	1.00	5	373	0	0	0	0	3
PDB_00209	-	0.67	0.45	1.00	5	556	0	0	0	0	6
PDB_00243	-	0.63	0.58	0.70	7	620	3	0	3	0	5
PDB_00352	-	0.92	0.84	1.00	16	1209	0	0	0	0	3
PDB_00571	tRNA links to Rfam database...	0.77	0.64	0.94	16	3304	1	1	0	0	9
PDB_00713	-	0.54	0.48	0.63	10	2000	6	1	5	0	11
PDB_00716	HDV_ribozyme links to Rfam database...	0.33	0.30	0.37	7	2682	13	0	12	1	16
PDB_00828	Purine links to Rfam database...	0.88	0.78	1.00	21	2464	0	0	0	0	6
PDB_00829	Purine links to Rfam database...	0.86	0.75	1.00	18	2260	0	0	0	0	6
PDB_00842	-	0.79	0.63	1.00	5	373	0	0	0	0	3
PDB_00851	-	0.44	0.39	0.50	16	4721	16	0	16	0	25
PDB_00857	-	0.77	0.60	1.00	9	1072	0	0	0	0	6
PDB_00874	-	-0.02	0.00	0.00	0	929	17	0	17	0	20
PDB_00886	-	-0.01	0.00	0.00	0	4148	38	0	38	0	40
PDB_00918	-	0.75	0.57	1.00	4	321	0	0	0	0	3
PDB_01009	tRNA links to Rfam database...	0.46	0.52	0.41	11	2458	16	5	11	0	10
PDB_01020	Purine links to Rfam database...	0.86	0.74	1.00	17	2261	1	0	0	1	6
PDB_01040	-	0.30	0.30	0.32	6	1109	13	0	13	0	14
PDB_01059	-	0.75	0.57	1.00	4	227	0	0	0	0	3
PDB_01073	SAM links to Rfam database...	0.86	0.74	1.00	25	4346	1	0	0	1	9
PDB_01194	-	-0.02	0.00	0.00	0	487	9	0	9	0	15
PDB_01201	-	0.85	0.73	1.00	16	1112	0	0	0	0	6
PDB_01203	-	0.72	0.68	0.76	13	1159	4	3	1	0	6
PDB_01260	-	0.64	0.48	0.86	12	1816	2	0	2	0	13
PDB_01281	-	-0.03	0.00	0.00	0	366	12	0	12	0	14
PDB_01299	-	0.74	0.67	0.83	10	891	2	1	1	0	5
RFA_00632	HDV_ribozyme links to Rfam database...	0.67	0.61	0.74	17	4072	6	1	5	0	11
RFA_00636	HDV_ribozyme links to Rfam database...	0.64	0.64	0.64	18	3977	10	4	6	0	10
RFA_00767	Corona_pk3 links to Rfam database...	0.74	0.56	1.00	10	1881	0	0	0	0	8
RFA_00768	Corona_pk3 links to Rfam database...	0.45	0.44	0.47	8	1874	9	1	8	0	10
RFA_00769	Corona_pk3 links to Rfam database...	0.63	0.56	0.71	10	1939	4	3	1	0	8
RFA_00770	Corona_pk3 links to Rfam database...	0.64	0.50	0.82	9	2005	4	0	2	2	9
RFA_00773	Corona_pk3 links to Rfam database...	0.71	0.56	0.91	10	1942	3	1	0	2	8
RFA_00779	Corona_pk3 links to Rfam database...	0.68	0.56	0.83	10	1941	2	0	2	0	8
RFA_00808	RydC links to Rfam database...	0.75	0.56	1.00	9	2007	0	0	0	0	7
RFA_00809	RydC links to Rfam database...	0.43	0.38	0.50	6	2133	6	0	6	0	10

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
