Overview

Metric	Vsfold5		CMfinder(seed)
MCC	0.372	>	0.359
Average MCC ± 95% Confidence Intervals	0.412 ± 0.105	>	0.398 ± 0.088
Sensitivity	0.348	>	0.186
Positive Predictive Value	0.401	<	0.698
Total TP	538	>	287
Total TN	843732	<	844664
Total FP	871	>	125
Total FP CONTRA	111	>	6
Total FP INCONS	694	>	118
Total FP COMP	66	>	1
Total FN	1009	<	1260
P-value	1.23414297917e-07

^top

Performance plots

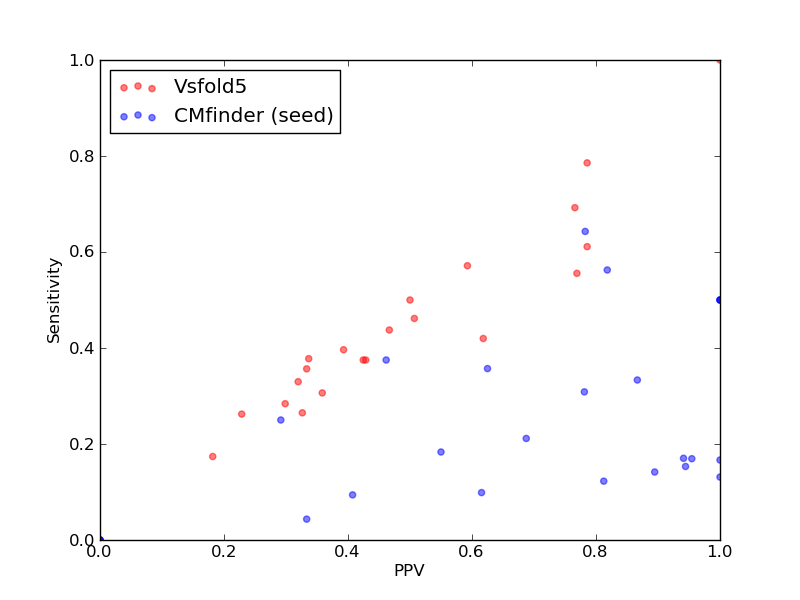

Comparison of performance of Vsfold5 and CMfinder(seed). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for Vsfold5 and CMfinder(seed)).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for Vsfold5 and CMfinder(seed)).

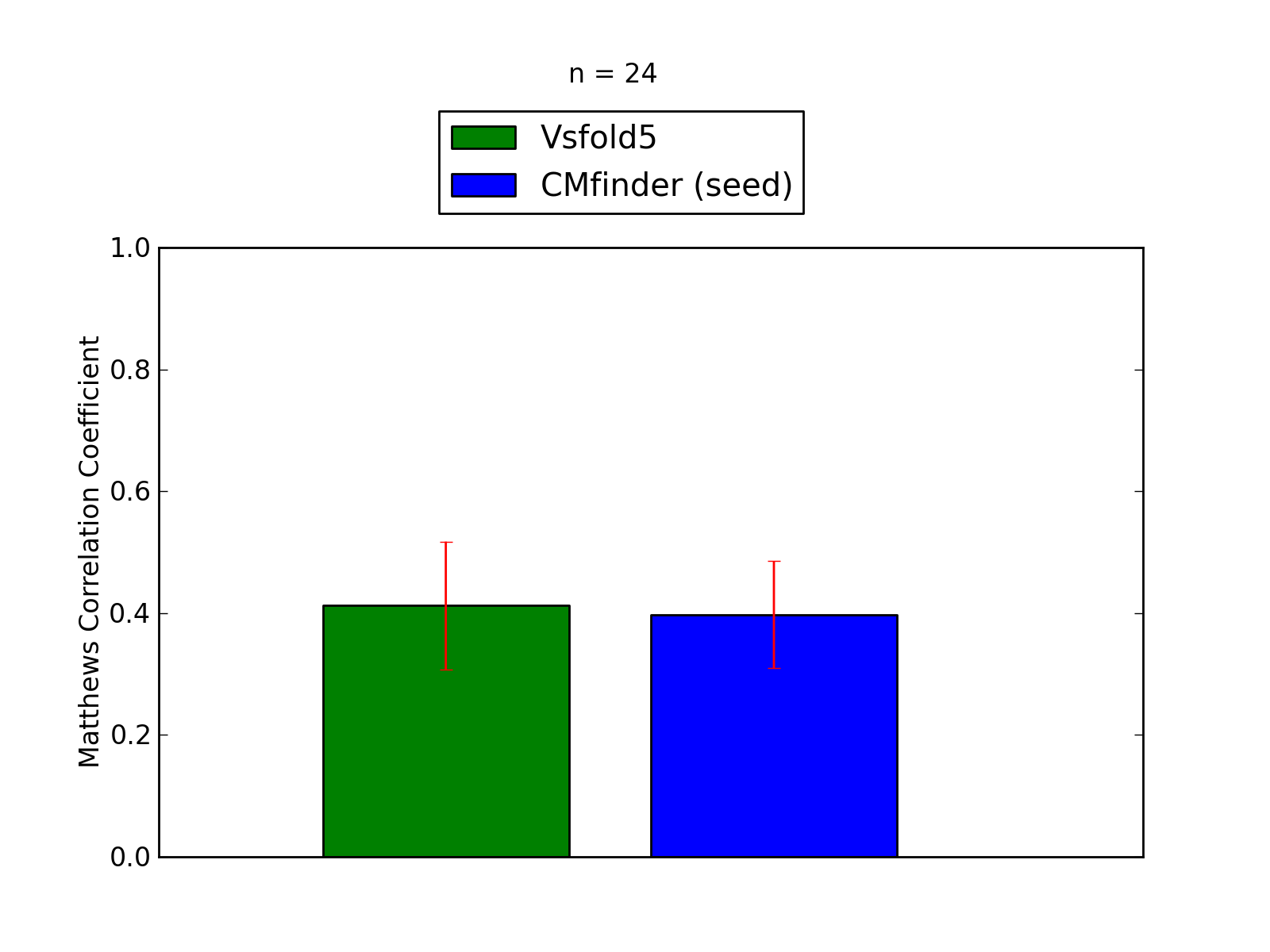

Comparison of average Matthews Correlation Coefficients (MCCs) for Vsfold5 and CMfinder(seed). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for Vsfold5 and CMfinder(seed)).

^top

Performance of Vsfold5 - scored higher in this pairwise comparison

1. Total counts & total scores for Vsfold5

Total Base Pair Counts
Total TP	538
Total TN	843732
Total FP	871
Total FP CONTRA	111
Total FP INCONS	694
Total FP COMP	66
Total FN	1009

Total Scores
MCC	0.372
Average MCC ± 95% Confidence Intervals	0.412 ± 0.105
Sensitivity	0.348
Positive Predictive Value	0.401
Nr of predictions	24

^top

2. Individual counts for Vsfold5 [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
CRW_00016	Intron_gpI links to Rfam database...	0.40	0.38	0.42	45	77315	67	4	57	6	75
CRW_00610	Intron_gpI links to Rfam database...	0.29	0.28	0.30	23	36238	57	6	48	3	58
CRW_00613	Intron_gpI links to Rfam database...	0.48	0.46	0.51	36	34909	41	2	33	6	42
CRW_00618	Intron_gpI links to Rfam database...	0.24	0.26	0.23	16	56210	76	9	45	22	45
CRW_00633	Intron_gpI links to Rfam database...	0.00	0.00	0.00	0	63546	0	0	0	0	106
CRW_00634	Intron_gpI links to Rfam database...	0.32	0.33	0.32	31	64523	75	10	56	9	63
CRW_00670	Intron_gpI links to Rfam database...	0.40	0.38	0.43	45	70020	61	3	57	1	75
CRW_00671	Intron_gpI links to Rfam database...	0.29	0.26	0.33	31	62740	64	2	62	0	86
CRW_00672	Intron_gpI links to Rfam database...	0.39	0.40	0.39	44	72278	70	14	54	2	67
CRW_00674	Intron_gpI links to Rfam database...	0.33	0.31	0.36	38	83330	74	5	63	6	86
CRW_00676	Intron_gpI links to Rfam database...	0.34	0.36	0.33	41	93405	88	19	63	6	74
CRW_00692	Intron_gpI links to Rfam database...	0.36	0.38	0.34	34	68534	67	21	46	0	56
PDB_00005	Tymo_tRNA-like links to Rfam database...	0.78	0.79	0.79	11	932	3	1	2	0	3
PDB_00716	HDV_ribozyme links to Rfam database...	0.17	0.17	0.18	4	2679	19	0	18	1	19
PDB_00827	Intron_gpI links to Rfam database...	0.51	0.42	0.62	34	26973	22	0	21	1	47
PDB_01092	glmS links to Rfam database...	0.73	0.69	0.77	36	10106	12	2	9	1	16
RFA_00632	HDV_ribozyme links to Rfam database...	-0.01	0.00	0.00	0	4073	22	0	22	0	28
RFA_00636	HDV_ribozyme links to Rfam database...	0.58	0.57	0.59	16	3978	11	1	10	0	12
RFA_00769	Corona_pk3 links to Rfam database...	0.50	0.50	0.50	9	1935	9	4	5	0	9
RFA_00770	Corona_pk3 links to Rfam database...	0.65	0.56	0.77	10	2003	3	3	0	0	8
RFA_00773	Corona_pk3 links to Rfam database...	-0.01	0.00	0.00	0	1936	19	1	16	2	18
RFA_00779	Corona_pk3 links to Rfam database...	0.69	0.61	0.79	11	1939	3	3	0	0	7
RFA_00808	RydC links to Rfam database...	1.00	1.00	1.00	16	2000	0	0	0	0	0
RFA_00809	RydC links to Rfam database...	0.45	0.44	0.47	7	2130	8	1	7	0	9

^top

Performance of CMfinder(seed) - scored lower in this pairwise comparison

1. Total counts & total scores for CMfinder(seed)

Total Base Pair Counts
Total TP	287
Total TN	844664
Total FP	125
Total FP CONTRA	6
Total FP INCONS	118
Total FP COMP	1
Total FN	1260

Total Scores
MCC	0.359
Average MCC ± 95% Confidence Intervals	0.398 ± 0.088
Sensitivity	0.186
Positive Predictive Value	0.698
Nr of predictions	24

^top

2. Individual counts for CMfinder(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
CRW_00016	Intron_gpI links to Rfam database...	0.36	0.14	0.89	17	77402	2	0	2	0	103
CRW_00610	Intron_gpI links to Rfam database...	0.49	0.31	0.78	25	36283	7	1	6	0	56
CRW_00613	Intron_gpI links to Rfam database...	0.54	0.33	0.87	26	34950	4	0	4	0	52
CRW_00618	Intron_gpI links to Rfam database...	0.36	0.13	1.00	8	56272	0	0	0	0	53
CRW_00633	Intron_gpI links to Rfam database...	0.32	0.12	0.81	13	63530	3	1	2	0	93
CRW_00634	Intron_gpI links to Rfam database...	0.40	0.17	0.94	16	64603	1	0	1	0	78
CRW_00670	Intron_gpI links to Rfam database...	0.32	0.18	0.55	22	70085	18	0	18	0	98
CRW_00671	Intron_gpI links to Rfam database...	0.20	0.09	0.41	11	62808	16	0	16	0	106
CRW_00672	Intron_gpI links to Rfam database...	0.38	0.15	0.94	17	72372	1	0	1	0	94
CRW_00674	Intron_gpI links to Rfam database...	0.40	0.17	0.95	21	83414	1	0	1	0	103
CRW_00676	Intron_gpI links to Rfam database...	0.12	0.04	0.33	5	93513	10	1	9	0	110
CRW_00692	Intron_gpI links to Rfam database...	0.41	0.17	1.00	15	68620	0	0	0	0	75
PDB_00005	Tymo_tRNA-like links to Rfam database...	0.47	0.36	0.63	5	938	3	0	3	0	9
PDB_00716	HDV_ribozyme links to Rfam database...	-0.01	0.00	0.00	0	2688	13	0	13	0	23
PDB_00827	Intron_gpI links to Rfam database...	0.25	0.10	0.62	8	27015	5	0	5	0	73
PDB_01092	glmS links to Rfam database...	0.38	0.21	0.69	11	10137	6	0	5	1	41
RFA_00632	HDV_ribozyme links to Rfam database...	0.27	0.25	0.29	7	4071	17	0	17	0	21
RFA_00636	HDV_ribozyme links to Rfam database...	0.71	0.64	0.78	18	3982	5	2	3	0	10
RFA_00769	Corona_pk3 links to Rfam database...	0.71	0.50	1.00	9	1944	0	0	0	0	9
RFA_00770	Corona_pk3 links to Rfam database...	0.71	0.50	1.00	9	2007	0	0	0	0	9
RFA_00773	Corona_pk3 links to Rfam database...	0.00	0.00	0.00	0	1949	4	0	4	0	18
RFA_00779	Corona_pk3 links to Rfam database...	0.71	0.50	1.00	9	1944	0	0	0	0	9
RFA_00808	RydC links to Rfam database...	0.68	0.56	0.82	9	2005	2	0	2	0	7
RFA_00809	RydC links to Rfam database...	0.41	0.38	0.46	6	2132	7	1	6	0	10

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
