Overview

Metric	CentroidFold		Fold
MCC	0.482	>	0.453
Average MCC ± 95% Confidence Intervals	0.548 ± 0.084	>	0.528 ± 0.080
Sensitivity	0.430	<	0.431
Positive Predictive Value	0.548	>	0.485
Total TP	507	<	508
Total TN	158581	>	158458
Total FP	427	<	557
Total FP CONTRA	53	<	71
Total FP INCONS	365	<	469
Total FP COMP	9	<	17
Total FN	671	>	670
P-value	3.56938820447e-08

^top

Performance plots

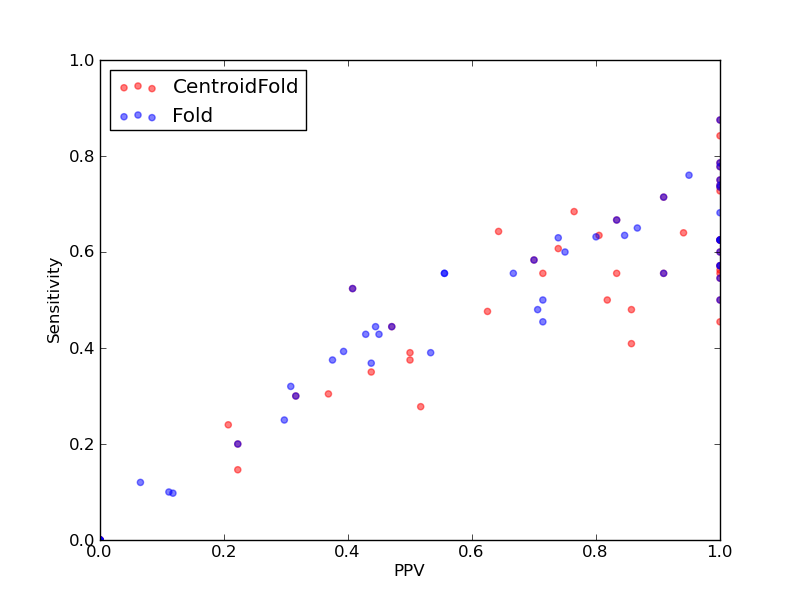

Comparison of performance of CentroidFold and Fold. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for CentroidFold and Fold).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for CentroidFold and Fold).
Comparison of average Matthews Correlation Coefficients (MCCs) for CentroidFold and Fold. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for CentroidFold and Fold).

^top

Performance of CentroidFold - scored higher in this pairwise comparison

1. Total counts & total scores for CentroidFold

Total Base Pair Counts
Total TP	507
Total TN	158581
Total FP	427
Total FP CONTRA	53
Total FP INCONS	365
Total FP COMP	9
Total FN	671

Total Scores
MCC	0.482
Average MCC ± 95% Confidence Intervals	0.548 ± 0.084
Sensitivity	0.430
Positive Predictive Value	0.548
Nr of predictions	53

^top

2. Individual counts for CentroidFold [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
PDB_00005	Tymo_tRNA-like links to Rfam database...	0.88	0.79	1.00	11	935	0	0	0	0	3
PDB_00018	-	0.20	0.20	0.22	4	1017	14	2	12	0	16
PDB_00020	-	0.38	0.35	0.44	7	764	9	0	9	0	13
PDB_00041	-	0.70	0.50	1.00	6	624	0	0	0	0	6
PDB_00053	-	0.73	0.55	1.00	6	429	0	0	0	0	5
PDB_00056	-	0.93	0.88	1.00	14	616	0	0	0	0	2
PDB_00123	-	-0.01	0.00	0.00	0	4151	35	0	35	0	36
PDB_00124	-	-0.02	0.00	0.00	0	488	8	2	6	0	10
PDB_00128	-	0.80	0.71	0.91	10	485	1	0	1	0	4
PDB_00134	-	0.79	0.63	1.00	5	373	0	0	0	0	3
PDB_00138	-	0.79	0.63	1.00	5	373	0	0	0	0	3
PDB_00209	-	0.67	0.45	1.00	5	556	0	0	0	0	6
PDB_00243	-	0.63	0.58	0.70	7	620	3	0	3	0	5
PDB_00352	-	0.92	0.84	1.00	16	1209	0	0	0	0	3
PDB_00370	-	0.00	0.00	0.00	0	15219	6	0	6	0	25
PDB_00447	-	0.59	0.41	0.86	18	7119	3	3	0	0	26
PDB_00571	tRNA links to Rfam database...	0.77	0.64	0.94	16	3304	1	1	0	0	9
PDB_00713	-	0.54	0.48	0.63	10	2000	6	1	5	0	11
PDB_00716	HDV_ribozyme links to Rfam database...	0.33	0.30	0.37	7	2682	13	0	12	1	16
PDB_00804	-	0.22	0.24	0.21	12	15342	46	10	36	0	38
PDB_00828	Purine links to Rfam database...	0.88	0.78	1.00	21	2464	0	0	0	0	6
PDB_00829	Purine links to Rfam database...	0.86	0.75	1.00	18	2260	0	0	0	0	6
PDB_00842	-	0.79	0.63	1.00	5	373	0	0	0	0	3
PDB_00851	-	0.44	0.39	0.50	16	4721	16	0	16	0	25
PDB_00857	-	0.77	0.60	1.00	9	1072	0	0	0	0	6
PDB_00874	-	-0.02	0.00	0.00	0	929	17	0	17	0	20
PDB_00886	-	-0.01	0.00	0.00	0	4148	38	0	38	0	40
PDB_00918	-	0.75	0.57	1.00	4	321	0	0	0	0	3
PDB_01009	tRNA links to Rfam database...	0.46	0.52	0.41	11	2458	16	5	11	0	10
PDB_01020	Purine links to Rfam database...	0.86	0.74	1.00	17	2261	1	0	0	1	6
PDB_01040	-	0.30	0.30	0.32	6	1109	13	0	13	0	14
PDB_01059	-	0.75	0.57	1.00	4	227	0	0	0	0	3
PDB_01070	-	0.38	0.28	0.52	15	12691	14	0	14	0	39
PDB_01073	SAM links to Rfam database...	0.86	0.74	1.00	25	4346	1	0	0	1	9
PDB_01092	glmS links to Rfam database...	0.71	0.63	0.80	33	10112	10	1	7	2	19
PDB_01194	-	-0.02	0.00	0.00	0	487	9	0	9	0	15
PDB_01201	-	0.85	0.73	1.00	16	1112	0	0	0	0	6
PDB_01203	-	0.72	0.68	0.76	13	1159	4	3	1	0	6
PDB_01250	-	0.18	0.15	0.22	6	12063	21	5	16	0	35
PDB_01260	-	0.64	0.48	0.86	12	1816	2	0	2	0	13
PDB_01281	-	-0.03	0.00	0.00	0	366	12	0	12	0	14
PDB_01299	-	0.74	0.67	0.83	10	891	2	1	1	0	5
PDB_01309	-	-0.01	0.00	0.00	0	9118	62	9	53	0	39
RFA_00632	HDV_ribozyme links to Rfam database...	0.67	0.61	0.74	17	4072	6	1	5	0	11
RFA_00636	HDV_ribozyme links to Rfam database...	0.64	0.64	0.64	18	3977	10	4	6	0	10
RFA_00767	Corona_pk3 links to Rfam database...	0.74	0.56	1.00	10	1881	0	0	0	0	8
RFA_00768	Corona_pk3 links to Rfam database...	0.45	0.44	0.47	8	1874	9	1	8	0	10
RFA_00769	Corona_pk3 links to Rfam database...	0.63	0.56	0.71	10	1939	4	3	1	0	8
RFA_00770	Corona_pk3 links to Rfam database...	0.64	0.50	0.82	9	2005	4	0	2	2	9
RFA_00773	Corona_pk3 links to Rfam database...	0.71	0.56	0.91	10	1942	3	1	0	2	8
RFA_00779	Corona_pk3 links to Rfam database...	0.68	0.56	0.83	10	1941	2	0	2	0	8
RFA_00808	RydC links to Rfam database...	0.75	0.56	1.00	9	2007	0	0	0	0	7
RFA_00809	RydC links to Rfam database...	0.43	0.38	0.50	6	2133	6	0	6	0	10

^top

Performance of Fold - scored lower in this pairwise comparison

1. Total counts & total scores for Fold

Total Base Pair Counts
Total TP	508
Total TN	158458
Total FP	557
Total FP CONTRA	71
Total FP INCONS	469
Total FP COMP	17
Total FN	670

Total Scores
MCC	0.453
Average MCC ± 95% Confidence Intervals	0.528 ± 0.080
Sensitivity	0.431
Positive Predictive Value	0.485
Nr of predictions	53

^top

2. Individual counts for Fold [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
PDB_00005	Tymo_tRNA-like links to Rfam database...	0.88	0.79	1.00	11	935	0	0	0	0	3
PDB_00018	-	0.20	0.20	0.22	4	1017	14	2	12	0	16
PDB_00020	-	0.75	0.65	0.87	13	765	2	0	2	0	7
PDB_00041	-	0.70	0.50	1.00	6	624	0	0	0	0	6
PDB_00053	-	0.73	0.55	1.00	6	429	0	0	0	0	5
PDB_00056	-	0.93	0.88	1.00	14	616	0	0	0	0	2
PDB_00123	-	-0.01	0.00	0.00	0	4151	35	0	35	0	36
PDB_00124	-	0.59	0.50	0.71	5	489	2	0	2	0	5
PDB_00128	-	0.80	0.71	0.91	10	485	1	0	1	0	4
PDB_00134	-	0.79	0.63	1.00	5	373	0	0	0	0	3
PDB_00138	-	0.79	0.63	1.00	5	373	0	0	0	0	3
PDB_00209	-	0.56	0.45	0.71	5	554	2	0	2	0	6
PDB_00243	-	0.63	0.58	0.70	7	620	3	0	3	0	5
PDB_00352	-	0.39	0.37	0.44	7	1209	9	0	9	0	12
PDB_00370	-	0.09	0.12	0.07	3	15179	45	12	31	2	22
PDB_00447	-	0.27	0.25	0.30	11	7103	26	6	20	0	33
PDB_00571	tRNA links to Rfam database...	0.85	0.76	0.95	19	3301	1	1	0	0	6
PDB_00713	-	0.43	0.43	0.45	9	1996	11	0	11	0	12
PDB_00716	HDV_ribozyme links to Rfam database...	-0.01	0.00	0.00	0	2678	24	1	22	1	23
PDB_00804	-	0.31	0.32	0.31	16	15348	38	6	30	2	34
PDB_00828	Purine links to Rfam database...	0.88	0.78	1.00	21	2464	0	0	0	0	6
PDB_00829	Purine links to Rfam database...	0.86	0.75	1.00	18	2260	0	0	0	0	6
PDB_00842	-	0.79	0.63	1.00	5	373	0	0	0	0	3
PDB_00851	-	0.45	0.39	0.53	16	4723	14	0	14	0	25
PDB_00857	-	0.67	0.60	0.75	9	1069	3	0	3	0	6
PDB_00874	-	0.09	0.10	0.11	2	928	16	2	14	0	18
PDB_00886	-	-0.01	0.00	0.00	0	4148	38	0	38	0	40
PDB_00918	-	0.75	0.57	1.00	4	321	0	0	0	0	3
PDB_01009	tRNA links to Rfam database...	0.46	0.52	0.41	11	2458	16	5	11	0	10
PDB_01020	Purine links to Rfam database...	0.86	0.74	1.00	17	2261	1	0	0	1	6
PDB_01040	-	0.30	0.30	0.32	6	1109	13	0	13	0	14
PDB_01059	-	0.75	0.57	1.00	4	227	0	0	0	0	3
PDB_01070	-	0.68	0.63	0.74	34	12674	12	0	12	0	20
PDB_01073	SAM links to Rfam database...	0.86	0.74	1.00	25	4346	1	0	0	1	9
PDB_01092	glmS links to Rfam database...	0.73	0.63	0.85	33	10114	8	0	6	2	19
PDB_01194	-	0.77	0.60	1.00	9	487	0	0	0	0	6
PDB_01201	-	0.82	0.68	1.00	15	1113	0	0	0	0	7
PDB_01203	-	0.71	0.63	0.80	12	1161	3	2	1	0	7
PDB_01250	-	0.10	0.10	0.12	4	12056	30	7	23	0	37
PDB_01260	-	0.58	0.48	0.71	12	1813	5	1	4	0	13
PDB_01281	-	-0.03	0.00	0.00	0	366	12	0	12	0	14
PDB_01299	-	0.74	0.67	0.83	10	891	2	1	1	0	5
PDB_01309	-	-0.01	0.00	0.00	0	9118	62	9	53	0	39
RFA_00632	HDV_ribozyme links to Rfam database...	0.39	0.39	0.39	11	4067	17	2	15	0	17
RFA_00636	HDV_ribozyme links to Rfam database...	0.42	0.43	0.43	12	3977	16	2	14	0	16
RFA_00767	Corona_pk3 links to Rfam database...	0.44	0.44	0.44	8	1873	10	1	9	0	10
RFA_00768	Corona_pk3 links to Rfam database...	0.45	0.44	0.47	8	1874	10	1	8	1	10
RFA_00769	Corona_pk3 links to Rfam database...	0.55	0.56	0.56	10	1935	8	3	5	0	8
RFA_00770	Corona_pk3 links to Rfam database...	0.61	0.56	0.67	10	2001	8	0	5	3	8
RFA_00773	Corona_pk3 links to Rfam database...	0.71	0.56	0.91	10	1942	3	1	0	2	8
RFA_00779	Corona_pk3 links to Rfam database...	0.55	0.56	0.56	10	1935	8	3	5	0	8
RFA_00808	RydC links to Rfam database...	-0.01	0.00	0.00	0	2000	18	2	14	2	16
RFA_00809	RydC links to Rfam database...	0.37	0.38	0.38	6	2129	10	1	9	0	10

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
