Overview

Metric	CentroidHomfold‑LAST		Sfold
MCC	0.488	>	0.425
Average MCC ± 95% Confidence Intervals	0.553 ± 0.079	>	0.503 ± 0.086
Sensitivity	0.407	>	0.377
Positive Predictive Value	0.592	>	0.488
Total TP	479	>	444
Total TN	158697	>	158596
Total FP	335	<	477
Total FP CONTRA	36	<	54
Total FP INCONS	294	<	412
Total FP COMP	5	<	11
Total FN	699	<	734
P-value	3.56938820447e-08

^top

Performance plots

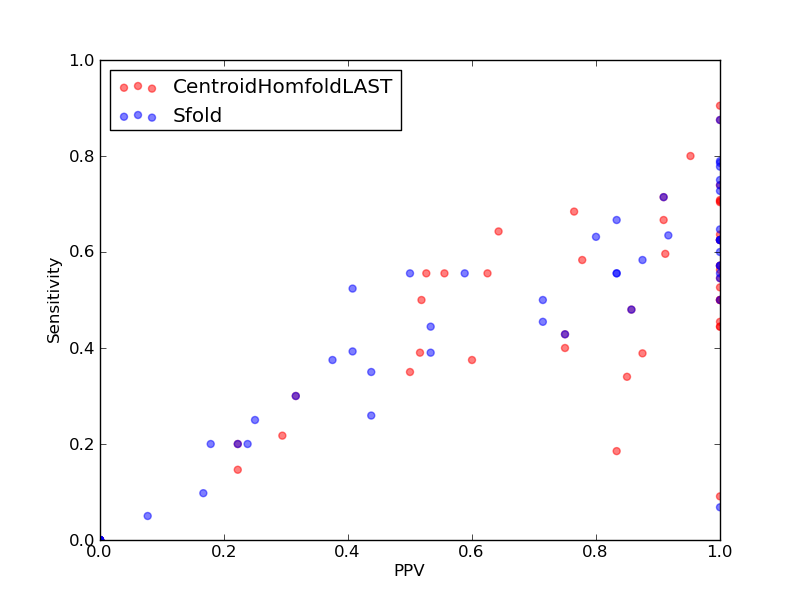

Comparison of performance of CentroidHomfold-LAST and Sfold. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for CentroidHomfold‑LAST and Sfold).

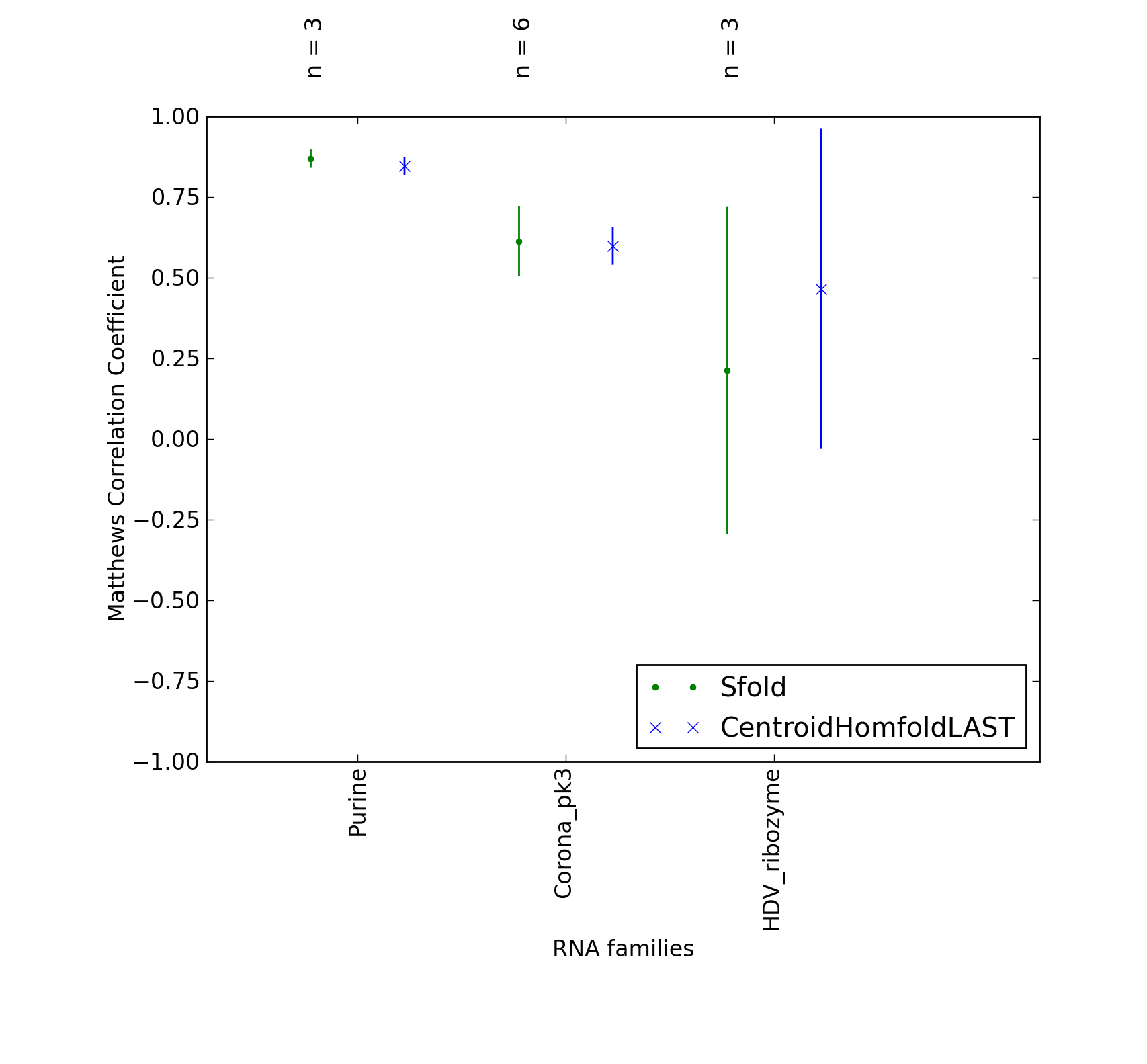

Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for CentroidHomfold‑LAST and Sfold).
Comparison of average Matthews Correlation Coefficients (MCCs) for CentroidHomfold-LAST and Sfold. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for CentroidHomfold‑LAST and Sfold).

^top

Performance of CentroidHomfold‑LAST - scored higher in this pairwise comparison

1. Total counts & total scores for CentroidHomfold‑LAST

Total Base Pair Counts
Total TP	479
Total TN	158697
Total FP	335
Total FP CONTRA	36
Total FP INCONS	294
Total FP COMP	5
Total FN	699

Total Scores
MCC	0.488
Average MCC ± 95% Confidence Intervals	0.553 ± 0.079
Sensitivity	0.407
Positive Predictive Value	0.592
Nr of predictions	53

^top

2. Individual counts for CentroidHomfold‑LAST [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
PDB_00005	Tymo_tRNA-like links to Rfam database...	0.70	0.50	1.00	7	939	0	0	0	0	7
PDB_00018	-	0.20	0.20	0.22	4	1017	14	2	12	0	16
PDB_00020	-	0.41	0.35	0.50	7	766	7	0	7	0	13
PDB_00041	-	0.70	0.50	1.00	6	624	0	0	0	0	6
PDB_00053	-	0.73	0.55	1.00	6	429	0	0	0	0	5
PDB_00056	-	0.93	0.88	1.00	14	616	0	0	0	0	2
PDB_00123	-	-0.01	0.00	0.00	0	4151	35	0	35	0	36
PDB_00124	-	0.70	0.50	1.00	5	491	0	0	0	0	5
PDB_00128	-	0.80	0.71	0.91	10	485	1	0	1	0	4
PDB_00134	-	0.79	0.63	1.00	5	373	0	0	0	0	3
PDB_00138	-	0.79	0.63	1.00	5	373	0	0	0	0	3
PDB_00209	-	0.67	0.45	1.00	5	556	0	0	0	0	6
PDB_00243	-	0.67	0.58	0.78	7	621	2	0	2	0	5
PDB_00352	-	0.72	0.53	1.00	10	1215	0	0	0	0	9
PDB_00370	-	0.00	0.00	0.00	0	15225	0	0	0	0	25
PDB_00447	-	0.30	0.09	1.00	4	7136	0	0	0	0	40
PDB_00571	tRNA links to Rfam database...	0.87	0.80	0.95	20	3300	1	1	0	0	5
PDB_00713	-	0.56	0.43	0.75	9	2004	3	0	3	0	12
PDB_00716	HDV_ribozyme links to Rfam database...	0.25	0.22	0.29	5	2684	12	0	12	0	18
PDB_00804	-	0.54	0.34	0.85	17	15380	3	0	3	0	33
PDB_00828	Purine links to Rfam database...	0.84	0.70	1.00	19	2466	0	0	0	0	8
PDB_00829	Purine links to Rfam database...	0.84	0.71	1.00	17	2261	0	0	0	0	7
PDB_00842	-	0.79	0.63	1.00	5	373	0	0	0	0	3
PDB_00851	-	0.44	0.39	0.52	16	4722	15	0	15	0	25
PDB_00857	-	0.54	0.40	0.75	6	1073	2	0	2	0	9
PDB_00874	-	-0.02	0.00	0.00	0	929	17	0	17	0	20
PDB_00886	-	-0.01	0.00	0.00	0	4148	38	0	38	0	40
PDB_00918	-	0.75	0.57	1.00	4	321	0	0	0	0	3
PDB_01009	tRNA links to Rfam database...	0.95	0.90	1.00	19	2466	2	0	0	2	2
PDB_01020	Purine links to Rfam database...	0.86	0.74	1.00	17	2261	0	0	0	0	6
PDB_01040	-	0.30	0.30	0.32	6	1109	13	0	13	0	14
PDB_01059	-	0.75	0.57	1.00	4	227	0	0	0	0	3
PDB_01070	-	0.39	0.19	0.83	10	12708	2	0	2	0	44
PDB_01073	SAM links to Rfam database...	0.84	0.71	1.00	24	4347	1	0	0	1	10
PDB_01092	glmS links to Rfam database...	0.74	0.60	0.91	31	10119	5	0	3	2	21
PDB_01194	-	-0.02	0.00	0.00	0	487	9	0	9	0	15
PDB_01201	-	0.79	0.64	1.00	14	1114	0	0	0	0	8
PDB_01203	-	0.72	0.68	0.76	13	1159	4	3	1	0	6
PDB_01250	-	0.18	0.15	0.22	6	12063	21	5	16	0	35
PDB_01260	-	0.64	0.48	0.86	12	1816	2	0	2	0	13
PDB_01281	-	-0.03	0.00	0.00	0	366	12	0	12	0	14
PDB_01299	-	0.78	0.67	0.91	10	892	1	1	0	0	5
PDB_01309	-	-0.01	0.00	0.00	0	9118	62	9	53	0	39
RFA_00632	HDV_ribozyme links to Rfam database...	0.51	0.50	0.52	14	4068	13	3	10	0	14
RFA_00636	HDV_ribozyme links to Rfam database...	0.64	0.64	0.64	18	3977	10	3	7	0	10
RFA_00767	Corona_pk3 links to Rfam database...	0.66	0.44	1.00	8	1883	0	0	0	0	10
RFA_00768	Corona_pk3 links to Rfam database...	0.66	0.44	1.00	8	1883	0	0	0	0	10
RFA_00769	Corona_pk3 links to Rfam database...	0.54	0.56	0.53	10	1934	9	4	5	0	8
RFA_00770	Corona_pk3 links to Rfam database...	0.58	0.39	0.88	7	2008	1	0	1	0	11
RFA_00773	Corona_pk3 links to Rfam database...	0.55	0.56	0.56	10	1935	8	3	5	0	8
RFA_00779	Corona_pk3 links to Rfam database...	0.59	0.56	0.63	10	1937	6	2	4	0	8
RFA_00808	RydC links to Rfam database...	0.75	0.56	1.00	9	2007	0	0	0	0	7
RFA_00809	RydC links to Rfam database...	0.47	0.38	0.60	6	2135	4	0	4	0	10

^top

Performance of Sfold - scored lower in this pairwise comparison

1. Total counts & total scores for Sfold

Total Base Pair Counts
Total TP	444
Total TN	158596
Total FP	477
Total FP CONTRA	54
Total FP INCONS	412
Total FP COMP	11
Total FN	734

Total Scores
MCC	0.425
Average MCC ± 95% Confidence Intervals	0.503 ± 0.086
Sensitivity	0.377
Positive Predictive Value	0.488
Nr of predictions	53

^top

2. Individual counts for Sfold [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
PDB_00005	Tymo_tRNA-like links to Rfam database...	0.88	0.79	1.00	11	935	0	0	0	0	3
PDB_00018	-	0.20	0.20	0.22	4	1017	14	2	12	0	16
PDB_00020	-	0.38	0.35	0.44	7	764	9	0	9	0	13
PDB_00041	-	0.70	0.50	1.00	6	624	0	0	0	0	6
PDB_00053	-	0.73	0.55	1.00	6	429	0	0	0	0	5
PDB_00056	-	0.93	0.88	1.00	14	616	0	0	0	0	2
PDB_00123	-	-0.01	0.00	0.00	0	4151	35	0	35	0	36
PDB_00124	-	0.59	0.50	0.71	5	489	2	0	2	0	5
PDB_00128	-	0.80	0.71	0.91	10	485	1	0	1	0	4
PDB_00134	-	0.79	0.63	1.00	5	373	0	0	0	0	3
PDB_00138	-	0.79	0.63	1.00	5	373	0	0	0	0	3
PDB_00209	-	0.56	0.45	0.71	5	554	2	0	2	0	6
PDB_00243	-	0.71	0.58	0.88	7	622	1	0	1	0	5
PDB_00352	-	0.89	0.79	1.00	15	1210	0	0	0	0	4
PDB_00370	-	0.00	0.00	0.00	0	15225	0	0	0	0	25
PDB_00447	-	0.26	0.07	1.00	3	7137	0	0	0	0	41
PDB_00571	tRNA links to Rfam database...	0.21	0.20	0.24	5	3300	16	6	10	0	20
PDB_00713	-	0.56	0.43	0.75	9	2004	3	0	3	0	12
PDB_00716	HDV_ribozyme links to Rfam database...	-0.01	0.00	0.00	0	2678	24	1	22	1	23
PDB_00804	-	0.19	0.20	0.18	10	15344	46	10	36	0	40
PDB_00828	Purine links to Rfam database...	0.88	0.78	1.00	21	2464	0	0	0	0	6
PDB_00829	Purine links to Rfam database...	0.86	0.75	1.00	18	2260	0	0	0	0	6
PDB_00842	-	0.79	0.63	1.00	5	373	0	0	0	0	3
PDB_00851	-	0.45	0.39	0.53	16	4723	14	0	14	0	25
PDB_00857	-	0.77	0.60	1.00	9	1072	0	0	0	0	6
PDB_00874	-	0.05	0.05	0.08	1	933	12	2	10	0	19
PDB_00886	-	-0.01	0.00	0.00	0	4148	38	0	38	0	40
PDB_00918	-	0.75	0.57	1.00	4	321	0	0	0	0	3
PDB_01009	tRNA links to Rfam database...	0.46	0.52	0.41	11	2458	16	5	11	0	10
PDB_01020	Purine links to Rfam database...	0.86	0.74	1.00	17	2261	1	0	0	1	6
PDB_01040	-	0.30	0.30	0.32	6	1109	13	0	13	0	14
PDB_01059	-	0.75	0.57	1.00	4	227	0	0	0	0	3
PDB_01070	-	0.33	0.26	0.44	14	12688	18	0	18	0	40
PDB_01073	SAM links to Rfam database...	0.80	0.65	1.00	22	4349	1	0	0	1	12
PDB_01092	glmS links to Rfam database...	0.76	0.63	0.92	33	10117	5	0	3	2	19
PDB_01194	-	-0.02	0.00	0.00	0	488	8	0	8	0	15
PDB_01201	-	0.85	0.73	1.00	16	1112	0	0	0	0	6
PDB_01203	-	0.71	0.63	0.80	12	1161	3	2	1	0	7
PDB_01250	-	0.13	0.10	0.17	4	12066	20	3	17	0	37
PDB_01260	-	0.64	0.48	0.86	12	1816	2	0	2	0	13
PDB_01281	-	-0.03	0.00	0.00	0	366	12	0	12	0	14
PDB_01299	-	0.74	0.67	0.83	10	891	2	1	1	0	5
PDB_01309	-	-0.01	0.00	0.00	0	9118	62	9	53	0	39
RFA_00632	HDV_ribozyme links to Rfam database...	0.24	0.25	0.25	7	4067	21	2	19	0	21
RFA_00636	HDV_ribozyme links to Rfam database...	0.40	0.39	0.41	11	3978	16	2	14	0	17
RFA_00767	Corona_pk3 links to Rfam database...	0.74	0.56	1.00	10	1881	0	0	0	0	8
RFA_00768	Corona_pk3 links to Rfam database...	0.48	0.44	0.53	8	1876	7	1	6	0	10
RFA_00769	Corona_pk3 links to Rfam database...	0.52	0.56	0.50	10	1933	10	4	6	0	8
RFA_00770	Corona_pk3 links to Rfam database...	0.68	0.56	0.83	10	2004	5	0	2	3	8
RFA_00773	Corona_pk3 links to Rfam database...	0.57	0.56	0.59	10	1936	7	1	6	0	8
RFA_00779	Corona_pk3 links to Rfam database...	0.68	0.56	0.83	10	1941	2	0	2	0	8
RFA_00808	RydC links to Rfam database...	-0.01	0.00	0.00	0	2000	19	2	14	3	16
RFA_00809	RydC links to Rfam database...	0.37	0.38	0.38	6	2129	10	1	9	0	10

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
